Presentation Transcript
sailboat hulls
Sailboat Hulls

Deep Keel Hull

Centerboard Hull

B 97 02-04

boat types
Boat Types

Canoe

Kayak

Inflatable Boat

Personal Watercraft

BS 98 01-03-1 - B 97 02-05-1

boat types3
Boat Types

Runabout

Cruiser

Sportsfisherman

BS 98 01-03-2 - B 97 02-05-2

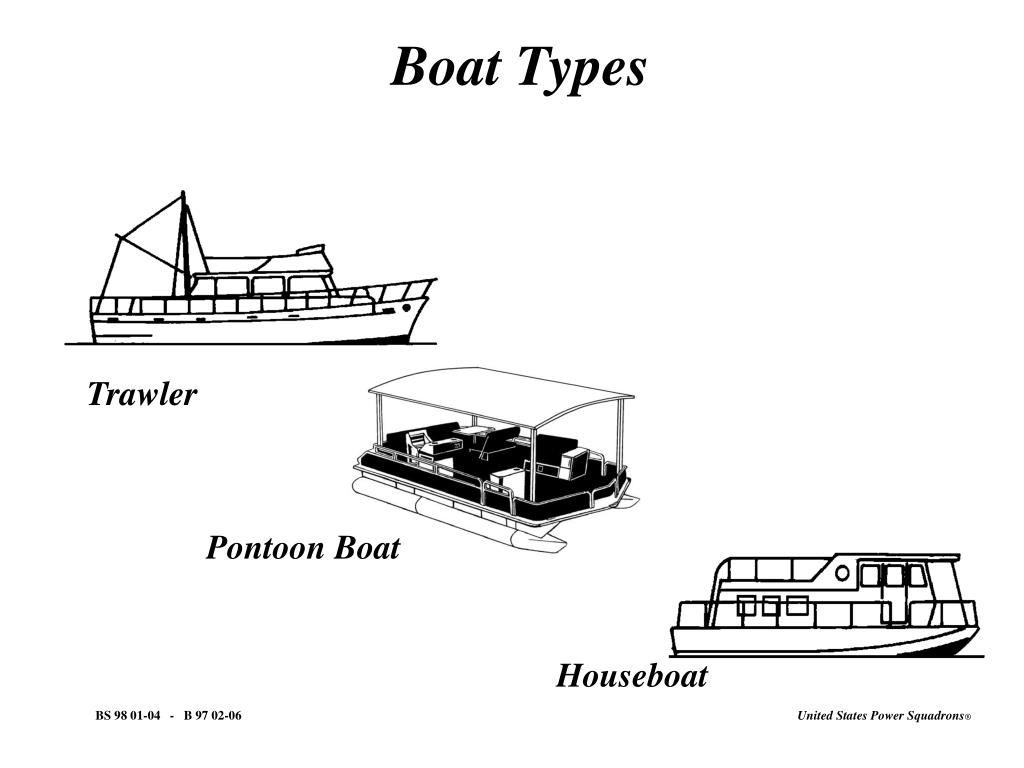

boat types4
Boat Types

Trawler

Pontoon Boat

Houseboat

BS 98 01-04 - B 97 02-06

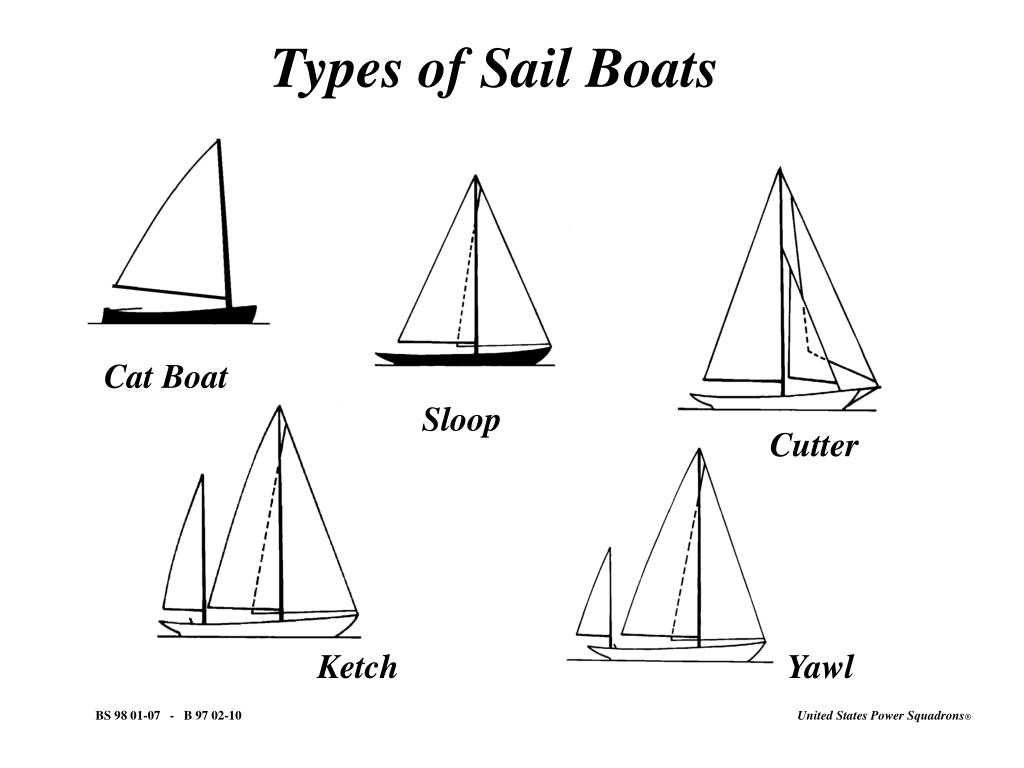

types of sail boats
Types of Sail Boats

Cat Boat

Sloop

Cutter

Ketch

Yawl

BS 98 01-07 - B 97 02-10

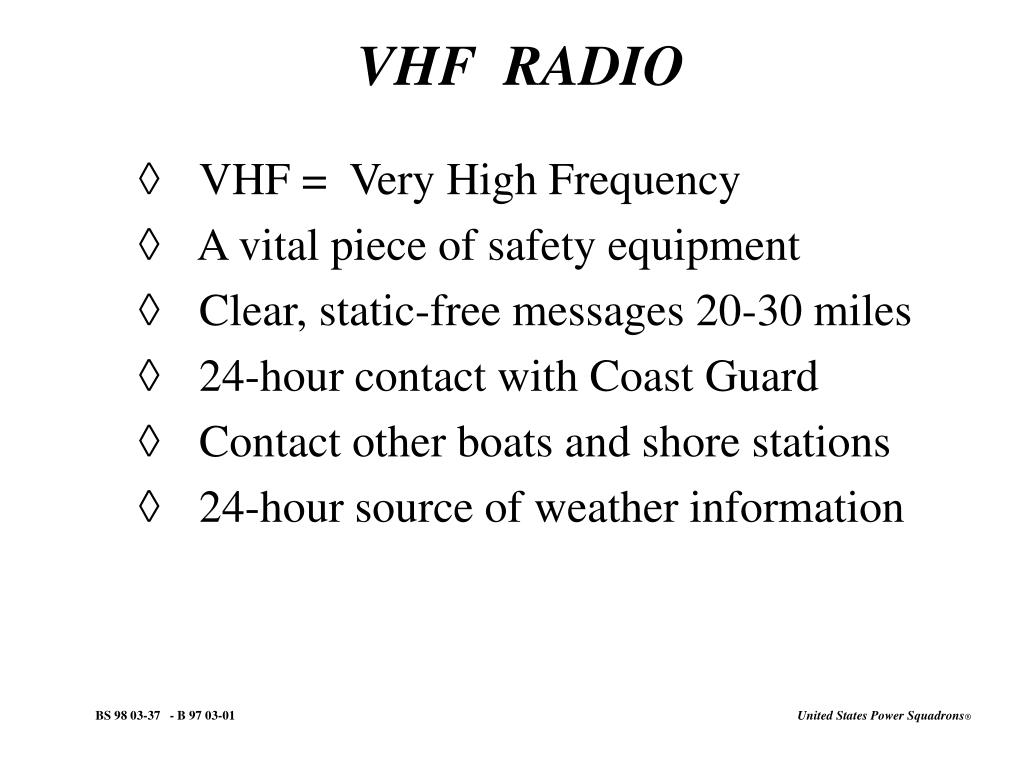

vhf radio
VHF RADIO
  • VHF = Very High Frequency
  • A vital piece of safety equipment
  • Clear, static-free messages 20-30 miles
  • 24-hour contact with Coast Guard
  • Contact other boats and shore stations
  • 24-hour source of weather information

BS 98 03-37 - B 97 03-01

use your vhf radio legally
USE YOUR VHF RADIO LEGALLY
  • Distress Calls – Danger to life and property
  • Safety Calls – Avoiding collision, safety bulletins
  • Operational Calls– Obtaining navigational information, supplies, accommodations, repairs; arranging to meet other boats.
  • Public Correspondence – with shore public telephone

BS 98 03-38 - B 97 03-02

channel 16 distress safety and calling
CHANNEL 16 - DISTRESS, SAFETY AND CALLING
  • If you have your radio on, you must monitor channel 16

( In Coast Guard District 1, Channel 09 may also used)

  • All boats monitoring this channel insures that distress messages will be heard

BS 98 03-40 - B 97 03-03

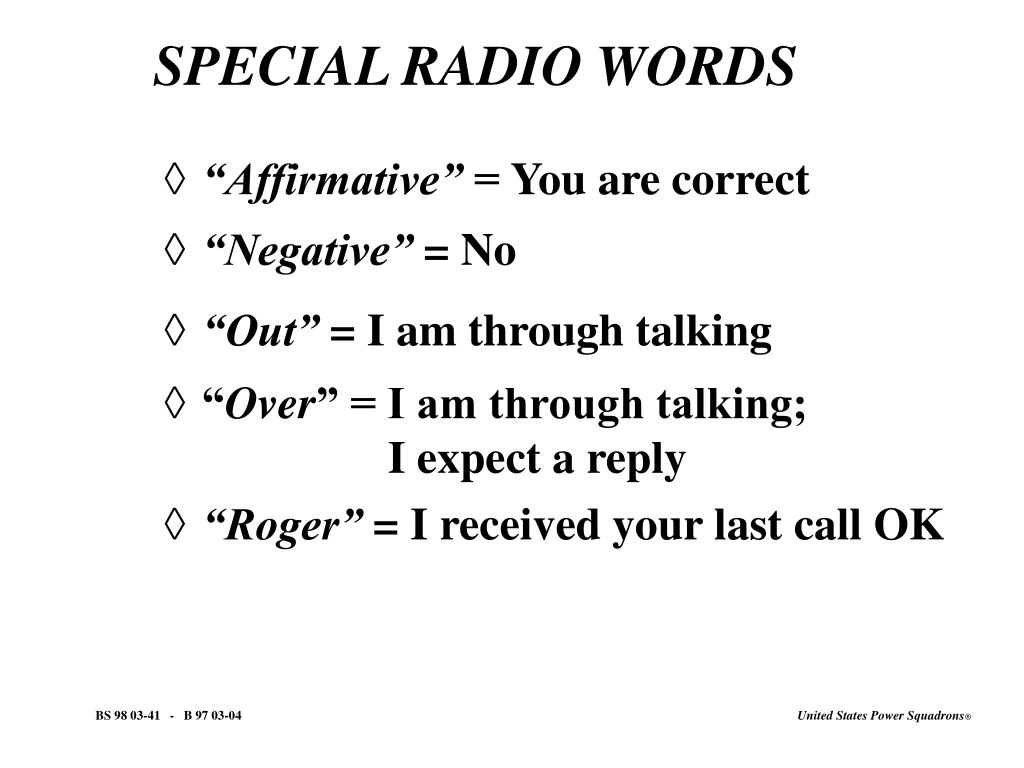

special radio words
SPECIAL RADIO WORDS
  • “Affirmative” = You are correct
  • “Negative” = No
  • “Out” = I am through talking
  • “Over” = I am through talking; I expect a reply
  • “Roger” = I received your last call OK

BS 98 03-41 - B 97 03-04

emergency calls the distress signal mayday
EMERGENCY CALLSTHE DISTRESS SIGNAL“MAYDAY”
  • For assistance when there is immediate danger to life and property
  • Examples
      • Life-threatening medical emergencies
      • Boat sinking
      • Boat on fire

BS 98 03-43 - B 97 03-05-1

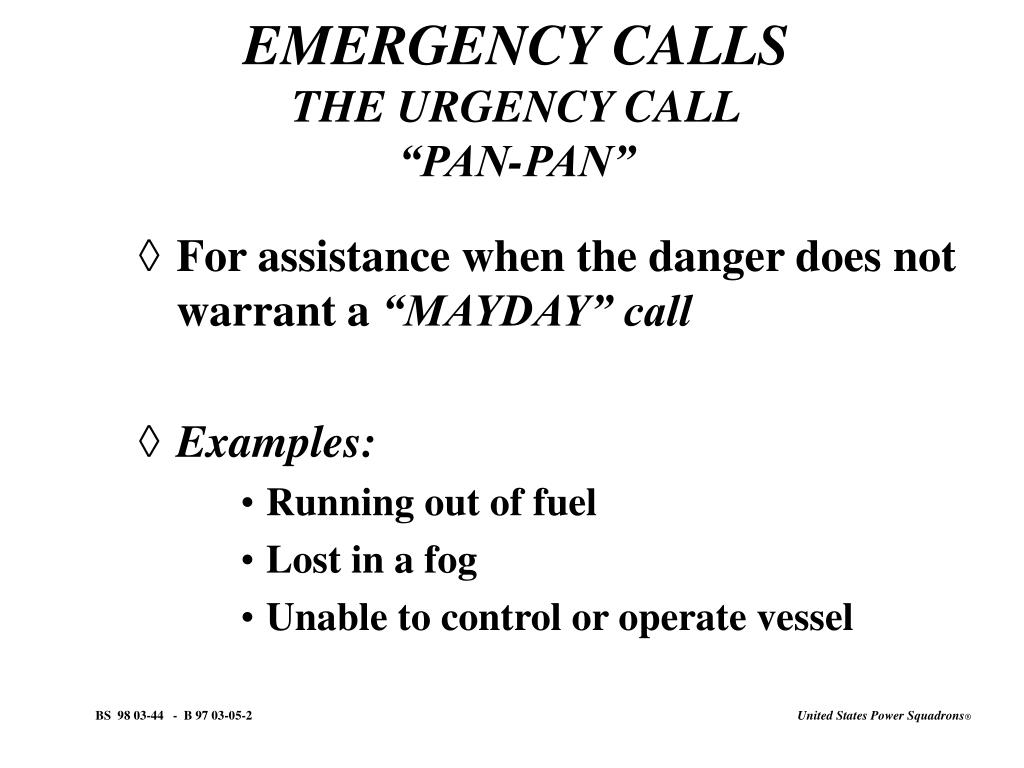

emergency calls the urgency call pan pan
EMERGENCY CALLSTHE URGENCY CALL“PAN-PAN”
  • For assistance when the danger does not warrant a “MAYDAY” call
  • Examples:
      • Running out of fuel
      • Lost in a fog
      • Unable to control or operate vessel

BS 98 03-44 - B 97 03-05-2

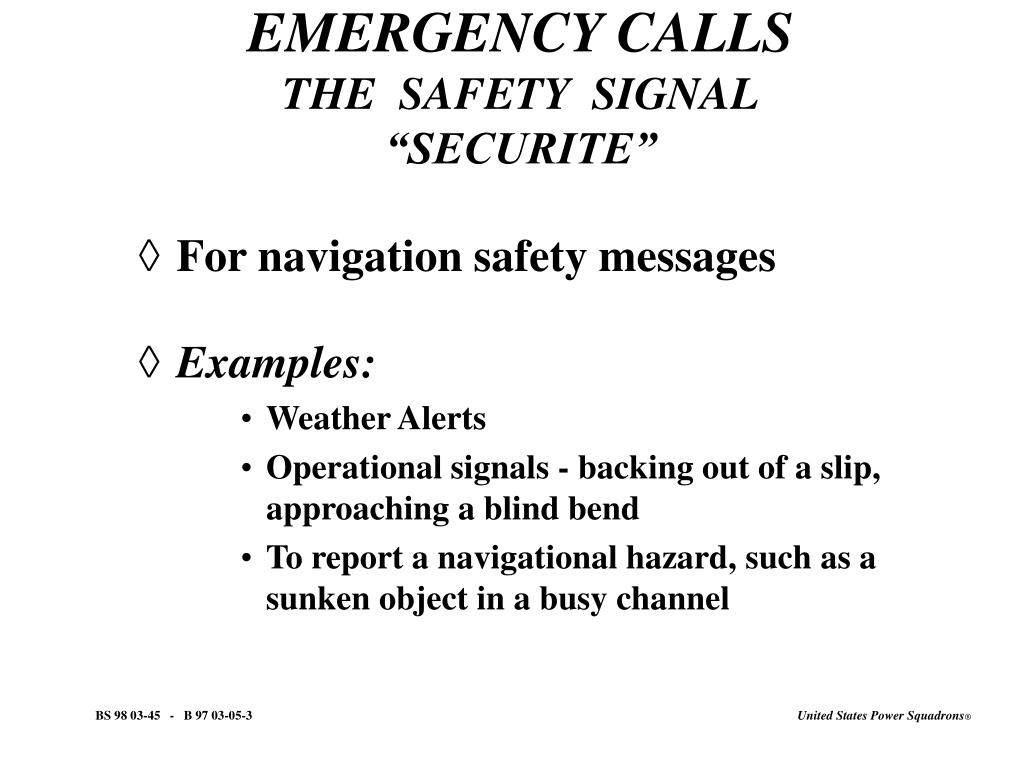

emergency calls the safety signal securite
EMERGENCY CALLSTHE SAFETY SIGNAL“SECURITE”
  • For navigation safety messages
  • Examples:
      • Weather Alerts
      • Operational signals - backing out of a slip, approaching a blind bend
      • To report a navigational hazard, such as a sunken object in a busy channel

BS 98 03-45 - B 97 03-05-3

emergency calls information vital for obtaining assistance
EMERGENCY CALLSINFORMATION VITAL FOROBTAINING ASSISTANCE
  • Your location
  • The nature of your distress
  • Description of your boat
  • Number of persons aboard

(Any injured)

  • Seaworthiness of your boat

BS 98 03-42 - B 97 03-06

recreational boat vhf channels
RECREATIONAL BOATVHF CHANNELS

06 Ship to ship safety

13 Navigational safety - ship to ship, locks and bridges

16 Distress, safety, calling

09 Alternative calling channel - ship to ship, ship to coast

22 Communication with Coast Guard after contacting on channel 16; for receiving

CG safety information

68, 69, 71, 72, 78 - Working channels

BS 98 03-39 - B 97 03-07

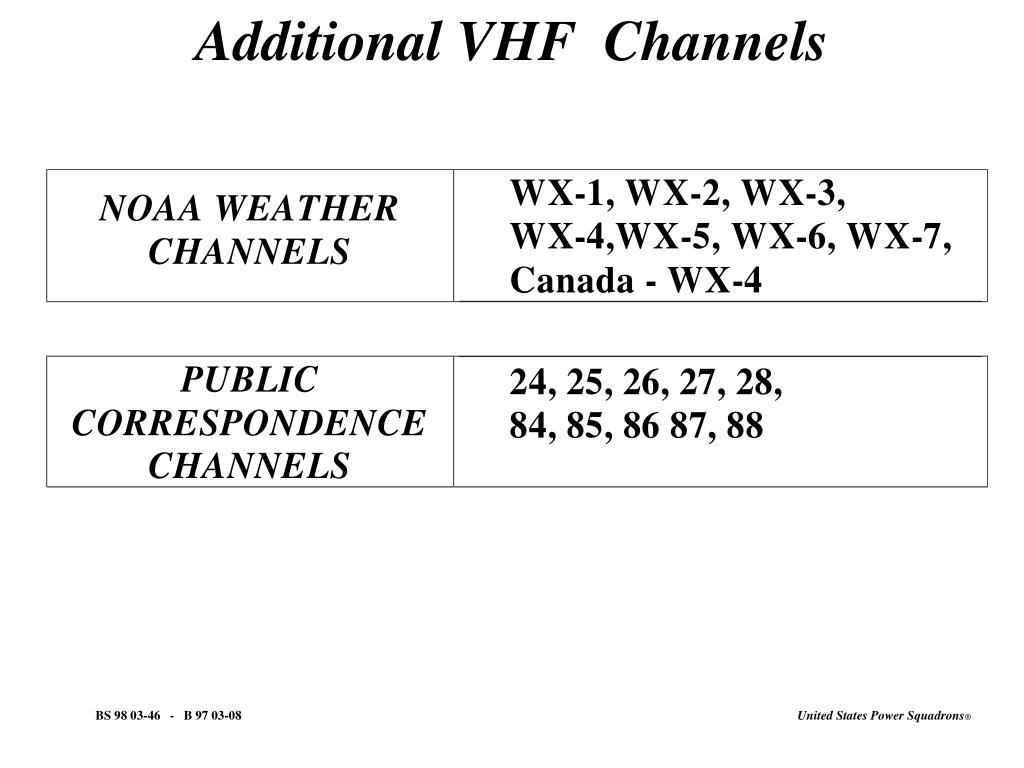

slide15

Additional VHF Channels

BS 98 03-46 - B 97 03-08
