Valence shell electron pair repulsion (VSEPR) model:

# of atoms bonded to central atom. # lone pairs on central atom. Arrangement of electron pairs. Molecular Geometry. Class. linear. linear. B. B. Valence shell electron pair repulsion (VSEPR) model:.

Download Presentation

Valence shell electron pair repulsion (VSEPR) model:

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

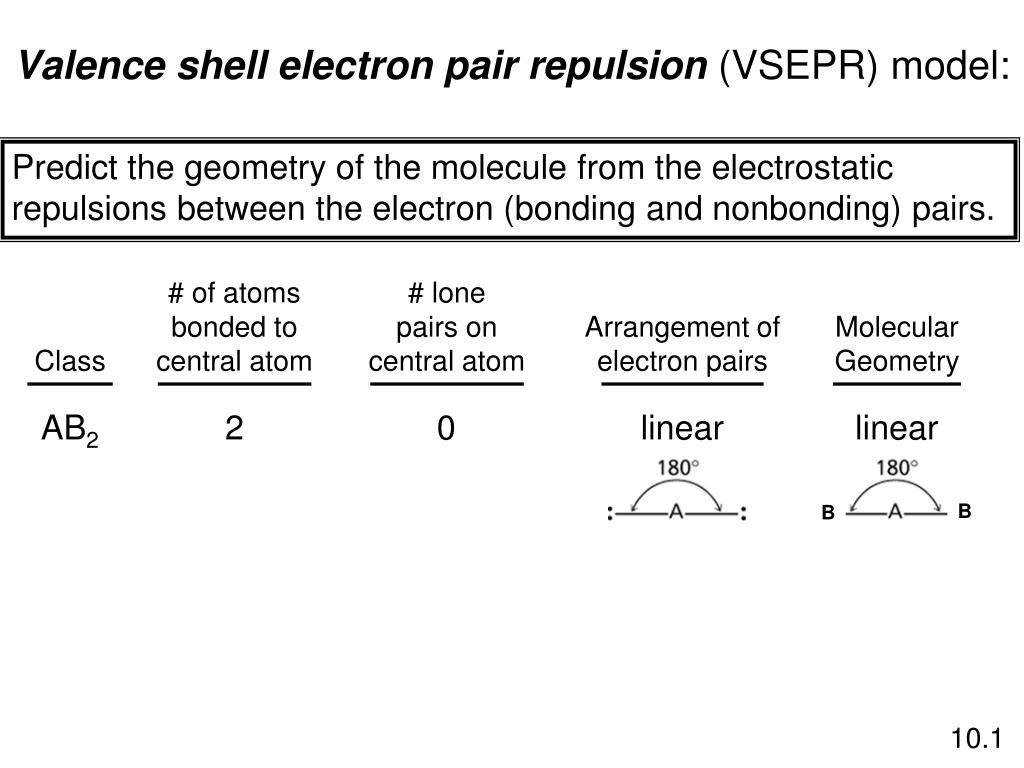

  1. # of atoms bonded tocentral atom # lone pairs on central atom Arrangement ofelectron pairs Molecular Geometry Class linear linear B B Valence shell electron pair repulsion (VSEPR) model: Predict the geometry of the molecule from the electrostatic repulsions between the electron (bonding and nonbonding) pairs. AB2 2 0 10.1

  2. Cl 0 lone pairs on central atom Be Cl 2 atoms bonded to central atom 10.1

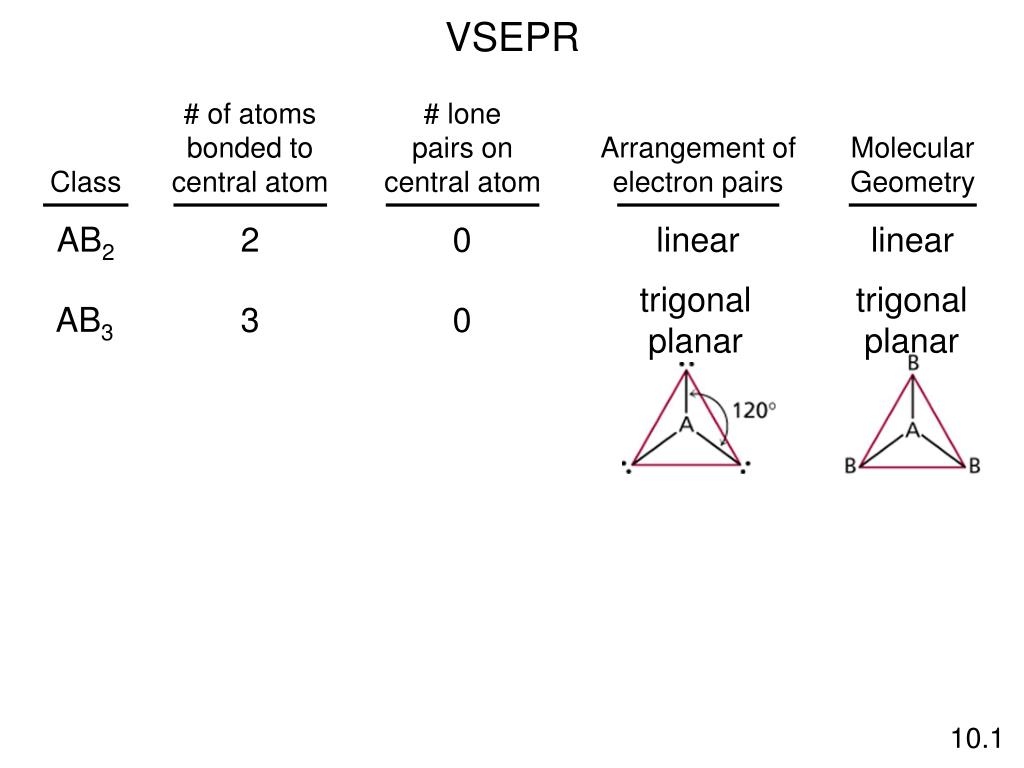

  3. # of atoms bonded tocentral atom # lone pairs on central atom trigonal planar trigonal planar Arrangement ofelectron pairs Molecular Geometry Class VSEPR AB2 2 0 linear linear AB3 3 0 10.1

  4. 10.1

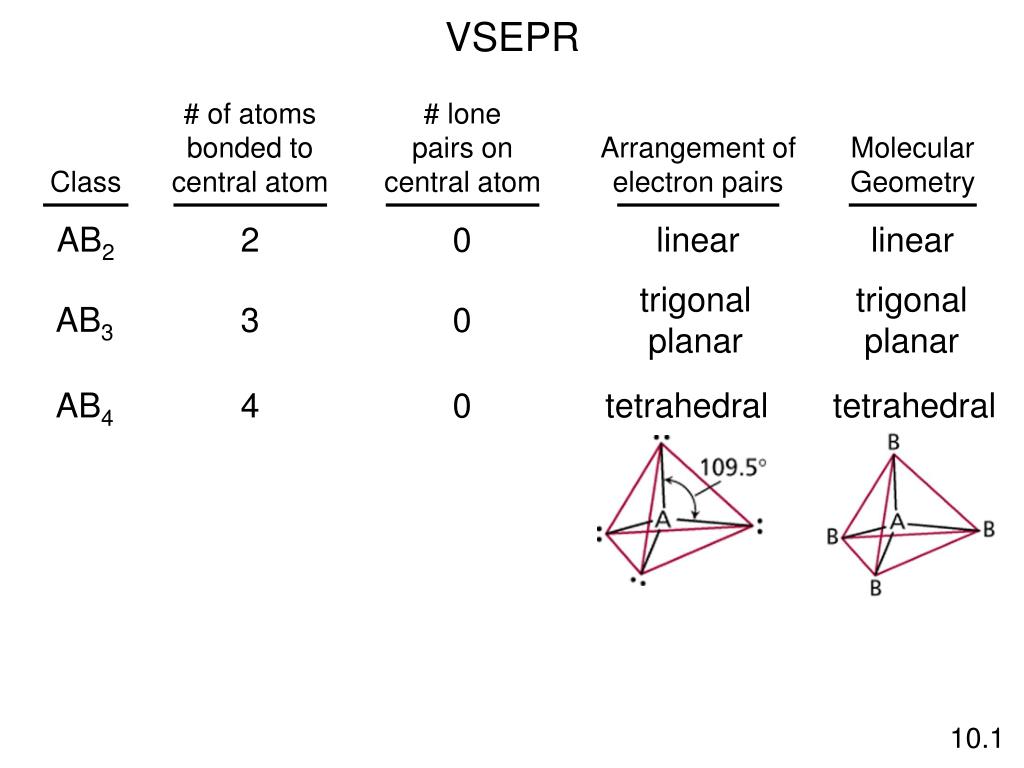

  5. # of atoms bonded tocentral atom # lone pairs on central atom trigonal planar trigonal planar AB3 3 0 Arrangement ofelectron pairs Molecular Geometry Class tetrahedral tetrahedral VSEPR AB2 2 0 linear linear AB4 4 0 10.1

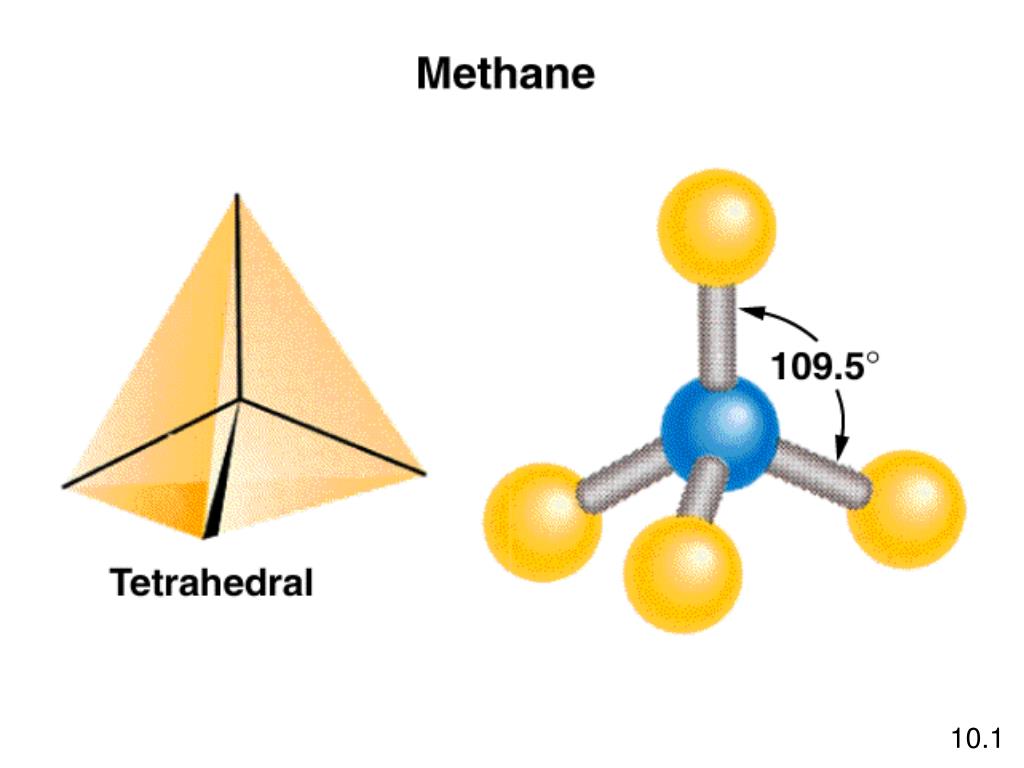

  6. 10.1

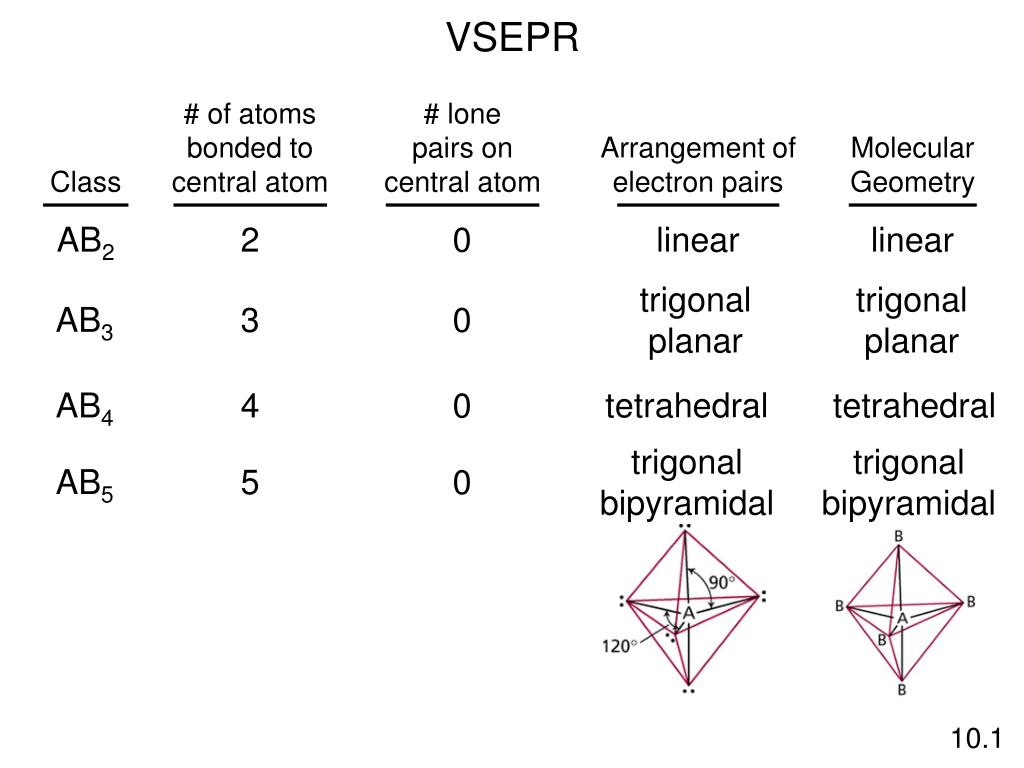

  7. # of atoms bonded tocentral atom # lone pairs on central atom trigonal planar trigonal planar AB3 3 0 Arrangement ofelectron pairs Molecular Geometry Class trigonal bipyramidal trigonal bipyramidal VSEPR AB2 2 0 linear linear tetrahedral tetrahedral AB4 4 0 AB5 5 0 10.1

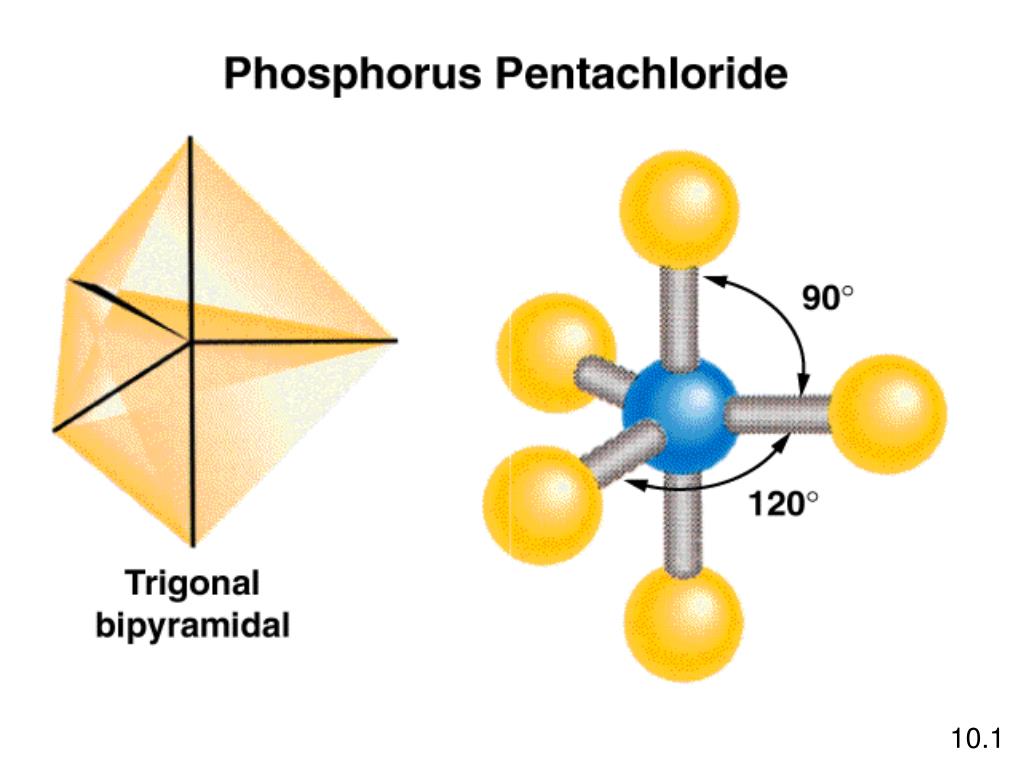

  8. 10.1

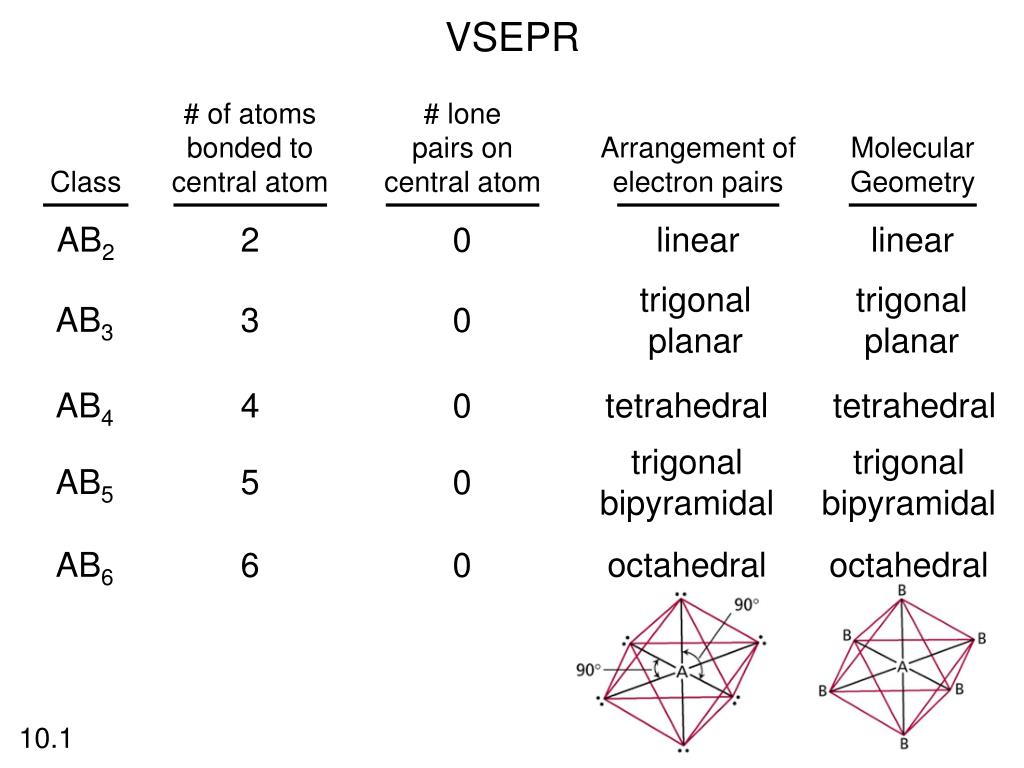

  9. # of atoms bonded tocentral atom # lone pairs on central atom trigonal planar trigonal planar AB3 3 0 Arrangement ofelectron pairs Molecular Geometry Class trigonal bipyramidal trigonal bipyramidal AB5 5 0 octahedral octahedral VSEPR AB2 2 0 linear linear tetrahedral tetrahedral AB4 4 0 AB6 6 0 10.1

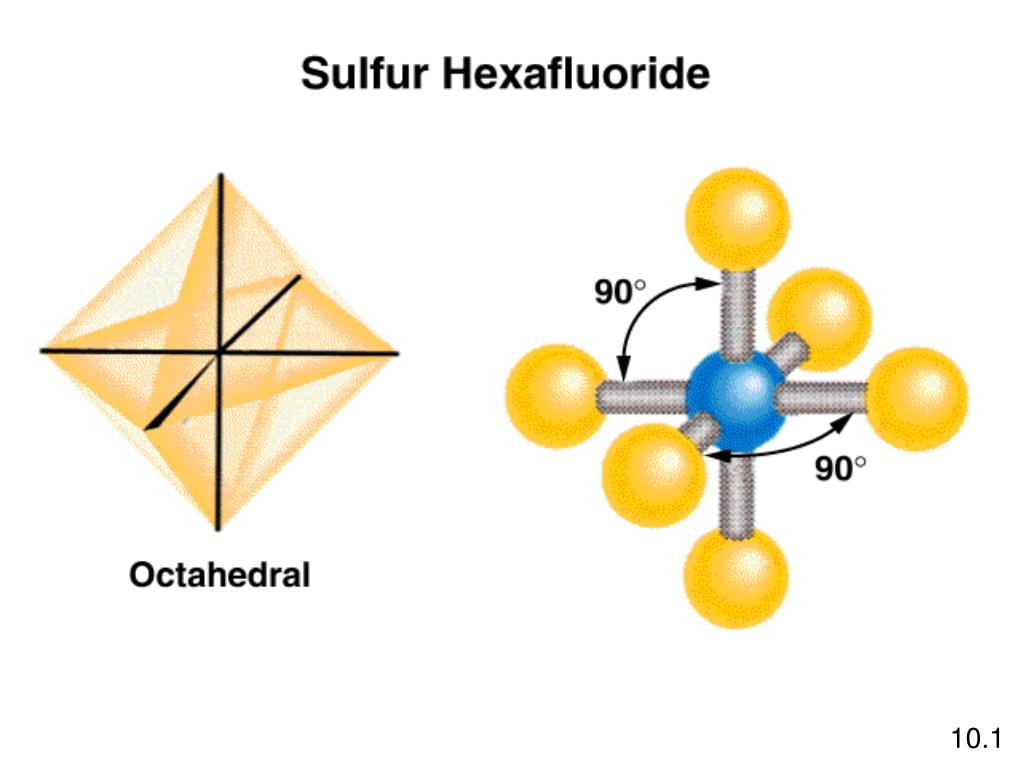

  10. 10.1

  11. 10.1

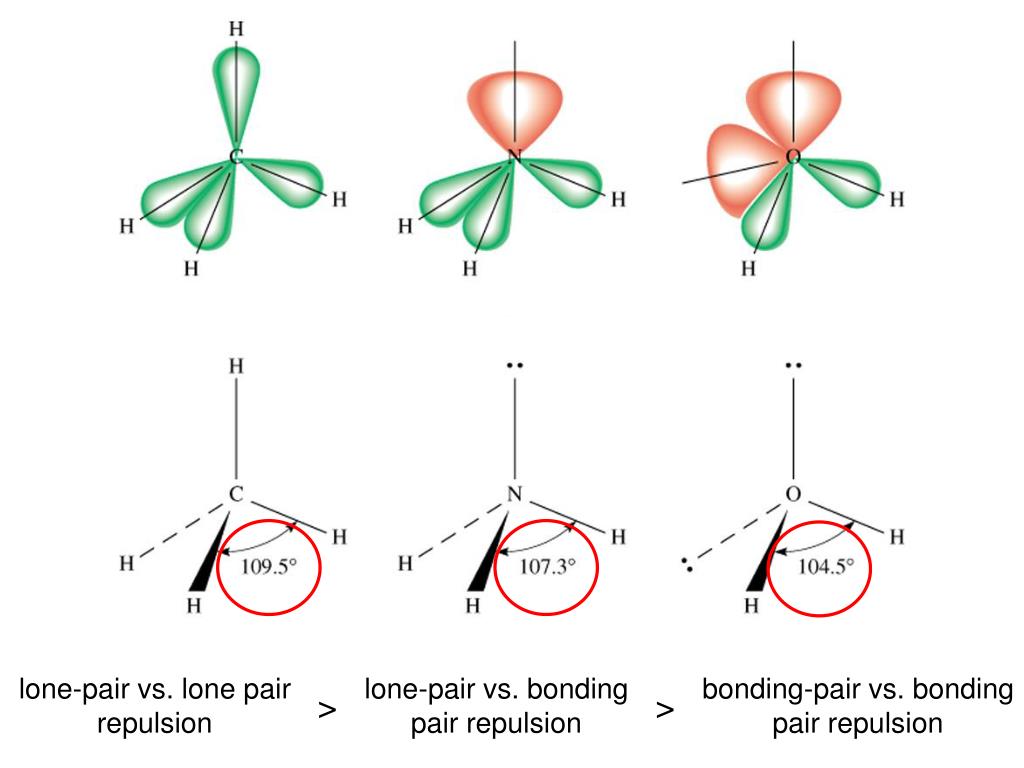

  12. lone-pair vs. lone pair repulsion lone-pair vs. bonding pair repulsion bonding-pair vs. bonding pair repulsion > >

  13. # of atoms bonded tocentral atom # lone pairs on central atom Arrangement ofelectron pairs Molecular Geometry Class trigonal planar bent VSEPR trigonal planar trigonal planar AB3 3 0 AB2E 2 1 10.1

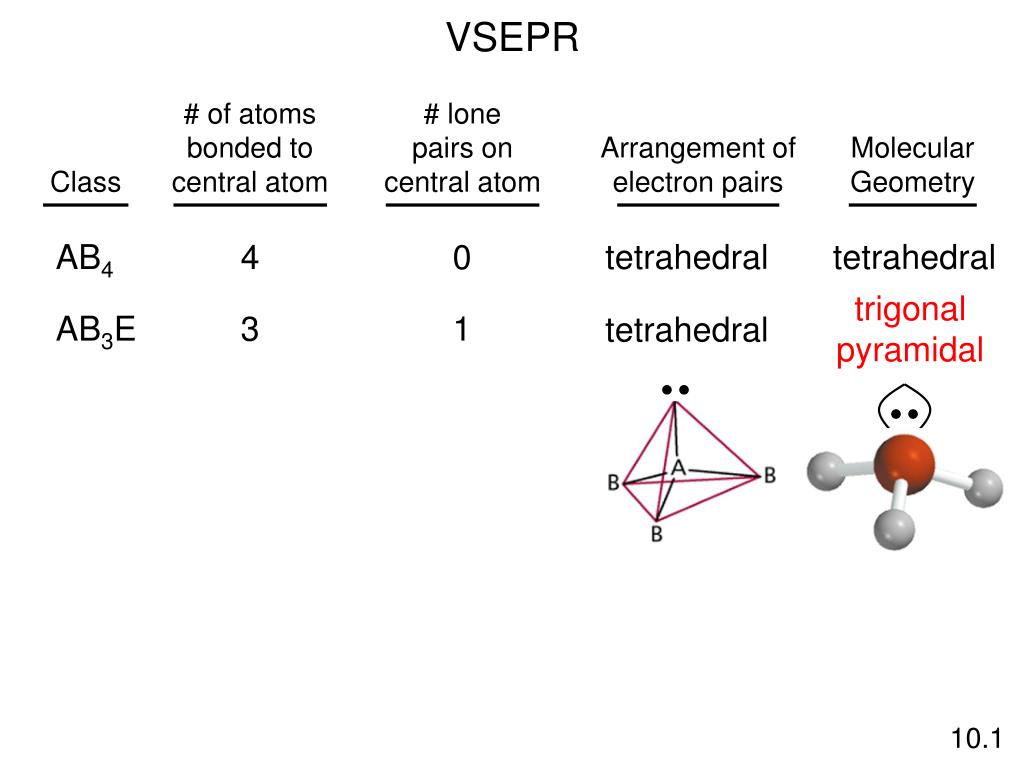

  14. # of atoms bonded tocentral atom # lone pairs on central atom Arrangement ofelectron pairs Molecular Geometry Class trigonal pyramidal tetrahedral VSEPR tetrahedral tetrahedral AB4 4 0 AB3E 3 1 10.1

  15. # of atoms bonded tocentral atom # lone pairs on central atom trigonal pyramidal Arrangement ofelectron pairs Molecular Geometry AB3E 3 1 tetrahedral Class bent tetrahedral O H H VSEPR tetrahedral tetrahedral AB4 4 0 AB2E2 2 2 10.1

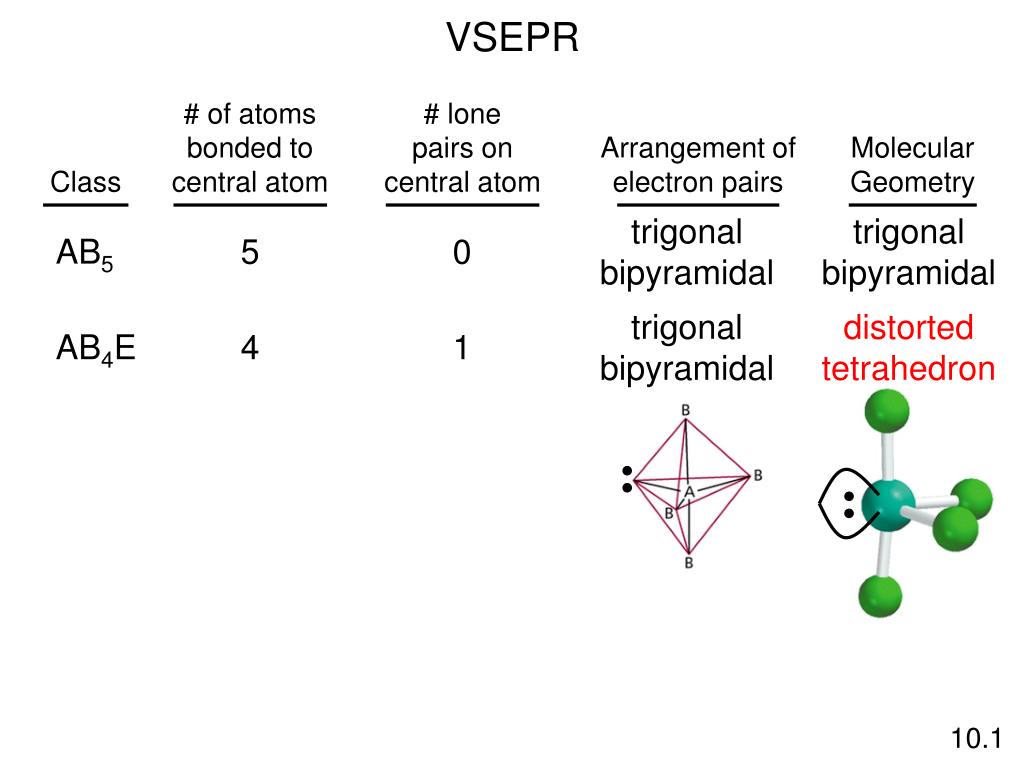

  16. # of atoms bonded tocentral atom # lone pairs on central atom trigonal bipyramidal distorted tetrahedron Arrangement ofelectron pairs Molecular Geometry Class VSEPR trigonal bipyramidal trigonal bipyramidal AB5 5 0 AB4E 4 1 10.1

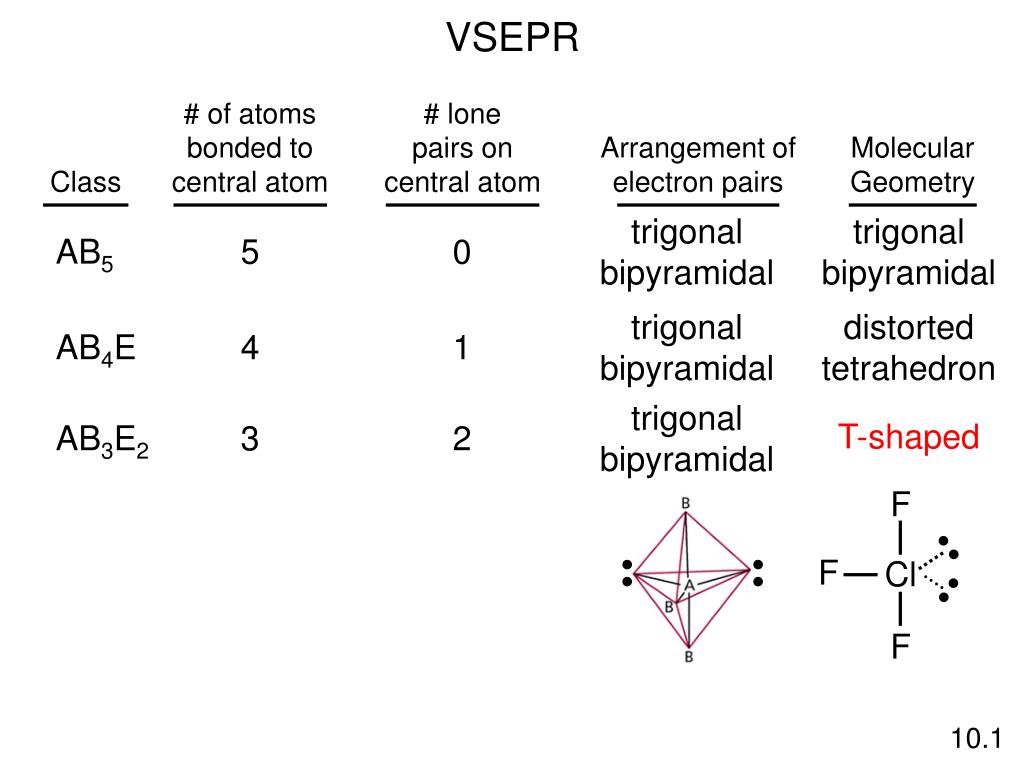

  17. # of atoms bonded tocentral atom # lone pairs on central atom trigonal bipyramidal distorted tetrahedron Arrangement ofelectron pairs Molecular Geometry AB4E 4 1 Class trigonal bipyramidal T-shaped F F Cl F VSEPR trigonal bipyramidal trigonal bipyramidal AB5 5 0 AB3E2 3 2 10.1

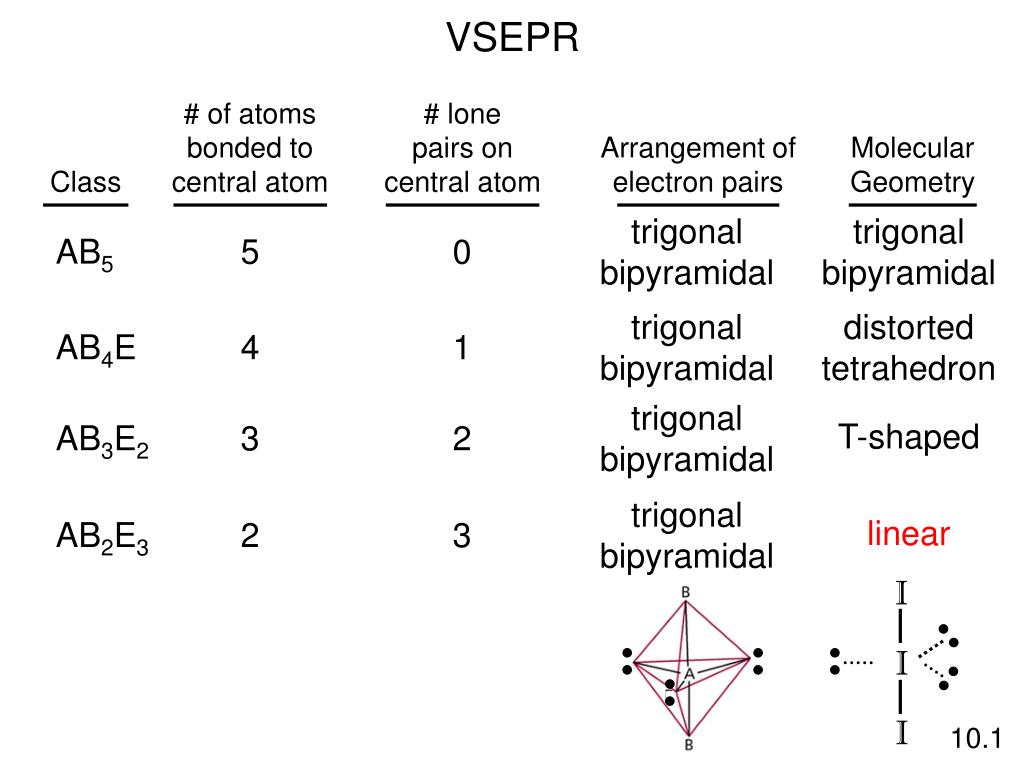

  18. # of atoms bonded tocentral atom # lone pairs on central atom trigonal bipyramidal distorted tetrahedron Arrangement ofelectron pairs Molecular Geometry AB4E 4 1 Class trigonal bipyramidal T-shaped AB3E2 3 2 trigonal bipyramidal linear I I I VSEPR trigonal bipyramidal trigonal bipyramidal AB5 5 0 AB2E3 2 3 10.1

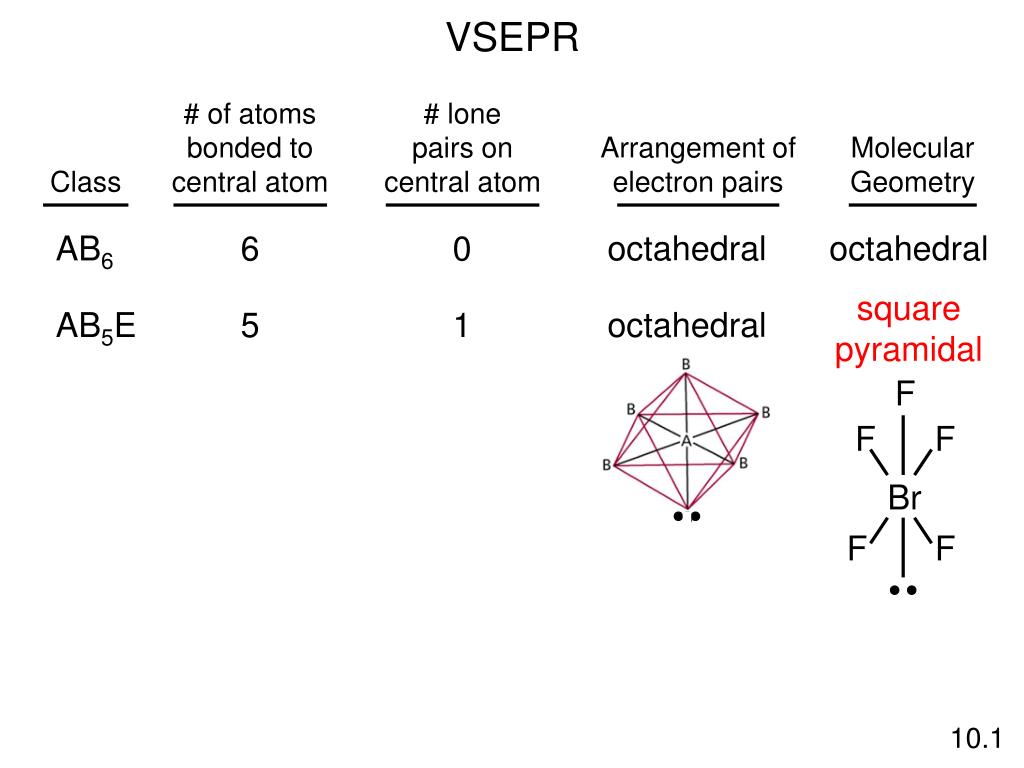

  19. octahedral octahedral AB6 6 0 # of atoms bonded tocentral atom # lone pairs on central atom square pyramidal octahedral Arrangement ofelectron pairs Molecular Geometry Class F F F Br F F VSEPR AB5E 5 1 10.1

  20. octahedral octahedral AB6 6 0 # of atoms bonded tocentral atom # lone pairs on central atom square pyramidal octahedral AB5E 5 1 Arrangement ofelectron pairs Molecular Geometry Class square planar octahedral F F Xe F F VSEPR AB4E2 4 2 10.1

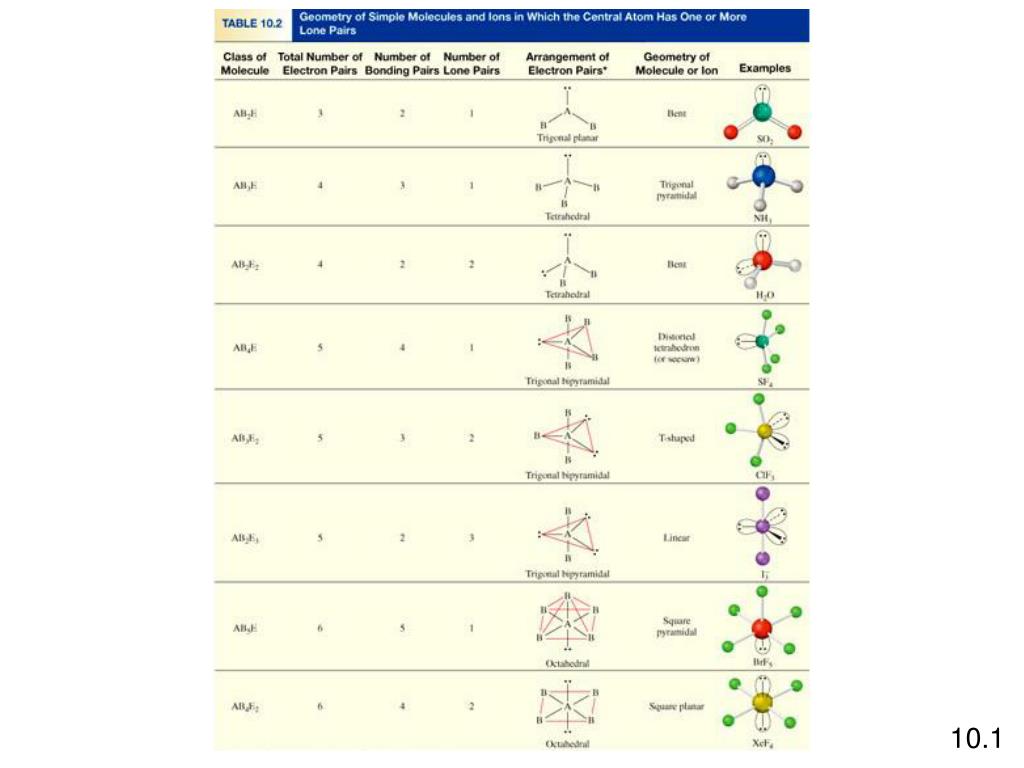

  21. 10.1
