Vertebrae

Vertebrae. body (c orpus ) extremitas cran. (convex) & caud. (concave) discus intervertebralis, NO synovial joints ! arch ( arcus ): 2x pediculus + lamina DORSAL! – orientation incisura cran. + caud.  foramen intervertebrale (for. vertebrale laterale) processes ( processus )

kaye-ball
Download Presentation

Vertebrae

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Vertebrae • body (corpus) • extremitas cran. (convex) & caud. (concave) discus intervertebralis, NO synovial joints ! • arch (arcus): 2x pediculus + lamina • DORSAL! – orientation • incisura cran. + caud.  foramen intervertebrale (for. vertebrale laterale) • processes (processus) • proc. spinosus, transversus, articularis • proc. mamillaris (+cran. artic.), accessorius

  2. cervical vertebrae •  mobility  body very convex + concave  articular surfaces very large - proc. transv.  tuberculum dors. + ventr. - for. transversarium? (cervical only)

  3. cervical vertebrae, C1 • C1 – atlas, nodding movement • body  massa lat., proc. transv.  wing (ala atlantis), no proc. articularis, proc. spinosus  tuberculum • cran.: deep excavation for condylus occipitalis • ventral: excavation: fossa alaris • foramina (interspec. diff.) for. alare  fossa alaris for. vertebrale lat. (MED!)  canalis vertebralis for. transversarium  perforates proc. transv.

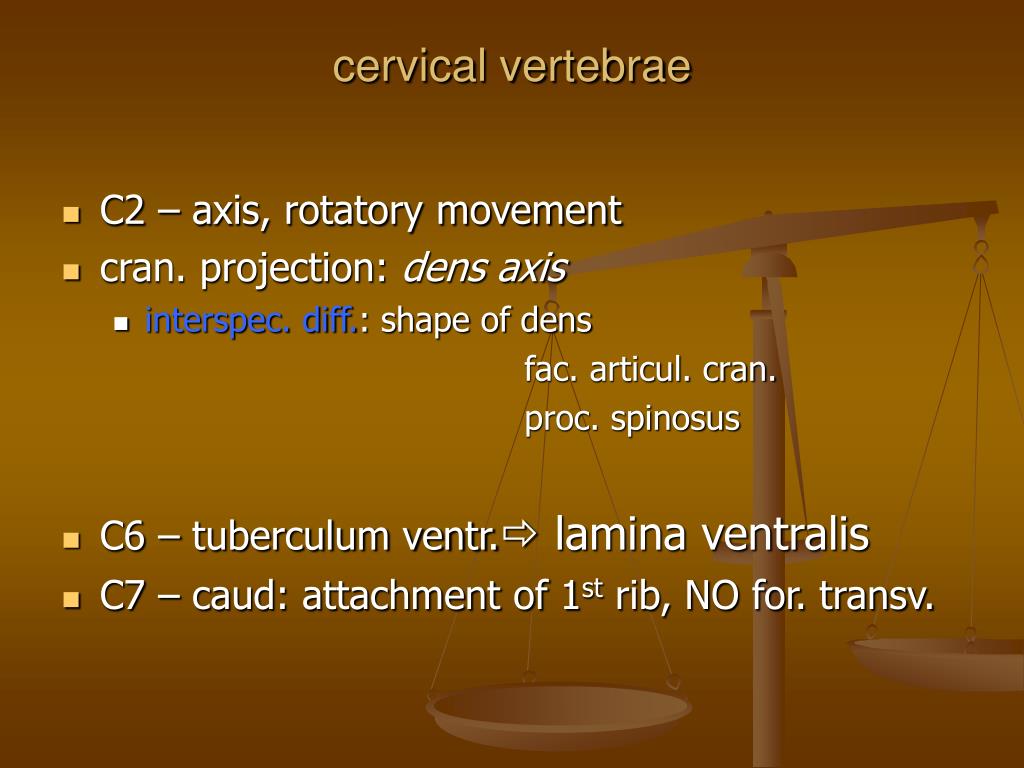

  4. cervical vertebrae • C2 – axis, rotatory movement • cran. projection: dens axis • interspec. diff.: shape of dens fac. articul. cran. proc. spinosus • C6 – tuberculum ventr. lamina ventralis • C7 – caud: attachment of 1st rib, NO for. transv.

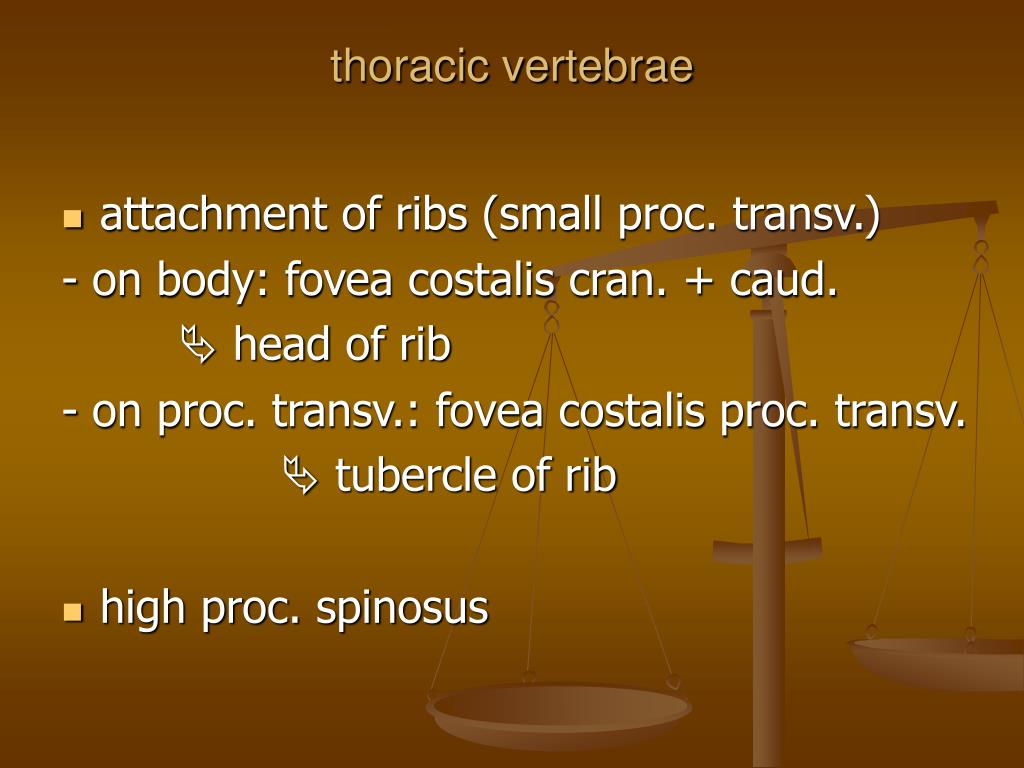

  5. thoracic vertebrae • attachment of ribs (small proc. transv.) - on body: fovea costalis cran. + caud.  head of rib - on proc. transv.: fovea costalis proc. transv.  tubercle of rib • high proc. spinosus

  6. lumbar vertebrae: large proc. transversus • interspec. diff.: direction of proc. transv. proc. spinosus: ratio (high) • sacral vertebrae: fused to form the sacrum proc. transv.  ala ossis sacri (facies auricularis – hip bone) • interspec. diff.: position of wing, shape of bone, direction of auricular surface, fusion of procc. spinosi + articul. • caudal vertebrae: reduction of processes

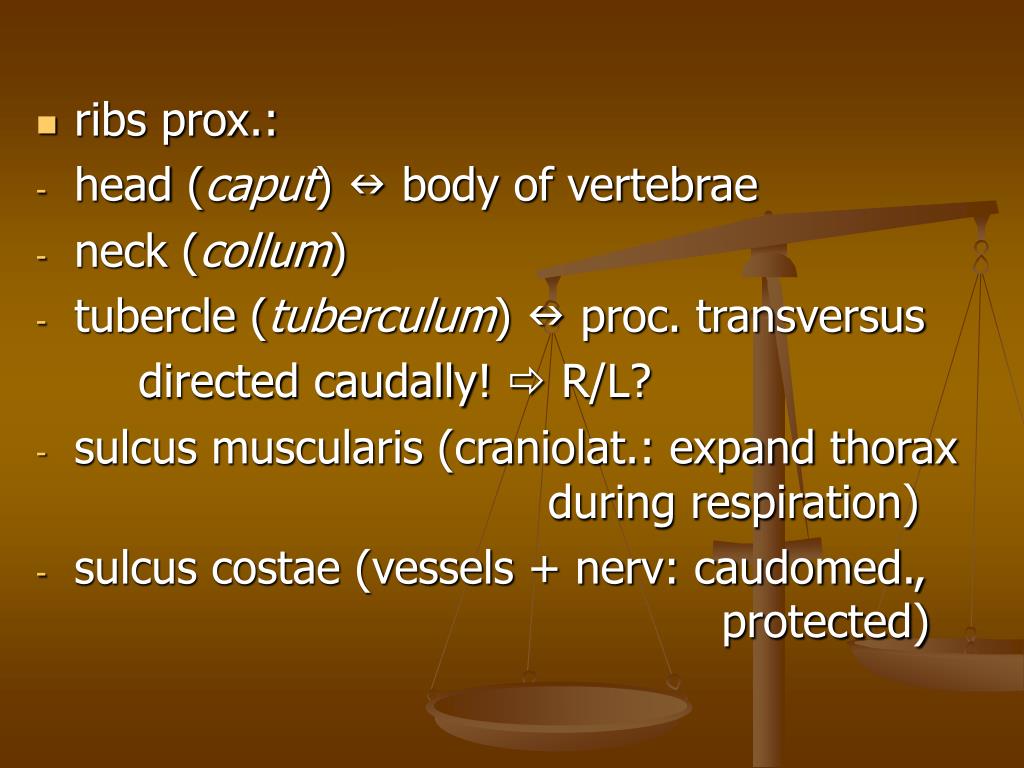

  7. ribs prox.: • head (caput)  body of vertebrae • neck (collum) • tubercle (tuberculum)  proc. transversus directed caudally!  R/L? • sulcus muscularis (craniolat.: expand thorax during respiration) • sulcus costae (vessels + nerv: caudomed., protected)

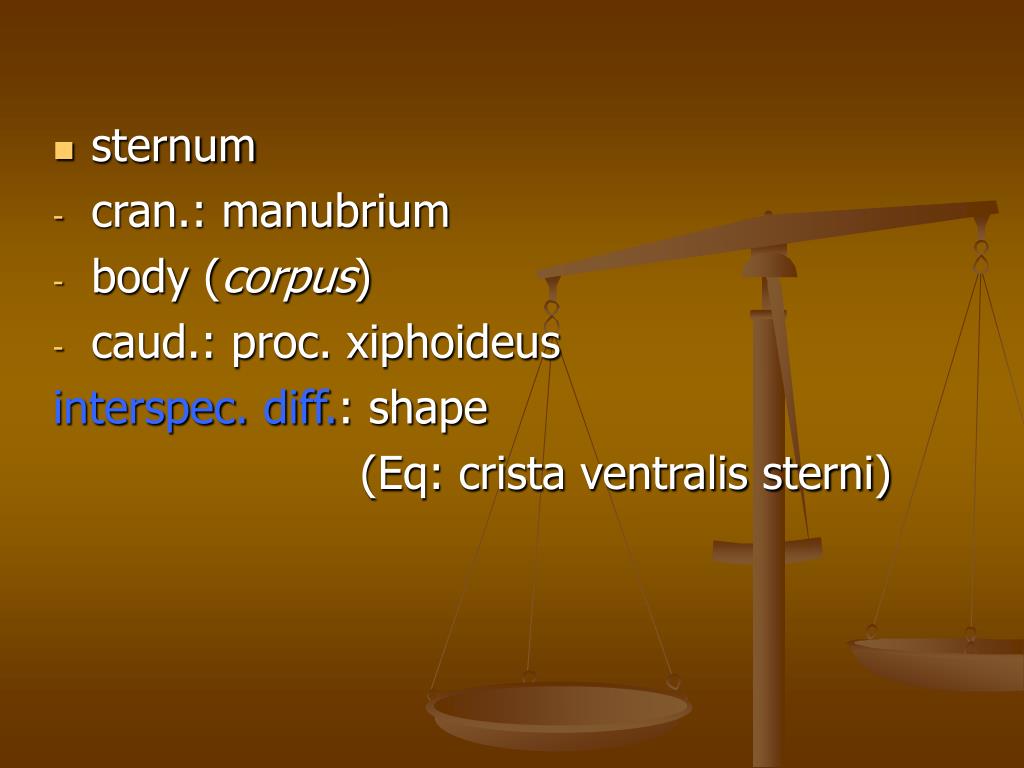

  8. sternum • cran.: manubrium • body (corpus) • caud.: proc. xiphoideus interspec. diff.: shape (Eq: crista ventralis sterni)
