The Recent Development of F-T Technology and its Commercialization in China

中国新一代间接液化技术和产业化发展

孙 启 文

Qiwen Sun

Presentation


4223783

Fischer-

Tropsch

ketones/

aldehydes

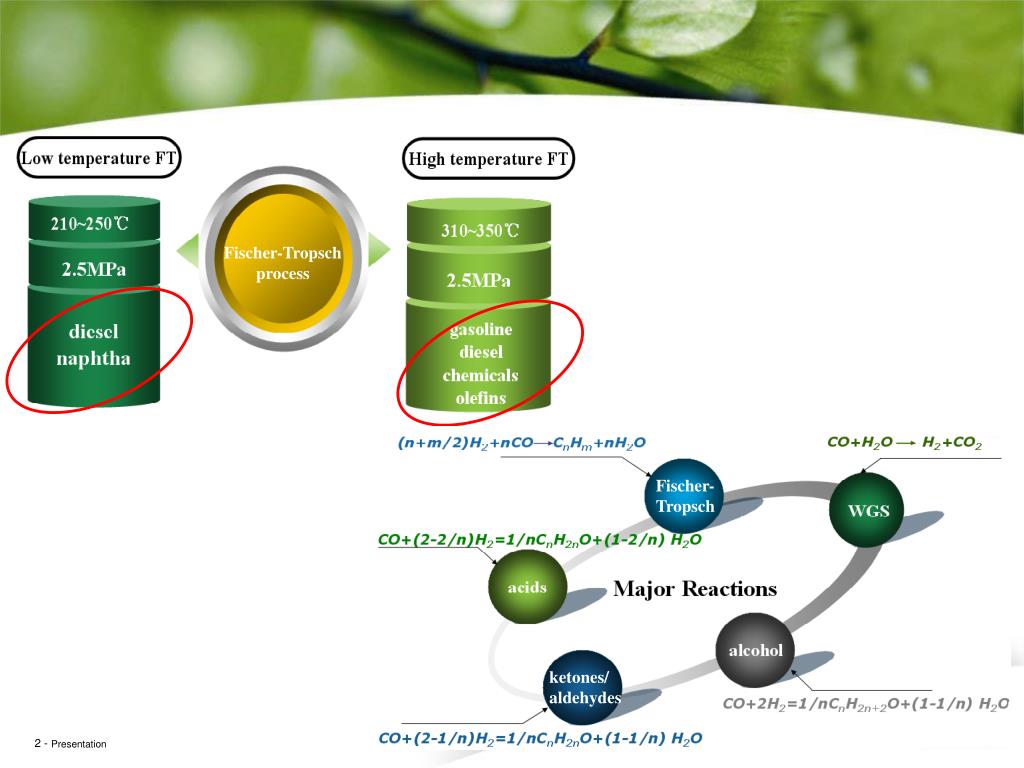

Fischer-Tropsch

process

Presentation


4223783

LTFT Technology Development

  • Catalysts

  • -Fe-based catalyst

  • -Co-based catalyst

  • Reactors

    -Slurry bed reactor

  • well mixed, isothermal

  • high yield

  • catalyst loading/unloading on line

  • minimal differential pressure

  • flexibility, easy to control and low operating cost

  • simple structure

Presentation


4223783

Presentation


4223783

Presentation


4223783

tail gas outlet

anti-entrainment facility

cooling tubes

slurry bed

gas distributor

syngas intet

HTFT Technology Development

  • Catalysts

  • Reactors

    Fixed Fluidized-bed

precipitated

Fe-based

fused iron

Presentation


4223783

HTFT Technology Development

HTFT CTL Process Diagram

Presentation


4223783

Presentation


4223783

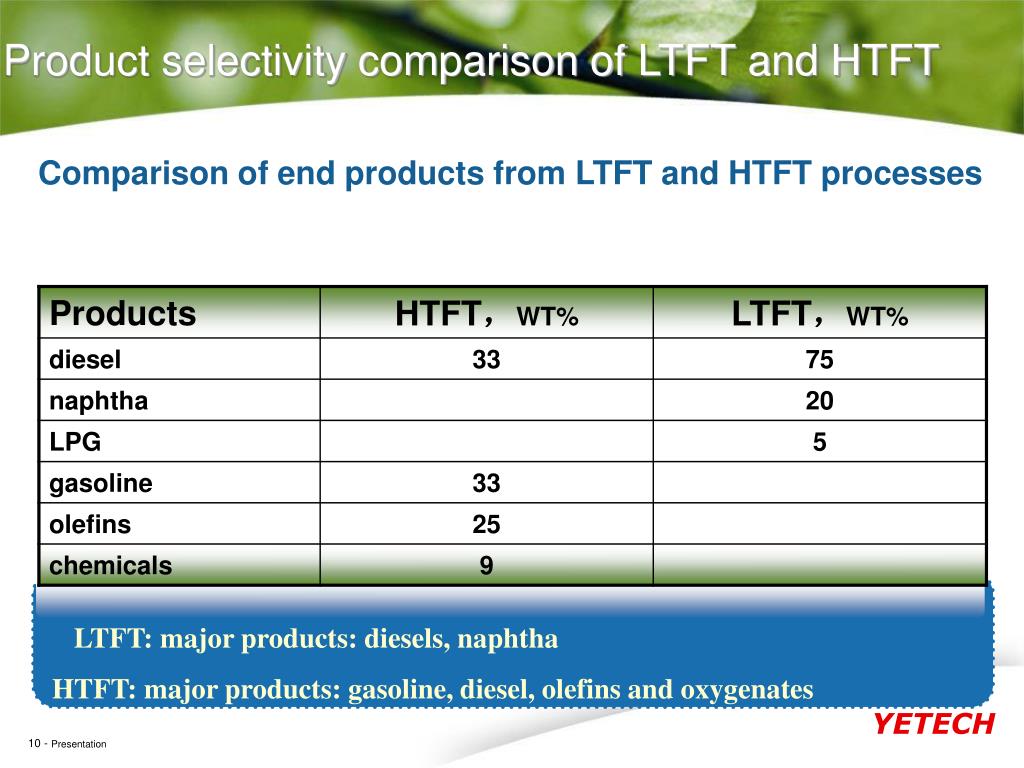

Product selectivity comparison of LTFT and HTFT

Comparison of selectivity for LTFT and HTFT

Presentation


4223783

LTFT: major products: diesels, naphtha

HTFT: major products: gasoline, diesel, olefins and oxygenates

Product selectivity comparison of LTFT and HTFT

Comparison of end products from LTFT and HTFT processes

Presentation


4223783

Product Commercialization of CTL Fischer-Tropsch Technology

Main process Steps

(1) coal gasification and ASU

(2) gas purification and sulphur recovery

(3) Fischer-Tropsch synthesis

(4) light end recovery

(5) tail gas H2 recovery

(6) product upgrading

(7) reaction water treatment

(8) gas turbine using tail gas as fuel

(9) power generation using reaction heat generated steam

Process diagram for a million ton/ year

CTL plant using Fischer-Tropsch Technology

Presentation


4223783

A super CTL complex with a LTFT capacity of 3 million ton/ year, a HTFT capacity of 2 million ton/ year and a power generation capacity of 300MW using tail gas as gas turbine fuel. The productions of different products are:

  • Diesel 3280 kton/year

  • Gasoline 300 kton/year

  • Olefins 1000 kton/year

  • Solvent oils 120 kton/year

  • Speciality wax 50 kton/year

  • Alcohols 180 kton/year (including methanol, ethanol, propanol, ect. )

  • Ketones/ aldehydes 20 kton/year

  • Acids 50 kton/year

Presentation


Prediction on development of commercial fischer tropsch synthesis

Prediction on Development of Commercial Fischer-Tropsch Synthesis

  • 2008–2010, 1 million ton/year demonstration facility

  • 2015, 5 million ton/year

  • 2020, 30 million ton/year

  • Enhance efficiency

  • Utilization and sequestration of CO2

  • More environmentally friendly

Presentation
