ME 475/675 Introduction to Combustion

Lecture 21


Announcements

Announcements

  • HW 8, Numerical Solution to Example 6.1

    • Due Friday, Oct. 17, 2014 (?)

  • College Distinguished Lecture

    • The future of drone technology

    • Saturday, October 18, 2014,

      • 5 pm posters;

      • 6 pm Lecture

      • https://www.unr.edu/nevada-today/news/2014/college-of-engineering-distinguished-lecture-series


Chapter 6 coupling chemical and thermal analysis of reacting systems

Chapter 6 Coupling Chemical and Thermal Analysis of Reacting systems

  • Four simple reactor systems, p 184

    • Constant pressure and fixed Mass

      • Time dependent, well mixed

    • Constant-volume fixed-mass

      • Time dependent, well mixed

    • Well-stirred reactor

      • Steady, different inlet and exit conditions

    • Plug-Flow

      • Steady, dependent on location

  • Coupled Energy, species production, and state constraints

    • For plug flow also need momentum since speeds and pressure vary with location

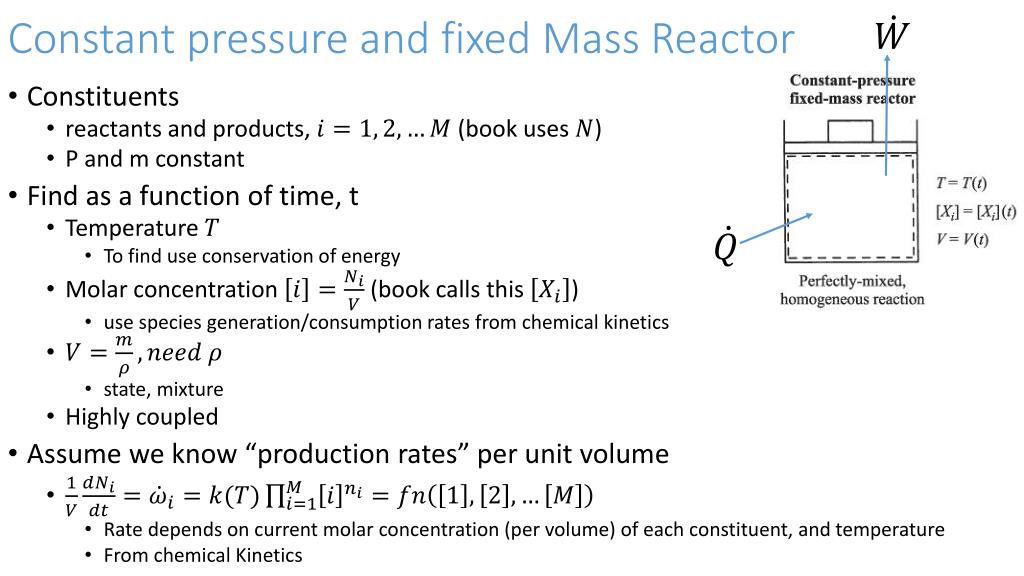

Constant pressure and fixed mass reactor

Constant pressure and fixed Mass Reactor

  • Constituents

    • reactants and products, (book uses )

    • P and m constant

  • Find as a function of time, t

    • Temperature

      • To find use conservation of energy

    • Molar concentration (book calls this )

      • use species generation/consumption rates from chemical kinetics

      • state, mixture

    • Highly coupled

  • Assume we know “production rates” per unit volume

    • Rate depends on current molar concentration (per volume) of each constituent, and temperature

    • From chemical Kinetics

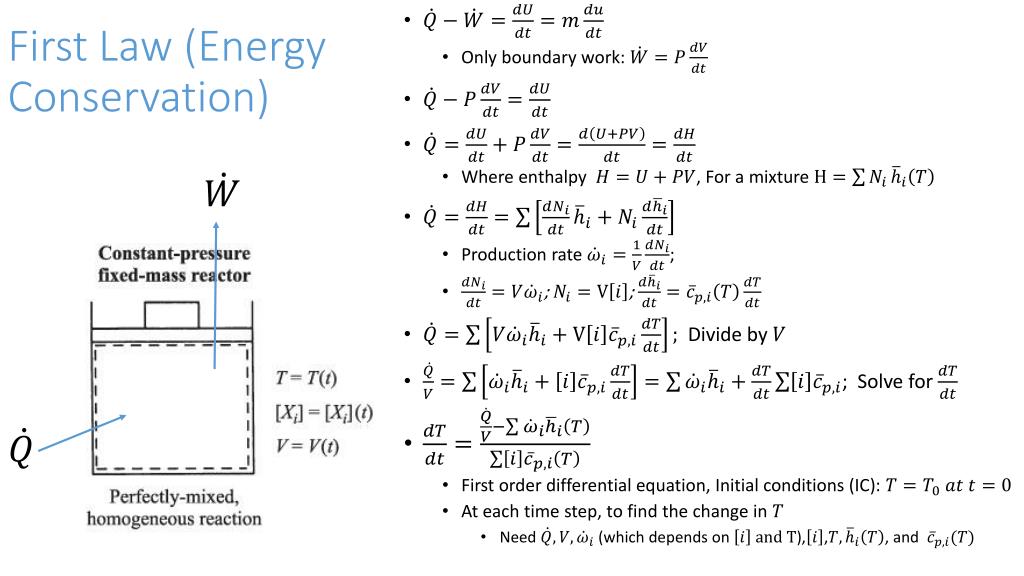

First law energy conservation

First Law (EnergyConservation)

  • Only boundary work:

  • Where enthalpy , For a mixture

  • Production rate ;

  • ; ;

  • Divide by

  • ; Solve for

    • First order differential equation, Initial conditions (IC):

    • At each time step, to find the change in

      • Need , and


  • Change in molar concentrations

    Change in Molar Concentrations

    • *

      • Species production andvolume change affect molar concentration

    • Find the volume V from ideal gas equation of state

    • Take time derivative to see how volume changes with time

      • Divide both sides by

    • Plug into *

    • Initial Conditions: at t = 0, ,


    Coupled system of 1 st order differential equations

    coupled System of 1st order differential equations

    • Initial Conditions, at t = 0

      • , , and

    • Assume we also know

    • Use the first order differentials to find and at time

      • ;

    • System Volume


    Constant volume fixed mass reactor

    Constant-Volume Fixed-Mass Reactor

    • Constant V and m

    • Find versus time

    • 1st Law

      • ;

      • ;

      • ,

    • , divide by

  • , solve for


  • Tabulated data

    Tabulated Data

    • Need to evaluate (true but not useful)

      • However, tables only have

        • , so use

        • , so use

    • (true and useful)

      • Initial Condition: at

    • Species Production


    Reactor pressure

    Reactor Pressure

    • Ideal Gas Law

    • Divide by (constant)

    • Pressure Rate of change (affects detonation)


    Example 6 1 p 189 this will be hw

    Example 6.1 (p. 189) This will be HW

    • In spark-ignition engines, knock occurs when the unburned fuel-air mixture ahead of the flame reacts homogeneously, i.e., it auto-ignites. The rate-of-pressure rise is a key parameter in determining knock intensity and propensity for mechanical damage to the piston-crank assembly. Pressure-versus-time traces for normal and knocking combustion in a spark-ignition engine are illustrated in Fig. 6.2. Note the rapid pressure rise in the case of heavy knock. Figure 6.3 shows schleiren (index-of-refraction gradient) photographs of flame propagation for normal and knocking combustion


    Example 6 1

    Example 6.1

    • Create a simple constant-volume model of the autoignition process and determine the temperature and the fuel and product concentration histories. Also determine the dP/dt as a function of time. Assume initial conditions corresponding to compression of a fuel-air mixture from 300 K and 1 atm to top-dead-center for a compression ratio of 10:1. The initial volume before compression is 3.68*10-4 m3, which corresponds to an engine with both a bore and a stroke of 75 mm. Use ethane as fuel. Assume:

    • One-step global kinetics using the rate parameters for ethane C2H6 (Table 5.1)

    • Fuel, air, and products all have equal molecular weights: MWF=MWOx= MWP= 29

    • The specific heats of the fuel, air and products are constants and equal:

      • cp,F=cp,Ox= cp,Pr= 1200 J/kgK

    • The enthalpy of formation of the air and products are zero, and that of the fuel is

      • 4*107j/kg

    • The stoichiometric air-fuel ratio is 16.0 and restrict combustion to stoichiometric or lean conditions.


    Global and quasi global mechanisms

    Global and Quasi-global mechanisms

    • Empirical

      • stoichiometric mixture with not air

      • Page 157, Table 5.1: , for different fuels

        • These values are based on flame speed data fit (Ch 8)

      • In Table 5.1 units for

      • However, we often want in units of

        Given in Table 5.1, p. 157

    Sometimes Want These Units
