Presentation Transcript


Diffusion reaction

Diffusion-Reaction


Acid base reactions

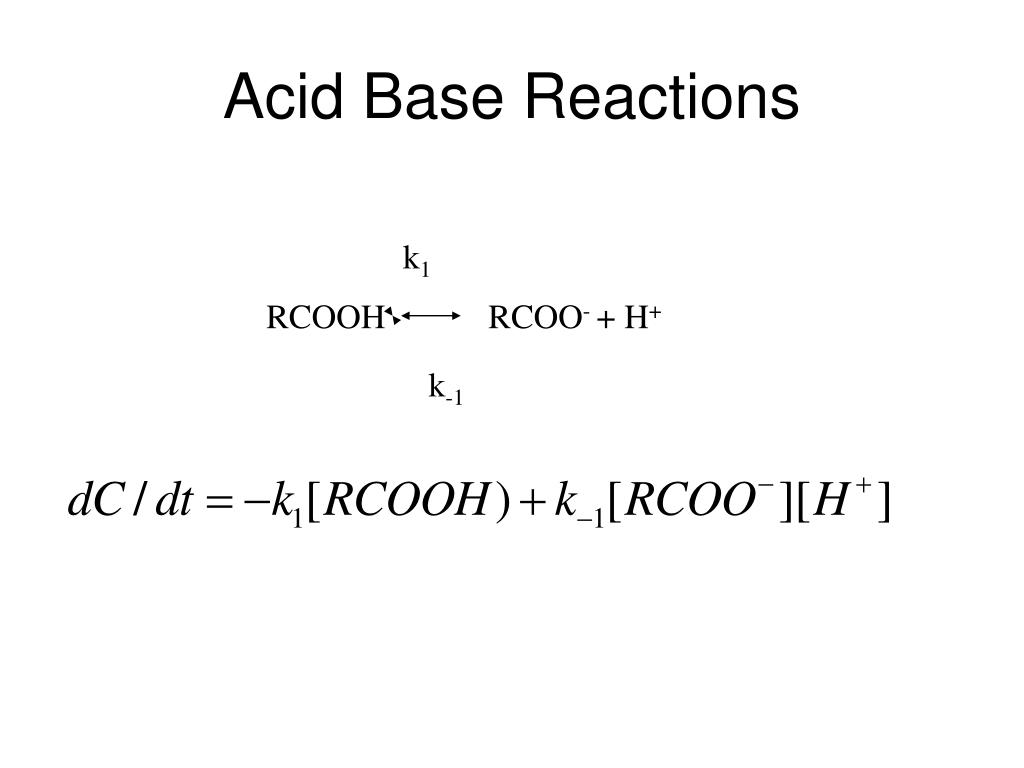

Acid Base Reactions

k1

RCOOH RCOO- + H+

k-1


Naproxen

Naproxen


Naproxen physical properties

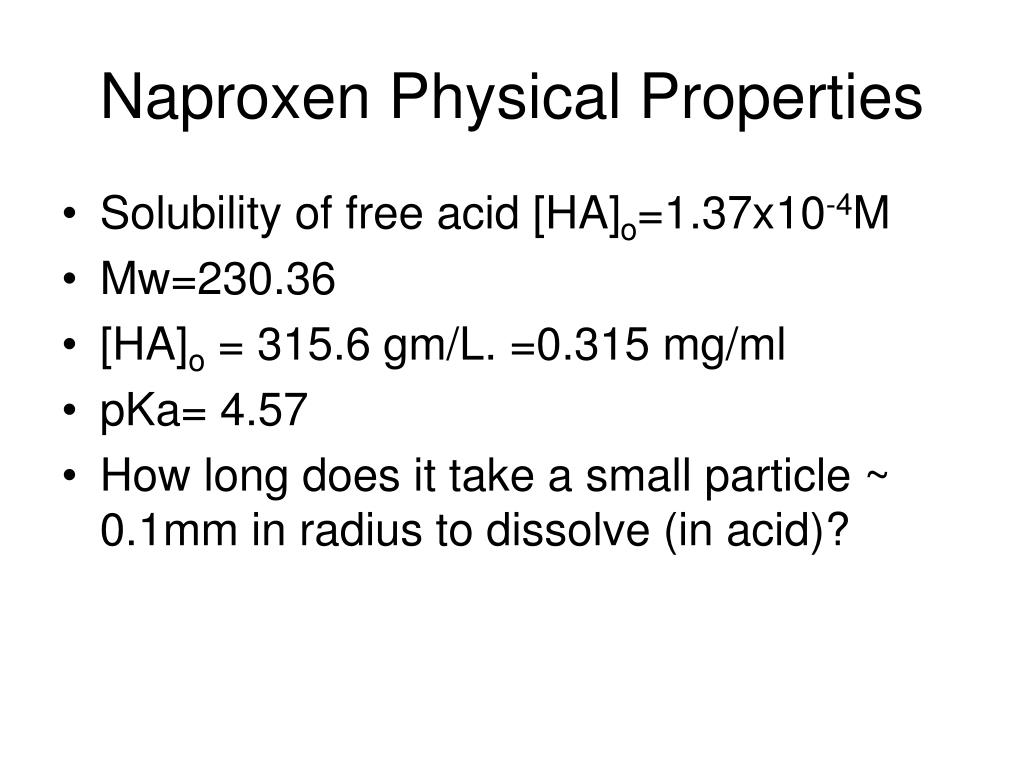

Naproxen Physical Properties

  • Solubility of free acid [HA]o=1.37x10-4M

  • Mw=230.36

  • [HA]o = 315.6 gm/L. =0.315 mg/ml

  • pKa= 4.57

  • How long does it take a small particle ~ 0.1mm in radius to dissolve (in acid)?


Dissolution time large particle

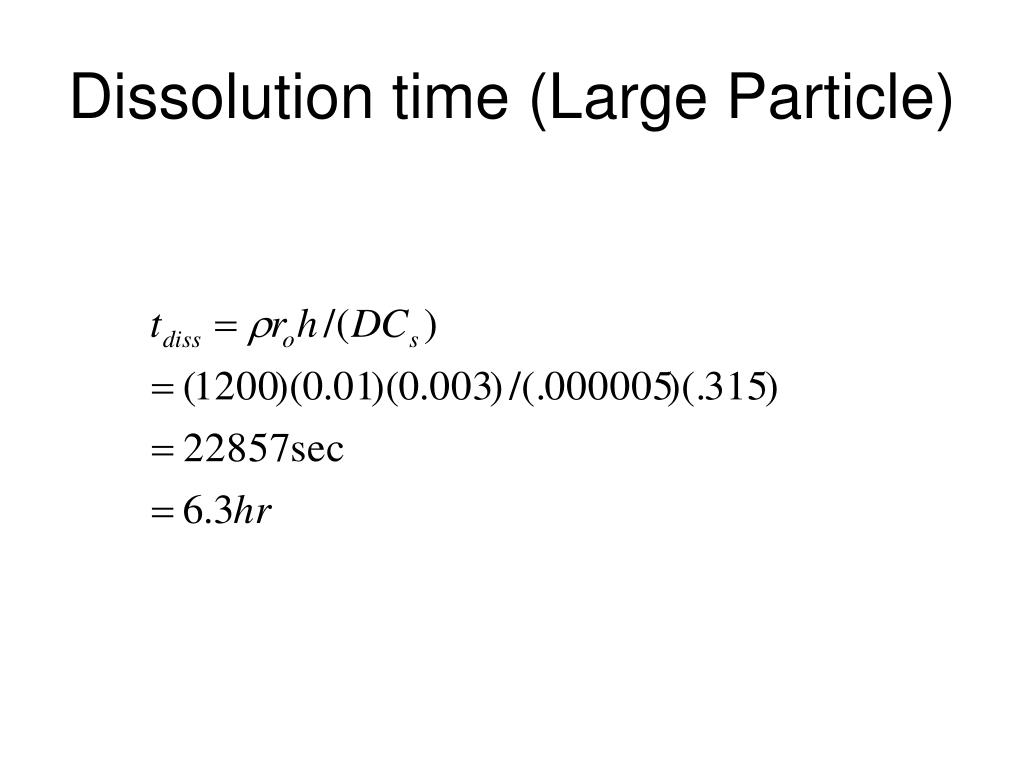

Dissolution time (Large Particle)


What does ionization of the acid do let s start with a film model

What does ionization of the acid do?Let’s start with a film model

Cs

SS

C=0

h


At the interface the ionization increases the solubility and we have ha a and h diffusing species

At the interface the ionization increases the solubility and we have HA, A- and H+ diffusing species.

A-

Cs

H+

C=0

HA

h


Non steady state membrane transport

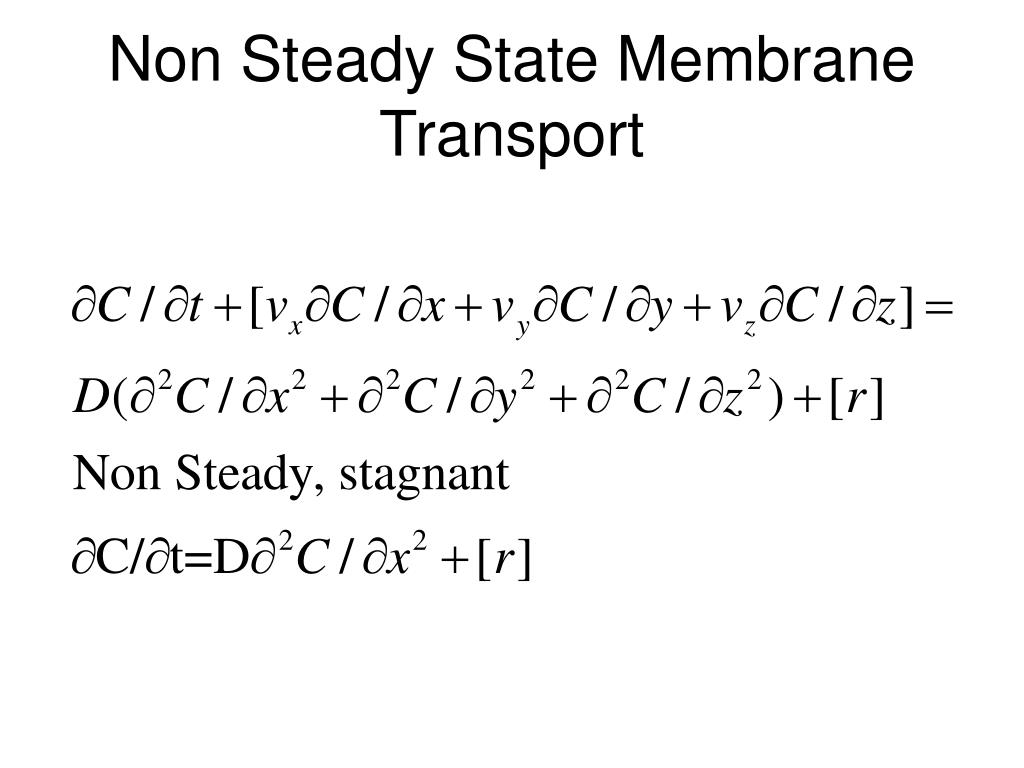

Non Steady State Membrane Transport


Assumptions

Assumptions

  • Stagnant fluid vi=0

  • Steady State dC/dt = 0

  • One dimensional


Transport equation one for each species

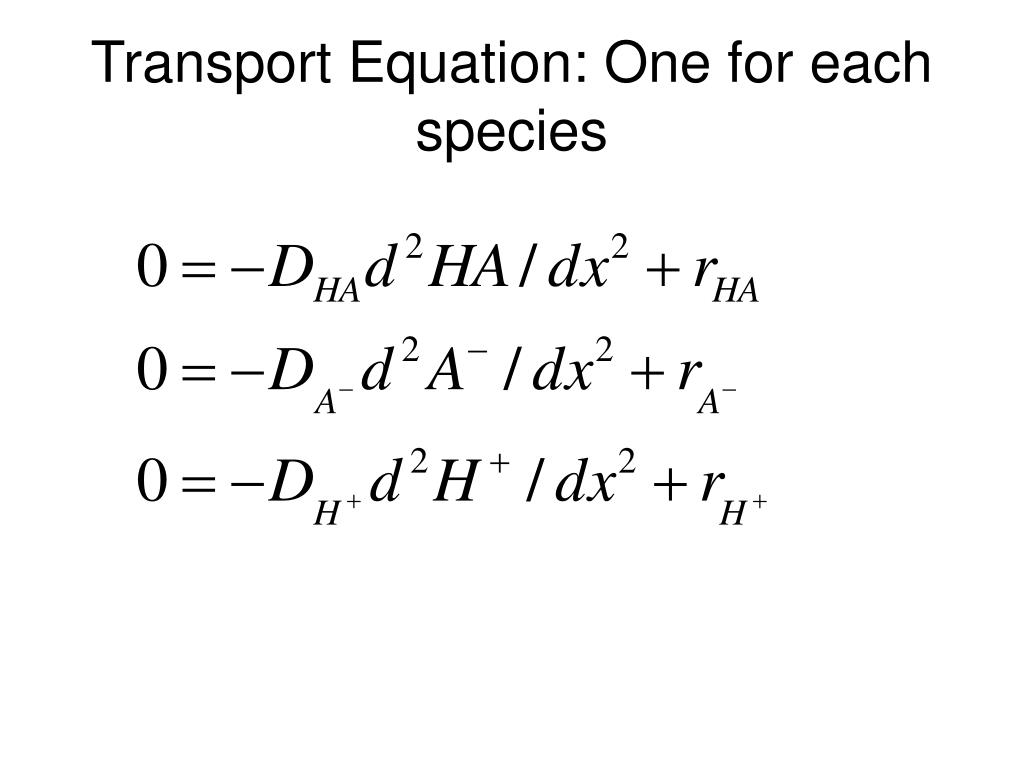

Transport Equation: One for each species


Acid base reaction terms

Acid Base Reaction Terms

k1

RCOOH RCOO- + H+

k-1


Add equations

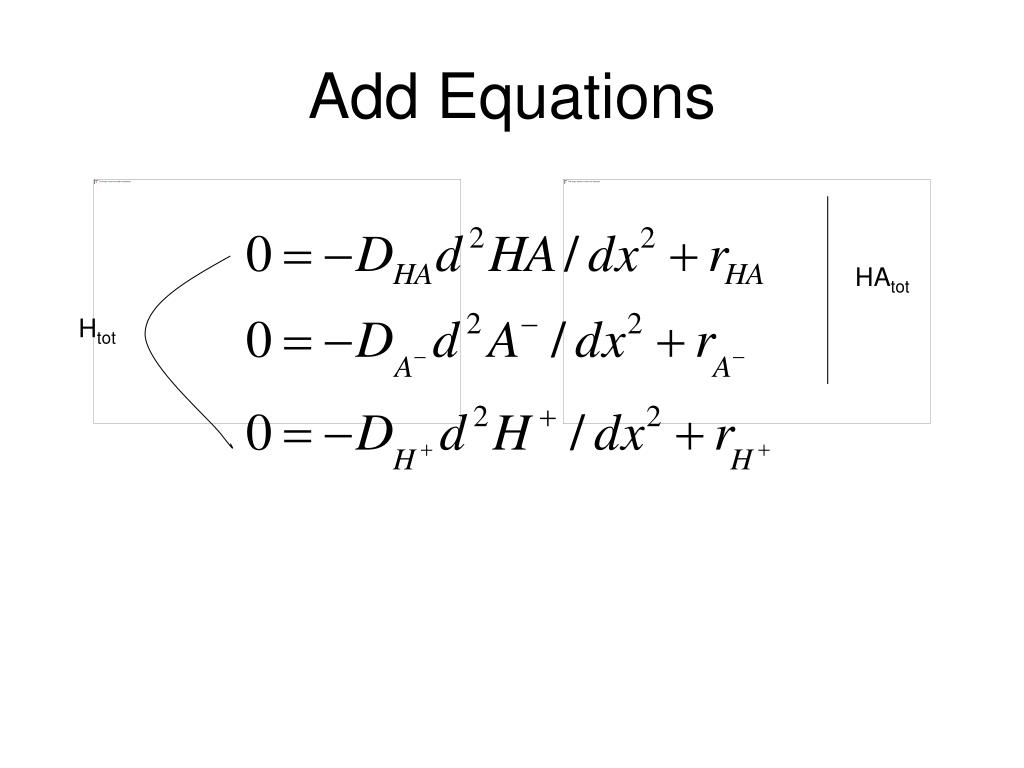

Add Equations

HAtot

Htot


Total ha a

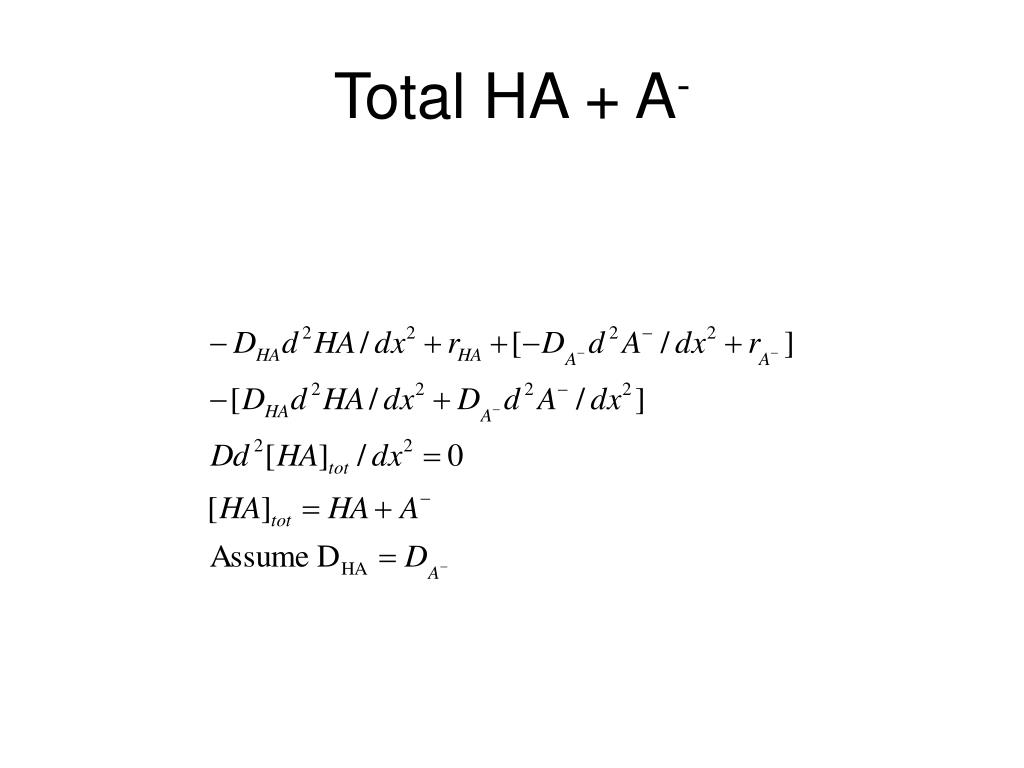

Total HA + A-


Total h h ha

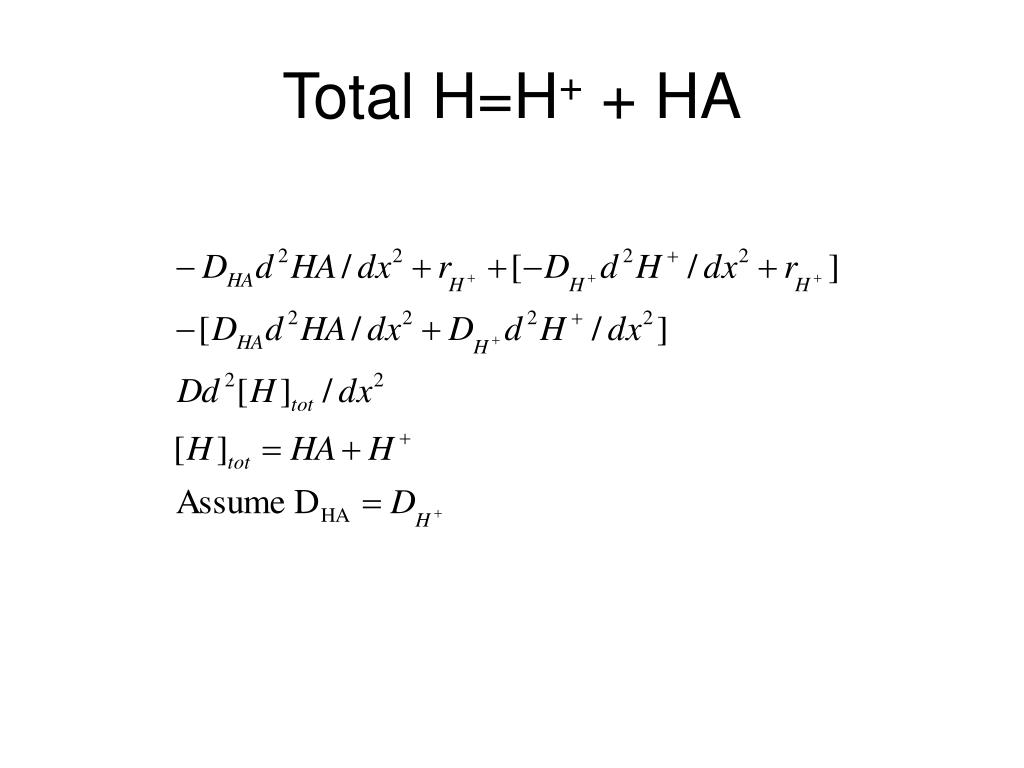

Total H=H+ + HA


Resulting equations

Resulting Equations


Now add boundary conditions

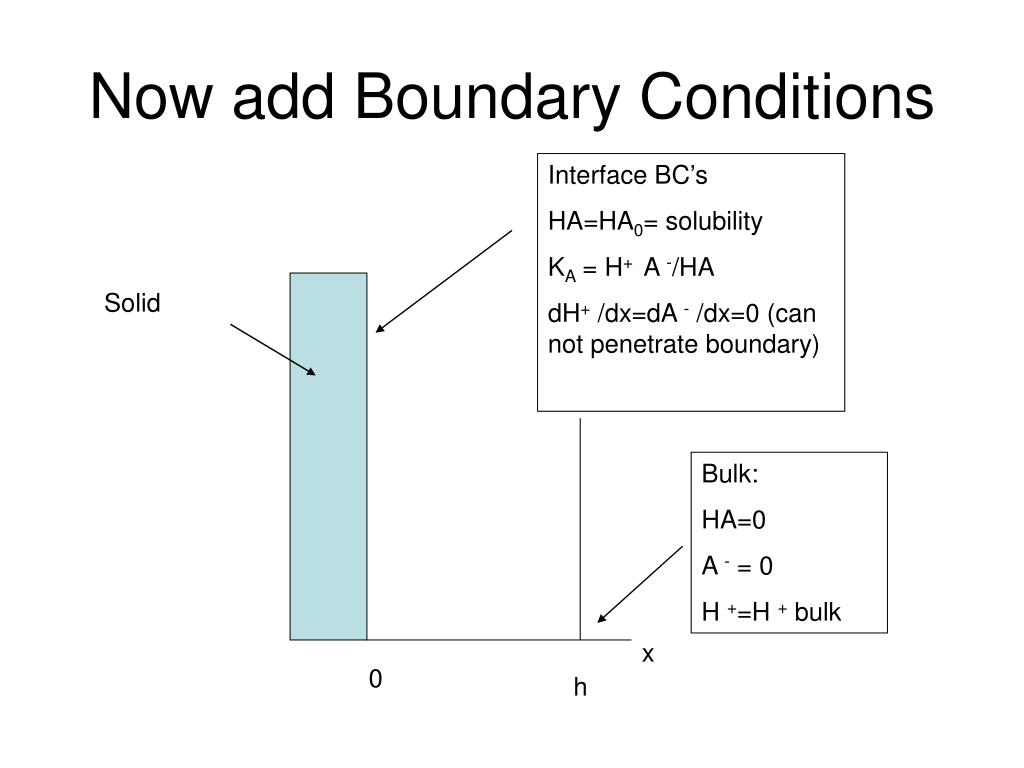

Now add Boundary Conditions

Interface BC’s

HA=HA0= solubility

KA = H+ A -/HA

dH+ /dx=dA - /dx=0 (can not penetrate boundary)

Solid

Bulk:

HA=0

A - = 0

H +=H + bulk

x

0

h


Solve these equations key assumptions

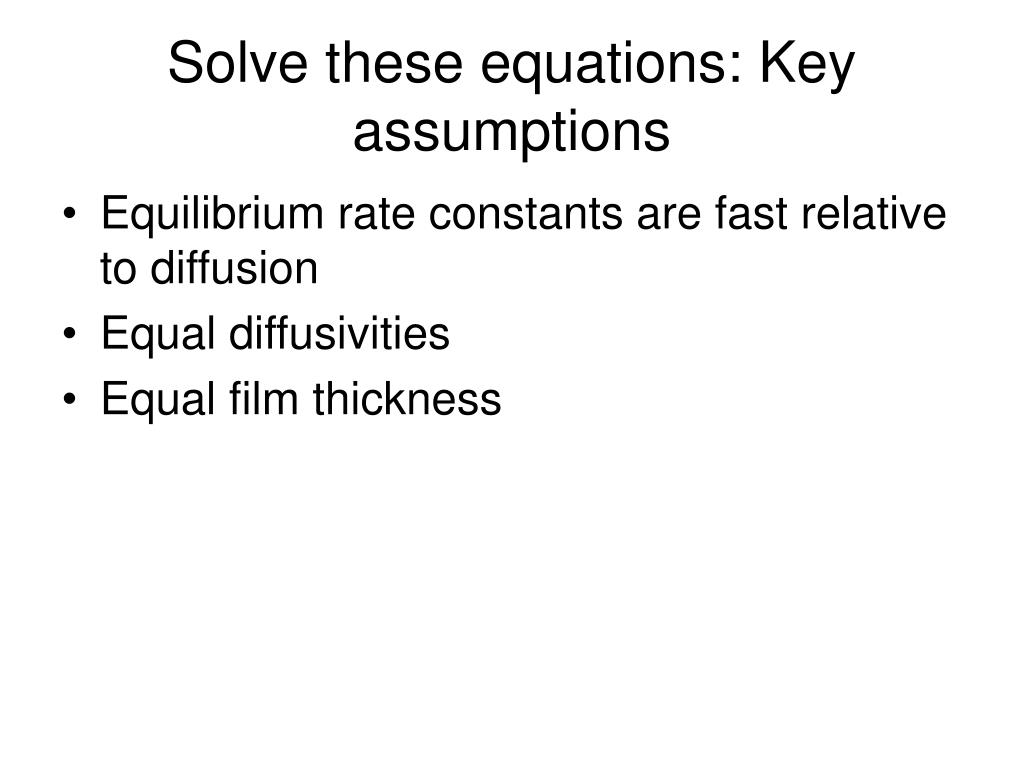

Solve these equations: Key assumptions

  • Equilibrium rate constants are fast relative to diffusion

  • Equal diffusivities

  • Equal film thickness


Resulting equations1

Resulting Equations


Conclusion

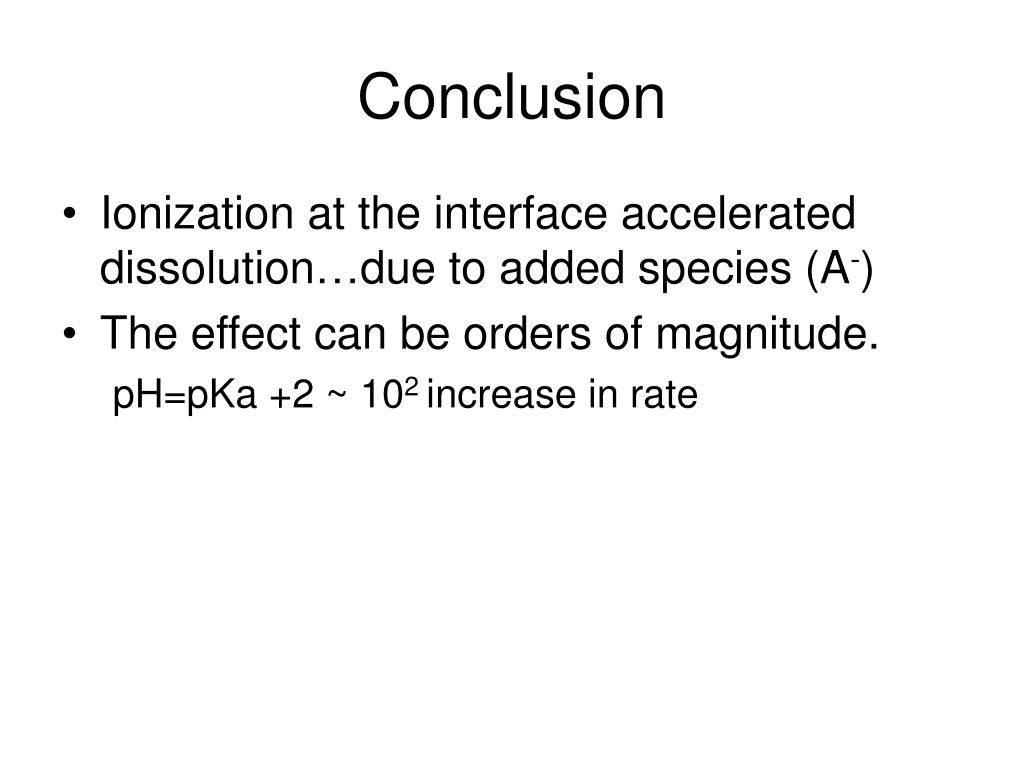

Conclusion

  • Ionization at the interface accelerated dissolution…due to added species (A-)

  • The effect can be orders of magnitude.

    pH=pKa +2 ~ 102 increase in rate


Reversible reaction

Reversible Reaction:

k1

A

B

k-1


Lovastatin lactone free acid

Lovastatin: Lactone-Free Acid

(A)

K=[E]/[A}

(E)


Reversible reaction not include ionization at this time

Reversible Reaction: (Not include ionization at this time)

Membrane Phase;

k1,m

,k-1,m

Km

Aqueous phase

k1,a

,k-1,a

Ka

Partition Coefficients

PCA

PCE

Equilibrium constant differs in two phases: Ka>Km


Transport equations in each phase

Transport Equations: In each Phase


Transport equations in each phase1

Transport Equations: In each Phase


Transport equations in each phase2

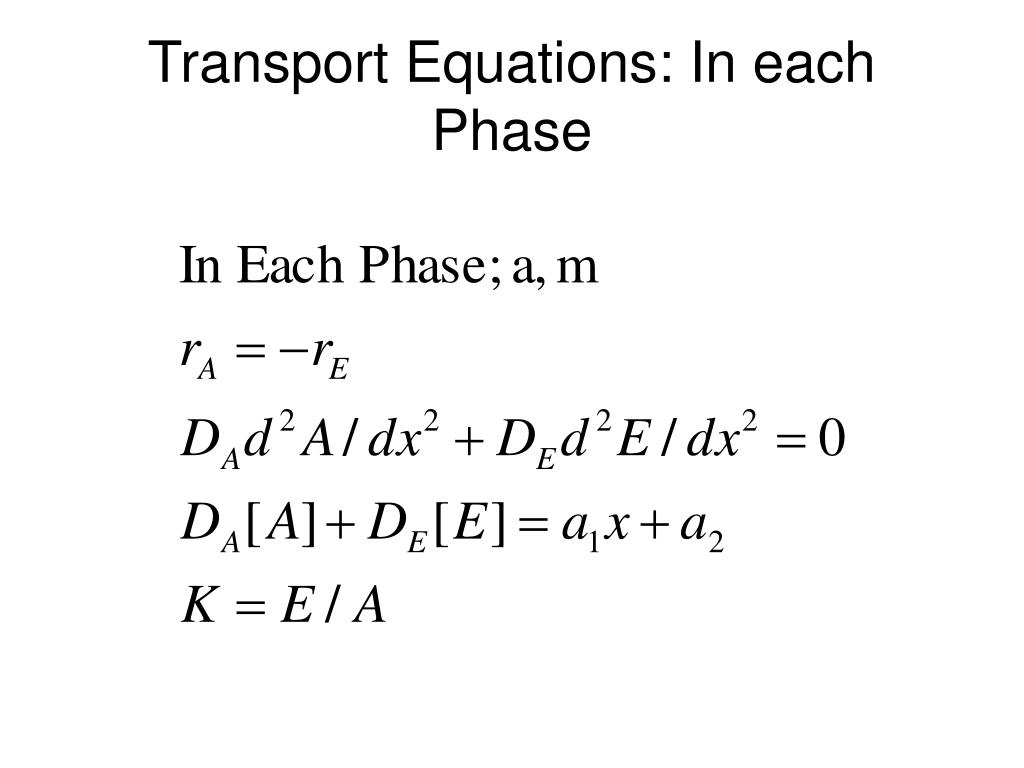

Transport Equations: In each Phase


Let s do one phase olander reference

Let’s do one Phase (Olander reference)

Material A diffuses into film m’ and can react to form E in film


Solution olander

Solution (Olander)
