Sleeping bag comparison

Sleeping Bag Comparison

Which sleeping bag will keep you warmer?

By: Kyle Layton and Ben Salazar

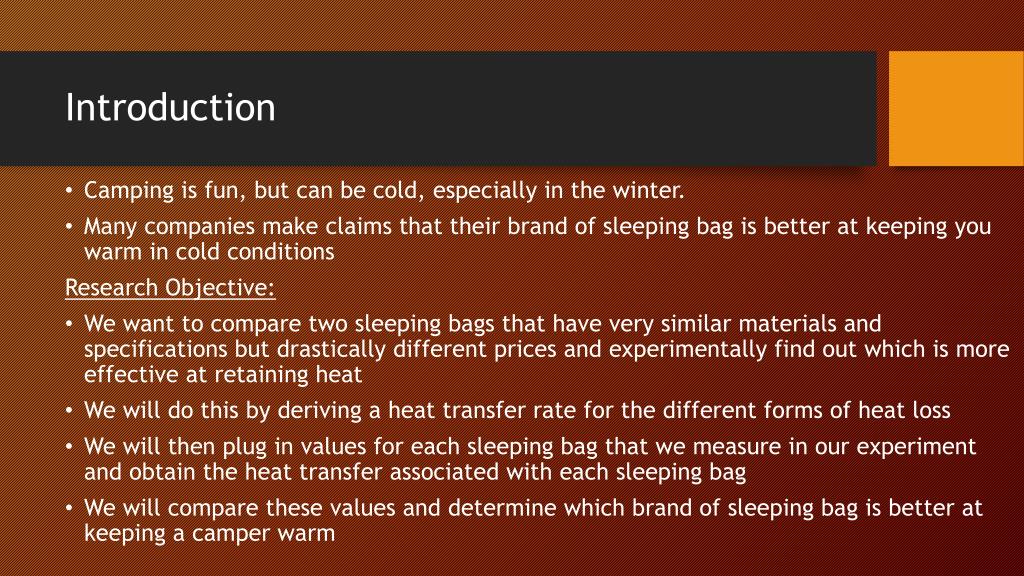

Introduction

Introduction

  • Camping is fun, but can be cold, especially in the winter.

  • Many companies make claims that their brand of sleeping bag is better at keeping you warm in cold conditions

    Research Objective:

  • We want to compare two sleeping bags that have very similar materials and specifications but drastically different prices and experimentally find out which is more effective at retaining heat

  • We will do this by deriving a heat transfer rate for the different forms of heat loss

  • We will then plug in values for each sleeping bag that we measure in our experiment and obtain the heat transfer associated with each sleeping bag

  • We will compare these values and determine which brand of sleeping bag is better at keeping a camper warm


Introduction sleeping bags

Introduction – sleeping bags

  • Sleeping bag 1 – Ledge Mummy Sleeping bag

    • Operating temperatures: + 20º F

    • Price: $60.00

  • Sleeping bag 1 - Northface Mummy Sleeping bag

    • Operating temperatures: + 20º F

  • Price: $200.00

Which is better?


Methods

Methods

Assumptions:

  • Zip Loc bags have uniform surface temperature

  • Zip Loc bags can be approximated as as spheres with properties of water

  • Sleeping bags can be approximated as flat surfaces

  • Floor can be treated as a semi-infinite solid

  • Thickness of material of sleeping bag can be neglected due to compression

  • 1-D heat transfer

Materials used:

  • 2 Small Zip-Loc bags large enough to fit 500 ml of liquid

  • Beaker

  • Water

  • Microwave

  • Two sleeping bags of the same size and style, but different brands

  • Infrared thermal laser digital thermometer

  • FLIR E5 compact thermal imaging infrared camera


Methods1

Methods

  • Filled Zip-Loc bags with a fixed volume of warm water

    • Measured water volume using a beaker: 475 ml = 475 x 10-6 m3

    • Heated water to 49º C using a microwave

  • Measured the temperature of water, the room, and the sleeping bag using an infrared thermal laser digital thermometer

  • Placed Zip-Loc bags in sleeping bags and monitored temperature of both the sleeping bag and the Zip-Loc bag over a 45 min time interval.

  • Took thermal images using FLIR E5 Compact Thermal Imaging InfraRedCamera for visualization purposes


Methods2

Methods

  • The bag of water at 49º C is assumed to heat at least a small portion of the sleeping bag.

  • If we approximate the patch of sleeping bag that was heated as a small plate we can use the following equations:

  • Using these values, the Rayleigh number was calculated for each corresponding measurement: Ra = Pr(Gr)

  • This gave us a way to calculate the average h value for surfaces

  • Then, using the equation Qair = hA(ΔT*t), we calculated the heat transfer between each measurement through free convection.

  • The total heat loss through the air was found by summing values for these Qair values( see appendix)


Methods3

Methods

  • Heat transfer through the ground was calculated assuming a semi-infinite solid in contact with a uniform temperature surface, using:

  • For each measurement, similar to the procedure outlined for Qair, q” values for each time interval were calculated and then summed

  • Heat loss through the air (Qair ) and through the ground (q”) were then summed to determine the total heat loss


Results thermal images

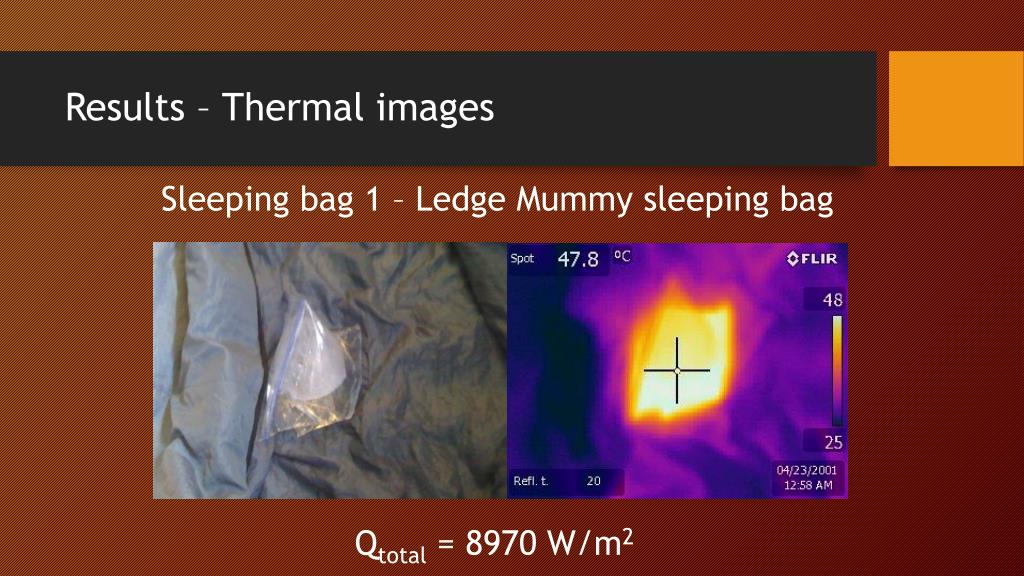

Results – Thermal images

Sleeping bag 1 – Ledge Mummy sleeping bag

Qtotal = 8970 W/m2


Results thermal images1

Results – Thermal Images

Sleeping bag 2 – Northface Mummy sleeping bag

Qtotal = 7890 W/m2


Conclusion

Conclusion

  • A slight difference was detected between the two sleeping bag brands

  • At Qtotal = 7890 Sleeping bag 2 more effectively retained heat and thus would keep a camper warmer

  • This represents a 12% better heat retention

  • Despite its better performance, we do not believe this justifies the $140 price difference between the two products

  • We therefore recommend the use and purchase of the less expensive and still effective sleeping bag


Appendix experimental measurements

Appendix – Experimental Measurements


Appendix preliminary calculations

Appendix – Preliminary Calculations


Appendix final calculations results

Appendix – Final Calculations & Results
