  1. Virtual Memory • Basic Concepts • Demand Paging • Page Replacement Algorithms • Working-Set Model GMU – CS 571

  2. Last week in Memory Management… • Assumed all of a process is brought into memory in order to run it. • Contiguous allocation • Paging • Segmentation • What if we remove this assumption? What do we gain/lose? GMU – CS 571

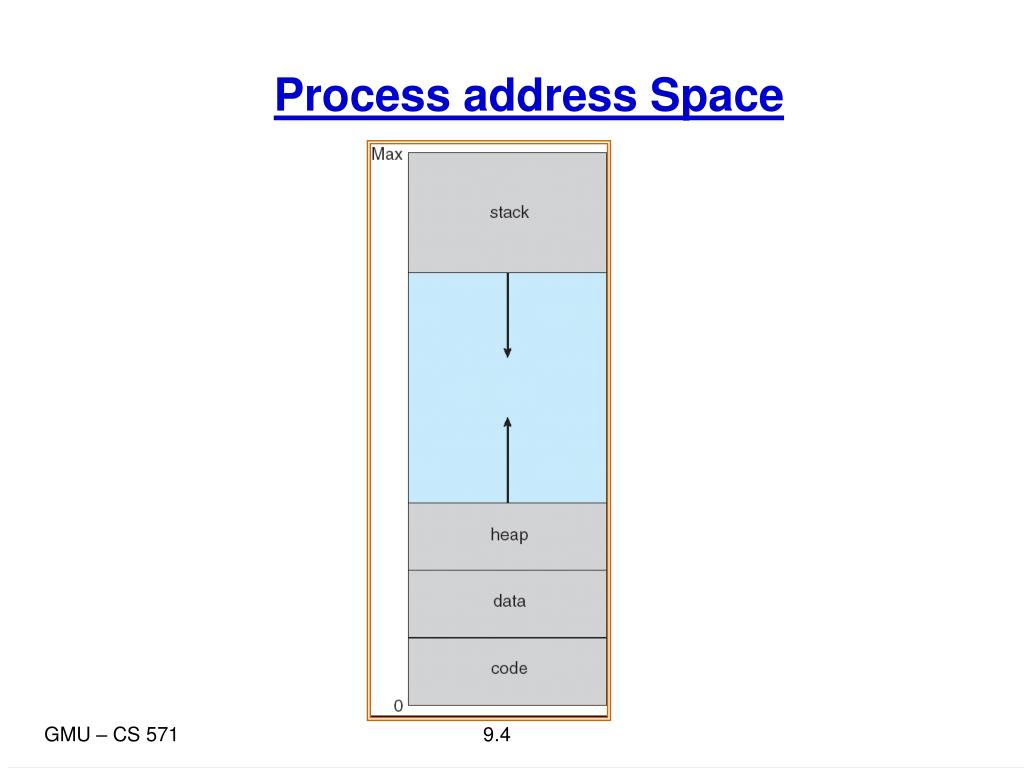

  3. Process address Space GMU – CS 571

  4. Virtual Memory • Separation of user logical memory from physical memory • Only part of the program needs to be in memory for execution. • The logical address space can be much larger than the physical address space. • Virtual memory can be implemented via: • Demand paging • Demand segmentation GMU – CS 571

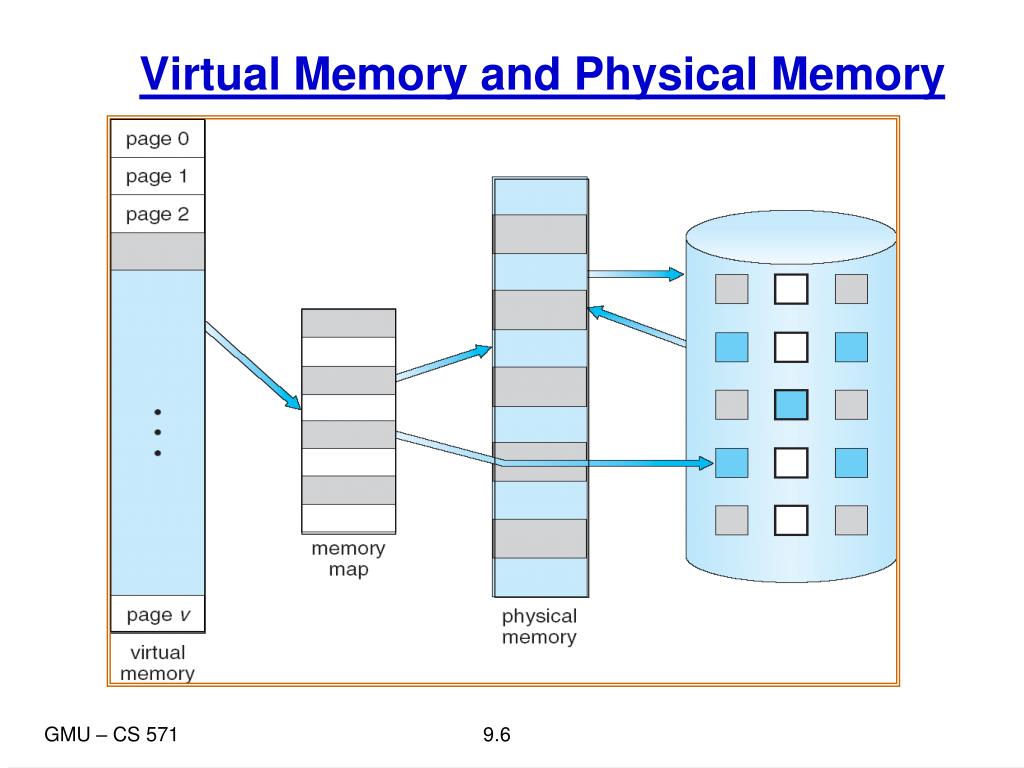

  5. Virtual Memory and Physical Memory GMU – CS 571

  6. Demand Paging • When time to run a process, bring only a few necessary pages into memory. While running the process, bring a page into memory only when it is needed (lazy swapping) • Less I/O needed • Less memory needed • Faster response • Support more processes/users • Page is needed • If memory resident  use the reference to page from page table • If not in memory  Page fault trap GMU – CS 571

  7. Frame # valid-invalid bit 1 1 1 1 0  0 0 page table Valid-Invalid Bit • How do we know if a page is in main memory or not? • With each page table entry, a valid–invalid bit is associated (1  legal/in-memory, 0 not-in-memory) • During address translation, if valid–invalid bit in page table entry is 0  page fault trap GMU – CS 571

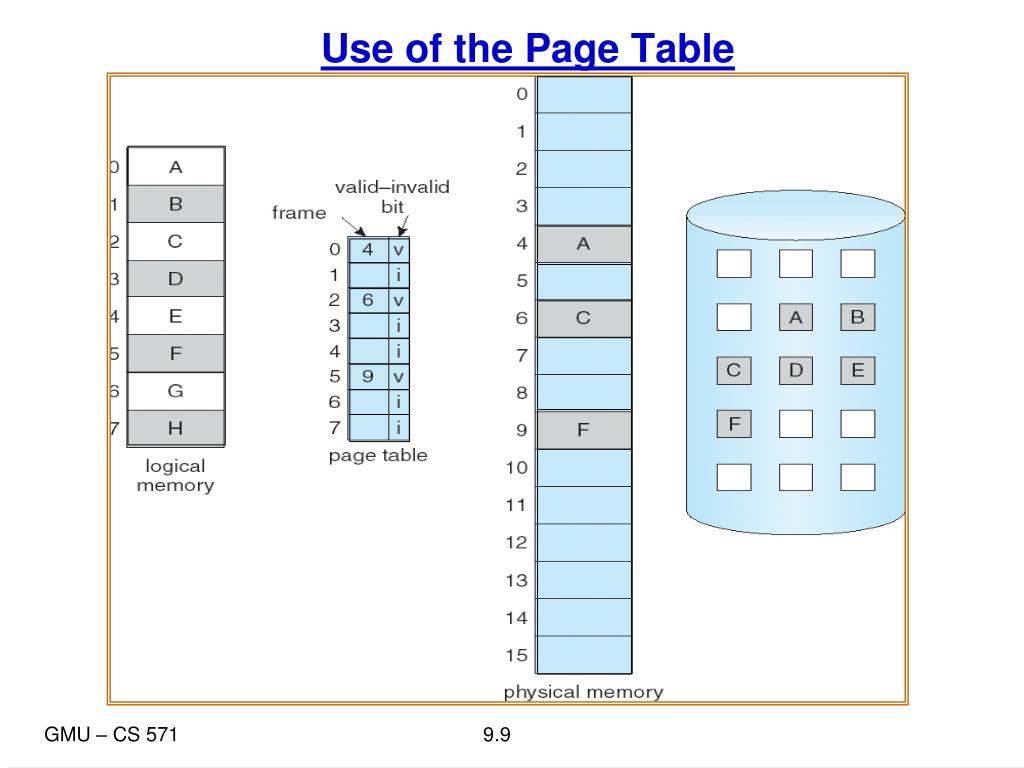

  8. Use of the Page Table GMU – CS 571

  9. Handling a Page Fault • If there is a reference to a page which is not in memory, this reference will result in a trap page fault • Typically, the page table entry will contain the address of the page on disk. • Major steps • Locate empty frame • Initiate disk I/O • Move page (from disk) to the empty frame • Update page table; set validation bit to 1. GMU – CS 571

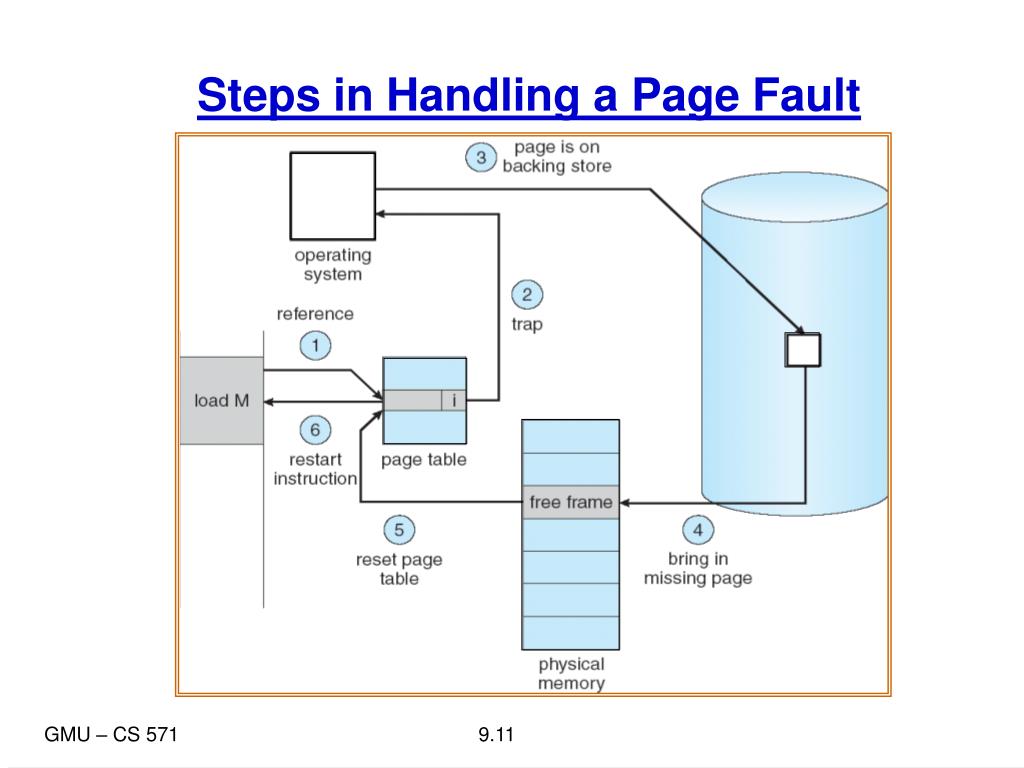

  10. Steps in Handling a Page Fault GMU – CS 571

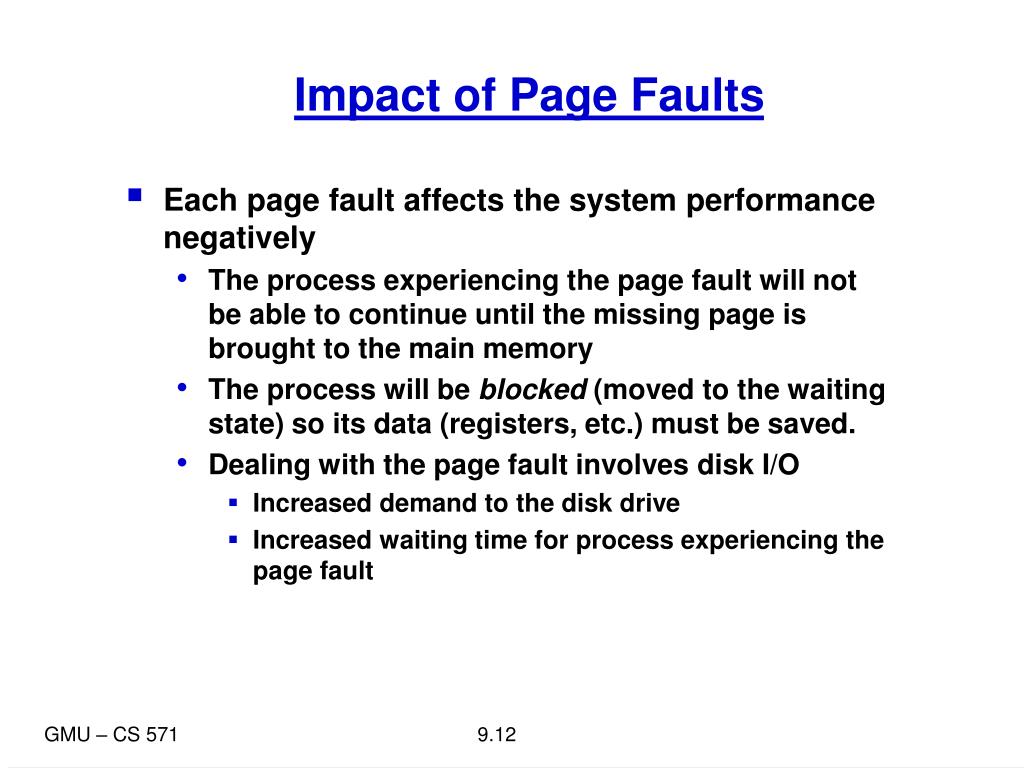

  11. Impact of Page Faults • Each page fault affects the system performance negatively • The process experiencing the page fault will not be able to continue until the missing page is brought to the main memory • The process will be blocked (moved to the waiting state) so its data (registers, etc.) must be saved. • Dealing with the page fault involves disk I/O • Increased demand to the disk drive • Increased waiting time for process experiencing the page fault GMU – CS 571

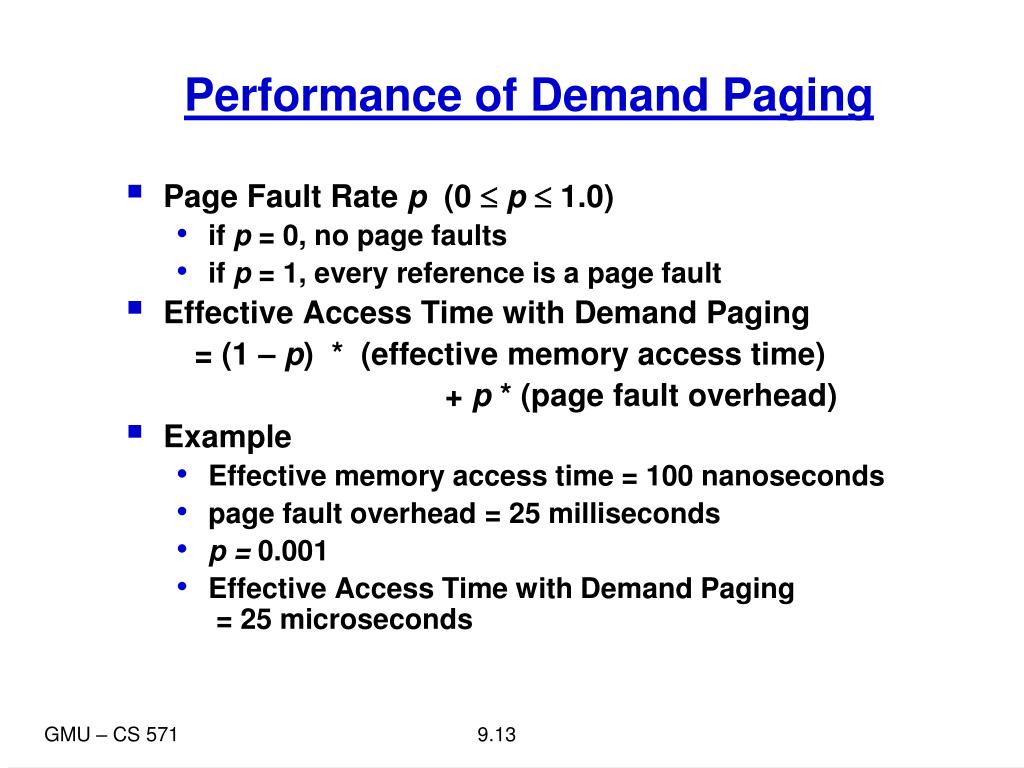

  12. Performance of Demand Paging • Page Fault Rate p (0  p  1.0) • if p = 0, no page faults • if p = 1, every reference is a page fault • Effective Access Time with Demand Paging = (1 – p) * (effective memory access time) + p * (page fault overhead) • Example • Effective memory access time = 100 nanoseconds • page fault overhead = 25 milliseconds • p = 0.001 • Effective Access Time with Demand Paging = 25 microseconds GMU – CS 571

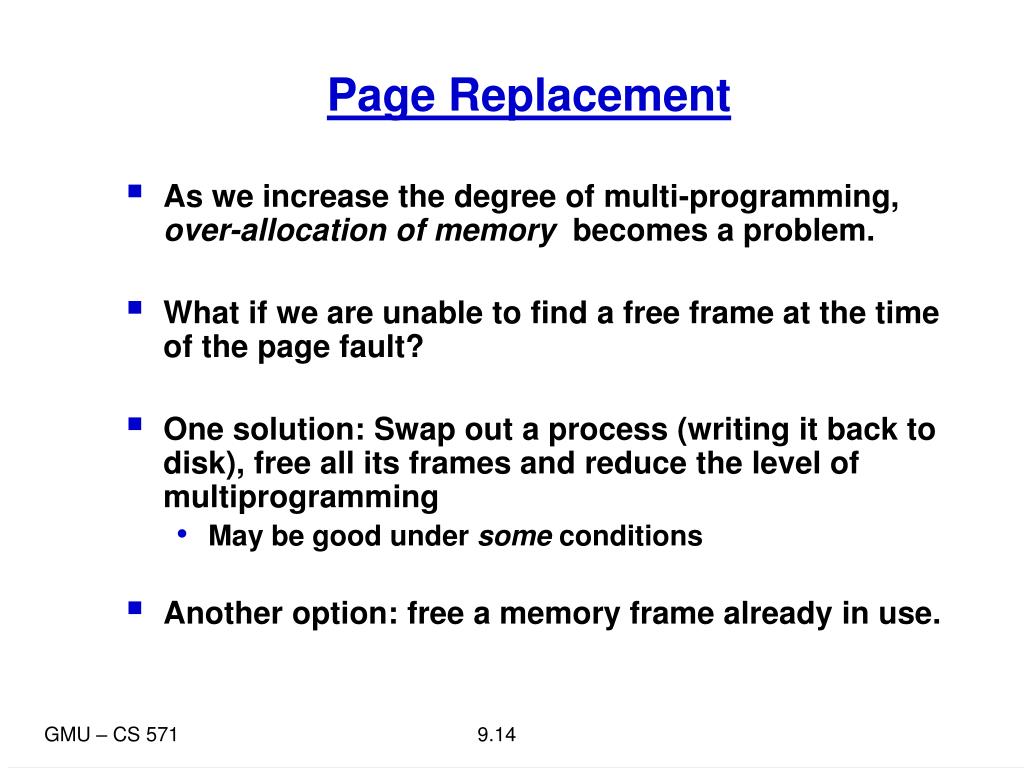

  13. Page Replacement • As we increase the degree of multi-programming, over-allocationof memory becomes a problem. • What if we are unable to find a free frame at the time of the page fault? • One solution: Swap out a process (writing it back to disk), free all its frames and reduce the level of multiprogramming • May be good under some conditions • Another option: free a memory frame already in use. GMU – CS 571

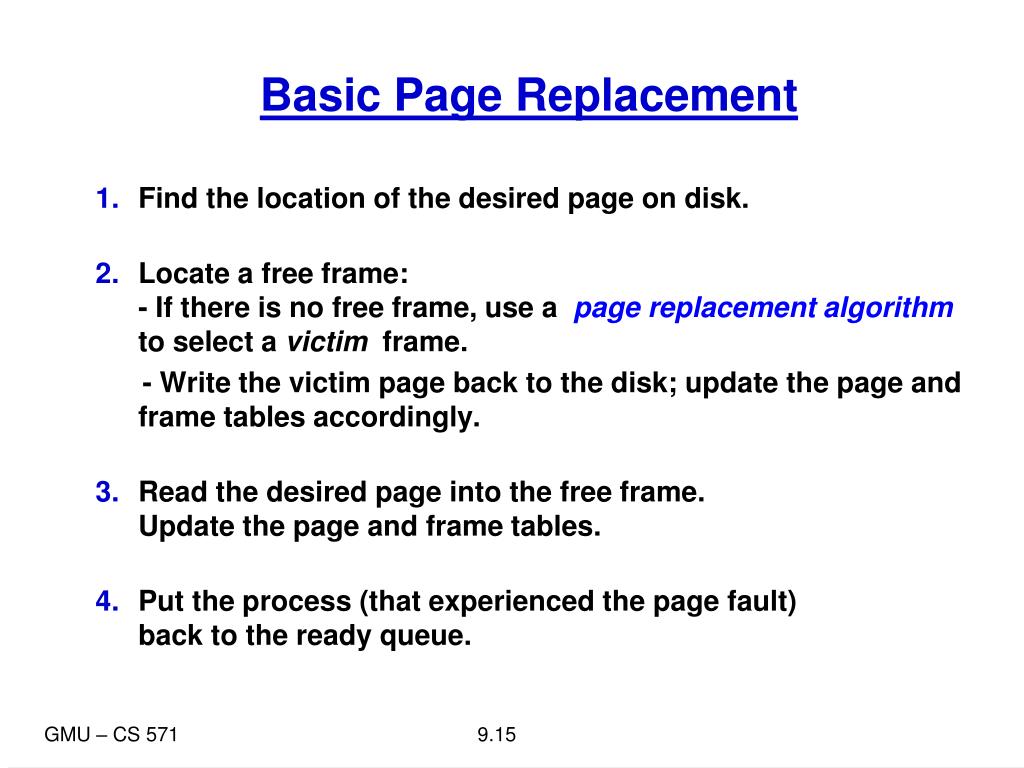

  14. Basic Page Replacement • Find the location of the desired page on disk. • Locate a free frame:- If there is no free frame, use a page replacement algorithm to select a victim frame. - Write the victim page back to the disk; update the page and frame tables accordingly. • Read the desired page into the free frame.Update the page and frame tables. • Put the process (that experienced the page fault) back to the ready queue. GMU – CS 571

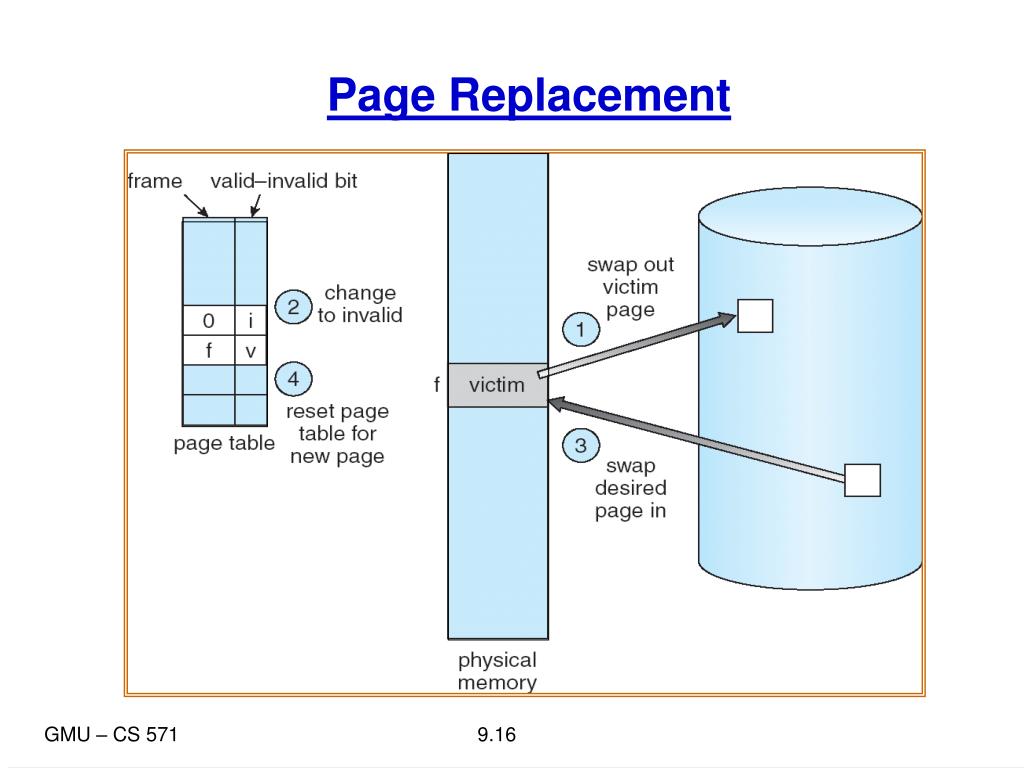

  15. Page Replacement GMU – CS 571

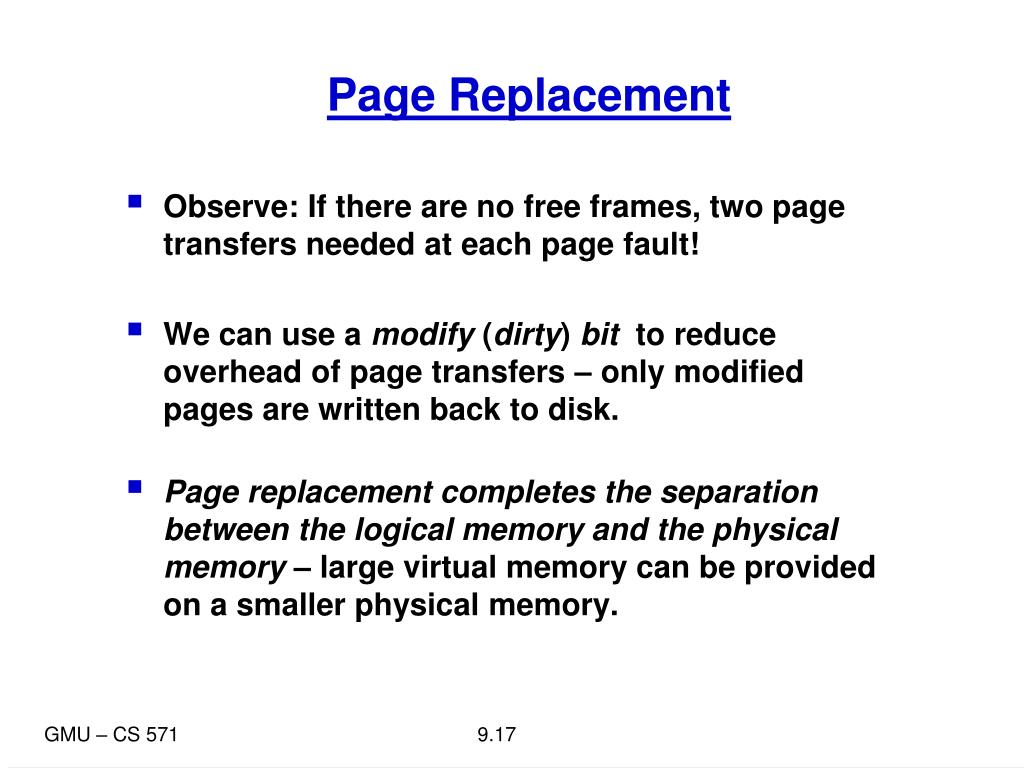

  16. Page Replacement • Observe: If there are no free frames, two page transfers needed at each page fault! • We can use a modify (dirty) bit to reduce overhead of page transfers – only modified pages are written back to disk. • Page replacement completes the separation between the logical memory and the physical memory – large virtual memory can be provided on a smaller physical memory. GMU – CS 571

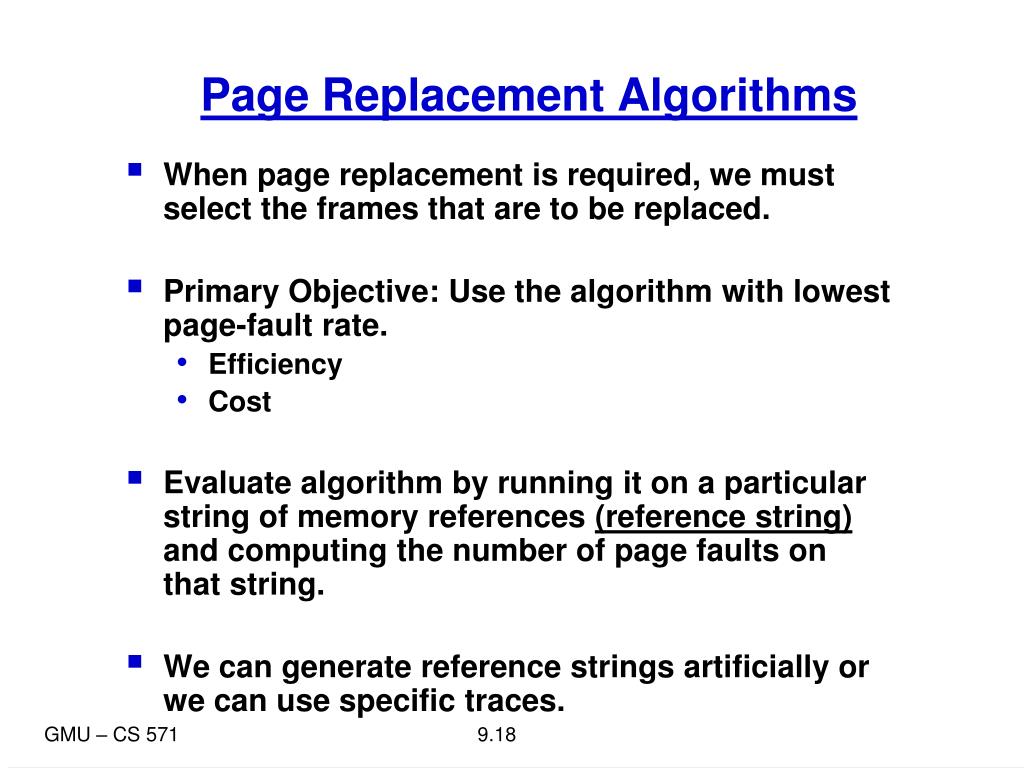

  17. Page Replacement Algorithms • When page replacement is required, we must select the frames that are to be replaced. • Primary Objective: Use the algorithm with lowest page-fault rate. • Efficiency • Cost • Evaluate algorithm by running it on a particular string of memory references (reference string) and computing the number of page faults on that string. • We can generate reference strings artificially or we can use specific traces. GMU – CS 571

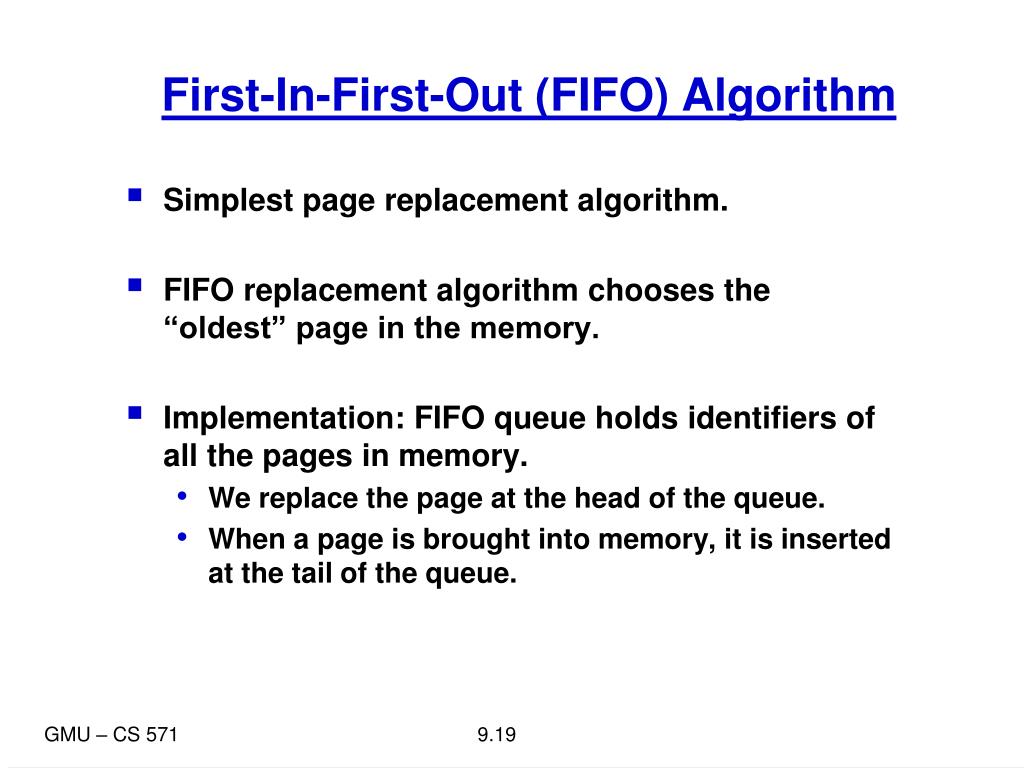

  18. First-In-First-Out (FIFO) Algorithm • Simplest page replacement algorithm. • FIFO replacement algorithm chooses the “oldest” page in the memory. • Implementation: FIFO queue holds identifiers of all the pages in memory. • We replace the page at the head of the queue. • When a page is brought into memory, it is inserted at the tail of the queue. GMU – CS 571

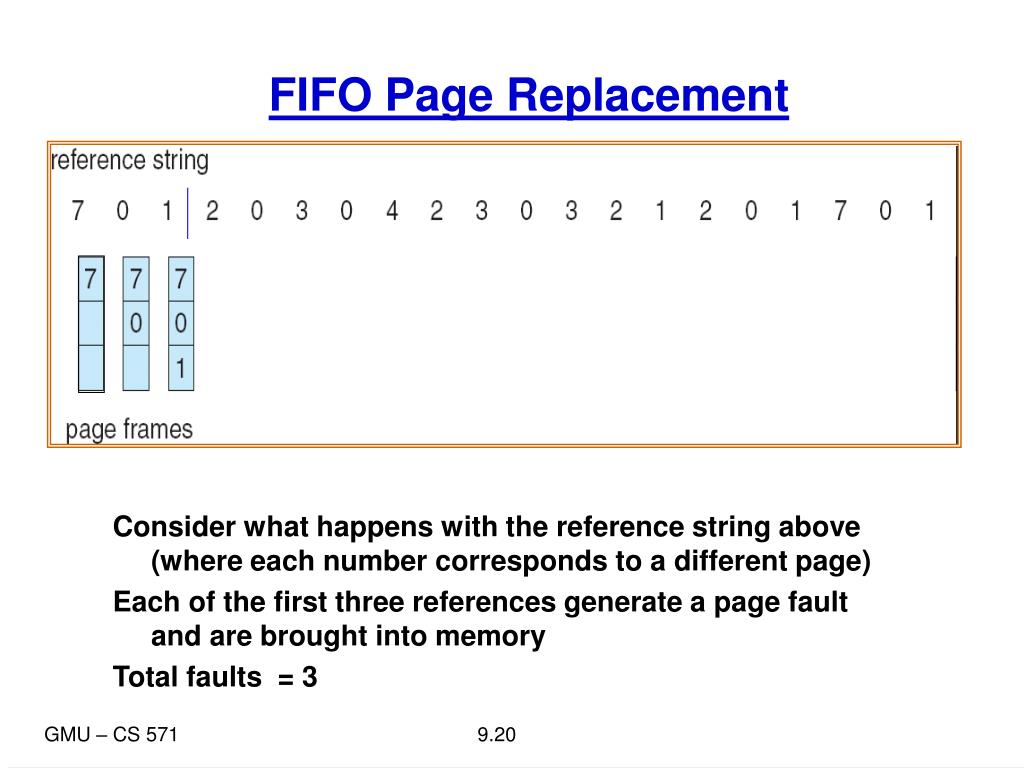

  19. FIFO Page Replacement Consider what happens with the reference string above (where each number corresponds to a different page) Each of the first three references generate a page fault and are brought into memory Total faults = 3 GMU – CS 571

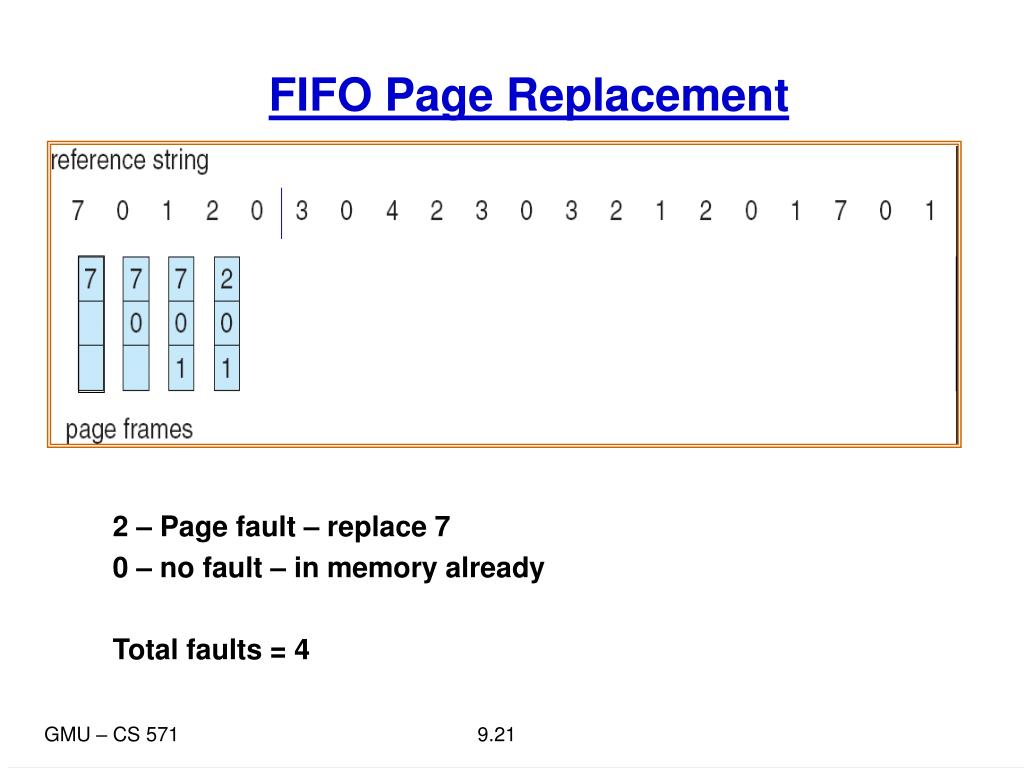

  20. FIFO Page Replacement 2 – Page fault – replace 7 0 – no fault – in memory already Total faults = 4 GMU – CS 571

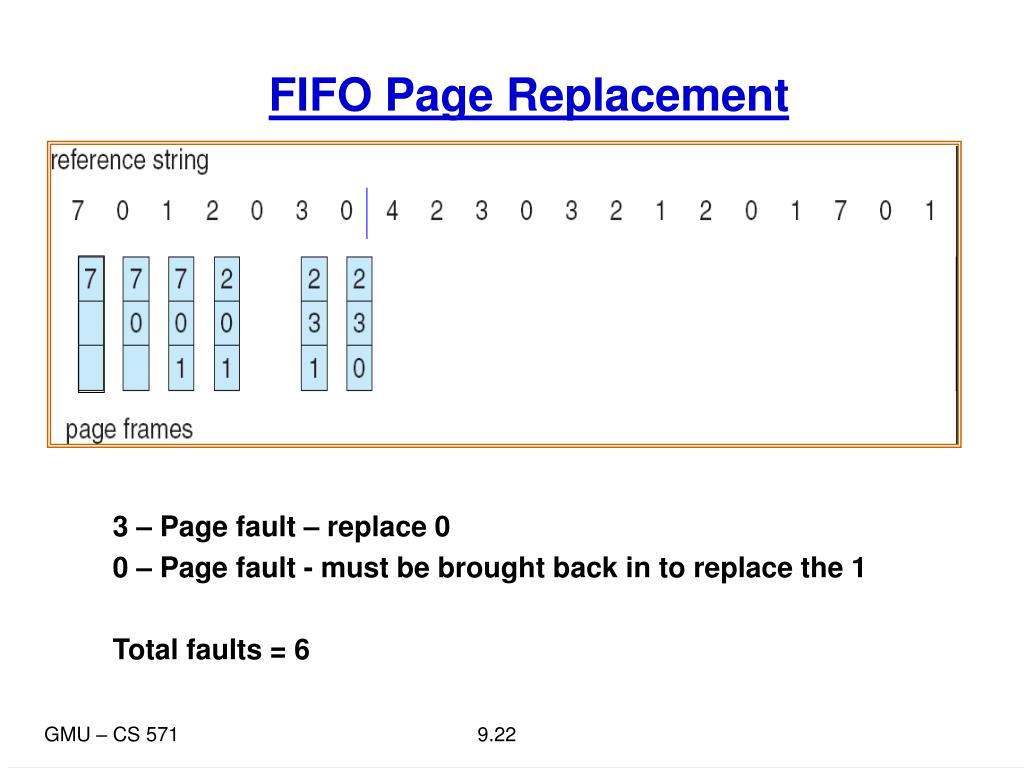

  21. FIFO Page Replacement 3 – Page fault – replace 0 0 – Page fault - must be brought back in to replace the 1 Total faults = 6 GMU – CS 571

  22. FIFO Page Replacement 4 – Page fault – replace 2 2 – Page fault - must be brought back in to replace the 3 3 – Page fault - must be brought back in to replace the 0 Total faults = 9 GMU – CS 571

  23. FIFO Page Replacement 0 – Page fault – replace 4 3 – in memory 2 – in memory Total faults = 10 GMU – CS 571

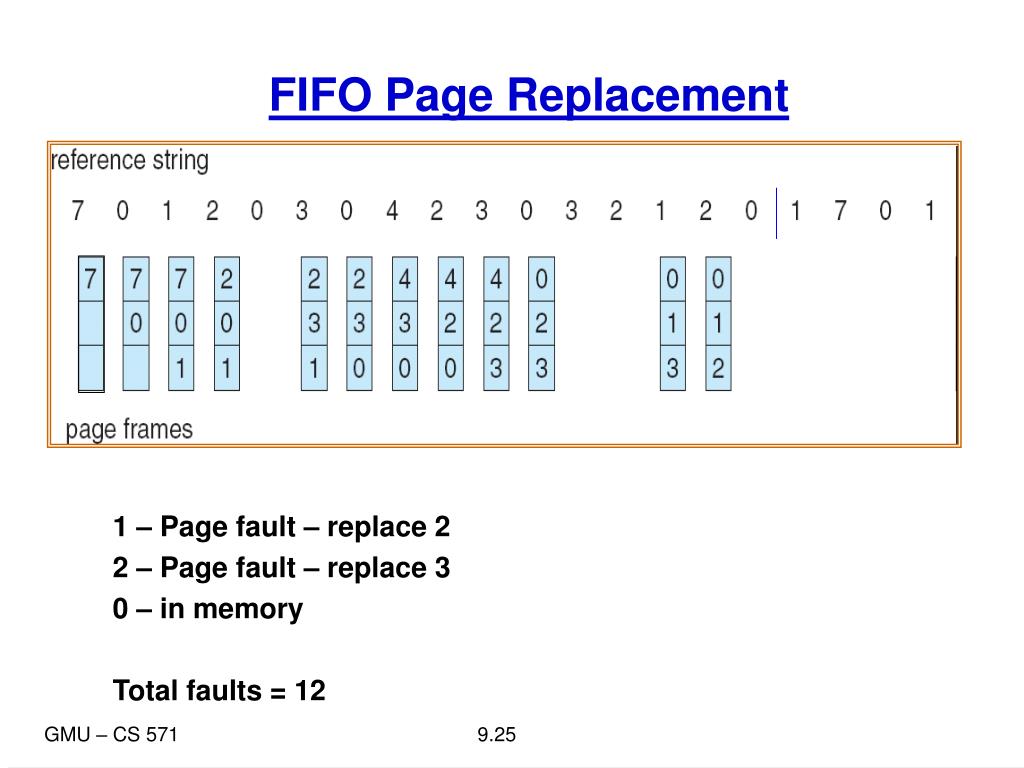

  24. FIFO Page Replacement 1 – Page fault – replace 2 2 – Page fault – replace 3 0 – in memory Total faults = 12 GMU – CS 571

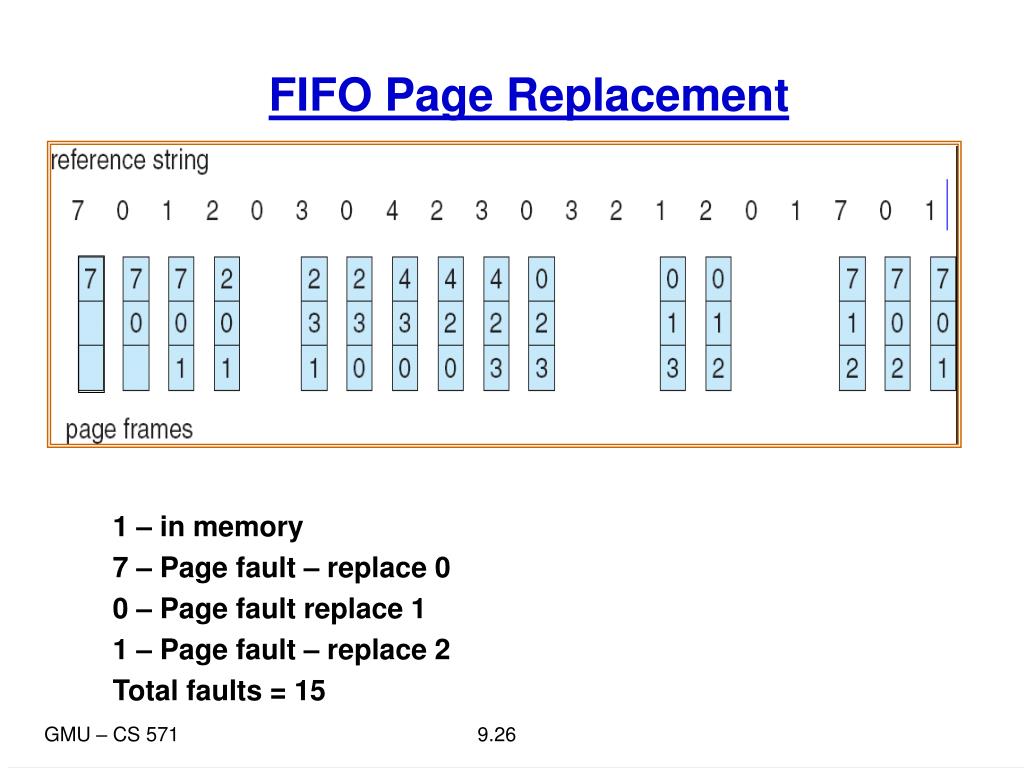

  25. FIFO Page Replacement 1 – in memory 7 – Page fault – replace 0 0 – Page fault replace 1 1 – Page fault – replace 2 Total faults = 15 GMU – CS 571

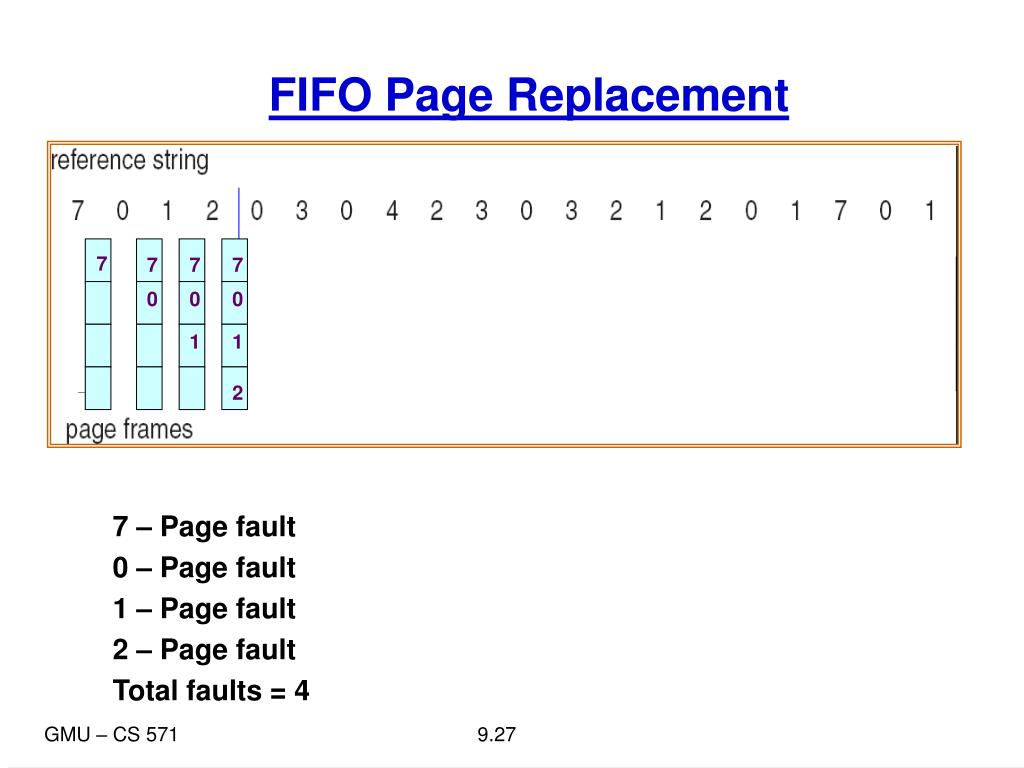

  26. FIFO Page Replacement 7 7 7 7 0 0 0 1 1 2 7 – Page fault 0 – Page fault 1 – Page fault 2 – Page fault Total faults = 4 GMU – CS 571

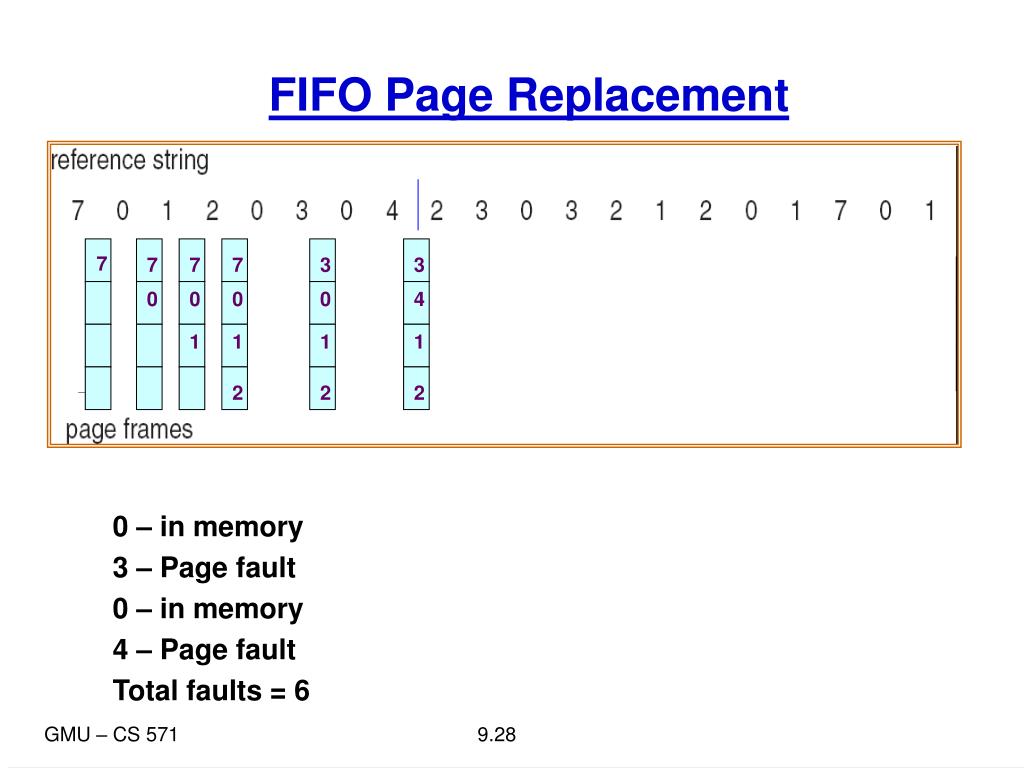

  27. FIFO Page Replacement 7 7 7 7 3 3 0 0 0 0 4 1 1 1 1 2 2 2 0 – in memory 3 – Page fault 0 – in memory 4 – Page fault Total faults = 6 GMU – CS 571

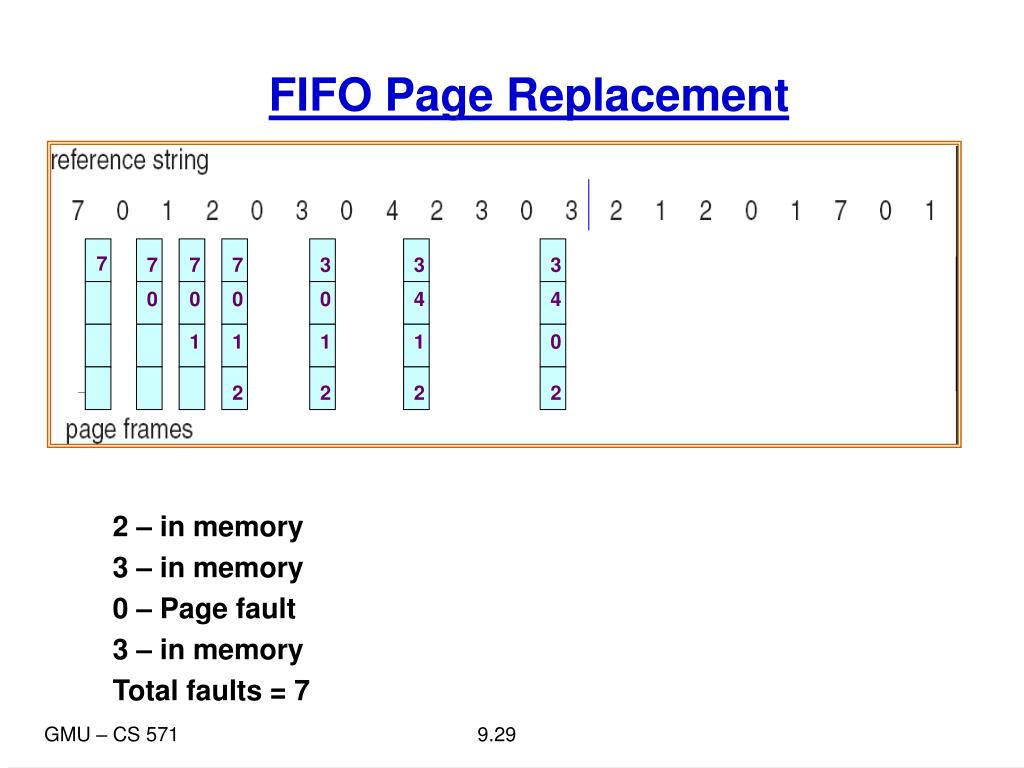

  28. FIFO Page Replacement 7 7 7 7 3 3 3 0 0 0 0 4 4 1 1 1 1 0 2 2 2 2 2 – in memory 3 – in memory 0 – Page fault 3 – in memory Total faults = 7 GMU – CS 571

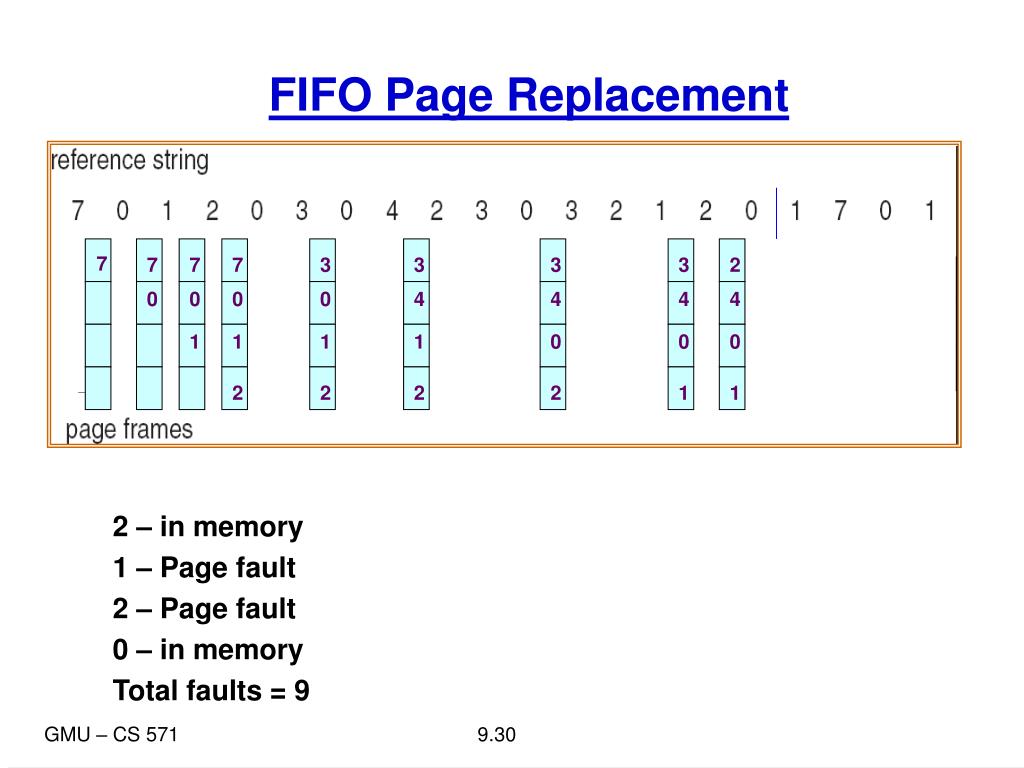

  29. FIFO Page Replacement 7 7 7 7 3 3 3 3 2 0 0 0 0 4 4 4 4 1 1 1 1 0 0 0 2 2 2 2 1 1 2 – in memory 1 – Page fault 2 – Page fault 0 – in memory Total faults = 9 GMU – CS 571

  30. FIFO Page Replacement 7 7 7 7 3 3 3 3 2 2 0 0 0 0 4 4 4 4 7 1 1 1 1 0 0 0 0 2 2 2 2 1 1 1 1 – in memory 7 – Page fault 0 – In memory 1 – in memory Total faults = 10 GMU – CS 571

  31. Page Faults Versus The Number of Frames • Usually, for a given reference string the number of page faults decreases as we increase the number of frames. GMU – CS 571

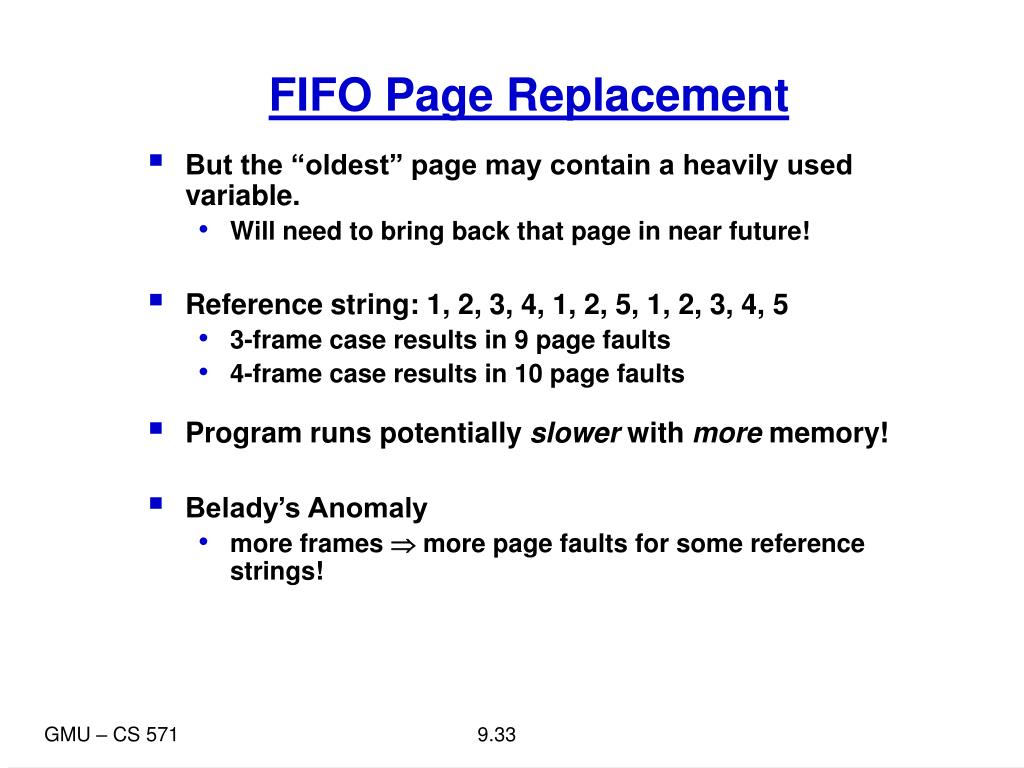

  32. FIFO Page Replacement • But the “oldest” page may contain a heavily used variable. • Will need to bring back that page in near future! • Reference string: 1, 2, 3, 4, 1, 2, 5, 1, 2, 3, 4, 5 • 3-frame case results in 9 page faults • 4-frame case results in 10 page faults • Program runs potentially slower with more memory! • Belady’s Anomaly • more frames  more page faults for some reference strings! GMU – CS 571

  33. 1 1 1 1 4 FIFO Page Replacement 1 2 3 4 1 2 5 1 2 3 4 5 4 faults 2 2 2 3 3 1 1 1 4 2 2 2 4 faults 3 3 GMU – CS 571

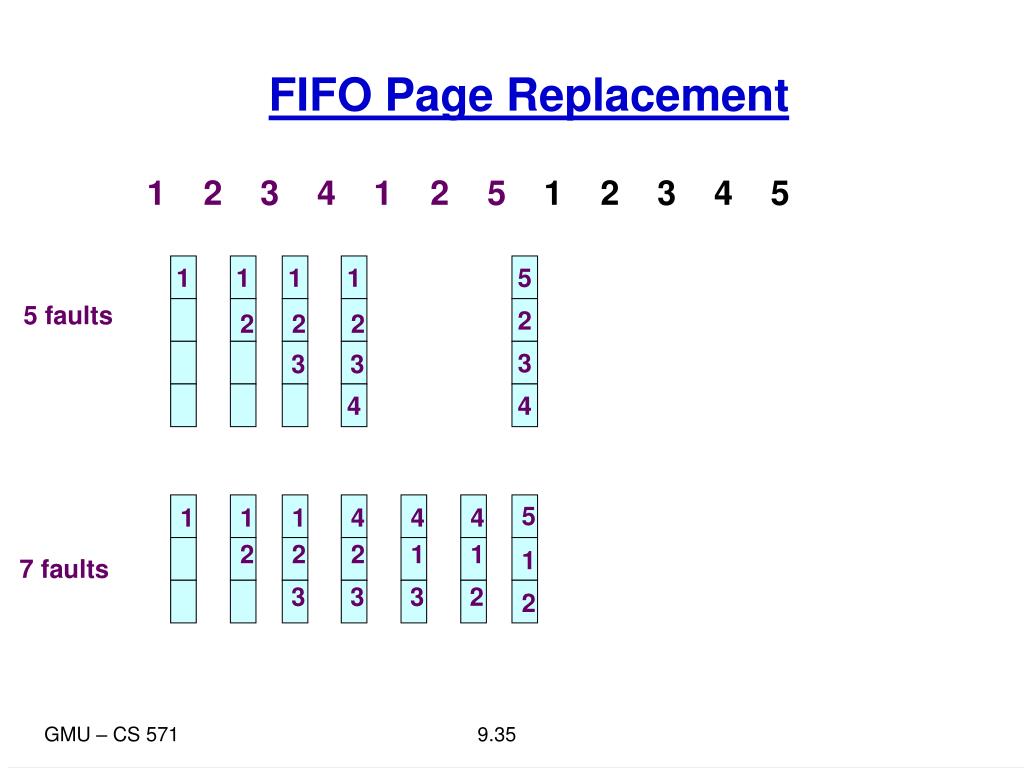

  34. 1 1 1 1 5 2 3 4 4 FIFO Page Replacement 1 2 3 4 1 2 5 1 2 3 4 5 5 faults 2 2 2 3 3 5 1 1 1 4 4 4 2 2 2 1 1 1 7 faults 3 3 3 2 2 GMU – CS 571

  35. 5 5 1 1 1 5 1 5 1 1 2 1 2 3 2 3 3 4 4 4 4 FIFO Page Replacement 1 2 3 4 1 2 5 1 2 3 4 5 8 faults 2 2 2 3 3 5 5 1 1 1 4 4 4 2 2 2 1 1 1 3 8 faults 3 3 3 2 2 2 GMU – CS 571

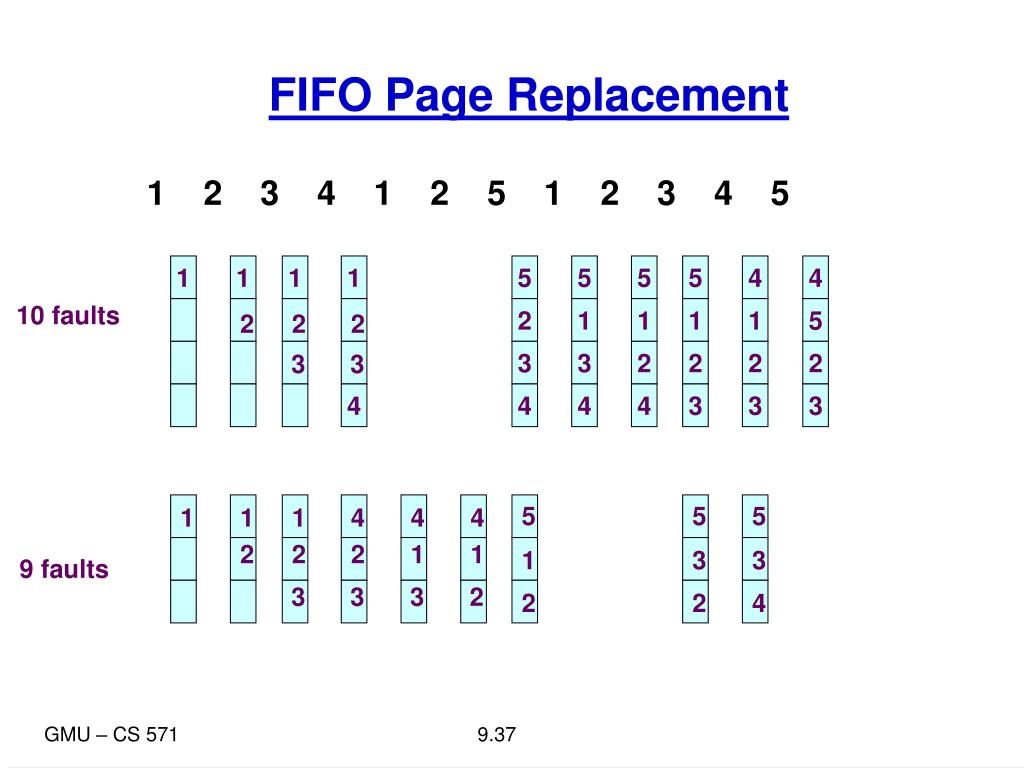

  36. 5 1 4 1 4 1 5 5 5 1 2 1 1 1 5 1 2 2 3 3 2 2 4 4 3 4 3 4 3 FIFO Page Replacement 1 2 3 4 1 2 5 1 2 3 4 5 10 faults 2 2 2 3 3 5 5 5 1 1 1 4 4 4 2 2 2 1 1 1 3 3 9 faults 3 3 3 2 2 2 4 GMU – CS 571

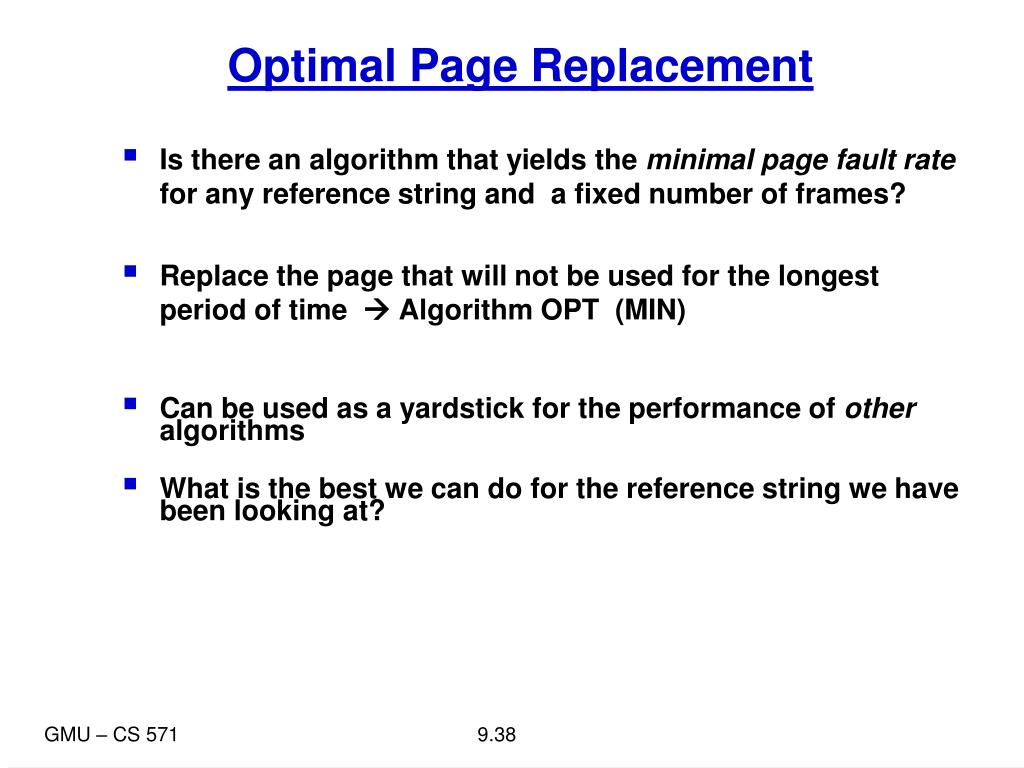

  37. Optimal Page Replacement • Is there an algorithm that yields the minimal page fault rate for any reference string and a fixed number of frames? • Replace the page that will not be used for the longest period of time  Algorithm OPT (MIN) • Can be used as a yardstick for the performance of other algorithms • What is the best we can do for the reference string we have been looking at? GMU – CS 571

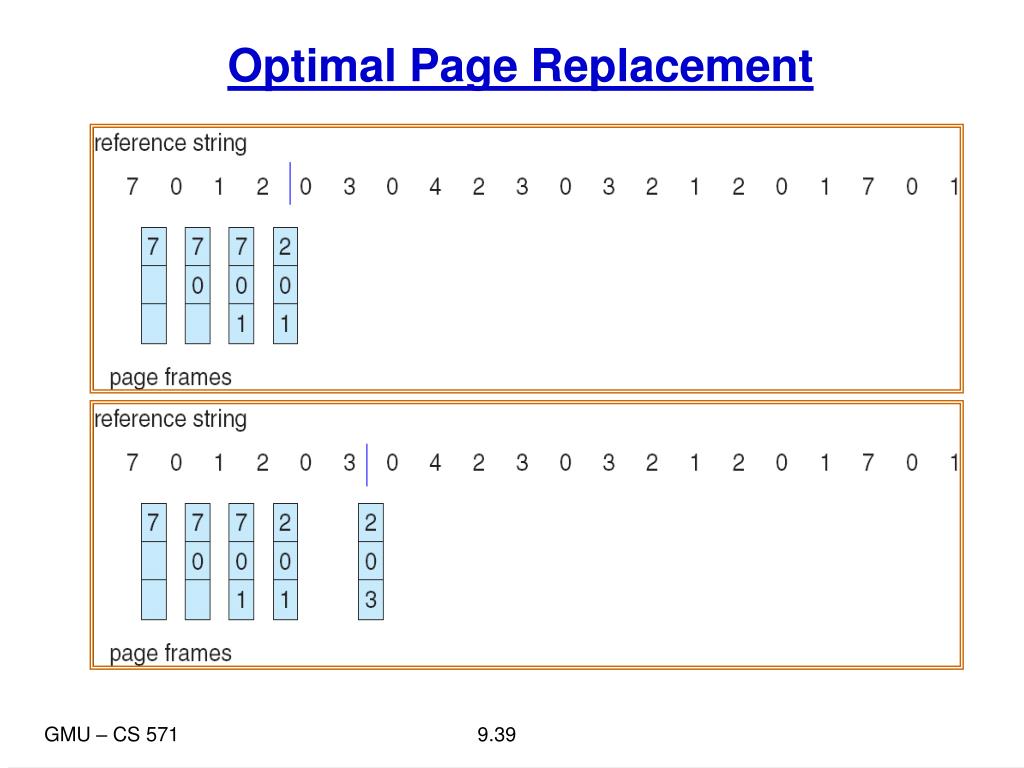

  38. Optimal Page Replacement GMU – CS 571

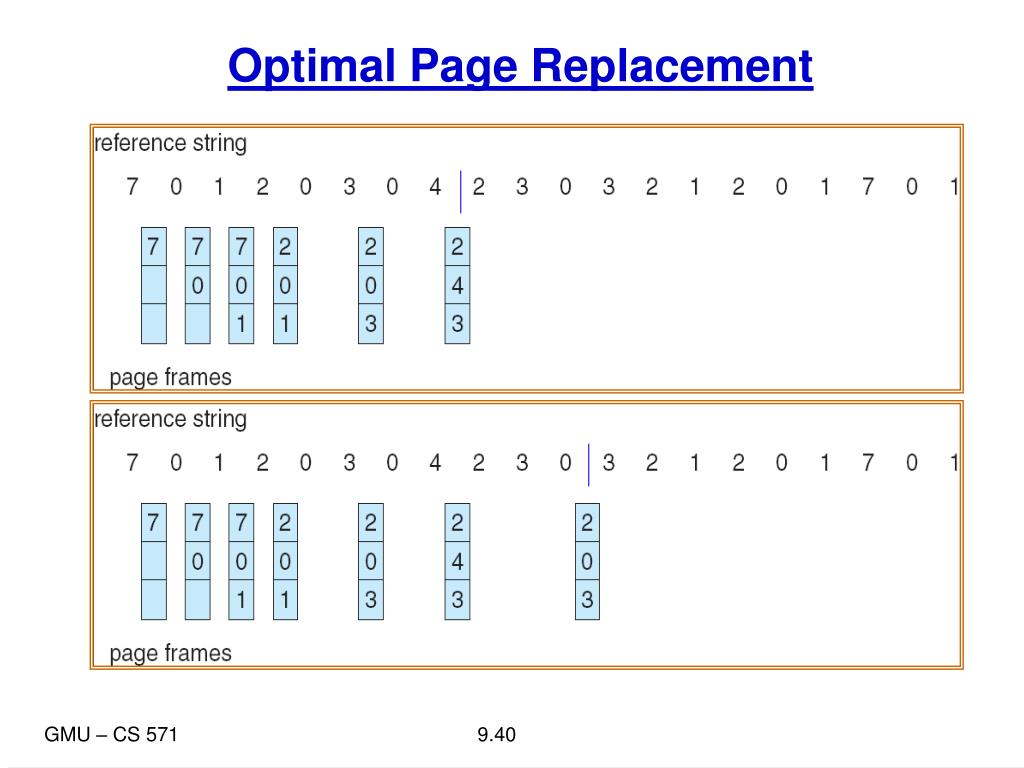

  39. Optimal Page Replacement GMU – CS 571

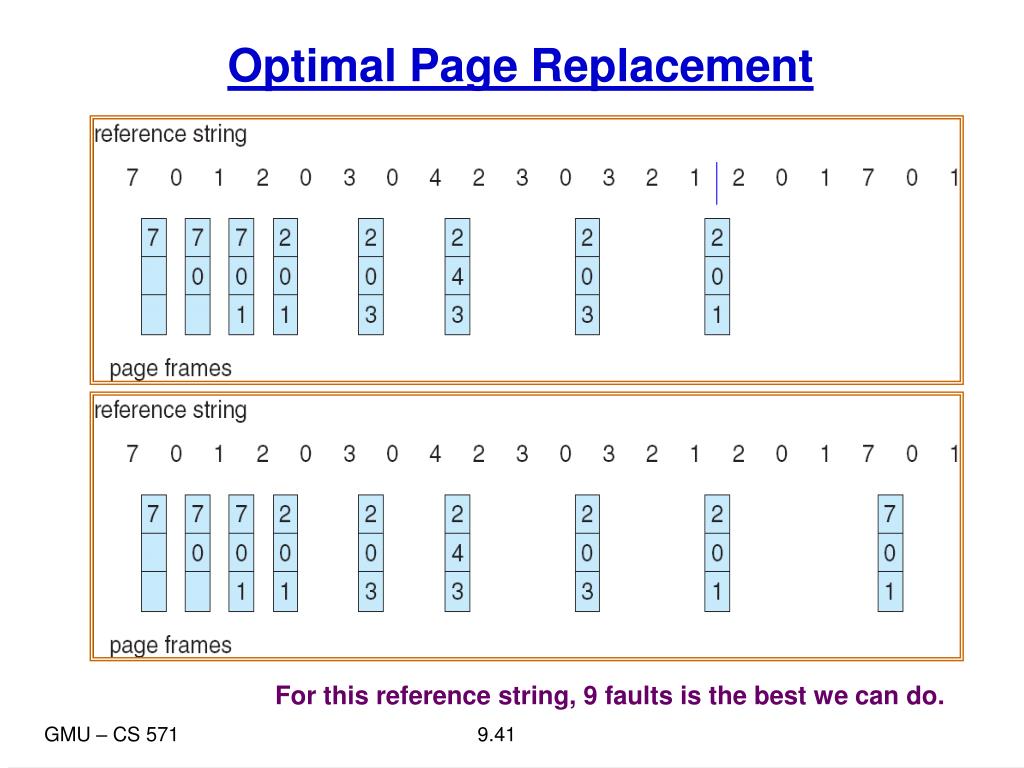

  40. Optimal Page Replacement For this reference string, 9 faults is the best we can do. GMU – CS 571

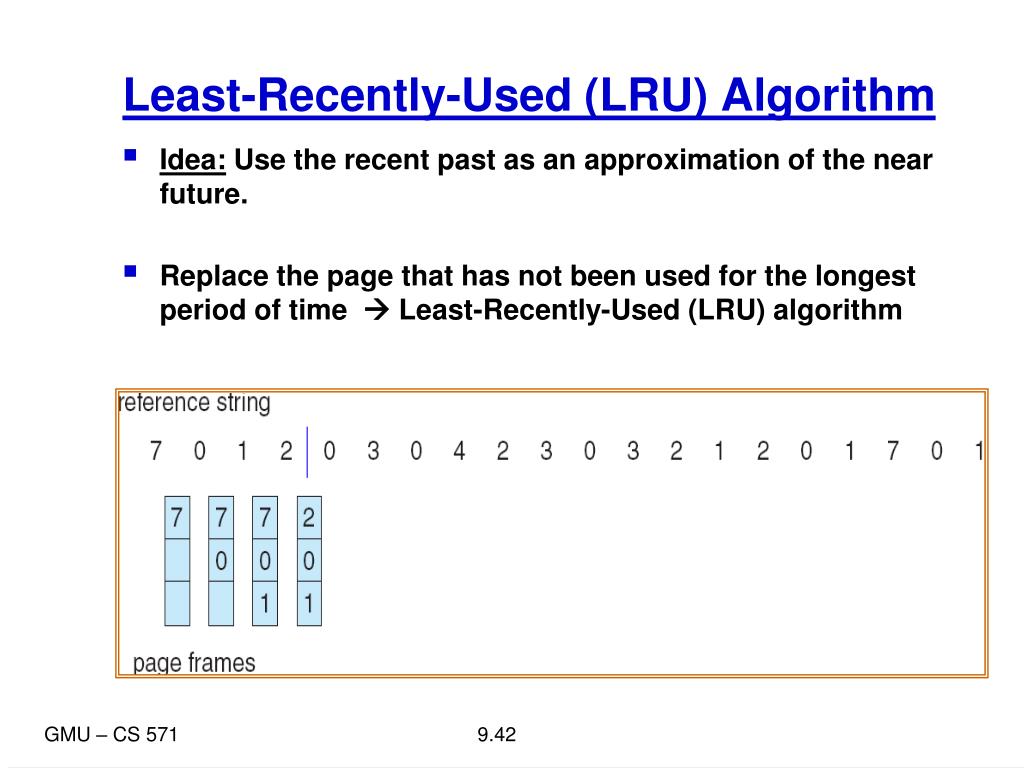

  41. Least-Recently-Used (LRU) Algorithm • Idea: Use the recent past as an approximation of the near future. • Replace the page that has not been used for the longest period of time  Least-Recently-Used (LRU) algorithm GMU – CS 571

  42. Least-Recently-Used (LRU) Algorithm GMU – CS 571

  43. Least-Recently-Used (LRU) Algorithm GMU – CS 571

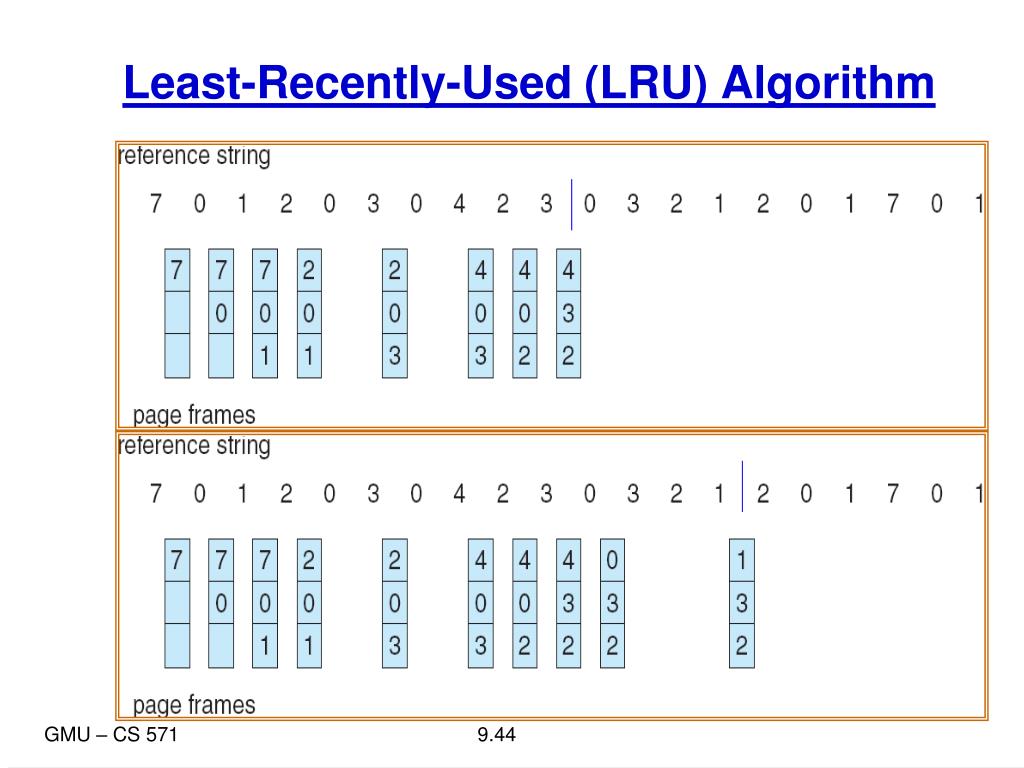

  44. Least-Recently-Used (LRU) Algorithm GMU – CS 571

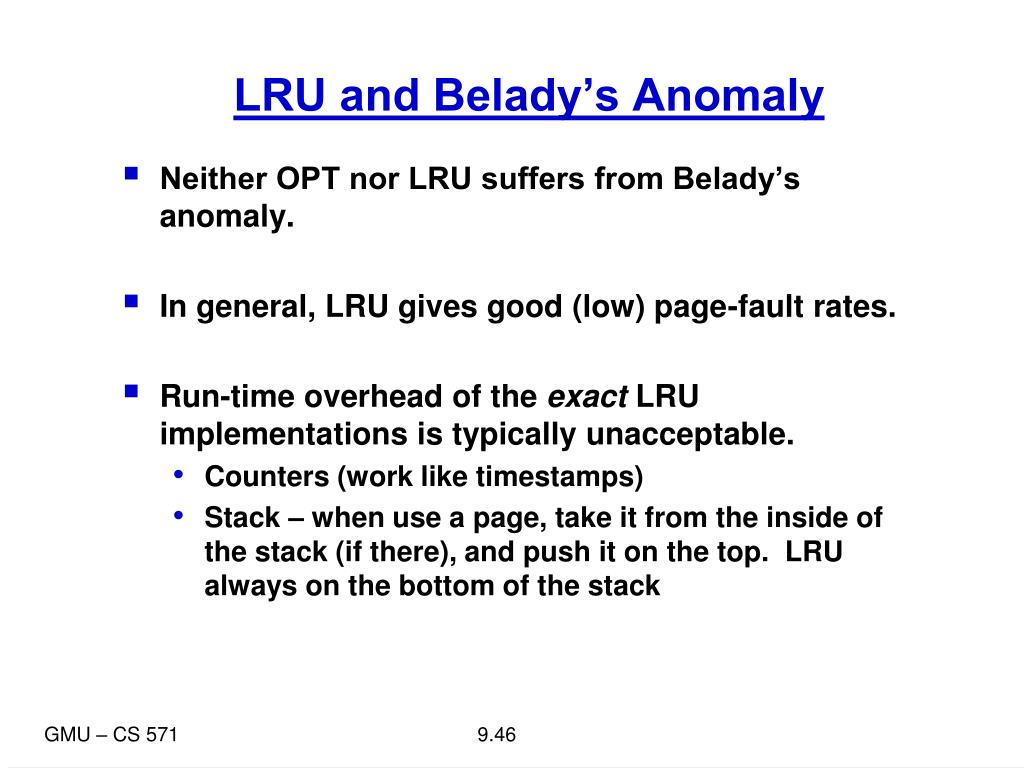

  45. LRU and Belady’s Anomaly • Neither OPT nor LRU suffers from Belady’s anomaly. • In general, LRU gives good (low) page-fault rates. • Run-time overhead of the exact LRU implementations is typically unacceptable. • Counters (work like timestamps) • Stack – when use a page, take it from the inside of the stack (if there), and push it on the top. LRU always on the bottom of the stack GMU – CS 571

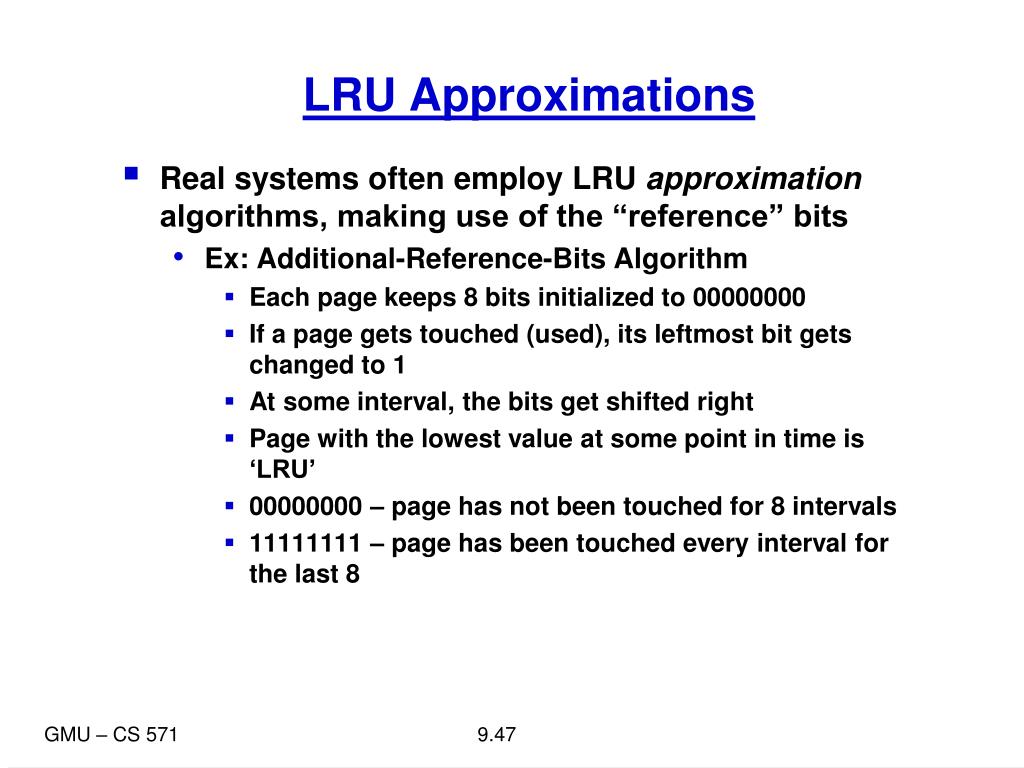

  46. LRU Approximations • Real systems often employ LRU approximation algorithms, making use of the “reference” bits • Ex: Additional-Reference-Bits Algorithm • Each page keeps 8 bits initialized to 00000000 • If a page gets touched (used), its leftmost bit gets changed to 1 • At some interval, the bits get shifted right • Page with the lowest value at some point in time is ‘LRU’ • 00000000 – page has not been touched for 8 intervals • 11111111 – page has been touched every interval for the last 8 GMU – CS 571

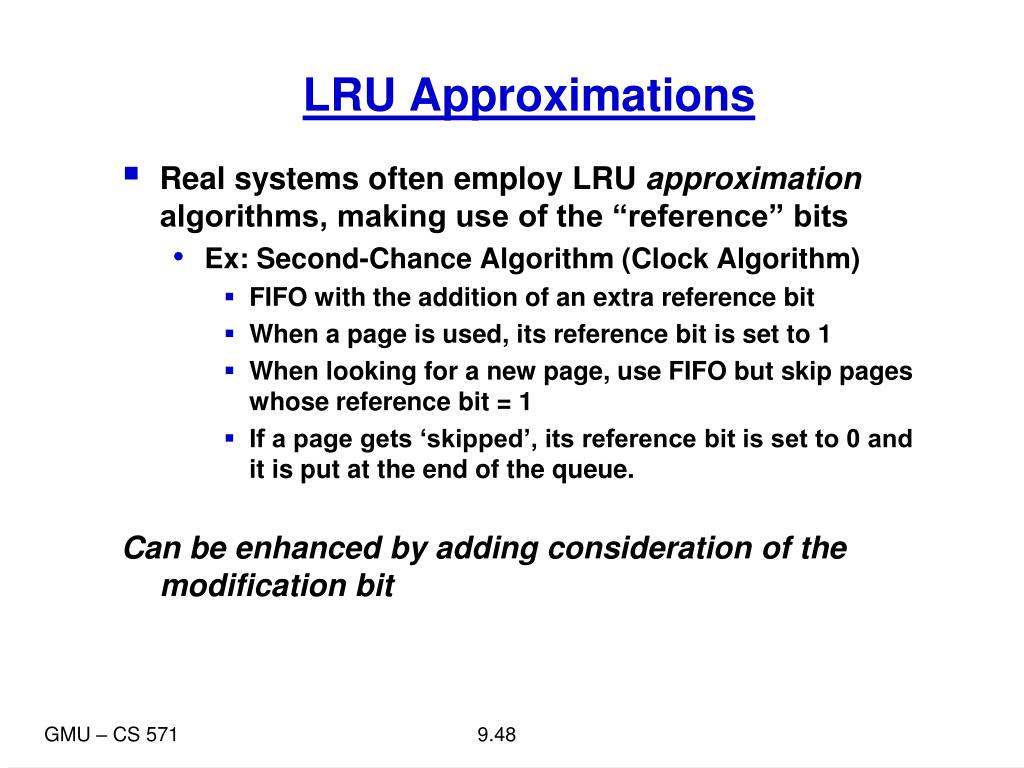

  47. LRU Approximations • Real systems often employ LRU approximation algorithms, making use of the “reference” bits • Ex: Second-Chance Algorithm (Clock Algorithm) • FIFO with the addition of an extra reference bit • When a page is used, its reference bit is set to 1 • When looking for a new page, use FIFO but skip pages whose reference bit = 1 • If a page gets ‘skipped’, its reference bit is set to 0 and it is put at the end of the queue. Can be enhanced by adding consideration of the modification bit GMU – CS 571

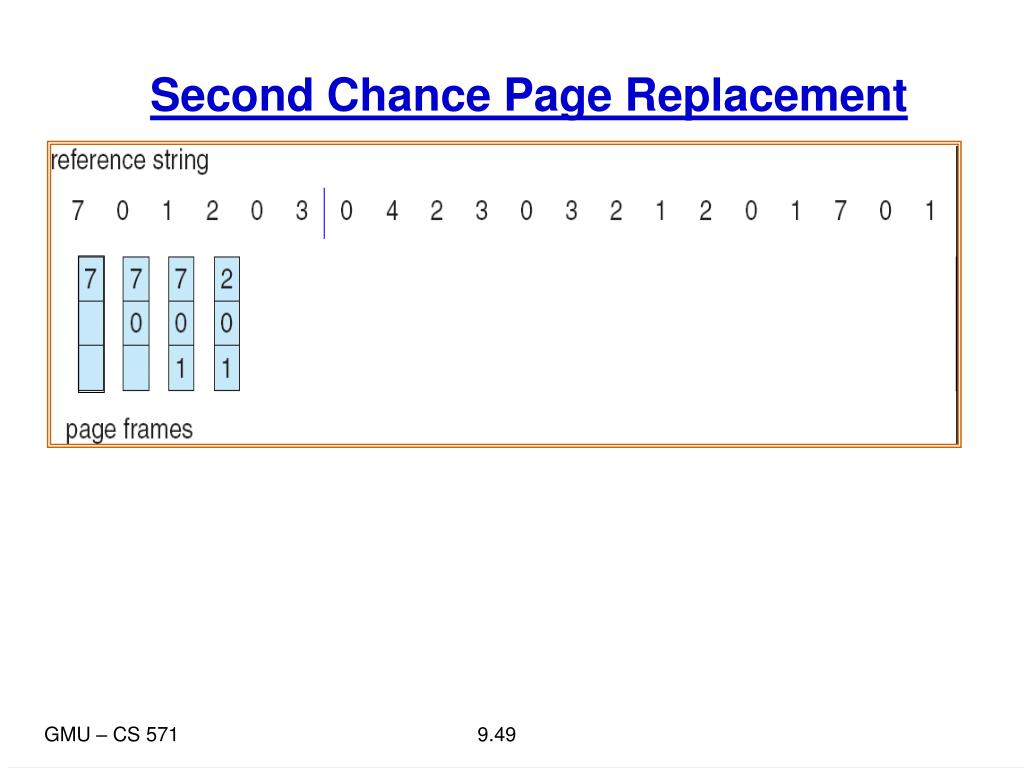

  48. Second Chance Page Replacement GMU – CS 571

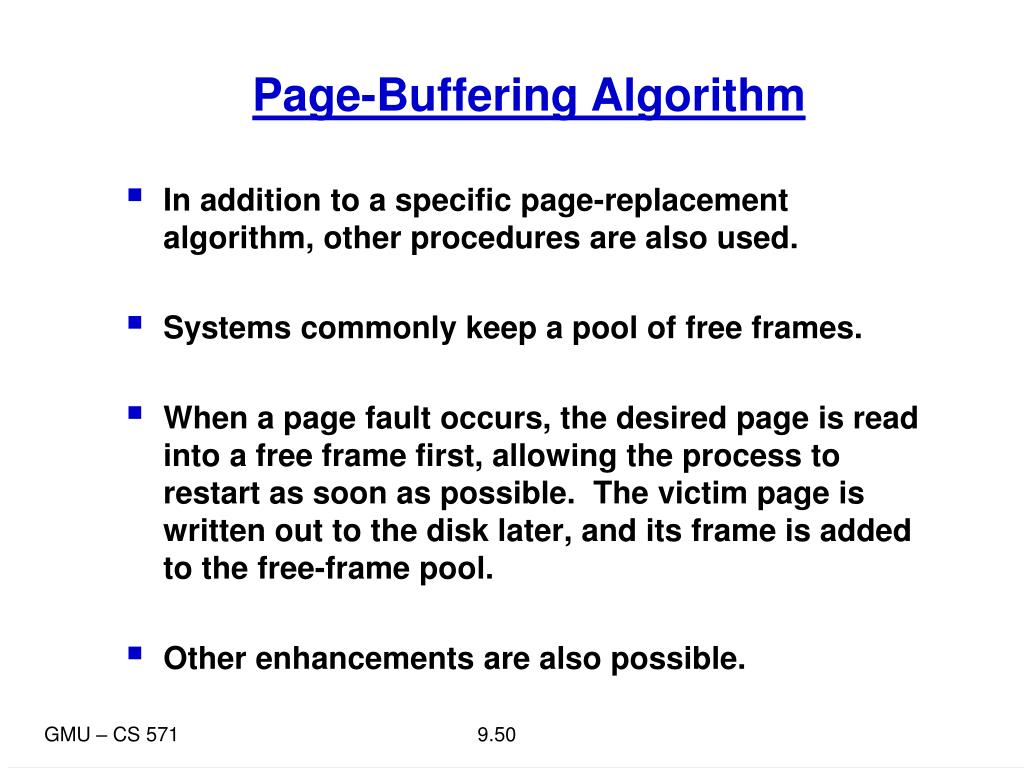

  49. Page-Buffering Algorithm • In addition to a specific page-replacement algorithm, other procedures are also used. • Systems commonly keep a pool of free frames. • When a page fault occurs, the desired page is read into a free frame first, allowing the process to restart as soon as possible. The victim page is written out to the disk later, and its frame is added to the free-frame pool. • Other enhancements are also possible. GMU – CS 571
