  1. C780 and C782

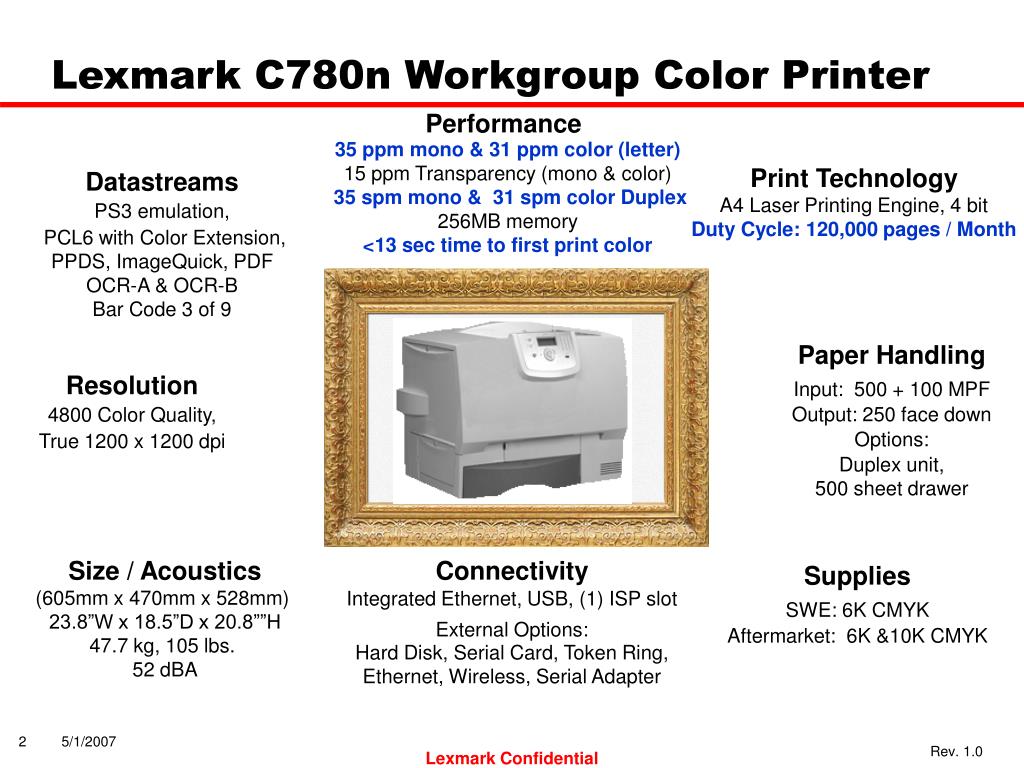

  2. Performance 35 ppm mono & 31 ppm color (letter) 15 ppm Transparency (mono & color) 35 spm mono & 31 spm color Duplex 256MB memory <13 sec time to first print color Connectivity Integrated Ethernet, USB, (1) ISP slot External Options: Hard Disk, Serial Card, Token Ring, Ethernet, Wireless, Serial Adapter Lexmark C780n Workgroup Color Printer Datastreams PS3 emulation, PCL6 with Color Extension, PPDS, ImageQuick, PDF OCR-A & OCR-B Bar Code 3 of 9 Print Technology A4 Laser Printing Engine, 4 bit Duty Cycle: 120,000 pages / Month Paper Handling Input: 500 + 100 MPF Output: 250 face down Options: Duplex unit, 500 sheet drawer Resolution 4800 Color Quality, True 1200 x 1200 dpi Size / Acoustics (605mm x 470mm x 528mm) 23.8”W x 18.5”D x 20.8””H 47.7 kg, 105 lbs. 52 dBA Supplies SWE: 6K CMYK Aftermarket: 6K &10K CMYK Lexmark Confidential

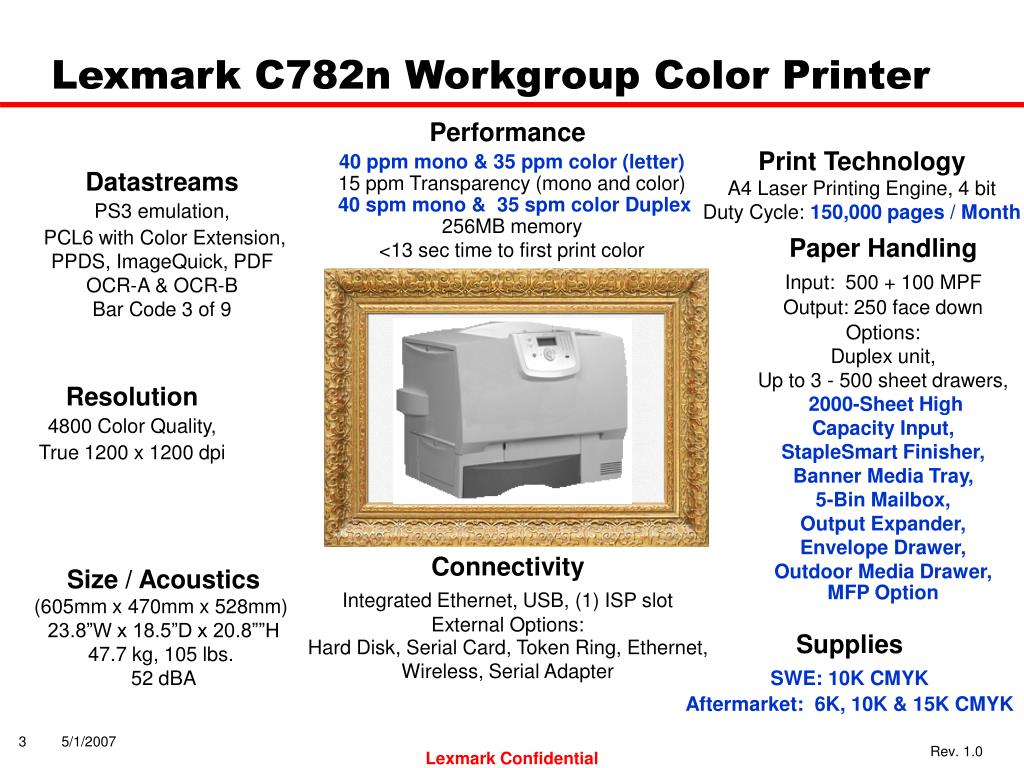

  3. Performance 40 ppm mono & 35 ppm color (letter) 15 ppm Transparency (mono and color) 40 spm mono & 35 spm color Duplex 256MB memory <13 sec time to first print color Connectivity Integrated Ethernet, USB, (1) ISP slot External Options: Hard Disk, Serial Card, Token Ring, Ethernet, Wireless, Serial Adapter Lexmark C782nWorkgroupColor Printer Print Technology A4 Laser Printing Engine, 4 bit Duty Cycle: 150,000 pages / Month Datastreams PS3 emulation, PCL6 with Color Extension, PPDS, ImageQuick, PDF OCR-A & OCR-B Bar Code 3 of 9 Paper Handling Input: 500 + 100 MPF Output: 250 face down Options: Duplex unit, Up to 3 - 500 sheet drawers, 2000-Sheet High Capacity Input, StapleSmart Finisher, Banner Media Tray, 5-Bin Mailbox, Output Expander, Envelope Drawer, Outdoor Media Drawer, MFP Option Resolution 4800 Color Quality, True 1200 x 1200 dpi n, dn, dtn Available 2Q07 Size / Acoustics (605mm x 470mm x 528mm) 23.8”W x 18.5”D x 20.8””H 47.7 kg, 105 lbs. 52 dBA Supplies SWE: 10K CMYK Aftermarket: 6K, 10K & 15K CMYK Lexmark Confidential

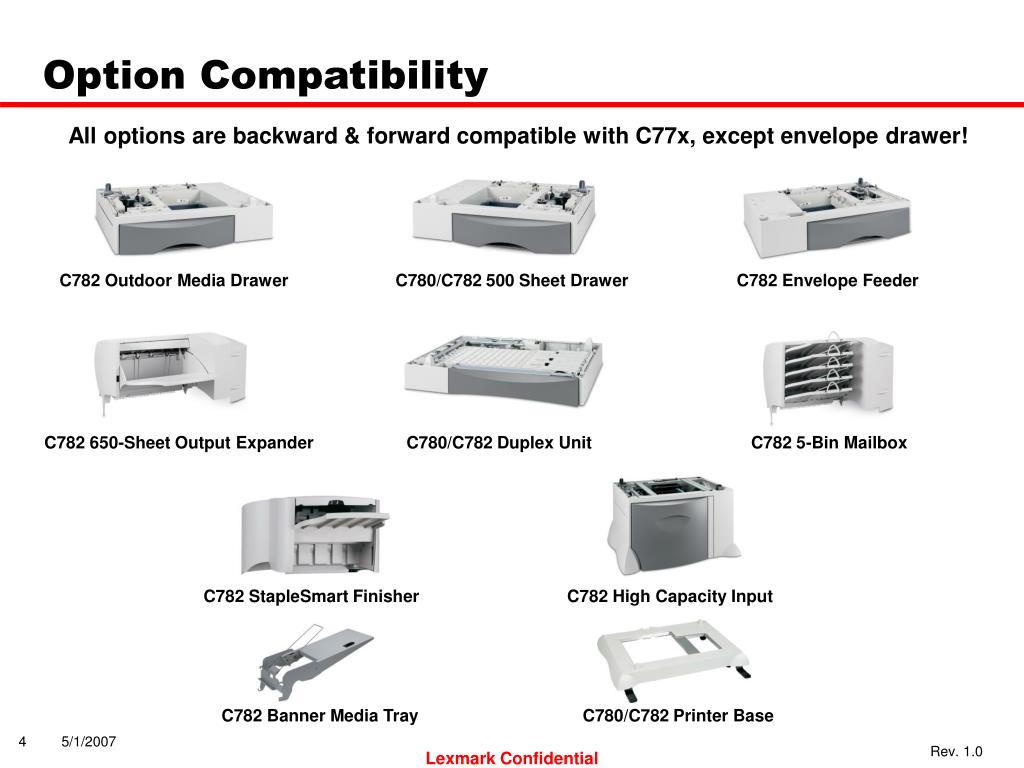

  4. Option Compatibility All options are backward & forward compatible with C77x, except envelope drawer! C782 Outdoor Media Drawer C780/C782 500 Sheet Drawer C782 Envelope Feeder C782 650-Sheet Output Expander C780/C782 Duplex Unit C782 5-Bin Mailbox C782 StapleSmart Finisher C782 High Capacity Input C782 Banner Media Tray C780/C782 Printer Base Lexmark Confidential

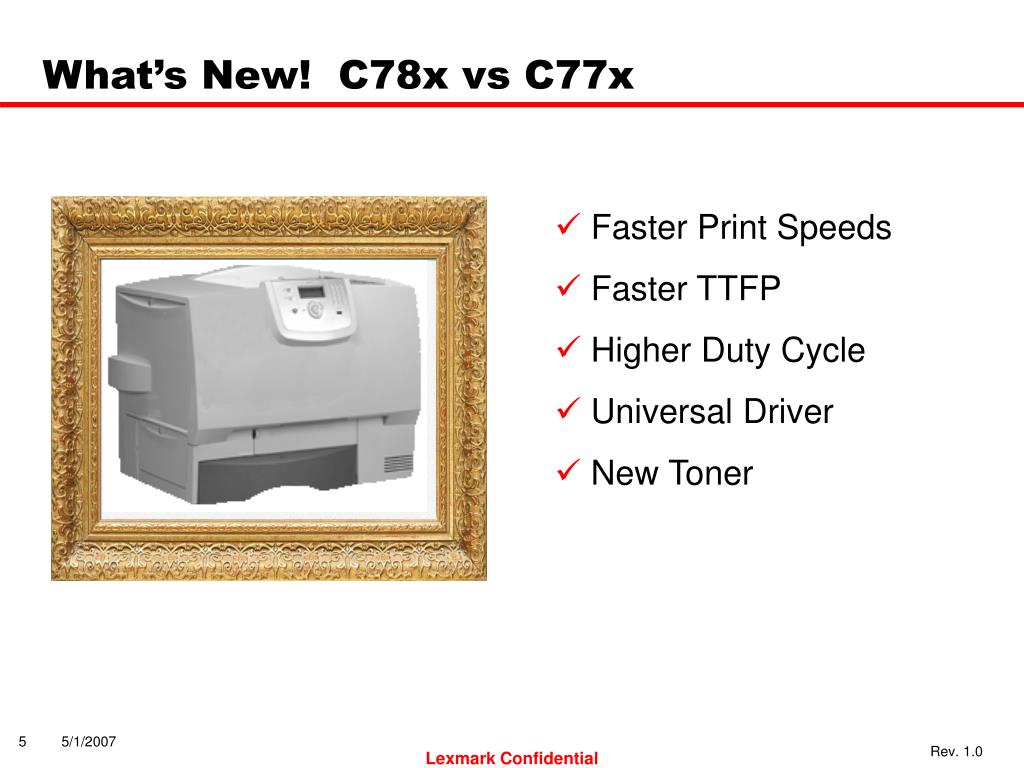

  5. What’s New! C78x vs C77x • Faster Print Speeds • Faster TTFP • Higher Duty Cycle • Universal Driver • New Toner Lexmark Confidential

  6. Things to Know • Remote Copy (eSF) available in May • All DLE’s will be available in May: • Bar Code • IPDS • PRESCRIBE • PrintCryption • Forms Card • New Print Quality button settings • Text/ Photo/ Text & Photo print settings • Once SWE cartridge is low, the printer will not accept another SWE cartridge • “Black only” driver available on web in May • C782n only Compatible with 4600 MFP option • ”Other envelope” is not supported in PCL XL, only PS • DLEs will not be interchangeable between C77x and C78x Lexmark Confidential

  7. X782e • Product Segment • A4 Workgroup Color MFP • Announcing: 2Q07 • Configuration • Fully integrated MFP: • Color/Mono Print • Color/Mono Scan • Color/Mono Copy • Analog fax • Color eTask • Print / Copy Features • Mono/color print: 40 / 35 ppm • Print Resolution: 4800 Color Quality, True 1200 x 1200 dpi • DataStream: PS3/PCL6 • 1,500 sheet + 100 MPF input; 250 output • Duplex in, Duplex out • New Copier Features (Preview, Custom Job) • Connectivity: USB and Ethernet • Direct USB printing & scanning port • 1 ISP (used) / 1 DLE (used) / 1 DIMM (used) • Hard Drive in Scanner • 768 MB RAM standard/max • Duty Cycle: 150,000 pgs / mo • TTFP: <13 sec color Scan / Fax Features • Scan Resolution: 600 x 600 dpi optical mono • 50-page ADF / single pass duplex • Legal size flatbed scanner • 33.6 Kbps internal fax modem • Interface: vivid color touch screen • Lexmark Document Solutions support Supplies / Options • Supplies: 6K, 10K and 15K toner (CMYK) • 10K SWE (CMYK) • Additional Options (place scanner to the side): 500 & 2000 sheet drawers, banner media tray, 5-bin mailbox, output expander, staplesmart finisher, envelope drawer, • Media Types: Plain Paper, Transparencies, Labels, Card Stock, Coated Paper, Cover, Envelopes, & Banner Paper Lexmark Confidential
