Presentation Transcript


Mobile nodes and multiple interfaces in ipv6 monami6

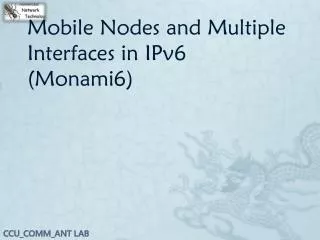

Mobile Nodes and Multiple Interfaces in IPv6 (Monami6)


Mobile nodes and multiple interfaces in ipv6 monami6

大綱

  • 背景介紹

  • 實作Monami6

    (Over MIPv6)

  • 訊息流程圖

  • 註冊流程示意圖

    (Binding update to HA)


Mobile nodes and multiple interfaces in ipv6 monami6

大綱

  • 背景介紹

  • 實作Monami6

    (Over MIPv6)

  • 訊息流程圖

  • 註冊流程示意圖

    (Binding update to HA)


Mobile nodes and multiple interfaces in ipv6 monami6

背景介紹

  • Mobile IPv6 (MIPv6)

  • Monami6


Mobile nodes and multiple interfaces in ipv6 monami6

背景介紹

  • Mobile IPv6 (MIPv6)

  • Monami6


Mipv6

MIPv6

  • MIP技術是由Internet Engineering Task Force (IETF)所提出的一個標準通訊協定

  • 讓用戶端在網路漫遊時,能夠保有一個固定的IP 位置,使第三層的連線不至於中斷

  • 其原理是透過一個固定不變的 Home Address (HoA) 對映到目前用戶端所在網路的 Care-of Address (CoA)


Mipv61

MIPv6示意圖

取得在Foreign Network底下的位置(CoA)

向HA更新CoA紀錄

Binding Table

HoA

CoA


Mobile nodes and multiple interfaces in ipv6 monami6

背景介紹

  • Mobile IPv6 (MIPv6)

  • Monami6


Monami6

Monami6

  • Monami6是IETF其中一組Working Group

  • 負責制定有關Mobile Node and Multiple Interfaces in IPv6的部份

  • 目標是讓使用者可以同時向Home Agent (HA)註冊多個位置

Reference:draft-ietf-monami6-multiplecoa-04.txt


Monami6 1 2

Monami6情境(1/2)

  • 提供Video Stream服務的伺服器,可以同時透過多種無線傳輸介面送出影像

    • 3G傳送解析度較低的影像

      傳送範圍較遠,但影像品質較差

    • WLAN傳送解析度較高的影像

      範圍較近但影像品質較佳


Monami6 2 2

Monami6情境(2/2)

  • 當使用者在機場等候登機時,使用WLAN上網抓取資料。但是已經要登機,必須要離開目前WLAN範圍,此時可以同時利用3G上網,繼續抓取剩下未完成的資料,一邊向登機閘門

Reference:draft-ietf-monami6-multihoming-motivation-scenario-03


Mobile nodes and multiple interfaces in ipv6 monami6

大綱

  • 背景介紹

  • 實作Monami6 (Over MIPv6)

  • 訊息流程圖

  • 註冊流程示意圖

    (Binding update to HA)


Monami6 over mipv6

實作Monami6 (Over MIPv6)

  • 在原本保留的欄位中,新增一個欄位,用來紀錄Binding Unique Identifier (BID)

  • MN上面的每張網路介面都有各自的BID,此BID不可重覆

  • 在MN發送BU時,會夾帶該網路介面之BID

  • 在HA收到BU之後,會將HoA、CoA、BID當作hash key值,產生Binding Entry Key


Monami6 over mipv61

實作Monami6 (Over MIPv6)

  • 利用這個Binding Entry Key去尋找目前的Binding Table中有無相符之Entry

    • 有,則將該筆Entry換成新收到的這筆紀錄

    • 無,則將收到的紀錄新增一個Binding Entry

Binding Table

HoA BID CoA

… … …


Mobile nodes and multiple interfaces in ipv6 monami6

大綱

  • 背景介紹

  • 實作Monami6

    (Over MIPv6)

  • 訊息流程圖

  • 註冊流程示意圖

    (Binding update to HA)


Mobile nodes and multiple interfaces in ipv6 monami6

訊息流程圖


Mobile nodes and multiple interfaces in ipv6 monami6

訊息流程圖

使用者可以選擇一張網路介面進行傳輸,或是同時利用多張網路介面與CN通訊


Mobile nodes and multiple interfaces in ipv6 monami6

大綱

  • 背景介紹

  • 實作Monami6

    (Over MIPv6)

  • 訊息流程圖

  • 註冊流程示意圖

    (Binding update to HA)


Mobile nodes and multiple interfaces in ipv6 monami6

註冊流程示意圖

DHCP Server

3G Station

Binding Table

Default CoA

HoA BID1 CoA1

Default CoA

HoA BID2 CoA2

BID1

BID2

Update Binding Table

Update Binding Table

eth0 , CoA1

eth1 , CoA2

HoA , BID2 , CoA2

HoA , BID1 , CoA1

Home Agent

Mobile Node
