Roadmap

Roadmap

  • Discovering Patterns

    • Structure-preserving patterns

      • Strings, Networks

    • Permuting patterns

      • Combinatorics

      • Algorithmics

      • Statistics

  • Analyzing Patterns

    • Genographic Project

    • LD Patterns

      • Then &

      • Now (IRIS)


Roadmap

Who ? National Geographic and IBM on a five year study, launched in April 2005

What ? Although fossil records fix human origins in Africa, little is known about the great journey that took Homo sapiens to the far reaches of the earth. How did we, each of us, end up where we are?

How ? Using genetics as a tool : samples all around the world are being collected and the mtDNA and NRY chr are being analyzed

phylogeographic question


Roadmap

www.nationalgeographic.com/genographic


Roadmap

www.ibm.com/genographic


Public participation

Public Participation

Over 250,000 public participants to date (April, 2008)

www.nationalgeographic.com/genographic

www.ibm.com/genographic

www.ibm.com/dna


Roadmap

Map of Migration


Roadmap

How?

  • Each of us carries ancestral material

    marked by signatures due to imperfections in DNA replication

    • SNP’s (Single Nucleotide Polymorphisms)

    • STR numbers (Short Tandem Repeats)

    • Inversions

    • …..etc……

  • Uni-parental Model (topology=tree)

    • Non-recombining segments of genome


  • Mtdna micro phylogeny tree

    mtDNA Micro-Phylogeny Tree

    22 (coding-region) SNPs

    The Genographic Project Public Participation MtDNA Database,

    Behar et al, PLoS Genetics. 2007


    Roadmap

    mtDNA Haplogroup Distribution


    Migration map based on mtdna

    Migration Map based on mtDNA


    Locus

    Locus

    16000 bp

    58 mill bp

    0.38%


    Missing information in unilinear transmissions

    Missing information in unilinear transmissions

    past

    present


    Population over generations flow of ancestral material

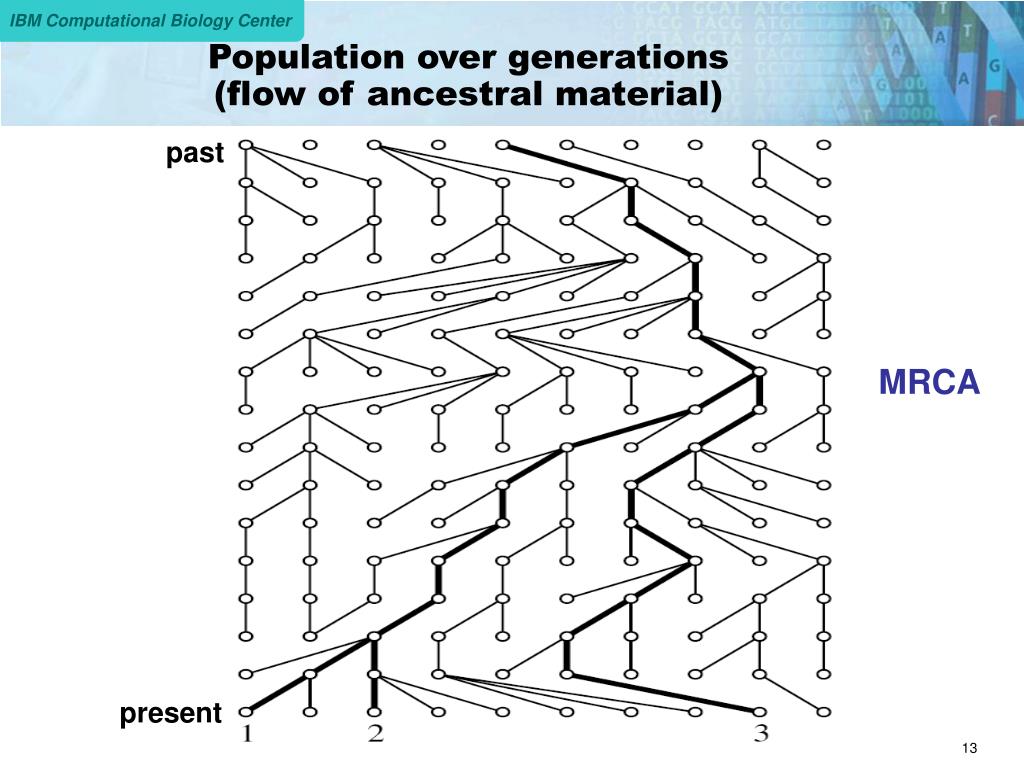

    Population over generations (flow of ancestral material)

    past

    MRCA

    present


    Bi parental model

    Bi-parental Model

    past

    GMRCA

    MRCA

    present


    What is recombination

    What is recombination?

    Genetic recombination is the process by which a strand of DNA is broken & then joined to the end of a different DNA molecule.

    It occurs during meiosis and between paired chromosomes. This process leads to offspring having different combinations of genes from their parents


    Recombnations capture requirements specification

    Recombnations Capture:Requirements Specification

    • Enumerate the (multiple) recombinations

      • Statistical averages not adequate..

    • Identify the participating lineages

    • Detect ancient recombinations as well as recent ones


    Then our task is to

    Then our task is to:

    Estimate the phylogenetic network, called the

    Ancestral Recombinations Graph (ARG)

    ARG coined by Griffiths & Marjoram, 1996

    Joint work with Marta Mele, Jaume Bertranpetit, Francesc Callafel


    An inconvenient truth

    An Inconvenient Truth

    Theorem: Given data D, the problem of computing the ARG G with minimum number of recombinations is NP-complete.


    An inconvenient truth1

    An Inconvenient Truth

    Theorem: Given data D, the problem of computing the ARG G with minimum number of recombinations is NP-complete.

    Recall other inconvenient truths….

    Theorem: The problem of computing the most parsimonious tree T is NP-complete.


    Flavors of hardness

    Flavors of hardness….

    (Uni-parental)

    • In a NON infinite-sites model, TREE construction hard

      • No back mutations; No parallel mutations

      • But reality is infinite-sites

      • Yet, problem is tractable, in practice

        (Bi-parental)

    • In a pure recombinations model, problem is hard

      • Generally a “statistical average” has been pursued thru LD…

      • Combining potentially misleading mutations with recombinations makes the general problem intractable in practice


    Tractability model balance between reality and simplicity

    Tractability Model(Balance between reality and simplicity)

    • Use characteristics of the observed haplotypes

    • Use a compatible network model (not a generic phylogenetic model)


    Roadmap

    IRIS(IdentifyingRecombinationsInSequences)

    Stage Haplotypes: use SNP block patterns

    biological insights

    Segment along the length: infer trees

    computational insights

    Infer network (ARG)


    Input haplotypes

    Input Haplotypes


    Roadmap

    Stage 1: Staging the Input

    0 1 2 3 4 5 6 7 8 910 1 2 3 4 5 6 7 8 910 1 2 3 4 5 6 7 8 0) 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 3 1 1) 1 3 4 2 3 2 2 2 2 3 4 3 3 3 3 2 2 3 3 4 4 3 2 2 2 2 2 2 1 2 1 2) 1 3 4 2 3 2 2 2 2 3 4 3 3 3 3 2 2 3 3 4 4 3 2 4 1 1 4 3 2 6 1 3) 1 3 5 2 3 2 2 2 2 4 5 1 1 1 1 1 3 1 4 1 5 4 3 5 3 4 5 3 1 3 1 4) 2 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 3 0 3 3 1 2 1 5) 2 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 115 1 6) 2 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 2 2 2 2 2 1 3 1 7) 2 1 2 2 2 2 2 2 2 2 2 1 1 1 2 2 2 2 1 1 1 1 1 3 2 3 3 3 1 3 1 8) 2 1 2 2 2 2 2 2 2 2 2 1 1 1 2 2 2 2 1 2 2 2 2 2 2 2 2 2 111 1 9) 2 3 4 2 3 2 2 2 2 3 4 3 3 3 3 2 2 3 3 4 4 3 2 4 1 1 4 3 2 8 1 10) 2 3 5 2 3 2 2 2 2 4 5 1 1 1 1 1 3 1 4 1 5 4 3 5 3 4 5 3 1 5 1 11) 3 2 3 2 2 3 2 3 2 2 3 2 2 2 3 2 2 2 2 3 1 1 1 3 2 3 3 3 1 6 1 12) 3 2 3 2 2 3 2 3 2 2 3 2 2 2 3 2 2 2 2 3 1 1 1 0 1 1 4 3 2 2 1 13) 5 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 2 1 14) 5 1 6 2 2 2 2 2 2 5 3 4 2 2 3 3 2 3 1 1 1 1 1 1 1 1 1 1 1 2 1 15) 7 2 3 2 2 3 2 3 2 2 3 2 2 2 3 2 2 2 2 3 1 1 1 3 2 3 3 3 1 2 1 16) 7 2 3 2 2 3 2 3 2 2 3 2 2 2 3 2 2 2 2 3 1 1 1 6 1 1 1 1 1 2 1 17) 3 2 3 2 2 3 2 3 2 2 3 2 2 2 3 2 2 2 2 3 0 2 2 2 2 2 2 2 1 1 1 18) 2 1 1 1 1 1 1 1 1 1 4 3 3 3 3 2 2 3 3 4 4 3 2 4 1 1 4 3 2 1 1 19) 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 5 1 1 1 20) 3 2 3 2 2 3 2 3 2 2 3 2 2 2 3 2 2 3 3 4 4 3 2 4 1 1 4 3 2 1 1 21) 2 3 5 2 3 2 2 2 2 4 5 1 1 1 1 1 3 1 4 1 5 4 3 5 2 2 2 2 1 1 1 22) 5 1 2 2 2 2 2 2 2 2 2 1 1 1 2 2 2 2 1 2 2 2 2 2 2 2 2 2 1 1 1


    Stage 2 segmentation marginal compatible trees

    Stage 2: Segmentation (Marginal –Compatible--Trees)


    Ancestral recombination graph arg our characterization

    Ancestral Recombination Graph (ARG) (our characterization)

    ARG is a fortified compatible graph:

    • Defined on k segments G(k)

    • A node can have at most 2 incoming edges (2 parents)

    • When 2 parents: denotes recombination of two segments; incoming edge is labeled by one segment each


    Roadmap

    ARG


    Stage 3 trees to forest dsr algorithm

    Stage 3: Trees to ForestDSR Algorithm

    Input: Two graphs G1 and G2

    Output: Consensus ARG G

    Optimization

    Topology

    DSR


    Dsr algorithm overview

    DSR Algorithm Overview

    initialization

    • Let G1 and G2 be defined on leaf labels L

    • Let universe U  L

      • P1 and P2 are partitions on U at leaf level

    • DO-WHILE

    • A network structure with nodes in G and the labels derived from P1 and P2

    • Universe U  this nodes in G

    • Increment layer and update P1 and P2 as sets on U of this layer

      • P1 has labels from G1

      • P2 has labels from G2

    • WHILE (P1 is nonempty) OR (P2 is nonempty)

    iterative loop


    Walk through of dsr algorithm

    Walk-through of DSR Algorithm

    (0 2 5 9 12-14 16 18-20 23-24 28-30 33 35-36) 2 7:24:1 7:25:1

    (1 6 8 17 21-22 26 31) 1 7:25:2

    (7 11 15 34 37) 1 7:25:3

    (25) 1 7:70:7

    (3 10 27) 1 7:25:4

    (4) 1 7:00:9

    (32) 1 7:00:0

    (0 5 13-14 16 23-24 29-30) 1 8:27:1

    (1 6 8 17 21-22 26) 1 8:27:2

    (19 36) 1 8:27:5

    (2 9 12 18 20 31) 1 8:28:2

    (3-4 7 10-11 15 25 27-28 32 34-35 37) 1 8:80:6

    (33) 1 8:00:0


    D s r dominant subdominant recombinant

    DSRDominantSubdominant Recombinant

    • Dominant: labels of G1 AND G2

    • Subdominant: label of G1 OR G2

    • Recombinant: no labels (NEITHER G1 NOR G2)

    Rules:

    1. Each row and each column

    has at most one dominant

    ELSE has at most one subdominant

    ELSE all recombinants

    2. A non-recombinant can have non-recombinants either in its row or its column but NOT both


    Dsr algorithm x matrix

    DSR Algorithm: X-matrix

    P2

    P1

    labels

    P1

    P2 labels


    Dsr algorithm assign d s r colors optimization

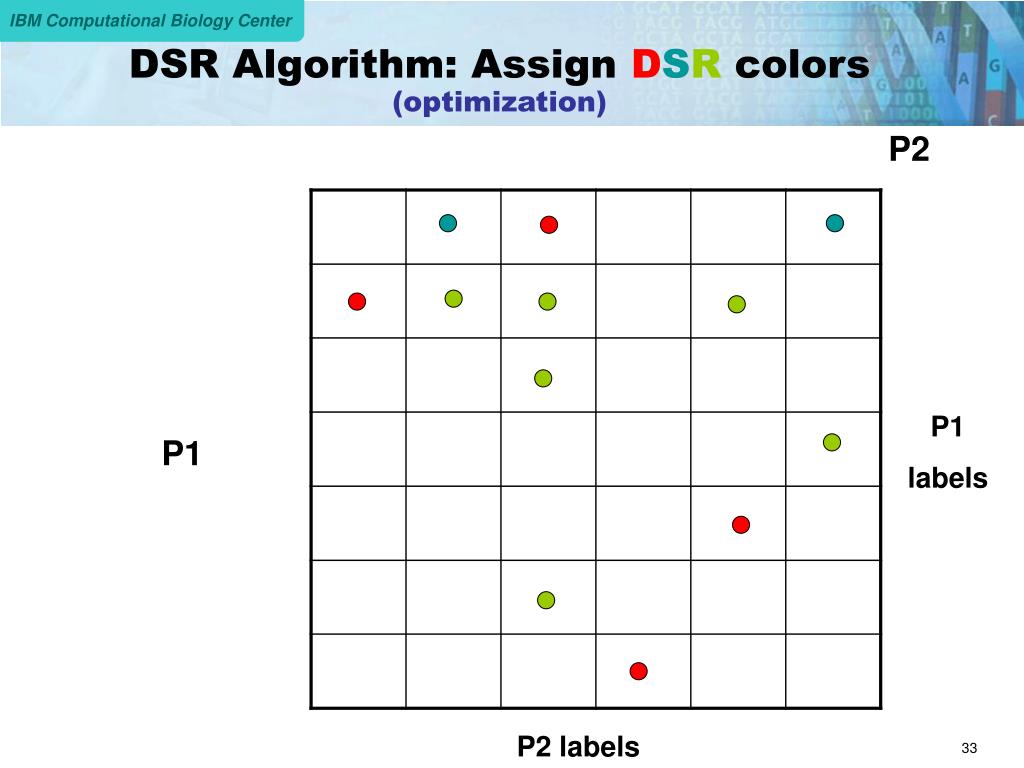

    DSR Algorithm: Assign DSR colors (optimization)

    P2

    P1

    labels

    P1

    P2 labels


    Dsr algorithm rows cols d s r

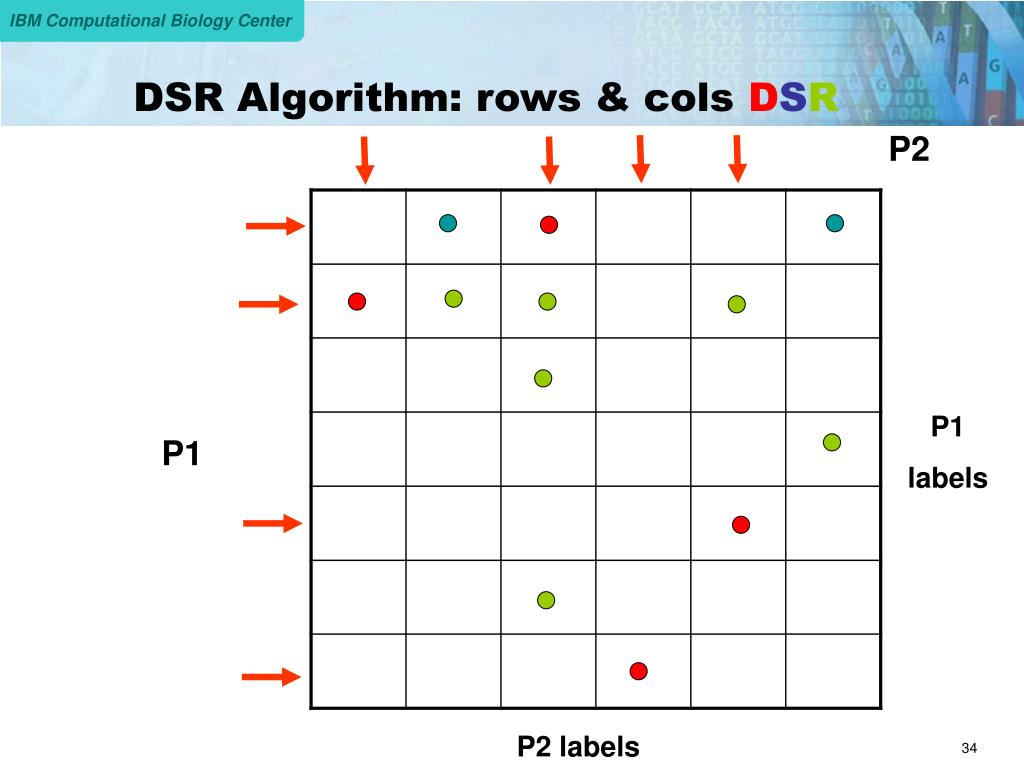

    DSR Algorithm: rows & cols DSR

    P2

    P1

    labels

    P1

    P2 labels


    Dsr algorithm rows cols d s r1

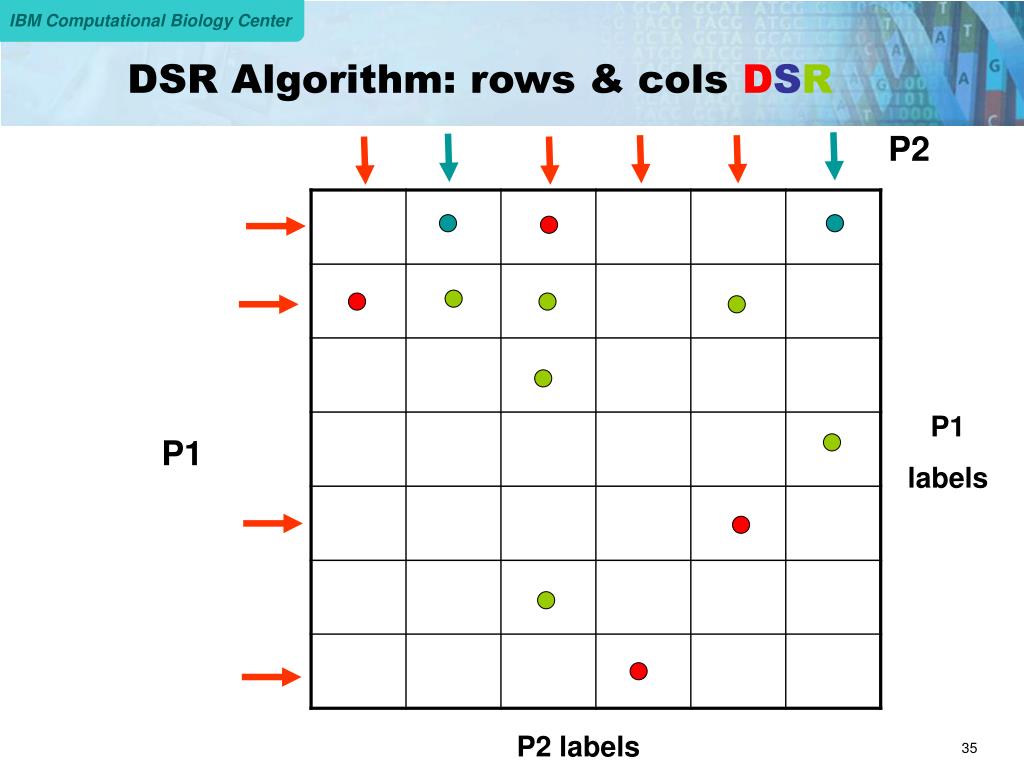

    DSR Algorithm: rows & cols DSR

    P2

    P1

    labels

    P1

    P2 labels


    Dsr algorithm rows cols d s r2

    DSR Algorithm: rows & cols DSR

    P2

    P1

    labels

    P1

    P2 labels


    D s r feasible topology

    DSR Feasible Topology

    Next layer

    Last layer


    D s r continuity across layers iterations

    DSR Continuity Across Layers (iterations)


    Roadmap

    chr21:14505500 -14602168

    Chinese (2 subpops: CBx, HNx); Japanese (JTx) data

    • Around 200 SNPs

    • Around 100 haplotypes


    Network

    Network

    Median-joining networks for inferring intraspecific phylogenies, Bandelt, Forster & Rohl,Molecular Biology and Evolution, Vol 16, 37-48, 1999


    Iris i dentifying r ecombinations i n s equences

    IRIS(IdentifyingRecombinationsInSequences)

    1234567890123456789012345678901234567890123456789012345678901234567890123456789012345678901234567890123456789012345678901234511111111111111111111111111111111111111112222222222222222222222222222222222233333333344444444455555555555555----


    Iris non recombining cluster ids

    IRIS: Non-recombining Cluster Ids

    11 12 13 14 15 16 0 17 1 18 4 19 65 20 8 21 9107 22 23 32 24


    Chr 21 locus preliminary results

    Chr 21 locus: Preliminary Results

    • Not distinguishable

      share recent & ancient recombinations

    • No pop-specific mutation/recombination


    Roadmap

    Mazumdar et al, Journal of Genetics, 2008.


    The big picture

    The Big Picture

    Ecosystem

    Population Genomics

    Species

    Organism

    Physiology

    Metabolism

    Network

    Function

    Structure

    Sequence


    Thank you

    Thank You!

    … success stories in bioinformatics will depend on algorithmic and statistical ingenuity.

    Pavel Pevzner
