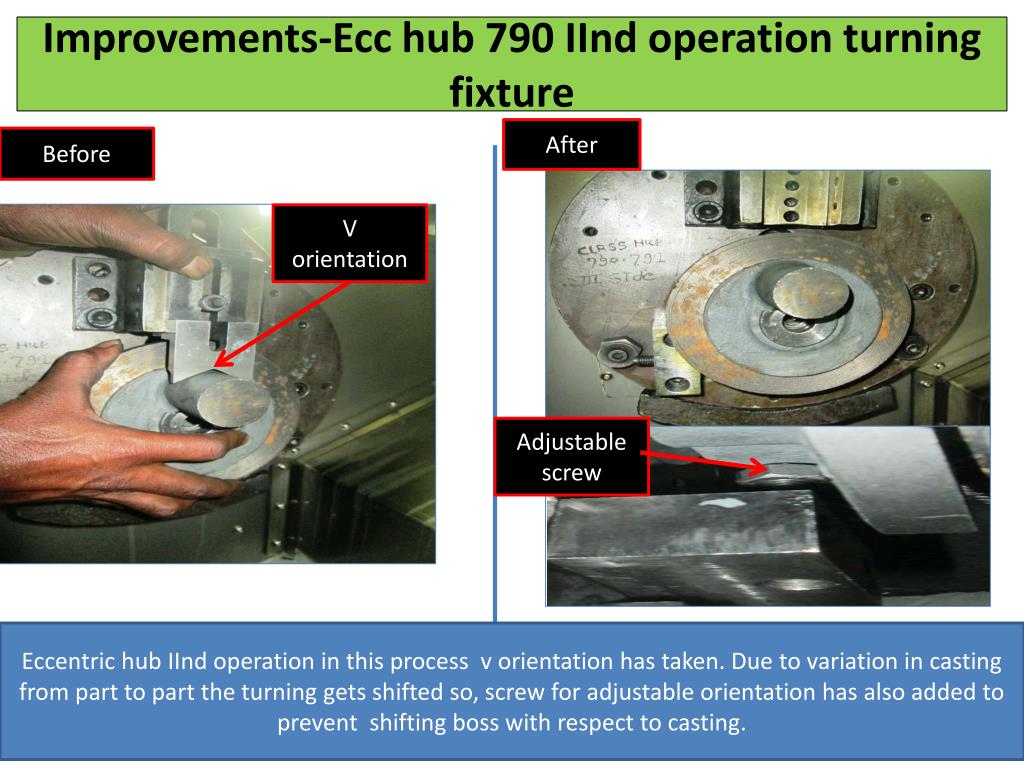

Improvements ecc hub 790 iind operation turning fixture

Improvements-Ecc hub 790 IInd operation turning fixture

After

Before

V orientation

Adjustable screw

Eccentric hub IInd operation in this process v orientation has taken. Due to variation in casting from part to part the turning gets shifted so, screw for adjustable orientation has also added to prevent shifting boss with respect to casting.
