created by jeremy brooksbank essa sharif price collins alex zadell
Created by:

Jeremy Brooksbank

Essa Sharif

Price Collins

Alex Zadell

Engineering Fundamentals 151Fall 2008 Final Project“Ode to Phil”

project description

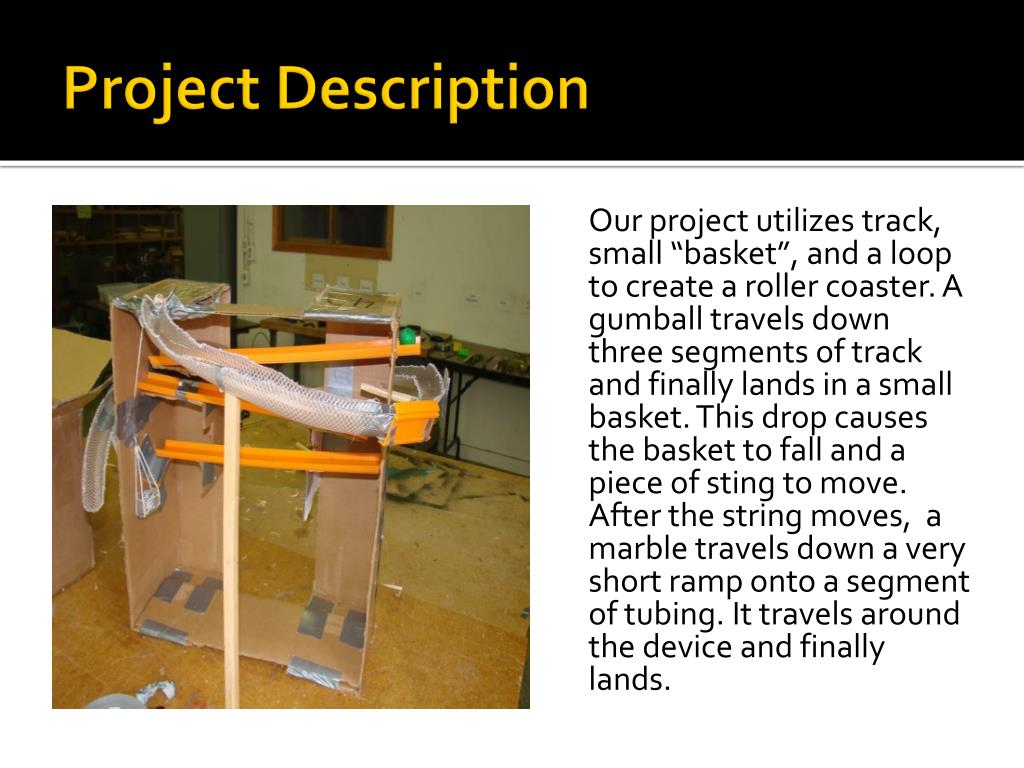

Project Description

Our project utilizes track, small “basket”, and a loop to create a roller coaster. A gumball travels down three segments of track and finally lands in a small basket. This drop causes the basket to fall and a piece of sting to move. After the string moves, a marble travels down a very short ramp onto a segment of tubing. It travels around the device and finally lands.

construction
Construction

1. Constructed the

correct box size for the project.

2. Cut the segments of track down to size and attached them to the box.

3. Constructed a “basket” out of a piece of cardboard, rubber tubing, and string.

4. Cut the tubing into pieces then split them down the middle.

5. Glued the tubing together then taped for extra support.

6. Cut small piece of wood up and placed in the box to support the tube-track.

7. Obtained a long piece of wood for further support of the track.

8. Placed bumpers on the track to slow the marble and gumball down.

9. Tapped plastic pieces to the tubing to keep the ball from flying off the track.

calculations

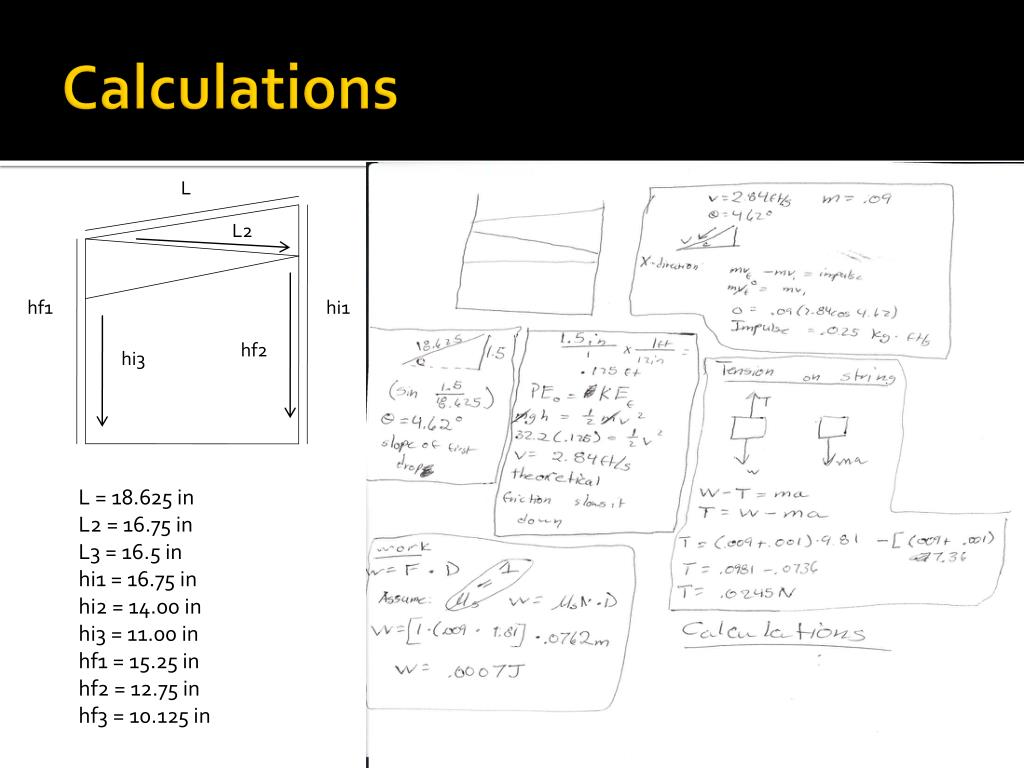

Calculations

L2

L

hf1

hi1

hf2

hi3

L = 18.625 in

L2 = 16.75 in

L3 = 16.5 in

hi1 = 16.75 in

hi2 = 14.00 in

hi3 = 11.00 in

hf1 = 15.25 in

hf2 = 12.75 in

hf3 = 10.125 in

problems encountered

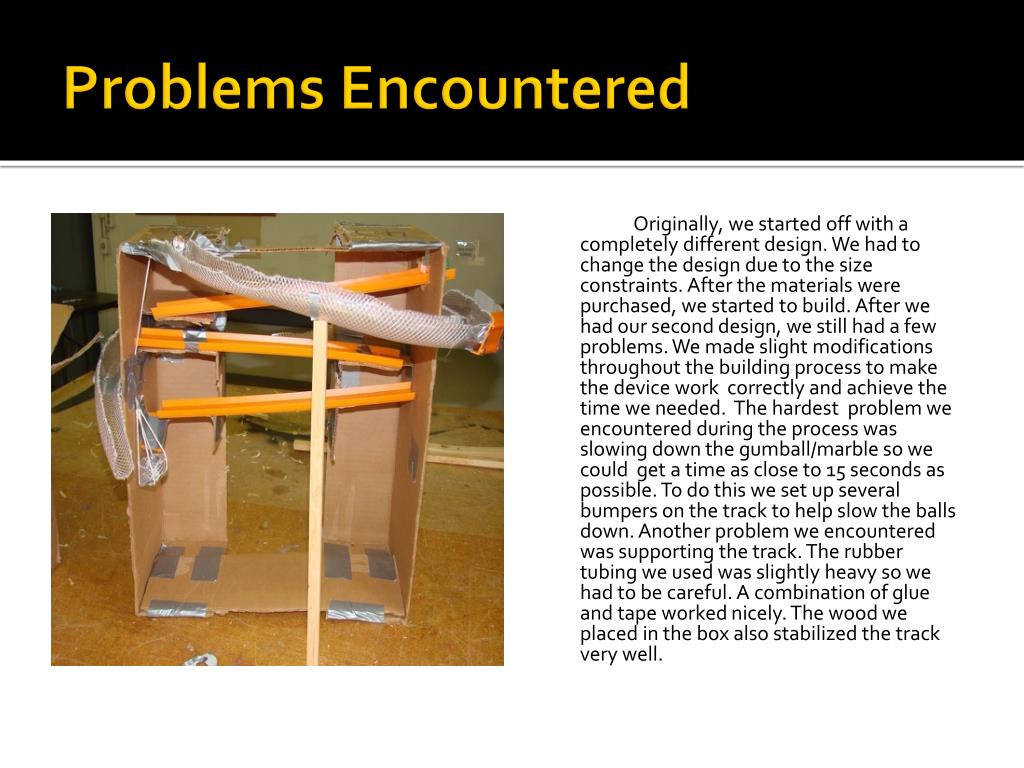

Problems Encountered

Originally, we started off with a completely different design. We had to change the design due to the size constraints. After the materials were purchased, we started to build. After we had our second design, we still had a few problems. We made slight modifications throughout the building process to make the device work correctly and achieve the time we needed. The hardest problem we encountered during the process was slowing down the gumball/marble so we could get a time as close to 15 seconds as possible. To do this we set up several bumpers on the track to help slow the balls down. Another problem we encountered was supporting the track. The rubber tubing we used was slightly heavy so we had to be careful. A combination of glue and tape worked nicely. The wood we placed in the box also stabilized the track very well.

financial information
Financial Information

Plastic Track- $12

Rubber Tubing- $15

Cardboard- $2

Marble- $.50

Gumball- $.50

String- $2

Wood- $3

Tape- $3

Total Cost- $38.00

Building something that looks nothing like a roller coaster- Priceless

For everyone else there’s EF 152
