  1. Better Than a Bubble Stick Alex Bork, Justinas Lialys, Laurynas Lialys, Tony Srimongkolkul

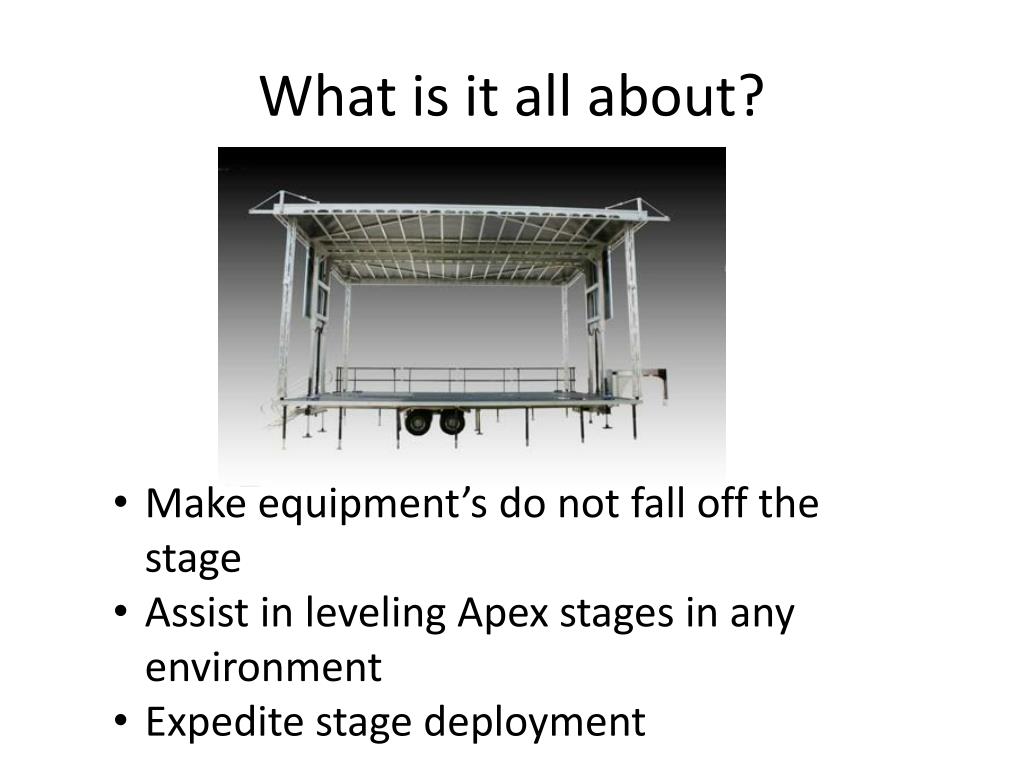

  2. What is it all about? • Make equipment’s do not fall off the stage • Assist in leveling Apex stages in any environment • Expedite stage deployment

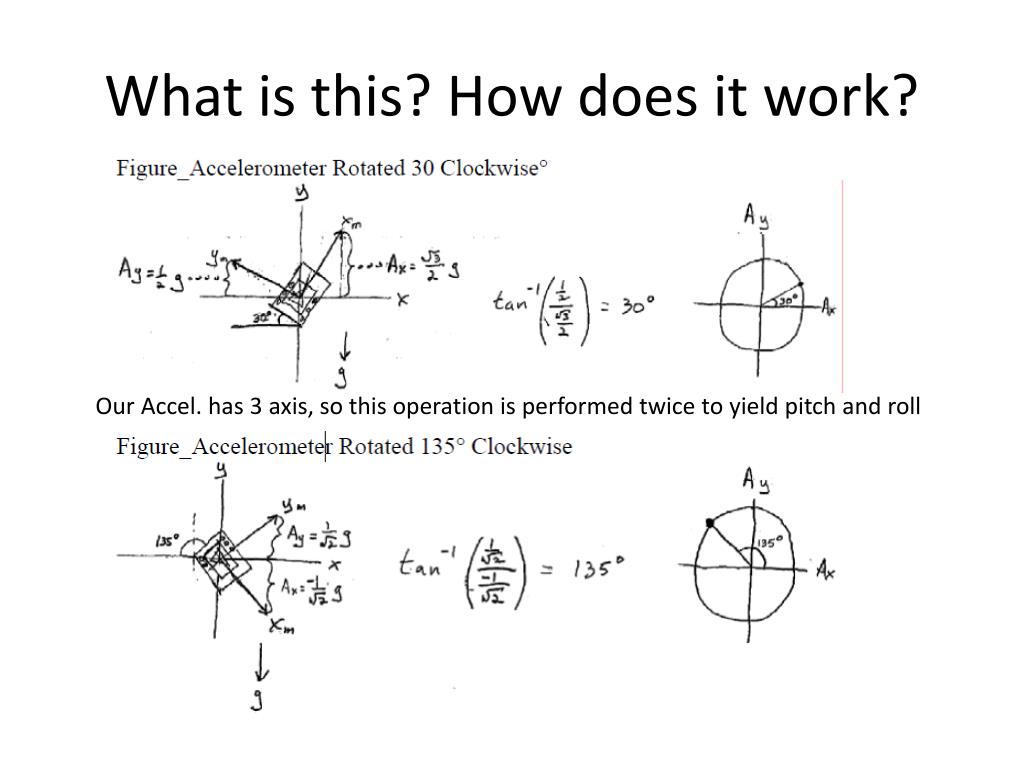

  3. What is this? How does it work? Our Accel. has 3 axis, so this operation is performed twice to yield pitch and roll

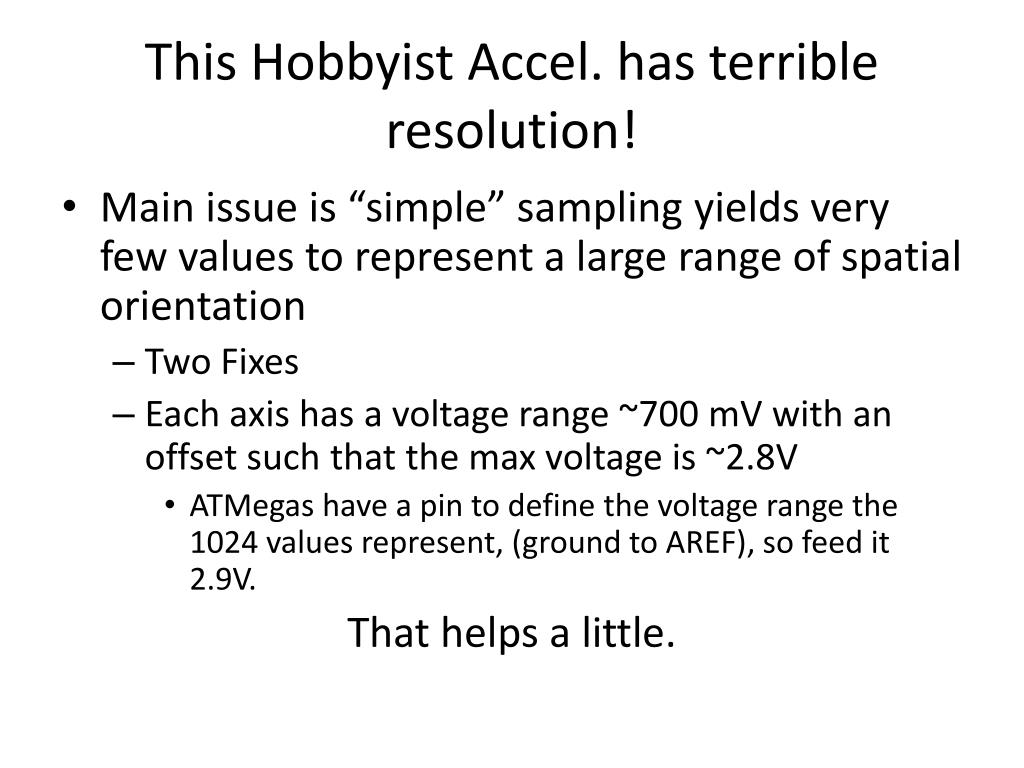

  4. This Hobbyist Accel. has terrible resolution! • Main issue is “simple” sampling yields very few values to represent a large range of spatial orientation • Two Fixes • Each axis has a voltage range ~700 mV with an offset such that the max voltage is ~2.8V • ATMegas have a pin to define the voltage range the 1024 values represent, (ground to AREF), so feed it 2.9V. That helps a little.

  5. Oversample and Average Extra bits of resolution 10 bits = 1024 values. Averaging with a twist. • Take 1000 samples and add them = 1.024E6 possible values • A little less than a 20-bit ADC • Divide by 100 so we have an averaged variable ranging ~6000 values • As opposed to ~250 on the un-fancied 1024. • Map This 6000 from -1.000 to 1.000 • 1/1000’s of a g force for each axis. • This process may introduce significant rounding error. • Will noodle with. • HOO AH resolution better than 0.4°

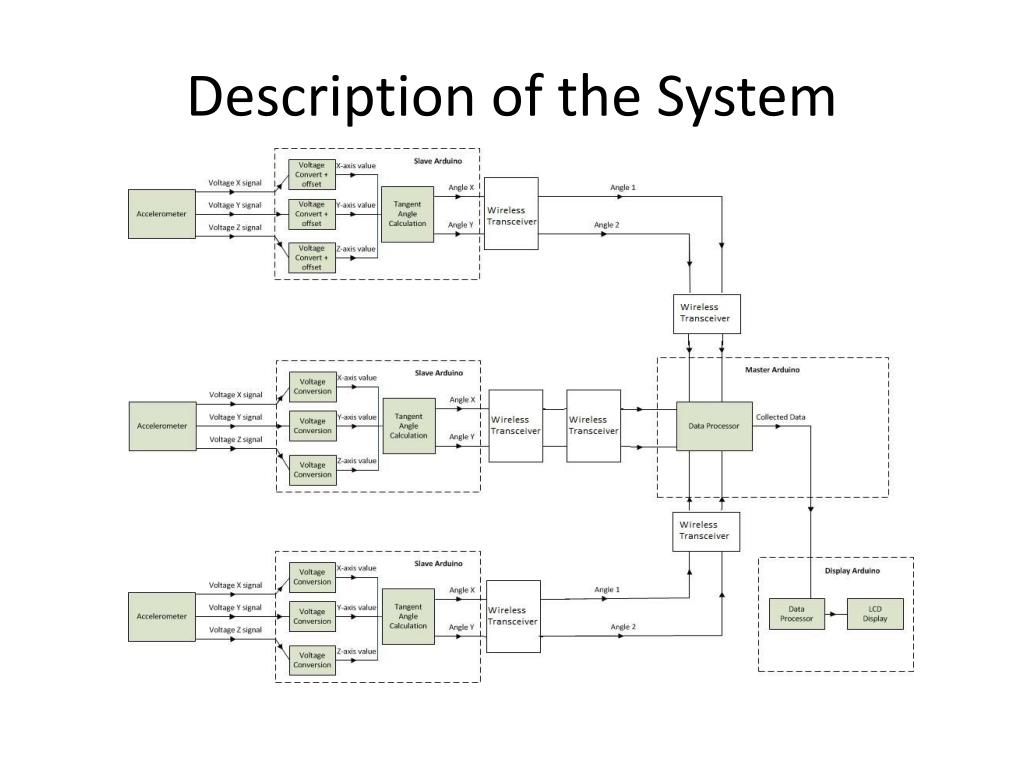

  6. Description of the System

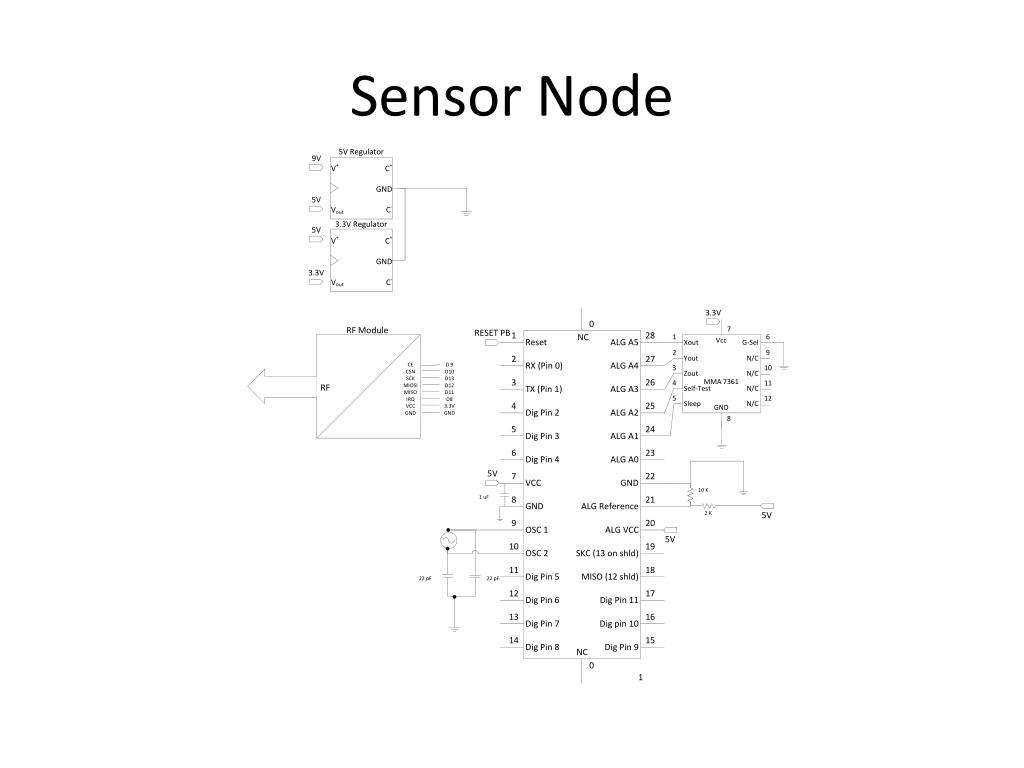

  7. Sensor Node

  8. Master Node

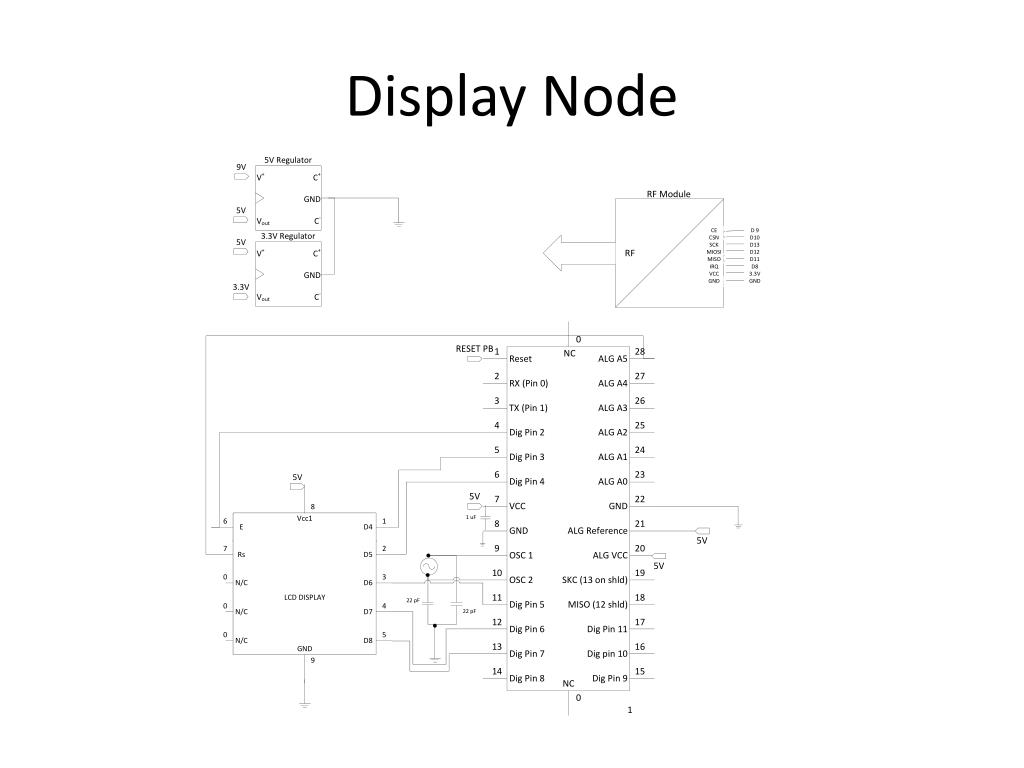

  9. Display Node

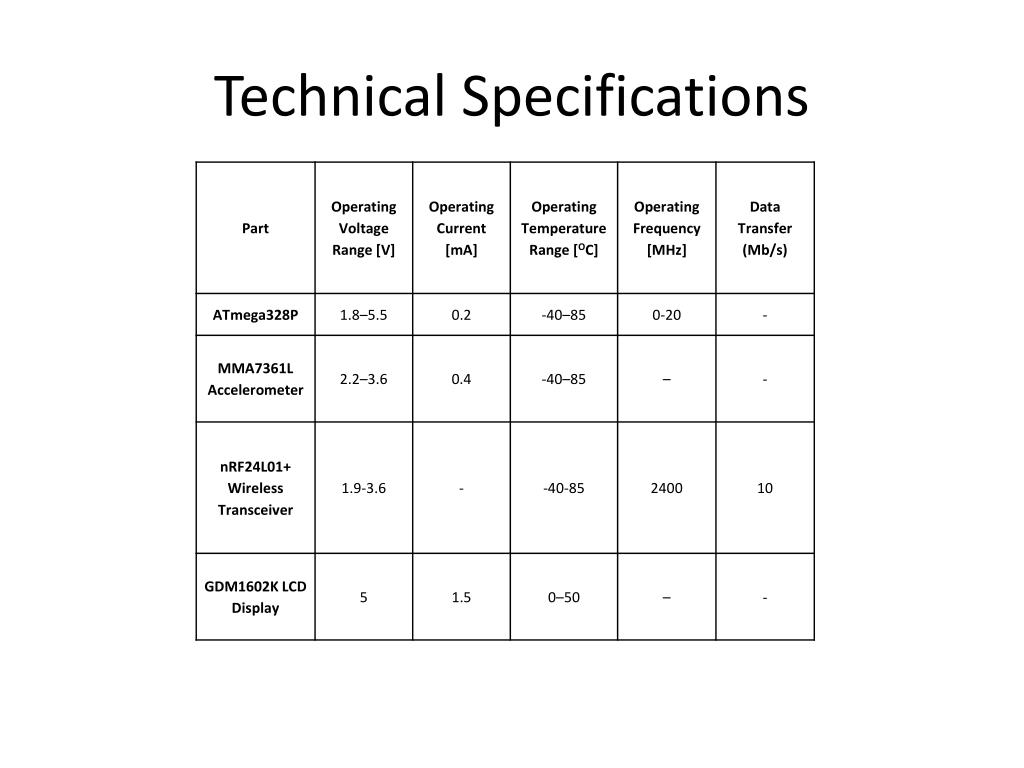

  10. Technical Specifications

  11. Evaluation and Testing • Slave ATmega • Ensure that the values from the accelerometer are accurate and quantized appropriately (done) • Master ATmega • Observe if it can handle multiple tasks (code refinement) • Display ATmega • Displays characters that are appropriately associated with the slave Atmega (done)

  12. This system uses voltage instead of current sensing. What happens if the voltage sags? • Higher DC voltage supplied down transmission lines to ensure minimum of 5.5V at input of each node. • Production model will use current sensing. As it is, the 3.3V rail for the accelerometer is run through two voltage regulators. • Water leakage in system • Seal the system with enclosure (future goal) • Vibration Tolerance • Screw and tighten ATmega down to handle short abrupt vibrations • EMC environment • Wireless trans-receivers might have interference with other electronics around (future goal) • Power Supply • Change battery configuration for appropriate voltage and lifetime • Temperature Handling • Enclosure acting like heat sink (not a problem, will be considered in future )

  13. What’s been accomplished so far • Slave node Interface with the accelerometer established The angles have better than 0.5 degree accuracy • Master node Interface with one slave node established • Display node Displays data Communicates with Master node via simple serial connection

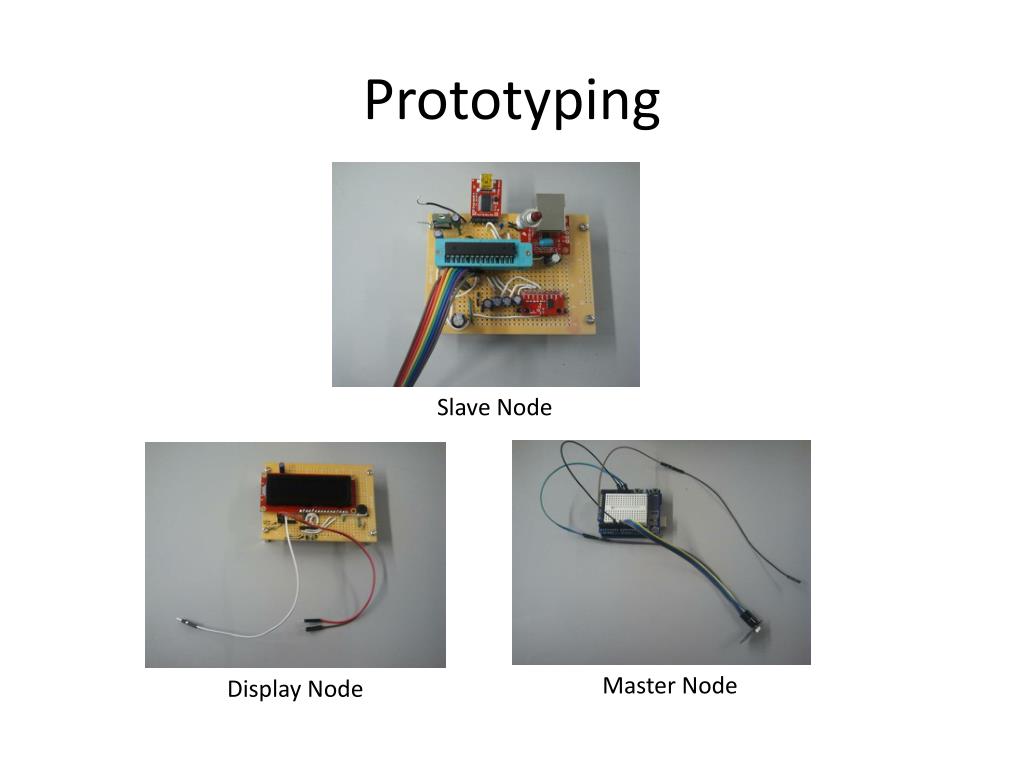

  14. Prototyping Slave Node Master Node Display Node

  15. Work Schedule

  16. Milestones • Phase 1: Accelerometer to Slave Node design(done) • Phase 2: Slave configuration to Master(done) • Phase 3: 3 Slave configurations to Master(in process/partially done) • Phase 4: Master design to Display and debug(In process/partially done) WE NEED OUR STUFF AND WE NEED TO LEARN HOW TO CODE MORE GOODER.

  17. Questions
