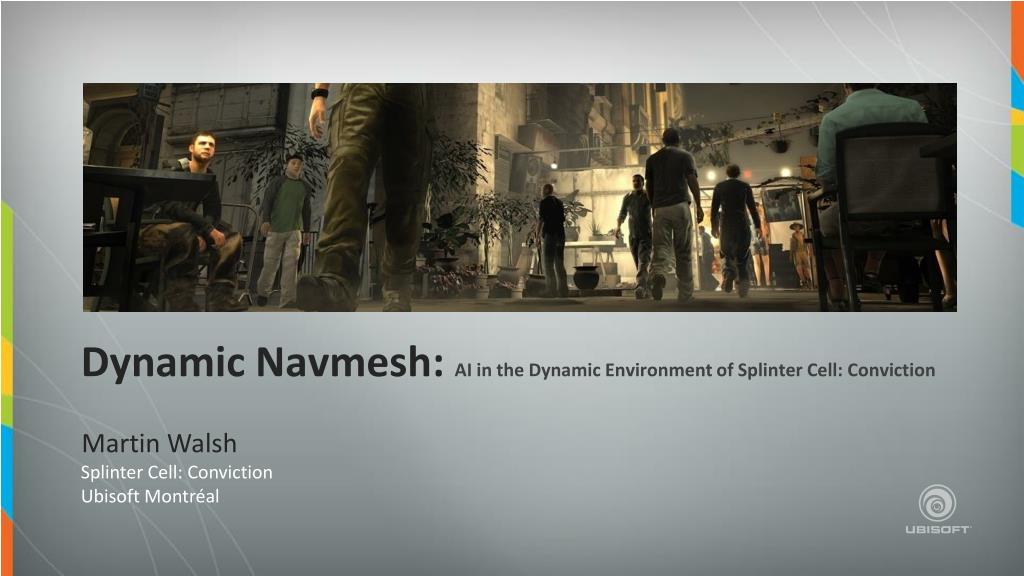

  1. Dynamic Navmesh: AI in the DynamicEnvironment of SplinterCell: Conviction Martin Walsh Splinter Cell: Conviction Ubisoft Montréal

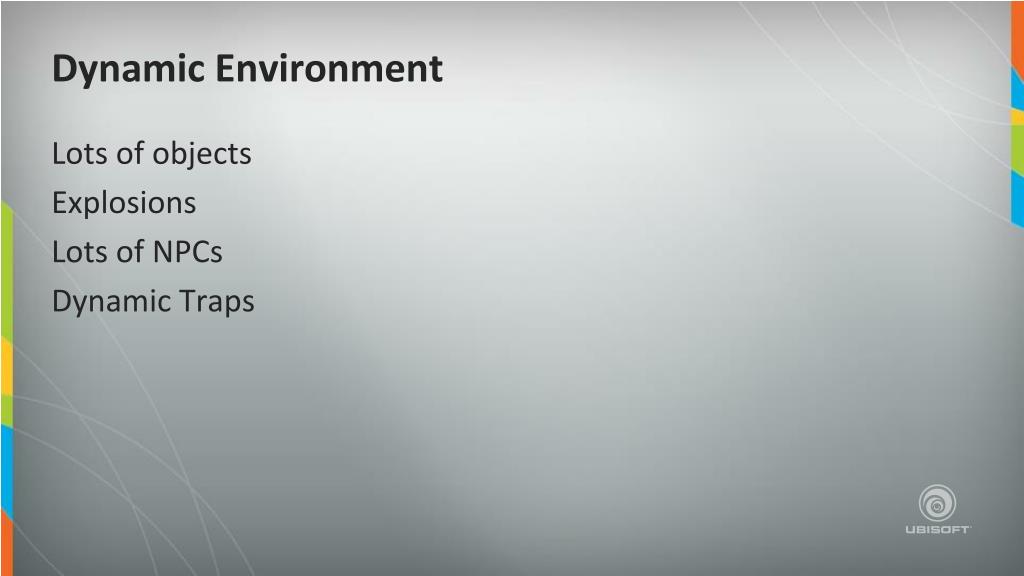

  2. Dynamic Environment Lots of objects Explosions Lots of NPCs Dynamic Traps

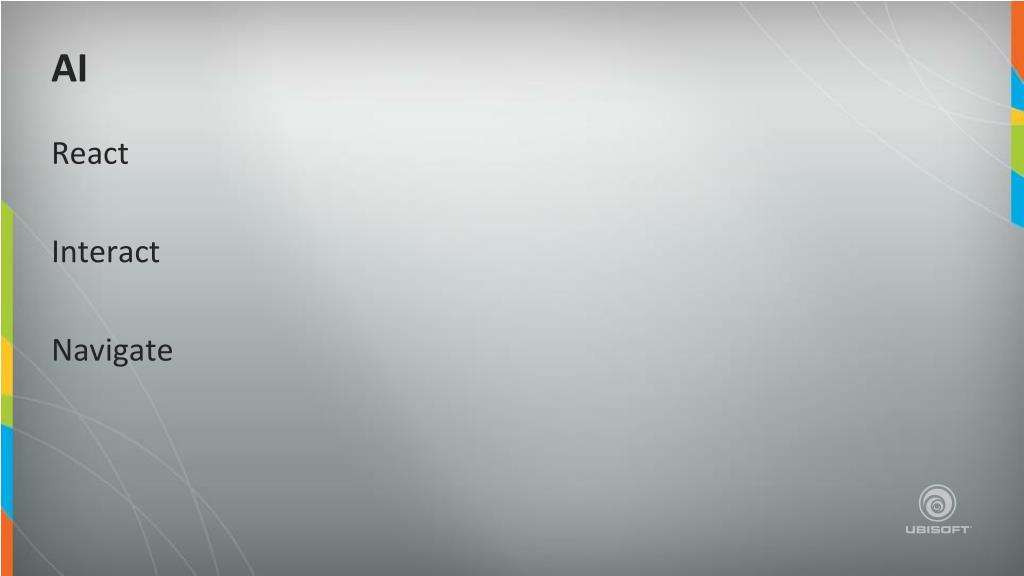

  3. AI React Interact Navigate

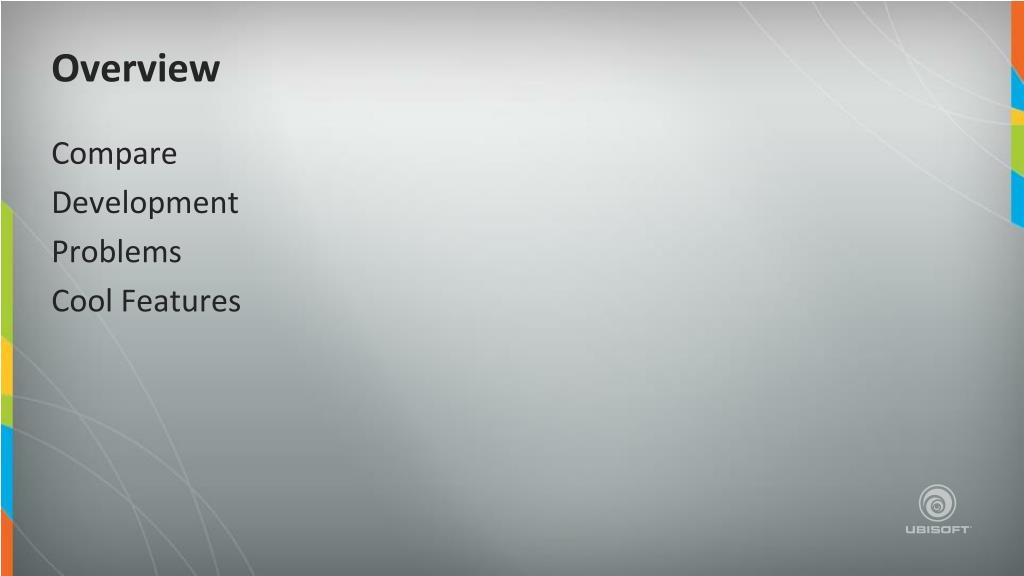

  4. Overview Compare Development Problems Cool Features

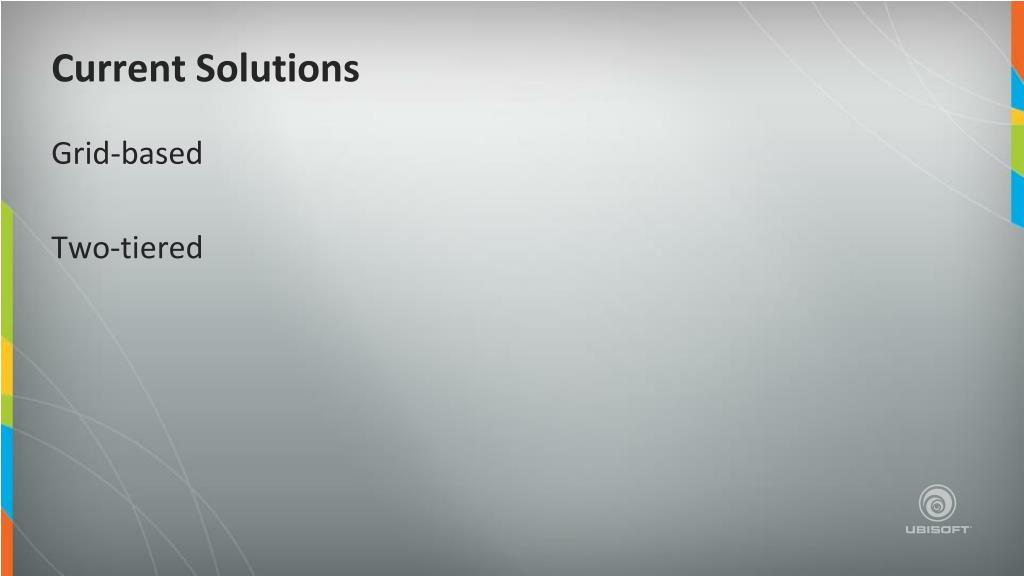

  5. Current Solutions Grid-based Two-tiered

  6. Two-Tiered Solutions Detailed Inconsistent

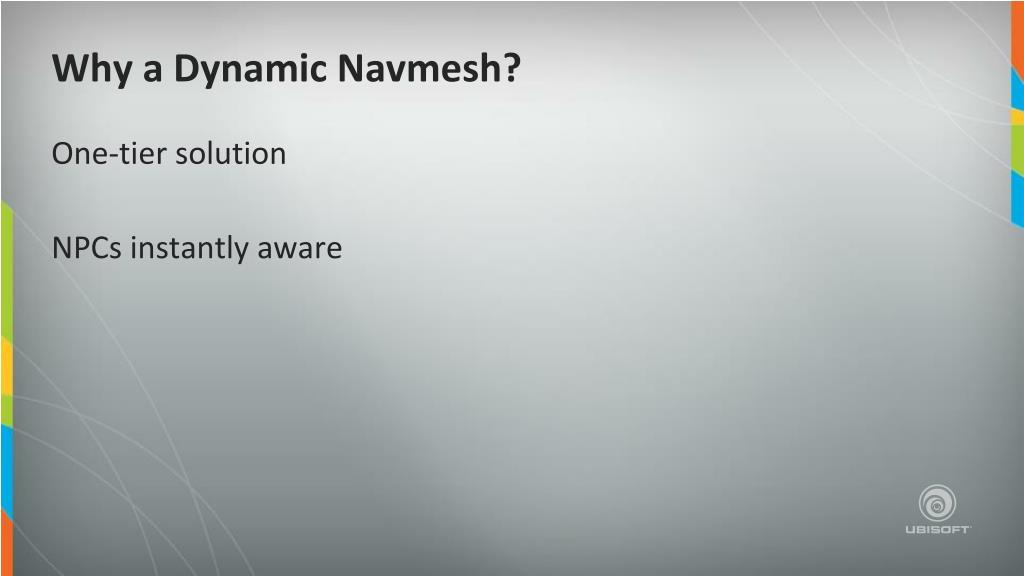

  7. Why a Dynamic Navmesh? One-tier solution NPCs instantly aware

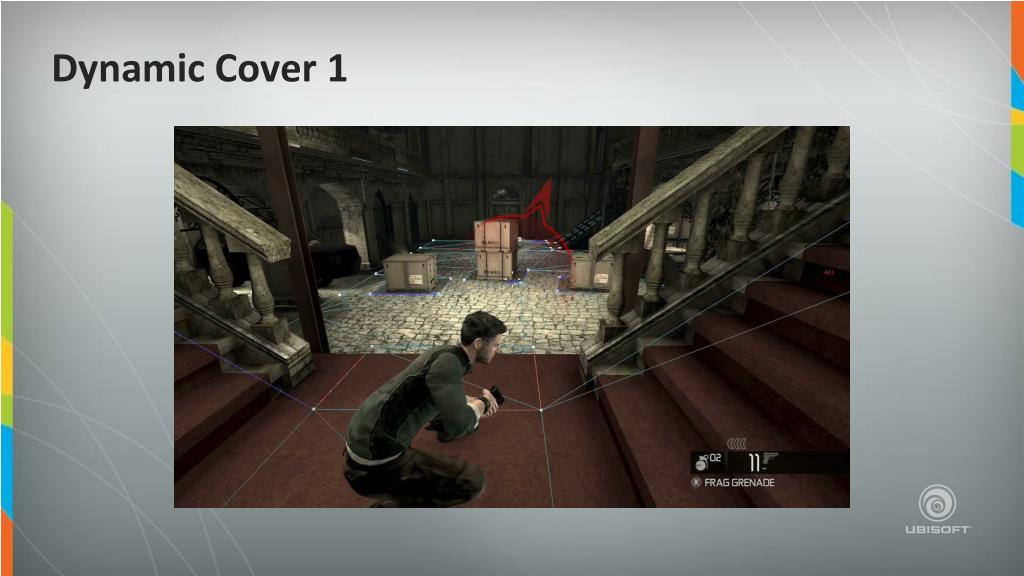

  8. Dynamic Cover 1

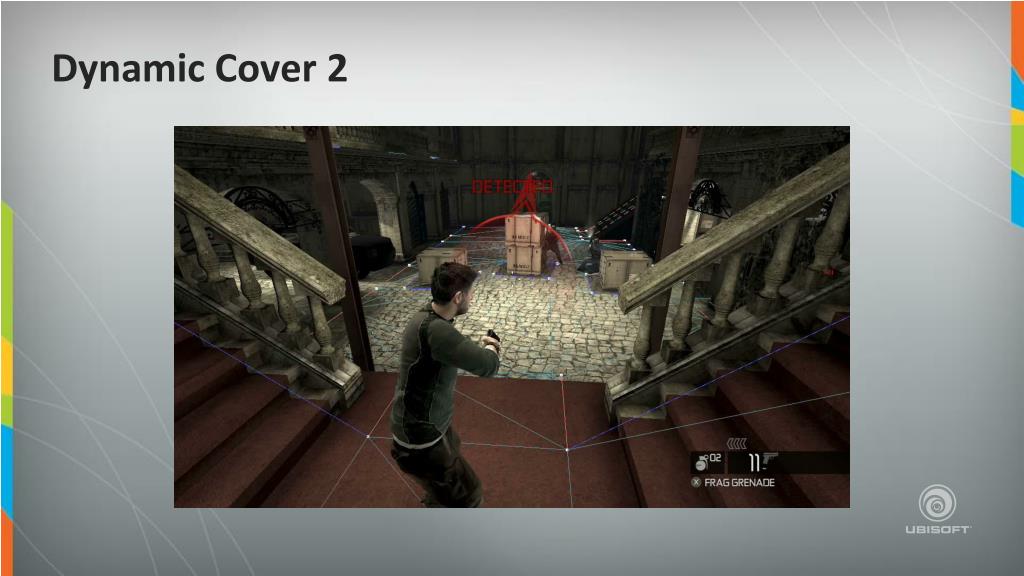

  9. Dynamic Cover 2

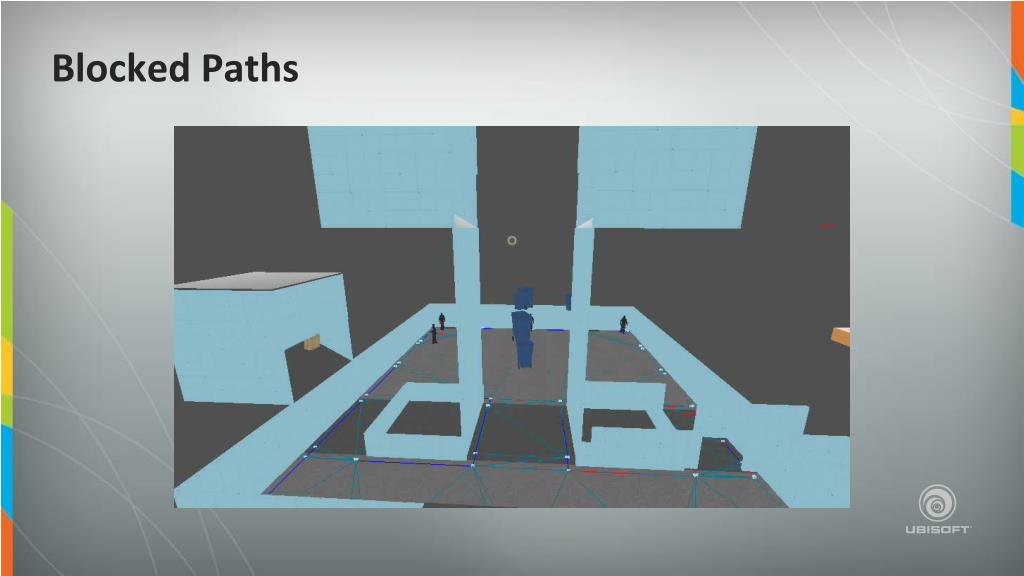

  10. Blocked Paths

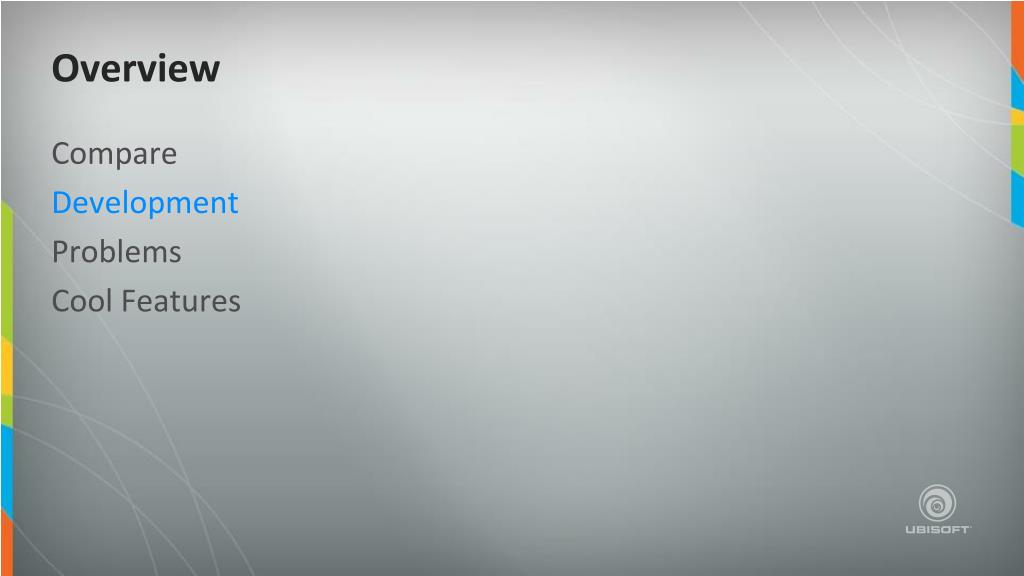

  11. Overview Compare Development Problems Cool Features

  12. What is a Dynamic Navmesh?

  13. Navmesh 2D representation of a 3D world • Triangles • Vertices • Edges • Walkable area • Extra information

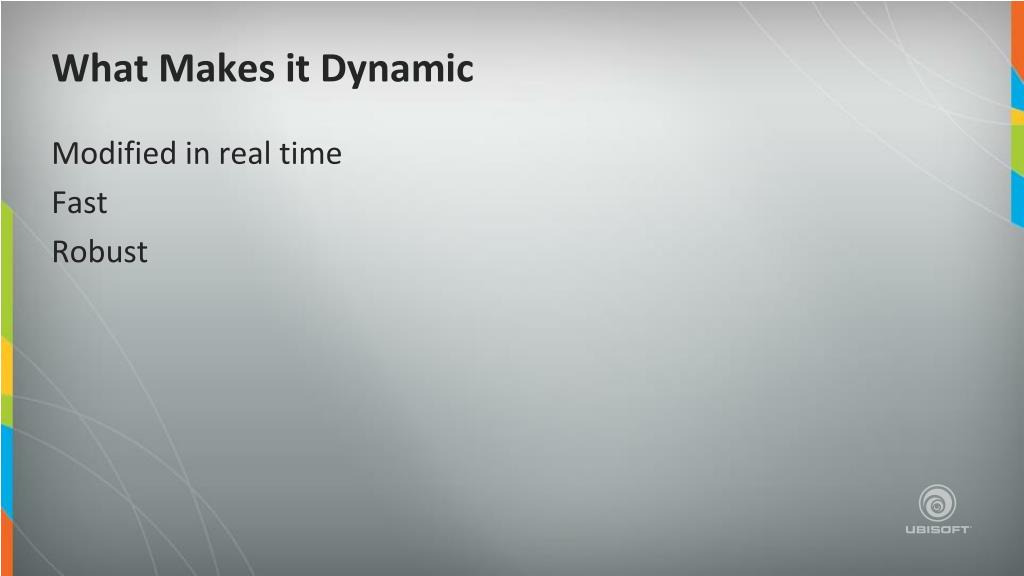

  14. What Makes it Dynamic Modified in real time Fast Robust

  15. Basic Operations Adding Removing

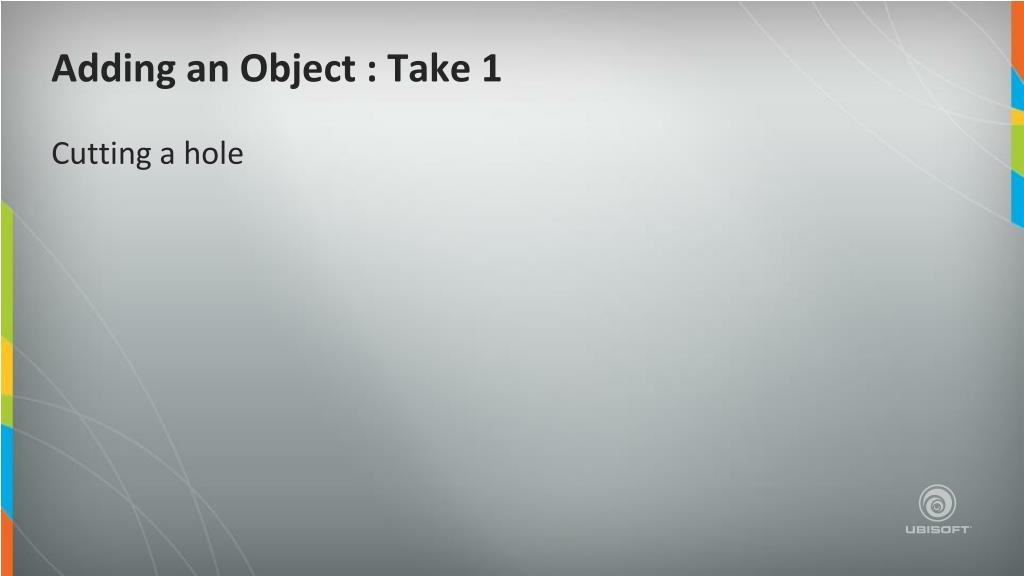

  16. Adding an Object : Take 1 Cutting a hole

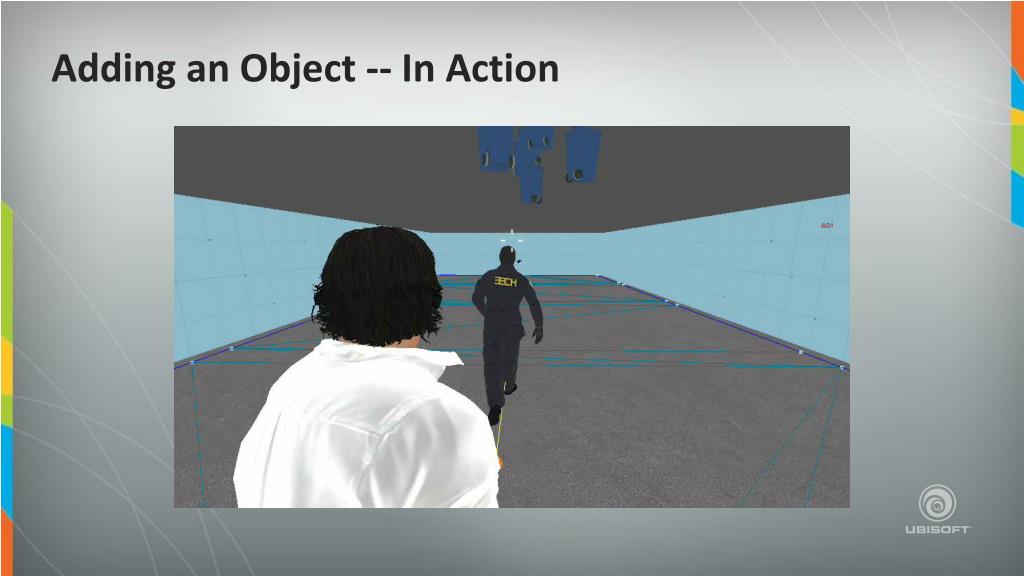

  17. Adding an Object -- In Action

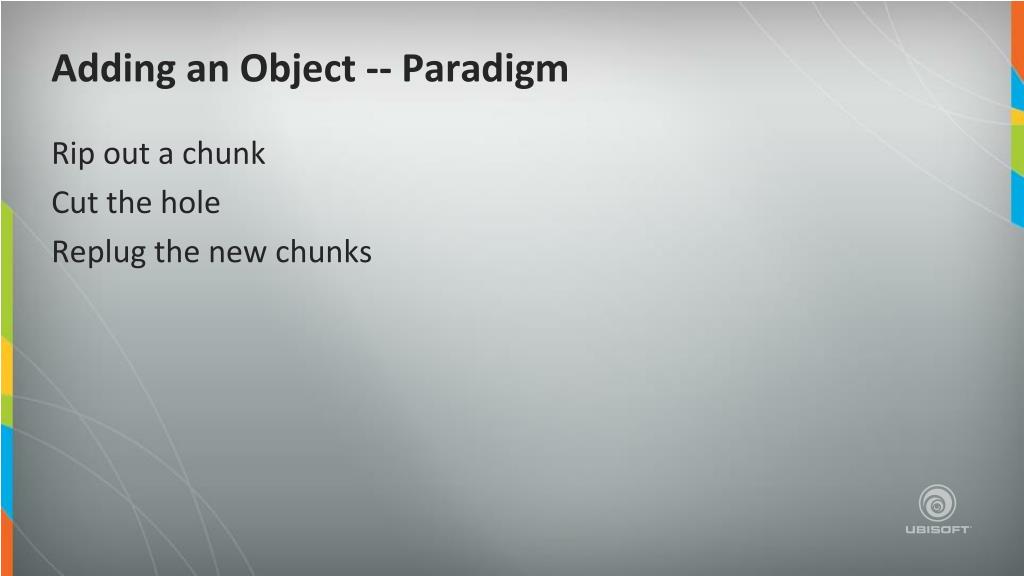

  18. Adding an Object -- Paradigm Rip out a chunk Cut the hole Replug the new chunks

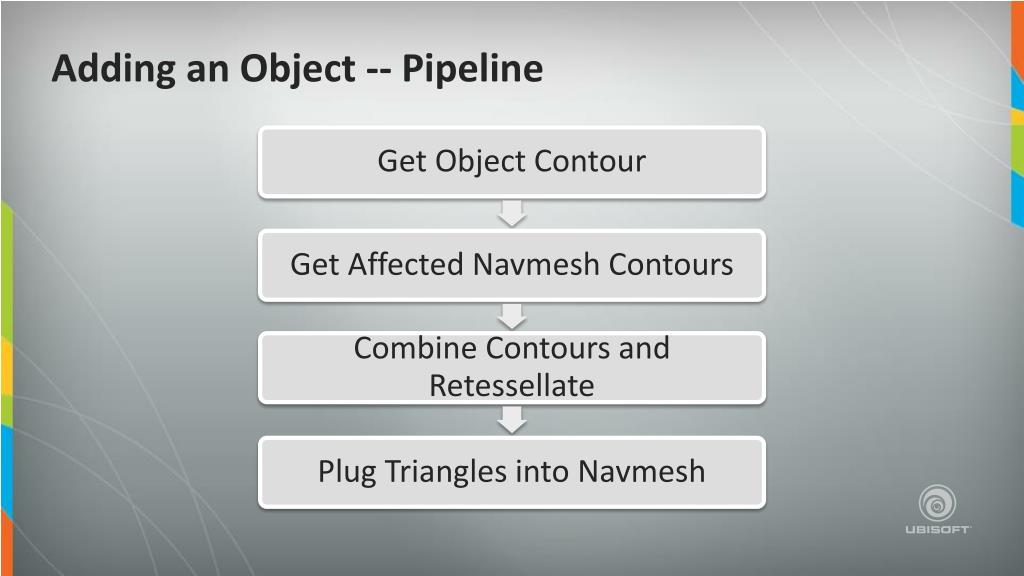

  19. Adding an Object -- Pipeline

  20. Bounding volume

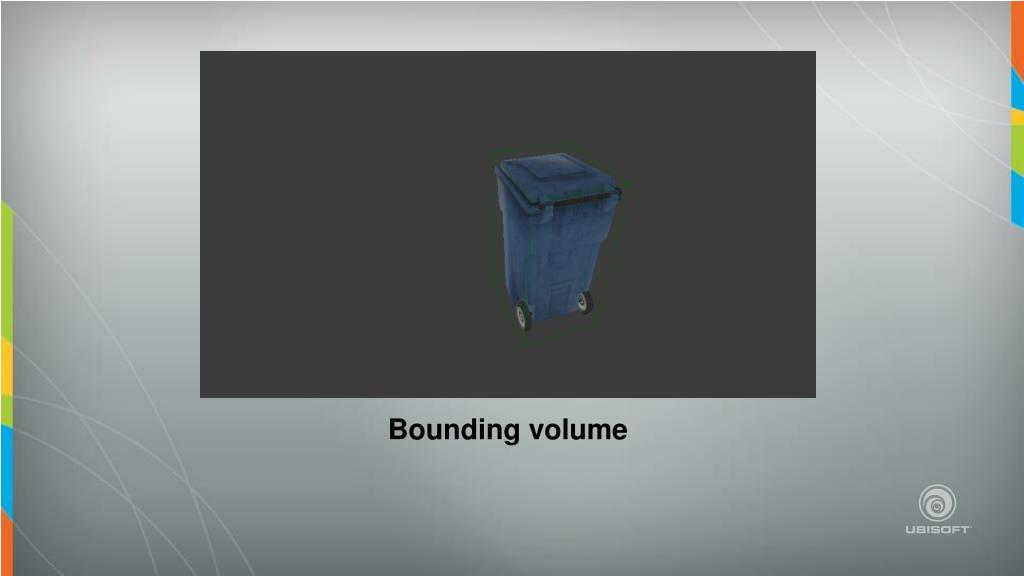

  21. Points of Volume

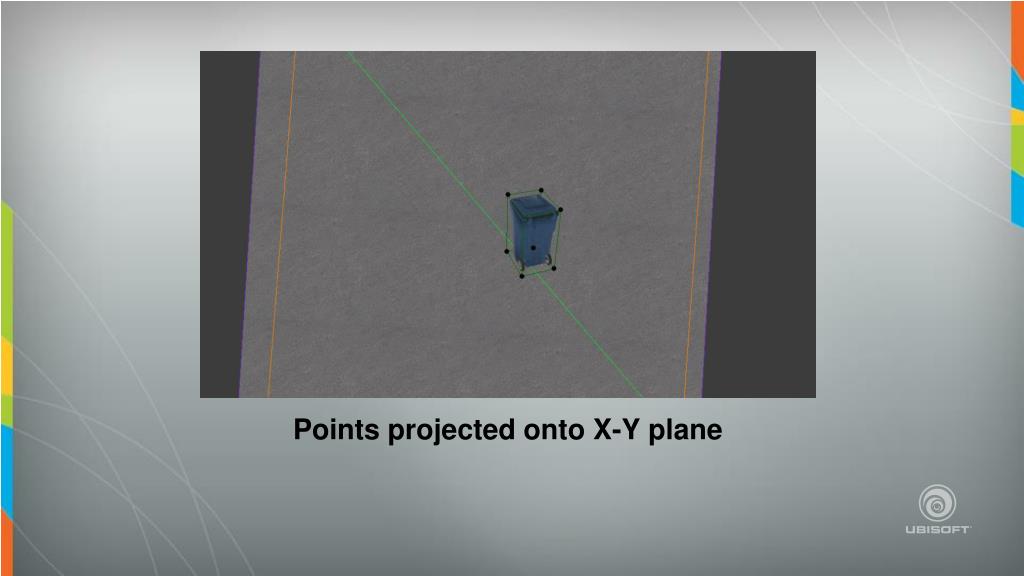

  22. Points projected onto X-Y plane

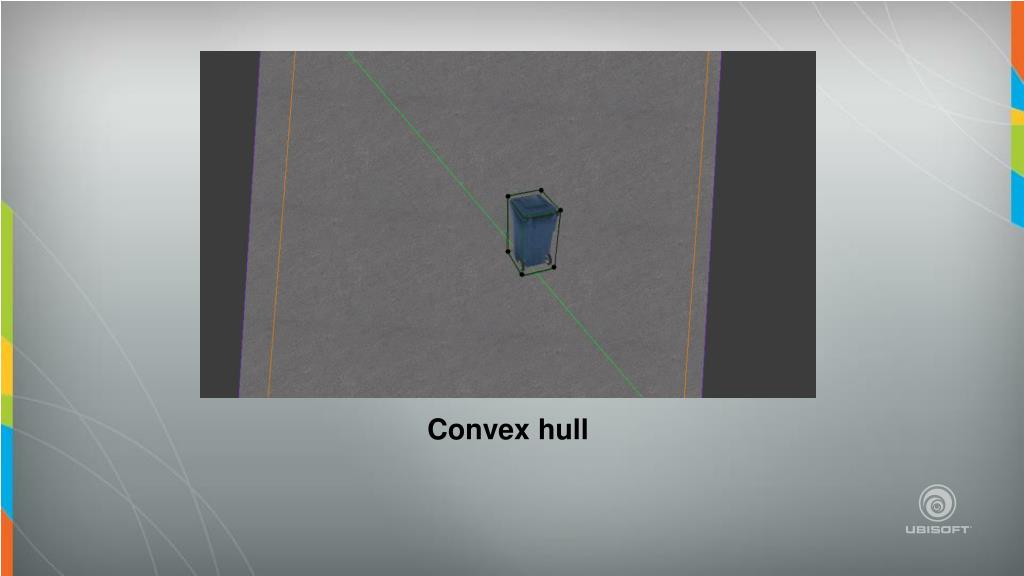

  23. Convex hull

  24. Expanded convex hull

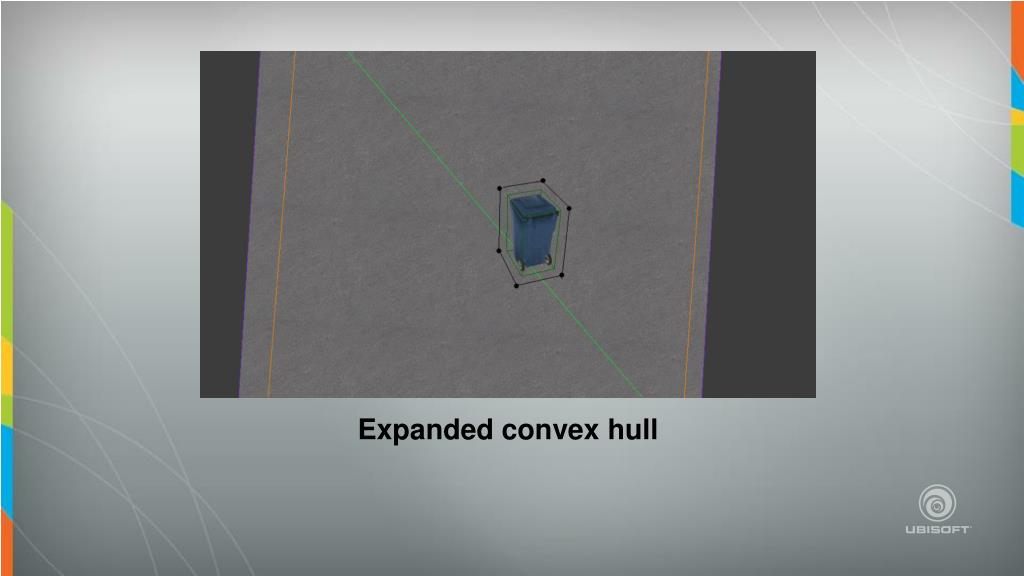

  25. Retessellated Navmesh

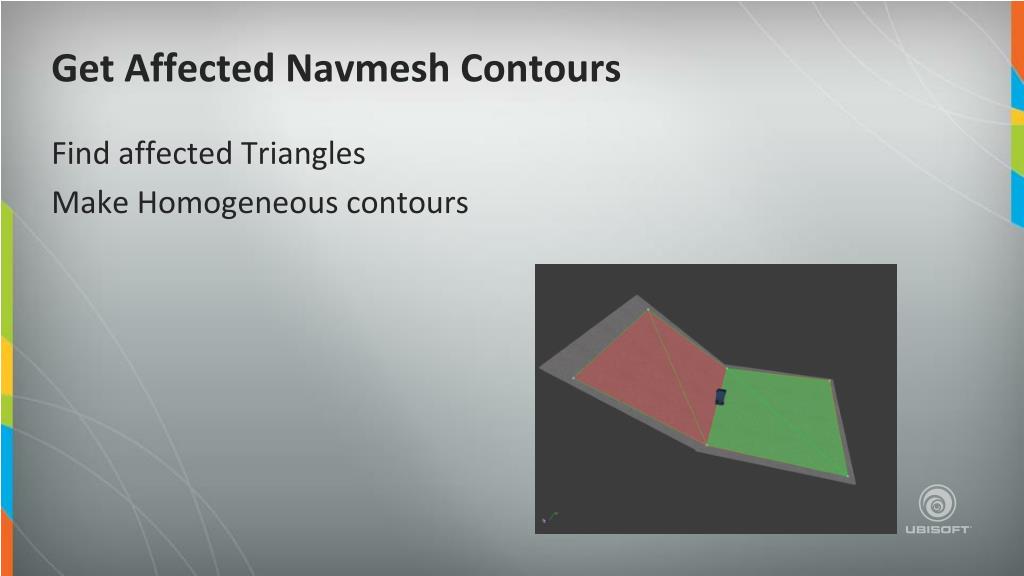

  26. Get Affected Navmesh Contours Find affected Triangles Make Homogeneous contours

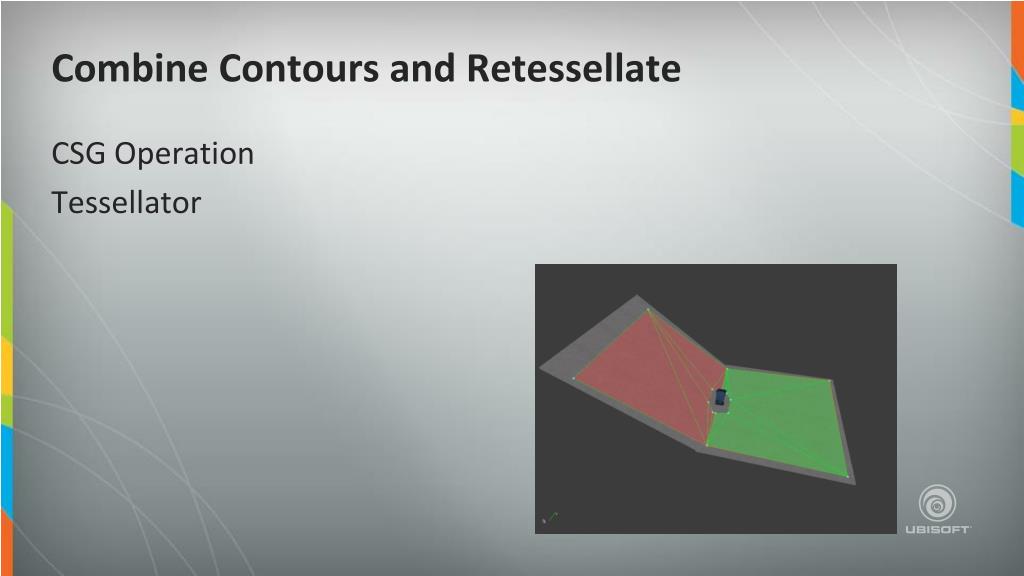

  27. Combine Contours and Retessellate CSG Operation Tessellator

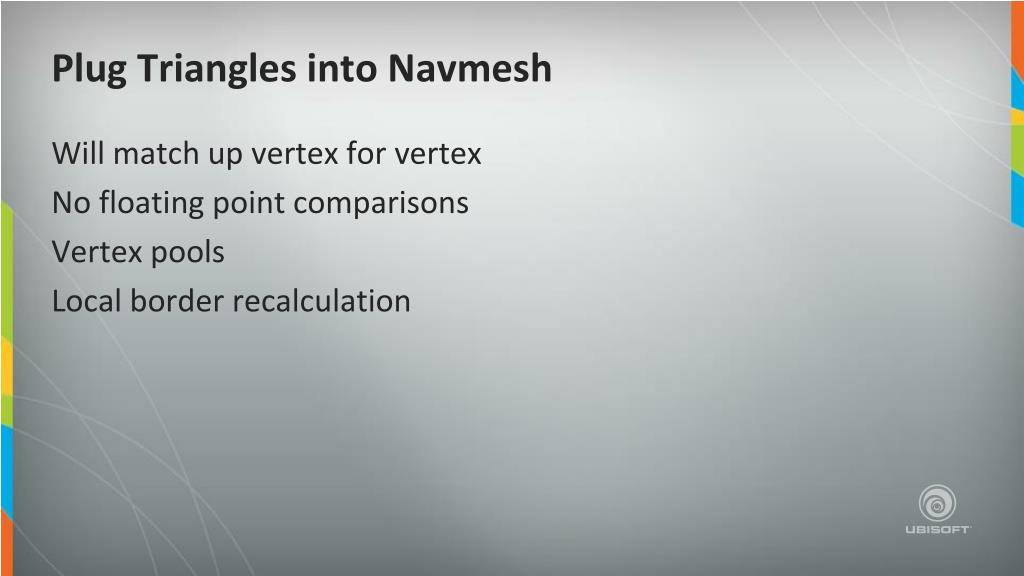

  28. Plug Triangles into Navmesh Will match up vertex for vertex No floating point comparisons Vertex pools Local border recalculation

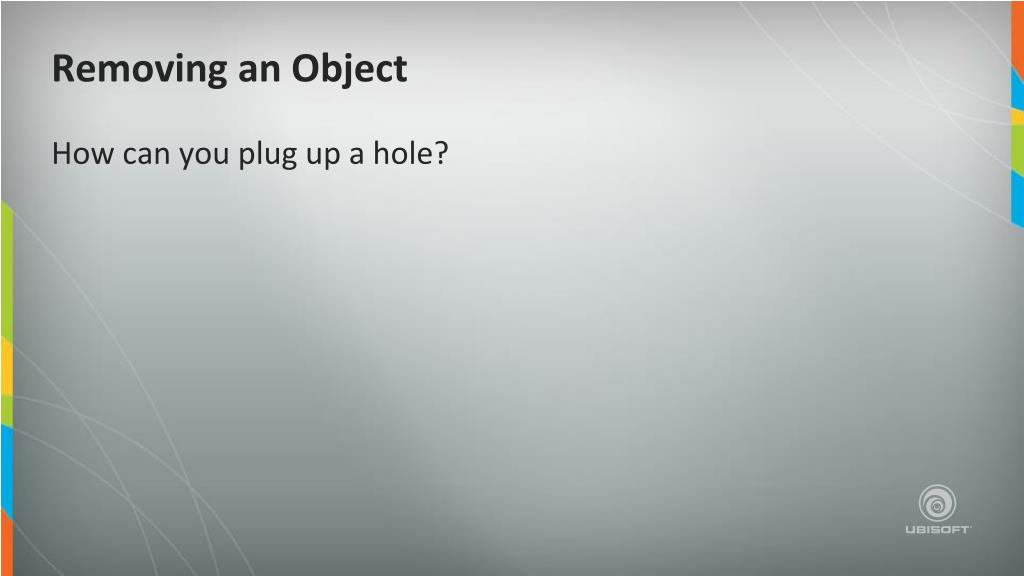

  29. Removing an Object How can you plug up a hole?

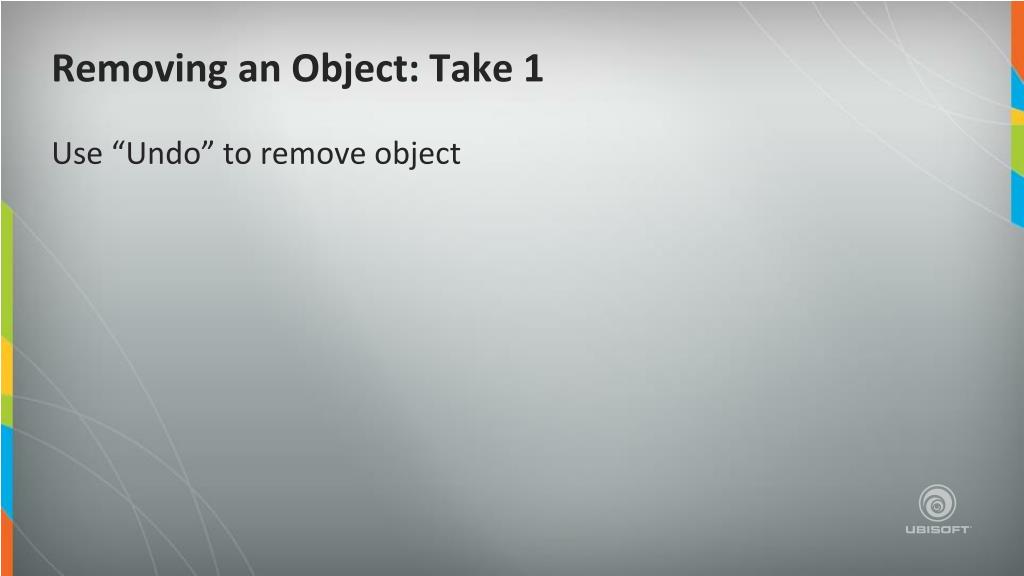

  30. Removing an Object: Take 1 Use “Undo” to remove object

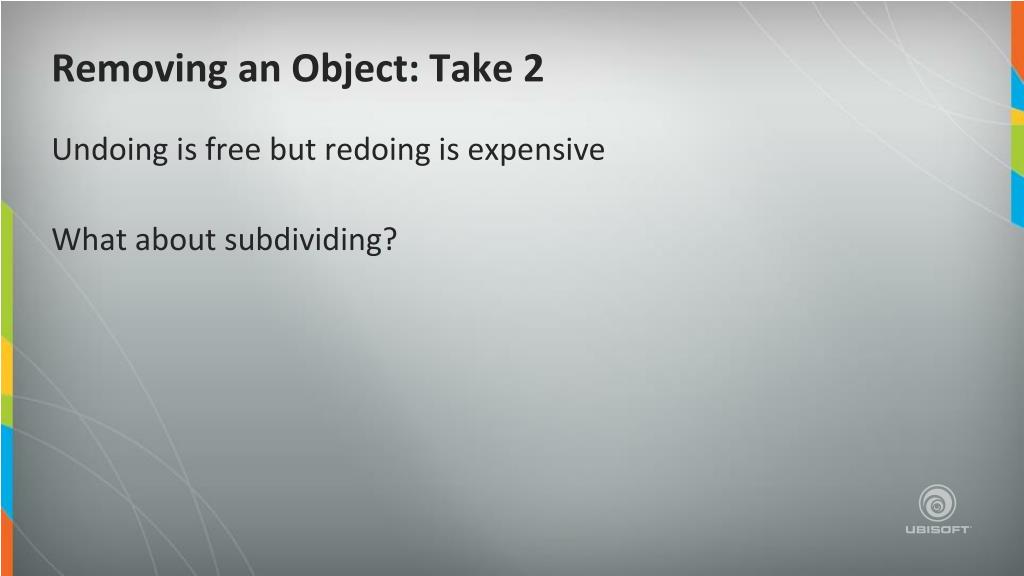

  31. Removing an Object: Take 2 Undoing is free but redoing is expensive What about subdividing?

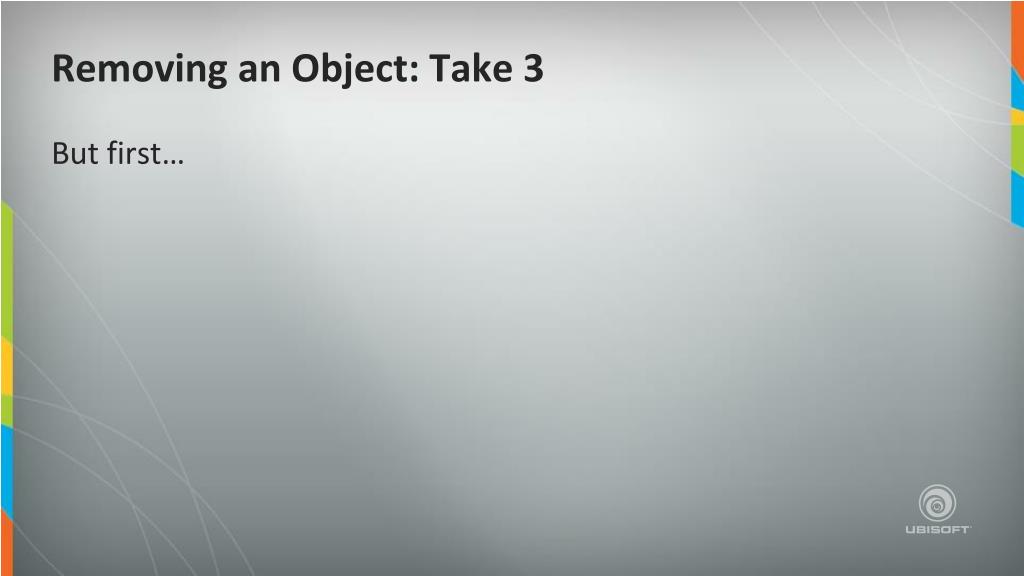

  32. Removing an Object: Take 3 But first…

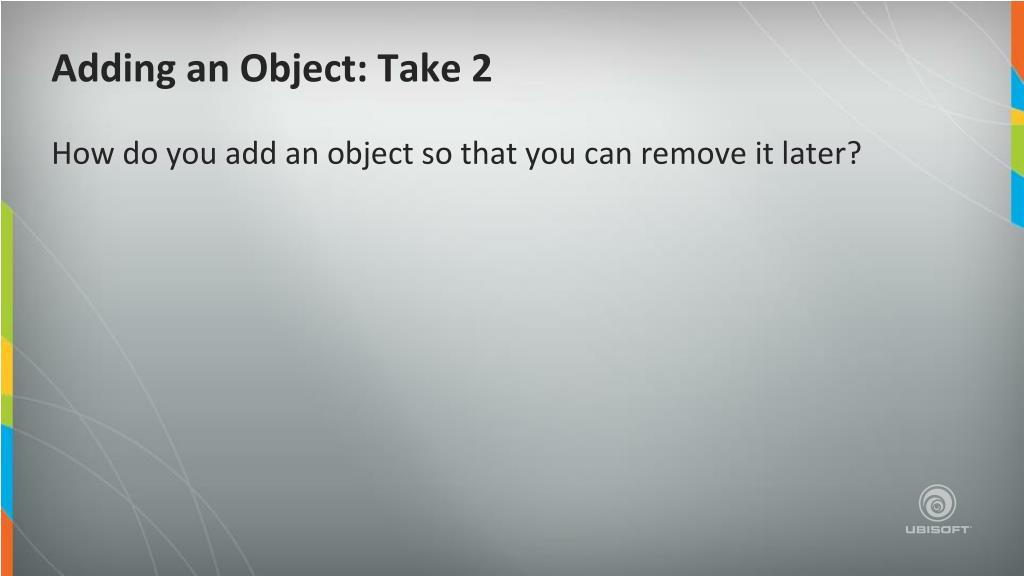

  33. Adding an Object: Take 2 How do you add an object so that you can remove it later?

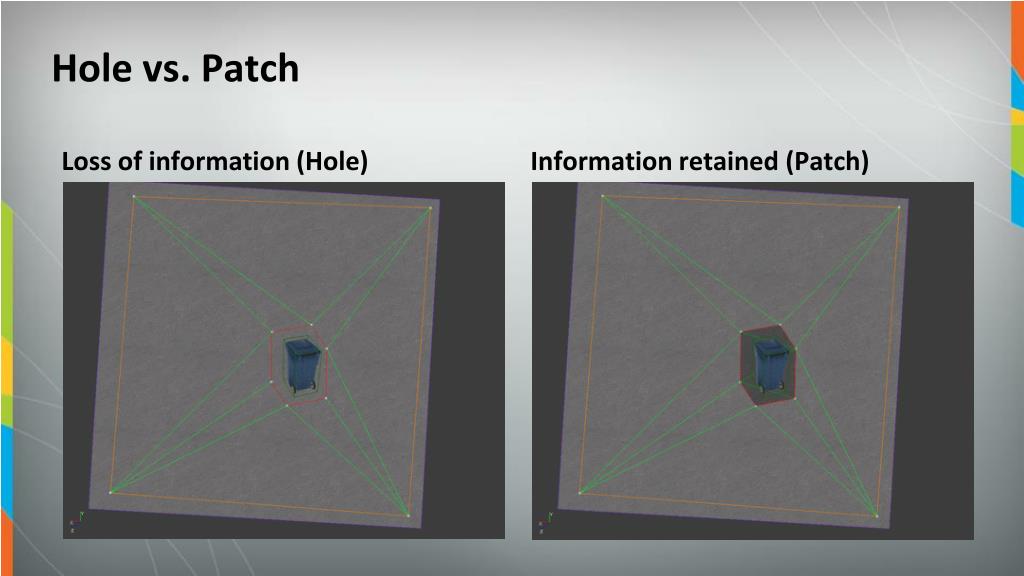

  34. Hole vs. Patch Loss of information (Hole) Information retained (Patch)

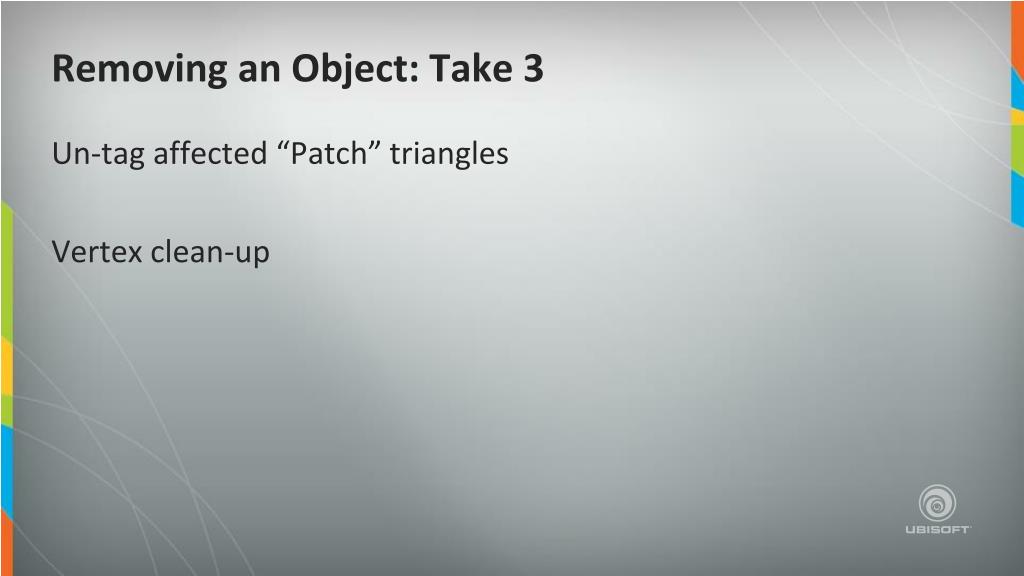

  35. Removing an Object: Take 3 Un-tag affected “Patch” triangles Vertex clean-up

  36. Overview Compare Development Problems Cool Features

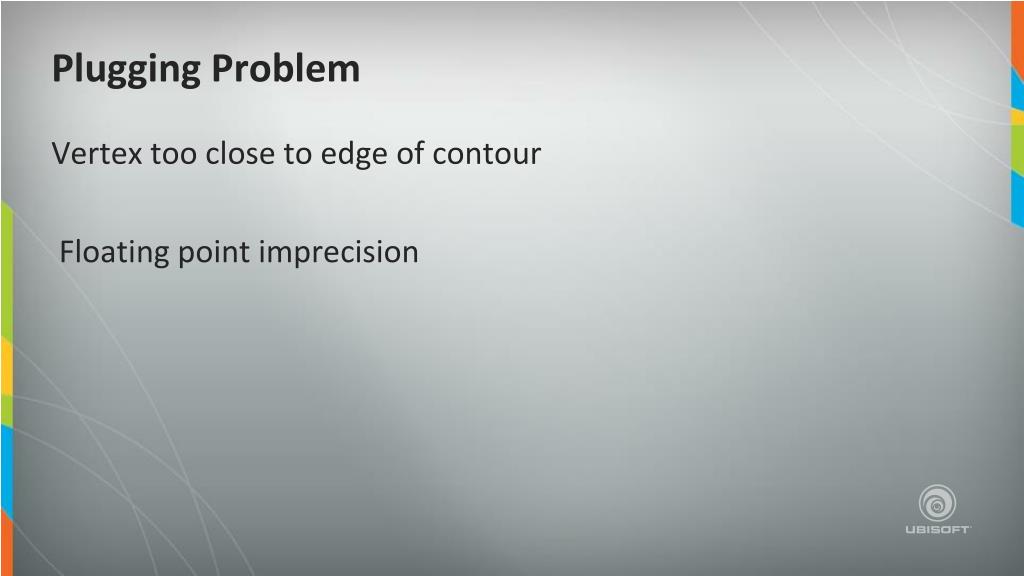

  37. Plugging Problem Vertex too close to edge of contour Floating point imprecision

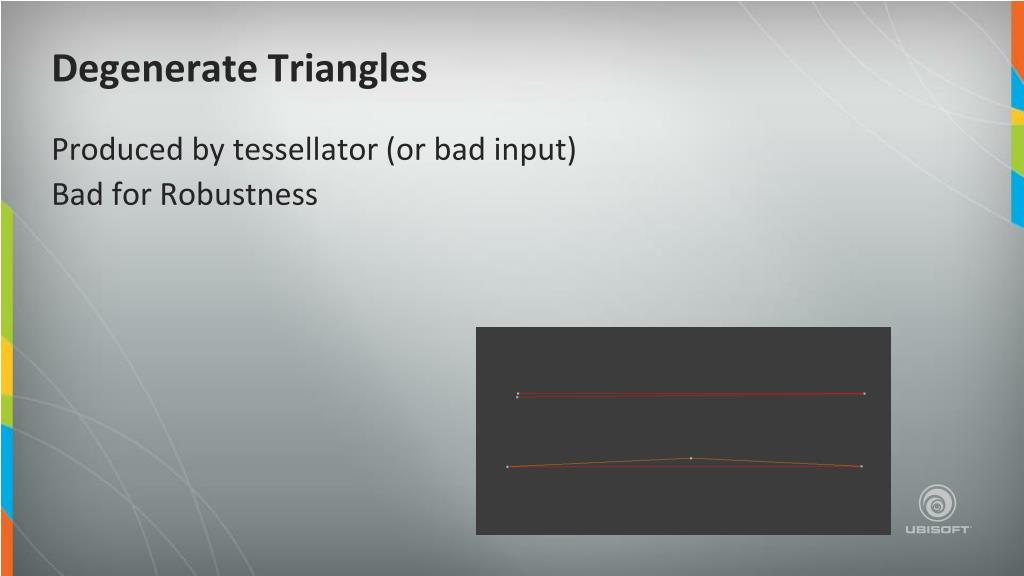

  38. Degenerate Triangles Produced by tessellator (or bad input) Bad for Robustness

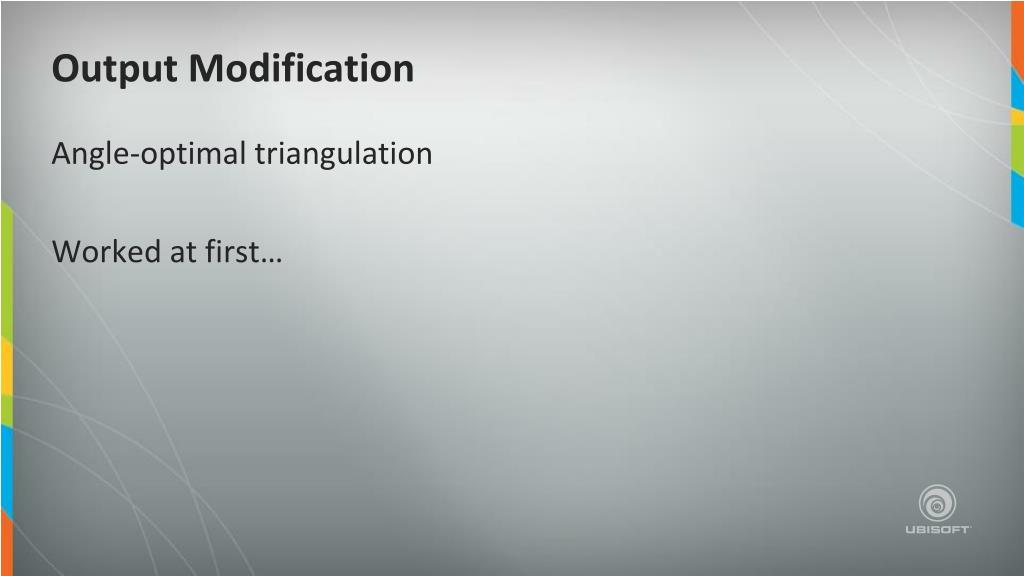

  39. Output Modification Angle-optimal triangulation Worked at first…

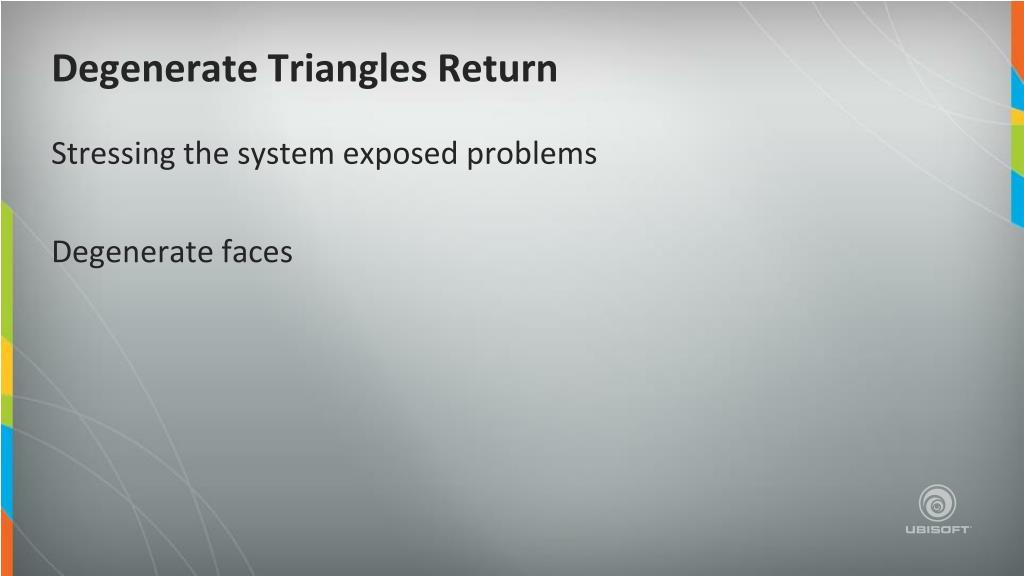

  40. Degenerate Triangles Return Stressing the system exposed problems Degenerate faces

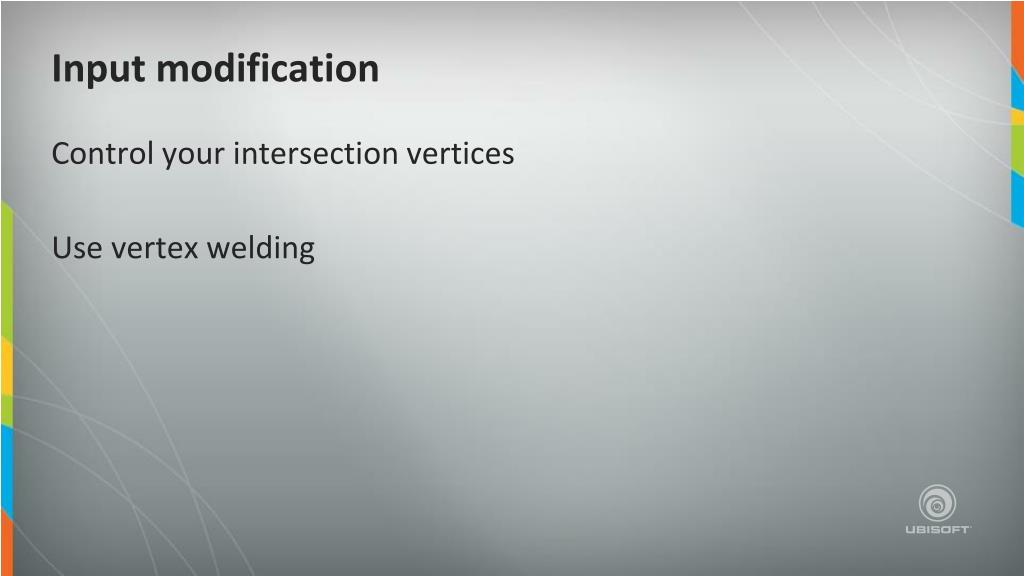

  41. Input modification Control your intersection vertices Use vertex welding

  42. Robustness Recap Input/output modification Avoid floating point comparison Control your vertices

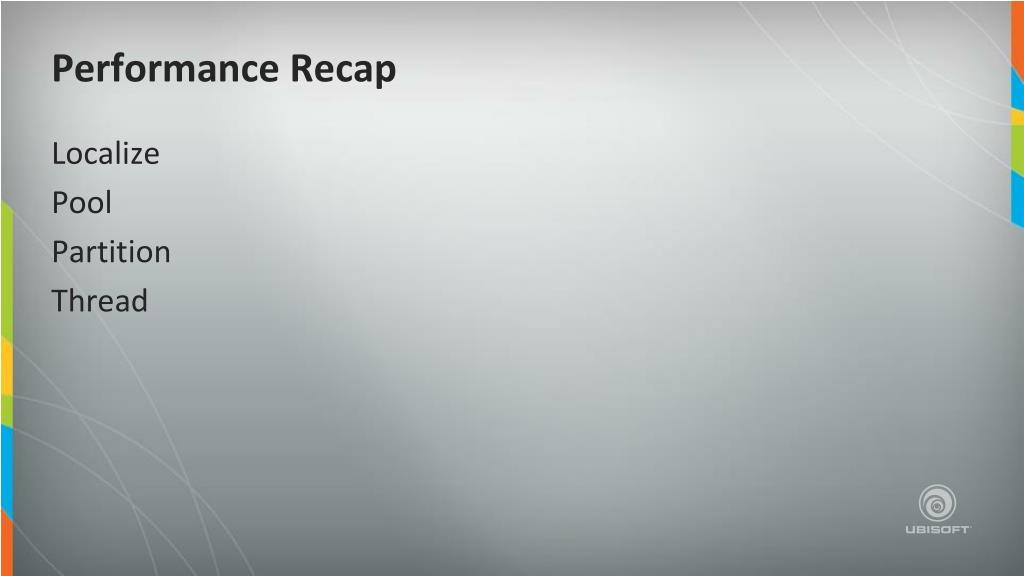

  43. Performance Recap Localize Pool Partition Thread

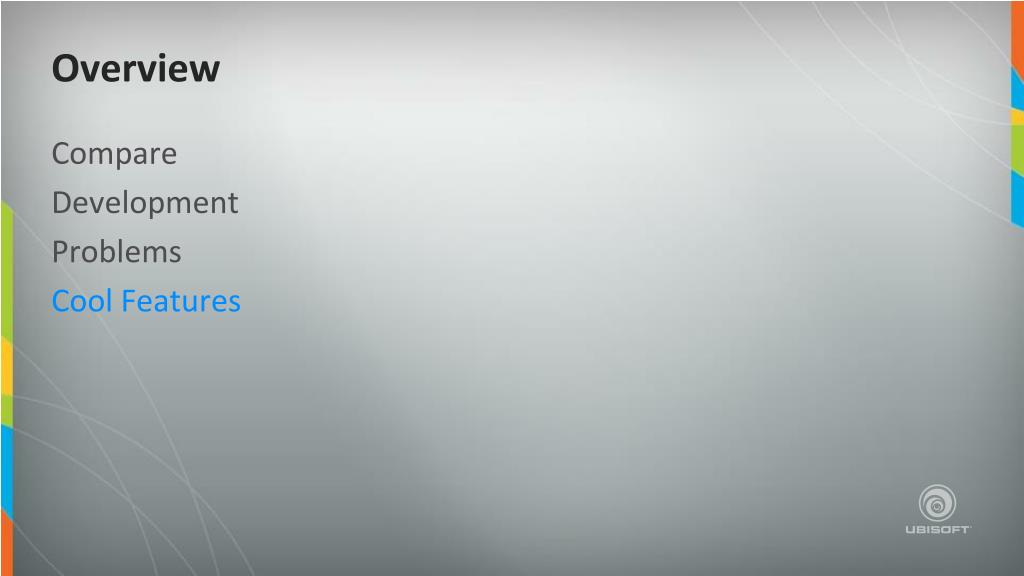

  44. Overview Compare Development Problems Cool Features

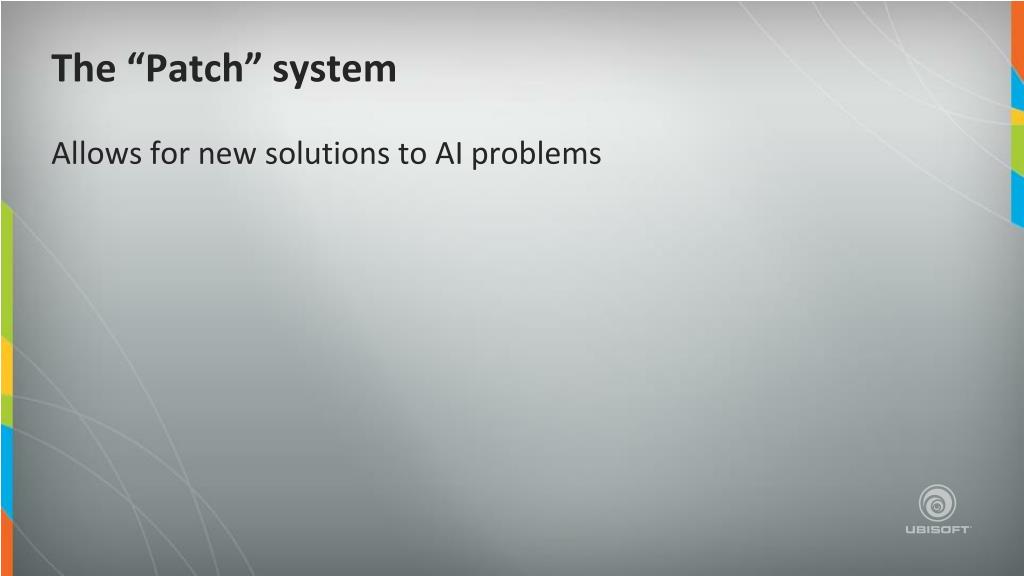

  45. The “Patch” system Allows for new solutions to AI problems

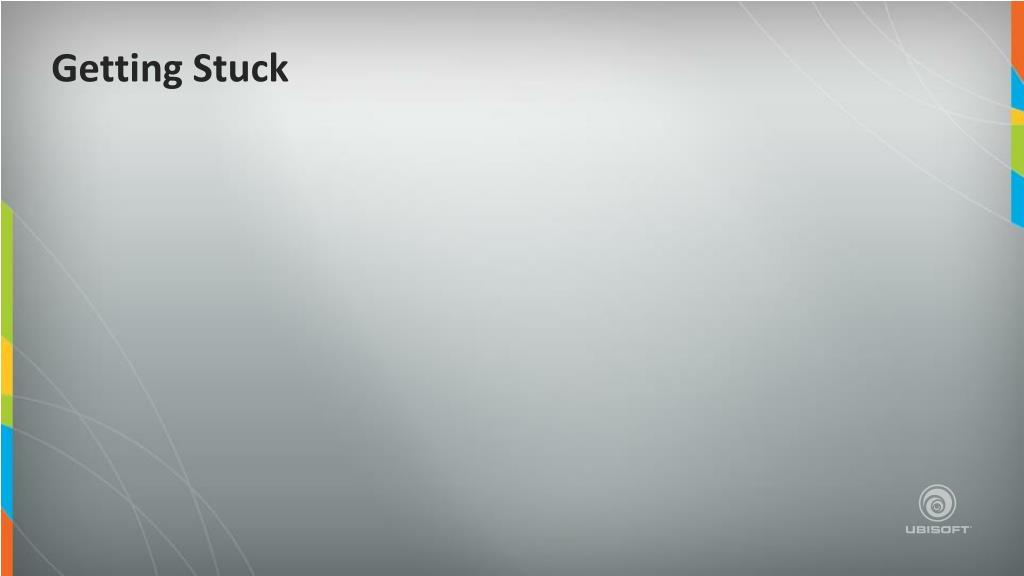

  46. Getting Stuck

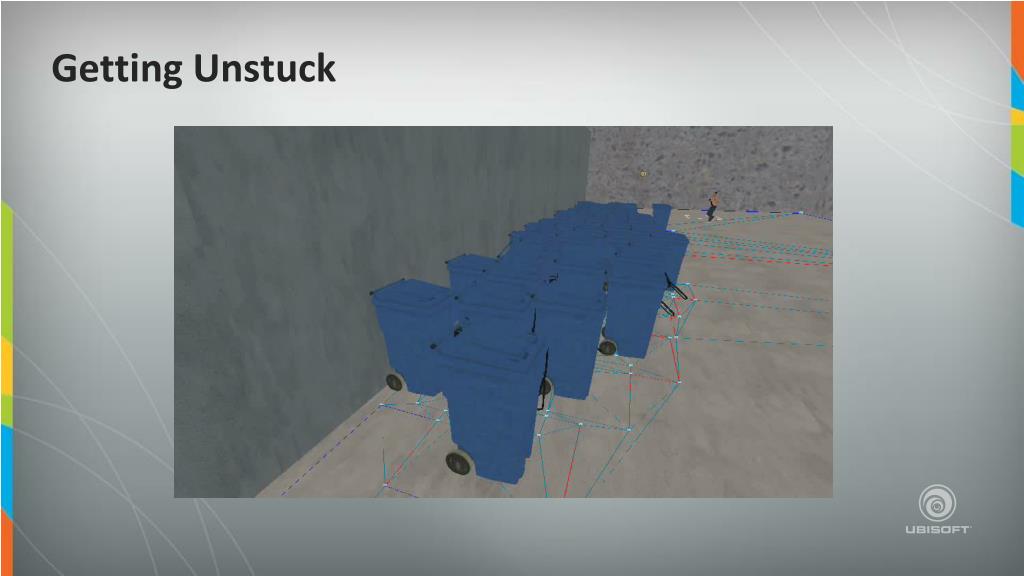

  47. Getting Unstuck

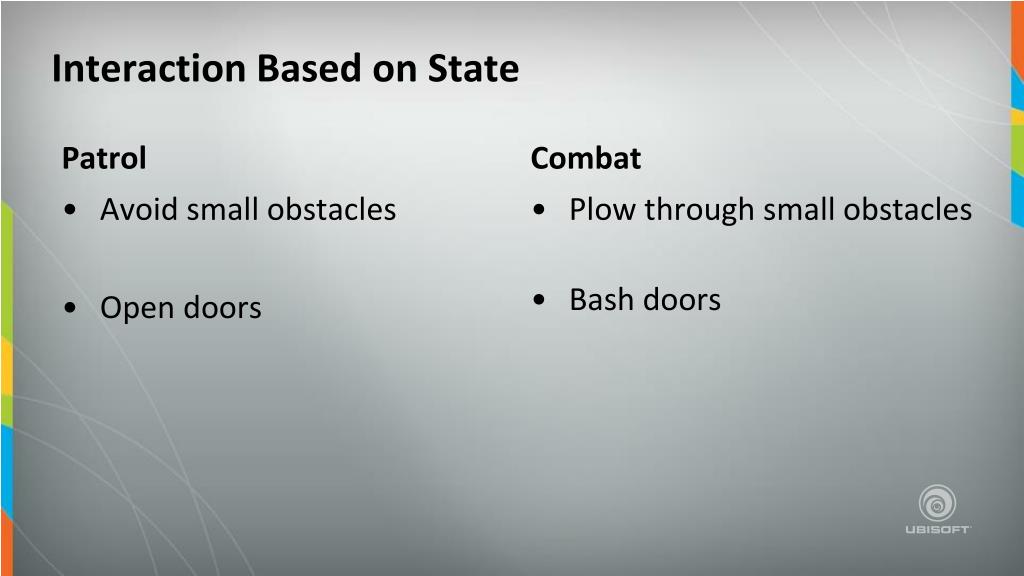

  48. Interaction Based on State Patrol Combat Plow through small obstacles Bash doors • Avoid small obstacles • Open doors

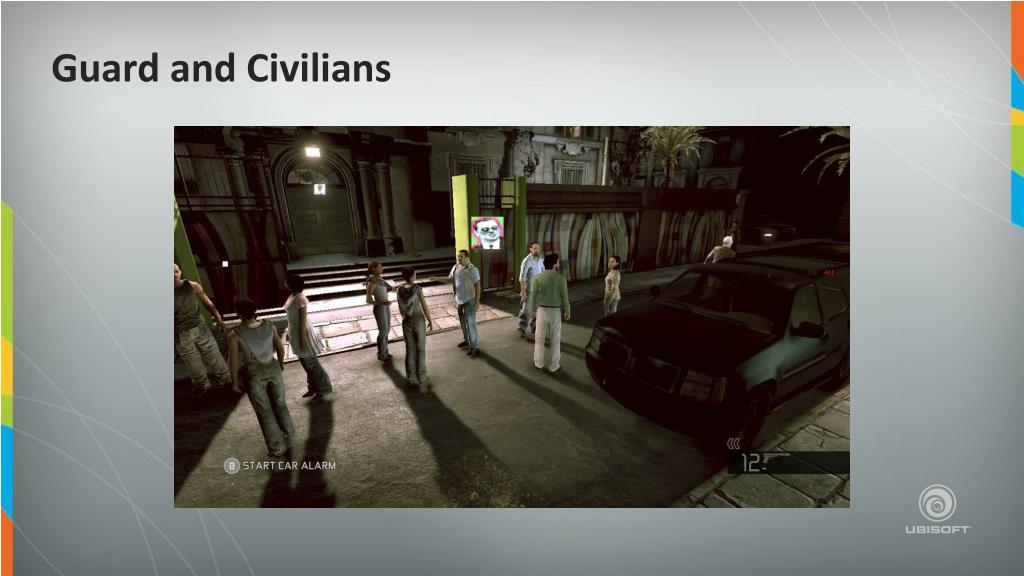

  49. Guard and Civilians

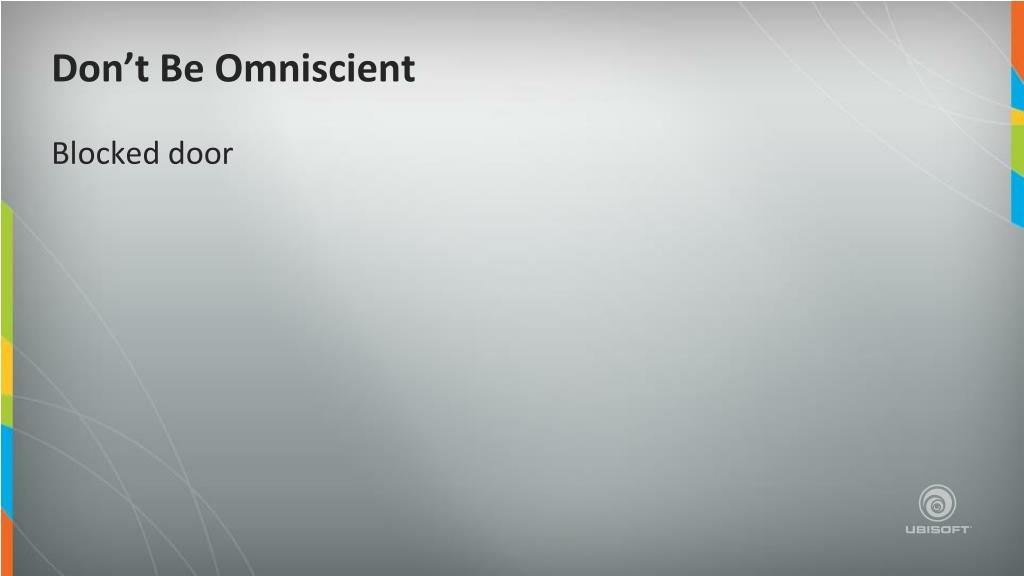

  50. Don’t Be Omniscient Blocked door
