Optimal Energy Delivery Weld Controller

Optimal Energy Delivery Weld Controller. Gurunath Kedar-Dongarkar Tejaswini Badawe Premchandra SharathKumar Dr. Manohar Das Dr. Vernon Fernandez Gerry Grzadzinsky. Objectives Development of a microcontroller based Optimal Energy Controller (OEDC) for the Resistance Spot Welding process.

karif
Download Presentation

Optimal Energy Delivery Weld Controller

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

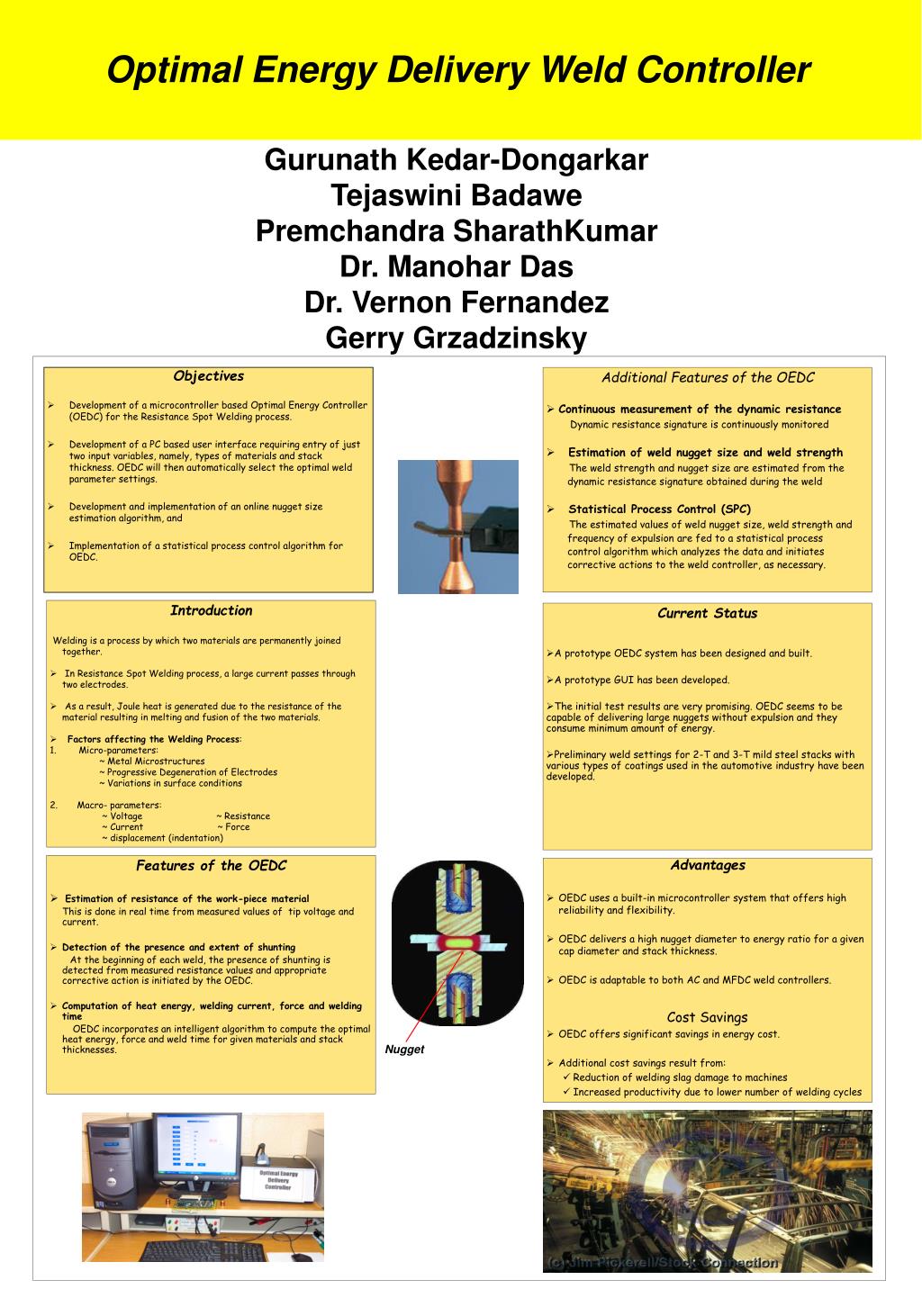

  1. Optimal Energy Delivery Weld Controller Gurunath Kedar-Dongarkar Tejaswini BadawePremchandra SharathKumar Dr. Manohar Das Dr. Vernon FernandezGerry Grzadzinsky • Objectives • Development of a microcontroller based Optimal Energy Controller (OEDC) for the Resistance Spot Welding process. • Development of a PC based user interface requiring entry of just two input variables, namely, types of materials and stack thickness. OEDC will then automatically select the optimal weld parameter settings. • Development and implementation of an online nugget size estimation algorithm, and • Implementation of a statistical process control algorithm for OEDC. • Additional Features of the OEDC • Continuous measurement of the dynamic resistance • Dynamic resistance signature is continuously monitored • Estimation of weld nugget size and weld strength • The weld strength and nugget size are estimated from the • dynamic resistance signature obtained during the weld • Statistical Process Control (SPC) • The estimated values of weld nugget size, weld strength and • frequency of expulsion are fed to a statistical process • control algorithm which analyzes the data and initiates • corrective actions to the weld controller, as necessary. • Introduction Welding is a process by which two materials are permanently joined together. • In Resistance Spot Welding process, a large current passes through two electrodes. • As a result, Joule heat is generated due to the resistance of the material resulting in melting and fusion of the two materials. • Factors affecting the Welding Process: • Micro-parameters: ~ Metal Microstructures ~ Progressive Degeneration of Electrodes ~ Variations in surface conditions 2. Macro- parameters: ~ Voltage ~ Resistance ~ Current ~ Force ~ displacement (indentation) • Current Status • A prototype OEDC system has been designed and built. • A prototype GUI has been developed. • The initial test results are very promising. OEDC seems to be capable of delivering large nuggets without expulsion and they consume minimum amount of energy. • Preliminary weld settings for 2-T and 3-T mild steel stacks with various types of coatings used in the automotive industry have been developed. • Features of the OEDC • Estimation of resistance of the work-piece material • This is done in real time from measured values of tip voltage and current. • Detection of the presence and extent of shunting • At the beginning of each weld, the presence of shunting is detected from measured resistance values and appropriate corrective action is initiated by the OEDC. • Computation of heat energy, welding current, force and welding time • OEDC incorporates an intelligent algorithm to compute the optimal heat energy, force and weld time for given materials and stack thicknesses. Advantages • OEDC uses a built-in microcontroller system that offers high reliability and flexibility. • OEDC delivers a high nugget diameter to energy ratio for a given cap diameter and stack thickness. • OEDC is adaptable to both AC and MFDC weld controllers. • Cost Savings • OEDC offers significant savings in energy cost. • Additional cost savings result from: • Reduction of welding slag damage to machines • Increased productivity due to lower number of welding cycles Nugget
