  1. AST 473 Cessna Citation IIBasic Avionics and Flight Instrumentation (UNs 210 – 626) Dr. Barnhart

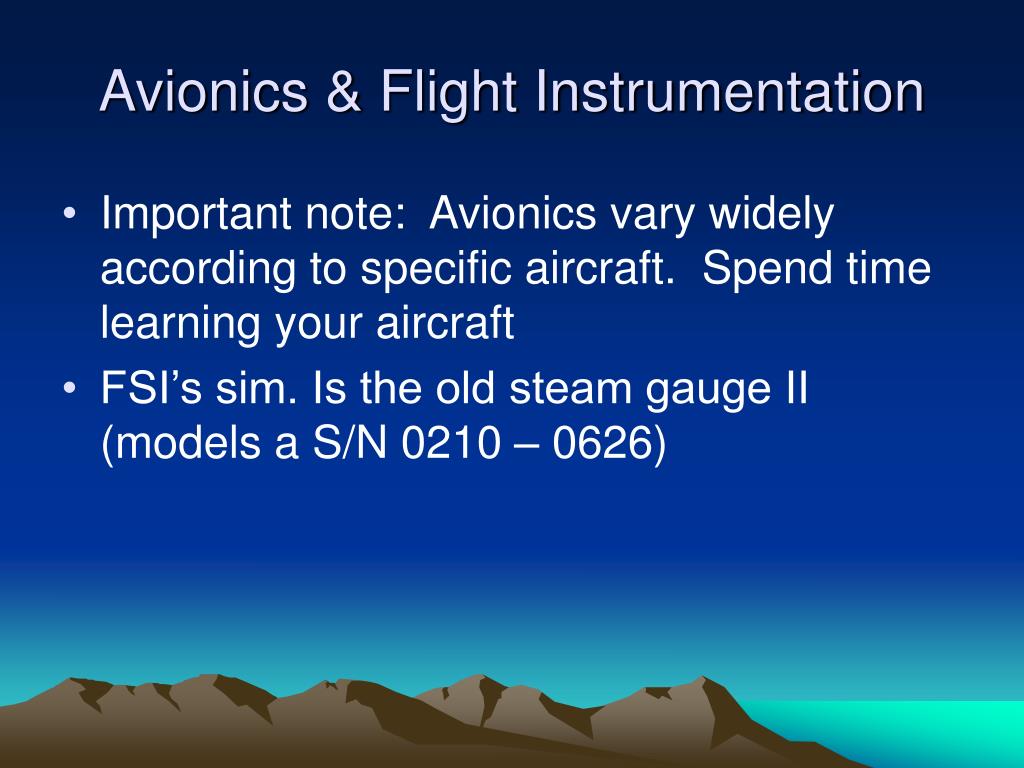

  2. Avionics & Flight Instrumentation • Important note: Avionics vary widely according to specific aircraft. Spend time learning your aircraft • FSI’s sim. Is the old steam gauge II (models a S/N 0210 – 0626)

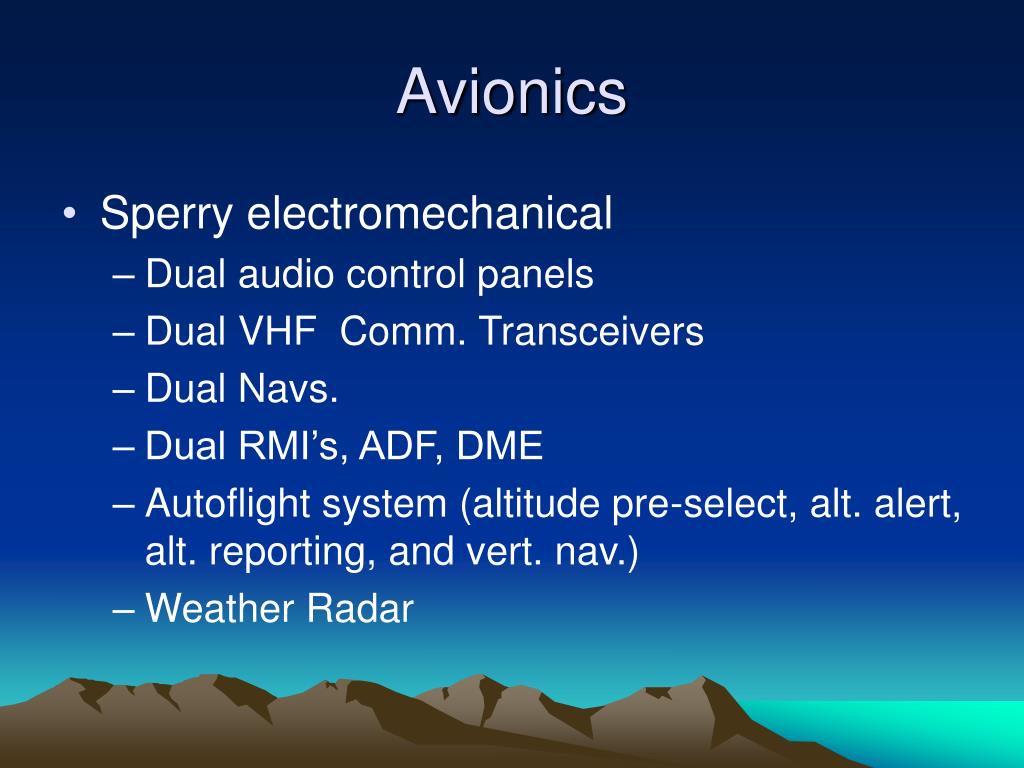

  3. Avionics • Sperry electromechanical • Dual audio control panels • Dual VHF Comm. Transceivers • Dual Navs. • Dual RMI’s, ADF, DME • Autoflight system (altitude pre-select, alt. alert, alt. reporting, and vert. nav.) • Weather Radar

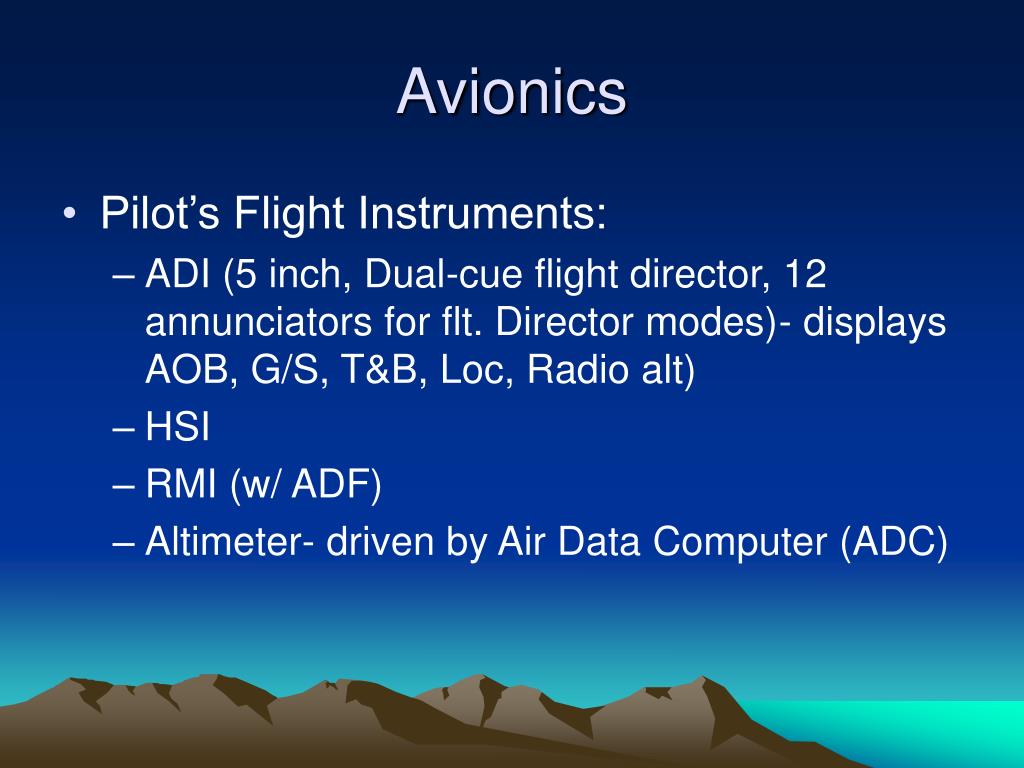

  4. Avionics • Pilot’s Flight Instruments: • ADI (5 inch, Dual-cue flight director, 12 annunciators for flt. Director modes)- displays AOB, G/S, T&B, Loc, Radio alt) • HSI • RMI (w/ ADF) • Altimeter- driven by Air Data Computer (ADC)

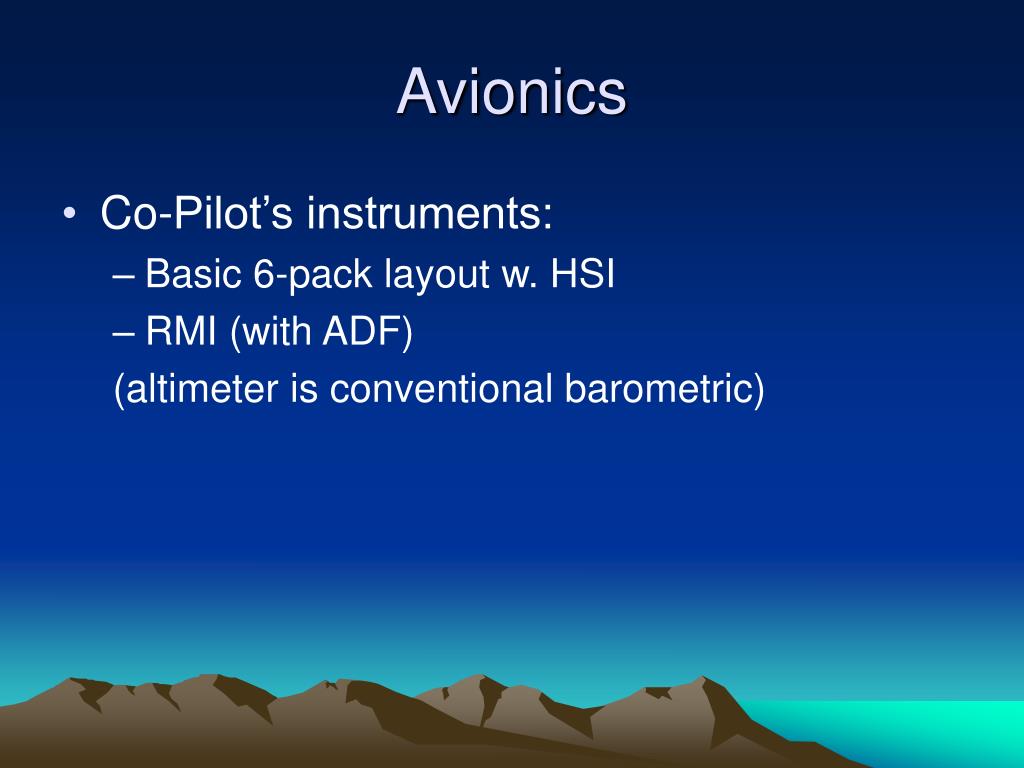

  5. Avionics • Co-Pilot’s instruments: • Basic 6-pack layout w. HSI • RMI (with ADF) (altimeter is conventional barometric)

  6. Avionics • Flight Guidance- SPZ-500 autopilot/FD- complete flight control system: • Flight Director • Autopilot • Pilot’s ADI/HSI • Air Data Computer • Autopilot controller • Vert. Nav. System- alt. alerter, Touch Cnt’l Steering (TCS), rate gyro, autopilot servos

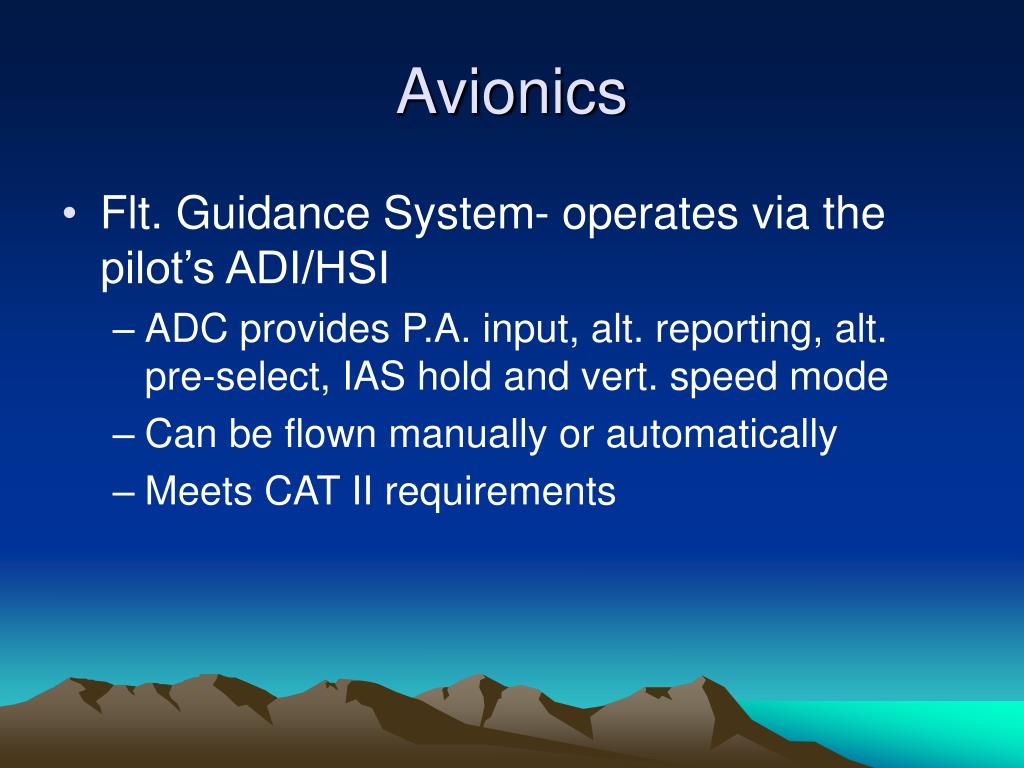

  7. Avionics • Flt. Guidance System- operates via the pilot’s ADI/HSI • ADC provides P.A. input, alt. reporting, alt. pre-select, IAS hold and vert. speed mode • Can be flown manually or automatically • Meets CAT II requirements

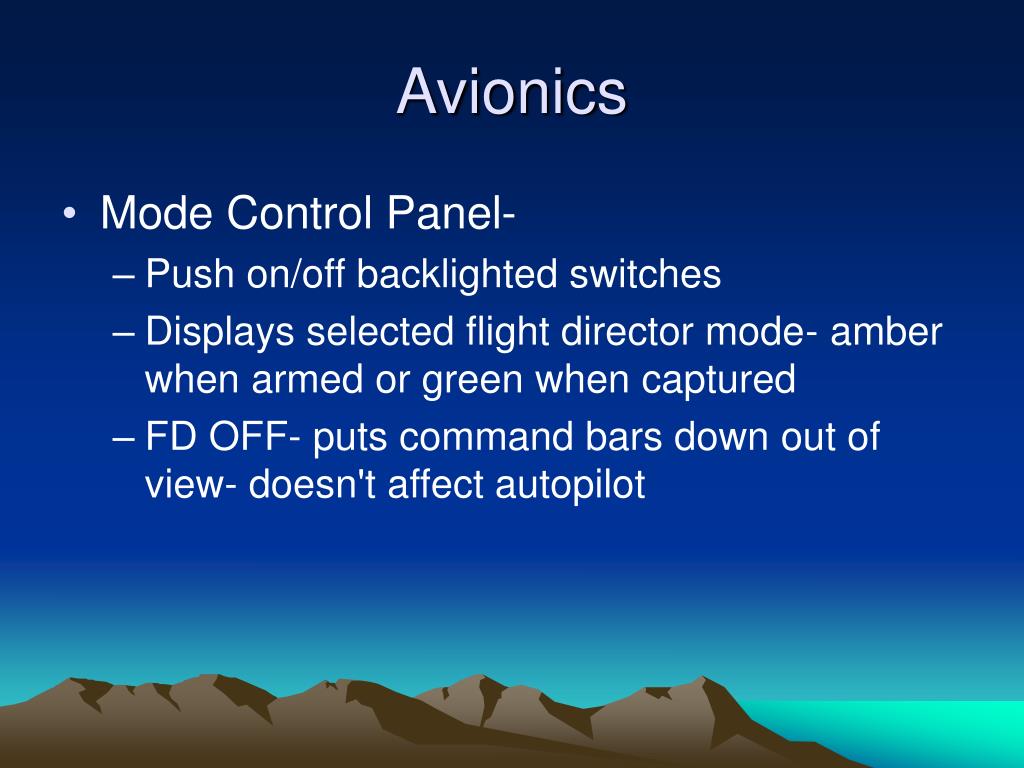

  8. Avionics • Mode Control Panel- • Push on/off backlighted switches • Displays selected flight director mode- amber when armed or green when captured • FD OFF- puts command bars down out of view- doesn't affect autopilot

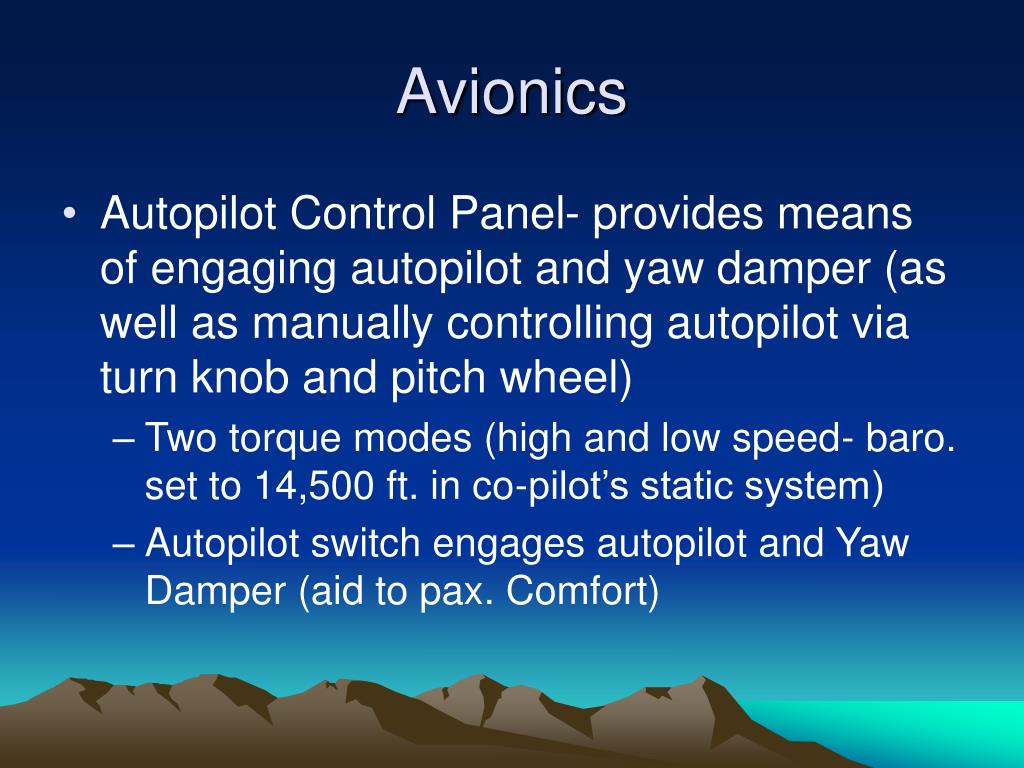

  9. Avionics • Autopilot Control Panel- provides means of engaging autopilot and yaw damper (as well as manually controlling autopilot via turn knob and pitch wheel) • Two torque modes (high and low speed- baro. set to 14,500 ft. in co-pilot’s static system) • Autopilot switch engages autopilot and Yaw Damper (aid to pax. Comfort)

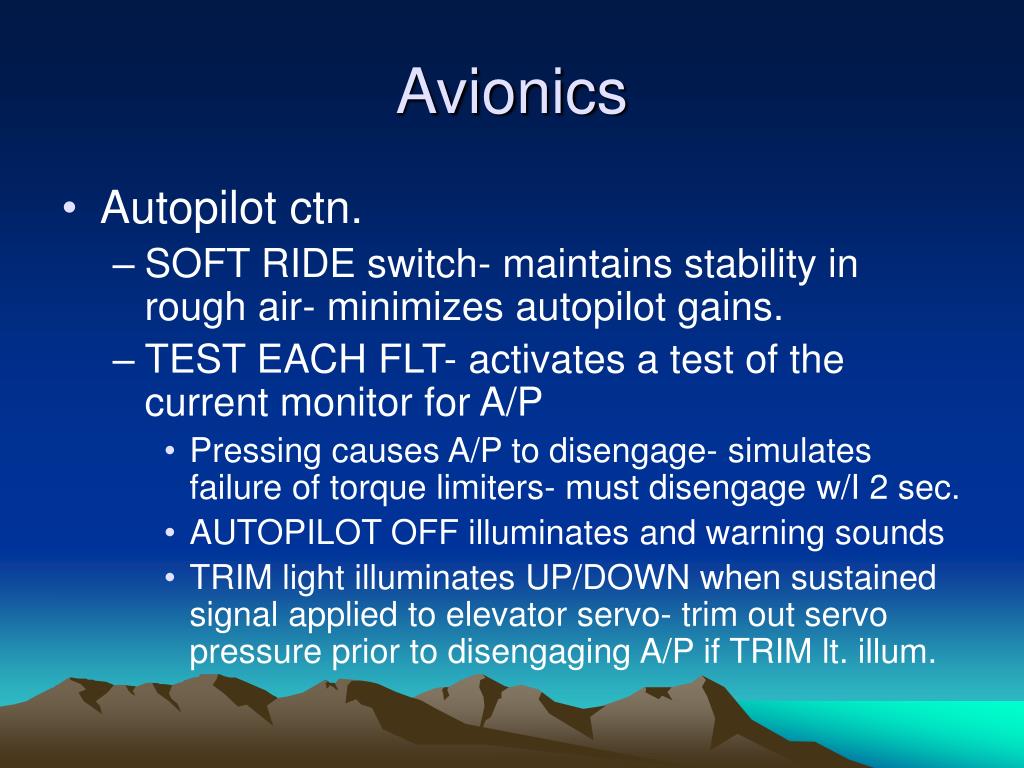

  10. Avionics • Autopilot ctn. • SOFT RIDE switch- maintains stability in rough air- minimizes autopilot gains. • TEST EACH FLT- activates a test of the current monitor for A/P • Pressing causes A/P to disengage- simulates failure of torque limiters- must disengage w/I 2 sec. • AUTOPILOT OFF illuminates and warning sounds • TRIM light illuminates UP/DOWN when sustained signal applied to elevator servo- trim out servo pressure prior to disengaging A/P if TRIM lt. illum.

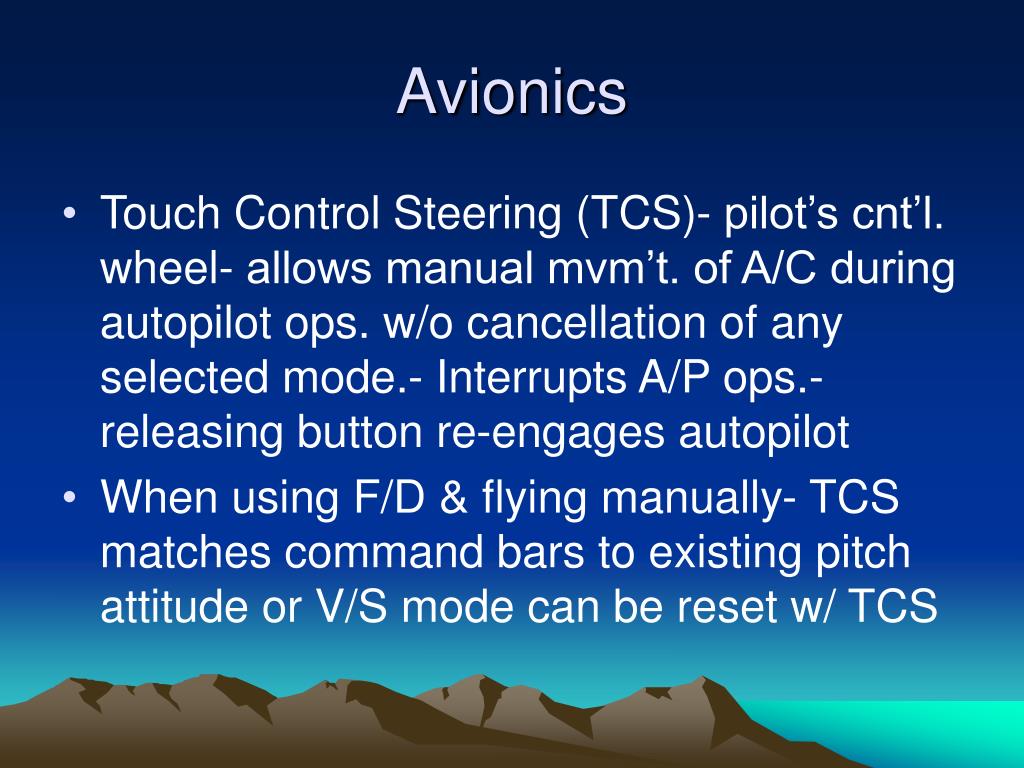

  11. Avionics • Touch Control Steering (TCS)- pilot’s cnt’l. wheel- allows manual mvm’t. of A/C during autopilot ops. w/o cancellation of any selected mode.- Interrupts A/P ops.- releasing button re-engages autopilot • When using F/D & flying manually- TCS matches command bars to existing pitch attitude or V/S mode can be reset w/ TCS

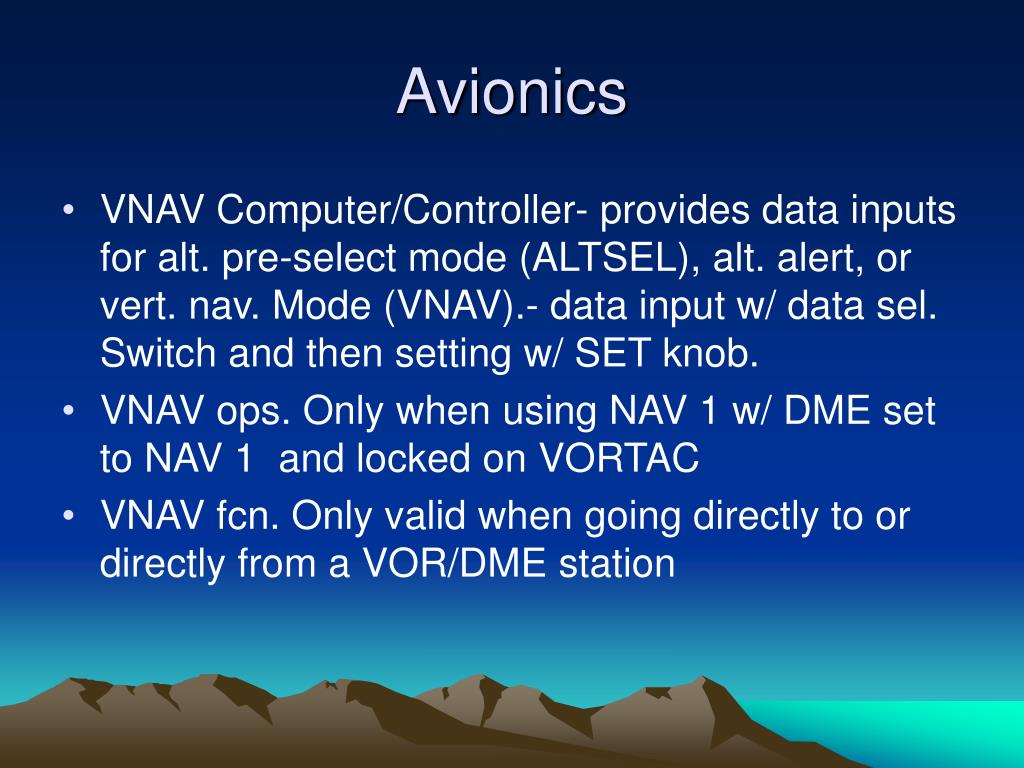

  12. Avionics • VNAV Computer/Controller- provides data inputs for alt. pre-select mode (ALTSEL), alt. alert, or vert. nav. Mode (VNAV).- data input w/ data sel. Switch and then setting w/ SET knob. • VNAV ops. Only when using NAV 1 w/ DME set to NAV 1 and locked on VORTAC • VNAV fcn. Only valid when going directly to or directly from a VOR/DME station

  13. Avionics • C-14 Compass System- pilot’s HSI and flight director and co-pilots RMI driven by the slaved gyro system. Components: • DG • Flux Detector • 2 mode selector switches • Remote compensator • Slaving indicator on HSI • 2 LH GYRO SLAVE switches- on left panel

  14. Avionics • Ctn. • 1 w/ AUTO and MAN • Other w/ LH/RH position Allow selection of auto (slaved) or manual (unslaved). In AUTO (for normal ops.)- compasses align @ 3 – 5 deg./sec. IN MAN.- HSI on co-pilot’s RMI card can be moves L or R @ 30 deg./min. by toggling the LH-RH sw. (slaving indicator on HSI goes away).

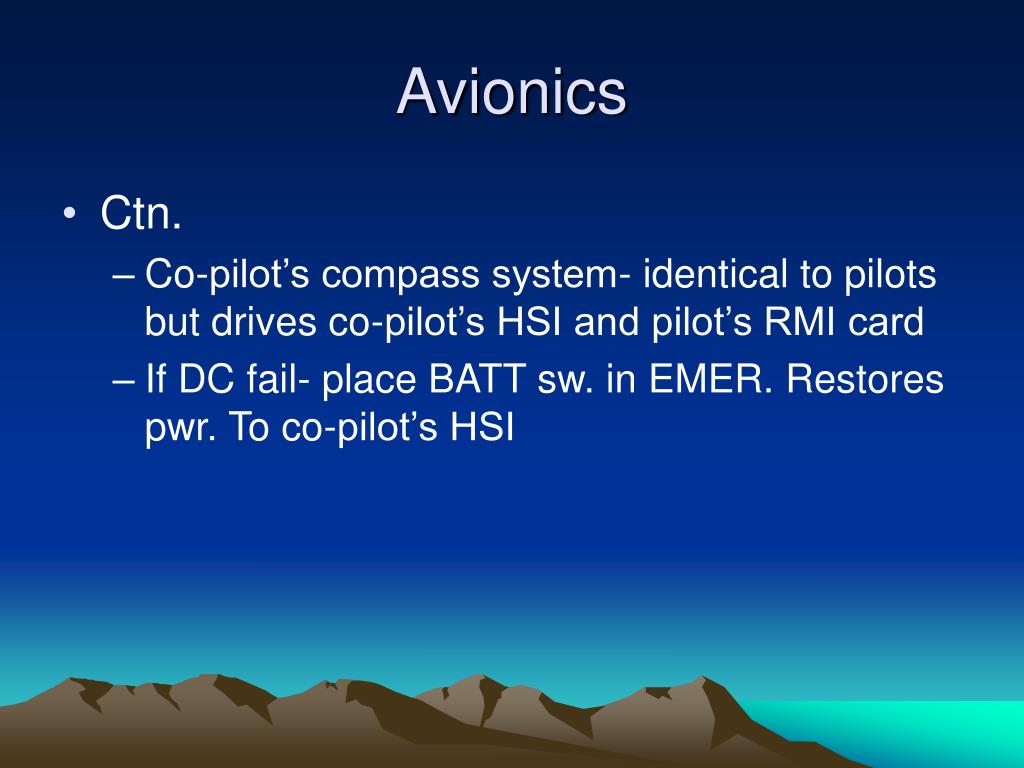

  15. Avionics • Ctn. • Co-pilot’s compass system- identical to pilots but drives co-pilot’s HSI and pilot’s RMI card • If DC fail- place BATT sw. in EMER. Restores pwr. To co-pilot’s HSI

  16. Avionics • Radio Altimeter- Optional- provides absolute altitude readout from 2,500 AGL to gnd. In 10 ft. incr. (5 ft. below 200 AGL) • Aux. output can be used to drive a rising runway bar on pilot’s ADI • A DH window is included on ADI to set DH

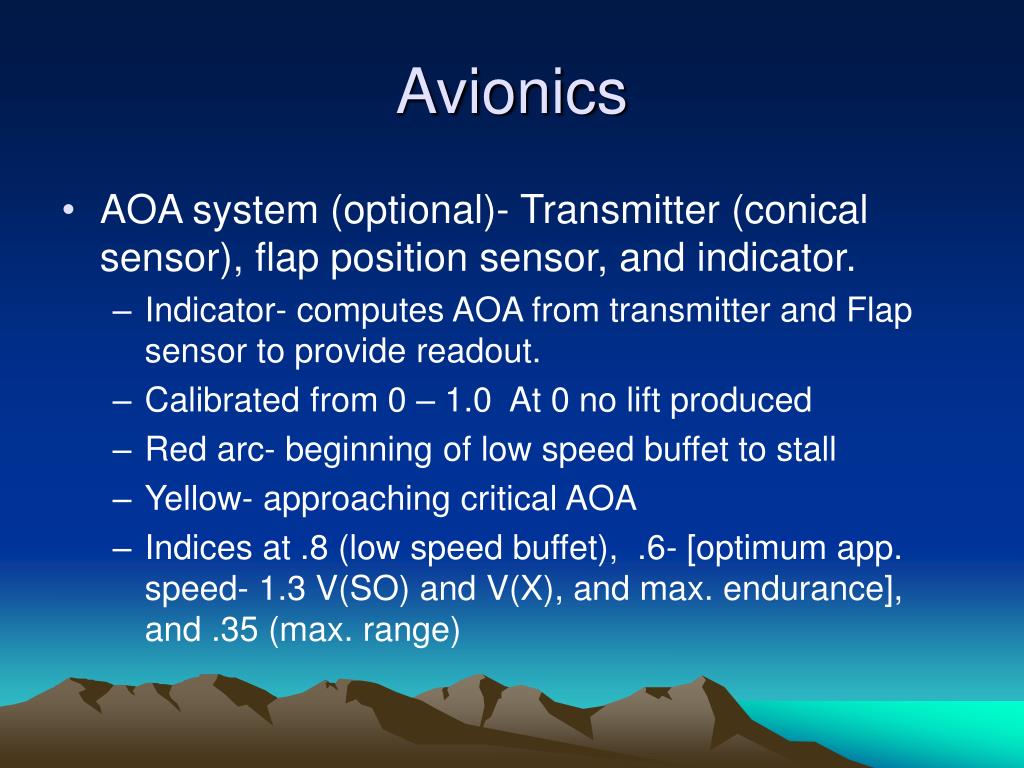

  17. Avionics • AOA system (optional)- Transmitter (conical sensor), flap position sensor, and indicator. • Indicator- computes AOA from transmitter and Flap sensor to provide readout. • Calibrated from 0 – 1.0 At 0 no lift produced • Red arc- beginning of low speed buffet to stall • Yellow- approaching critical AOA • Indices at .8 (low speed buffet), .6- [optimum app. speed- 1.3 V(SO) and V(X), and max. endurance], and .35 (max. range)

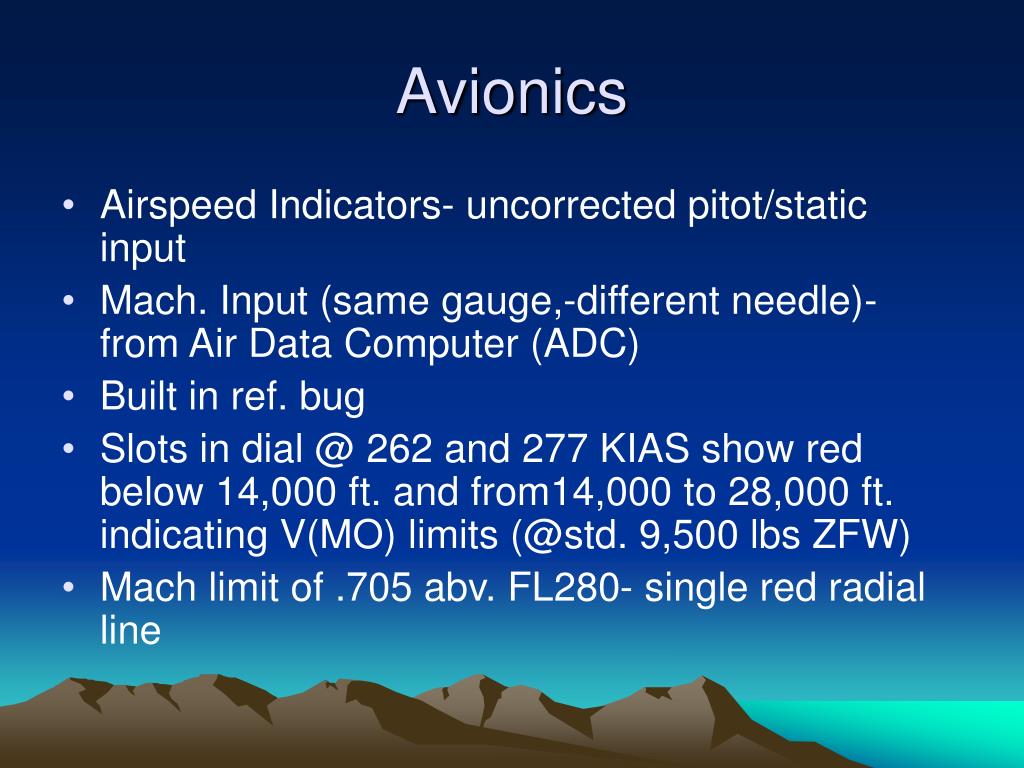

  18. Avionics • Airspeed Indicators- uncorrected pitot/static input • Mach. Input (same gauge,-different needle)- from Air Data Computer (ADC) • Built in ref. bug • Slots in dial @ 262 and 277 KIAS show red below 14,000 ft. and from14,000 to 28,000 ft. indicating V(MO) limits (@std. 9,500 lbs ZFW) • Mach limit of .705 abv. FL280- single red radial line

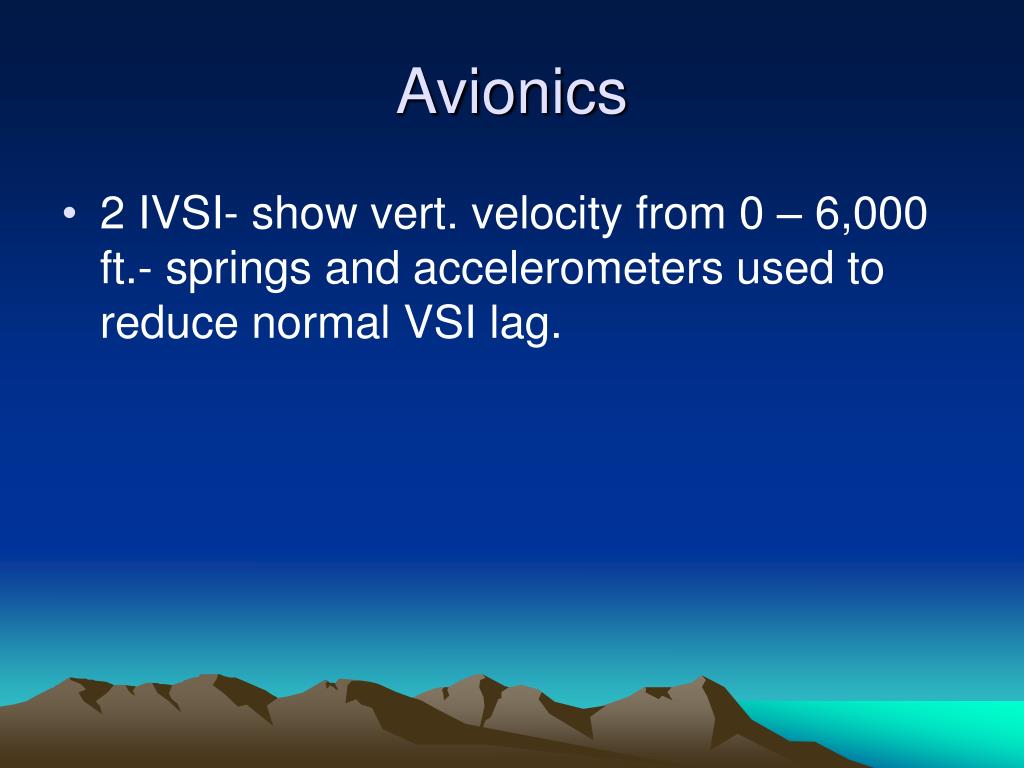

  19. Avionics • 2 IVSI- show vert. velocity from 0 – 6,000 ft.- springs and accelerometers used to reduce normal VSI lag.

  20. Avionics • Static Ports- • 2 per side- fwd. of cockpit windows • Dual pickups used to reduce sideslip effects • Co-pilot’s altimeter- barometric. • Due to low vibration in turbojets this instr. Has an elec. Motor w/ an eccentric shaft attached to a baro. Altimeter to ensure its accuracy- constantly vibrates it

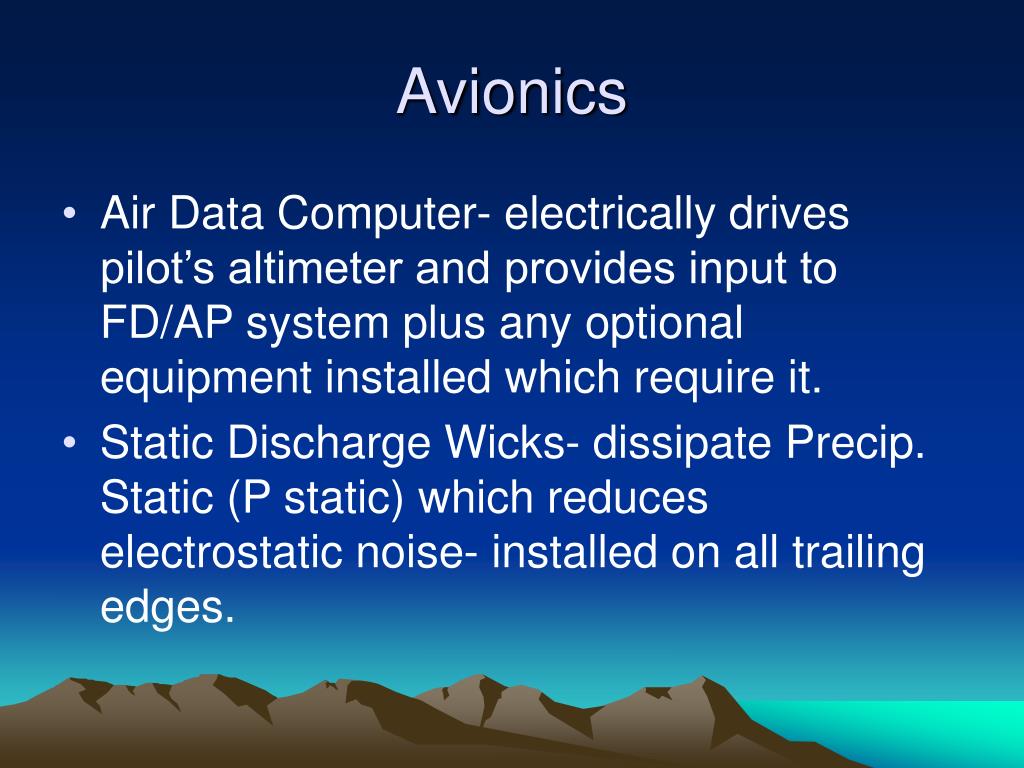

  21. Avionics • Air Data Computer- electrically drives pilot’s altimeter and provides input to FD/AP system plus any optional equipment installed which require it. • Static Discharge Wicks- dissipate Precip. Static (P static) which reduces electrostatic noise- installed on all trailing edges.

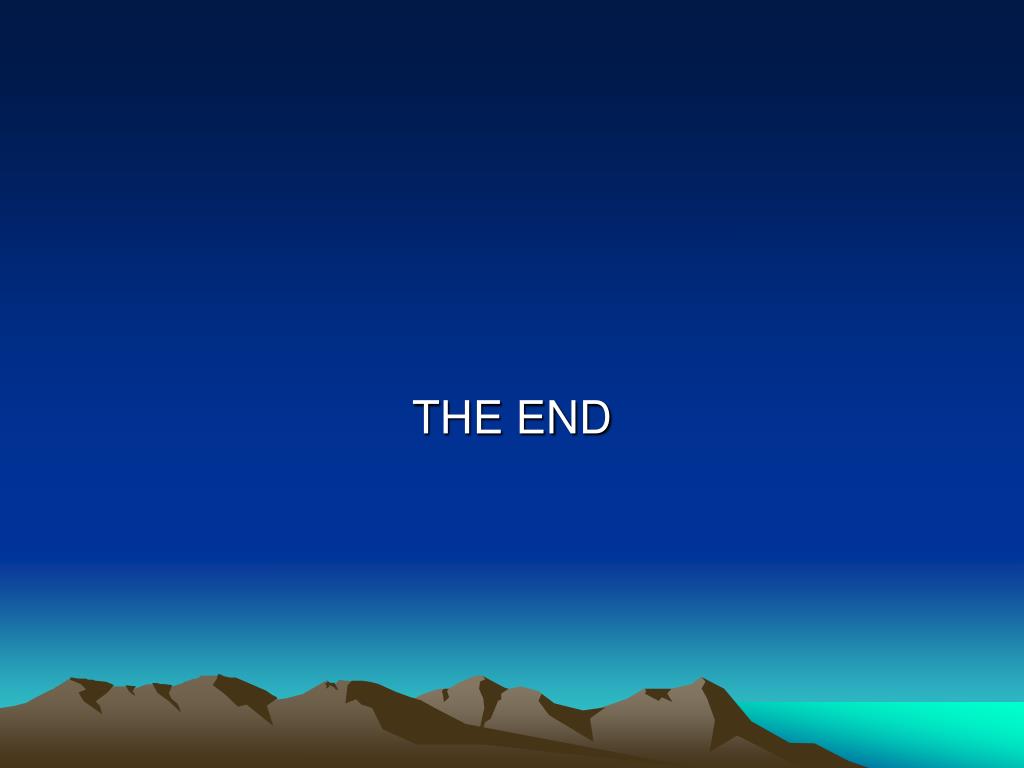

  22. THE END
