G.7 Proving Triangles Similar

G.7 Proving Triangles Similar. (AA~, SSS ~ , SAS ~ ). Similar Triangles. Two triangles are similar if they are the same shape . That means the vertices can be paired up so the angles are congruent. Size does not matter. AA Similarity (Angle-Angle or AA ~ ).

karan
Download Presentation

G.7 Proving Triangles Similar

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. G.7ProvingTrianglesSimilar (AA~, SSS~, SAS~)

  2. Similar Triangles Two triangles are similar if they are the same shape. That means the vertices can be paired up so the angles are congruent. Size does not matter.

  3. AA Similarity (Angle-Angle or AA~) If 2 angles of one triangle are congruent to 2 angles of another triangle, then the triangles are similar. Given: and Conclusion: by AA~

  4. SSS Similarity (Side-Side-Side or SSS~) If the lengths of the corresponding sides of 2 triangles are proportional, then the triangles are similar. Given: Conclusion: by SSS~

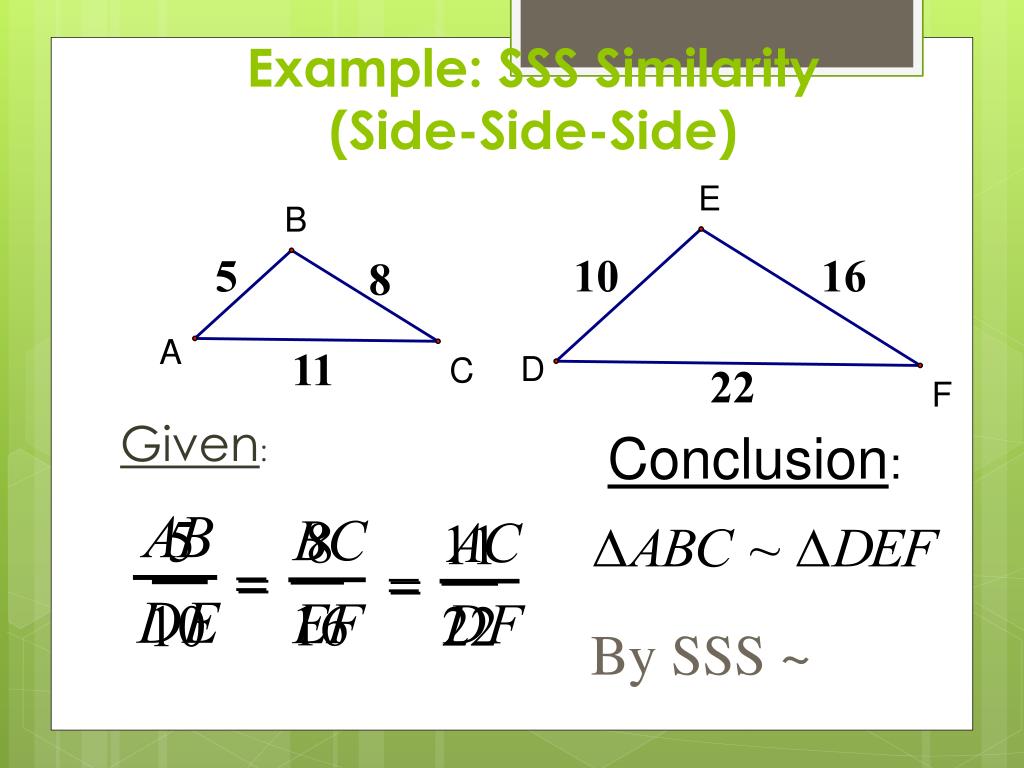

  5. 5 10 16 8 11 22 Example: SSS Similarity (Side-Side-Side) Given: Conclusion: By SSS ~

  6. SAS Similarity (Side-Angle-Side or SAS~) If the lengths of 2 sides of a triangle are proportional to the lengths of 2 corresponding sides of another triangle and the included angles are congruent, then the triangles are similar. Given: Conclusion: by SAS~

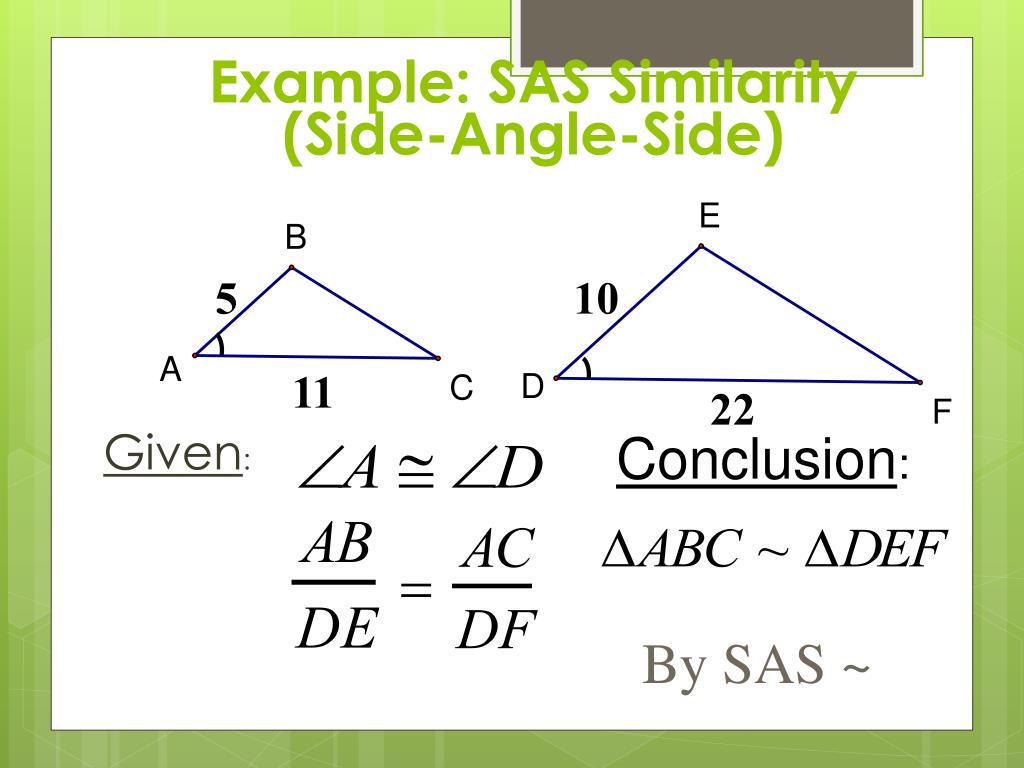

  7. 5 10 11 22 Example: SAS Similarity (Side-Angle-Side) Given: Conclusion: By SAS ~

  8. A 80 D E 80 B C ABC ~ ADE by AA ~ Postulate Slide from MVHS

  9. C 6 10 D E 5 3 A B CDE~ CAB by SAS ~ Theorem Slide from MVHS

  10. L 5 3 M 6 6 K N 6 10 O KLM~ KON by SSS ~ Theorem Slide from MVHS

  11. A 20 D 30 24 16 B C 36 ACB~ DCA by SSS ~ Theorem Slide from MVHS

  12. L 15 P A 25 9 N LNP~ ANL by SAS ~ Theorem Slide from MVHS

  13. Proving Triangles Similar Similarity is reflexive, symmetric, and transitive. Steps for proving triangles similar: 1. Mark the Given. 2. Mark … Reflexive (shared) Angles or Vertical Angles 3. Choose a Method. (AA~,SSS~, SAS~) Think about what you need for the chosen method and be sure to include those parts in the proof.

  14. G D C E F Problem #1 Step 1: Mark the given … and what it implies Step 2: Mark the vertical angles AA Step 3: Choose a method: (AA,SSS,SAS) Step 4: List the Parts in the order of the method with reasons Step 5: Is there more? Given Alternate Interior <s Alternate Interior <s AA Similarity

  15. Problem #2 Step 1: Mark the given … and what it implies SSS Step 2: Choose a method: (AA,SSS,SAS) Step 4: List the Parts in the order of the method with reasons Step 5: Is there more? 1.IJ = 3LN ; JK = 3NP ; IK = 3LP Given Division Property Substitution SSS Similarity

  16. Problem #3 Step 1: Mark the given … and what it implies Step 2: Mark the reflexive angles SAS Step 3: Choose a method: (AA,SSS,SAS) Step 4: List the Parts in the order of the method with reasons Next Slide…………. Step 5: Is there more?

  17. Similarity is reflexive, symmetric, and transitive.

  18. End Slide Show Choose a Problem. Problem #1 AA Problem #2 SSS Problem #3 SAS

  19. The End 1. Mark the Given. 2. Mark … Shared Angles or Vertical Angles 3. Choose a Method. (AA,SSS , SAS) **Think about what you need for the chosen method and be sure to include those parts in the proof.
