Presentation Transcript


Dashboard and immobilizer new features

Tuono 1000

1

Dashboard and immobilizer new features

2

  • Dashboard

  • User interface

  • LCD

3

4


Dashboard and immobilizer new features

Dashboard and immobilizer new features

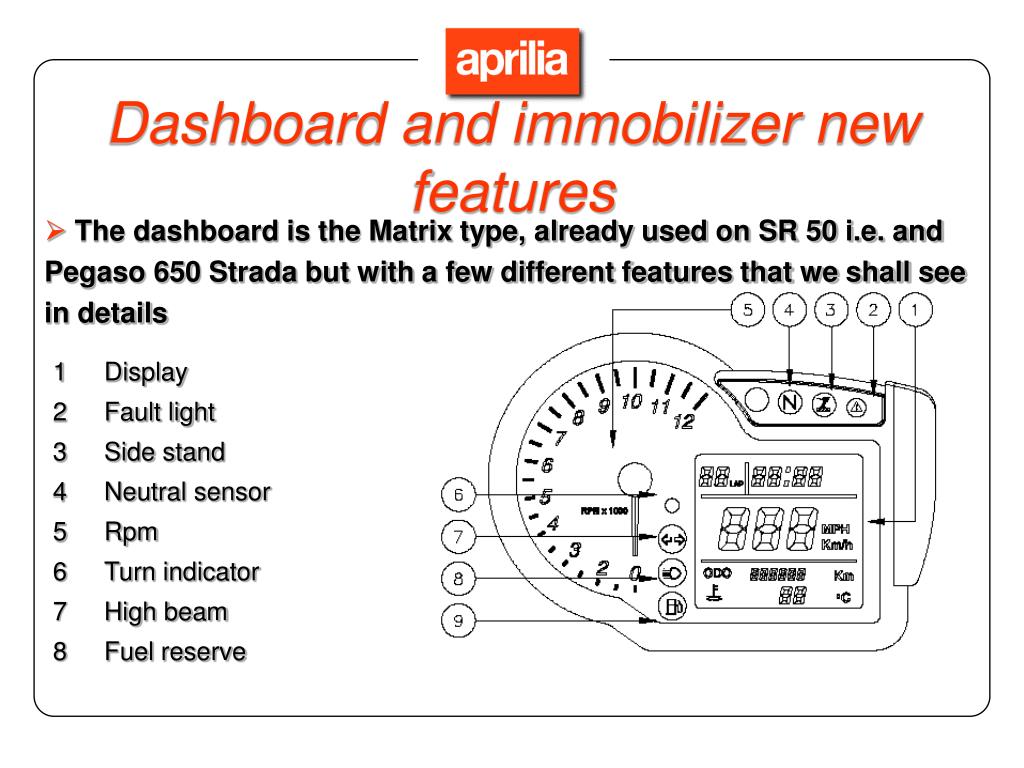

  • The dashboard is the Matrix type, already used on SR 50 i.e. and Pegaso 650 Strada but with a few different features that we shall see in details

  • Display

  • Fault light

  • Side stand

  • Neutral sensor

  • Rpm

  • Turn indicator

  • High beam

  • Fuel reserve


Dashboard and immobilizer new features

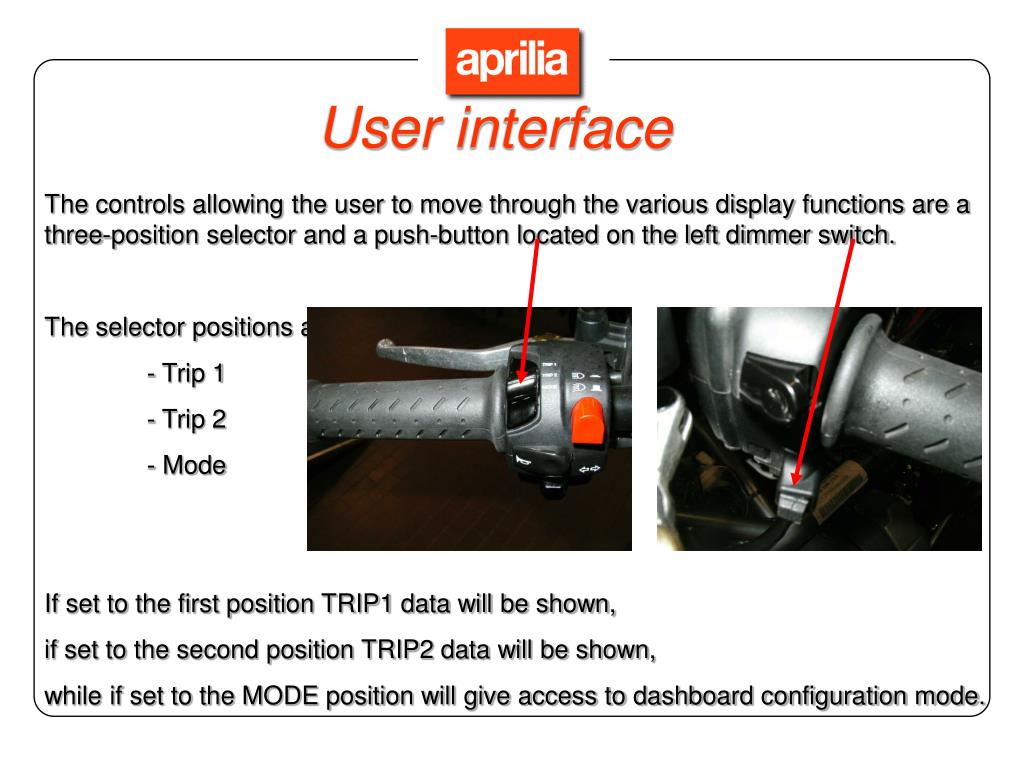

User interface

The controls allowing the user to move through the various display functions are a three-position selector and a push-button located on the left dimmer switch.

The selector positions are:

- Trip 1

- Trip 2

- Mode

If set to the first position TRIP1 data will be shown,

if set to the second position TRIP2 data will be shown,

while if set to the MODE position will give access to dashboard configuration mode.


Dashboard and immobilizer new features

The dashboard – LCD

KEY-ON

At key-on two letters S (suspension) and T (tire) come on to detect the possible control units managing suspension set-up and tyre pressure and temperature

Selector: MODE

Time or Lap time display shall be selected using the LAP TIMER sub-menu


Dashboard and immobilizer new features

The dashboard – LCD

Selector: MODE

Press the SET key to display battery voltage (only when vehicle is stopped) and vehicle speed

Hold the SET key to see the MENU page


Dashboard and immobilizer new features

The dashboard – LCD

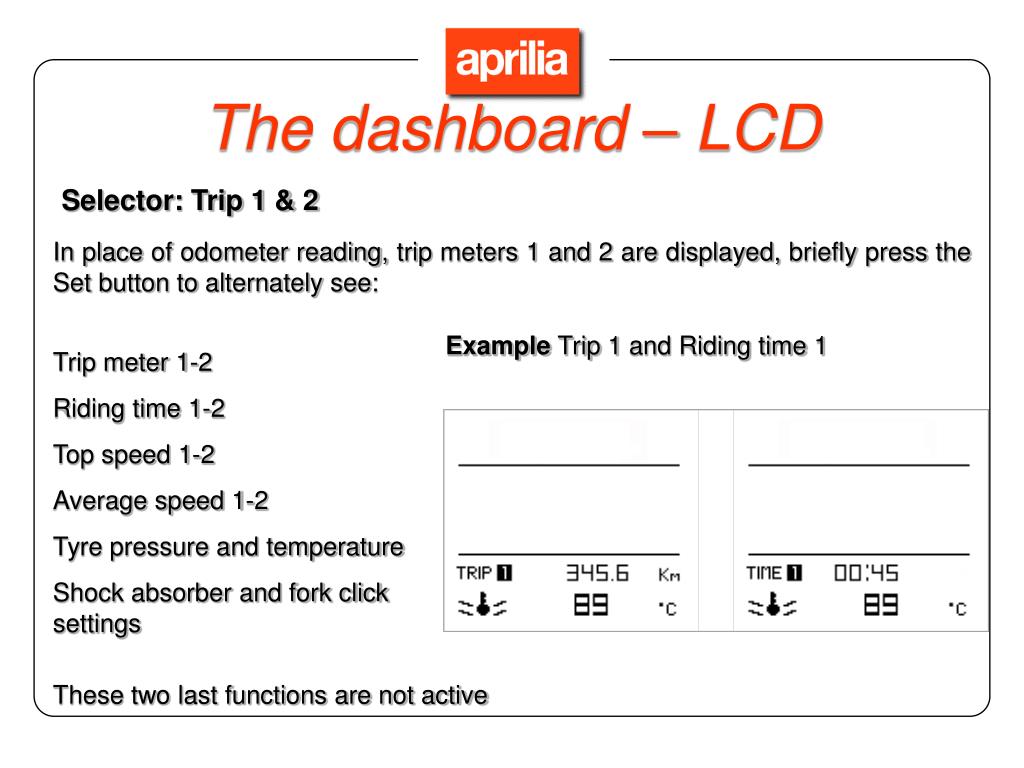

Selector: Trip 1 & 2

In place of odometer reading, trip meters 1 and 2 are displayed, briefly press the Set button to alternately see:

Example Trip 1 and Riding time 1

Trip meter 1-2

Riding time 1-2

Top speed 1-2

Average speed 1-2

Tyre pressure and temperature

Shock absorber and fork click settings

These two last functions are not active


Dashboard and immobilizer new features

The dashboard – LCD

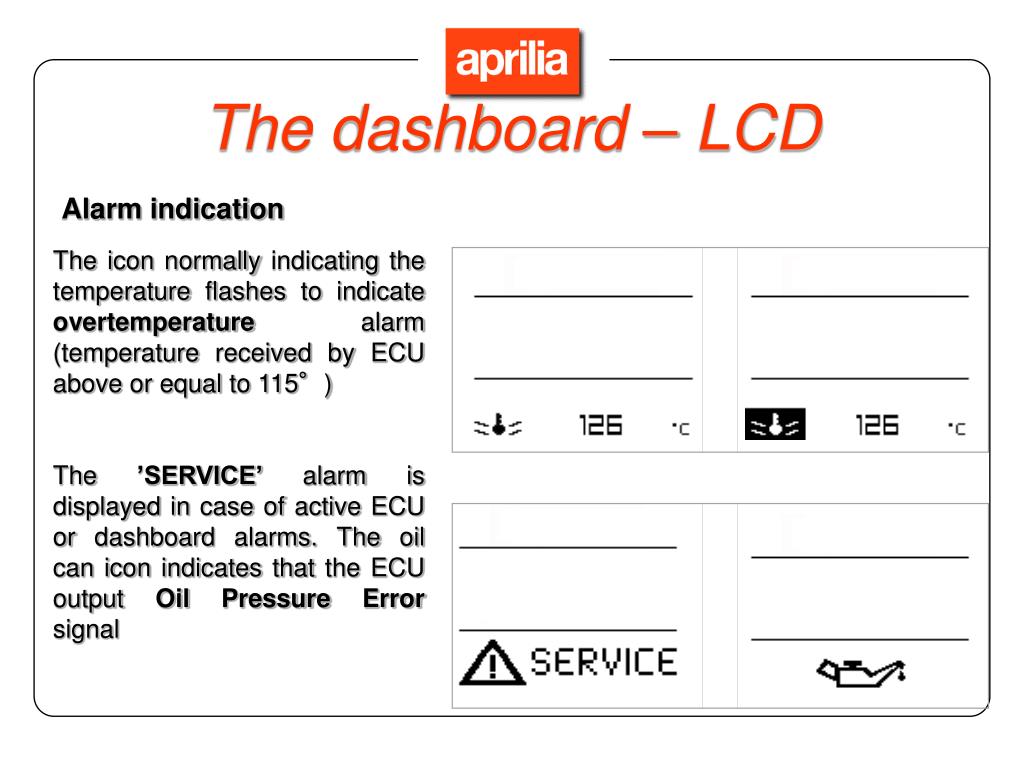

Alarm indication

The icon normally indicating the temperature flashes to indicate overtemperature alarm (temperature received by ECU above or equal to 115°)

The ’SERVICE’ alarm is displayed in case of active ECU or dashboard alarms. The oil can icon indicates that the ECU output Oil Pressure Error signal


Dashboard and immobilizer new features

The dashboard – LCD

Alarm indication

The Overtemperature and Oil pressure Alarm indications go off as soon as the fault is cleared, while the Service indication (ECU or dashboard errors) goes off only when key is turned OFF

Distance to empty

If the fuel reserve warning light turns on, after about 2 km, the "distance to empty" is calculated


Dashboard and immobilizer new features

The dashboard – LCD

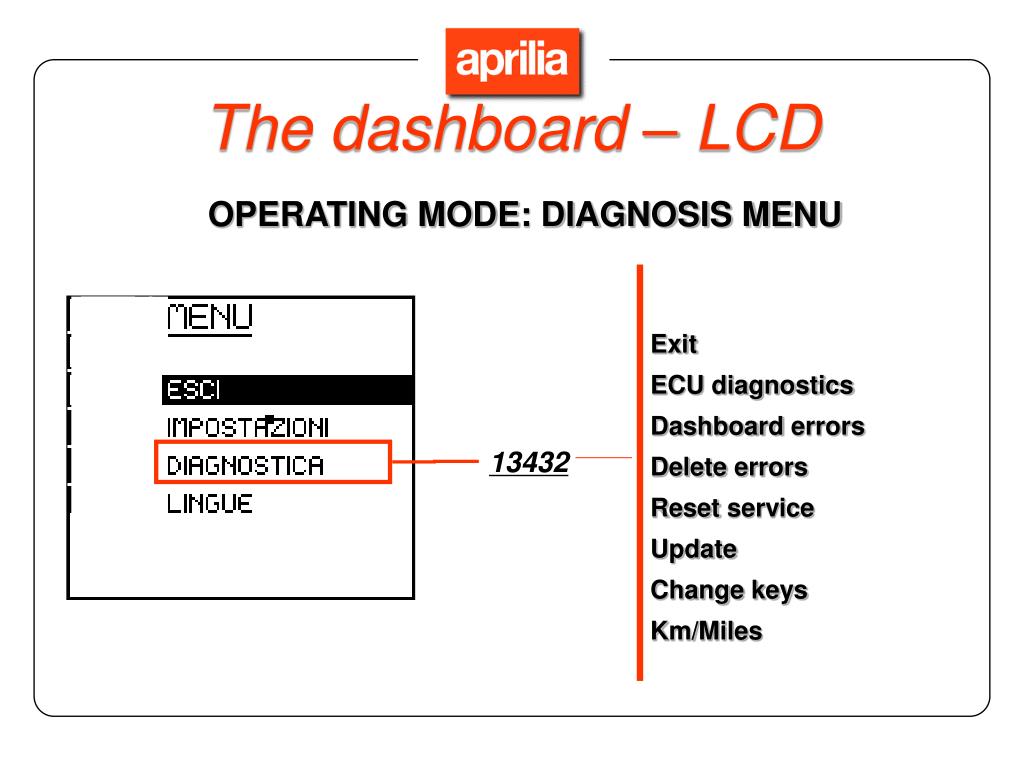

OPERATING MODE: DIAGNOSIS MENU

13432


Dashboard and immobilizer new features

The dashboard – LCD

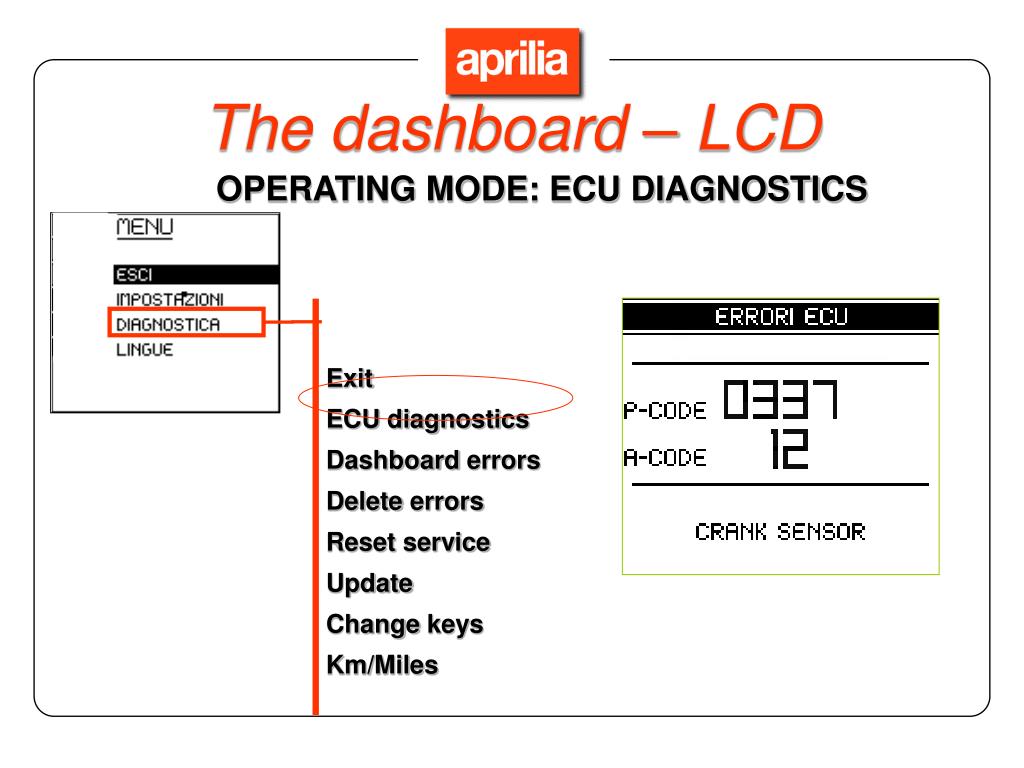

OPERATING MODE: ECU DIAGNOSTICS


Dashboard and immobilizer new features

The dashboard – LCD

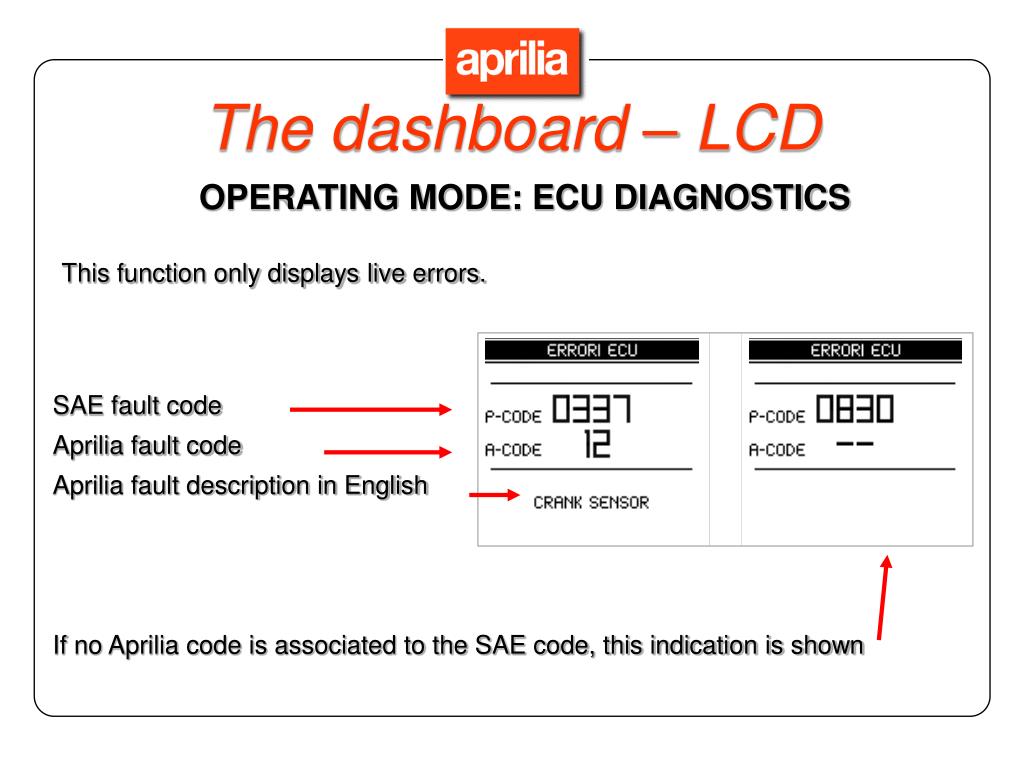

OPERATING MODE: ECU DIAGNOSTICS

This function only displays live errors.

SAE fault code

Aprilia fault code

Aprilia fault description in English

If no Aprilia code is associated to the SAE code, this indication is shown
