Regular polygons

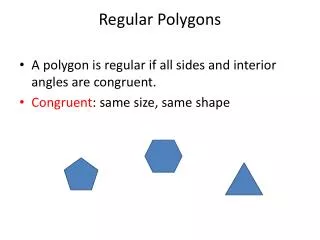

Regular Polygons

  • A polygon is regular if all sides and interior angles are congruent.

  • Congruent: same size, same shape


Regular polygons

Apothem: The altitude of each isosceles triangle from the principal angle 0.

Diagonals: line segments joining two non-consecutive vertices from a given vertex.


Constructing a regular polygon

Constructing a Regular Polygon

  • Draw an isosceles triangle with 0 as the principal vertex. Angle A0B measures 72⁰ and a side length of 4cm.

  • Rotate the centre 0 counter-clockwise angles of 72⁰ drawing four more isosceles triangles.

  • Name your regular polygon and label the polygon ABCDE with centre 0.


Interior angle of a r egular polygon

Interior Angle of a Regular polygon

The sum of the interior angles of a polygon is:

S = (n - 2) x 180⁰


Regular polygons

The measure a of one of the interior angles in a regular polygon is:

(n – 2) x 180⁰

a = __________

n


Convex and concave

Convex and Concave

A polygon is convex if each of its interior angles measure less than 180⁰.

If not, then it is called “concave”.

convex concave


Axes of symmetry in a regular polygon

Axes of Symmetry in a Regular Polygon

The axis of symmetry of a line is called:

The right bisector


Regular polygons

The axis of symmetry of an angle is called

The angle bisector.


Perimeter of a regular polygon

Perimeter of a Regular polygon

P=nxc

Perimeter= number of sides x side length

Ex: A regular pentagon with 2 cm side length has a perimeter of:

P = 5 x 2

P = 10cm


Area of a r egular p olygon

Area of a Regular Polygon

The area of a regular polygon is equal to:

Perimeter x apothem ÷ 2

Ex: The area of a regular pentagon with side length of 8cm and the apothem measuring 3cm is:

A = 5 x 8 x 3 ÷ 2

A = 60cm²
