Trend quality assurance

Trend Quality Assurance

Edward Tsai 蔡木本

趨勢科技全球軟體研發部協理

April 22, 2003


Contents

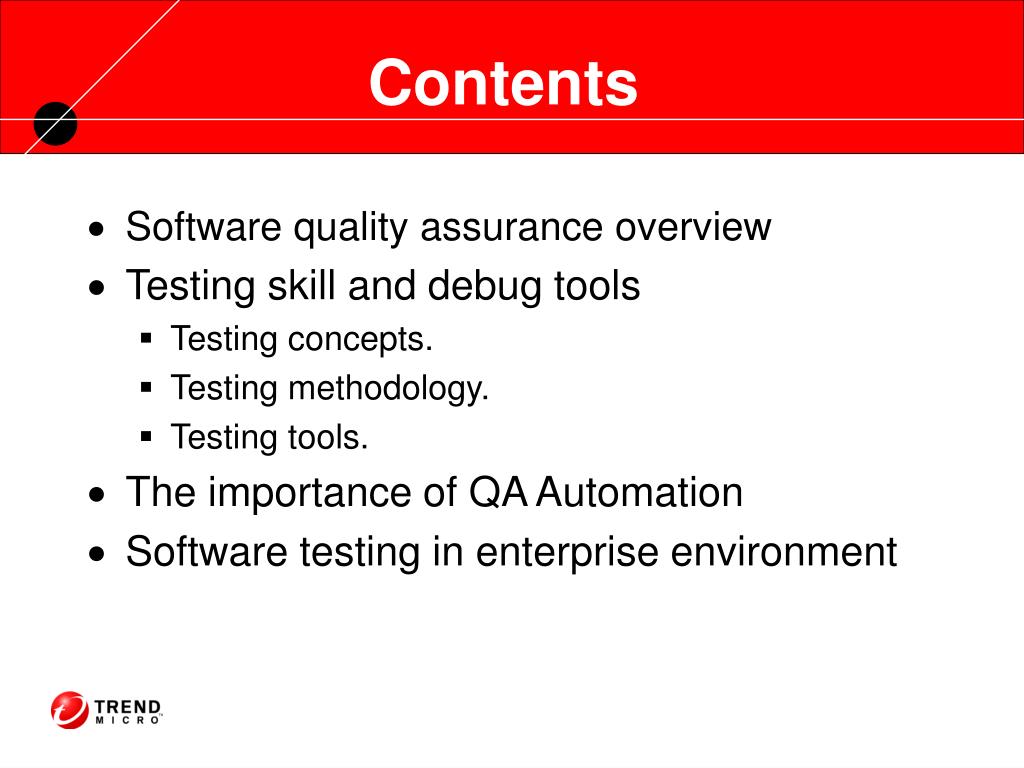

Contents

  • Software quality assurance overview

  • Testing skill and debug tools

    • Testing concepts.

    • Testing methodology.

    • Testing tools.

  • The importance of QA Automation

  • Software testing in enterprise environment


Overview

Overview

  • What is the quality?

  • What is QA role in Trend?

  • How many different type of testing strategy?

  • What is the typical software life-cycle?

  • What is the QA challenge and future?

  • What is Trend QA organization?


What is the quality

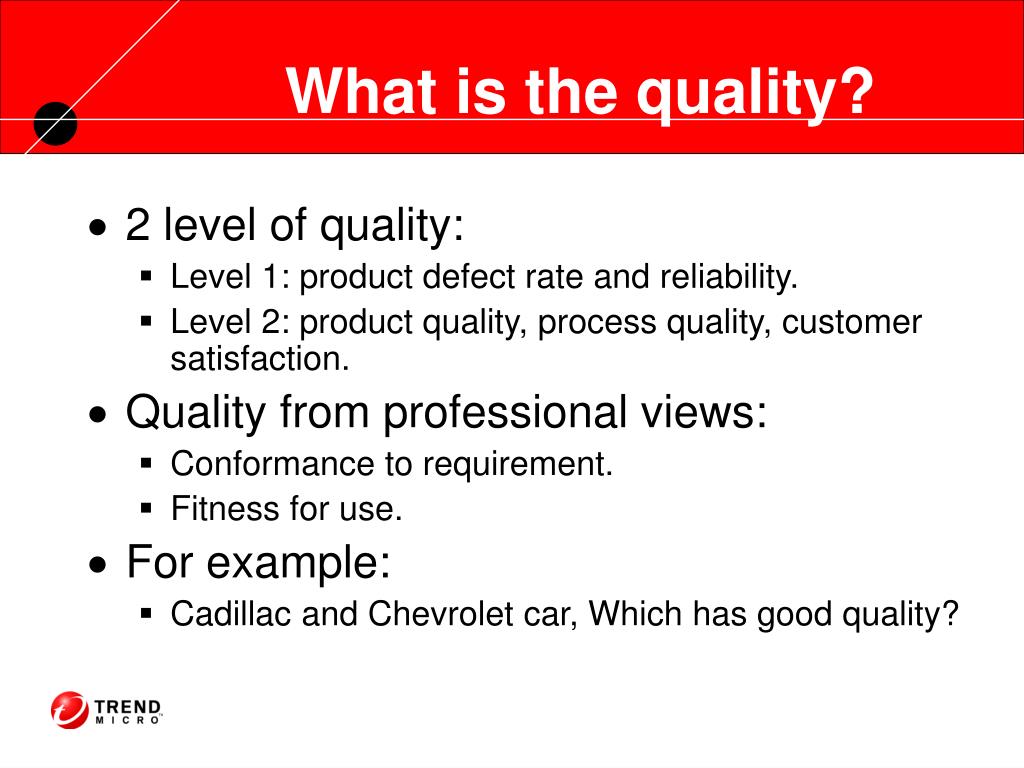

What is the quality?

  • 2 level of quality:

    • Level 1: product defect rate and reliability.

    • Level 2: product quality, process quality, customer satisfaction.

  • Quality from professional views:

    • Conformance to requirement.

    • Fitness for use.

  • For example:

    • Cadillac and Chevrolet car, Which has good quality?


What is qa role in trend

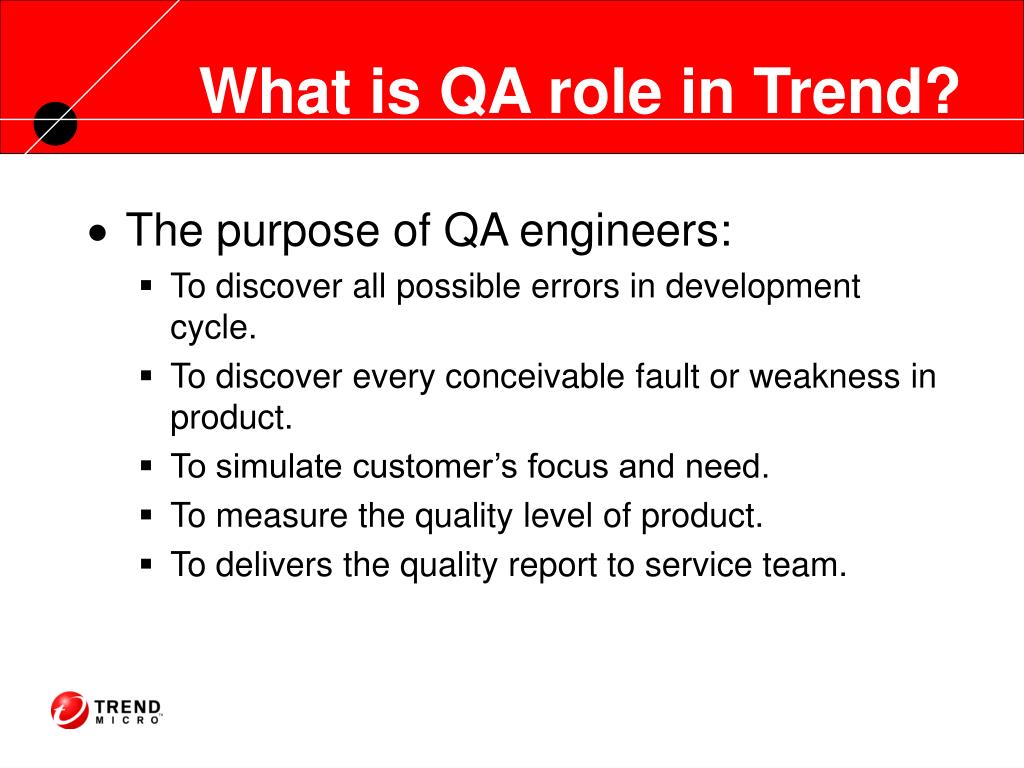

What is QA role in Trend?

  • The purpose of QA engineers:

    • To discover all possible errors in development cycle.

    • To discover every conceivable fault or weakness in product.

    • To simulate customer’s focus and need.

    • To measure the quality level of product.

    • To delivers the quality report to service team.


How many different type testing strategy

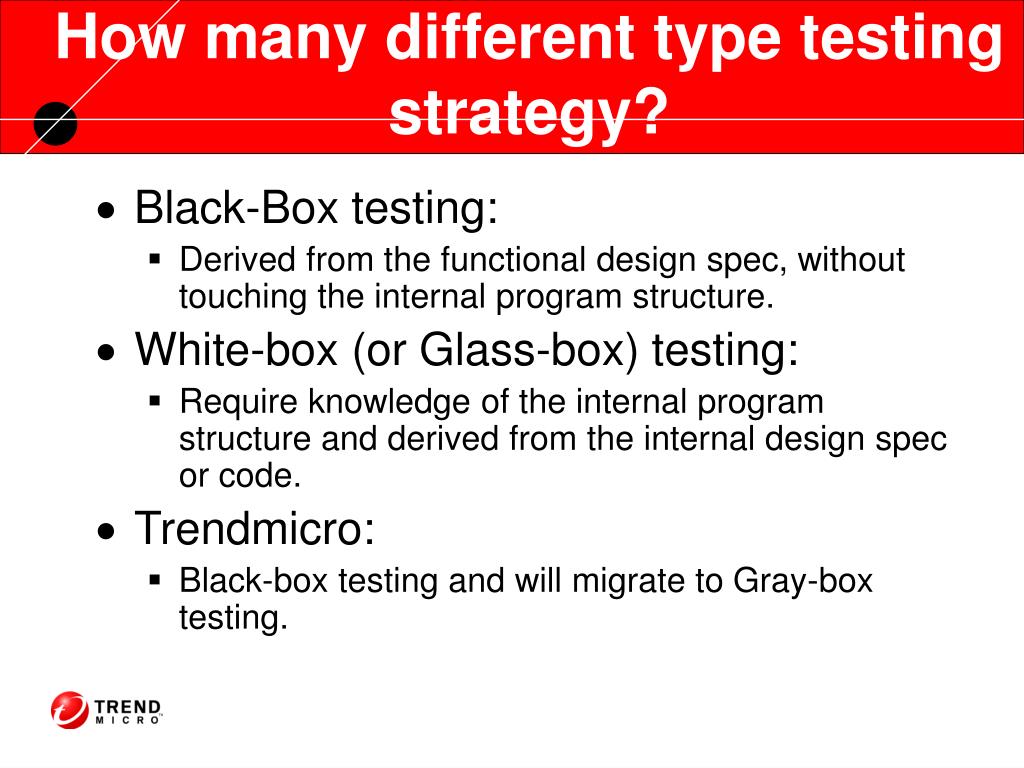

How many different type testing strategy?

  • Black-Box testing:

    • Derived from the functional design spec, without touching the internal program structure.

  • White-box (or Glass-box) testing:

    • Require knowledge of the internal program structure and derived from the internal design spec or code.

  • Trendmicro:

    • Black-box testing and will migrate to Gray-box testing.


What is the typical software life cycle

What is the typical software life-cycle?

  • Concept.

  • Requirement.

  • Design.

  • Implementation or coding.

  • Test.

  • Operation and maintenance.


Dot u model

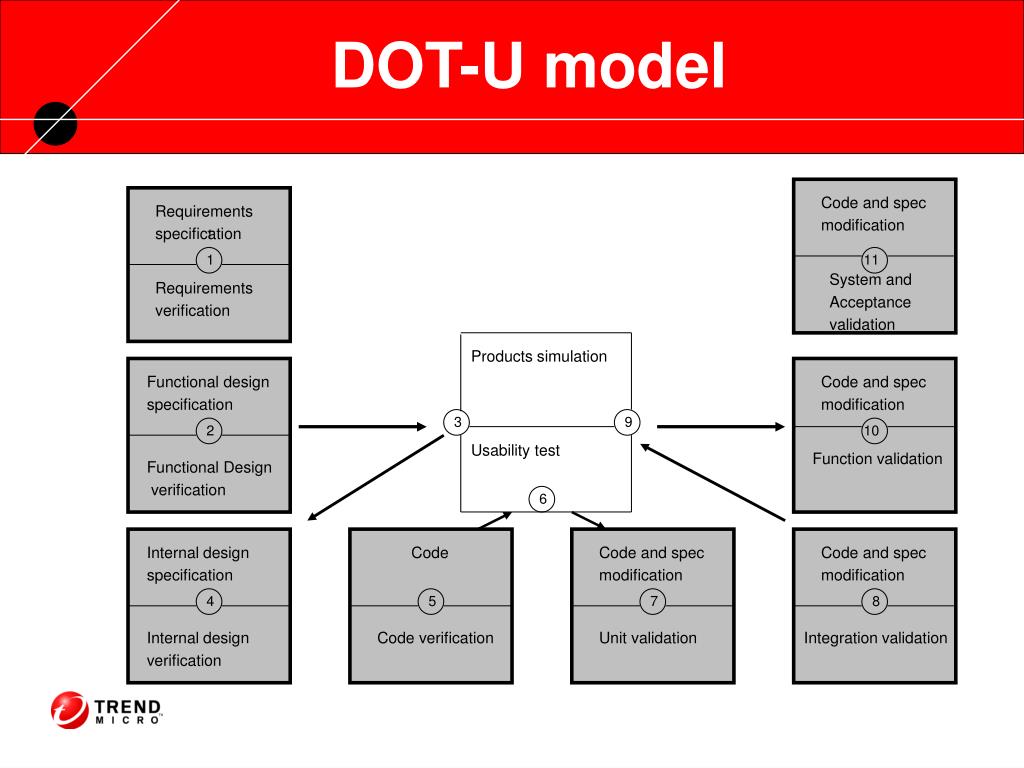

DOT-U model

Code and spec

modification

1

Requirements

specification

1

11

System and

Acceptance

validation

Requirements

verification

Products simulation

Functional design

specification

Code and spec

modification

3

9

2

10

Usability test

Function validation

Functional Design

verification

6

Internal design

specification

Code

Code and spec

modification

Code and spec

modification

4

5

7

8

Internal design

verification

Code verification

Unit validation

Integration validation


What is trendmicro software life cycle

What is Trendmicro software life-cycle?

  • Requirement.

  • High-Level design/Planning.

  • Detailed design.

  • Construction.

  • Pre-release.

  • Closure.

  • Service.


What is qa challenge future

What is QA challenge/future?

  • Professional discipline requiring trained, skilled people.

  • Advances in technology/tools to create complex software in GUI, Client-Server, Intranet/Internet architecture.

  • Multi-platform, multi-language.

  • Many/complex compatibility software testing.

  • Keep on process improvement.

  • Test automation is not mature yet.


Defect distribution

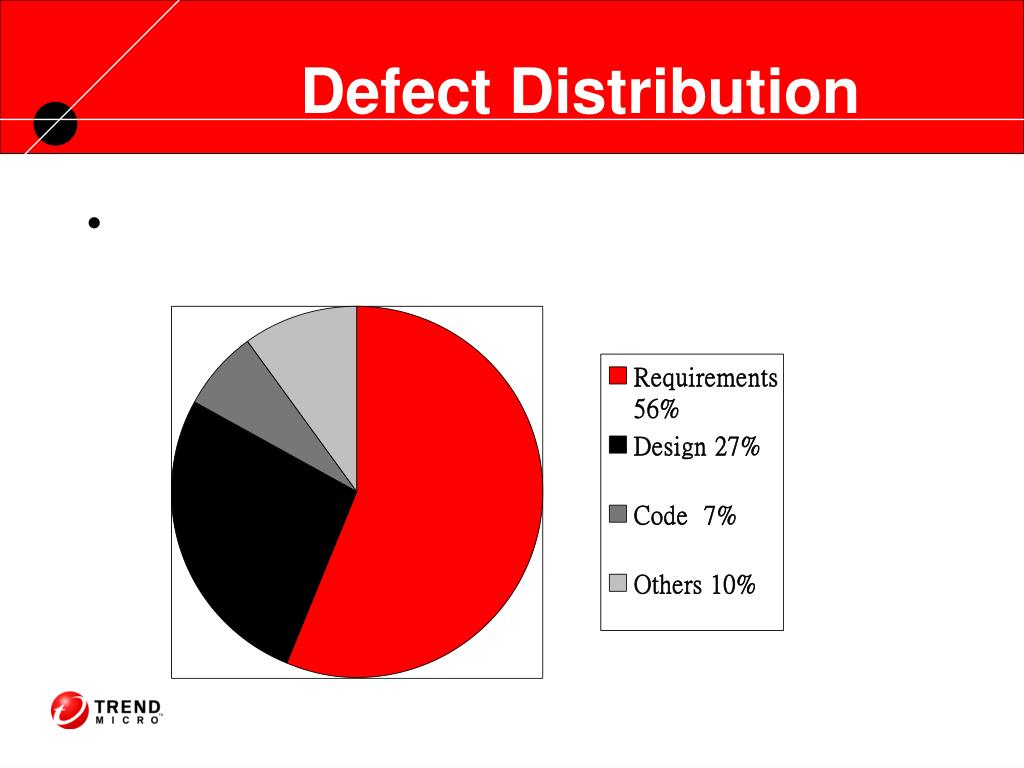

Defect Distribution


The cost of defect

The cost of defect

Cost

Alpha

Beta

Release

Time


Tester to developer ratios

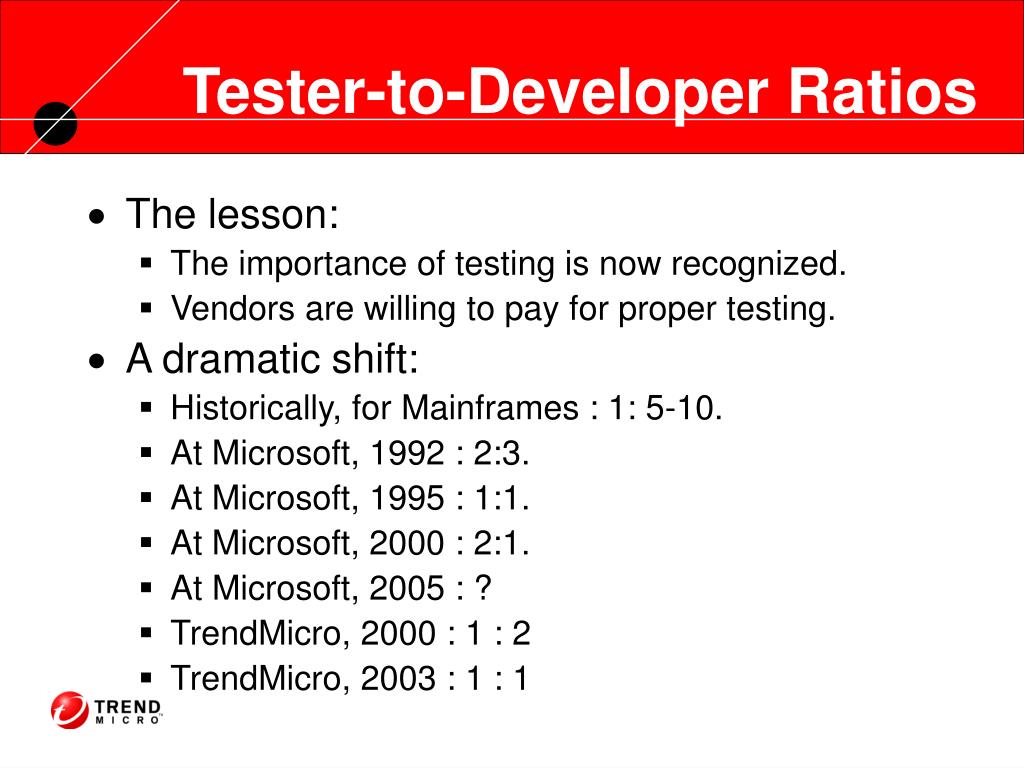

Tester-to-Developer Ratios

  • The lesson:

    • The importance of testing is now recognized.

    • Vendors are willing to pay for proper testing.

  • A dramatic shift:

    • Historically, for Mainframes : 1: 5-10.

    • At Microsoft, 1992 : 2:3.

    • At Microsoft, 1995 : 1:1.

    • At Microsoft, 2000 : 2:1.

    • At Microsoft, 2005 : ?

    • TrendMicro, 2000 : 1 : 2

    • TrendMicro, 2003 : 1 : 1


What is the trend qa organization

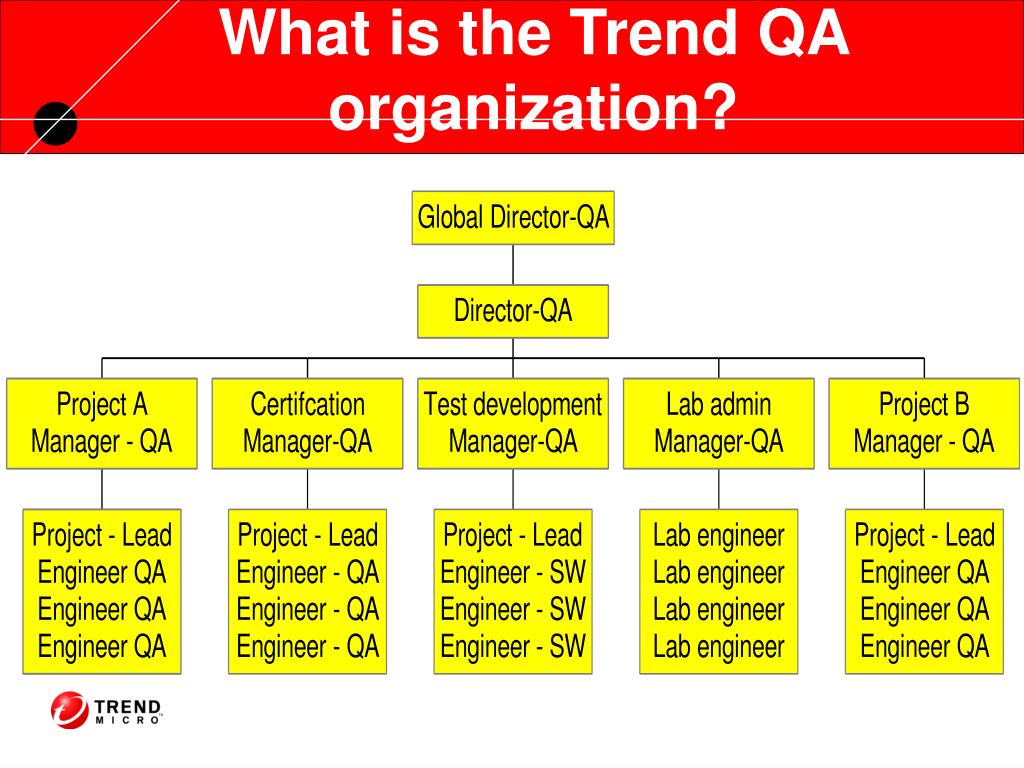

What is the Trend QA organization?


Testing skill and debug tools

Testing skill and debug tools

  • Testing methodology.

  • Test case design.

  • Testing tools.


Testing methodology

Testing methodology

  • Verification testing:

    • Reference to Dotted-U Model.

    • Verification methods : Inspections, walkthroughs, Technical reviews, others.

    • The verification tool : Checklists.

    • Include: Requirement, Architecture, Plans, Design Spec, code, Documentation.

  • Validation testing:

    • A process of evaluating a system or component during or at the end of the development process to determine whether it satisfies specified requirement.

    • Include: Unit testing, integration testing, Usability testing, Function testing, Regression testing, System testing, Acceptance testing (Alpha, Beta testing).


Testing case design

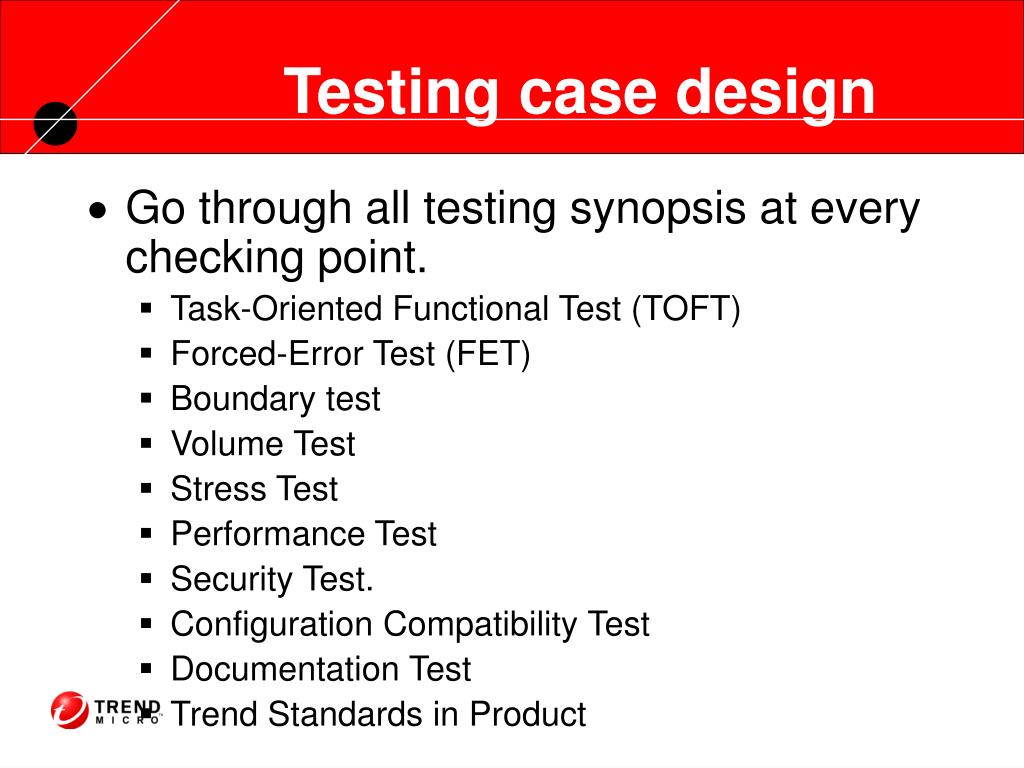

Testing case design

  • Go through all testing synopsis at every checking point.

    • Task-Oriented Functional Test (TOFT)

    • Forced-Error Test (FET)

    • Boundary test

    • Volume Test

    • Stress Test

    • Performance Test

    • Security Test.

    • Configuration Compatibility Test

    • Documentation Test

    • Trend Standards in Product


Test coverage

Test Coverage

  • Test coverage has three components:

    • Requirements coverage.

    • Function coverage.

    • Logic coverage.


Example

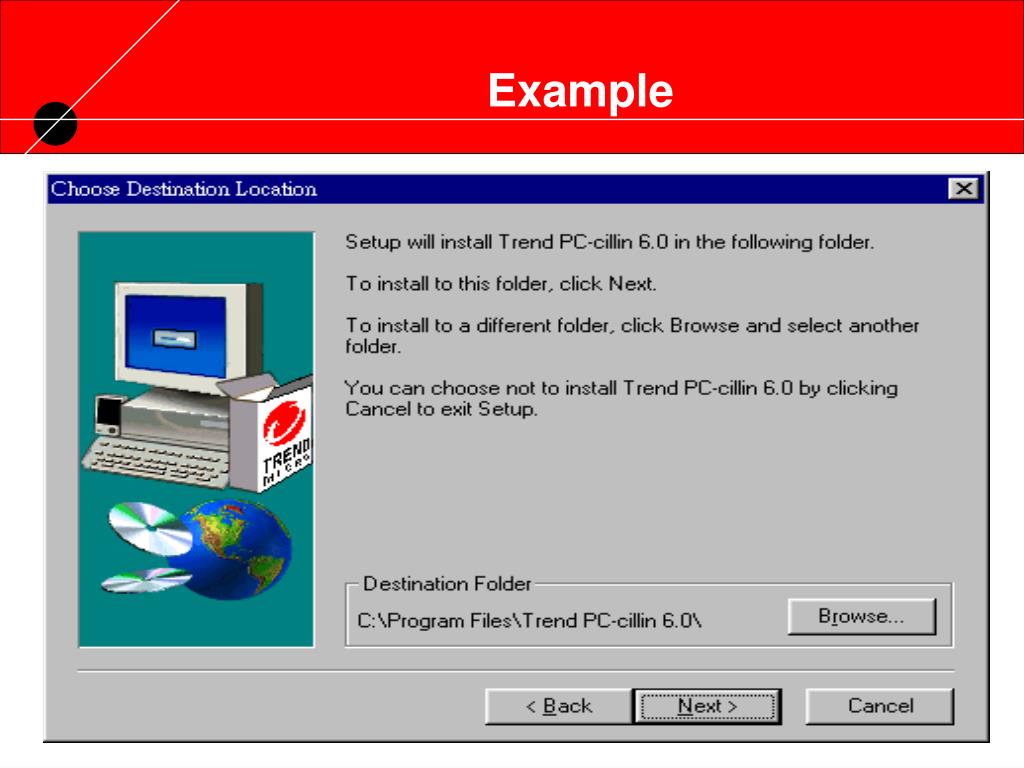

Example


Example1

Example

  • Input a Directory name to install a product in NT system.

    • Task-Oriented Functional Test (TOFT)

      • Input a legal directory name with length between 1 to 255 character.

    • Forced-Error Test (FET)

      • Read privilege only directory, Non-existed drive, more than 255 characters, Not enough disk space.

    • Boundary test

      • Input a space or null character, Input one character, Input 255 characters, Input 266 characters. Memory leak after install complete.

    • Volume Test

      • Install it with 30 MB free disk space.

    • Stress Test

      • Install it with CPU utilization more than 70%, Free visual Memory left less than 1 MB, ...

    • Performance Test

      • Memory usage, CPU utilization, Any network traffic generated,...


Example2

Example

  • Security Test.

    • Does it can be installed from every users or Administrator only.

  • Configuration Compatibility Test

    • N/A

  • Documentation Test

    • The description are properly and correctly

  • Trend Standards in Product

    • Does it install under c:\programs files\TrendMicro\PC-cillin 98?


Testing tools

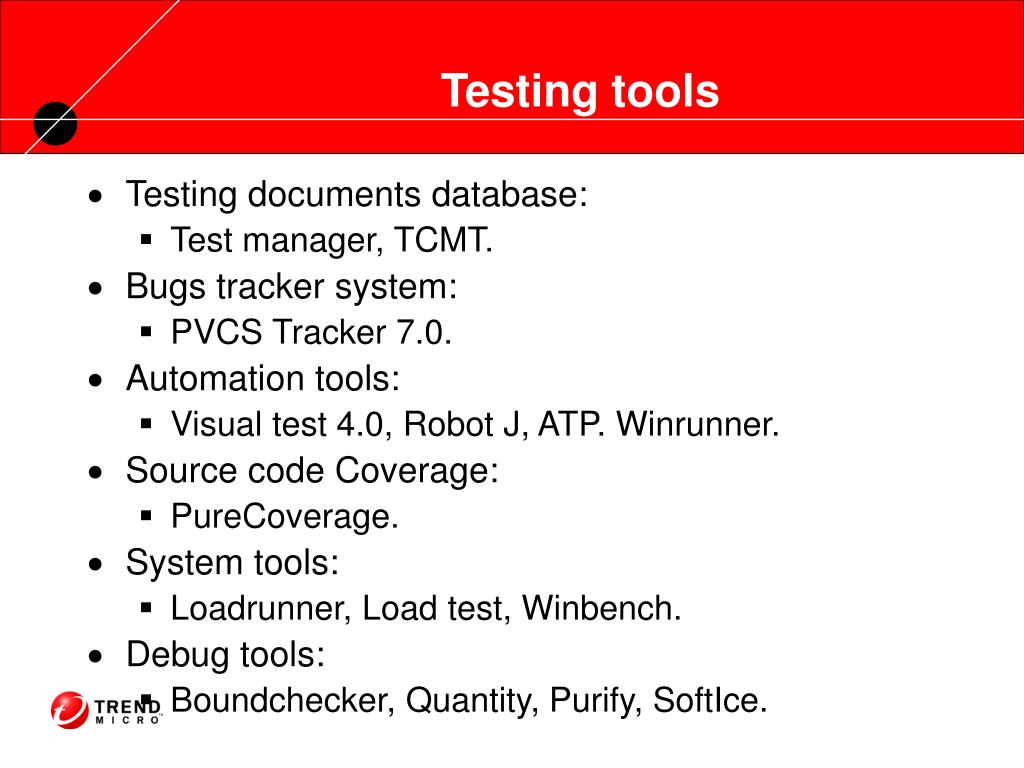

Testing tools

  • Testing documents database:

    • Test manager, TCMT.

  • Bugs tracker system:

    • PVCS Tracker 7.0.

  • Automation tools:

    • Visual test 4.0, Robot J, ATP. Winrunner.

  • Source code Coverage:

    • PureCoverage.

  • System tools:

    • Loadrunner, Load test, Winbench.

  • Debug tools:

    • Boundchecker, Quantity, Purify, SoftIce.


Trend quality assurance

Q & A
