Ip routing

IP Routing

Timothy G. Griffin

Intel Research

[email protected]

http://www.cambridge.intel-research.net/~tgriffin

IMA

Minneapolis

January, 2004


Common view of the telco network

Common View of the Telco Network

Brick

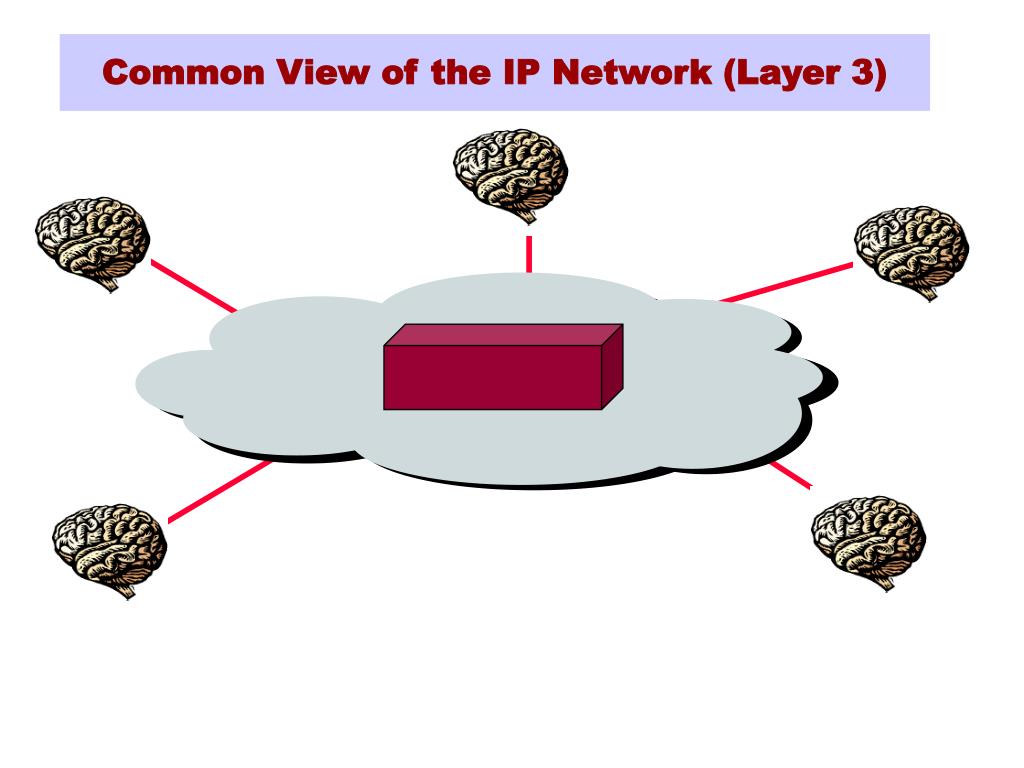

Common view of the ip network layer 3

Common View of the IP Network (Layer 3)


What this course is about

What This Course Is About

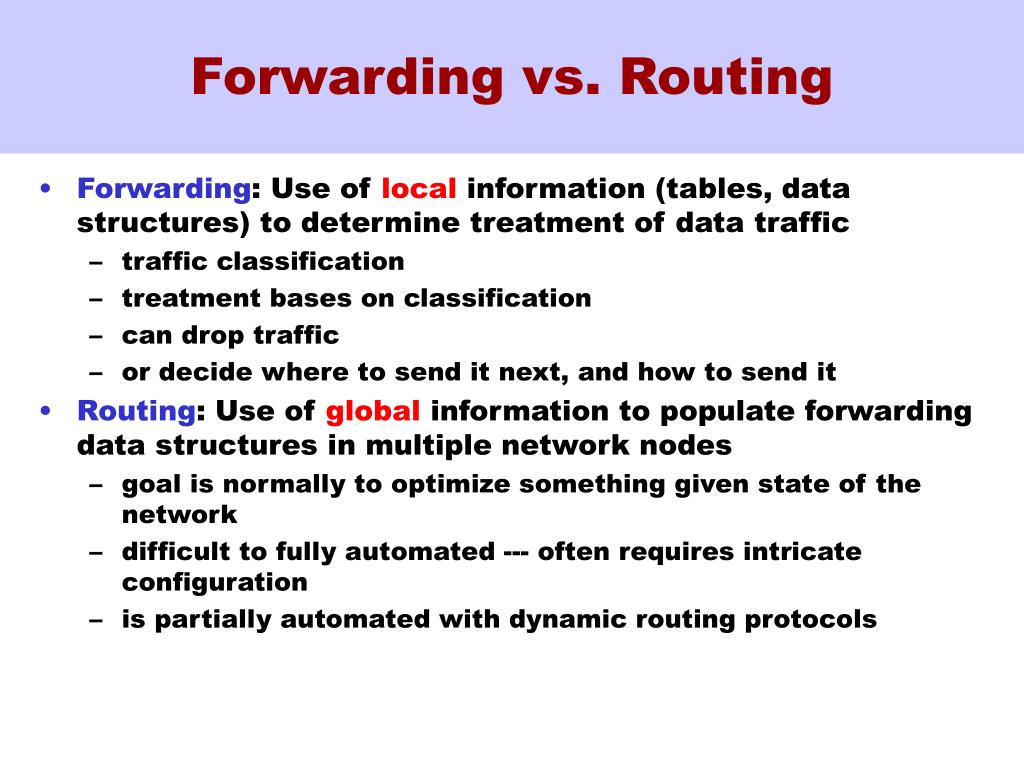

Forwarding vs routing

Forwarding vs. Routing

  • Forwarding: Use of local information (tables, data structures) to determine treatment of data traffic

    • traffic classification

    • treatment bases on classification

    • can drop traffic

    • or decide where to send it next, and how to send it

  • Routing: Use of global information to populate forwarding data structures in multiple network nodes

    • goal is normally to optimize something given state of the network

    • difficult to fully automated --- often requires intricate configuration

    • is partially automated with dynamic routing protocols


What you should take away

What You Should Take Away

  • Heterogeneity

    • Many technologies

    • Many networks

    • Many “routing policies”

  • IP Routing is evolving

    • New protocols and extensions

    • New router knobs

    • New ways of using existing technologies


Anthropology of routing

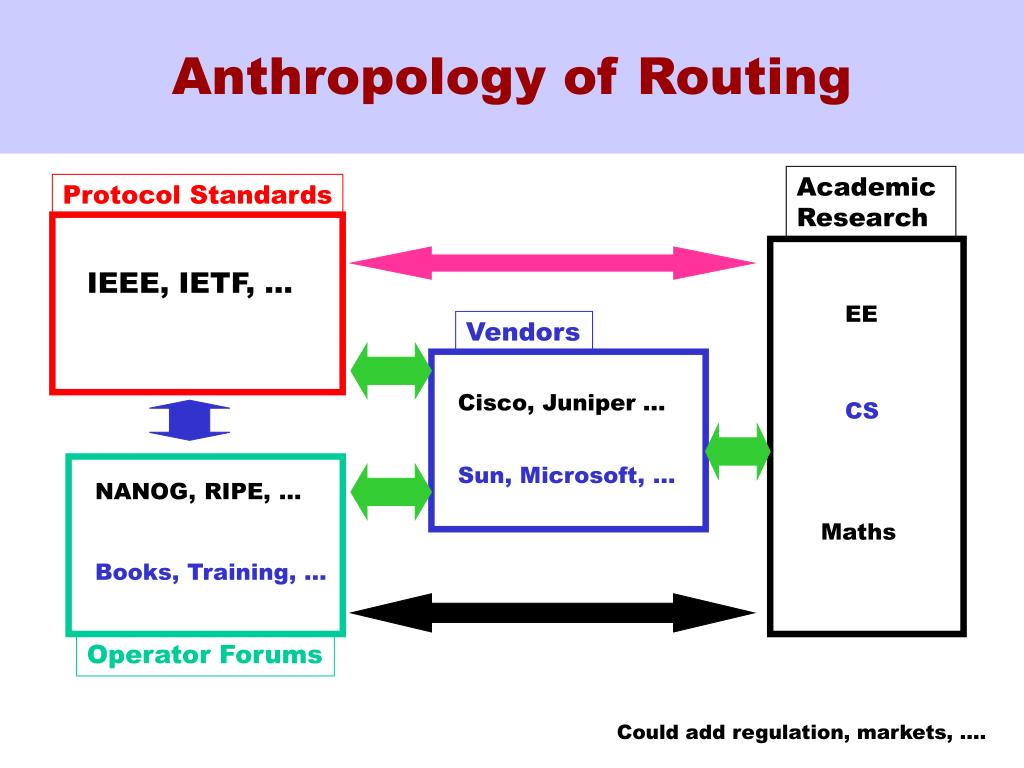

Anthropology of Routing

Academic

Research

Protocol Standards

IEEE, IETF, …

EE

Vendors

Cisco, Juniper …

CS

Sun, Microsoft, …

NANOG, RIPE, …

Maths

Books, Training, …

Operator Forums

Could add regulation, markets, ….


Routing can happen at any level

Routing can happen at any level

Application

Application

Presentation

Presentation

Session

Session

Transport

Transport

Network

Network

DataLink

DataLink

Physical

Physical

data received

data sent


Ip is a network layer protocol

IP is a Network Layer Protocol

DataLink 1

DataLink 2

Physical 1

Physical 2

Medium 1

Medium 2

Separate physical networks

glued together into one

logical network

Application

Application

Router

Presentation

Presentation

Session

Session

Transport

Transport

Network

Network

Network

DataLink 1

DataLink 2

Physical 1

Physical 2


All hail the ip datagram

All Hail the IP Datagram!

0 1 2 3

0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1

+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+

|Version| IHL | Service Type | Total Length |

+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+

| Identification |Flags| Fragment Offset |

+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+

| Time to Live | Protocol | Header Checksum |

+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+

| Source Address |

+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+

| Destination Address |

+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+

| Options | Padding |

+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+

H

E

A

D

E

R

D

A

T

A

:

:

|

+

|

+

|

:

:

|

+

|

+

|

... up to 65,515 octets of data ...

+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+

shaded fields little-used today

1981, RFC 791


Ip hour glass

IP Hour Glass

Networking Applications

Remote Access

Voice

e-stuff

email

file transfer

Multimedia

Web

VPN

TCP

IP

Minimalist network layer

Frame

ATM

Ethernet

SONET

DWDM

FDDI

X.25

Networking Technologies


Routers talking to routers

Routers Talking to Routers

Routing info

Routing info

  • Routing computation is distributed among routers within a routing domain

  • Computation of best next hop based on routing information is the most CPU/memory intensive task on a router

  • Routing messages are usually not routed, but exchanged via layer 2 between physically adjacent routers (internal BGP and multi-hop external BGP are exceptions)


Architecture of dynamic routing

Architecture of Dynamic Routing

OSPF

BGP

AS 1

EIGRP

IGP = Interior Gateway Protocol

Metric based: OSPF, IS-IS, RIP,

EIGRP (cisco)

AS 2

EGP = Exterior Gateway Protocol

Policy based: BGP

The Routing Domain of BGP is the entire Internet


Ip routing

Topology information is flooded within the routing domain

Best end-to-end paths are computed locally at each router.

Best end-to-end paths determine next-hops.

Based on minimizing some notion of distance

Works only if policy is shared and uniform

Examples: OSPF, IS-IS

Each router knows little about network topology

Only best next-hops are chosen by each router for each destination network.

Best end-to-end paths result from composition of all next-hop choices

Does not require any notion of distance

Does not require uniform policies at all routers

Examples: RIP, BGP

Technology of Distributed Routing

Link State

Vectoring


The gang of four

The Gang of Four

Link State

Vectoring

OSPF

RIP

IGP

IS-IS

BGP

EGP


Autonomous routing domains ards

Autonomous Routing Domains (ARDs)

A collection of physical networks glued together

using IP, that have a unified administrative

routing policy.

  • Campus networks

  • Corporate networks

  • ISP Internal networks


Autonomous system as numbers

Autonomous System (AS) Numbers

16 bit values.

64512 through 65535 are “private”

Currently over 16,000 in use.

  • Genuity: 1

  • MIT: 3

  • JANET: 786

  • UC San Diego: 7377

  • AT&T: 7018, 6341, 5074, …

  • UUNET: 701, 702, 284, 12199, …

  • Sprint: 1239, 1240, 6211, 6242, …

ASNs represent units of routing policy


Autonomous routing domains don t always need bgp or an asn

Autonomous Routing Domains Don’t Always Need BGP or an ASN

Qwest

Nail up routes 130.132.0.0/16

pointing to Yale

Nail up default routes 0.0.0.0/0

pointing to Qwest

Yale University

130.132.0.0/16

Static routing is the most common way of connecting an

autonomous routing domain to the Internet.

This helps explain why BGP is a mystery to many …


Asns can be shared rfc 2270

ASNs Can Be “Shared” (RFC 2270)

AS 701

UUNet

AS 7046

Crestar

Bank

AS 7046

NJIT

AS 7046

Hood

College

128.235.0.0/16

ASN 7046 is assigned to UUNet. It is used by

Customers single homed to UUNet, but needing

BGP for some reason (load balancing, etc..) [RFC 2270]

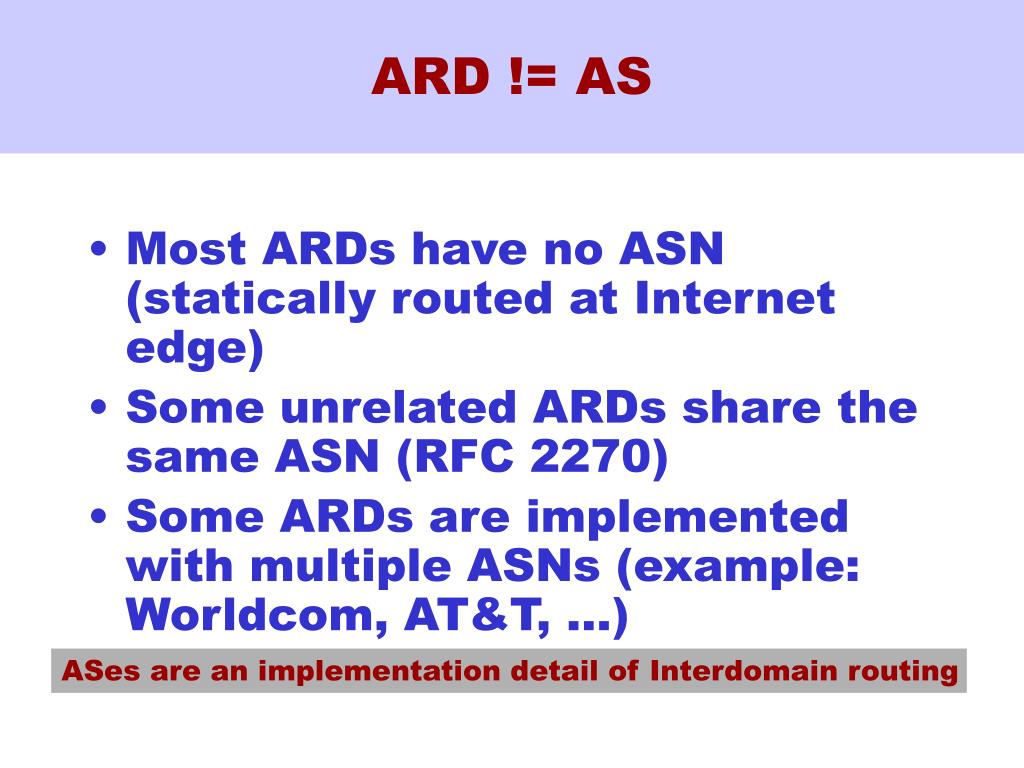

Ard as

ARD != AS

  • Most ARDs have no ASN (statically routed at Internet edge)

  • Some unrelated ARDs share the same ASN (RFC 2270)

  • Some ARDs are implemented with multiple ASNs (example: Worldcom, AT&T, …)

ASes are an implementation detail of Interdomain routing


How many asns

How Many ASNs?

15,981

Thanks to Geoff Huston. http://bgp.potaroo.net on October 24, 2003


How many prefixes

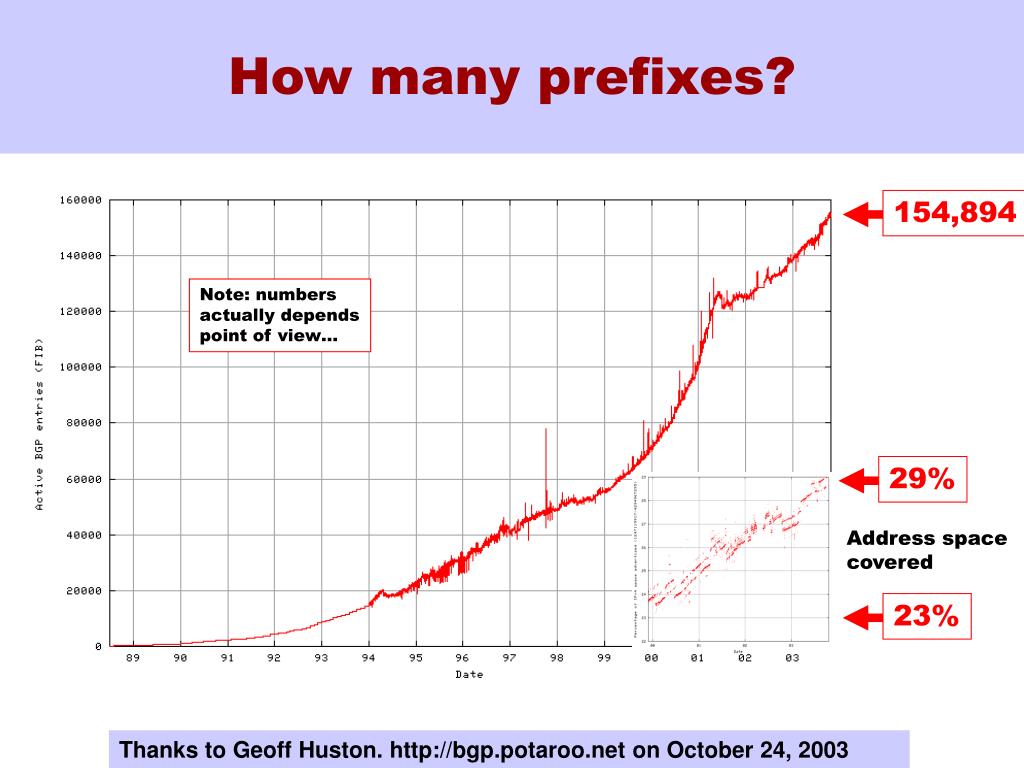

How many prefixes?

154,894

29%

23%

Address space

covered

Note: numbers

actually depends

point of view…

Thanks to Geoff Huston. http://bgp.potaroo.net on October 24, 2003


A bit of ogi s as neighborhood

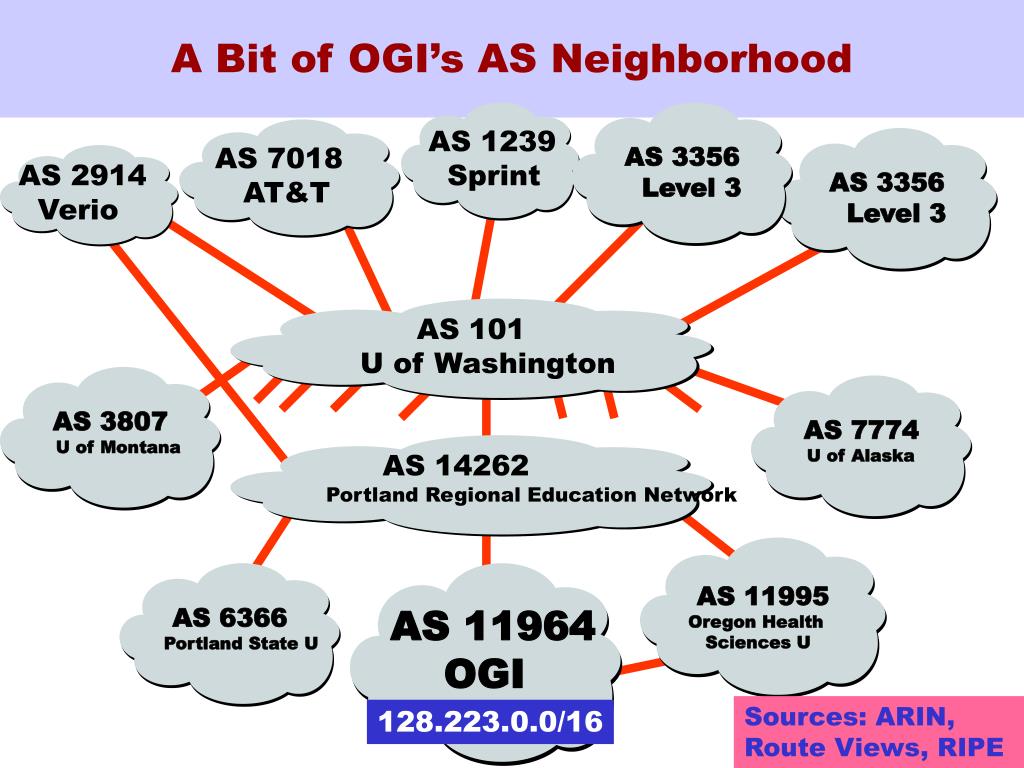

A Bit of OGI’s AS Neighborhood

AS 2914

Verio

AS 101

U of Washington

AS 6366

Portland State U

AS 11995

Oregon Health

Sciences U

AS 3356

Level 3

AS 3356

Level 3

AS 7774

U of Alaska

AS 3807

U of Montana

AS 1239

Sprint

AS 7018

AT&T

AS 14262

Portland Regional Education Network

AS 11964

OGI

Sources: ARIN,

Route Views, RIPE

128.223.0.0/16


Wiscnet net

wiscnet.net

GO BUCKY!


Partial view of cs wisc edu neighborhood

Partial View of cs.wisc.edu Neighborhood

AS 3549

Global

Crossing

AS 209

Qwest

AS 1

Genuity

AS 2381

WiscNet

AS 59

UW Academic

Computing

AS 3136

UW Madison

AS 7050

UW Milwaukee

129.89.0.0/16

128.105.0.0/16

130.47.0.0/16


Policy transit vs nontransit

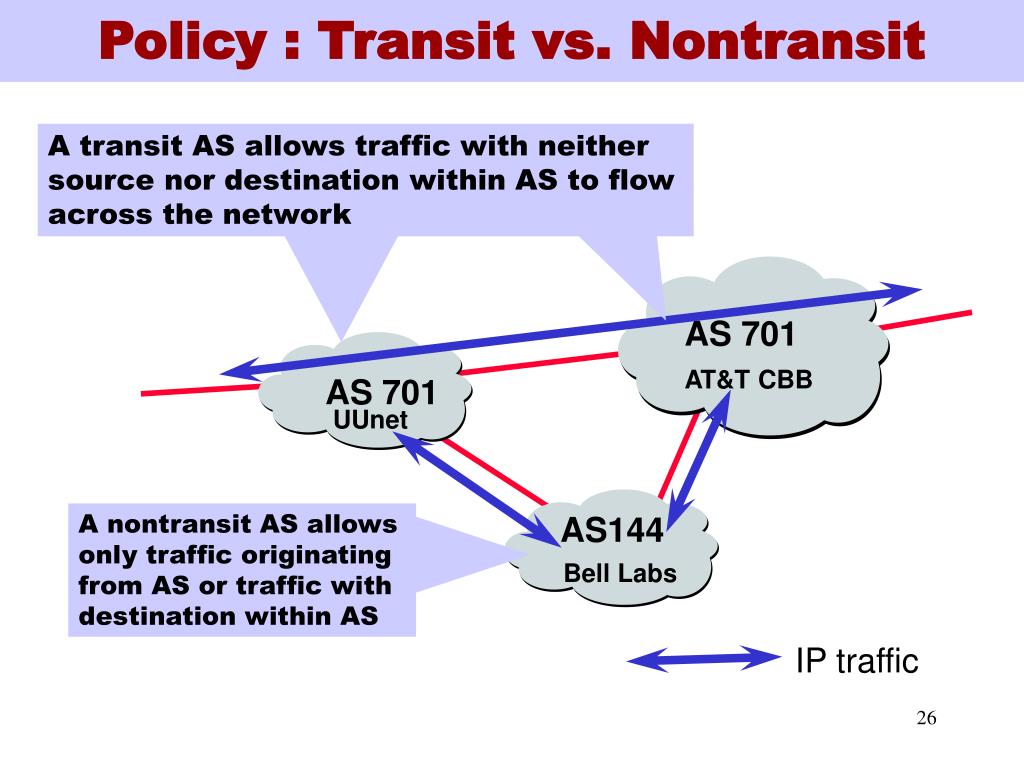

Policy : Transit vs. Nontransit

A transit AS allows traffic with neither

source nor destination within AS to flow

across the network

AS 701

AT&T CBB

AS 701

UUnet

AS144

A nontransit AS allows

only traffic originating

from AS or traffic with

destination within AS

Bell Labs

IP traffic

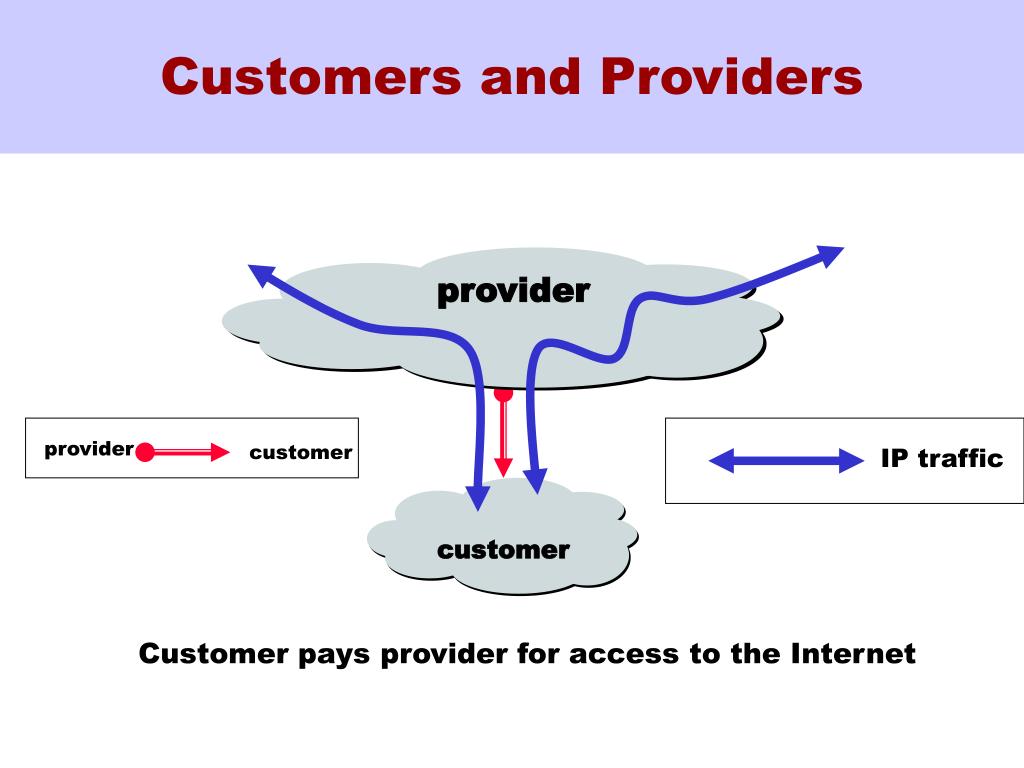

Customers and providers

Customers and Providers

provider

customer

IP traffic

provider

customer

Customer pays provider for access to the Internet


The peering relationship

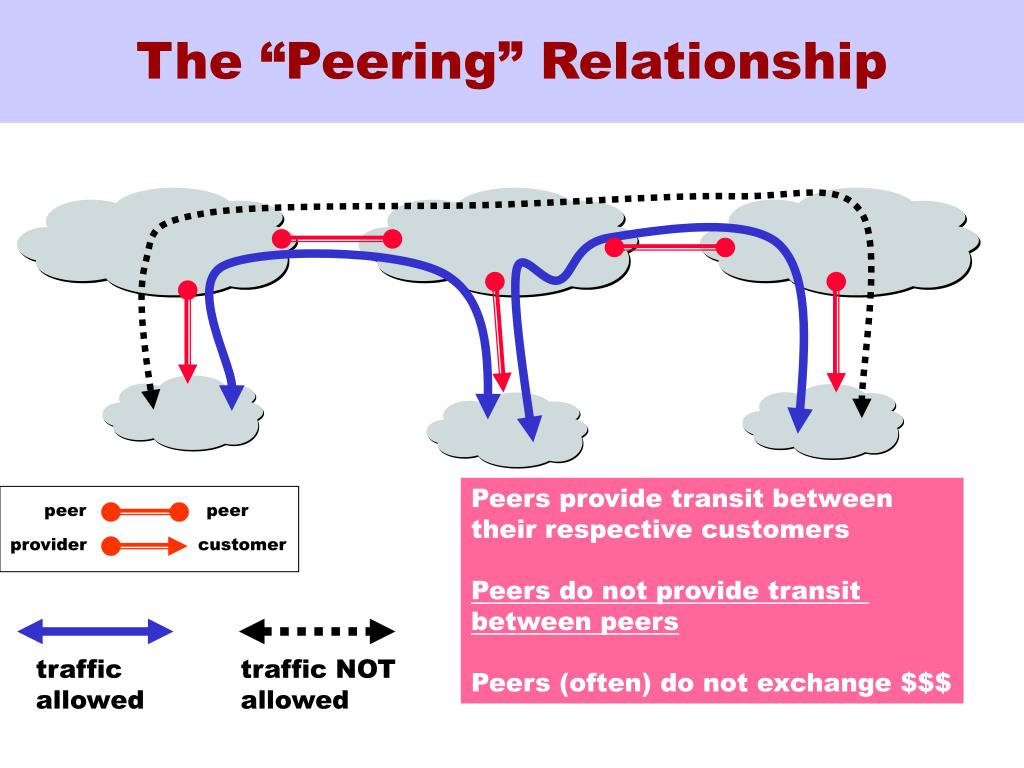

The “Peering” Relationship

peer

peer

provider

customer

Peers provide transit between

their respective customers

Peers do not provide transit

between peers

Peers (often) do not exchange $$$

traffic

allowed

traffic NOT

allowed

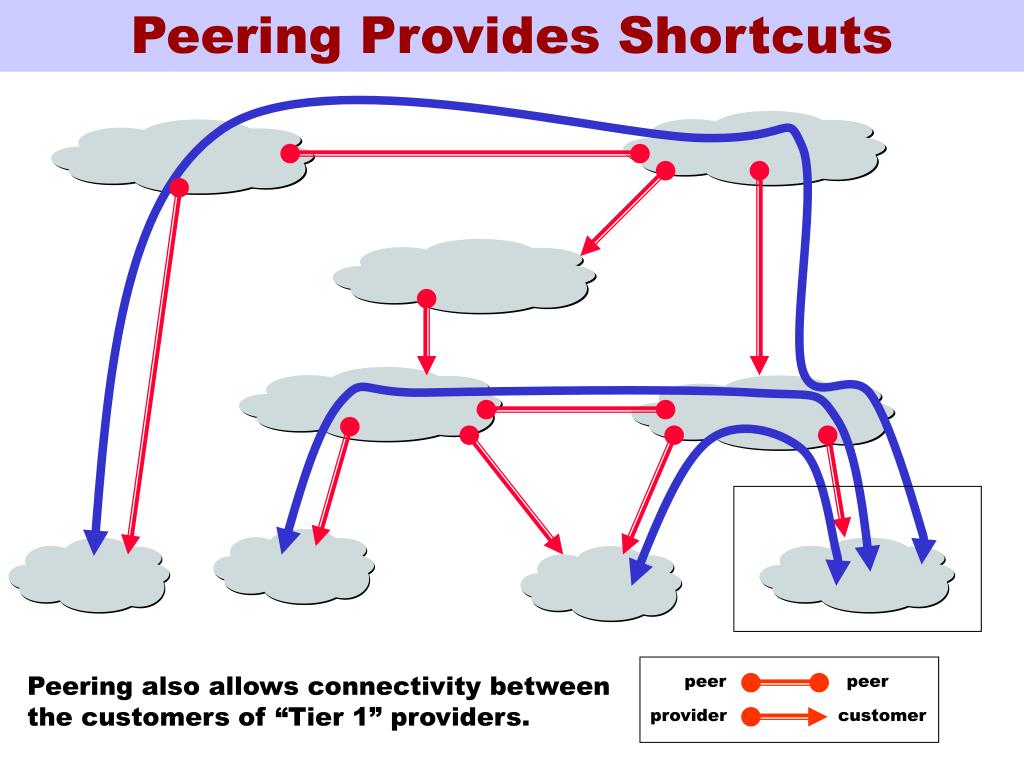

Peering provides shortcuts

Peering Provides Shortcuts

peer

peer

provider

customer

Peering also allows connectivity between

the customers of “Tier 1” providers.


Peering wars

Peering Wars

Reduces upstream transit costs

Can increase end-to-end performance

May be the only way to connect your customers to some part of the Internet (“Tier 1”)

You would rather have customers

Peers are usually your competition

Peering relationships may require periodic renegotiation

Peer

Don’t Peer

Peering struggles are by far the most

contentious issues in the ISP world!

Peering agreements are often confidential.

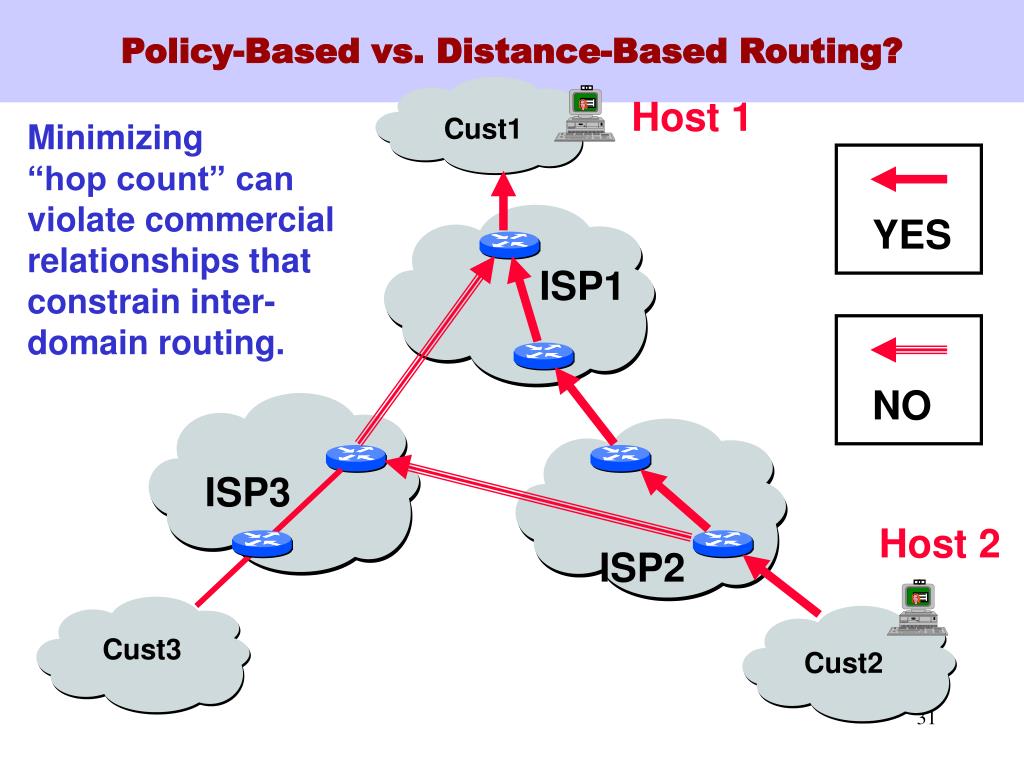

Policy based vs distance based routing

Policy-Based vs. Distance-Based Routing?

YES

NO

Host 1

Cust1

Minimizing

“hop count” can

violate commercial

relationships that

constrain inter-

domain routing.

ISP1

ISP3

Host 2

ISP2

Cust3

Cust2

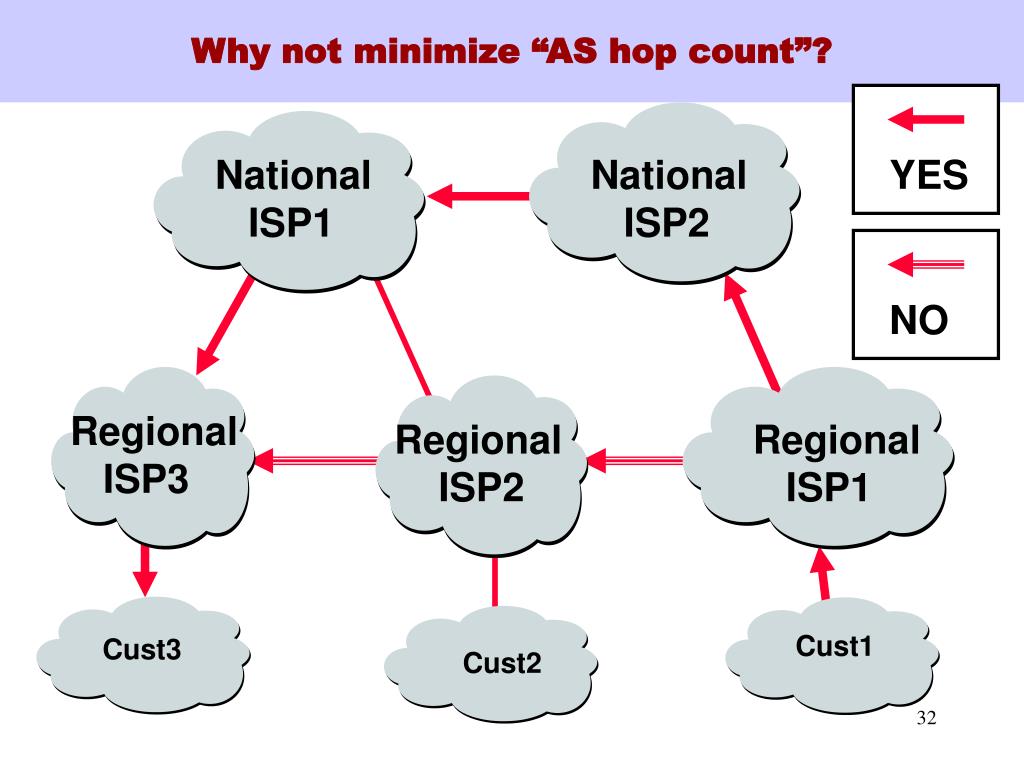

Why not minimize as hop count

Why not minimize “AS hop count”?

YES

NO

National

ISP1

National

ISP2

Regional

ISP3

Regional

ISP2

Regional

ISP1

Cust1

Cust3

Cust2


Bgp 4

BGP-4

  • BGP = Border Gateway Protocol

  • Is a Policy-Based routing protocol

  • Is the de facto EGP of today’s global Internet

  • Relatively simple protocol, but configuration is complex and the entire world can see, and be impacted by, your mistakes.

  • 1989 : BGP-1 [RFC 1105]

    • Replacement for EGP (1984, RFC 904)

  • 1990 : BGP-2 [RFC 1163]

  • 1991 : BGP-3 [RFC 1267]

  • 1995 : BGP-4 [RFC 1771]

    • Support for Classless Interdomain Routing (CIDR)


Four types of bgp messages

Four Types of BGP Messages

  • Open : Establish a peering session.

  • Keep Alive : Handshake at regular intervals.

  • Notification : Shuts down a peering session.

  • Update : Announcing new routes or withdrawing previously announced routes.

announcement

=

prefix + attributes values


Bgp attributes

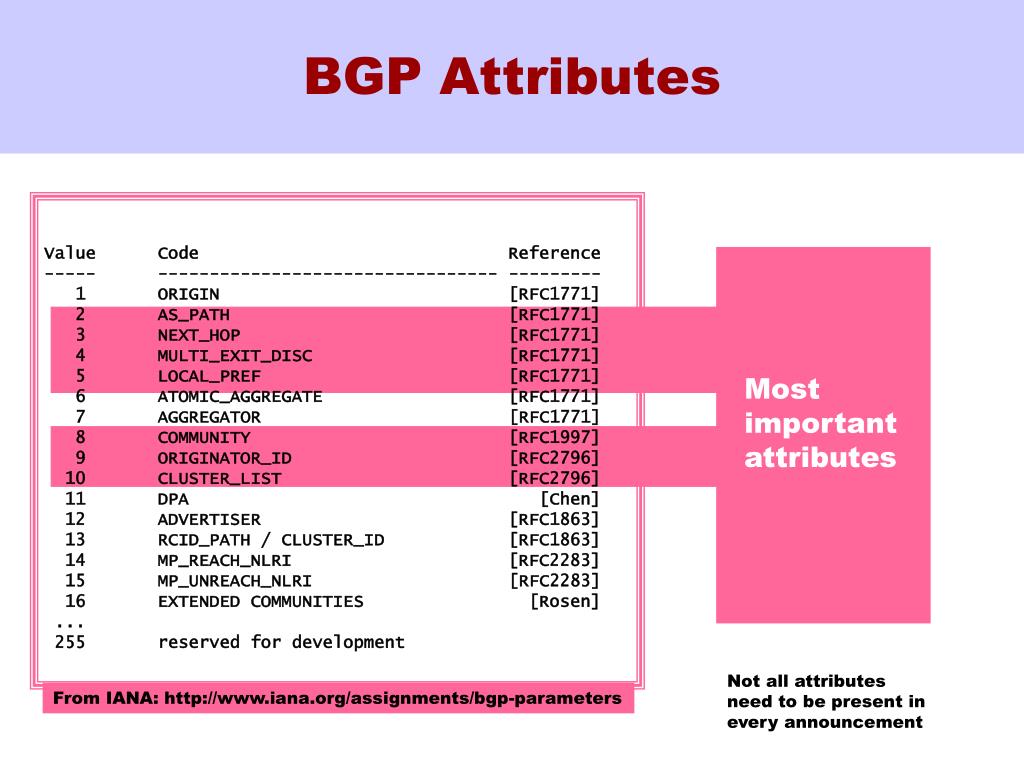

BGP Attributes

Value Code Reference

----- --------------------------------- ---------

1 ORIGIN [RFC1771]

2 AS_PATH [RFC1771]

3 NEXT_HOP [RFC1771]

4 MULTI_EXIT_DISC [RFC1771]

5 LOCAL_PREF [RFC1771]

6 ATOMIC_AGGREGATE [RFC1771]

7 AGGREGATOR [RFC1771]

8 COMMUNITY [RFC1997]

9 ORIGINATOR_ID [RFC2796]

10 CLUSTER_LIST [RFC2796]

11 DPA [Chen]

12 ADVERTISER [RFC1863]

13 RCID_PATH / CLUSTER_ID [RFC1863]

14 MP_REACH_NLRI [RFC2283]

15 MP_UNREACH_NLRI [RFC2283]

16 EXTENDED COMMUNITIES [Rosen]

...

255 reserved for development

Most

important

attributes

Not all attributes

need to be present in

every announcement

From IANA: http://www.iana.org/assignments/bgp-parameters


Attributes are used to select best routes

Attributes are Used to Select Best Routes

192.0.2.0/24

pick me!

192.0.2.0/24

pick me!

192.0.2.0/24

pick me!

Given multiple

routes to the same

prefix, a BGP speaker

must pick at most

one best route

(Note: it could reject

them all!)

192.0.2.0/24

pick me!


Bgp route processing

BGP Route Processing

Open ended programming.

Constrained only by vendor configuration language

Apply Policy =

filter routes &

tweak attributes

Apply Policy =

filter routes &

tweak attributes

Receive

BGP

Updates

Based on

Attribute

Values

Best

Routes

Transmit

BGP

Updates

Apply Import

Policies

Best Route

Selection

Best Route

Table

Apply Export

Policies

Install forwarding

Entries for best

Routes.

IP Forwarding Table


Route selection summary

Route Selection Summary

Highest Local Preference

Enforce relationships

Shortest ASPATH

Lowest MED

traffic engineering

i-BGP < e-BGP

Lowest IGP cost

to BGP egress

Throw up hands and

break ties

Lowest router ID


Aspath attribute

ASPATH Attribute

AS 1239

Sprint

AS 1129

135.207.0.0/16

AS Path = 1755 1239 7018 6341

Global Access

AS 1755

135.207.0.0/16

AS Path = 1239 7018 6341

135.207.0.0/16

AS Path = 1129 1755 1239 7018 6341

Ebone

AS 12654

RIPE NCC

RIS project

135.207.0.0/16

AS Path = 7018 6341

AS7018

135.207.0.0/16

AS Path = 3549 7018 6341

135.207.0.0/16

AS Path = 6341

AT&T

AS 3549

AS 6341

135.207.0.0/16

AS Path = 7018 6341

AT&T Research

Global Crossing

135.207.0.0/16

Prefix Originated

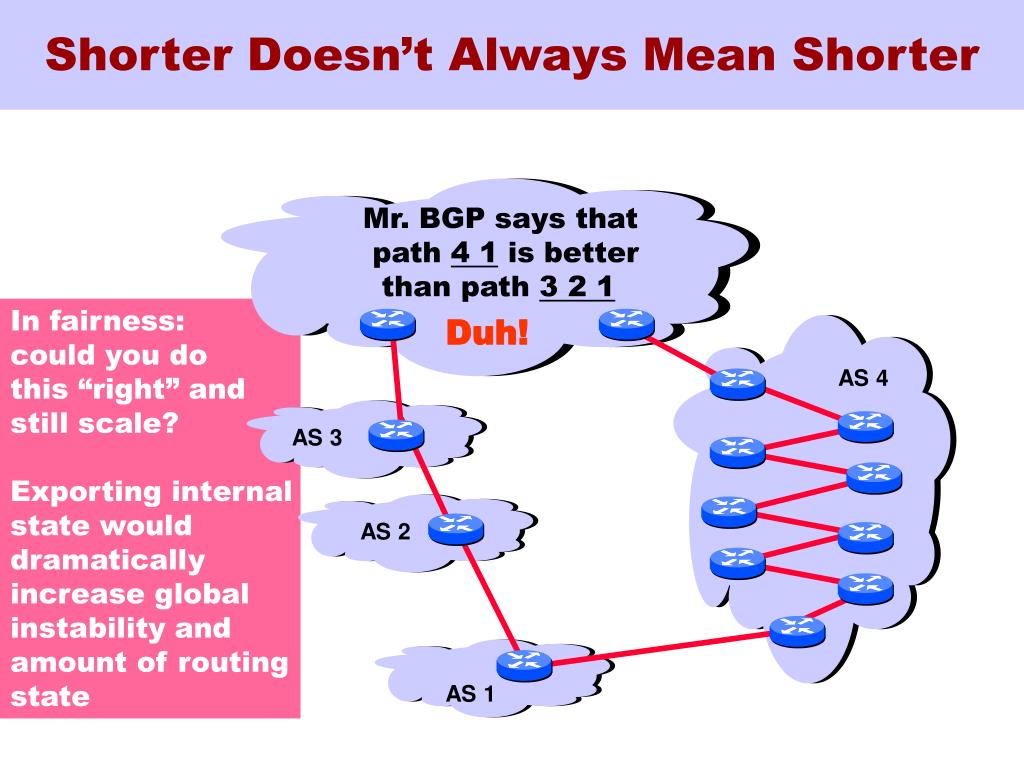

Shorter doesn t always mean shorter

Shorter Doesn’t Always Mean Shorter

Mr. BGP says that

path 4 1 is better

than path 3 2 1

In fairness:

could you do

this “right” and

still scale?

Exporting internal

state would

dramatically

increase global

instability and

amount of routing

state

Duh!

AS 4

AS 3

AS 2

AS 1


Bgp routing tables

BGP Routing Tables

show ip bgp

BGP table version is 111849680, local router ID is 203.62.248.4

Status codes: s suppressed, d damped, h history, * valid, > best, i - internal

Origin codes: i - IGP, e - EGP, ? - incomplete

Network Next Hop Metric LocPrf Weight Path

. . .

*>i192.35.25.0 134.159.0.1 50 0 16779 1 701 703 i

*>i192.35.29.0 166.49.251.25 50 0 5727 7018 14541 i

*>i192.35.35.0 134.159.0.1 50 0 16779 1 701 1744 i

*>i192.35.37.0 134.159.0.1 50 0 16779 1 3561 i

*>i192.35.39.0 134.159.0.3 50 0 16779 1 701 80 i

*>i192.35.44.0 166.49.251.25 50 0 5727 7018 1785 i

*>i192.35.48.0 203.62.248.34 55 0 16779 209 7843 225 225 225 225 225 i

*>i192.35.49.0 203.62.248.34 55 0 16779 209 7843 225 225 225 225 225 i

*>i192.35.50.0 203.62.248.34 55 0 16779 3549 714 714 714 i

*>i192.35.51.0/25 203.62.248.34 55 0 16779 3549 14744 14744 14744 14744 14744 14744 14744 14744 i

. . .

  • Use “whois” queries to associate an ASN with “owner” (for example, http://www.arin.net/whois/arinwhois.html)

  • 7018 = AT&T Worldnet, 701 =Uunet, 3561 = Cable & Wireless, …

Thanks to Geoff Huston. http://www.telstra.net/ops on July 6, 2001

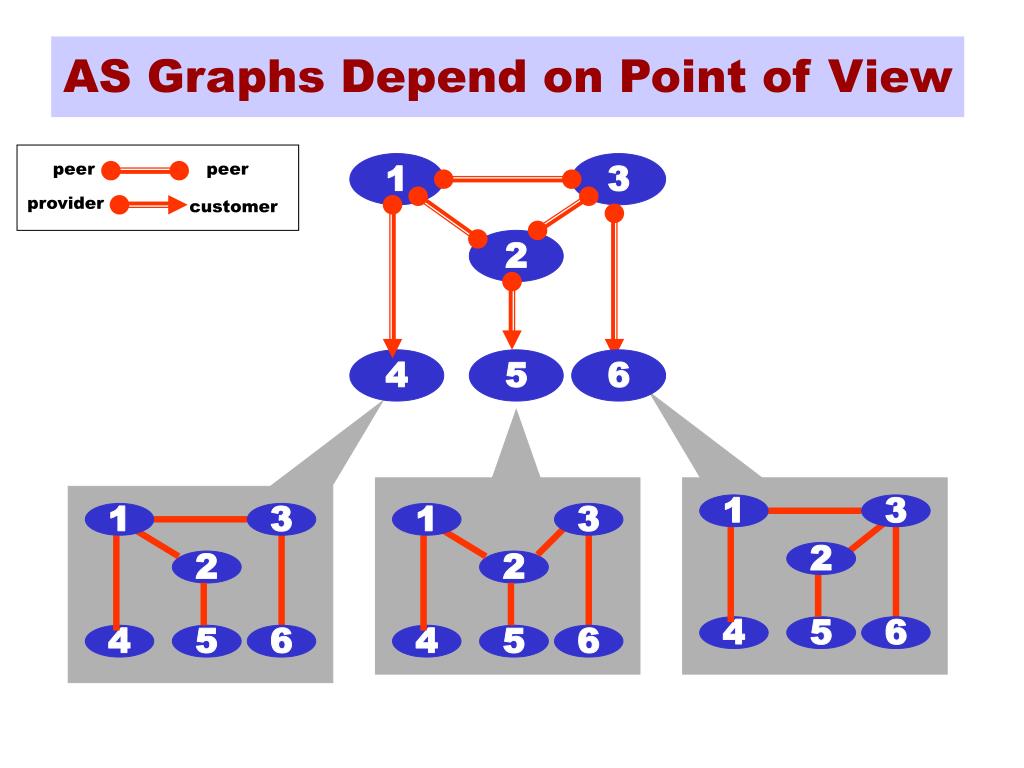

As graphs depend on point of view

AS Graphs Depend on Point of View

1

3

2

4

5

6

1

3

2

4

5

6

peer

peer

provider

customer

1

3

1

3

2

2

4

5

6

4

5

6


As graphs can be fun

AS Graphs Can Be Fun

The subgraph showing all ASes that have more than 100 neighbors in full

graph of 11,158 nodes. July 6, 2001. Point of view: AT&T route-server


As graphs do not show topology

AS Graphs Do Not Show “Topology”!

The AS graph

may look like this.

Reality may be closer to this…

BGP was designed to

throw away information!


So many choices

So Many Choices

peer

peer

provider

customer

AS 4

Frank’s

Internet Barn

AS 3

AS 2

AS 1

Which route should

Frank pick to 13.13.0.0./16?

13.13.0.0/16


Local preference

LOCAL PREFERENCE

Local

preference

used ONLY

in iBGP

AS 4

local pref = 80

AS 3

local pref = 90

local pref = 100

AS 2

AS 1

Higher Local

preference values

are more preferred

13.13.0.0/16

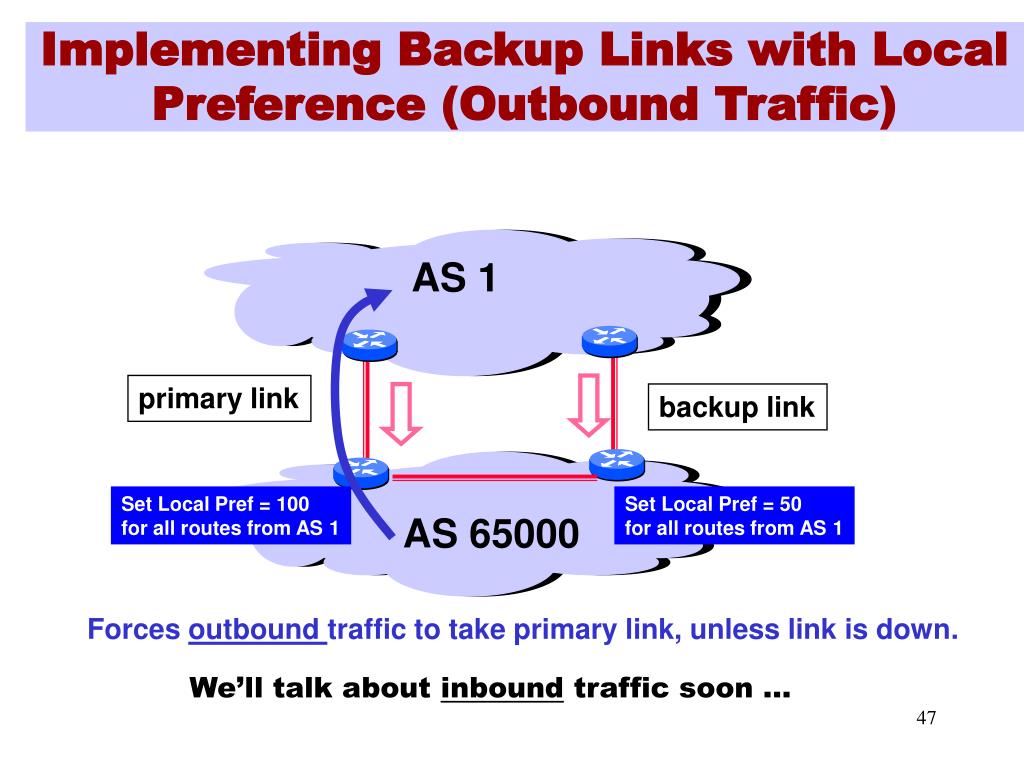

Implementing backup links with local preference outbound traffic

Implementing Backup Links with Local Preference (Outbound Traffic)

AS 1

primary link

backup link

Set Local Pref = 100

for all routes from AS 1

Set Local Pref = 50

for all routes from AS 1

AS 65000

Forces outbound traffic to take primary link, unless link is down.

We’ll talk about inbound traffic soon …


Multihomed backups outbound traffic

Multihomed Backups (Outbound Traffic)

AS 1

AS 3

provider

provider

primary link

backup link

Set Local Pref = 100

for all routes from AS 1

Set Local Pref = 50

for all routes from AS 3

AS 2

Forces outbound traffic to take primary link, unless link is down.

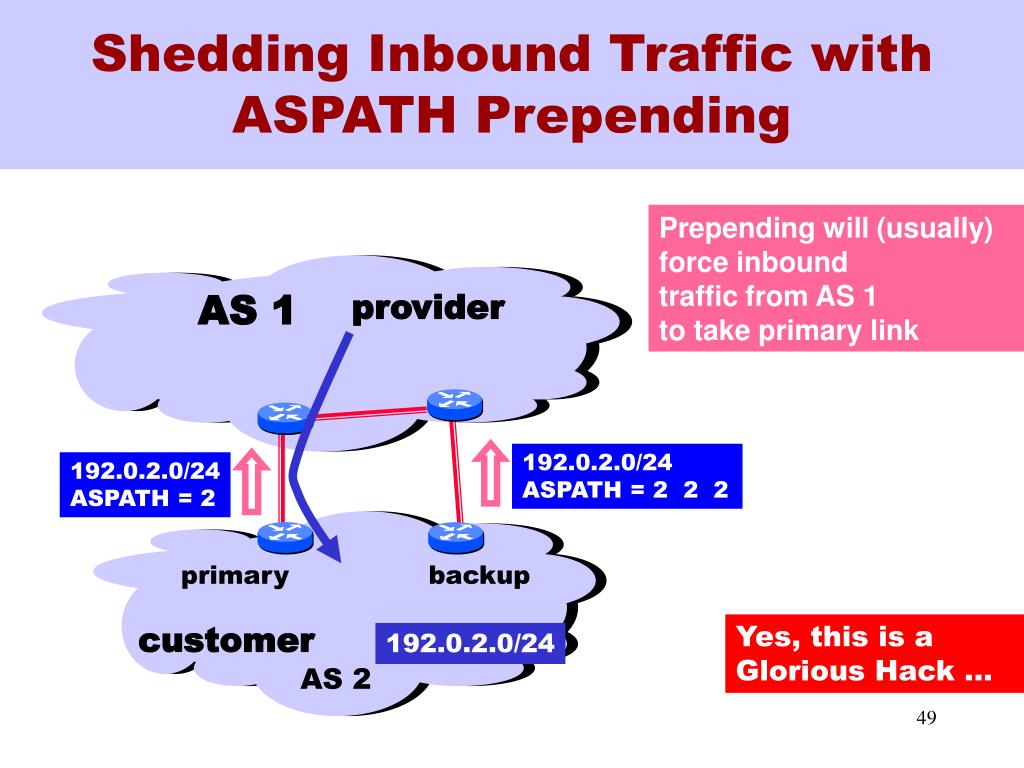

Shedding inbound traffic with aspath prepending

Shedding Inbound Traffic with ASPATH Prepending

Prepending will (usually)

force inbound

traffic from AS 1

to take primary link

AS 1

provider

192.0.2.0/24

ASPATH = 2 2 2

192.0.2.0/24

ASPATH = 2

primary

backup

customer

Yes, this is a

Glorious Hack …

192.0.2.0/24

AS 2

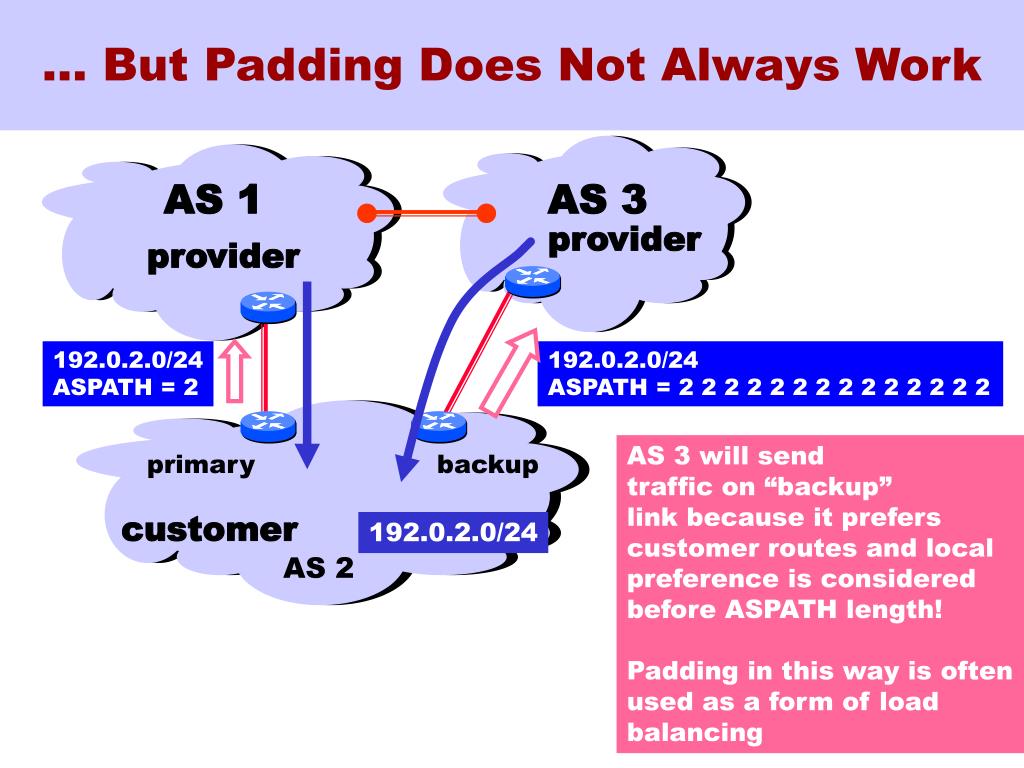

But padding does not always work

… But Padding Does Not Always Work

AS 1

AS 3

provider

provider

192.0.2.0/24

ASPATH = 2

192.0.2.0/24

ASPATH = 2 2 2 2 2 2 2 2 2 2 2 2 2 2

AS 3 will send

traffic on “backup”

link because it prefers

customer routes and local

preference is considered

before ASPATH length!

Padding in this way is often

used as a form of load

balancing

primary

backup

customer

192.0.2.0/24

AS 2


Community attribute to the rescue

COMMUNITY Attribute to the Rescue!

AS 3: normal

customer local

pref is 100,

peer local pref is 90

AS 1

AS 3

provider

provider

192.0.2.0/24

ASPATH = 2

COMMUNITY = 3:70

192.0.2.0/24

ASPATH = 2

primary

backup

Customer import policy at AS 3:

If 3:90 in COMMUNITY then

set local preference to 90

If 3:80 in COMMUNITY then

set local preference to 80

If 3:70 in COMMUNITY then

set local preference to 70

customer

192.0.2.0/24

AS 2


Don t celebrate just yet

Don’t celebrate just yet…

Provider A (Tier 1)

Provider B (Tier 1)

peering

provider/customer

provider/customer

Provider C (Tier 2)

customer

Now, customer wants

a backup link to C….


Customer installs a backup link

Customer installs a “backup link” …

Provider A (Tier 1)

Provider B (Tier 1)

Provider C (Tier 2)

primary

backup

customer sends

“lower my preference”

Community value

customer


Disaster strikes

Disaster Strikes!

Provider A (Tier 1)

Provider B (Tier 1)

Provider C (Tier 2)

primary

backup

customer

customer is happy that backup was installed …


The primary link is repaired and something odd occurs

The primary link is repaired, and something odd occurs…

Provider A (Tier 1)

Provider B (Tier 1)

Provider C (Tier 2)

primary

backup

customer

YIKES --- routing DOES NOT return to normal!!!


Wait it gets better

WAIT! It Gets Better…

A

B

B

B

P

C

B

D

P = primary

B = backup


Ooooops

OOOOOPS!

A

B

B

B

P

C

B

No solution =

Protocol Divergence

D

Suppose A, B, C all

break ties in the

same direction

(clockwise or counter-clockwise)


What the heck is going on

What the heck is going on?

  • There is no guarantee that a BGP configuration has a unique routing solution.

    • When multiple solutions exist, the (unpredictable) order of updates will determine which one is wins.

  • There is no guarantee that a BGP configuration has any solution!

    • And checking configurations NP-Complete [GW1999]

  • Complex policies (weights, communities setting preferences, and so on) increase chances of routing anomalies.

    • … yet this is the current trend!


Are we too complacent

Are we too complacent?

If the provider/customer digraph is acyclic and

every AS obeys the commandments

  • Thou shall prefer customer routes over all others

  • Thou shall use provider routes only as a last resort

  • Thou shall not provide transit between peers or providers

then the BGP configuration is robust.

[see Gao-Griffin-Rexford, INFOCOM 2001]


Worrisome trends

Worrisome trends…

  • Some Autonomous Routing Domains (ARDs) are implemented with multiple ASNs (example: MCI, InterNap, AT&T)

    • Such “sibling” ASes are not confined to “customer/provider, peer/peer” relationships

    • ASNs are becoming just an implementation detail.

  • Some ASes participate in different roles in different parts of the world (Sprint, for example).

    • I don’t think we understand this.

  • We all know abut MED…

    • But MED oscillation is not a feature interaction problem (MEDs and Route Reflection), but rather a manifestation of BGP’s general principle --- the more complex the policies, the more likely that bad things happen. MED just makes it easy to write very complex policies…

  • Communities are being used for clever interdomain signaling.

    • Nobody has read “Inherently Safe Backup Routing with BGP” Gao, Griffin, Rexford. INFOCOM 2001

    • “te” communities and extended communities…


Let s look at te communities

Let’s look at “te” communities…

AS13129, Global Access Telecommunications, Inc (Frankfurt)

n = 0 do not announce prefix

1 <= n <= 3 prepend n times to announcement

13129:101n - do not announce/prepend to Sprint (AS1239)

13129:102n - do not announce/prepend to Cogent (AS16631)

13129:103n - do not announce/prepend to Abovenet (AS6461)

13129:111n - do not announce/prepend to DE-CIX

13129:112n - do not announce/prepend to INXS

13129:113n - do not announce/prepend to SFINX

13129:114n - do not announce/prepend to LINX

13129:115n - do not announce/prepend to AMS-IX

13129:116n - do not announce/prepend to IX-HH

13129:117n - do not announce/prepend to NYIIX

13129:191n - do not announce/prepend to DTAG (AS3320)

13129:192n - do not announce/prepend to DFN (AS680)

13129:1990 - do not announce to the RIPE RIS project (AS12654)

Accepted

on inbound

routes

See A survey of the utilization of the BGP community attribute

Bruno Quoitin and Olivier Bonaventure

http://www.infonet.fundp.ac.be/doc/tr/Infonet-TR-2002-02.html


Some as286 communities

Some AS286 Communities

From KPN Eurorings Backbone:

remarks: +----------------------------------------------------------

remarks: | COMMUNITIES - ROUTE ORIGIN - NOT SETTABLE BY CUSTOMERS

remarks: |

remarks: | 286:286 European customer routes

remarks: | 286:999 US customer routes (received from Qwest)

remarks: | 286:888 European or US peer routes

remarks: |

remarks: | 286:3000 + countrycode Country where route is received

remarks: | countrycode E.164 international dial prefix

remarks: |

remarks: | EXAMPLES

remarks: |

remarks: | 286:286 286:3031 Customer in Amsterdam

remarks: | 286:286 286:3032 Customer in Brussels

remarks: | 286:888 286:3044 Peer in London

remarks: |

remarks: +----------------------------------------------------------

Comment: Aren’t we happy that RPSL has “remarks”!


Need semantics of interdomain routing

Need “Semantics of Interdomain Routing”

  • Distinct from mechanism of finding routings (protocols).

    • Don’t start with “new algorithms”!!!

  • BGP policy languages/usage have evolved organically --- lack of design.

    • Too closely tied to mechanism of BGP

    • RPSL doesn’t even begin to address the issues…

  • What do we want to be true?

  • What do we mean by “autonomy”

  • How much “expressive power” is really required?


References

References

  • [VGE1996, VGE2000] Persistent Route Oscillations in Inter-Domain Routing. Kannan Varadhan, Ramesh Govindan, and Deborah Estrin. Computer Networks, Jan. 2000. (Also USC Tech Report, Feb. 1996)

  • [GW1999] An Analysis of BGP Convergence Properties. Timothy G. Griffin, Gordon Wilfong. SIGCOMM 1999

  • [GSW1999] Policy Disputes in Path Vector Protocols. Timothy G. Griffin, F. Bruce Shepherd, Gordon Wilfong. ICNP 1999

  • [GW2001] A Safe Path Vector Protocol. Timothy G. Griffin, Gordon Wilfong. INFOCOM 2001

  • [GR2000] Stable Internet Routing without Global Coordination. Lixin Gao, Jennifer Rexford. SIGMETRICS 2000

  • [GGR2001] Inherently safe backup routing with BGP. Lixin Gao, Timothy G. Griffin, Jennifer Rexford. INFOCOM 2001

  • [GW2002a] On the Correctness of IBGP Configurations. Griffin and Wilfong.SIGCOMM 2002.

  • [GW2002b] An Analysis of the MED oscillation Problem. Griffin and Wilfong. ICNP 2002.


Pointers

Pointers

  • Interdomain routing links

    • http://www.cambridge.intel-research.net/~tgriffin/interdomain/

  • These slides

    • http://www.cambridge.intel-research.net/~tgriffin/talks_tutorials


  • Login
