  1. Network 구성도 한국케이블TV 충청방송 ㈜ 셀파인네트웍스

  2. 구성도 범례 전용회선 1Gbps 100Mbps Server Farm WEB Main DNS DHCP • 현재 하나로 IX_GIX 드림라인 IX_GIX 45Mbps 155Mbps c7204VXR_1 c7204VXR_2 Cat3550 DHCP Server CMTS Metro Network

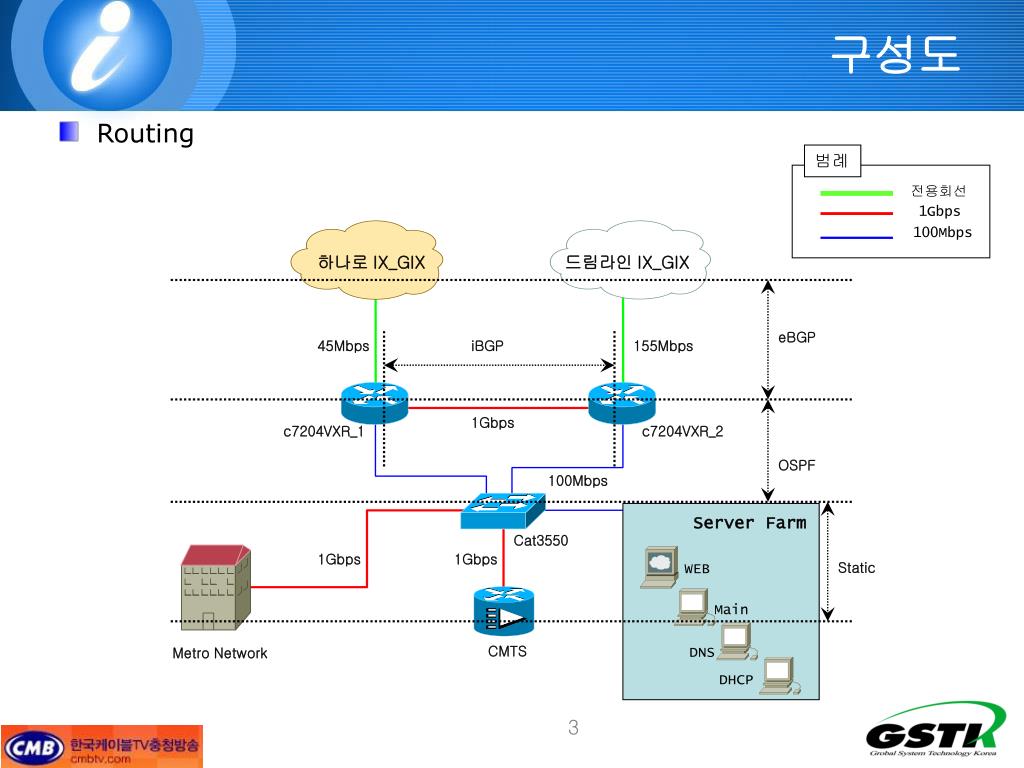

  3. 구성도 범례 전용회선 1Gbps 100Mbps Server Farm WEB Main DNS DHCP • Routing 하나로 IX_GIX 드림라인 IX_GIX eBGP 45Mbps iBGP 155Mbps 1Gbps c7204VXR_1 c7204VXR_2 OSPF 100Mbps Cat3550 1Gbps 1Gbps Static CMTS Metro Network

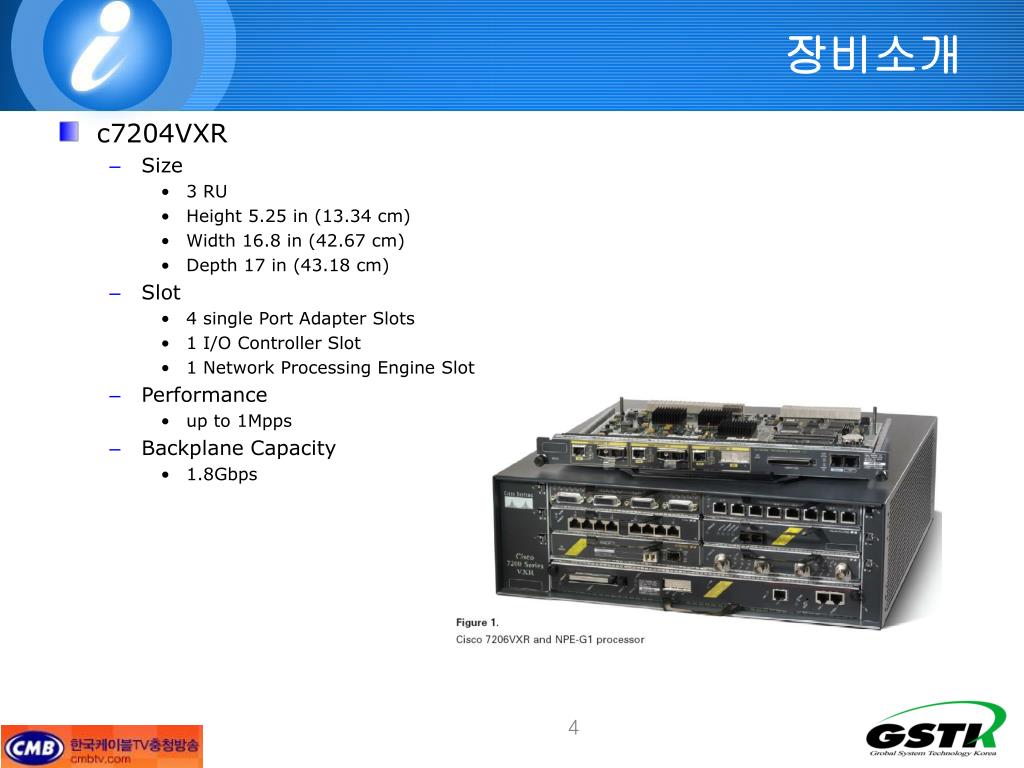

  4. 장비소개 • c7204VXR • Size • 3 RU • Height 5.25 in (13.34 cm) • Width 16.8 in (42.67 cm) • Depth 17 in (43.18 cm) • Slot • 4 single Port Adapter Slots • 1 I/O Controller Slot • 1 Network Processing Engine Slot • Performance • up to 1Mpps • Backplane Capacity • 1.8Gbps

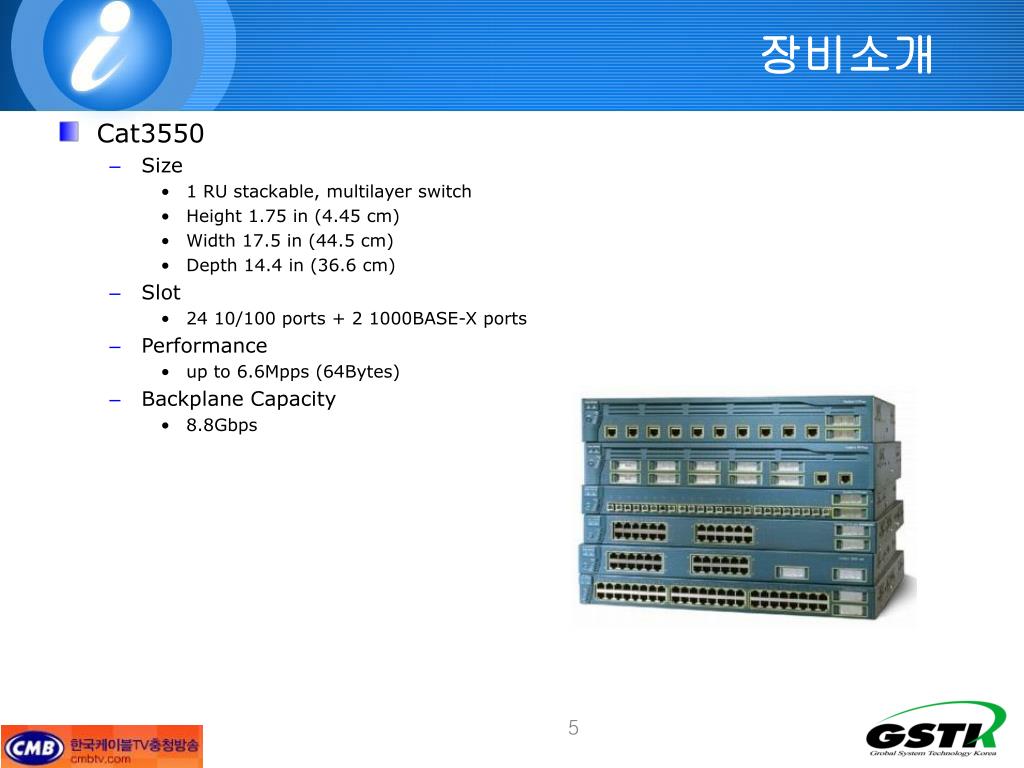

  5. 장비소개 • Cat3550 • Size • 1 RU stackable, multilayer switch • Height 1.75 in (4.45 cm) • Width 17.5 in (44.5 cm) • Depth 14.4 in (36.6 cm) • Slot • 24 10/100 ports + 2 1000BASE-X ports • Performance • up to 6.6Mpps (64Bytes) • Backplane Capacity • 8.8Gbps
