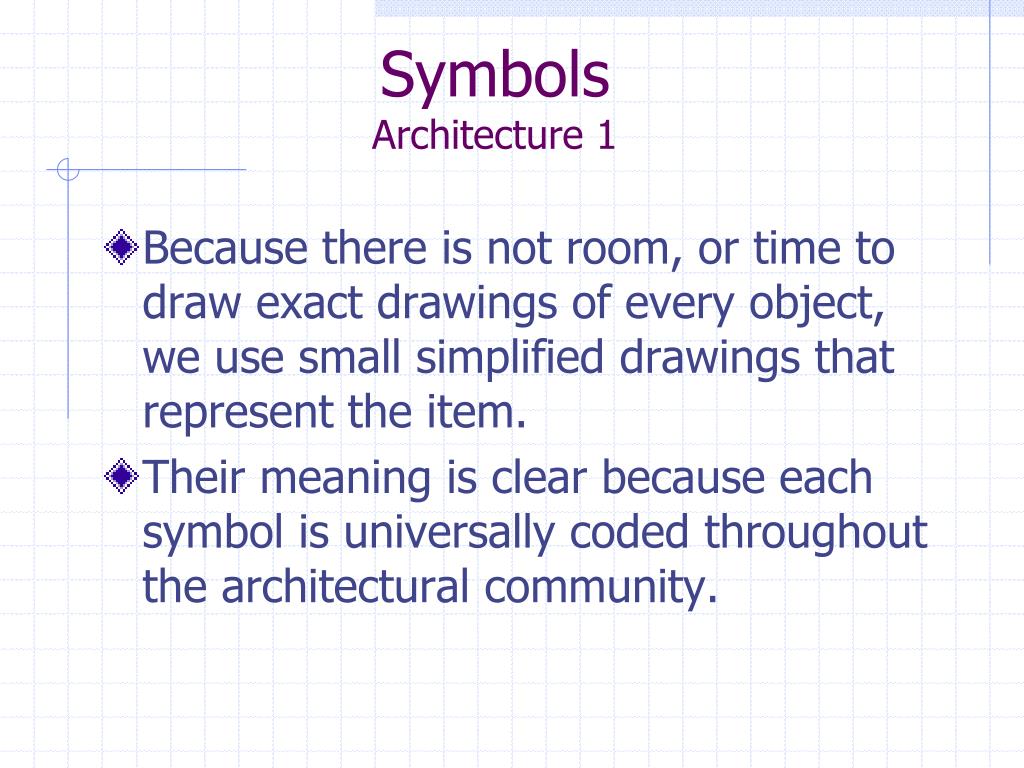

  1. Symbols Architecture 1 • Because there is not room, or time to draw exact drawings of every object, we use small simplified drawings that represent the item. • Their meaning is clear because each symbol is universally coded throughout the architectural community.

  2. Architectural Symbols • Double Sink • Refrigerator • Bath Tub

  3. Architectural Symbols • Side View of Toilet • Oven • Water Heater

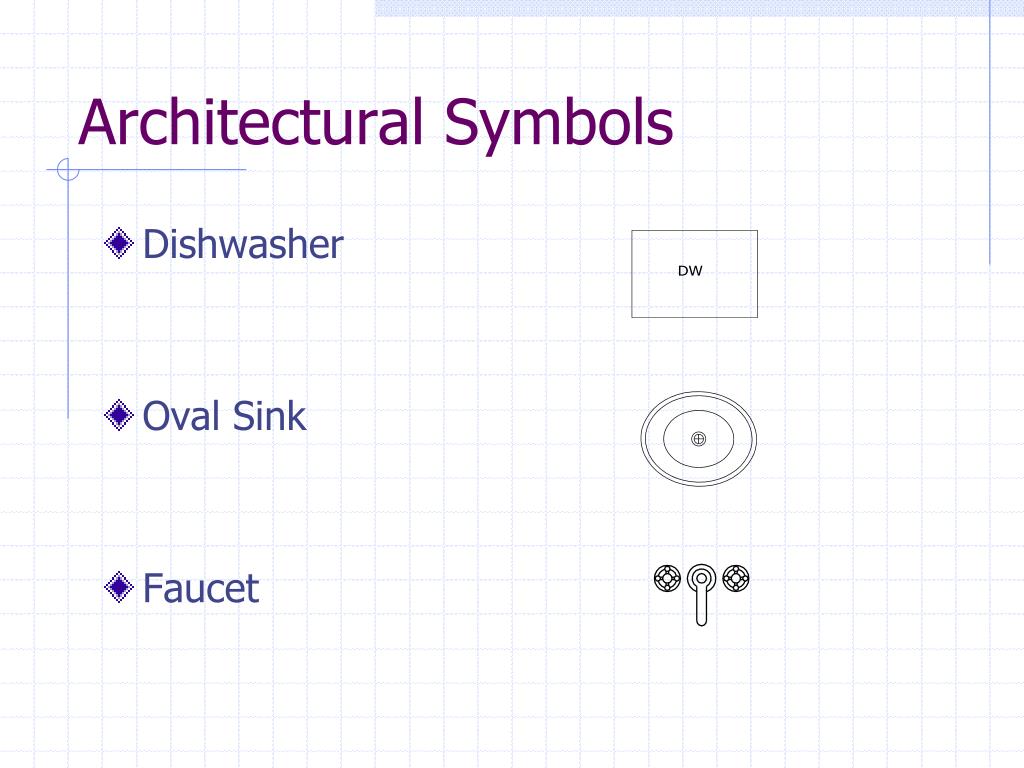

  4. Architectural Symbols • Dishwasher • Oval Sink • Faucet

  5. Symbols….cont. • 23: Meter • 20: Clock • 24: Wall Fixture • 21: 110v Outlet • 25: Floor Outlet • 22: 220v Outlet • 26: Fan Switch 8 26:

  6. Symbols…. cont. • Door • Gas Outlet • Prefab. Shower

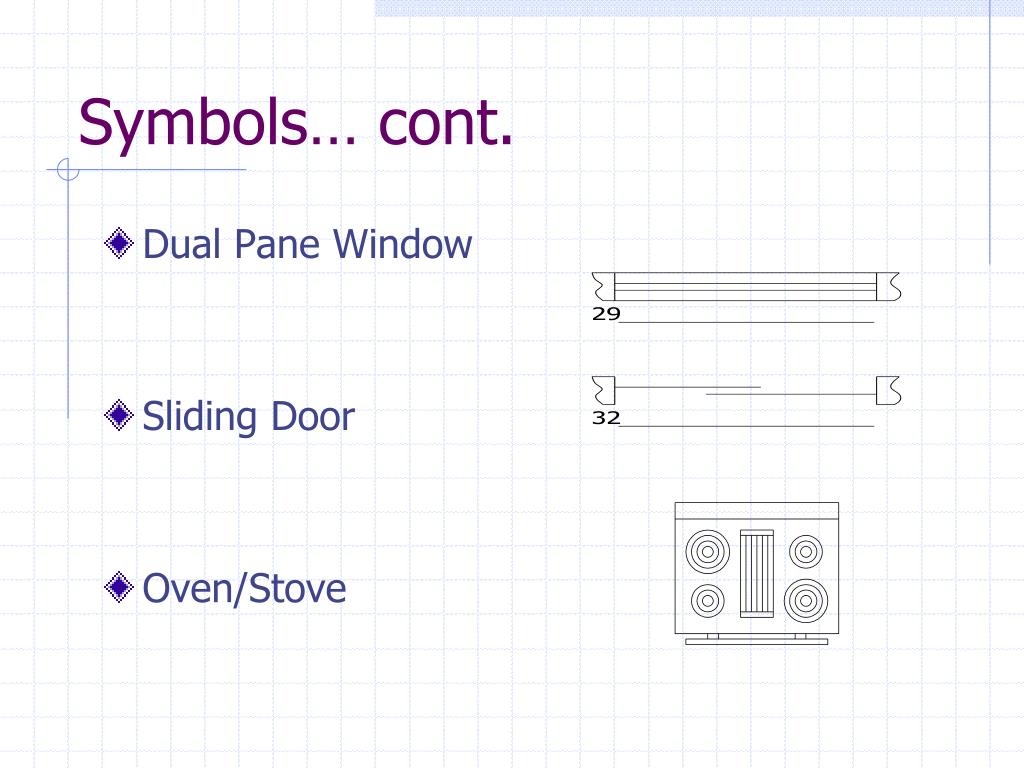

  7. Symbols… cont. • Dual Pane Window • Sliding Door • Oven/Stove

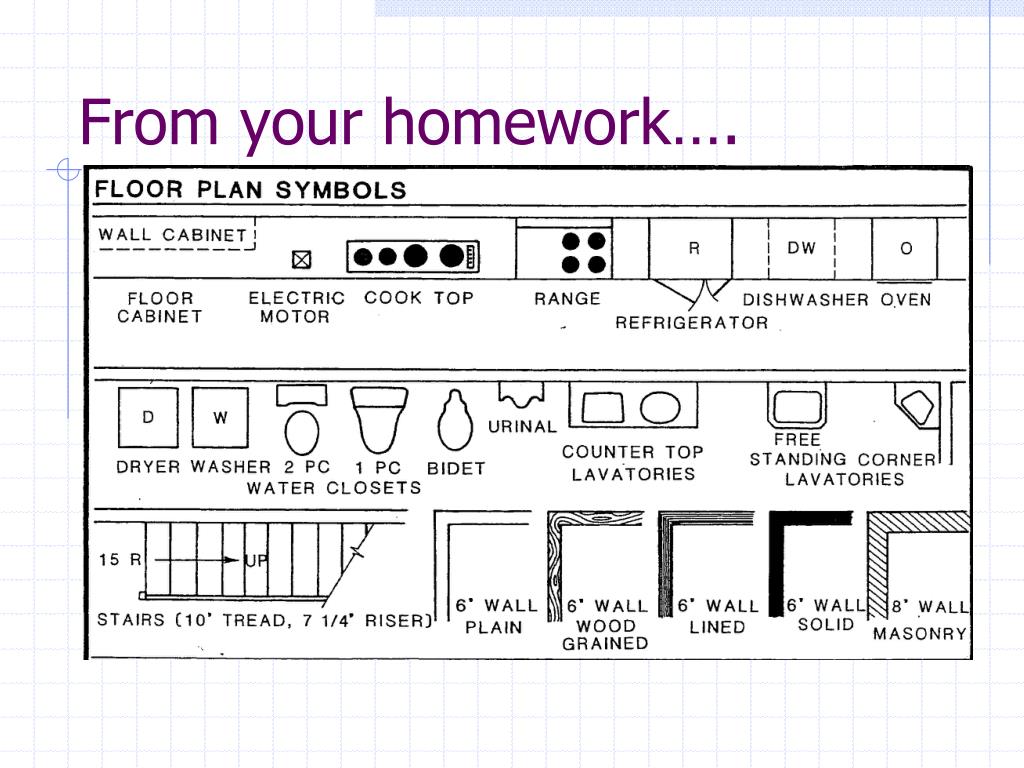

  8. From your homework….

  9. Homework Cont… • S Switch (2 Wire) • S3 Switch (3 Wire) • S4 Switch (4 wire) • S Low Voltage Switch

  10. Symbols in a different way. (With picture guide)Building Materials….

  11. More Symbols….

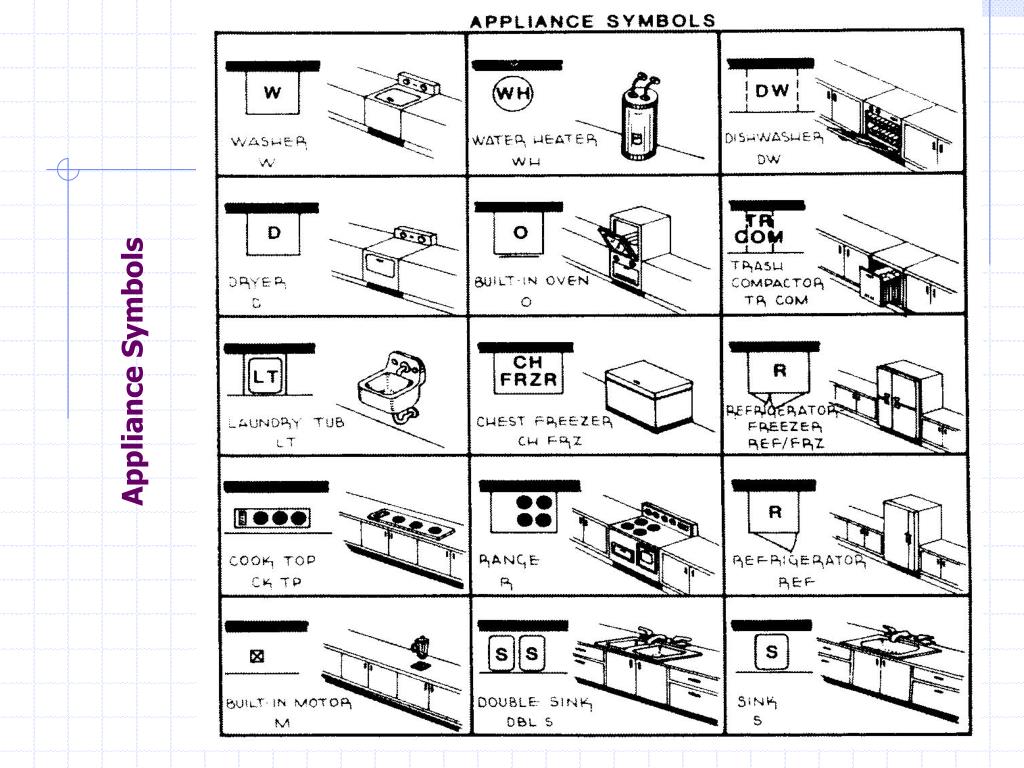

  12. Appliance Symbols

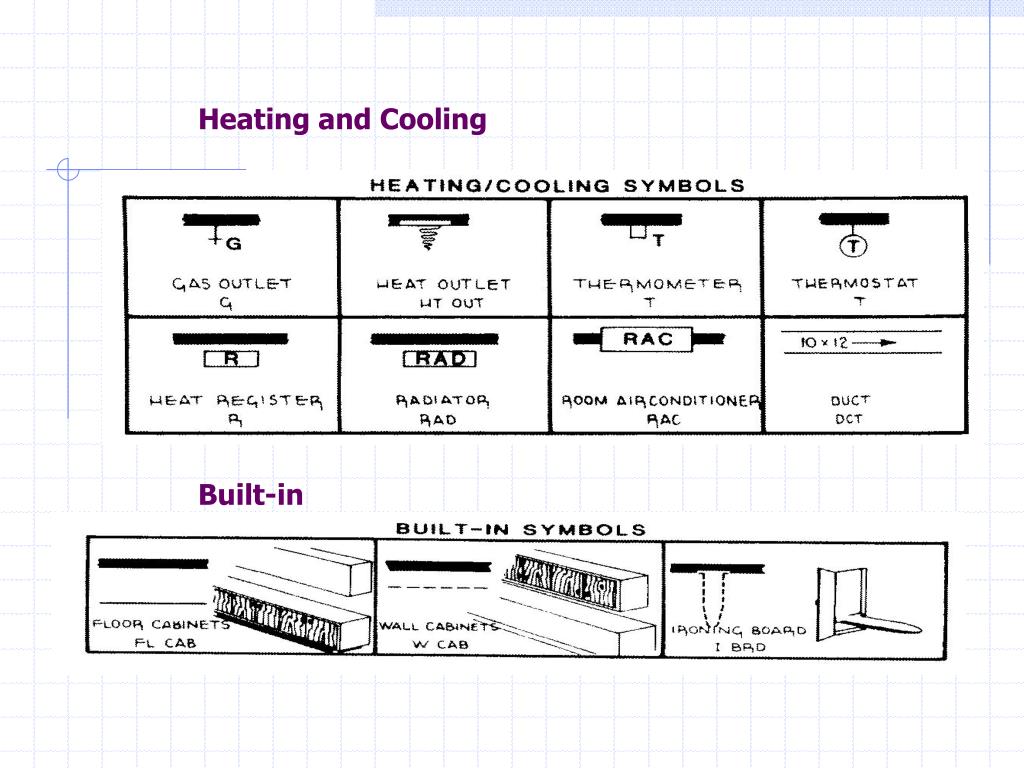

  13. Built-in Heating and Cooling

  14. Window Symbols

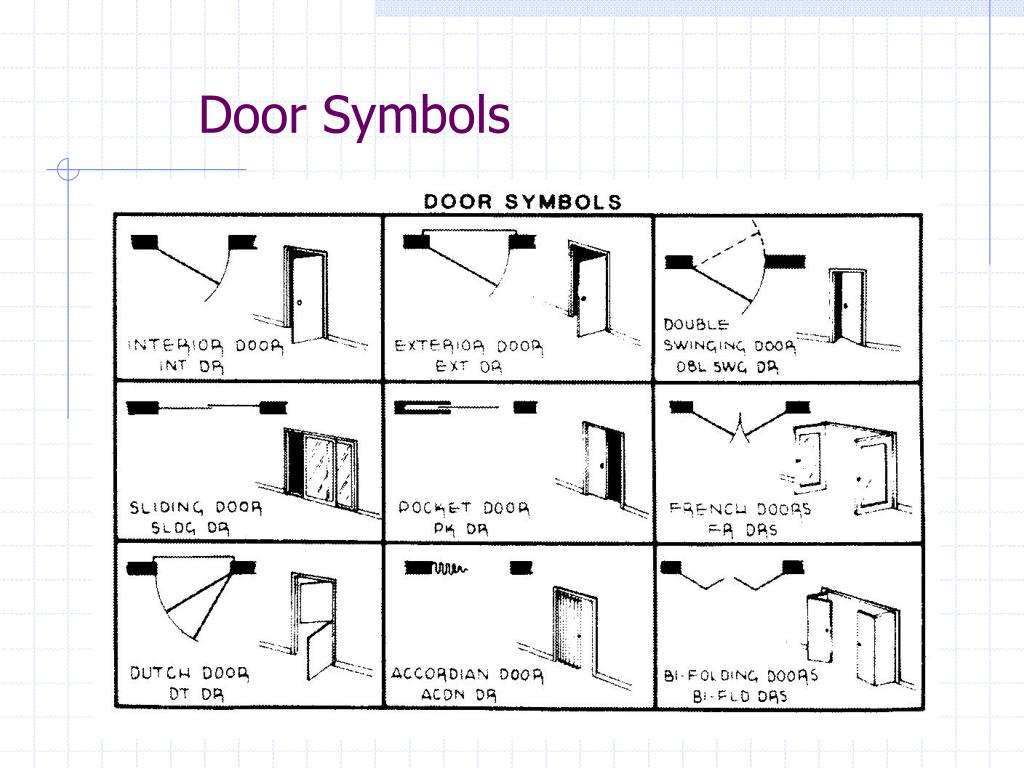

  15. Door Symbols

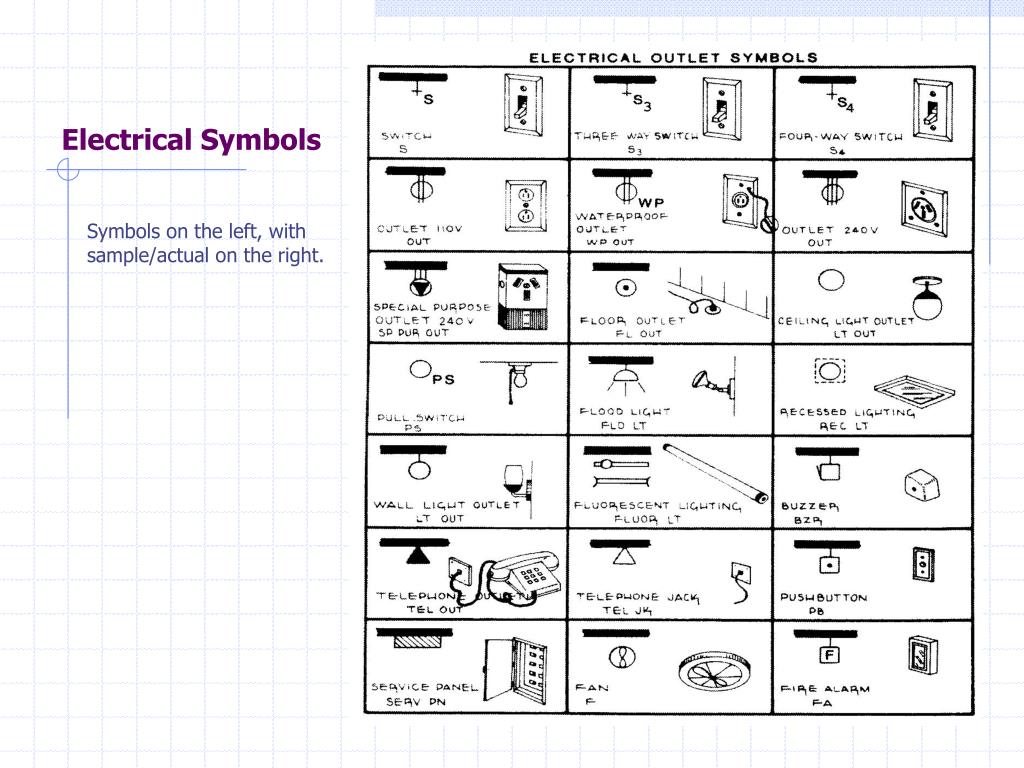

  16. Electrical Symbols Symbols on the left, with sample/actual on the right.

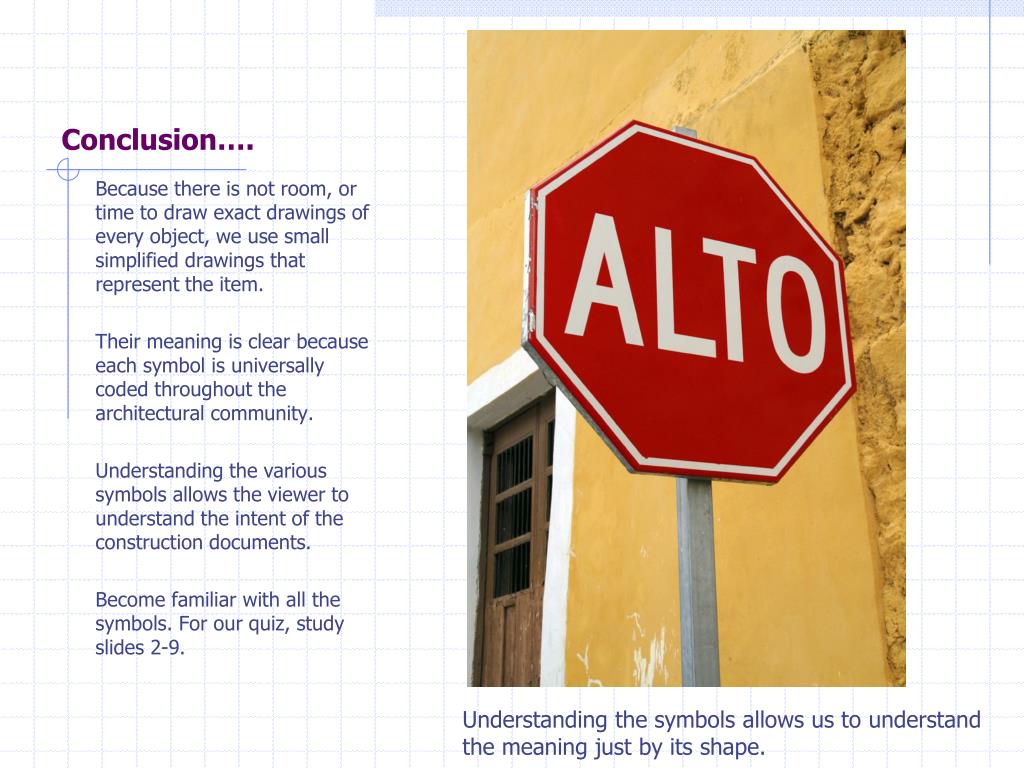

  17. Conclusion…. Because there is not room, or time to draw exact drawings of every object, we use small simplified drawings that represent the item. Their meaning is clear because each symbol is universally coded throughout the architectural community. Understanding the various symbols allows the viewer to understand the intent of the construction documents. Become familiar with all the symbols. For our quiz, study slides 2-9. Understanding the symbols allows us to understand the meaning just by its shape.
