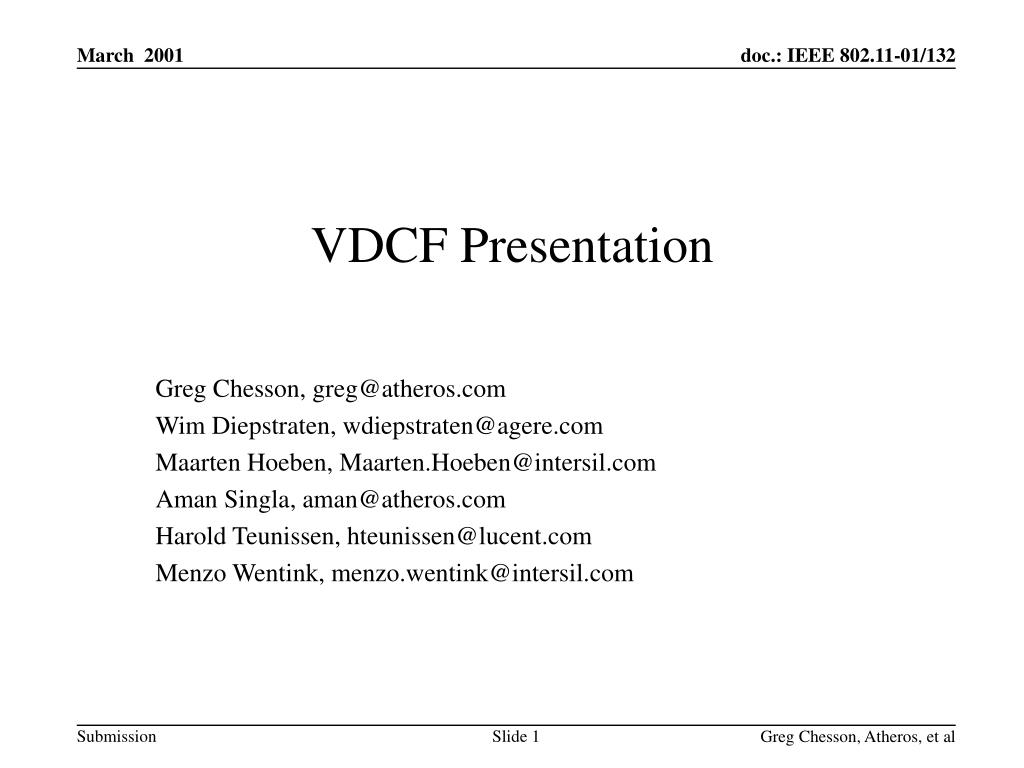

VDCF Presentation

Greg Chesson, [email protected]

Wim Diepstraten, [email protected]

Maarten Hoeben, [email protected]

Aman Singla, [email protected]

Harold Teunissen, [email protected]

Menzo Wentink, [email protected]

Greg Chesson, Atheros, et al


Vdcf overview

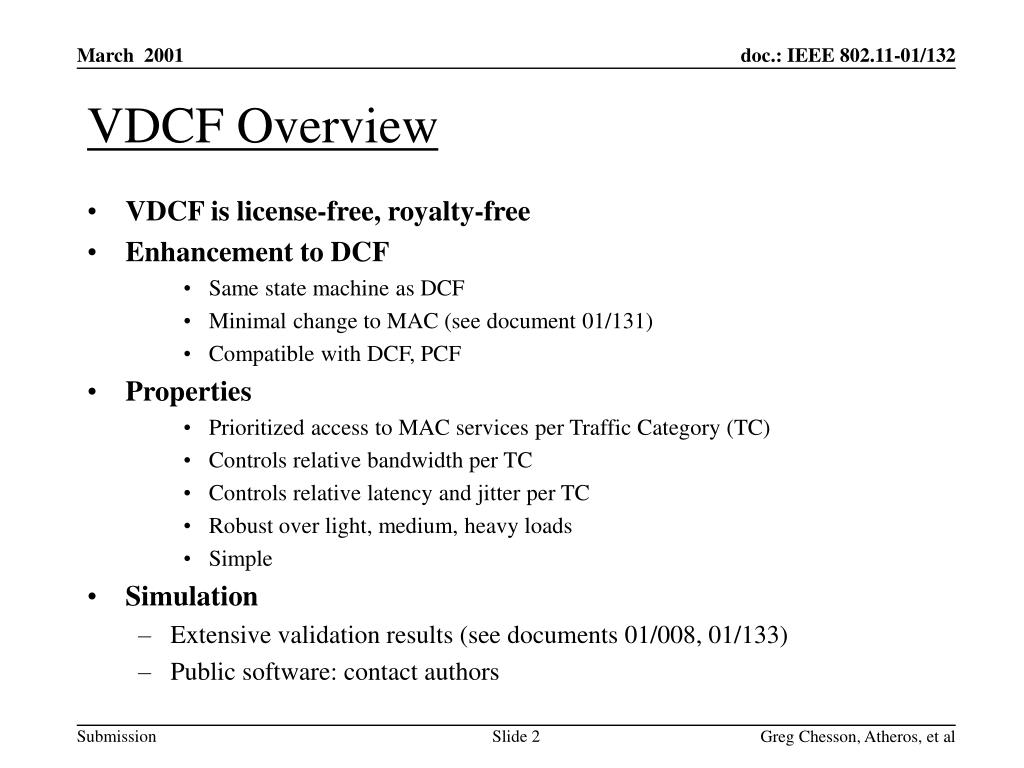

VDCF Overview

  • VDCF is license-free, royalty-free

  • Enhancement to DCF

    • Same state machine as DCF

    • Minimal change to MAC (see document 01/131)

    • Compatible with DCF, PCF

  • Properties

    • Prioritized access to MAC services per Traffic Category (TC)

    • Controls relative bandwidth per TC

    • Controls relative latency and jitter per TC

    • Robust over light, medium, heavy loads

    • Simple

  • Simulation

    • Extensive validation results (see documents 01/008, 01/133)

    • Public software: contact authors

  • Greg Chesson, Atheros, et al


    Vdcf origins

    VDCF Origins

    • Differentiated Service by traffic category rather than individual flows originates with the IETF Diffserv WG:

      • http://www.ietf.org/html.charters/diffserv-charter.html

  • DQoS proposed by Jan Kruys at San Diego ad hoc meeting in September 2000, captured in later IEEE submissions:

    • Distributed QoS Model for 802.11 (00/267), by Jan Kruys and Harold Teunissen

  • Virtualized DCFaccess method:

    • EnhanceD-QoS through Virtual DCF (00/351), by Maarten Hoeben and Menzo Wentink

    • Baseline D-QoS Proposal (00/399),by Chesson, Diepstraten, Kitchin, Teunissen, Wentink

  • Differentiated Inter-Frame Space, Contention Window, Retry Policy

    • DFWMAC (93/190), by Diepstraten, Ennis, Belanger

    • Priority in CSMA/CA to support distributed Time-Bounded Services (94/058), by Wim Diepstraten

  • Distributed vs Centralized Control

    • Review of Distributed Time Bounded Services (94/121), by Tim Phipps

  • Greg Chesson, Atheros, et al


    Vdcf components

    VDCF Components

    • Prioritized output queues (queue[i])

    • Legacy DCF finite state machine per queue (queue[i])

      • CWmin differentiated per TC (CWmin[i]), controllable by EAP

      • DIFS differentiated per TC (QIFS[i]), controllable by EAP

      • Queue state machines count backoff slots in parallel

      • Low-priority queues defer to higher-priority queues

    feedback

    Queue[i]

    DCF queue[i]

    CWmin[i]

    QIFS[i]

    PRI

    TRANSMIT

    Queue[k]

    DCF queue[k]

    CWmin[k]

    QIFS[k]

    Greg Chesson, Atheros, et al


    Two controls

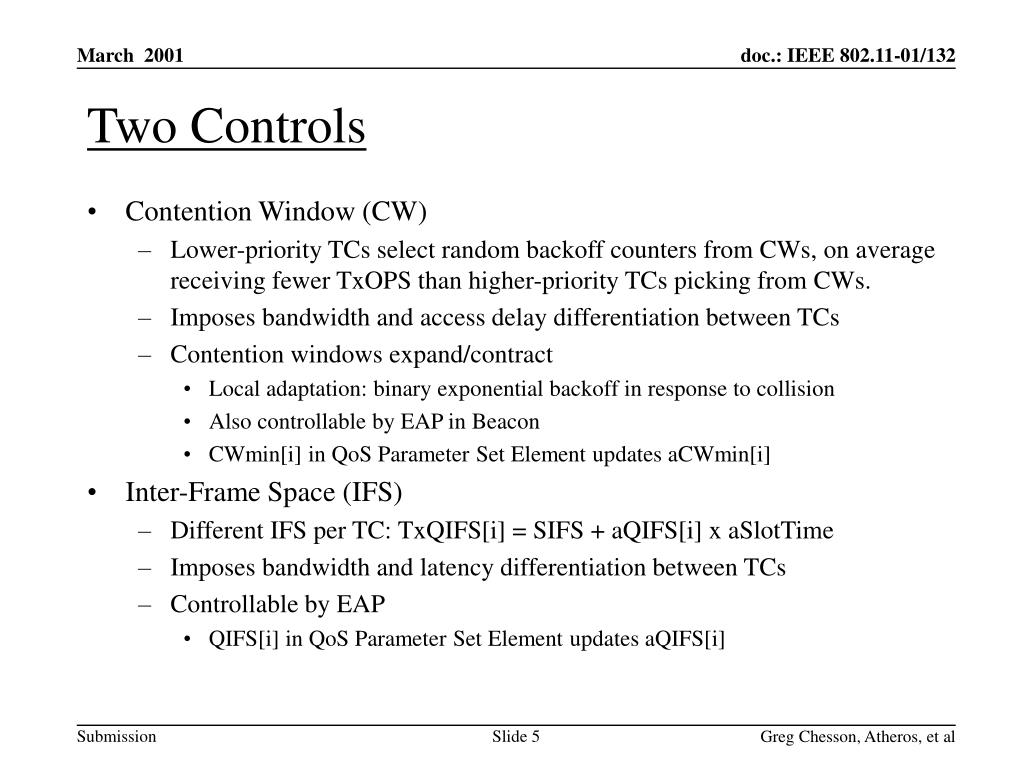

    Two Controls

    • Contention Window (CW)

      • Lower-priority TCs select random backoff counters from CWs, on average receiving fewer TxOPS than higher-priority TCs picking from CWs.

      • Imposes bandwidth and access delay differentiation between TCs

      • Contention windows expand/contract

        • Local adaptation: binary exponential backoff in response to collision

        • Also controllable by EAP in Beacon

        • CWmin[i] in QoS Parameter Set Element updates aCWmin[i]

    • Inter-Frame Space (IFS)

      • Different IFS per TC: TxQIFS[i] = SIFS + aQIFS[i] x aSlotTime

      • Imposes bandwidth and latency differentiation between TCs

      • Controllable by EAP

        • QIFS[i] in QoS Parameter Set Element updates aQIFS[i]

    Greg Chesson, Atheros, et al


    Why two controls

    Why two controls?

    • Both controls provide effective differentiation

      • CWmin

        • Affects TxOP probability, collision probability

        • average backoff delay

      • QIFS

        • Low-priority traffic defers to high-priority traffic

        • Slower backoff counting rate for lower-priority traffic

    • Complementary when used together

      • Use small values for QIFS: e.g. 0, 2, 5, 5

        • Large QIFS values can exclude traffic

      • Use smaller range of CWmins; e.g. 15, 15, 31, 63; or 15, 31, 31, 31

      • Achieve differentiation with better latency/jitter

    Greg Chesson, Atheros, et al

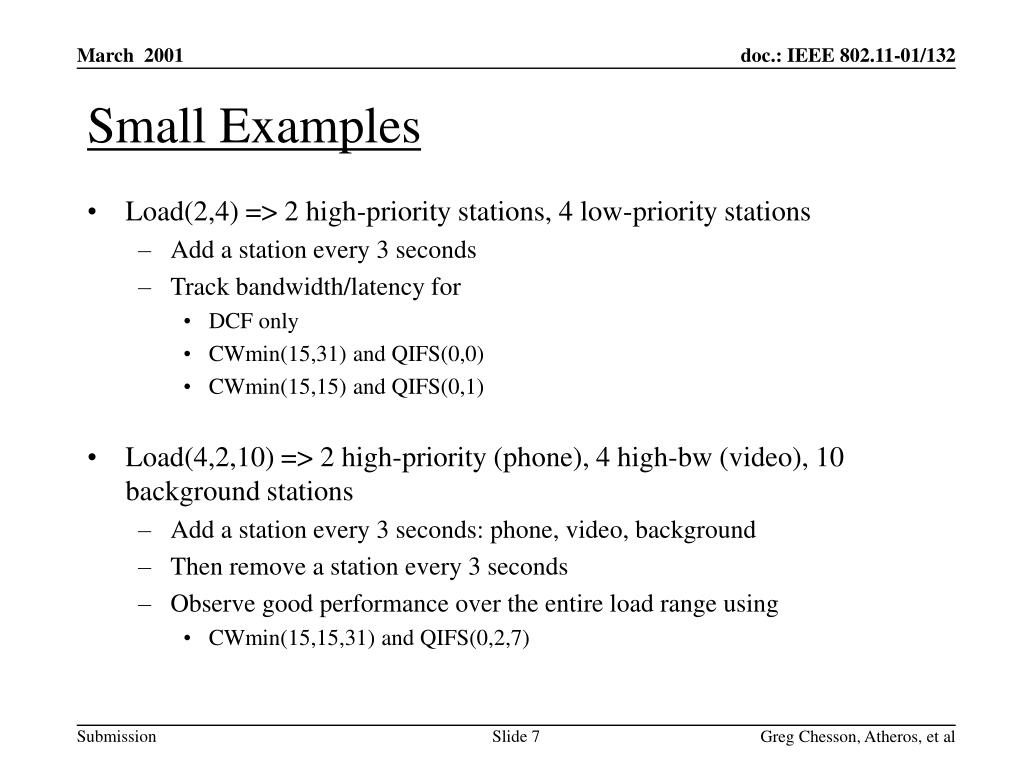

    Small examples

    Small Examples

    • Load(2,4) => 2 high-priority stations, 4 low-priority stations

      • Add a station every 3 seconds

      • Track bandwidth/latency for

        • DCF only

        • CWmin(15,31) and QIFS(0,0)

        • CWmin(15,15) and QIFS(0,1)

    • Load(4,2,10) => 2 high-priority (phone), 4 high-bw (video), 10 background stations

      • Add a station every 3 seconds: phone, video, background

      • Then remove a station every 3 seconds

      • Observe good performance over the entire load range using

        • CWmin(15,15,31) and QIFS(0,2,7)

    Greg Chesson, Atheros, et al

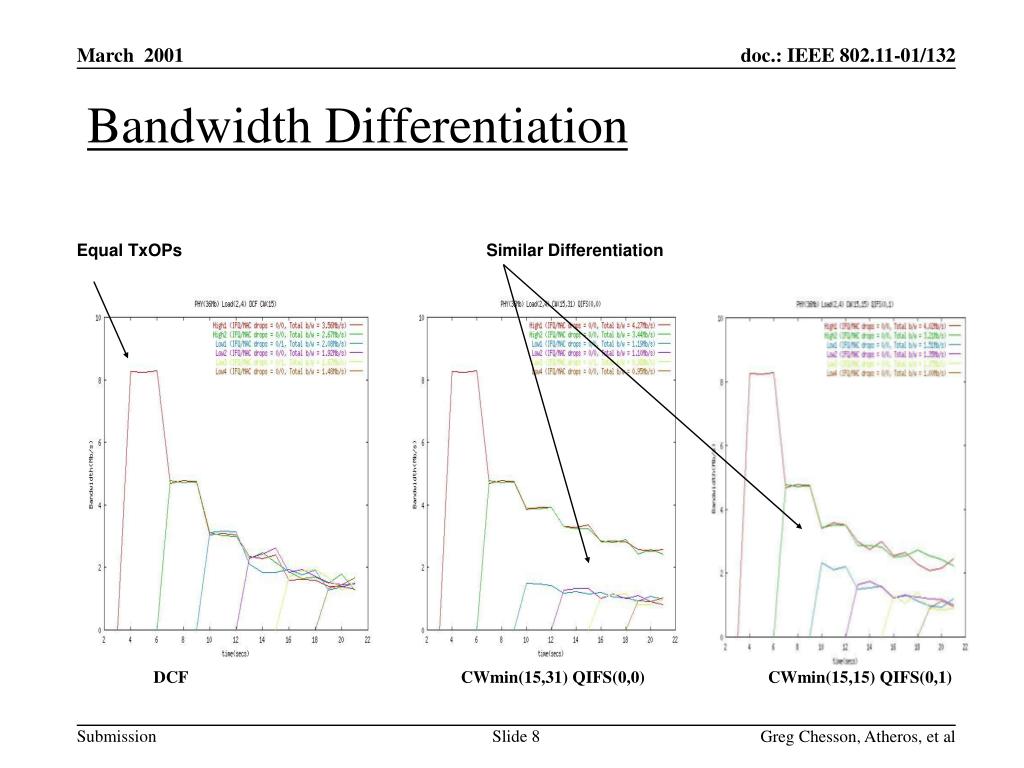

    Bandwidth differentiation

    Bandwidth Differentiation

    Equal TxOPsSimilar Differentiation

    DCFCWmin(15,31) QIFS(0,0)CWmin(15,15) QIFS(0,1)

    Greg Chesson, Atheros, et al

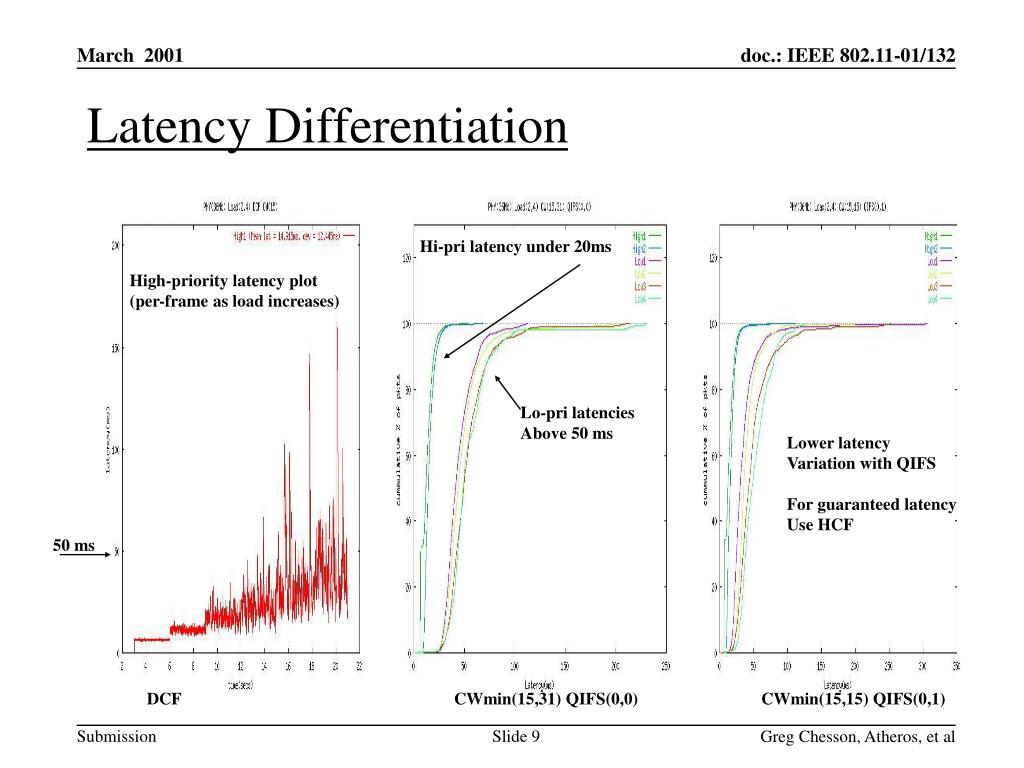

    Latency differentiation

    Latency Differentiation

    Hi-pri latency under 20ms

    High-priority latency plot

    (per-frame as load increases)

    Lo-pri latencies

    Above 50 ms

    Lower latency

    Variation with QIFS

    For guaranteed latency

    Use HCF

    50 ms

    DCFCWmin(15,31) QIFS(0,0)CWmin(15,15) QIFS(0,1)

    Greg Chesson, Atheros, et al

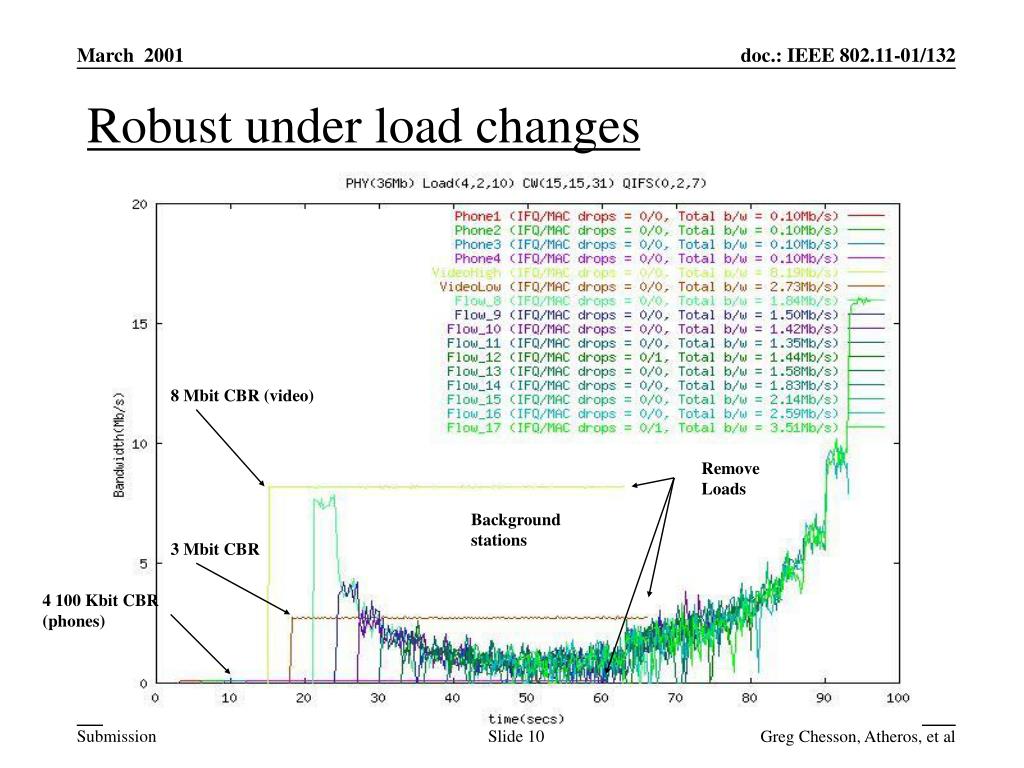

    Robust under load changes

    Robust under load changes

    8 Mbit CBR (video)

    Remove

    Loads

    Background

    stations

    3 Mbit CBR

    4 100 Kbit CBR

    (phones)

    Greg Chesson, Atheros, et al

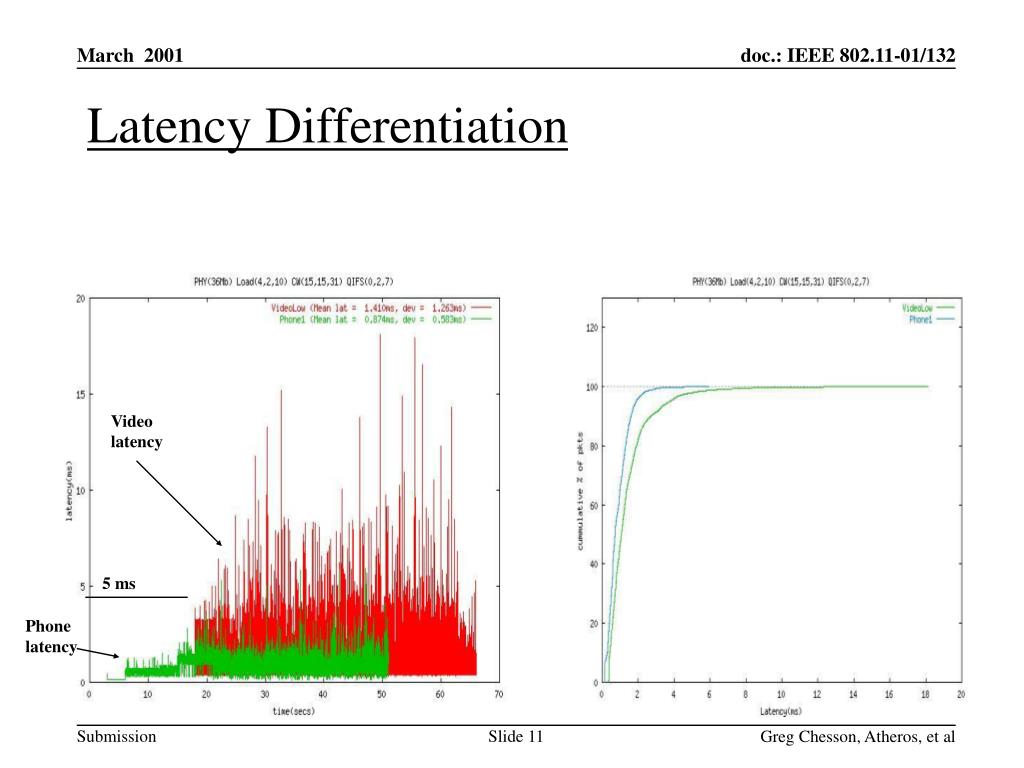

    Latency differentiation1

    Latency Differentiation

    Video

    latency

    5 ms

    Phone

    latency

    Greg Chesson, Atheros, et al


    Glad you asked that

    Glad you asked that

    Greg Chesson, Atheros, et al


    Dcf state machine

    DCF State Machine

    Queue Empty?

    Yes

    No

    Ready

    Yes

    CCA >= DIFS?

    IDLE

    TRANSMIT

    No

    Retry

    Retry Limit?

    Fail

    Abort

    Success

    BC=0

    BACKOFF

    Faithful rendering of Clause 9.

    Immediate access + post-backoff.

    See document 01/131 for greater detail.

    If (CCA>=DIFS) decrement BC

    Greg Chesson, Atheros, et al


    Vdcf state machine for queue i

    VDCF State Machine (for queue[i])

    Queue[i] Empty?

    Yes

    No

    Ready

    CCA >= QIFS[i]?

    Yes

    PRI OK?

    Yes

    IDLE

    TRANSMIT

    No

    No

    Retry

    Retry Limit[i]?

    Fail

    Abort

    Success

    VDCF adds priority test

    replaces DIFS by QIFS[i],

    Selects CW from [0,aCWmin[i]].

    BC[i]=0

    BACKOFF

    If (CCA>=QIFS[i] & !Transmit decrement BC[i]

    Greg Chesson, Atheros, et al


    Simulations

    Simulations

    • Simulations based on Berkeley NS2

      • Codes simulate full protocol stacks (ARP, UDP, TCP)

      • Expose protocol stack coupling through AP and other effects

    • See document 01/008

      • Demonstrates that priority queues in AP deliver effective QoS in many cases using only legacy DCF

      • Shows some effects of different retry policies

      • Shows application of CWmin[i]

      • Shows effectiveness of PIFS access as it might be used by HCF in the presence of a heavy DCF overload

    • See document 01/133

      • Catalog of scenarios with various CWmin[], QIFS[] settings

      • Incomplete exploration of full parameter space

      • Demonstrates utility of the controls

      • Provides starting point for determining default IBSS parameter settings

    Greg Chesson, Atheros, et al


    Vdcf design choices

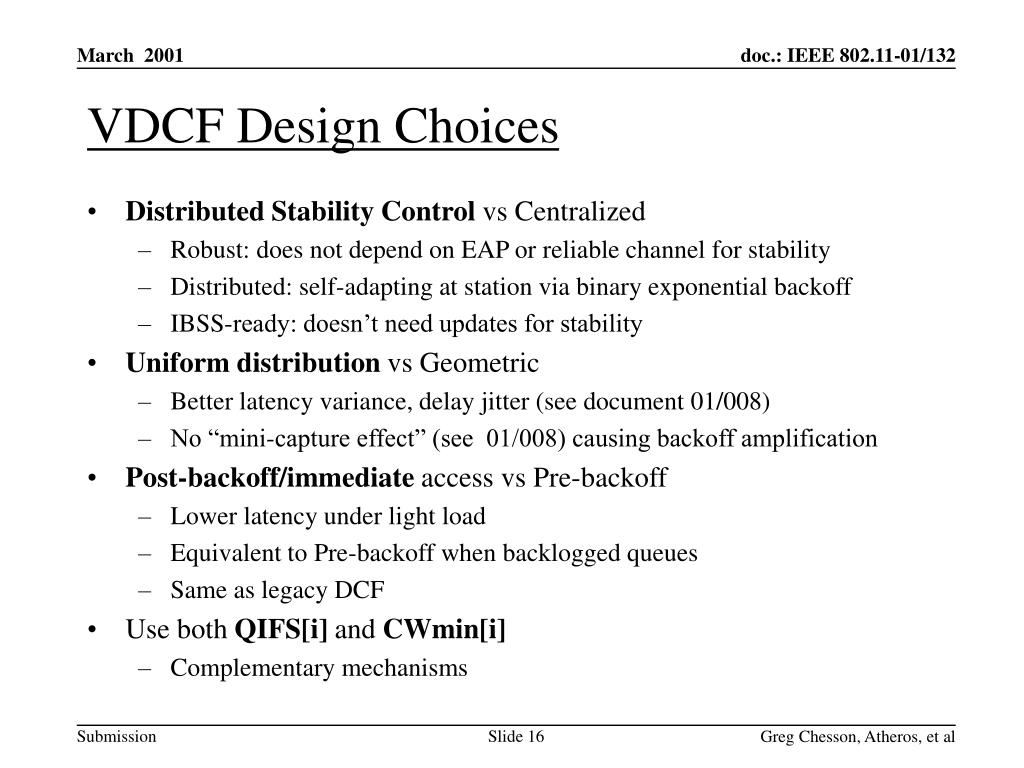

    VDCF Design Choices

    • Distributed Stability Control vs Centralized

      • Robust: does not depend on EAP or reliable channel for stability

      • Distributed: self-adapting at station via binary exponential backoff

      • IBSS-ready: doesn’t need updates for stability

    • Uniform distribution vs Geometric

      • Better latency variance, delay jitter (see document 01/008)

      • No “mini-capture effect” (see 01/008) causing backoff amplification

    • Post-backoff/immediate access vs Pre-backoff

      • Lower latency under light load

      • Equivalent to Pre-backoff when backlogged queues

      • Same as legacy DCF

    • Use both QIFS[i] and CWmin[i]

      • Complementary mechanisms

    Greg Chesson, Atheros, et al

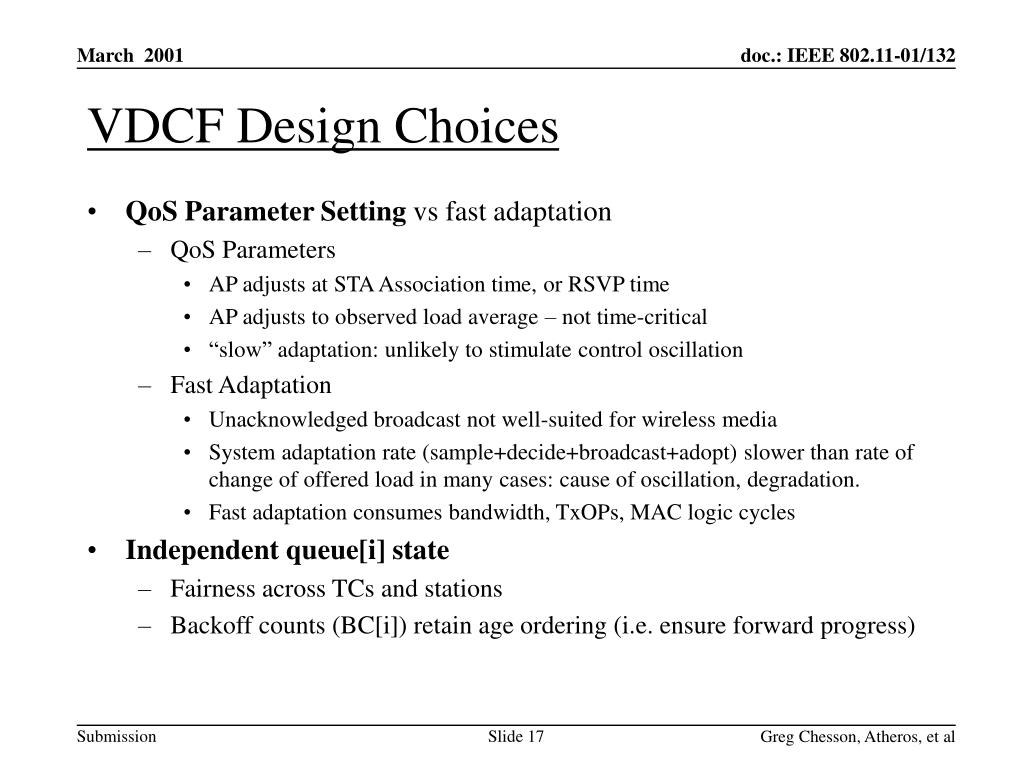

    Vdcf design choices1

    VDCF Design Choices

    • QoS Parameter Setting vs fast adaptation

      • QoS Parameters

        • AP adjusts at STA Association time, or RSVP time

        • AP adjusts to observed load average – not time-critical

        • “slow” adaptation: unlikely to stimulate control oscillation

      • Fast Adaptation

        • Unacknowledged broadcast not well-suited for wireless media

        • System adaptation rate (sample+decide+broadcast+adopt) slower than rate of change of offered load in many cases: cause of oscillation, degradation.

        • Fast adaptation consumes bandwidth, TxOPs, MAC logic cycles

    • Independent queue[i] state

      • Fairness across TCs and stations

      • Backoff counts (BC[i]) retain age ordering (i.e. ensure forward progress)

    Greg Chesson, Atheros, et al


    Implementation factors

    Implementation Factors

    • Retain power-of-2 CWmin intervals

      • Simple arithmetic, no division/mod ops needed

      • Simple random number generation

    • Random number generation rate

      • Once per TxOP per queue

    • Must recognize QoS-DATA and (TBD) TCID tags

      • Otherwise no new frame exchange sequences

    • One new information element to process: QoS Parameter Set

      • Appears in Beacon and Probe Response

      • Adjusts CWmin[] and QIFS[] values

    • Sequence numbers

      • No change at sender, can assign sequence number at TxOP

      • Receive cache must include TC, i.e. triples instead of tuples.

    Greg Chesson, Atheros, et al

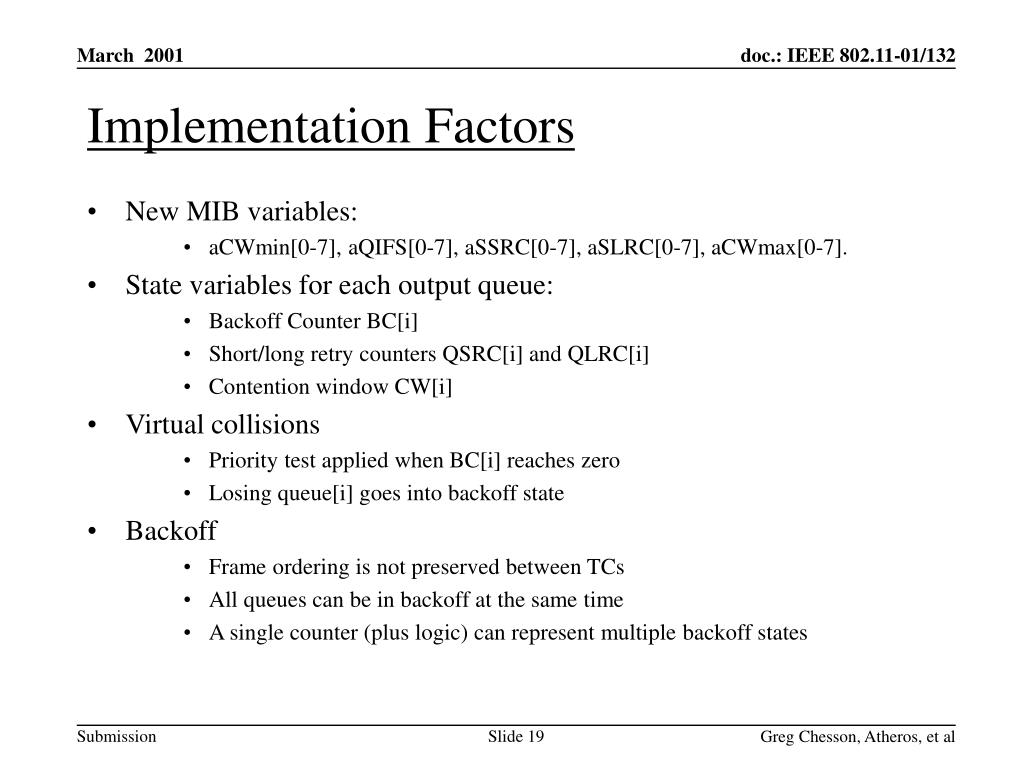

    Implementation factors1

    Implementation Factors

    • New MIB variables:

      • aCWmin[0-7], aQIFS[0-7], aSSRC[0-7], aSLRC[0-7], aCWmax[0-7].

  • State variables for each output queue:

    • Backoff Counter BC[i]

    • Short/long retry counters QSRC[i] and QLRC[i]

    • Contention window CW[i]

  • Virtual collisions

    • Priority test applied when BC[i] reaches zero

    • Losing queue[i] goes into backoff state

  • Backoff

    • Frame ordering is not preserved between TCs

    • All queues can be in backoff at the same time

    • A single counter (plus logic) can represent multiple backoff states

  • Greg Chesson, Atheros, et al


    Summary

    Summary

    • Simple

      • minimal control mechanism

    • Safe

      • builds on proven MAC

    • Differentiated Service

      • bandwidth differentiation

      • latency differentiation and mitigation

    • Robust

      • self-adaptive, but also controllable

      • differentiates over changing loads

    Greg Chesson, Atheros, et al

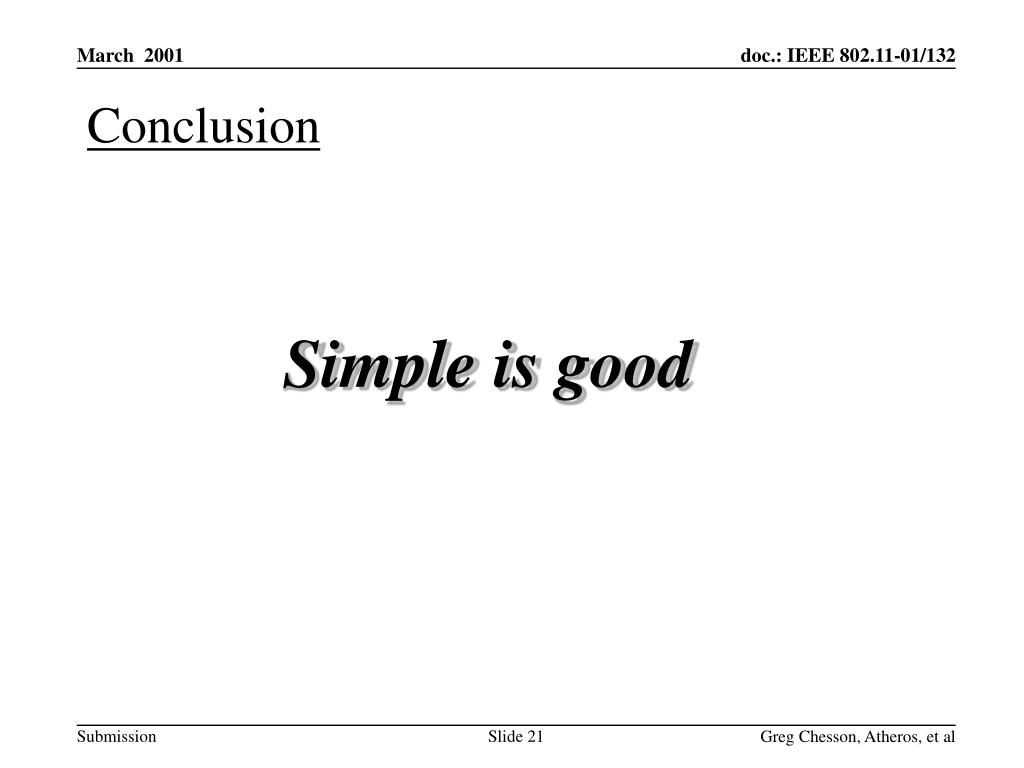

    Conclusion

    Conclusion

    Simple is good

    Greg Chesson, Atheros, et al
