Ibm flex system alan lin i t specialist system x systems and technology group ibm corporation

IBM FlexSystem介紹Alan LinI/T SpecialistSystem x, Systems and Technology GroupIBM Corporation


We started with a clean sheet of paper

Built-in Expertise

  • Expert integrated systems

Integration by Design

Simplified Experience

  • Deeply integrate and tune hardware and software – in a secure, built for cloud, ready-to-go, workload optimized system

  • Make every part of the IT lifecycle easier - with integrated management and a broad open ecosystem of optimized solutions

  • Capture and automate what experts do – from infrastructure patterns to application patterns

We started with a clean sheet of paper…

  • Hardware management “built-in” – nothing to install

  • Make advanced virtualization more consumable (lower the skills required to operate a highly virtualized system)

  • Deliver platform pre-configured and optimized for virtualization (storage virtualization and network virtualization built-in)

  • New, dramatically simpler application deployment models

  • But yet, maintain full compatibility with current workloads


We took a different approach

We took a different approach…

New class of Integrated System:

  • No-compromise hardware, with latest Power, x86, advanced storage and networking and choice of I/O.

  • Full-function management node, which integrates IBM management technology for servers, storage, network and virtualization management

  • Factory installed, fully packaged solutions drive simple setup (pull it out of the box, plug it in and boot it up)

  • Single product streamlines ordering, tracking, receiving, installing and running

To create an integrated system, we discovered that we first had to better integrate ourselves…


Ibm flex system

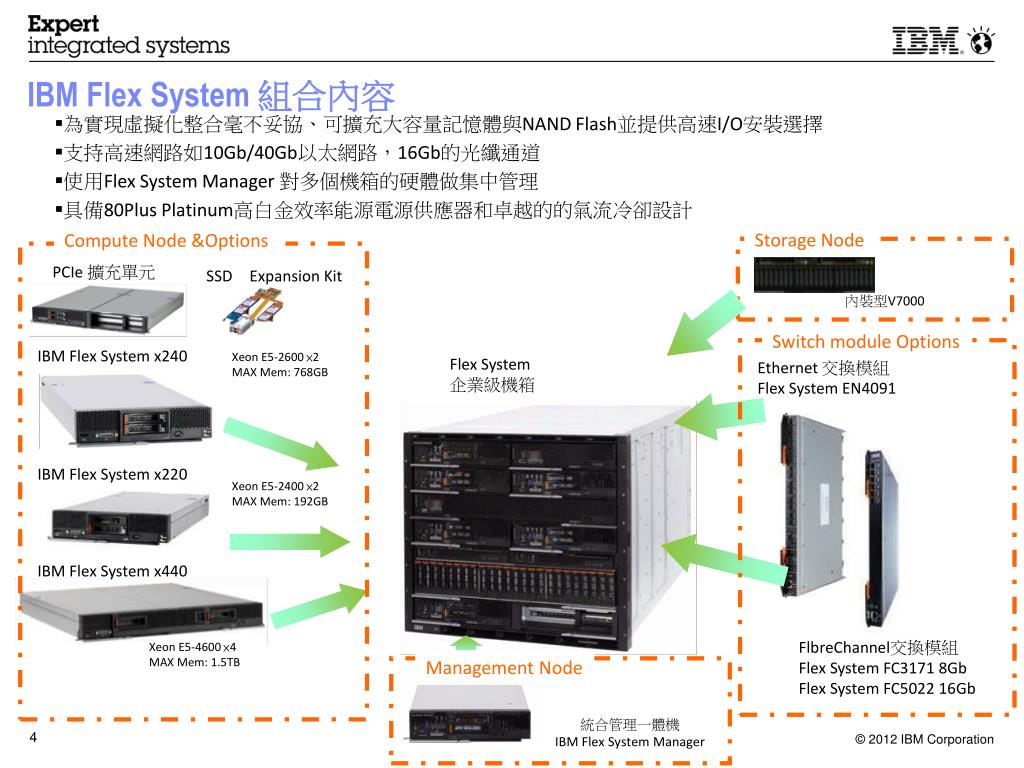

IBM Flex System組合內容

  • 為實現虛擬化整合毫不妥協、可擴充大容量記憶體與NAND Flash並提供高速I/O安裝選擇

  • 支持高速網路如10Gb/40Gb以太網路,16Gb的光纖通道

  • 使用FlexSystem Manager 對多個機箱的硬體做集中管理

  • 具備80Plus Platinum高白金效率能源電源供應器和卓越的的氣流冷卻設計

Storage Node

Compute Node &Options

PCIe 擴充單元

SSDExpansion Kit

內裝型V7000

Switch module Options

IBM Flex System x240

Xeon E5-2600 ×2

MAX Mem: 768GB

Flex System

企業級機箱

Ethernet交換模組

Flex System EN4091

IBM Flex System x220

Xeon E5-2400 ×2

MAX Mem: 192GB

IBM Flex System x440

FlbreChannel交換模組

Flex System FC3171 8Gb

Flex System FC5022 16Gb

Xeon E5-4600 ×4

MAX Mem: 1.5TB

Management Node

統合管理一體機

IBM Flex System Manager


Chassis midplane front

Chassis Midplane Front

Management Connectors

Passive Midplane – No Active Components

Single Power Plane – Supports N+N and N+1 Power

Mezzanine Cards Connectors

Compute Node Power Connectors


Chassis rear midplane

Chassis Rear Midplane

Switch Connectors

Power Supply Connectors

CMM Connectors

Switch Power Connector

Personality Card Connector

Fan Power and Signal


Chassis cooling fan power supply population order

Chassis Cooling Fan & Power Supply population order

Front

Rear

Power Supplies: N+N Redundant


Chassis cooling fan power supply population order1

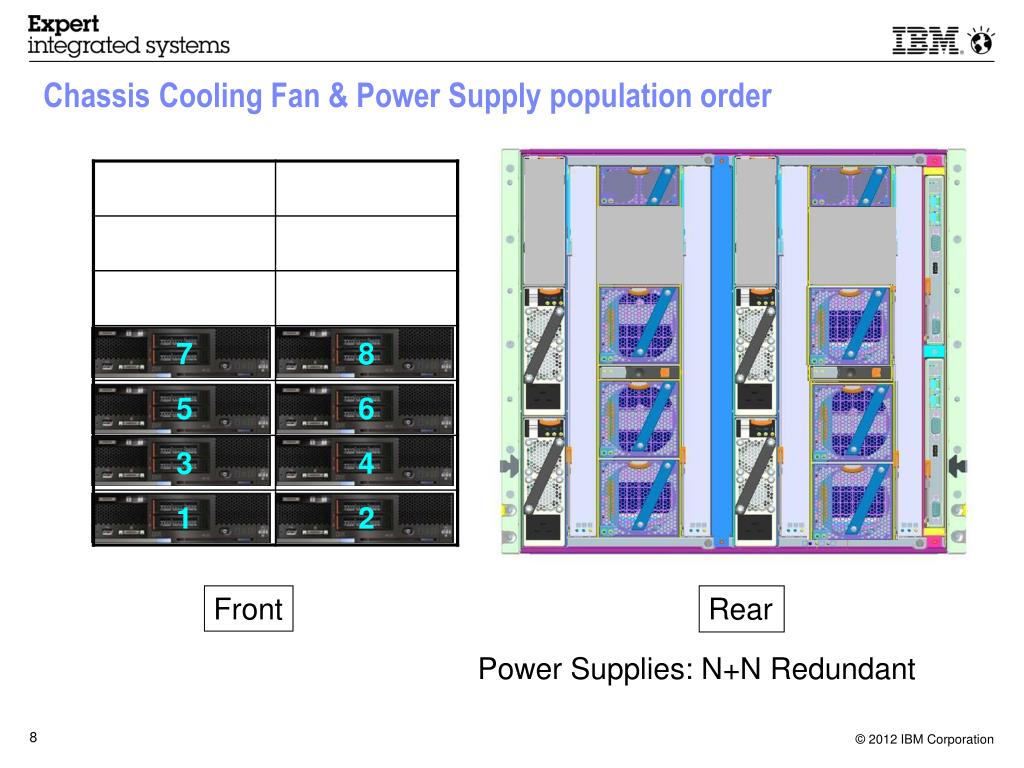

Chassis Cooling Fan & Power Supply population order

Front

Rear

Power Supplies: N+N Redundant


Chassis cooling fan power supply population order2

Chassis Cooling Fan & Power Supply population order

Front

Rear

Power Supplies: N+N Redundant


Flex system x220 x240 x440

Flex System x220/x240/x440 規格比較


Ibm flex system alan lin i t specialist system x systems and technology group ibm corporation

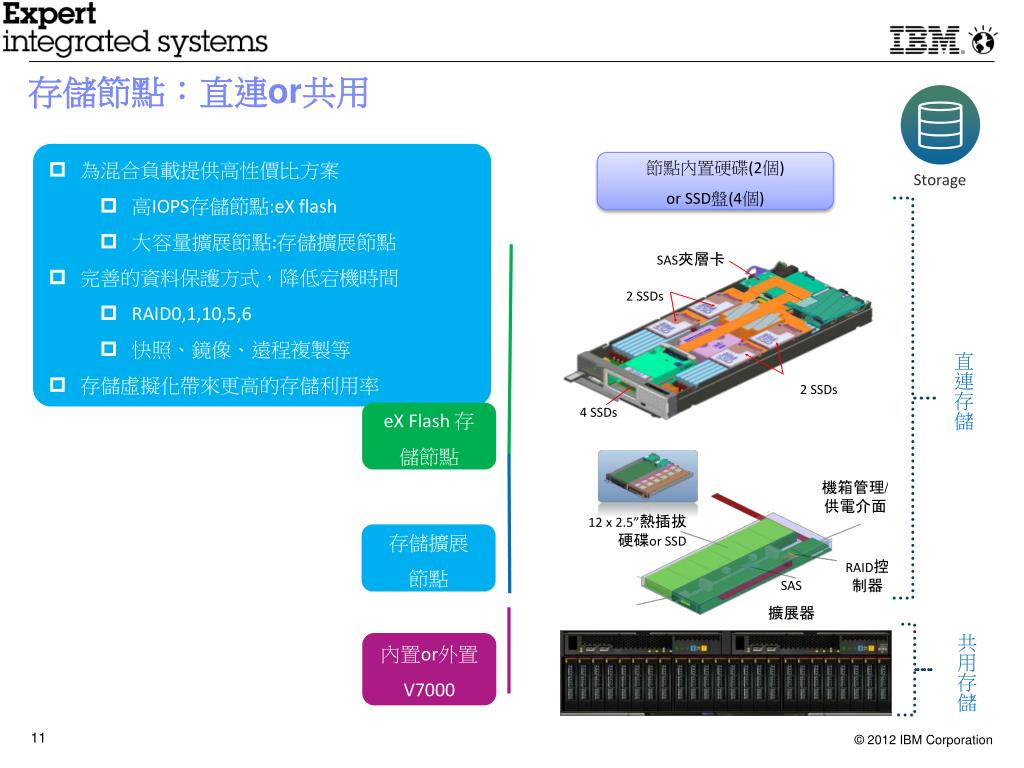

存儲節點:直連or共用

  • 為混合負載提供高性價比方案

    • 高IOPS存儲節點:eX flash

    • 大容量擴展節點:存儲擴展節點

  • 完善的資料保護方式,降低宕機時間

    • RAID0,1,10,5,6

    • 快照、鏡像、遠程複製等

  • 存儲虛擬化帶來更高的存儲利用率

節點內置硬碟(2個)

or SSD盤(4個)

Storage

SAS夾層卡

直連存儲

機箱管理/供電介面

2 SSDs

eX Flash 存儲節點

12 x 2.5”熱插拔 硬碟or SSD

RAID控制器

存儲擴展

節點

SAS

擴展器

2 SSDs

共用存儲

內置or外置V7000

4 SSDs


Ibm flex system alan lin i t specialist system x systems and technology group ibm corporation

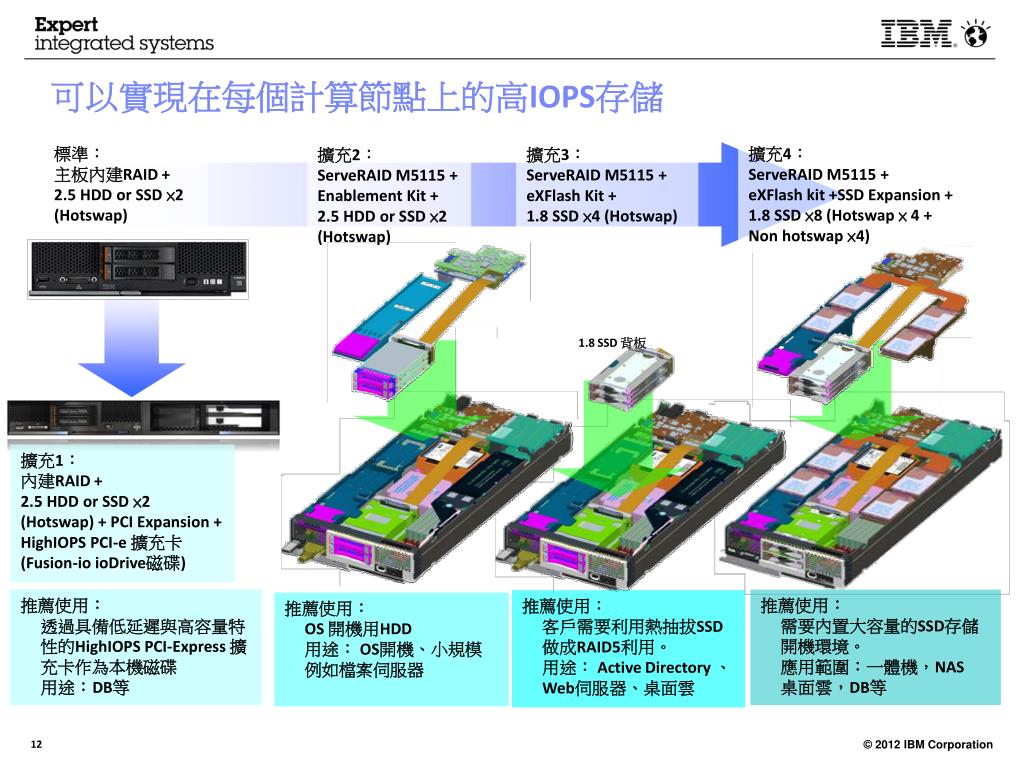

可以實現在每個計算節點上的高IOPS存儲

標準:

主板內建RAID +

2.5 HDD or SSD ×2

(Hotswap)

擴充4:

ServeRAID M5115 +

eXFlash kit +SSD Expansion +

1.8 SSD ×8 (Hotswap × 4 +

Non hotswap ×4)

擴充3:

ServeRAID M5115 +

eXFlash Kit +

1.8 SSD ×4 (Hotswap)

擴充2:

ServeRAID M5115 +

Enablement Kit +

2.5 HDD or SSD ×2

(Hotswap)

1.8 SSD 背板

擴充1:

內建RAID +

2.5 HDD or SSD ×2

(Hotswap) + PCI Expansion +

HighIOPS PCI-e 擴充卡

(Fusion-io ioDrive磁碟)

  • 推薦使用:

    • 透過具備低延遲與高容量特性的HighIOPS PCI-Express 擴充卡作為本機磁碟

    • 用途:DB等

  • 推薦使用:

    • 需要內置大容量的SSD存儲開機環境。應用範圍:一體機,NAS桌面雲,DB等

  • 推薦使用:

    • 客戶需要利用熱抽拔SSD做成RAID5利用。

    • 用途: Active Directory 、Web伺服器、桌面雲

  • 推薦使用:

    • OS開機用HDD

    • 用途: OS開機、小規模

    • 例如檔案伺服器

12


Ibm flex system storage expansion node sen detail

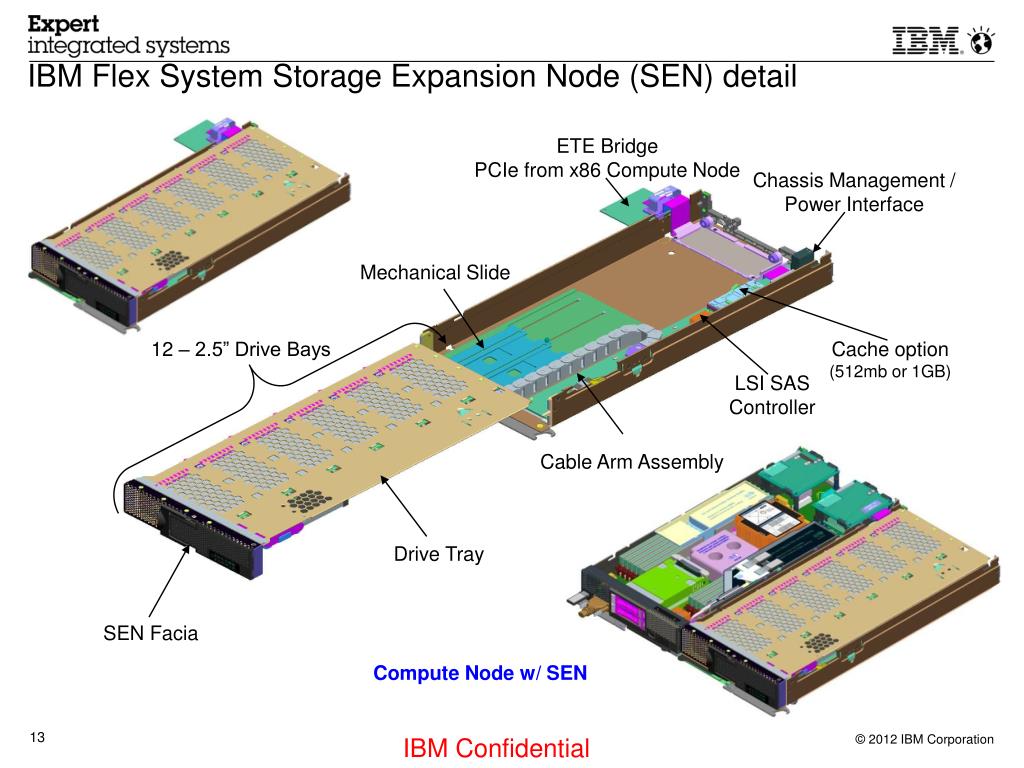

IBM Flex System Storage Expansion Node (SEN) detail

ETE Bridge

PCIe from x86 Compute Node

Chassis Management /

Power Interface

Mechanical Slide

12 – 2.5” Drive Bays

Cache option

(512mb or 1GB)

LSI SAS

Controller

Cable Arm Assembly

Cable Arm Assembly

Drive Tray

SEN Facia

Compute Node w/ SEN

IBM Confidential


Ibm flex system alan lin i t specialist system x systems and technology group ibm corporation

Let us explain importance of I/O Adapter types & Switch FoD...

Bay 14

Bay 2

(empty)

(empty)

(empty)

(empty)

Switch Bay 1

(empty)

Switch Bay 2

(empty)

Switch Bay 3

(empty)

Switch Bay 4

(empty)


Ibm flex system alan lin i t specialist system x systems and technology group ibm corporation

“LoM-less” x86 node types and Power node types

“What ... No Adapters?”

Note: x86 node types include models with LoM and models without LoM (as per diagram), whilst Power nodes only come without any LoM

No LoM or I/O Adaptermeans no connectivity!

Compute Node POWER

Bay 14

Compute Node x86

Bay 2

(empty)

(empty)

(empty)

(empty)

Switch Bay 1

(empty)

Switch Bay 2

(empty)

Switch Bay 3

(empty)

Switch Bay 4

(empty)


Ibm flex system alan lin i t specialist system x systems and technology group ibm corporation

Feature-on-Demand (FoD) 10Gb Ethernet Switch example (1 of 4)

Compute Node POWER

Bay 14

Compute Node x86

Bay 2

Note: 4-port Adapter only has 2 ports enabled because Ethernet switch only has Base partition activatedi.e. 1 port active to each node bay

4-port 10Gb

Adapter

(empty)

2-port 10Gb

LoM

(empty)

Base

10

14

EN4093 10Gb

(Base)

EN4093 10Gb

(Base)

Switch Bay 3

(empty)

Switch Bay 4

(empty)


Ibm flex system alan lin i t specialist system x systems and technology group ibm corporation

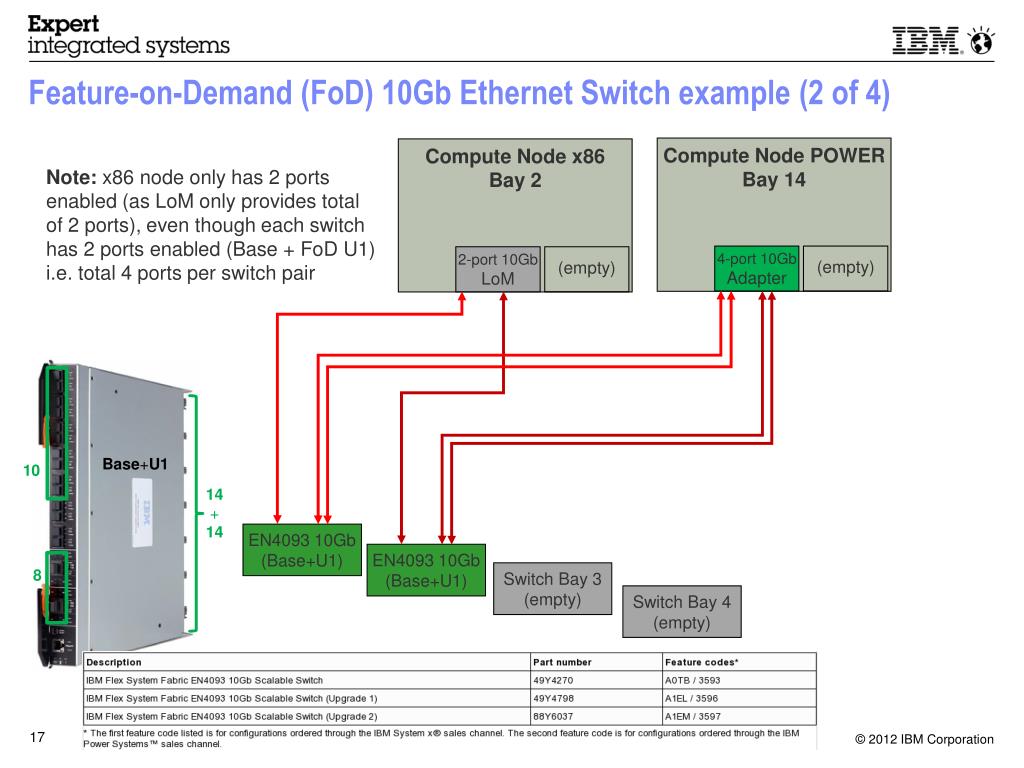

Feature-on-Demand (FoD) 10Gb Ethernet Switch example (2 of 4)

Compute Node POWER

Bay 14

Compute Node x86

Bay 2

Note: x86 node only has 2 ports enabled (as LoM only provides total of 2 ports), even though each switch has 2 ports enabled (Base + FoD U1) i.e. total 4 ports per switch pair

4-port 10Gb

Adapter

(empty)

2-port 10Gb

LoM

(empty)

Base+U1

10

14

+

14

EN4093 10Gb

(Base+U1)

EN4093 10Gb

(Base+U1)

Switch Bay 3(empty)

Switch Bay 4

(empty)

8


Ibm flex system alan lin i t specialist system x systems and technology group ibm corporation

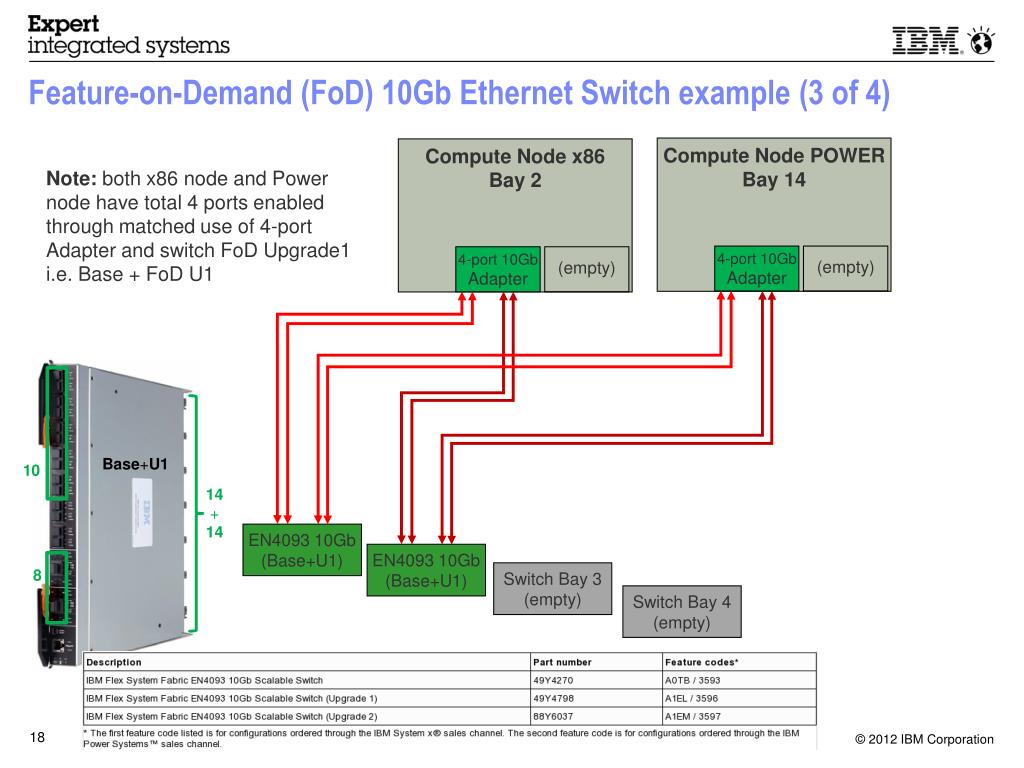

Feature-on-Demand (FoD) 10Gb Ethernet Switch example (3 of 4)

Compute Node POWER

Bay 14

Compute Node x86

Bay 2

Note: both x86 node and Power node have total 4 ports enabled through matched use of 4-port Adapter and switch FoD Upgrade1i.e. Base + FoD U1

4-port 10Gb

Adapter

(empty)

4-port 10Gb

Adapter

(empty)

Base+U1

10

14

+

14

EN4093 10Gb

(Base+U1)

EN4093 10Gb

(Base+U1)

Switch Bay 3

(empty)

Switch Bay 4

(empty)

8


Ibm flex system alan lin i t specialist system x systems and technology group ibm corporation

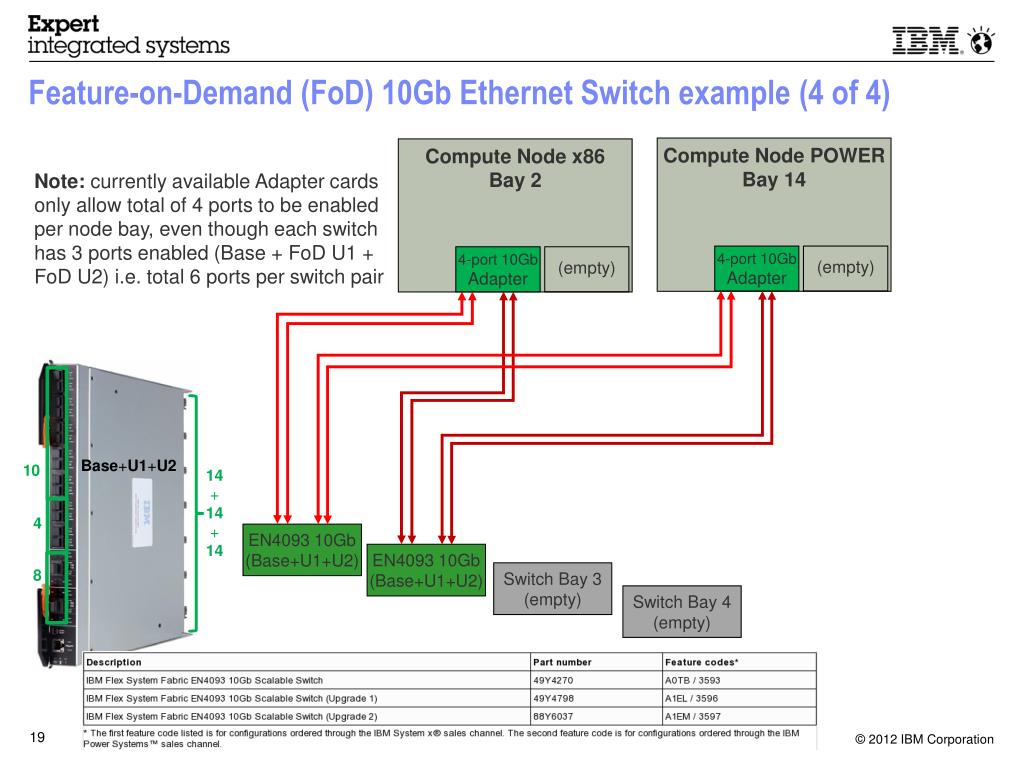

Feature-on-Demand (FoD) 10Gb Ethernet Switch example (4 of 4)

Compute Node POWER

Bay 14

Compute Node x86

Bay 2

Note: currently available Adapter cards only allow total of 4 ports to be enabled per node bay, even though each switch has 3 ports enabled (Base + FoD U1 + FoD U2) i.e. total 6 ports per switch pair

4-port 10Gb

Adapter

(empty)

4-port 10Gb

Adapter

(empty)

14

+

14

+

14

Base+U1+U2

10

EN4093 10Gb

(Base+U1+U2)

4

EN4093 10Gb

(Base+U1+U2)

Switch Bay 3

(empty)

Switch Bay 4

(empty)

8


Flex system network module naming structure

Flex System Network Module Naming Structure

  • EN = Fabric Type (EN=Ethernet, FC=Fibre Channel/SAN, CN=Converged, etc)

  • 3rd digit = series, 4000 series for 10Gb Ethernet, 2000 series for 1Gb, 5000 series for 16Gb FC, etc

  • 4th & 5th digit = First alphabet of vendor name mapping to a digit. IBM ->I = 09, Brocade->B=02, etc.

  • 6th digit = Number of partitions (for switch) or Number of ports (for adapters)

Examples:

IBM Flex System Fabric EN4093 10Gb Ethernet Scalable Switch

IBM Flex System FC5022 16Gb SAN Scalable Switch

IBM Flex System CN4054 4-port 10Gb Virtual Fabric Adapter


4q11 flex system networking launch executive summary

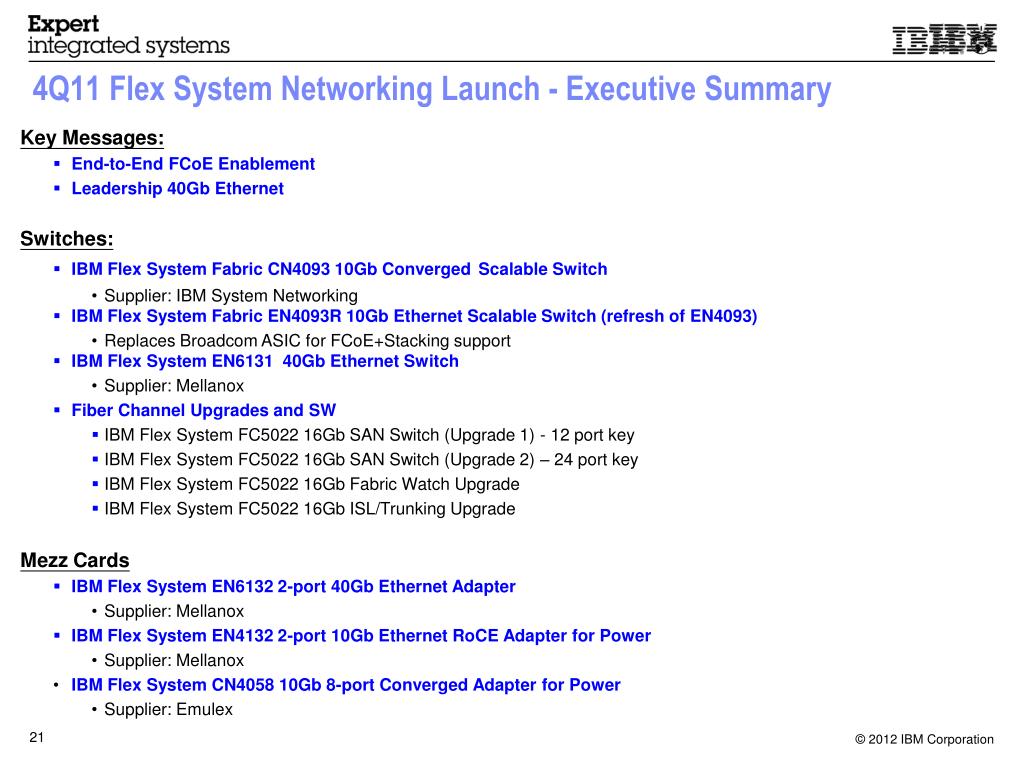

4Q11 Flex System Networking Launch - Executive Summary

Key Messages:

  • End-to-End FCoE Enablement

  • Leadership 40Gb Ethernet

Switches:

  • IBM Flex System Fabric CN4093 10Gb ConvergedScalable Switch

    • Supplier: IBM System Networking

  • IBM Flex System Fabric EN4093R 10Gb Ethernet Scalable Switch (refresh of EN4093)

    • Replaces Broadcom ASIC for FCoE+Stacking support

  • IBM Flex System EN6131 40Gb Ethernet Switch

    • Supplier: Mellanox

  • Fiber Channel Upgrades and SW

    • IBM Flex System FC5022 16Gb SAN Switch (Upgrade 1) - 12 port key

    • IBM Flex System FC5022 16Gb SAN Switch (Upgrade 2) – 24 port key

    • IBM Flex System FC5022 16Gb Fabric Watch Upgrade

    • IBM Flex System FC5022 16Gb ISL/Trunking Upgrade

      Mezz Cards

  • IBM Flex System EN6132 2-port 40Gb Ethernet Adapter

    • Supplier: Mellanox

  • IBM Flex System EN4132 2-port 10Gb Ethernet RoCE Adapter for Power

    • Supplier: Mellanox

  • IBM Flex System CN4058 10Gb 8-port Converged Adapter for Power

    • Supplier: Emulex


Ibm flex system alan lin i t specialist system x systems and technology group ibm corporation

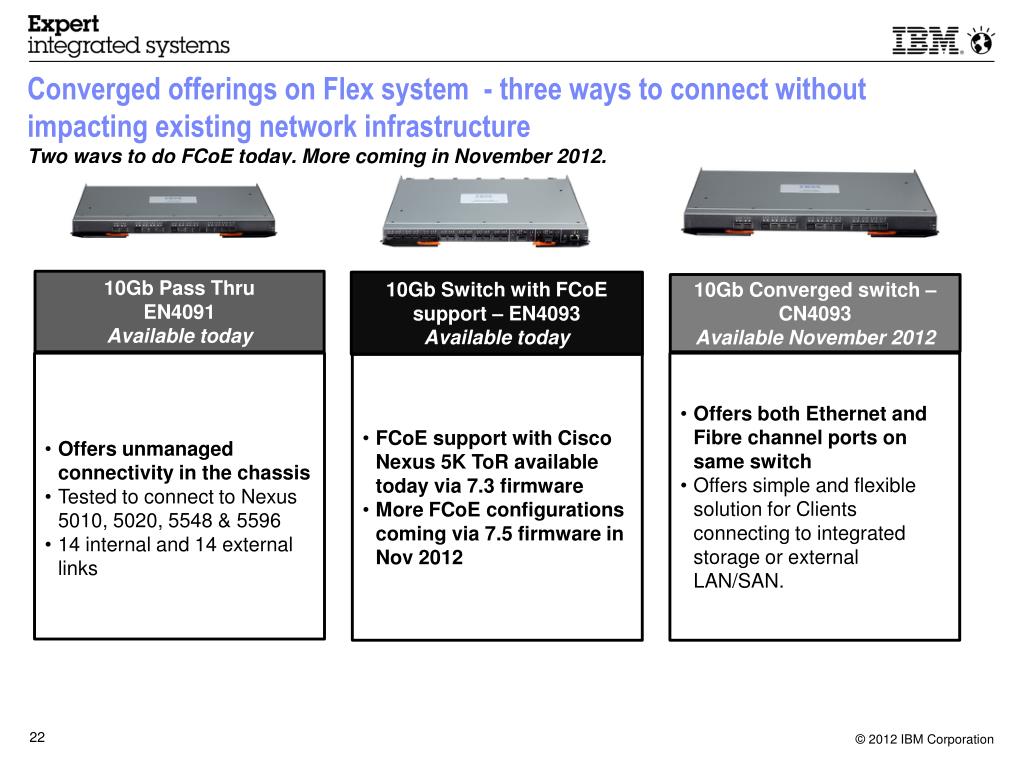

Converged offerings on Flex system - three ways to connect without impacting existing network infrastructureTwo ways to do FCoE today. More coming in November 2012.

10Gb Pass Thru

EN4091

Available today

10Gb Switch with FCoE support – EN4093

Available today

10Gb Converged switch – CN4093

Available November 2012

  • Offers unmanaged connectivity in the chassis

  • Tested to connect to Nexus 5010, 5020, 5548 & 5596

  • 14 internal and 14 external links

  • Offers both Ethernet and Fibre channel ports on same switch

  • Offers simple and flexible solution for Clients connecting to integrated storage or external LAN/SAN.

  • FCoE support with Cisco Nexus 5K ToR available today via 7.3 firmware

  • More FCoE configurations coming via 7.5 firmware in Nov 2012


Recommended configuration using end to end ibm offering 1q 2013

Recommended configuration using end to end IBM offering – 1Q 2013

IBM Converged ToR

  • Key value:

  • Integrated Virtual Fabric and FCoE on compute node

  • High performance scalable 10Gb Flex System Fabric switch in chassis

  • IBM 10Gb Converged switch aggregates all FCoE traffic and routes to LAN and SAN.

G8264CS

Cisco or Brocade SAN

V7000

G8264CS

Black line is FCOE

Red line is Fibre Channel

LOM or CN4054 (pNIC, vNIC mode)

EN4093 Flex System Fabric Switch


Customer has no fcoe tor and wants to leverage existing lan and san switch november 2012

Customer has no FCoE ToR and wants to leverage existing LAN and SAN switchNovember 2012

V7000

  • Key value:

  • Integrated Virtual Fabric and FCoE on compute node

  • Directly connects to internal storage node via midplane in FCoE mode

  • Can connect to external storage via SAN switch also.

Cisco or Brocade

SAN

Black line is FCOE

Red line is Fibre Channel

LOM or CN4054 (pNIC, vNIC mode)

Storage node

CN4093 Flex System Fabric Converged Switch


Connecting to cisco network customer already owns nexus tor sept 2012

Connecting to ‘Cisco network’: Customer already owns Nexus ToR - Sept 2012

  • Key value:

  • Integrated Virtual Fabric and FCoE on compute node

  • High performance scalable 10Gb Flex System Fabric switch in chassis

  • Connects to existing or new Cisco network.

Nexus 55XX

Cisco SAN

V7000

Nexus 55XX

Black line is FCOE

Red line is Fibre Channel

LOM or CN4054 (pNIC, vNIC mode)

EN4093 Flex System Fabric Switch


Connecting to brocade network customer already owns brocade vdx or san nov 2012

Connecting to Brocade network: Customer already owns Brocade VDX or SAN – Nov 2012

  • Key value:

  • Integrated Virtual Fabric and FCoE on compute node

  • High performance scalable 10Gb Flex System Fabric switch in chassis

  • Connects to existing or new Brocade network.

Brocade VDX

BrocadeSAN

V7000

Brocade VDX

Black line is FCOE

Red line is Fibre Channel

LOM or CN4054 (pNIC, vNIC mode)

EN4093 Flex System Fabric Switch


Flex system

Flex System所涉及的基礎設施組件管理

Rack

V7000

V7000

V7000

V7000

在機架*HW

↓FSM (Flex System Manager)

在同一個機箱HW↓

CMM (Chassis Management Module)

Chassis

一個計算節點HWIMM 2 / FSP(Integrated Management Module 2)

(Flexible Service Processor)

Compute Node

*最大4個機箱


Chassis element communication

Chassis Element Communication

External

Network

CMM B

IMM

1

IMM

2

IMM

3

IMM

4

IMM

6

IMM

5

IMM

7

IMM

8

IMM

12

IMM

13

IMM

9

IMM

10

IMM

11

IMM

14

CMM A

ScSE 1

ScSE 2

ScSE 3

ScSE 4

  • All Chassis components are discovered and communicate over an internal IPV6 link local network

  • Internal Chassis elements (Node IMMs & ScSEs) can be addressed out-of-band @ IPV4 IP assigned via CMM

  • If external connectivity to the CMM is lost, chassis elements can no longer be directly addressed out-of-band

    • (CMM acts as router)


Fsm ethernet device routing

FSM Ethernet Device Routing


Ibm flex system alan lin i t specialist system x systems and technology group ibm corporation

CMM操作概要

  • CMM使用者介面

與IMM2用戶界面和選單結構是一致的

顯示每個組件的資訊

收集故障信息,故障通知對象聯繫設定

功能檢索

特定節點操作選擇顯示

機箱管理圖形介面


Fsm has some world class ux components

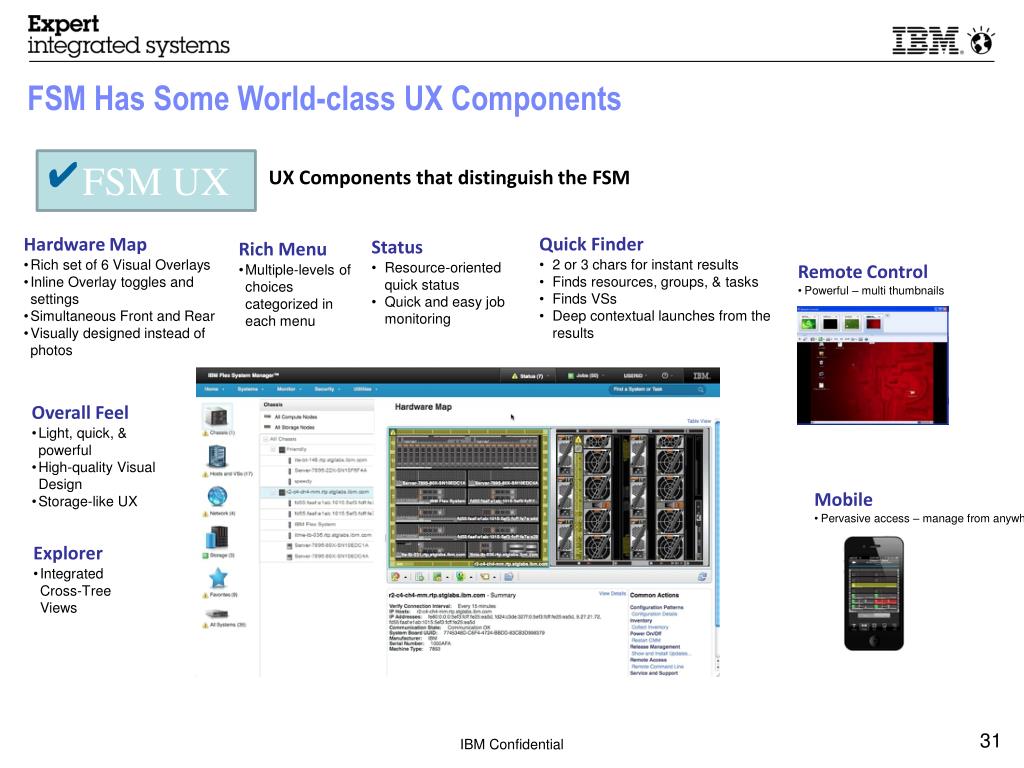

FSM Has Some World-class UX Components

FSM UX

UX Components that distinguish the FSM

  • Quick Finder

  • 2 or 3 chars for instant results

  • Finds resources, groups, & tasks

  • Finds VSs

  • Deep contextual launches from the results

  • Hardware Map

  • Rich set of 6 Visual Overlays

  • Inline Overlay toggles and settings

  • Simultaneous Front and Rear

  • Visually designed instead of photos

  • Status

  • Resource-oriented quick status

  • Quick and easy job monitoring

  • Rich Menu

  • Multiple-levels of choices categorized in each menu

  • Remote Control

  • Powerful – multi thumbnails

  • Overall Feel

  • Light, quick, & powerful

  • High-quality Visual Design

  • Storage-like UX

  • Mobile

  • Pervasive access – manage from anywhere

  • Explorer

  • Integrated Cross-Tree Views

IBM Confidential


Introducing the new fsm ngui console

Introducing the new FSM/NGUI Console

Status and Jobs Summaries

Browser Optimized

Rich Menus

Finder

Dashbar

Explorer

Dynamic Chassis Map

Dynamic Chassis Map


Ibm flex system alan lin i t specialist system x systems and technology group ibm corporation

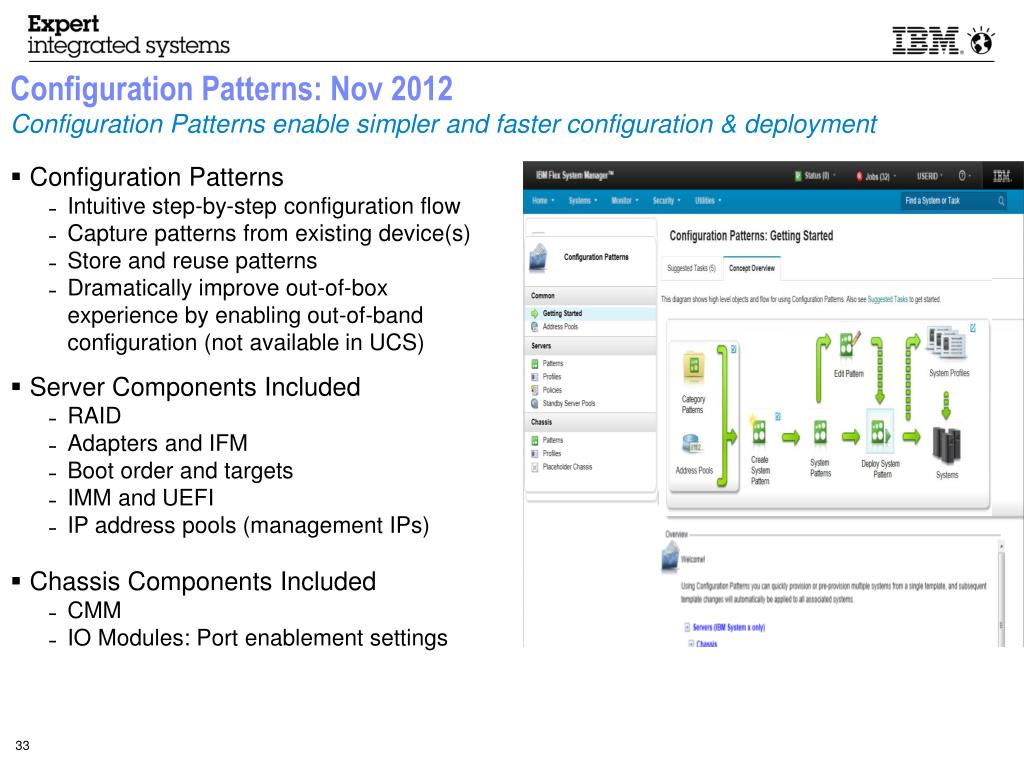

Configuration Patterns: Nov 2012

Configuration Patterns enable simpler and faster configuration & deployment

  • Configuration Patterns

    • Intuitive step-by-step configuration flow

    • Capture patterns from existing device(s)

    • Store and reuse patterns

    • Dramatically improve out-of-box experience by enabling out-of-band configuration (not available in UCS)

  • Server Components Included

    • RAID

    • Adapters and IFM

    • Boot order and targets

    • IMM and UEFI

    • IP address pools (management IPs)

  • Chassis Components Included

    • CMM

    • IO Modules: Port enablement settings

33


Ibm flex system alan lin i t specialist system x systems and technology group ibm corporation

FlexCat integration – For mass bare-metal image deployments

  • Powerful - multiple nodes at a time (3 clicks total)

  • Multi Platform support (can be imported)

    • ESXi 5.1 Virtualization (pre-installed in FSM) – includes Osiris agent

    • RHEL Virtualization (RHEV + KVM Platform Agent)

    • RHEL basic

    • RHEL minimum


Ibm flex system alan lin i t specialist system x systems and technology group ibm corporation

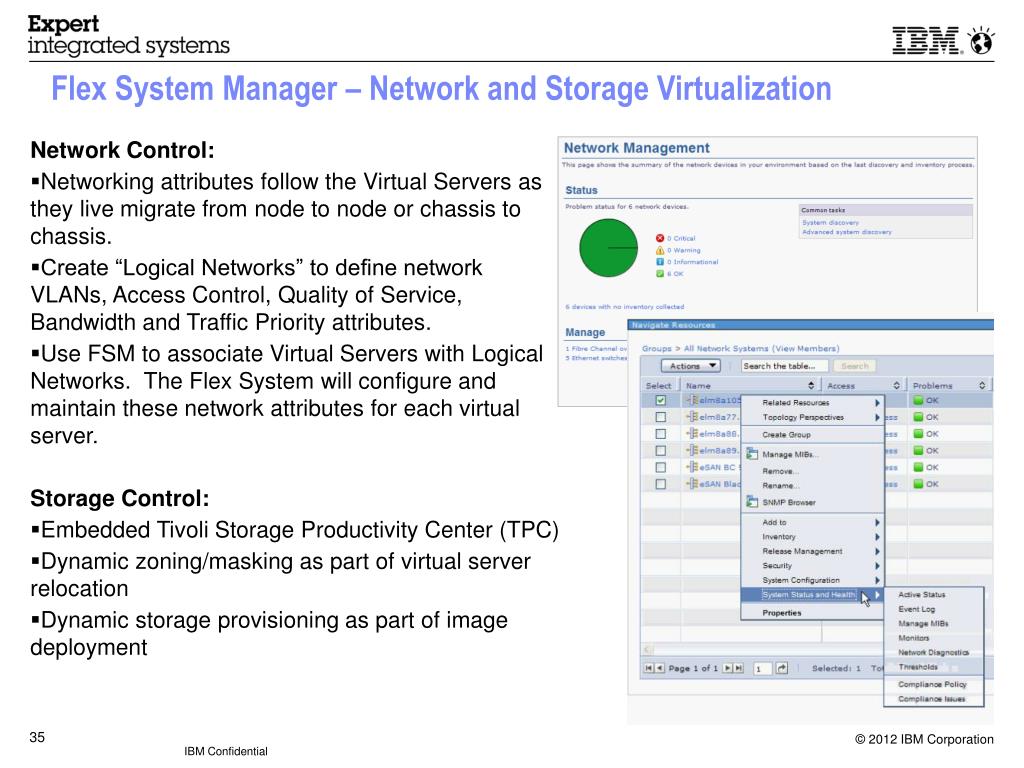

Flex System Manager – Network and Storage Virtualization

  • Network Control:

  • Networking attributes follow the Virtual Servers as they live migrate from node to node or chassis to chassis.

  • Create “Logical Networks” to define network VLANs, Access Control, Quality of Service, Bandwidth and Traffic Priority attributes.

  • Use FSM to associate Virtual Servers with Logical Networks. The Flex System will configure and maintain these network attributes for each virtual server.

  • Storage Control:

  • Embedded Tivoli Storage Productivity Center (TPC)

  • Dynamic zoning/masking as part of virtual server relocation

  • Dynamic storage provisioning as part of image deployment

IBM Confidential


Base network management capabilities

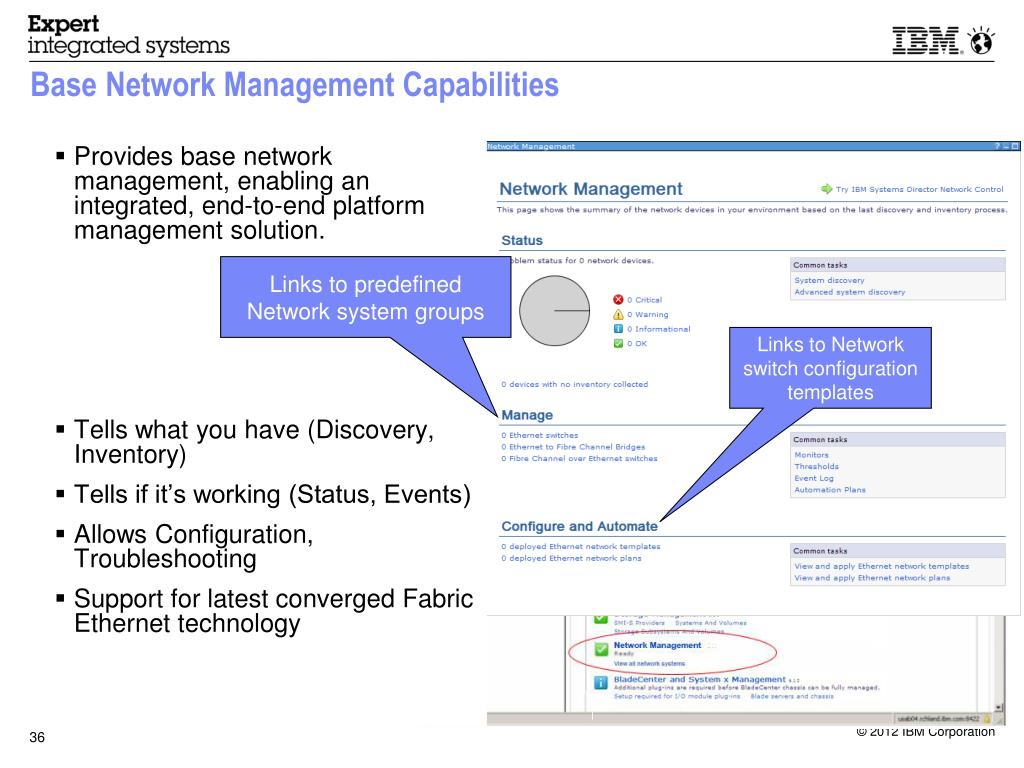

Base Network Management Capabilities

Provides base network management, enabling an integrated, end-to-end platform management solution.

Tells what you have (Discovery, Inventory)

Tells if it’s working (Status, Events)

Allows Configuration, Troubleshooting

Support for latest converged Fabric Ethernet technology

Links to predefined Network system groups

Links to Network switch configuration templates


Network management predefined network groups

Network Management: Predefined Network Groups

Provides predefined groups to allow users to quickly find discovered Network Systems (e.g. switches)

All Network Systems

Ethernet Switches

Ethernet to Fibre Channel Bridges

Fibre Channel over Ethernet Switches


Network management inventory

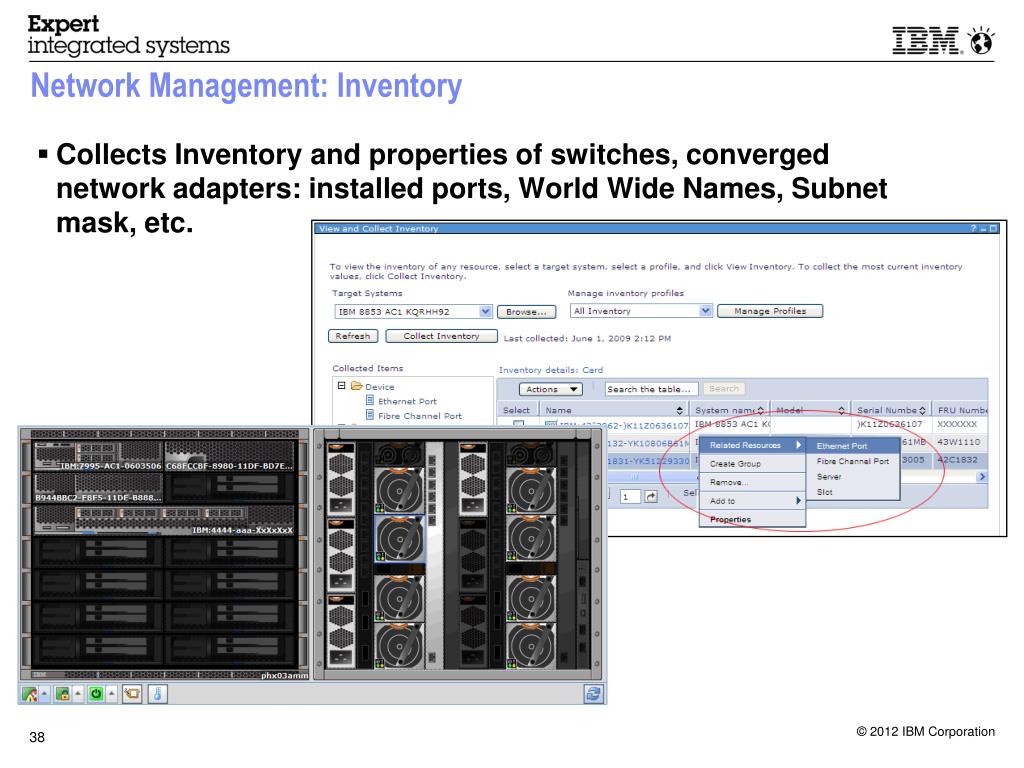

Network Management: Inventory

Collects Inventory and properties of switches, converged network adapters: installed ports, World Wide Names, Subnet mask, etc.


Network management availability monitoring

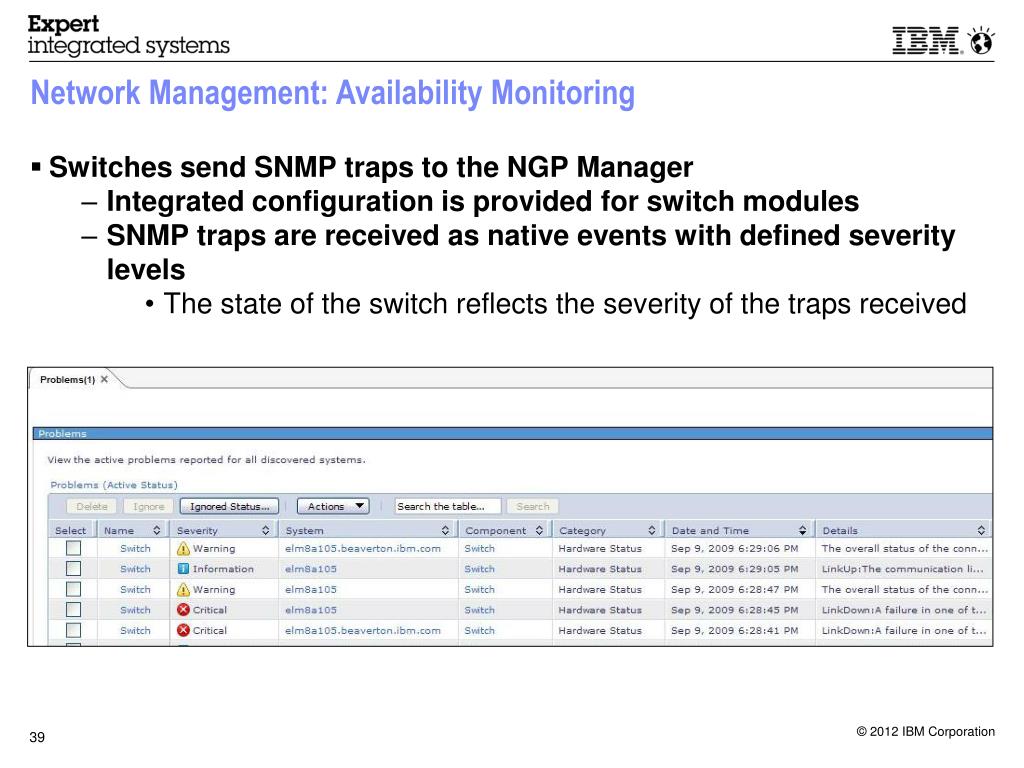

Network Management: Availability Monitoring

Switches send SNMP traps to the NGP Manager

Integrated configuration is provided for switch modules

SNMP traps are received as native events with defined severity levels

The state of the switch reflects the severity of the traps received


Network management configuration

Network Management: Configuration

SNMP Agent, community, and trap settings

External port settings

VLAN Configuration

Defined VLANs

Port level Ingress and Egress tagging

  • Configure switch modules in real-time (Current Configuration) and via Templates and Configuration Plans

  • Protocol Configuration

  • Login Configuration (user credentials)

  • Network Protocols (IP, HTTP and Telnet settings)


Network control system level network topology

Network Control: System Level Network Topology

System-level is high-level, showing relationships between servers and switches, user can:

Determine to what switch a specific server is connected

Determine what other devices are using the same switch

Determine scope and impact of network outages

User can follow a diagnostic path by traversing the view, selecting a new root node, and displaying additional resources or topology perspectives

IBM


Network control port level network topology

Network Control: Port Level Network Topology

Port-level shows port-to-port connections between servers and switches, user can:

Determine to what port on the switch a specific server is connected

Determine what ports, if any, on a particular switch are not in use

Visualize any devices or ports in a degraded state


Network control subnet network topology

Network Control: Subnet Network Topology

Subnet shows a system-level view of all systems in the same subnets as the selected systems, user can:

Determine to what subnets a specific system is connected

Determine what other systems are in those subnets

Determine what IP addresses are still in use for those subnets


Ibm flex system alan lin i t specialist system x systems and technology group ibm corporation

Enable FOD License


Ibm flex system alan lin i t specialist system x systems and technology group ibm corporation

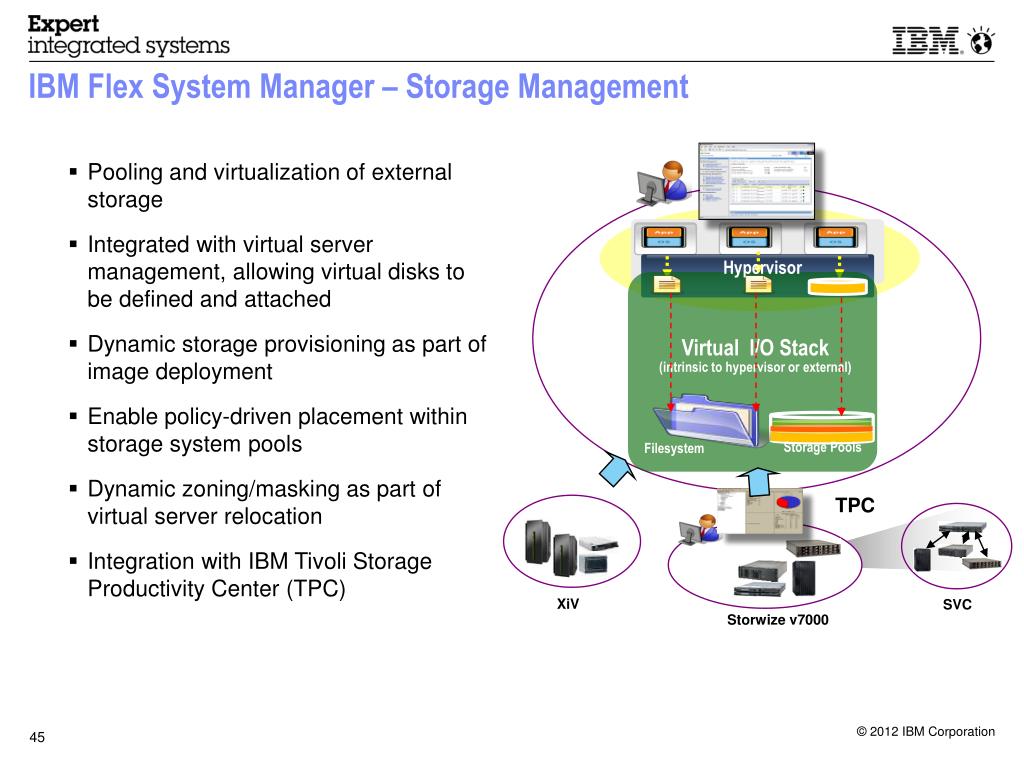

IBM Flex System Manager – Storage Management

  • Pooling and virtualization of external storage

  • Integrated with virtual server management, allowing virtual disks to be defined and attached

  • Dynamic storage provisioning as part of image deployment

  • Enable policy-driven placement within storage system pools

  • Dynamic zoning/masking as part of virtual server relocation

  • Integration with IBM Tivoli Storage Productivity Center (TPC)

Hypervisor

Hypervisor

Virtual I/O Stack

(intrinsic to hypervisor or external)

Storage Pools

Filesystem

TPC

XiV

SVC

Storwize v7000

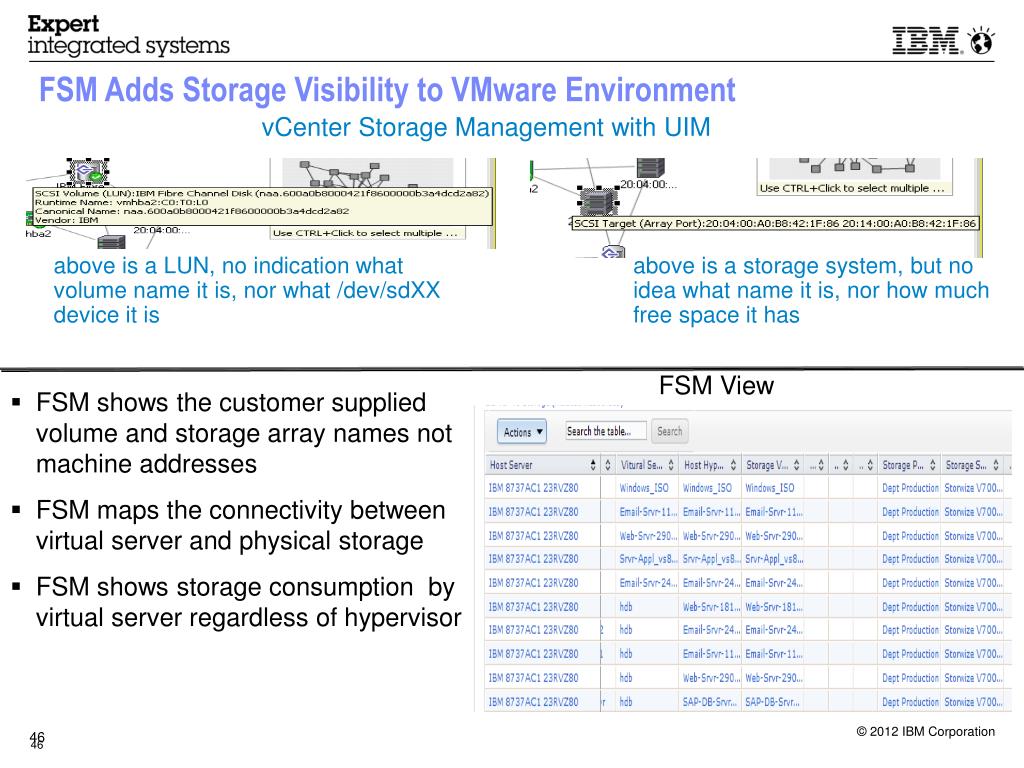

Fsm adds storage visibility to vmware environment

FSM Adds Storage Visibility to VMware Environment

vCenter Storage Management with UIM

above is a LUN, no indication what volume name it is, nor what /dev/sdXX device it is

above is a storage system, but no idea what name it is, nor how much free space it has

FSM View

  • FSM shows the customer supplied volume and storage array names not machine addresses

  • FSM maps the connectivity between virtual server and physical storage

  • FSM shows storage consumption by virtual server regardless of hypervisor

46


Guided storage setup

Guided Storage Setup

  • Manage System Storage – simplified single-panel UI streamlines tasks of discover, unlock, and automatically collects inventory

  • Simplifies the transition to VMControl

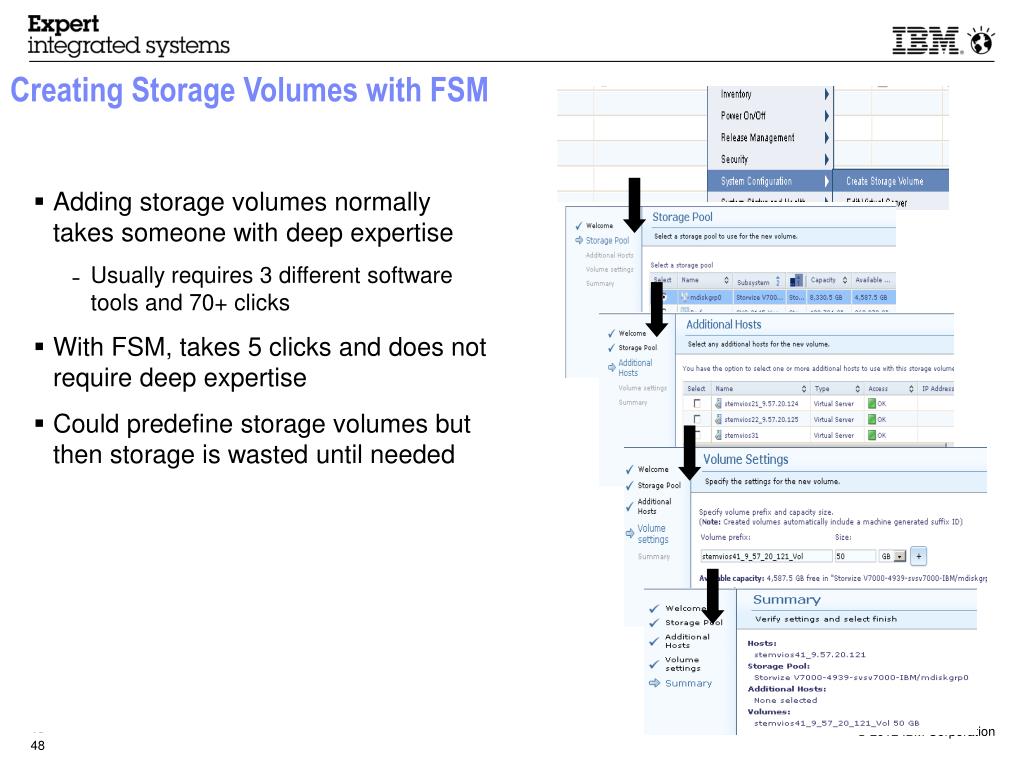

Creating storage volumes with fsm

Creating Storage Volumes with FSM

  • Adding storage volumes normally takes someone with deep expertise

    • Usually requires 3 different software tools and 70+ clicks

  • With FSM, takes 5 clicks and does not require deep expertise

  • Could predefine storage volumes but then storage is wasted until needed

48


Ibm flex system alan lin i t specialist system x systems and technology group ibm corporation

Within single chassis

or

Across multiple chassis

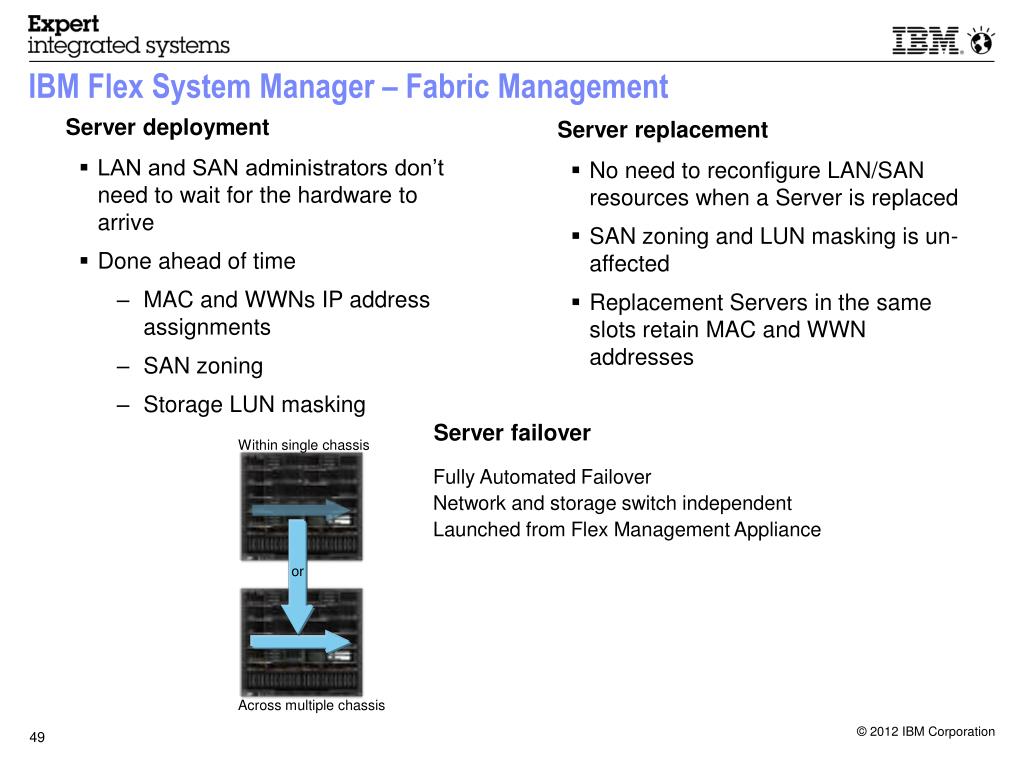

IBM Flex System Manager – Fabric Management

Server deployment

  • LAN and SAN administrators don’t need to wait for the hardware to arrive

  • Done ahead of time

    • MAC and WWNs IP address assignments

    • SAN zoning

    • Storage LUN masking

Server replacement

  • No need to reconfigure LAN/SAN resources when a Server is replaced

  • SAN zoning and LUN masking is un-affected

  • Replacement Servers in the same slots retain MAC and WWN addresses

Server failover

Fully Automated Failover

Network and storage switch independent

Launched from Flex Management Appliance


Ibm flex system alan lin i t specialist system x systems and technology group ibm corporation

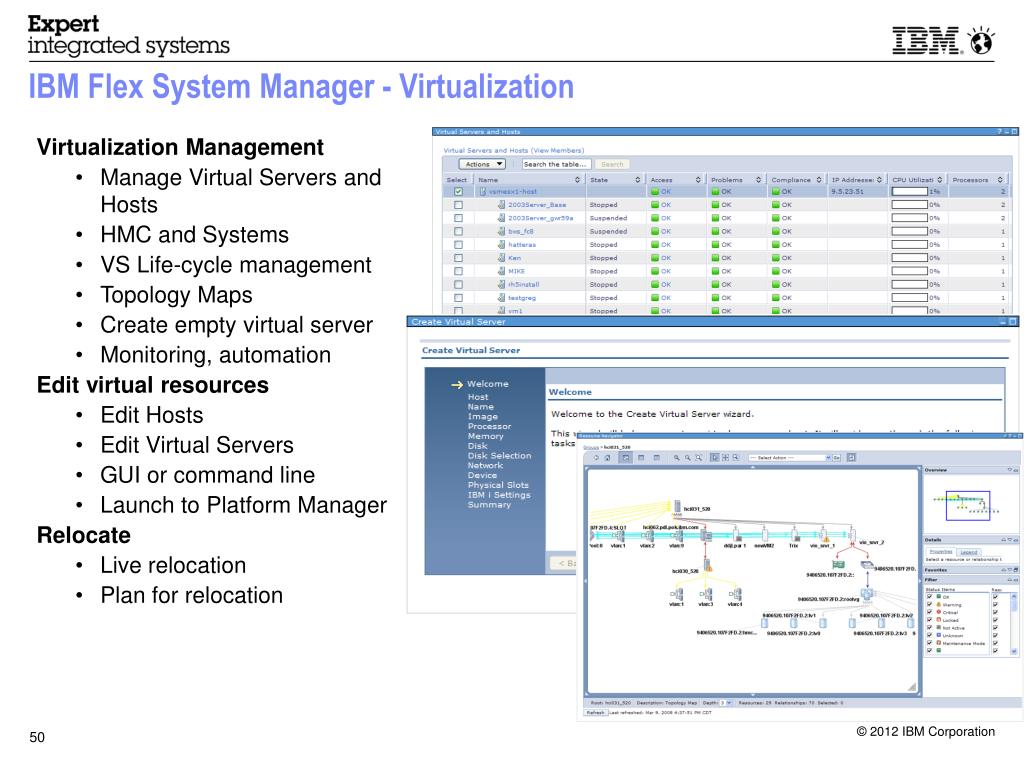

IBM Flex System Manager - Virtualization

Virtualization Management

  • Manage Virtual Servers and Hosts

  • HMC and Systems

  • VS Life-cycle management

  • Topology Maps

  • Create empty virtual server

  • Monitoring, automation

    Edit virtual resources

  • Edit Hosts

  • Edit Virtual Servers

  • GUI or command line

  • Launch to Platform Manager

    Relocate

  • Live relocation

  • Plan for relocation


Vmcontrol

VMControl

  • Create, Edit, and Manage virtual servers

  • Relocate virtual servers

  • Capture running virtual servers

    • Guest operating system, running applications and server definition

    • A “virtual appliance” image is created

      • placed in image repository

      • can be deployed multiple times

  • Import Open Virtualization Format (OVF) virtual appliance packages

  • Create, capture, and manage workloads.

  • Create and manage server system pools.

    • Deploy virtual appliances into server system pools

    • Add hosts

    • Add storage space

    • Monitor resource status

    • Monitor workload status

  • Create and manage storage system pools

    • Add storage

    • Edit pool policies

    • Monitor storage resource status


Mobile 1 of 2

Mobile! (1 of 2)

  • Pervasive access - via a handheld

  • Multi-Chassis – all the power

  • Quality and Consistent - high-quality HW Maps, and with 2 Overlays

browser

iOS

IBM Confidential


Mobile 2 of 2

Mobile! (2 of 2)

  • Smart Cloud Entry (SCe) Mobile - complements FSM Mobile

    • Deploys virtual appliances into Flex (VMware and PowerVM)

  • Cross Device Consistency

    • iOS and Android very close

    • Chassis Maps and UI structures similar for all 3 device types

BlackBerry

SCe on iOS

Android

IBM Confidential


Platform management

Service

Management

4

End-to-end

Management

Datacenter

Platform

Management

3

2

Integrated

Multi-Chassis

Management

FSM

FSM

FSM

FSM

1

Core

Firmware

Platform Management

Upward Integration &

Service Management

IBM Systems Director (Hierarchical)

Customer Corporate Network

Non-IBM Flex System

IT Resources

Next Generation Platform Management Domain


Ibm flex system alan lin i t specialist system x systems and technology group ibm corporation

Thanks !


  • Login
