Introduction to the fia down woody materials indicator 1st of 3 part training series

Introduction to the FIA Down Woody Materials Indicator1st of 3 Part Training Series

Christopher Woodall

DWM National Indicator Advisor


Outline

Outline

  • Indicator Updates

  • What are Down Woody Materials?

  • Why Collect DWM data?

  • Sampling Design Theory


Indicator updates

Indicator Updates

  • No sample protocol changes

  • Field manual updated in 2004

  • Web-site updated

  • DWM sample design and analysis in press – NC-GTR-256

  • Web-based dissemination of data and wider use of data


Definition of dwm

Definition of DWM

Dead material within forests in various stages of decay such as fallen trees, branches, and leaf litter

The FIA program places numerous forest ecosystem components into the DWM Indicator


Dwm components

DWM Components

Coarse Woody Debris

Duff

Fine

Woody

Debris

Shrubs/

Herbs

Slash

Litter


Coarse and fine woody debris

Coarse and Fine Woody Debris


Fuel hour classes

Fuel-Hour Classes

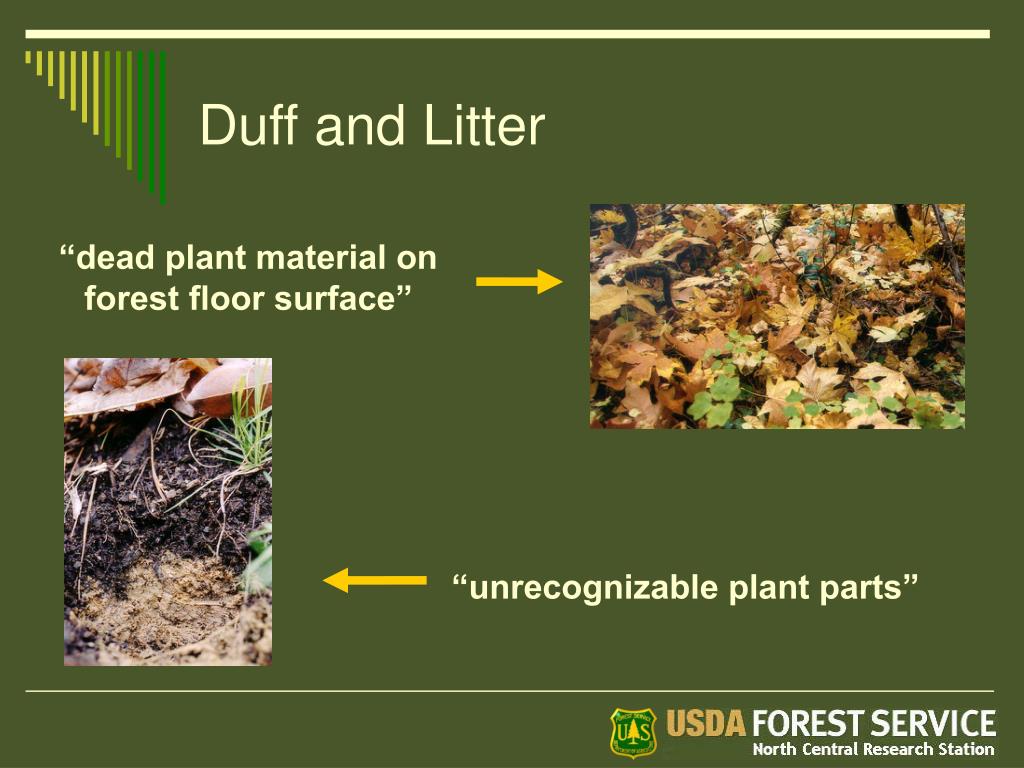

Duff and litter

Duff and Litter

“dead plant material on forest floor surface”

“unrecognizable plant parts”

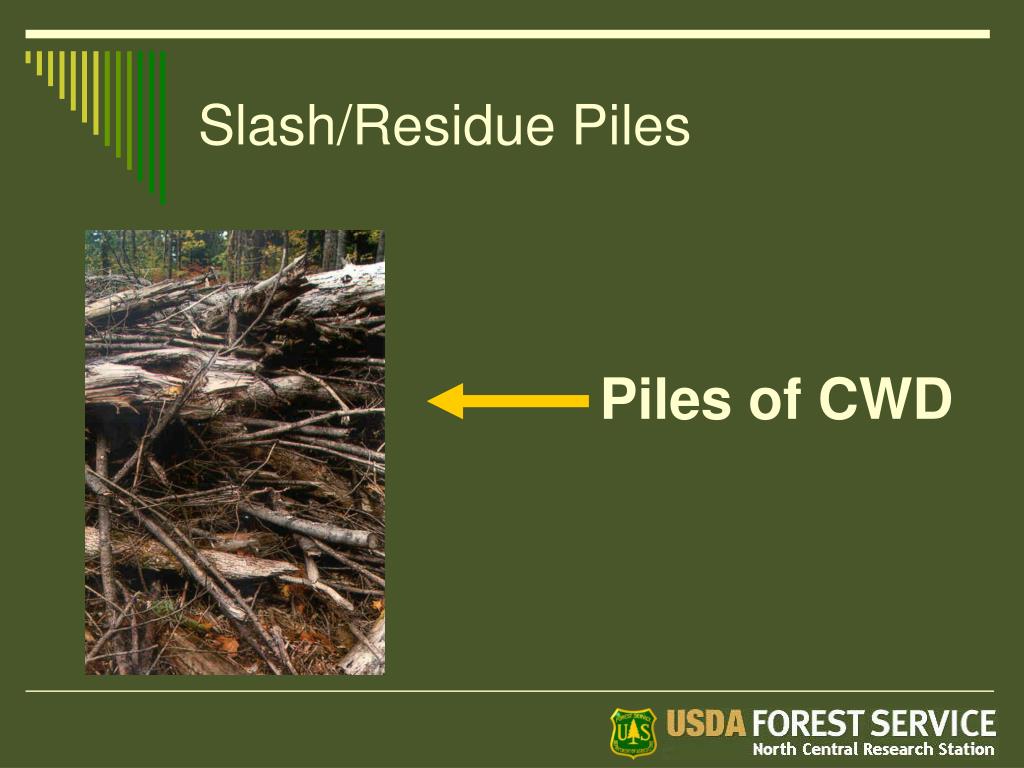

Slash residue piles

Slash/Residue Piles

Piles of CWD


Shrub and herbs

Shrub and Herbs

“Live and dead shrubs/herbs including grass, herbaceous woody plants, and vines”


Fuelbed

Fuelbed

“Depth of the fuel’s complex, from forest floor to the tallest fuel component”


Why collect dwm data

Why collect DWM data?

  • Indicator of Forest Health

  • Wildlife Habitat

  • Fuels Estimation

  • Carbon Estimation

  • Completes Life Cycle of Trees


Indicator of forest health

Indicator of Forest Health

Crown Condition

Soils

Ozone Injury

Down Woody Materials

Lichens

Vegetation Structure and Diversity

Tree Damage


Wildlife

Wildlife

The DWM Inventory describes the amount and condition of wildlife habitat through estimation of coarse woody debris attributes.

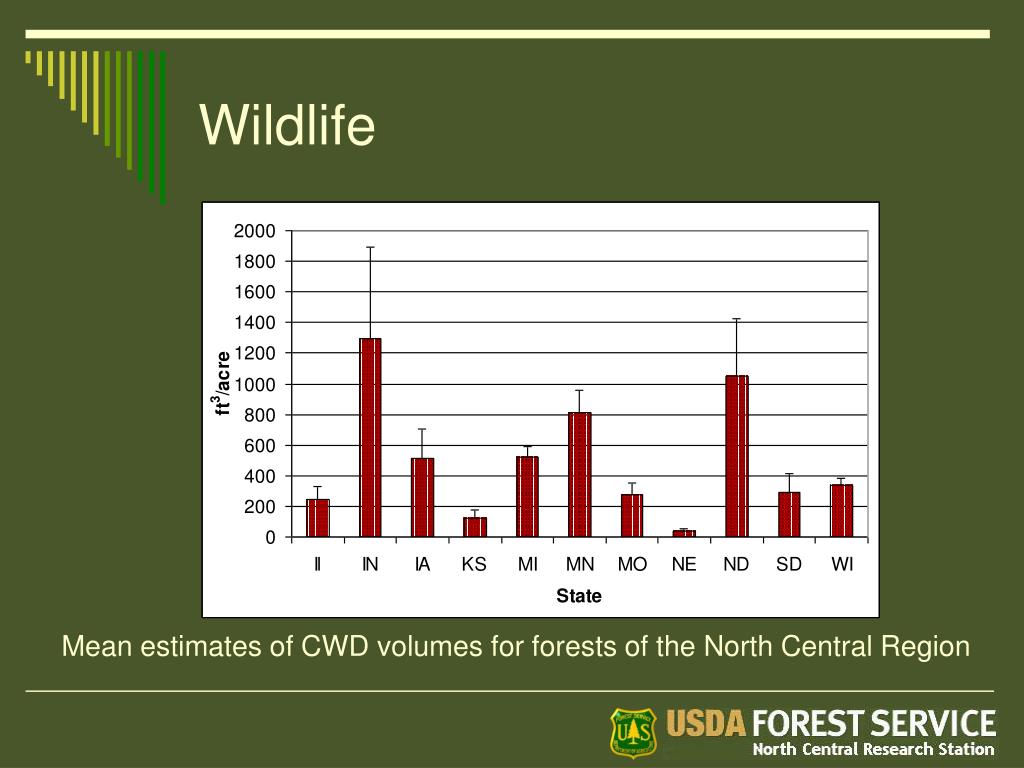

Wildlife1

Wildlife

Mean estimates of CWD volumes for forests of the North Central Region


Wildlife2

Wildlife

Proportions of coarse woody debris pieces per acre by transect diameter (A) and decay class (B) (1=least decayed, 5=most decayed), Indiana, 2001-2003


Fuels

Fuels

1-hr

10-hr

100-hr

Total Fine Woody Debris


Fire science

Fire Science

Estimates for DWM in Boundary Waters Canoe Area Compared to rest of region


Carbon estimation

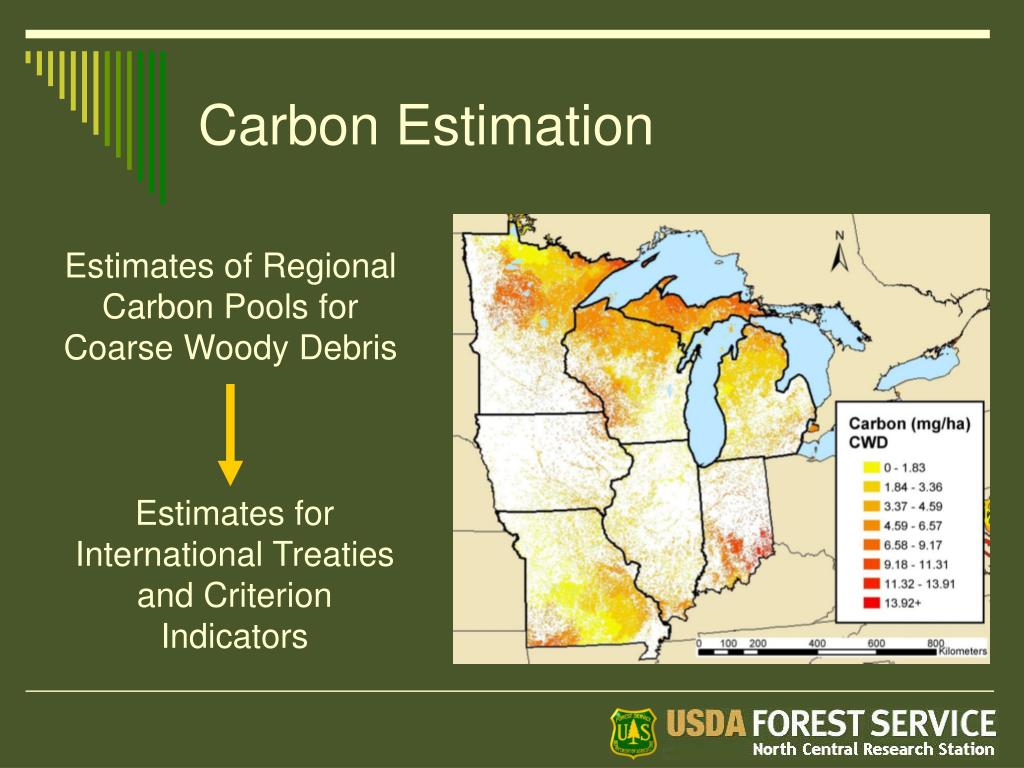

Carbon Estimation

Estimates of Regional Carbon Pools for Coarse Woody Debris

Estimates for International Treaties and Criterion Indicators


Dwm and national inventory

DWM and National Inventory

Completes inventory of trees from living, to dead, to decomposed

Microplot Sapling

Sub-plot Tree

Sub-plot Standing Dead

DWM Down and Dead


Summary of dwm components

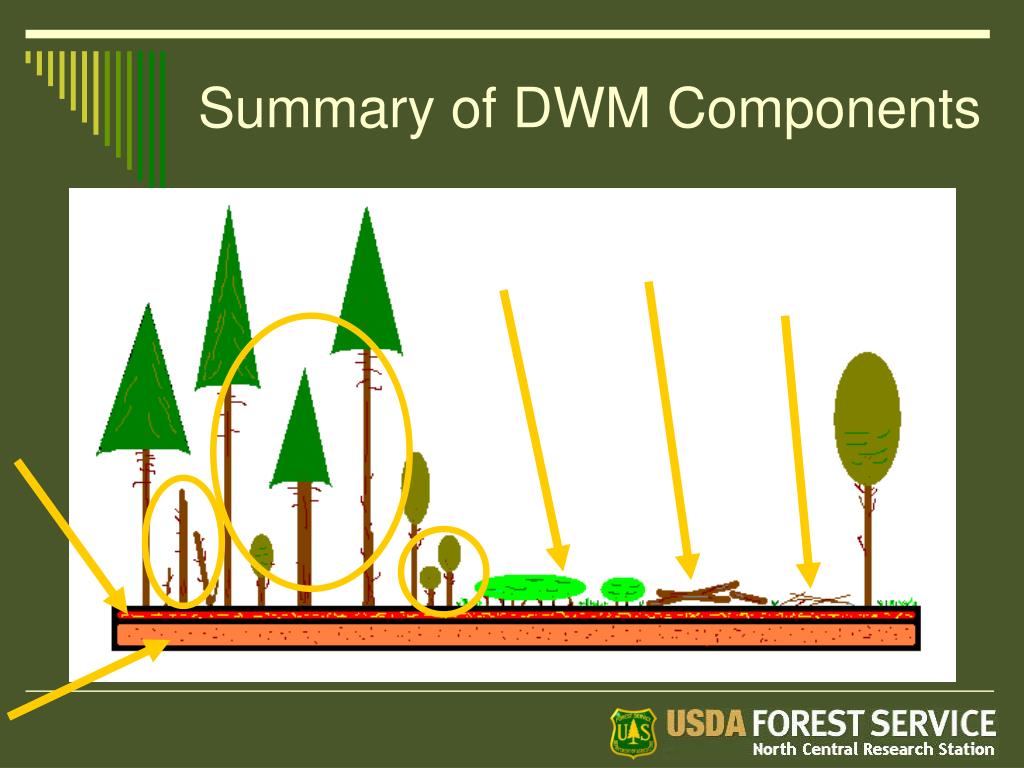

Summary of DWM Components


Dwm sampling theory

DWM Sampling Theory

DWM diversity requires a diversity of sampling methods


Sampling on the sub plot

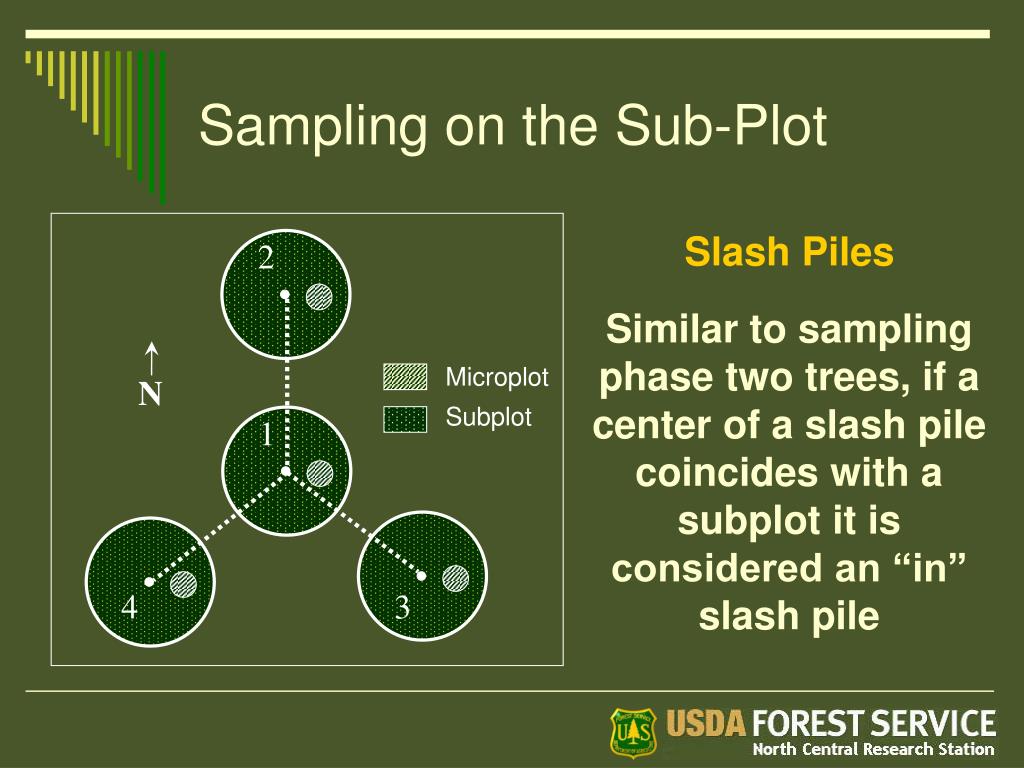

Sampling on the Sub-Plot

Slash Piles

2

Similar to sampling phase two trees, if a center of a slash pile coincides with a subplot it is considered an “in” slash pile

Microplot

N

Subplot

1

4

3

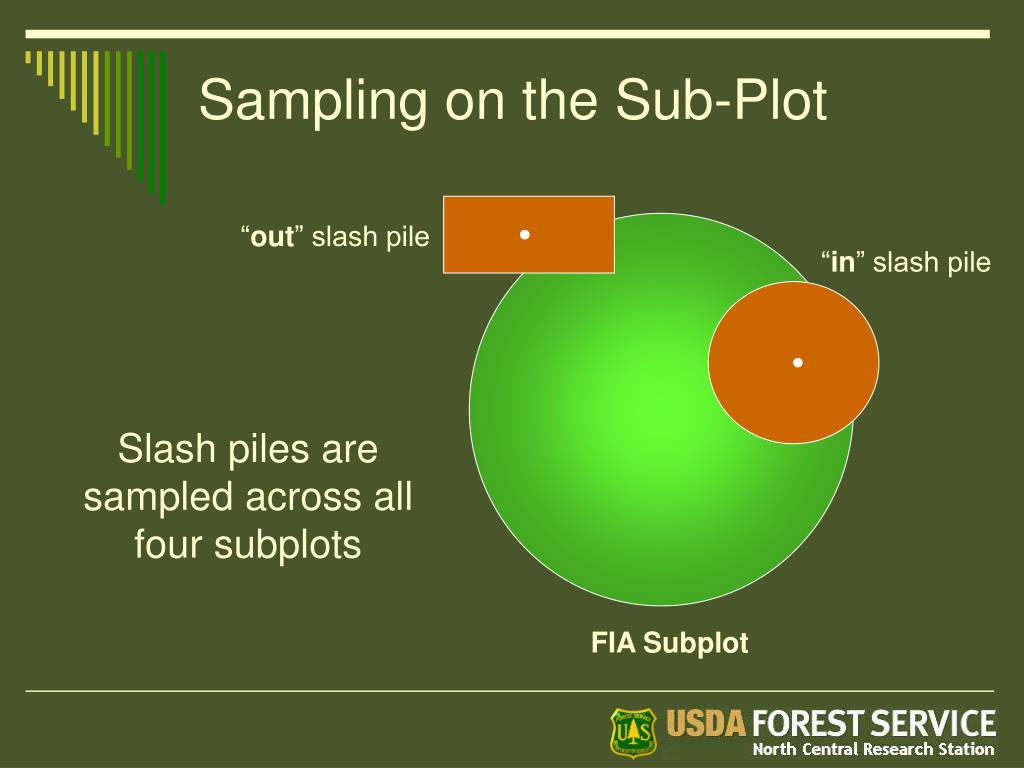

Sampling on the sub plot1

Sampling on the Sub-Plot

“out” slash pile

“in” slash pile

Slash piles are sampled across all four subplots

FIA Subplot


Sampling on the microplot

Sampling on the Microplot

In order to estimate shrub/herb heights and coverage for forests (fuel ladders)

estimate shrub/herb heights and coverage occurring on micro-plot

6.8 ft

Radius


Depth estimates on subplot

Depth Estimates on Subplot

Litter

In order to estimate depth of duff, litter, and the fuelbed on a subplot…

Duff

12 sample points located for measurement on subplots

Fuelbed

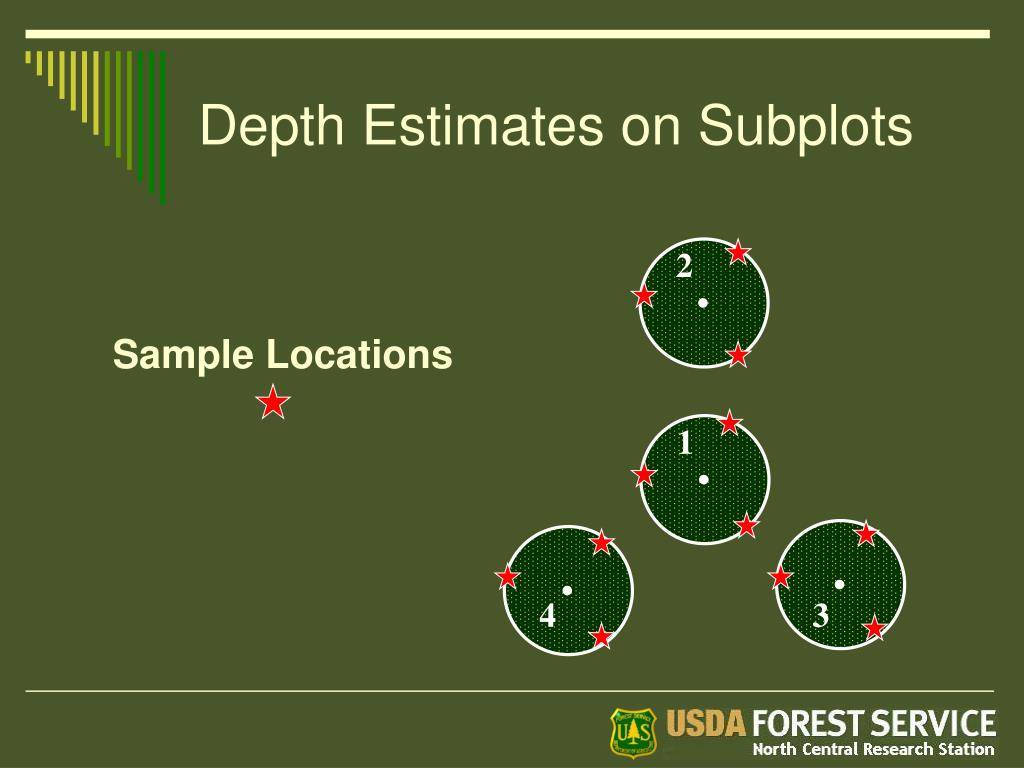

Depth estimates on subplots

Depth Estimates on Subplots

2

Sample Locations

1

4

3


Transect sampling

Transect Sampling

FWD and CWD pieces are not all counted within a given area

rather…

All FWD and CWD pieces that intersect a sampling plane are tallied


Transect sampling1

Transect Sampling

Probability of match stick intersecting randomly placed line related to number of sticks and length of line


Transect sampling planes

Transect Sampling Planes

DWM Sample Protocol establishes 6 foot tall sampling transects that radiate from FIA subplot centers to intersect fine woody pieces

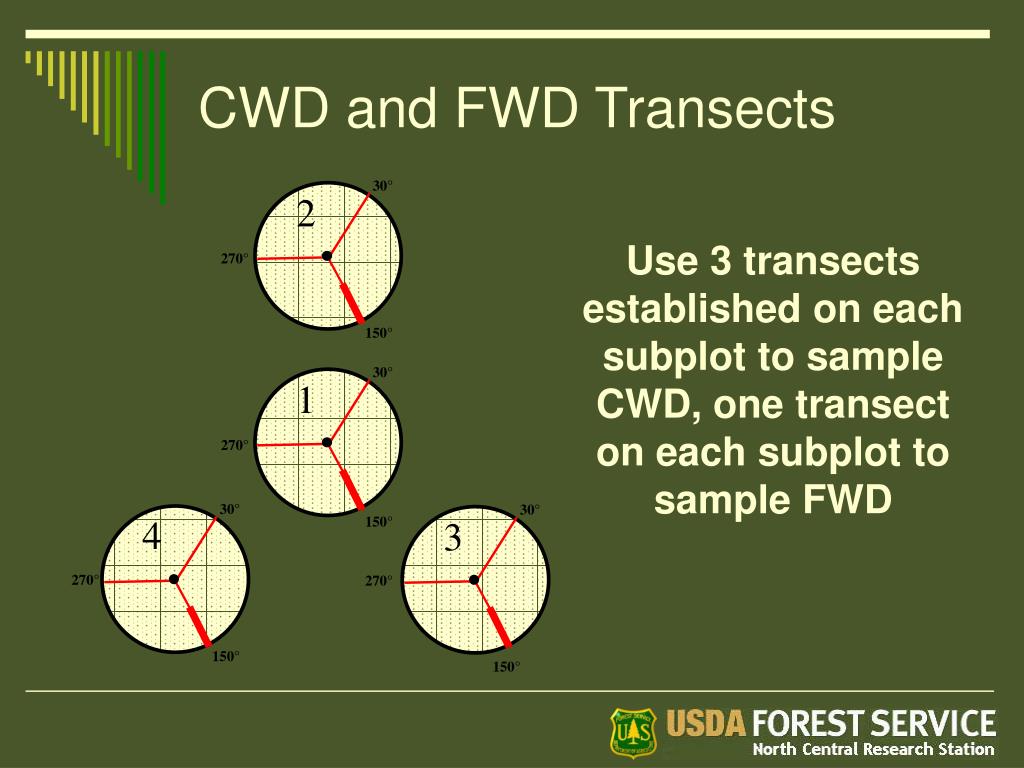

Cwd and fwd transects

CWD and FWD Transects

Use 3 transects established on each subplot to sample CWD, one transect on each subplot to sample FWD


Bringing it all together

Bringing it all Together


Conclusions

Conclusions

  • The DWM indicator estimates numerous ecosystem components

  • Data Crucial to Fire, Carbon, and Wildlife Sciences

  • Integral Part of National FIA Program, Completes Tree Life Cycle

  • Series of different sampling techniques for estimation of various DWM components applied to phase two plots
