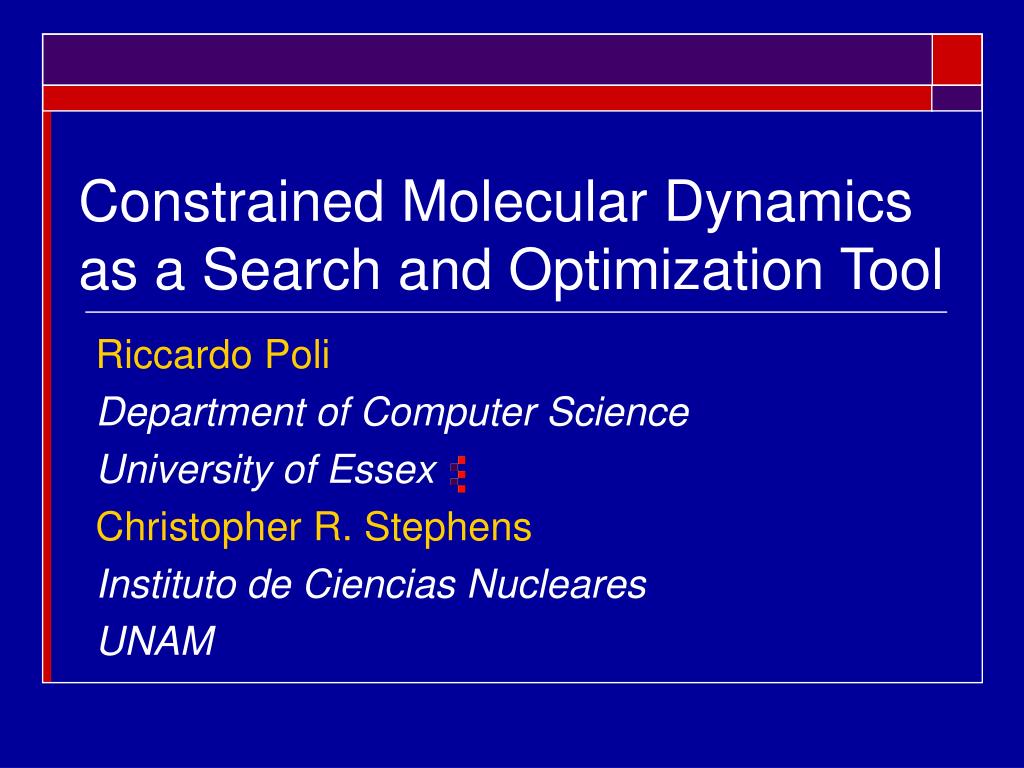

Constrained molecular dynamics as a search and optimization tool

Constrained Molecular Dynamics as a Search and Optimization Tool

Riccardo Poli

Department of Computer Science

University of Essex

Christopher R. Stephens

Instituto de Ciencias Nucleares

UNAM


Introduction

R. Poli - University of Essex

Introduction

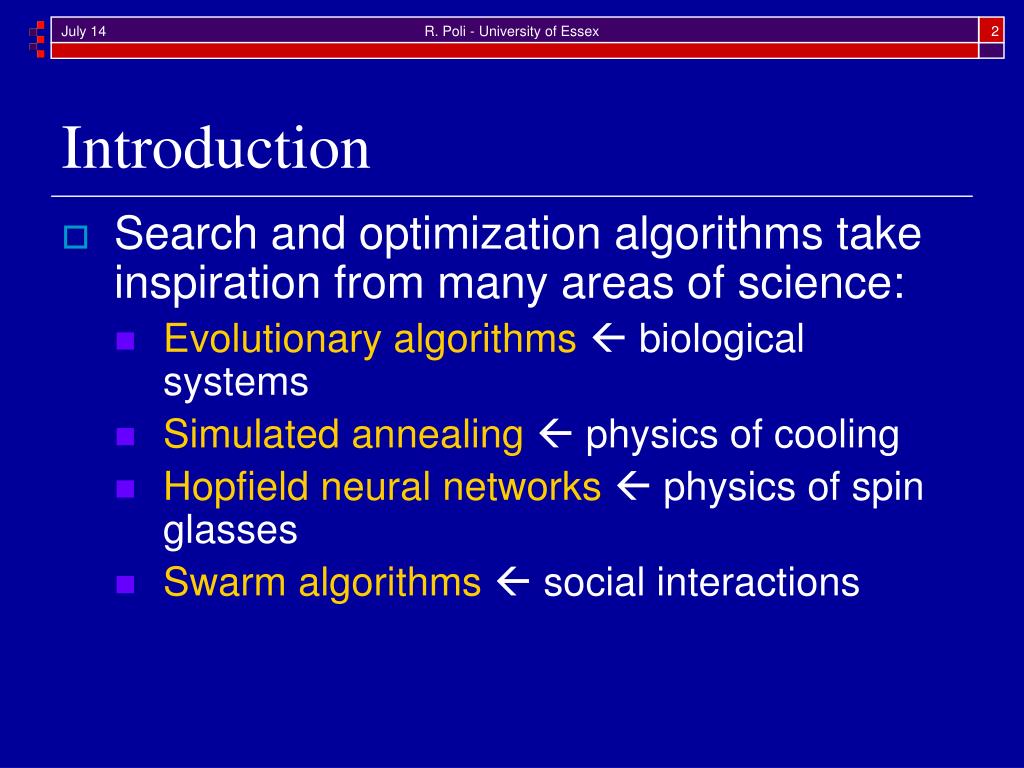

  • Search and optimization algorithms take inspiration from many areas of science:

    • Evolutionary algorithms biological systems

    • Simulated annealing physics of cooling

    • Hopfield neural networks physics of spin glasses

    • Swarm algorithms social interactions


Lots of other things in nature know how to optimise

R. Poli - University of Essex

Lots of other things in nature know how to optimise!


Minimisation by marbles

R. Poli - University of Essex

Minimisation by Marbles


Minimisation by buckets of water

R. Poli - University of Essex

Minimisation by Buckets of Water

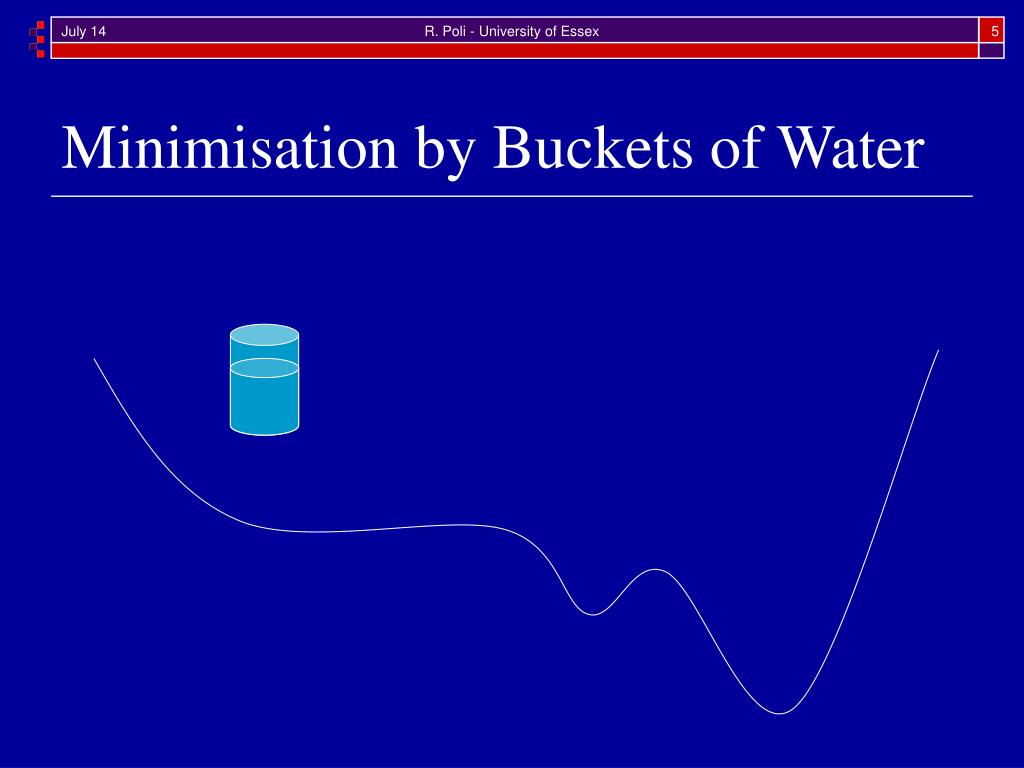

Minimisation by buckets of water1

R. Poli - University of Essex

Minimisation by Buckets of Water


Minimisation by buckets of water2

R. Poli - University of Essex

Minimisation by Buckets of Water


Minimisation by buckets of water3

R. Poli - University of Essex

Minimisation by Buckets of Water


Minimisation by waterfalls

R. Poli - University of Essex

Minimisation by Waterfalls


Minimisation by skiers

R. Poli - University of Essex

Minimisation by Skiers


Minimisation by molecules

R. Poli - University of Essex

Minimisation by Molecules


Constrained molecular dynamics

R. Poli - University of Essex

Constrained Molecular Dynamics

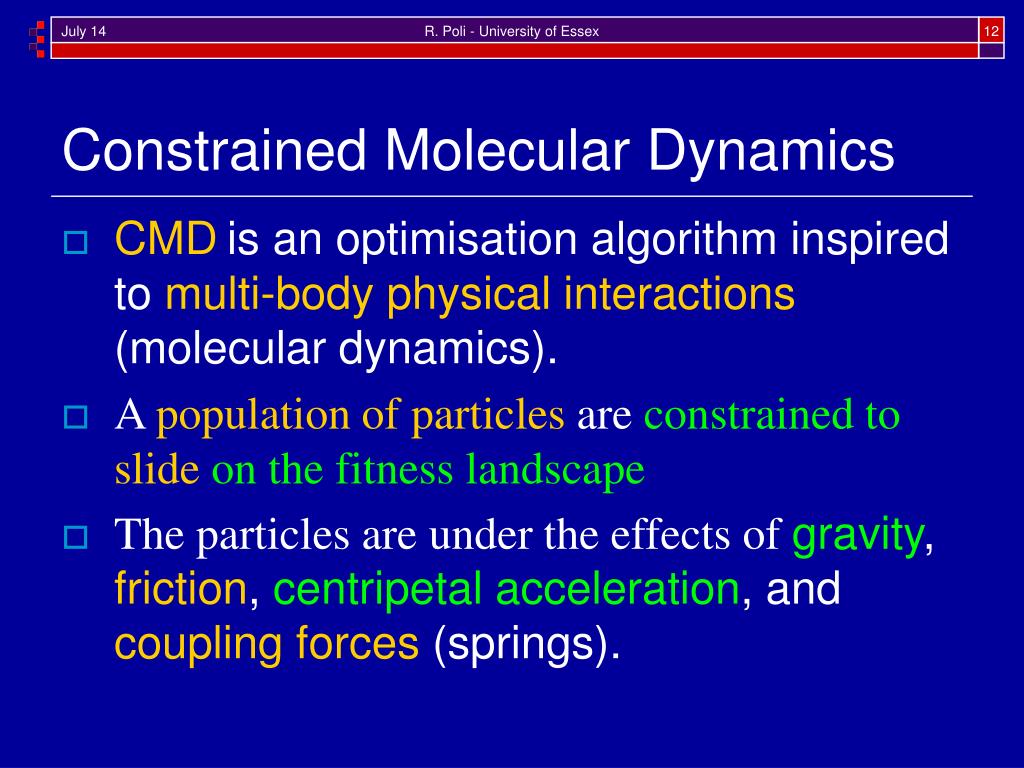

  • CMDis an optimisation algorithm inspired to multi-body physical interactions (molecular dynamics).

  • A population of particles are constrained to slide on the fitness landscape

  • The particles are under the effects of gravity, friction, centripetalacceleration, and couplingforces (springs).


Some math because it looks good

R. Poli - University of Essex

Some math (because it looks good  )

  • Kinetic energy of a particle


Some more math

R. Poli - University of Essex

Some more math

  • Equation of motion for a particle


Forces for courses no forces

R. Poli - University of Essex

Forces for Courses: No forces

  • If v=0 then CMD=kind of random search


Forces for courses no forces1

R. Poli - University of Essex

Forces for Courses: No forces

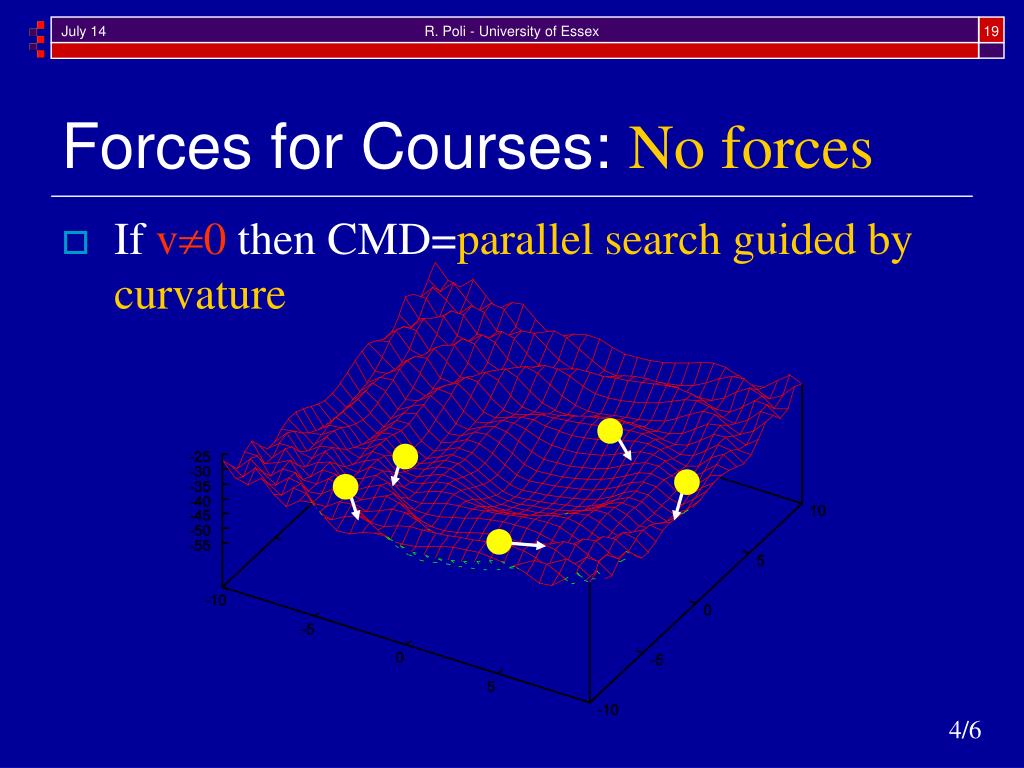

  • If v0 then CMD=parallel search guided by curvature

1/6


Forces for courses no forces2

R. Poli - University of Essex

Forces for Courses: No forces

  • If v0 then CMD=parallel search guided by curvature

2/6


Forces for courses no forces3

R. Poli - University of Essex

Forces for Courses: No forces

  • If v0 then CMD=parallel search guided by curvature

3/6


Forces for courses no forces4

R. Poli - University of Essex

Forces for Courses: No forces

  • If v0 then CMD=parallel search guided by curvature

4/6


Forces for courses no forces5

R. Poli - University of Essex

Forces for Courses: No forces

  • If v0 then CMD=parallel search guided by curvature

5/6


Forces for courses no forces6

R. Poli - University of Essex

Forces for Courses: No forces

  • If v0 then CMD=parallel search guided by curvature.

6/6


Forces for courses gravity

R. Poli - University of Essex

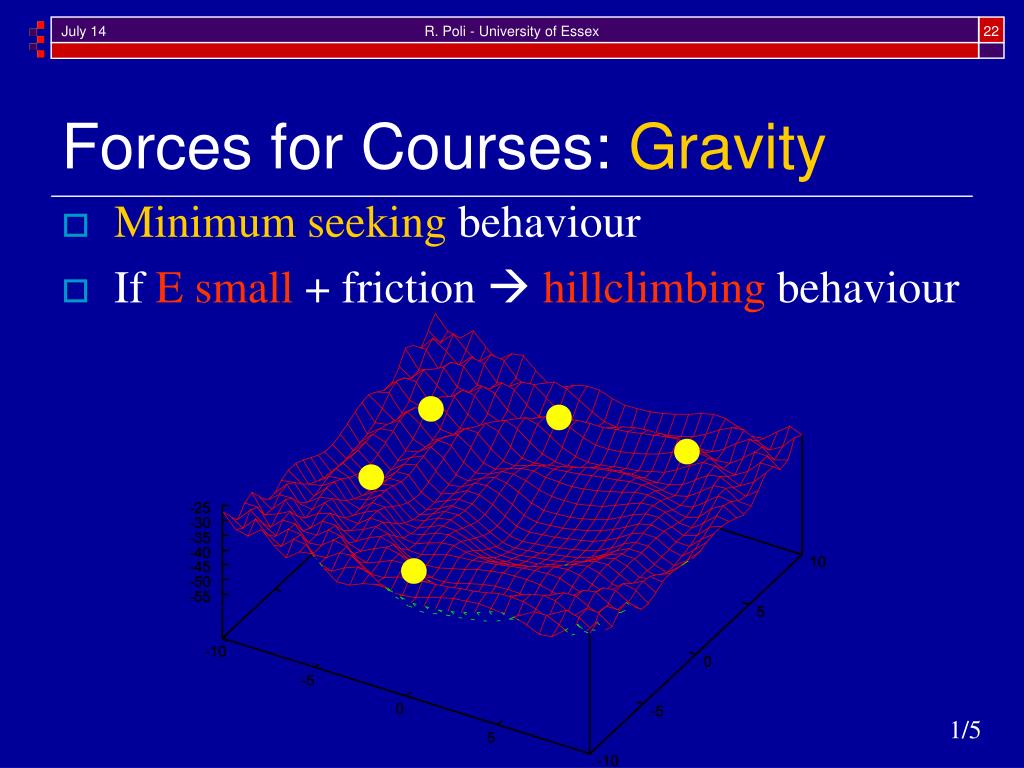

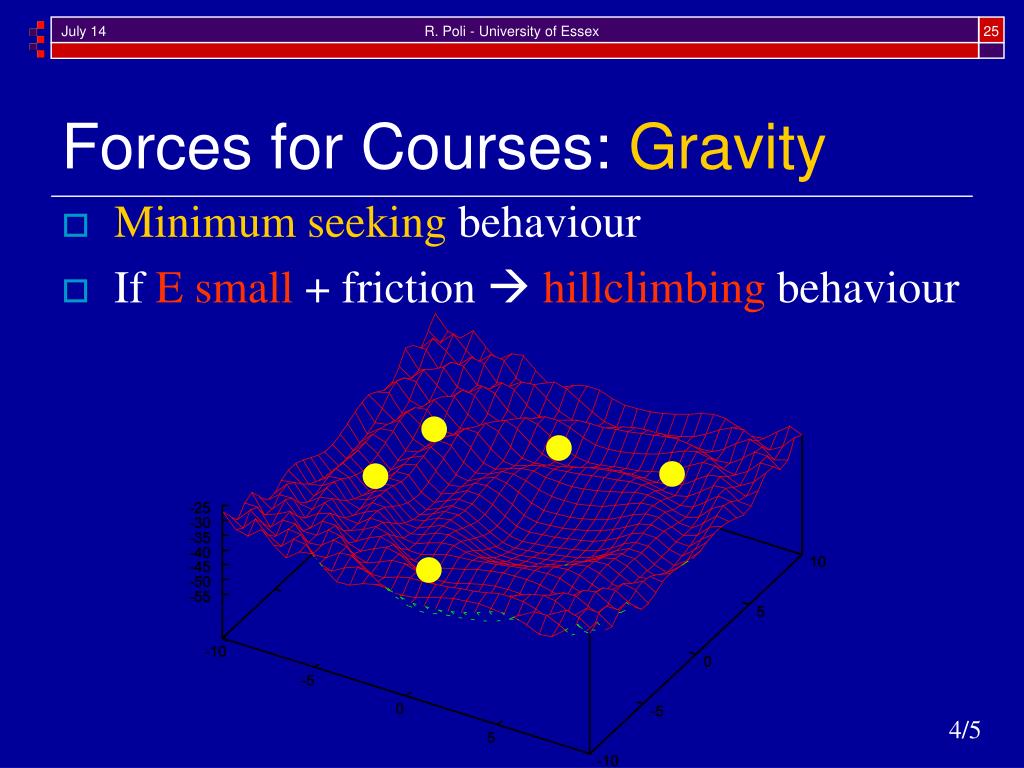

Forces for Courses: Gravity

  • Minimum seeking behaviour

  • If E small + friction  hillclimbing behaviour

1/5


Forces for courses gravity1

R. Poli - University of Essex

Forces for Courses: Gravity

  • Minimum seeking behaviour

  • If E small + friction  hillclimbing behaviour

2/5


Forces for courses gravity2

R. Poli - University of Essex

Forces for Courses: Gravity

  • Minimum seeking behaviour

  • If E small + friction  hillclimbing behaviour

3/5


Forces for courses gravity3

R. Poli - University of Essex

Forces for Courses: Gravity

  • Minimum seeking behaviour

  • If E small + friction  hillclimbing behaviour

4/5


Forces for courses gravity4

R. Poli - University of Essex

Forces for Courses: Gravity

  • Minimum seeking behaviour

  • If E small + friction  hillclimbing behaviour.

5/5


Forces for courses gravity5

R. Poli - University of Essex

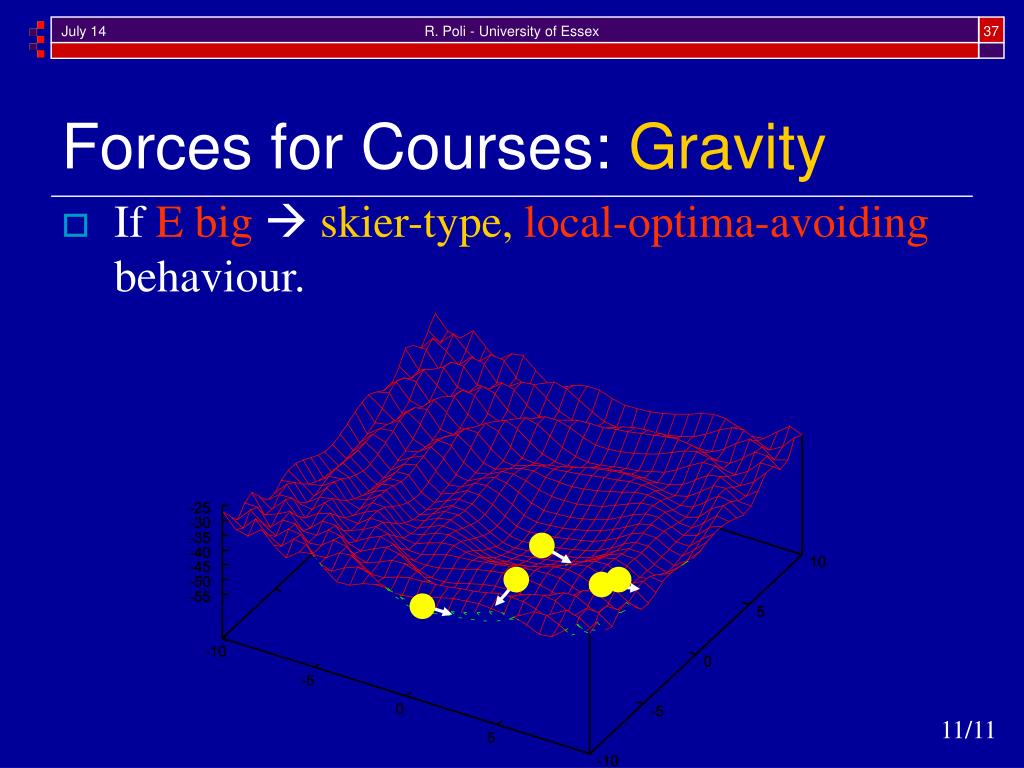

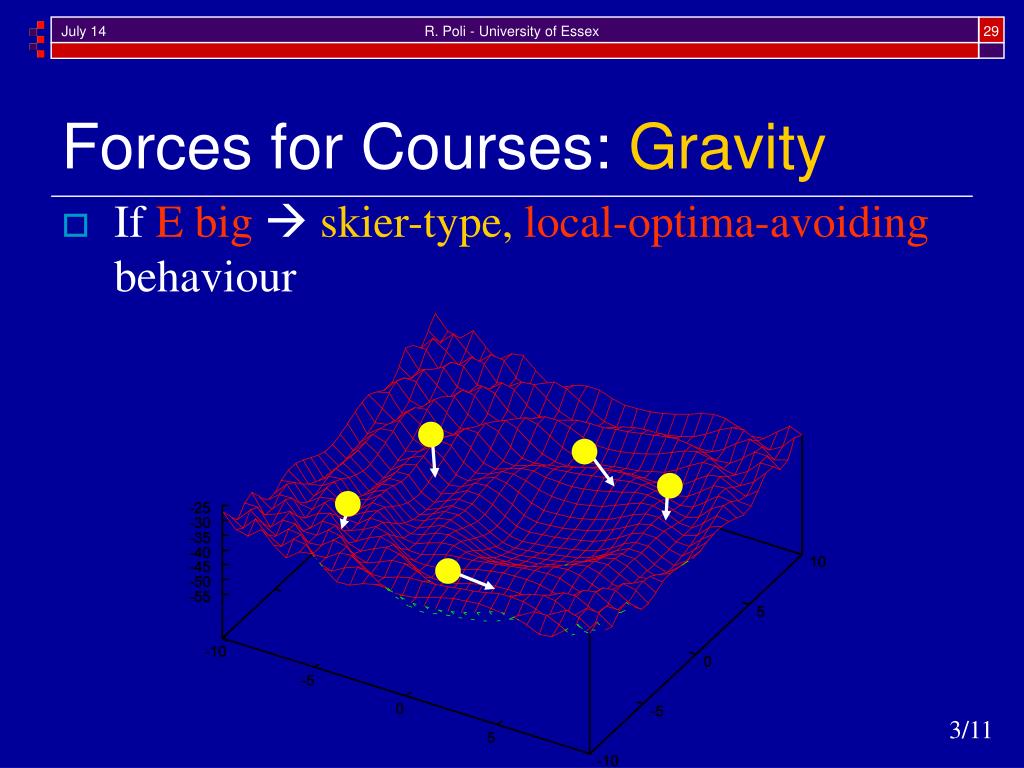

Forces for Courses: Gravity

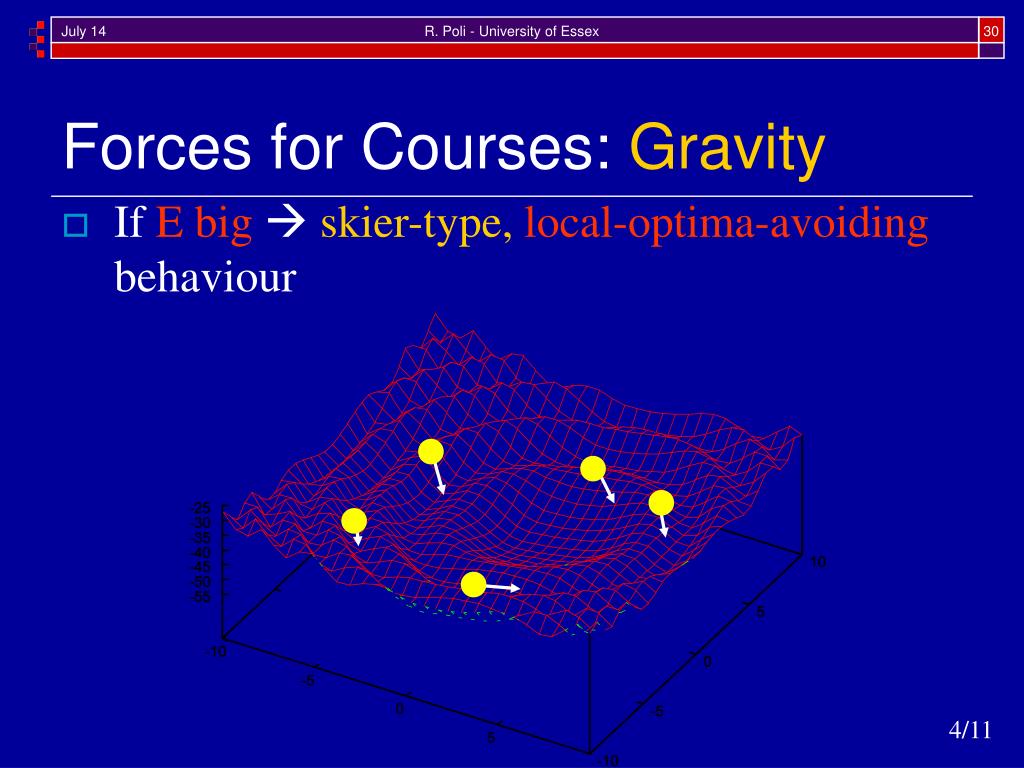

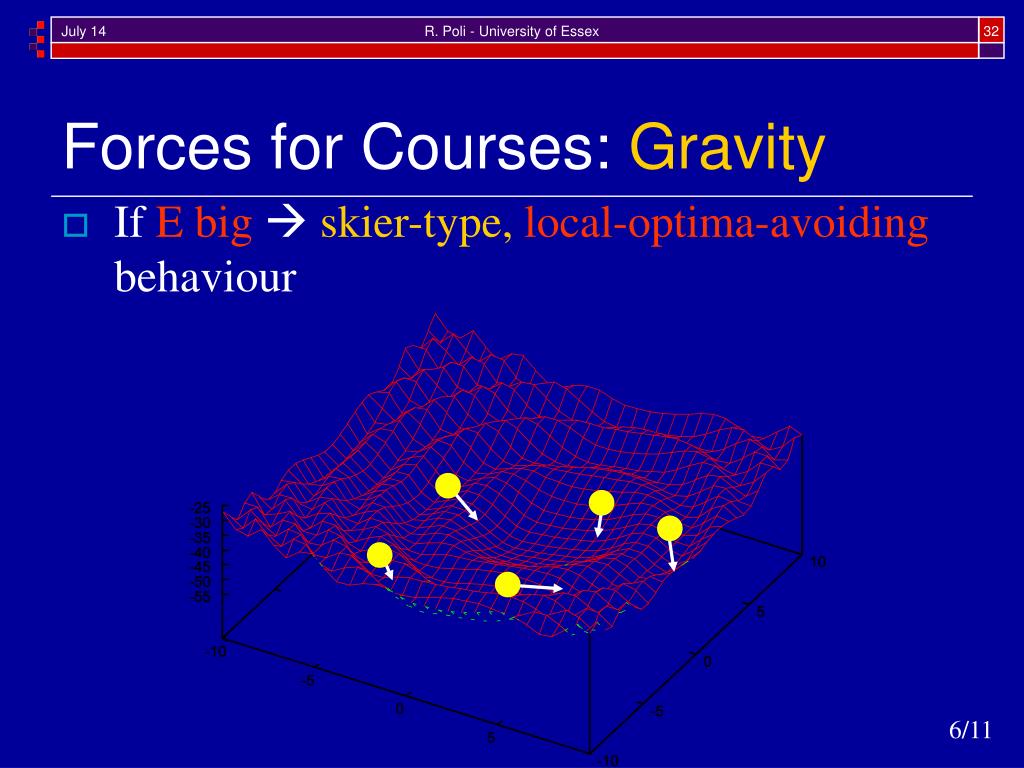

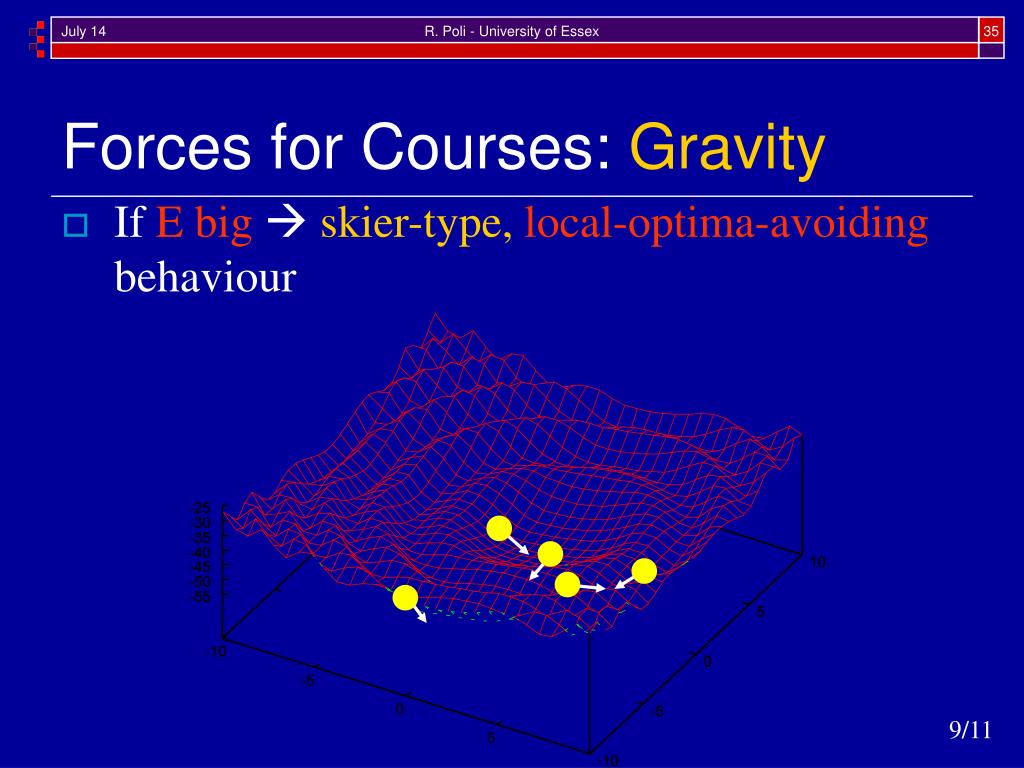

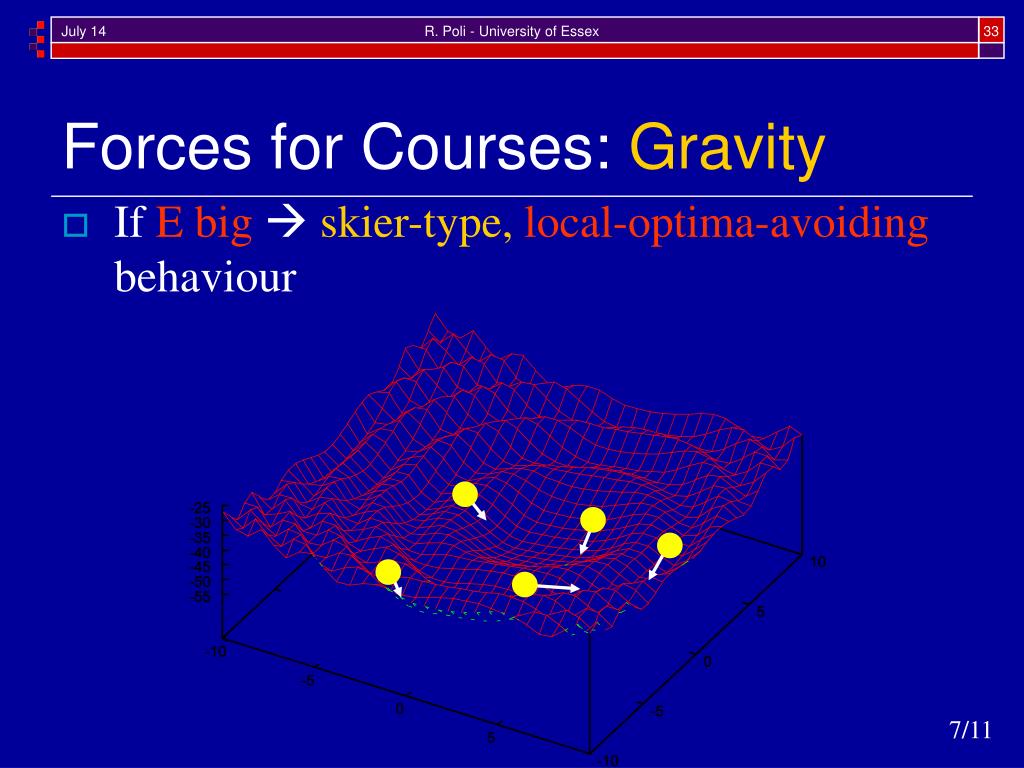

  • If E big  skier-type,local-optima-avoiding behaviour

1/11


Forces for courses gravity6

R. Poli - University of Essex

Forces for Courses: Gravity

  • If E big  skier-type,local-optima-avoiding behaviour

2/11


Forces for courses gravity7

R. Poli - University of Essex

Forces for Courses: Gravity

  • If E big  skier-type,local-optima-avoiding behaviour

3/11


Forces for courses gravity8

R. Poli - University of Essex

Forces for Courses: Gravity

  • If E big  skier-type,local-optima-avoiding behaviour

4/11


Forces for courses gravity9

R. Poli - University of Essex

Forces for Courses: Gravity

  • If E big  skier-type,local-optima-avoiding behaviour

5/11


Forces for courses gravity10

R. Poli - University of Essex

Forces for Courses: Gravity

  • If E big  skier-type,local-optima-avoiding behaviour

6/11


Forces for courses gravity11

R. Poli - University of Essex

Forces for Courses: Gravity

  • If E big  skier-type,local-optima-avoiding behaviour

7/11


Forces for courses gravity12

R. Poli - University of Essex

Forces for Courses: Gravity

  • If E big  skier-type,local-optima-avoiding behaviour

8/11


Forces for courses gravity13

R. Poli - University of Essex

Forces for Courses: Gravity

  • If E big  skier-type,local-optima-avoiding behaviour

9/11


Forces for courses gravity14

R. Poli - University of Essex

Forces for Courses: Gravity

  • If E big  skier-type,local-optima-avoiding behaviour

10/11


Forces for courses gravity15

R. Poli - University of Essex

Forces for Courses: Gravity

  • If E big  skier-type,local-optima-avoiding behaviour.

11/11


Forces for courses interactions

R. Poli - University of Essex

Forces for Courses: Interactions

  • Particle-particle interactions (springs)

    • Springs integrate information across the population of particles (a bit like crossover in a GA).

    • Without friction  oscillatory/exploratory search behaviour (similar to PSOs)

    • With friction  exploration focuses (like in a GA)


Forces for courses interactions1

R. Poli - University of Essex

Forces for Courses: Interactions

1/12


Forces for courses interactions2

R. Poli - University of Essex

Forces for Courses: Interactions

2/12


Forces for courses interactions3

R. Poli - University of Essex

Forces for Courses: Interactions

3/12


Forces for courses interactions4

R. Poli - University of Essex

Forces for Courses: Interactions

4/12


Forces for courses interactions5

R. Poli - University of Essex

Forces for Courses: Interactions

5/12


Forces for courses interactions6

R. Poli - University of Essex

Forces for Courses: Interactions

6/12


Forces for courses interactions7

R. Poli - University of Essex

Forces for Courses: Interactions

7/12


Forces for courses interactions8

R. Poli - University of Essex

Forces for Courses: Interactions

8/12


Forces for courses interactions9

R. Poli - University of Essex

Forces for Courses: Interactions

9/12


Forces for courses interactions10

R. Poli - University of Essex

Forces for Courses: Interactions

10/12


Forces for courses interactions11

R. Poli - University of Essex

Forces for Courses: Interactions

11/12


Forces for courses interactions12

R. Poli - University of Essex

Forces for Courses: Interactions.

12/12


Forces for courses friction

R. Poli - University of Essex

Forces for Courses: Friction

  • Friction “relaxes” a particle into a good position once an interesting region has been found in the landscape.

    • More friction less exploration

    • Less friction  more exploration

    • Similar to temperature in simulated annealing.

    • Similar to selection pressure in a GA


Cmd in practice

R. Poli - University of Essex

CMD in Practice

We calculate the force acting on each particle and numerically integrate the motion equations for the system

repeat

for i =1 to Population Size

ai = Force (x, v, fitness surface )

vi = vi + ∆ ai

xi = xi + ∆ vi

next i

end repeat


Cmd is similar to psos

R. Poli - University of Essex

CMD is Similar to PSOs…

Particle swarm optimisers are inspired to bird flocks foraging

for i =1 to Population Size (N)

for j = 1 to Dimension Size (d)

aij = f1(pij – xij ) + f2(pgj – xij )

vij = vij + aij

xij = xij + vij

next j

{if f(xi) < f(pi) then pi = xi // Intelligence

if f(pi) < f(pg) then g = i}

next i


Constrained molecular dynamics as a search and optimization tool

R. Poli - University of Essex

…but…

  • In CMD particles don’t fly, they slide

  • No memory and no explicit “intelligence”

  • No random forces

  • Simulation is physically realistic


Cmd is similar to gradient descent

R. Poli - University of Essex

CMD is Similar to Gradient Descent

But…

  • CMD uses multiple interacting particles which can pull each other out of bad areas

  • Particles have velocity and mass which help escape local optima

  • Particles “feel” the local shape of the fitness surface (centripetal acceleration) in addition to the slope.


Experiments

R. Poli - University of Essex

Experiments

  • Setups

    • n = 1, n = 2 and n = 10 particles

    • N = 1, N = 2 and N = 3 dimensions

    • Springs: no, ring, full

    • Gravity: no, yes

    • Friction: no, yes

  • 30 independent runs per setup

  • 5000 integration steps per run


Test problems

R. Poli - University of Essex

Test problems

  • De Jong’s F1

    • Unimodal

    • Easy

  • De Jong’s F2

    • Unimodal

    • Hard

  • Rastrigin’s

    • Highlymultimodal

    • Very hard


Results f1

R. Poli - University of Essex

Results: F1

  • More particles  better performance

  • Gravity is sufficient to guarantee near perfect results

  • Springs are not too beneficial

  • Friction helps settle in the global optimum


Results f2

R. Poli - University of Essex

Results: F2

  • Gravity is needed

  • Springs are more beneficial

  • Friction less beneficial (long narrow valley)

  • Too few particles convergence not guaranteed (oscillations)


Results rastrigin

R. Poli - University of Essex

Results: Rastrigin

  • Gravity is needed

  • Springs help, especially when fully connected

  • Friction helps settle in the global optimum

  • More particles are necessary to solve problem reliably


Vrml demos

R. Poli - University of Essex

VRML Demos


Conic fitness function one particle gravity no friction

R. Poli - University of Essex

Conic fitness function, one particle, gravity, no friction


Conic fitness function 5 particles gravity springs ring friction

R. Poli - University of Essex

Conic fitness function, 5 particles, gravity, springs (ring), friction


Quadratic fitness function 5 particles gravity friction

R. Poli - University of Essex

Quadratic fitness function, 5 particles, gravity, friction


Quadratic fitness function 5 particles gravity no friction springs ring

R. Poli - University of Essex

Quadratic fitness function, 5 particles, gravity, no friction, springs (ring)


Quadratic fitness function 5 particles gravity friction springs ring

R. Poli - University of Essex

Quadratic fitness function, 5 particles, gravity, friction, springs (ring)


Multimodal fitness function 5 particles gravity friction

R. Poli - University of Essex

Multimodal fitness function, 5 particles, gravity, friction


Multimodal function 5 particles gravity friction springs ring

R. Poli - University of Essex

Multimodal function, 5 particles, gravity, friction, springs (ring)


Multimodal function 5 particles gravity friction springs all connected

R. Poli - University of Essex

Multimodal function, 5 particles, gravity, friction, springs (all connected)


Rastrigin fitness function 20 particles gravity friction

R. Poli - University of Essex

Rastrigin fitness function, 20 particles, gravity, friction


Rastrigin function 20 particles gravity friction springs all connected

R. Poli - University of Essex

Rastrigin function, 20 particles, gravity, friction, springs (all connected)


Conclusions

R. Poli - University of Essex

Conclusions

  • CMD uses the physics of masses and forces to guide the exploration of fitness landscapes.

  • For now we have explored three forces:

    • Gravity provides the ability to seek minima.

    • Interaction via springs provides exploration.

    • Friction slows down and focuses the search.

  • The results are encouraging and we hope much more can come from CMD.


  • Login
