Design an ecoroof exercise

Design an Ecoroof Exercise

4 Projects to Design/Build:

  • Design a Buildup for the area marked on the following plans

  • Pay attention to Microclimates that may appear in that area.

  • Stay within the Budget and Weight Bearing Constraints (the Soil Weighs 3.75 pounds per sq. foot, per inch of depth)

  • You will need to refer to the printed Presentation. There should be at least 1 per group.

  • Write Down reasons for your choices.

  • Write down a plant list, or specify sedums or semps for certain areas.

  • Bonus Question: Calculate the Materials Costs of the System on a per sq. ft basis.

  • Hawthorne Hostel

  • Roy / Webb Garage

  • Fox Chase Rainwater Harvesting Property

  • City Hall Bike Parking Structure


Hawthorne hostel

Hawthorne Hostel

  • Notes:

  • 20 lbs per sq. ft allocated for ecoroof

  • House faces South

  • 3/12 pitch slope

  • Extremely low budget of just $7.00 per ft. sq, (for materials)


Hawthorne hostel1

Hawthorne Hostel


Roy webb garage roof

Roy / Webb Garage Roof

  • Notes:

  • 20 lbs per sq. ft allocated for ecoroof

  • A large Maple tree shades the garage roof

  • Garage on East Side of House

  • Budget $7.00 to $8.00 per sq. ft (for materials)

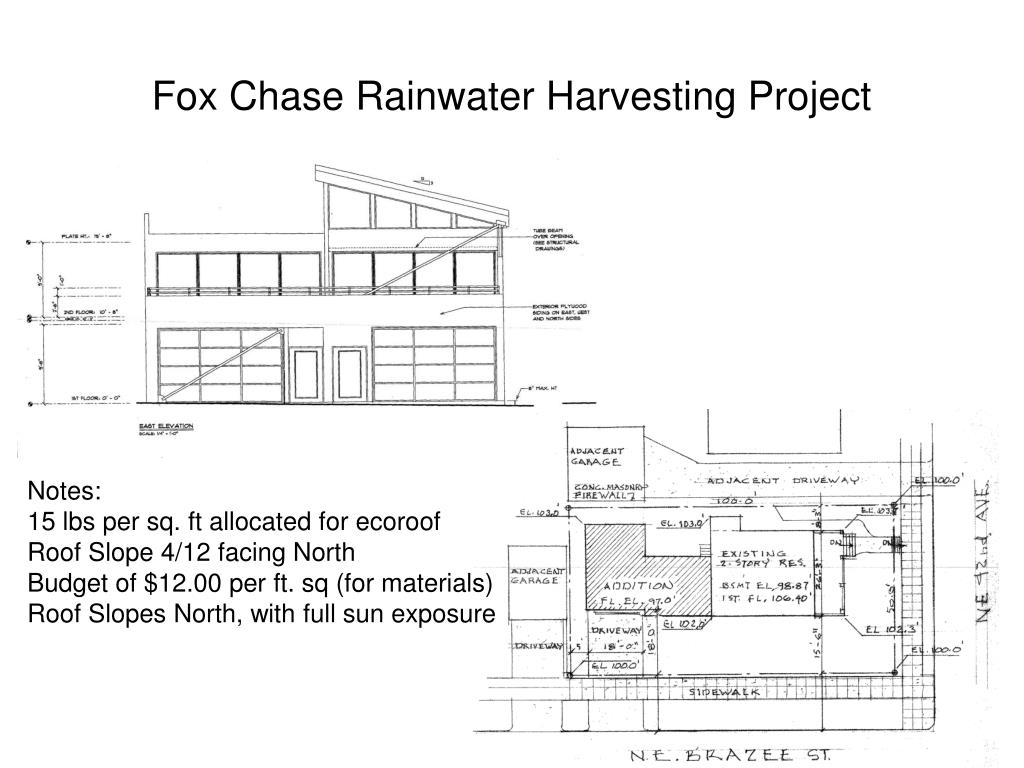

Fox chase rainwater harvesting project

Fox Chase Rainwater Harvesting Project

Notes:

15 lbs per sq. ft allocated for ecoroof

Roof Slope 4/12 facing North

Budget of $12.00 per ft. sq (for materials)

Roof Slopes North, with full sun exposure


City hall bike parking structure

City Hall Bike Parking Structure

  • Notes:

  • 15 lbs per sq. ft allocated for ecoroof

  • Roof Slope 3/12

  • Located on West Side of City Hall, and gable roof sloped to East and West.

  • Potential Vandalism Issues, as roof is only about 8’ high and there is a 3’ wall next to it for climbing up.

  • It is Very Important that this roof looks good. Annuals for initial splash are OK for first year.

  • Native Species Preferred

  • Budget of $10 per sq ft (for materials)
