Presentation Transcript


Bruce kelly abengoa solar incorporated berkeley california june 2008 l.jpg

Bruce Kelly

Abengoa Solar, Incorporated

Berkeley, California

June 2008

Past, Present, and Futureof Solar Thermal Generation


Slide2 l.jpg

Topics

  • Solar resource

  • Solar thermal technologies

  • Early projects

  • Current projects

  • Future plans


Solar resource l.jpg

Solar Resource

  • Southwest US, filtered for environmental areas, urban areas, water, and slope < 3%

  • 9,800 TWhe potential

  • 3,800 TWhe US energy consumption


Parabolic trough l.jpg

Parabolic Trough

  • Type: Glass mirror; single axis tracking; line focus

  • Nominal concentration: 80:1

  • Heat collection fluid: Synthetic oil

  • Peak temperature: 393 C


Central receiver l.jpg

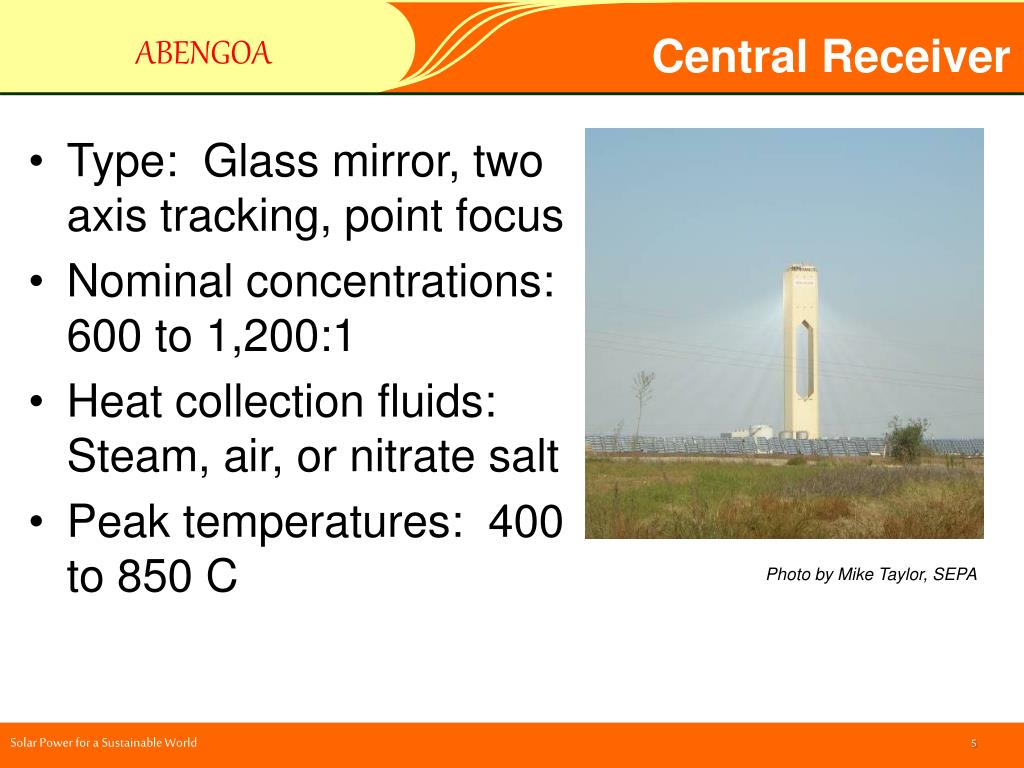

Central Receiver

  • Type: Glass mirror, two axis tracking, point focus

  • Nominal concentrations: 600 to 1,200:1

  • Heat collection fluids: Steam, air, or nitrate salt

  • Peak temperatures: 400 to 850 C

Photo by Mike Taylor, SEPA


Linear fresnel l.jpg

Linear Fresnel

  • Type: Glass mirror, single axis tracking, line focus

  • Nominal concentration: ~100:1

  • Heat collection fluid: Saturated steam

  • Peak temperature: ~260 C

Photos taken by Mike Taylor, SEPA


Parabolic trough7 l.jpg

Parabolic Trough


Parabolic trough8 l.jpg

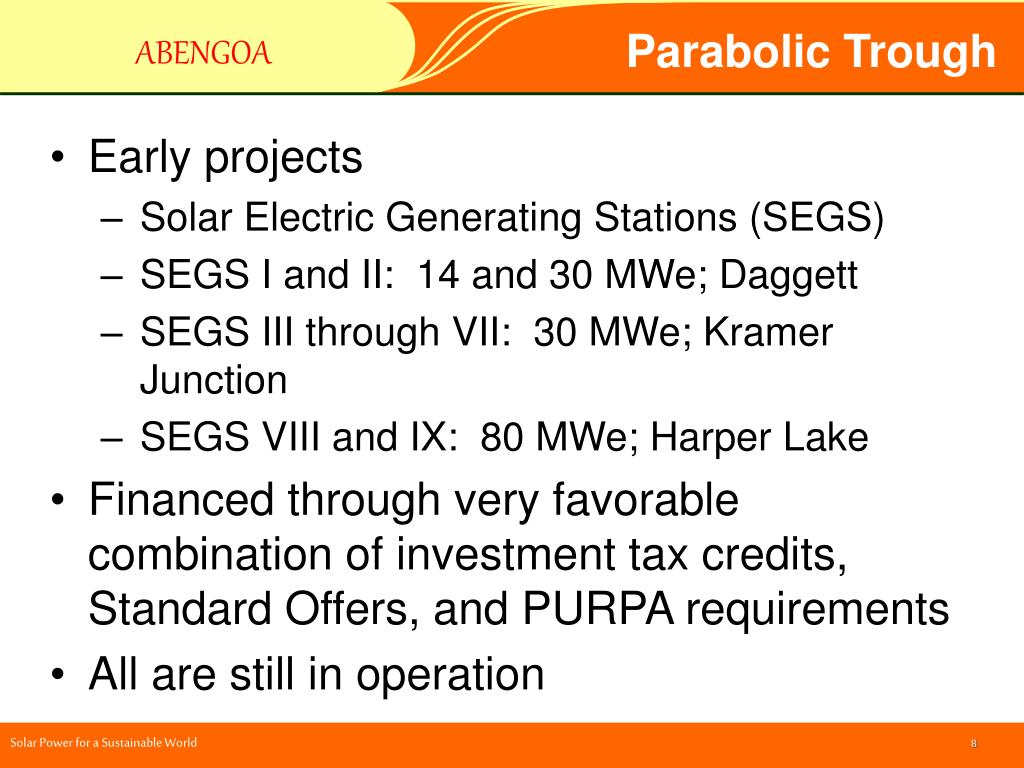

Early projects

Solar Electric Generating Stations (SEGS)

SEGS I and II: 14 and 30 MWe; Daggett

SEGS III through VII: 30 MWe; Kramer Junction

SEGS VIII and IX: 80 MWe; Harper Lake

Financed through very favorable combination of investment tax credits, Standard Offers, and PURPA requirements

All are still in operation

Parabolic Trough


Parabolic trough9 l.jpg

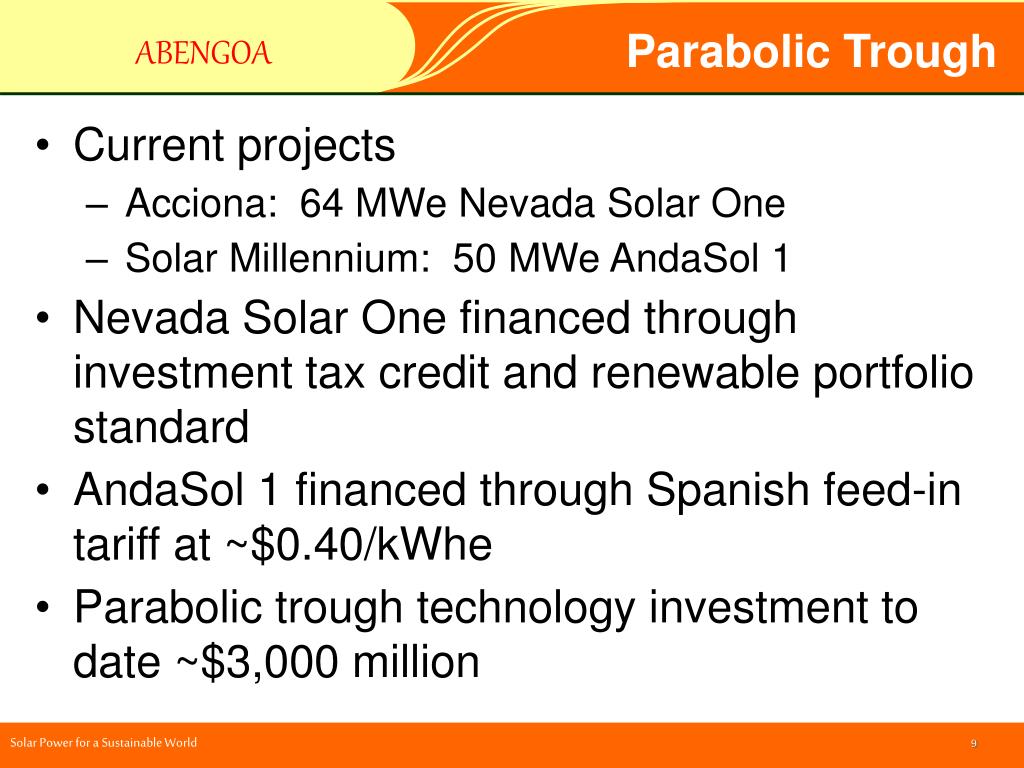

Current projects

Acciona: 64 MWe Nevada Solar One

Solar Millennium: 50 MWe AndaSol 1

Nevada Solar One financed through investment tax credit and renewable portfolio standard

AndaSol 1 financed through Spanish feed-in tariff at ~$0.40/kWhe

Parabolic trough technology investment to date ~$3,000 million

Parabolic Trough


Parabolic trough10 l.jpg

Future plans

Spain: 50 MWe; limited by tariff structure

US: 125 to 250 MWe; economies of scale

Advanced collector coolants

Direct steam generation, and inorganic nitrate salt mixtures

450 to 500 C collector field temperatures

More efficient Rankine cycles

Why not yet? → Direct steam generation has complex controls, and salt freezes

Parabolic Trough


Central receiver11 l.jpg

Central Receiver


Central receiver12 l.jpg

Early projects

France, Spain, Italy, Japan, and United States

1 to 10 MWe

Receiver coolants: Sodium; nitrate salt; compressed air; and water/steam

Design point efficiencies were close to, but annual energy efficiencies were well below, predictions

Most suffered from lack of operating funds

Central Receiver


Central receiver13 l.jpg

Current projects

Abengoa: PS10 and PS20

US DOE: Solar Two (1999)

PS10 and PS20: Saturated steam receivers; high reliability, but below-commercial efficiency

Solar Two: Nitrate salt receiver, thermal storage, and steam generator; high efficiency, but poor reliability

Technology investment to date ~$1,000 million

Central Receiver


Central receiver14 l.jpg

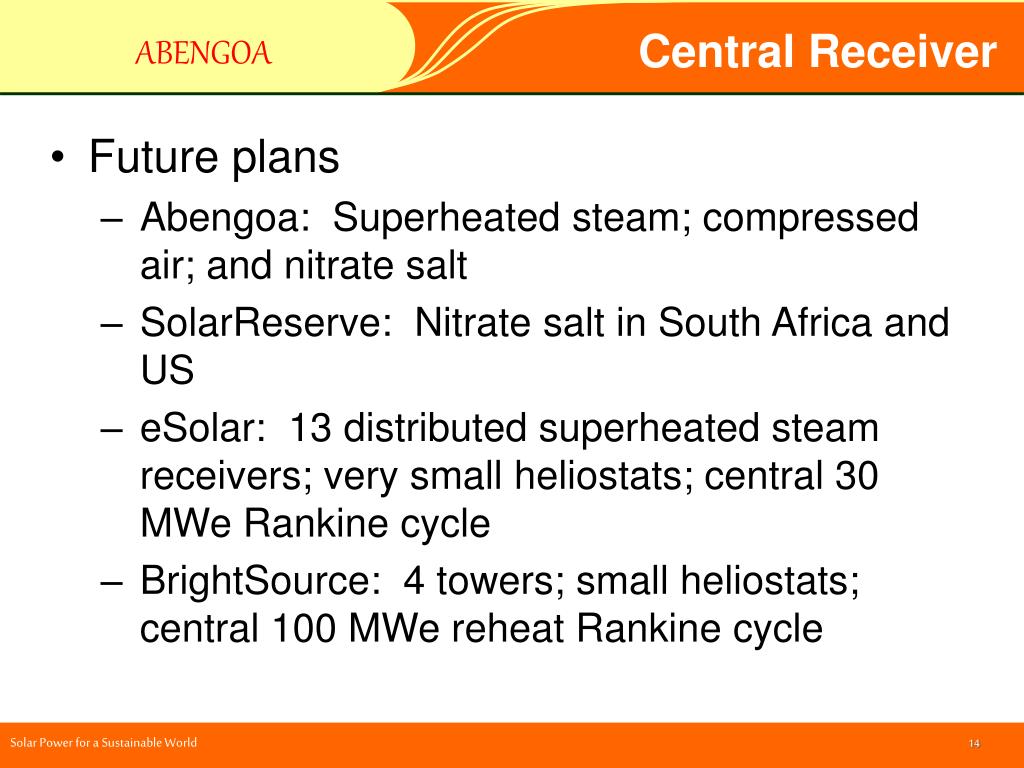

Future plans

Abengoa: Superheated steam; compressed air; and nitrate salt

SolarReserve: Nitrate salt in South Africa and US

eSolar: 13 distributed superheated steam receivers; very small heliostats; central 30 MWe Rankine cycle

BrightSource: 4 towers; small heliostats; central 100 MWe reheat Rankine cycle

Central Receiver


Central receiver15 l.jpg

Why not yet?

Superheated steam: Moderate annual efficiencies; thermal storage may be impractical

Compressed air: Complex receiver; small plant sizes; thermal storage may be impractical

Nitrate salt: Less than perfect operating experience; equipment development must occur at commercial scale, with ~$750 million project investment

Central Receiver


Performance and cost l.jpg

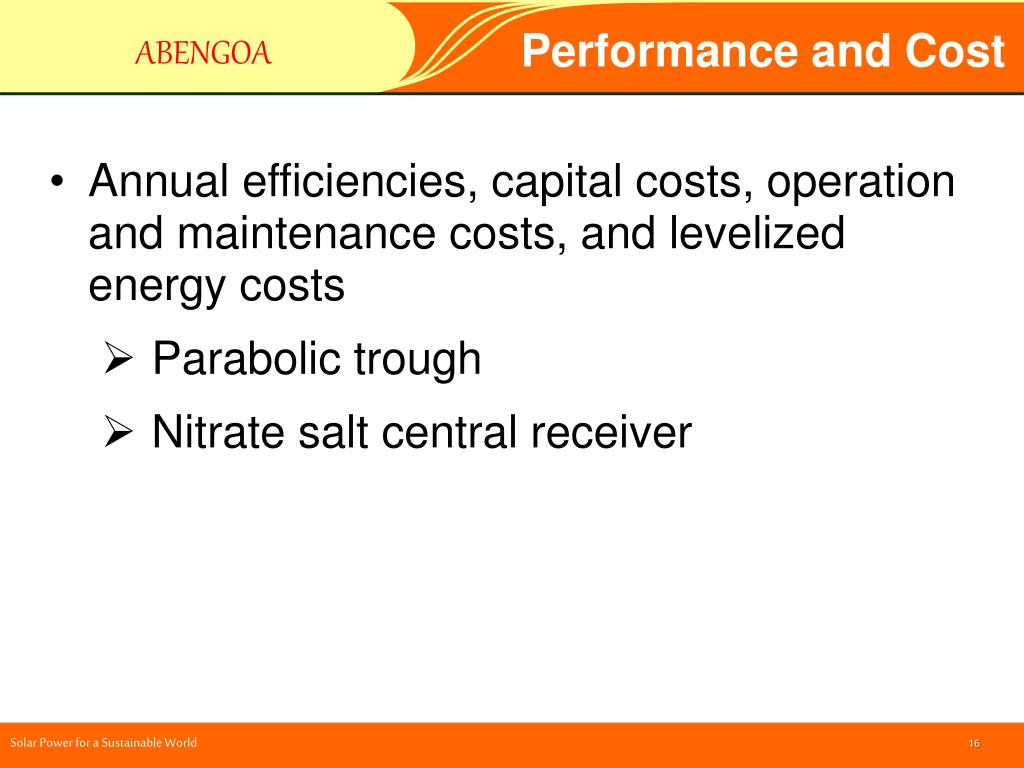

Performance and Cost

  • Annual efficiencies, capital costs, operation and maintenance costs, and levelized energy costs

    • Parabolic trough

    • Nitrate salt central receiver


Parabolic trough17 l.jpg

Parabolic Trough

  • Annual solar-to-electric efficiencies

    • 14 to 16 percent gross

    • 12 to 14 percent net

  • Capital cost

    • ~$4/We without thermal storage; includes project financing, interest during construction, and owner’s costs

    • ~$5 to $8/We with thermal storage


Parabolic trough18 l.jpg

Parabolic Trough

  • Operation and maintenance cost

    • $0.02 to $0.04/kWhe

  • Levelized energy costs

    • $0.14 to $18/kWhe with Southwest US direct normal radiation and 30 percent investment tax credit

    • $0.35 to $0.40/kWhe with southern Spain direct normal radiation and no financial incentives


Salt central receiver l.jpg

Salt Central Receiver

  • Annual solar-to-electric efficiencies

    • 17 to 19 percent gross

    • 15 to 17 percent net

  • Capital cost

    • ~$4/We with minimum thermal storage; includes project financing, interest during construction, and owner’s costs

    • ~$7/We with thermal storage at 70 percent annual capacity factor


Salt central receiver20 l.jpg

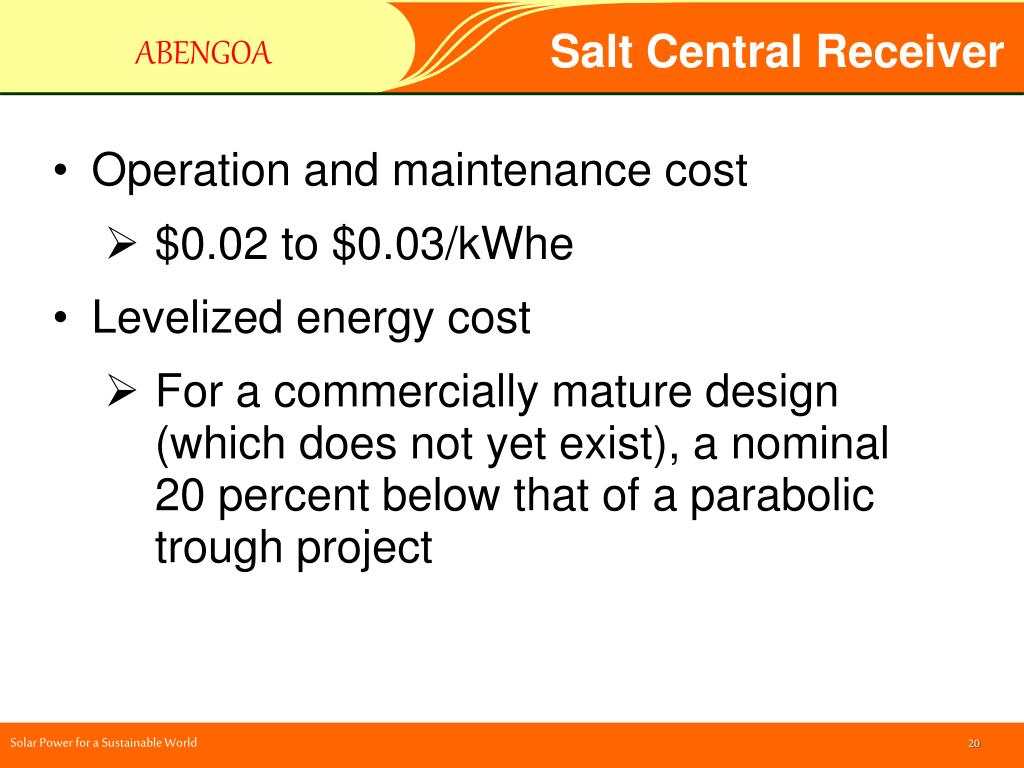

Salt Central Receiver

  • Operation and maintenance cost

    • $0.02 to $0.03/kWhe

  • Levelized energy cost

    • For a commercially mature design (which does not yet exist), a nominal 20 percent below that of a parabolic trough project


Future markets l.jpg

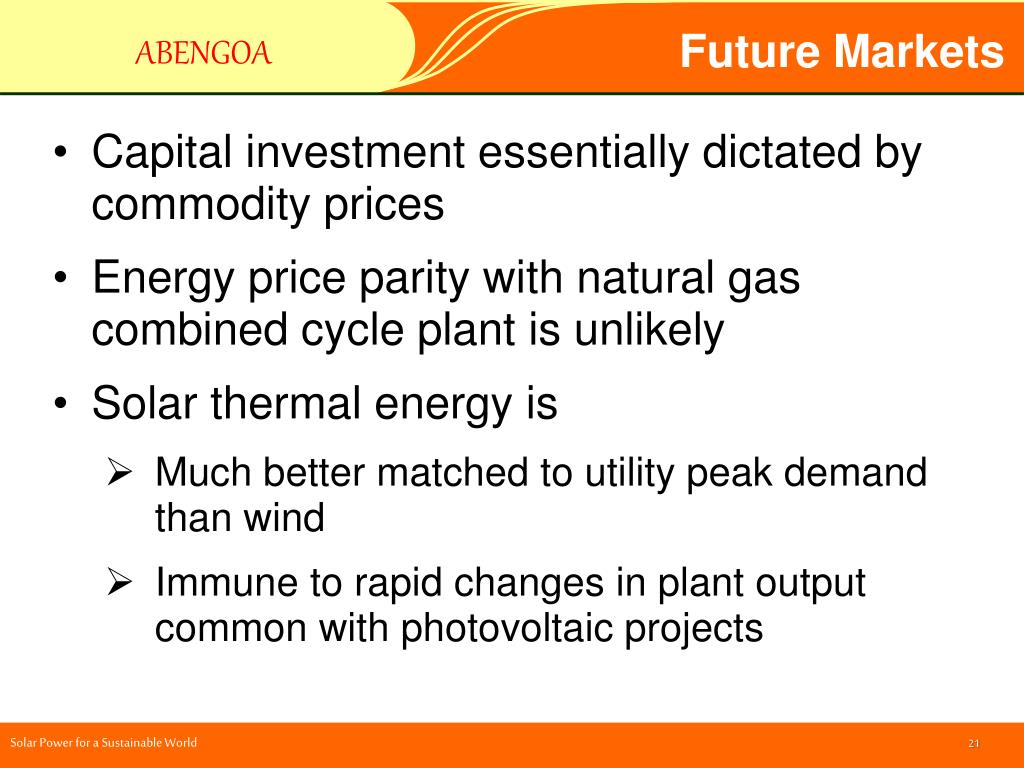

Future Markets

  • Capital investment essentially dictated by commodity prices

  • Energy price parity with natural gas combined cycle plant is unlikely

  • Solar thermal energy is

    • Much better matched to utility peak demand than wind

    • Immune to rapid changes in plant output common with photovoltaic projects


Future markets22 l.jpg

Future Markets

  • With 30 percent investment tax credit and property tax exemption, solar energy prices are within $0.02 to $0.03/kWhe of market price referant

  • Renewable portfolio standards, plus a modest carbon tax, should provide a commercial, multi-GWe market for solar thermal projects
