Example #6: Designing a Crest Vertical Curve

Example #6: Designing a Crest Vertical Curve. Design a length of vertical curve for a crest curve based on SSD and the following information: Design Speed = 40 mph g1 = 1.25% g2 = -2.75%. Solution: Determine the change in grade elevation A = |g2-g1| = |-2.75-1.25| A = 4.0%

kaiyo
Download Presentation

Example #6: Designing a Crest Vertical Curve

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

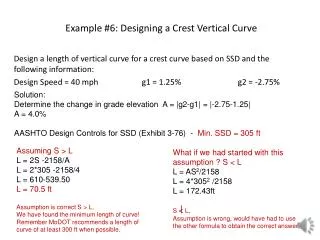

  1. Example #6: Designing a Crest Vertical Curve Design a length of vertical curve for a crest curve based on SSD and the following information: Design Speed = 40 mph g1 = 1.25% g2 = -2.75% Solution: Determine the change in grade elevation A = |g2-g1| = |-2.75-1.25| A = 4.0% AASHTO Design Controls for SSD (Exhibit 3-76) - Min. SSD = 305 ft Assuming S > L L = 2S -2158/A L = 2*305 -2158/4 L = 610-539.50 L = 70.5 ft Assumption is correct S > L, We have found the minimum length of curve! Remember MoDOT recommends a length of curve of at least 300 ft when possible. What if we had started with this assumption ? S < L L = AS2/2158 L = 4*3052 /2158 L = 172.43ft S < L, Assumption is wrong, would have had to use the other formula to obtain the correct answer
