  1. Multimedia Semantic Web and MPEG-7 Ana B. Benitez ana @ ee.columbia.edu Image and Advanced Television Lab (ADVENT) Department of Electrical Engineering Columbia University

  2. Semantic Web and Multimedia • Motivation: • Rapid explosion of available multimedia on the Web • Extract semantics from multimedia is even harder than from text! • Multimedia Semantic Web: • Describe multimedia documents • Enable interoperable, scalable and intelligent applications • Deal with multimedia and interact with users at human levels • MPEG-7 – Multimedia Content Description Interface: • Describe different aspects of multimedia documents at different abstraction levels • Enable multimedia applications in general

  3. MPEG-7 • Suite of tools for describing: • Structure and semantics ~ XML and RDF for generic data • Audio and visual features – color, texture, melody and timbre • Content management information – creator, media format and rights • Free and structured annotations – who, when and where • Text and graph classification schemes ~ thesauri and ontologies • Summaries and variations – key frame hierarchy and abstracts • Multimedia collections and models – statistical models and classifiers • XML-Schema as description definition language • ISO standard in September 2001!

  4. MPEG-7 Description

  5. Abstraction Levels

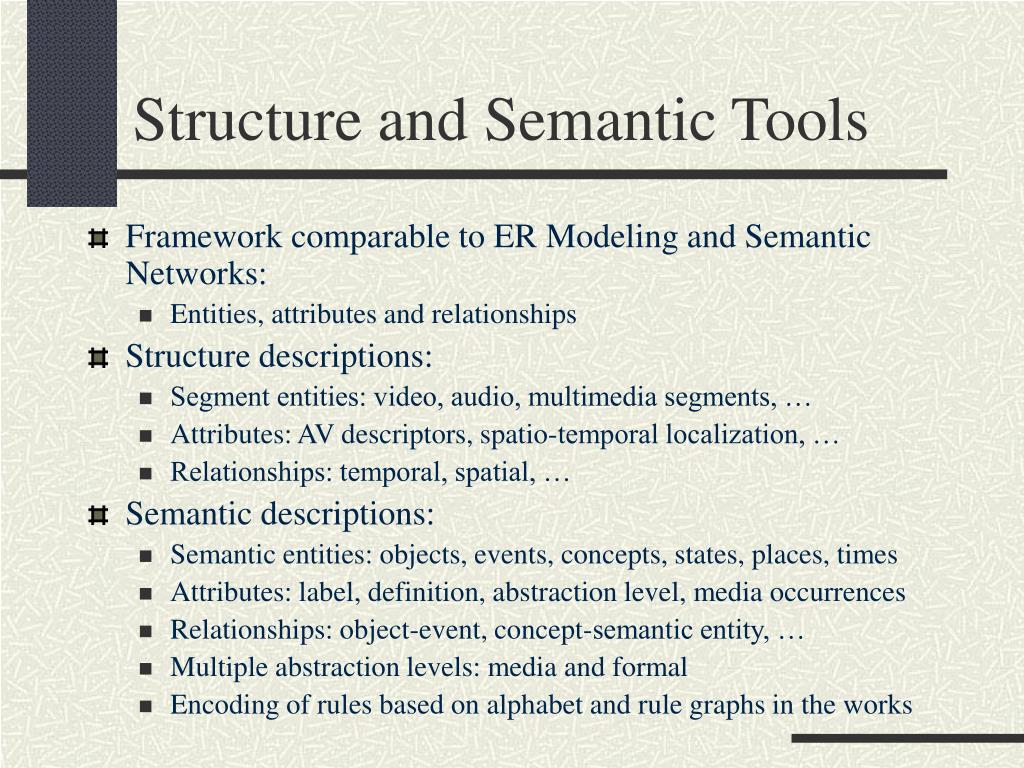

  6. Structure and Semantic Tools • Framework comparable to ER Modeling and Semantic Networks: • Entities, attributes and relationships • Structure descriptions: • Segment entities: video, audio, multimedia segments, … • Attributes: AV descriptors, spatio-temporal localization, … • Relationships: temporal, spatial, … • Semantic descriptions: • Semantic entities: objects, events, concepts, states, places, times • Attributes: label, definition, abstraction level, media occurrences • Relationships: object-event, concept-semantic entity, … • Multiple abstraction levels: media and formal • Encoding of rules based on alphabet and rule graphs in the works

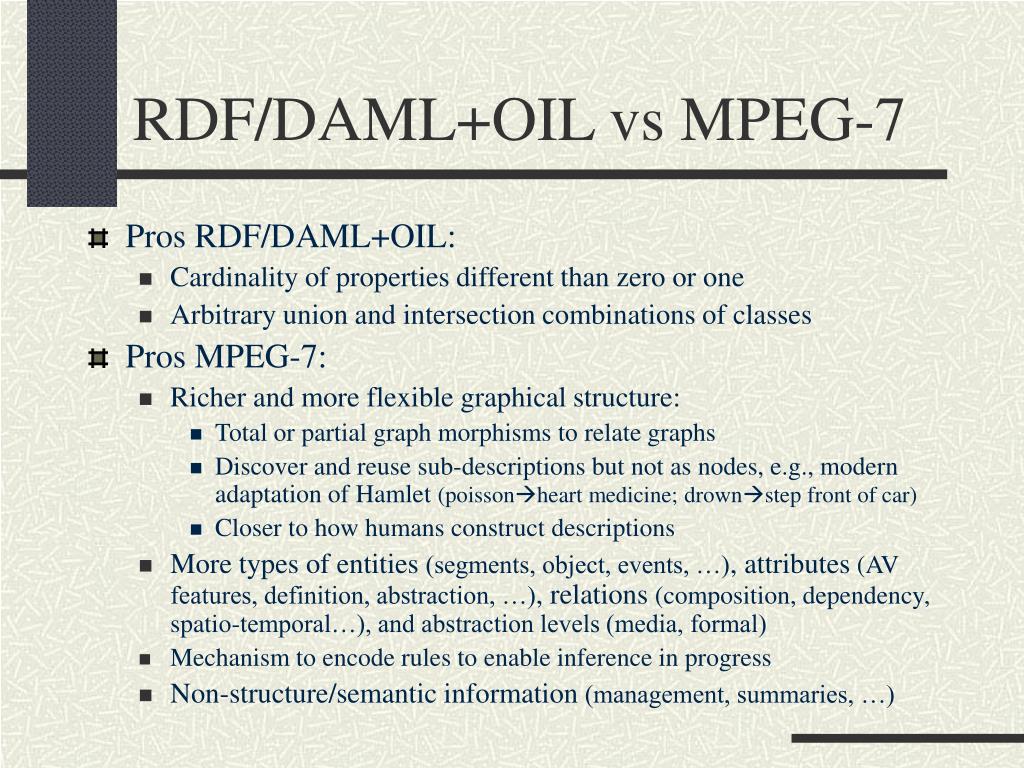

  7. RDF/DAML+OIL vs MPEG-7 • Pros RDF/DAML+OIL: • Cardinality of properties different than zero or one • Arbitrary union and intersection combinations of classes • Pros MPEG-7: • Richer and more flexible graphical structure: • Total or partial graph morphisms to relate graphs • Discover and reuse sub-descriptions but not as nodes, e.g., modern adaptation of Hamlet (poissonheart medicine; drownstep front of car) • Closer to how humans construct descriptions • More types of entities (segments, object, events, …), attributes (AV features, definition, abstraction, …), relations (composition, dependency, spatio-temporal…), and abstraction levels (media, formal) • Mechanism to encode rules to enable inference in progress • Non-structure/semantic information (management, summaries, …)

  8. Some Questions … • What is the Semantic Web doing about multimedia? • What is the position of the Semantic Web on MPEG-7?

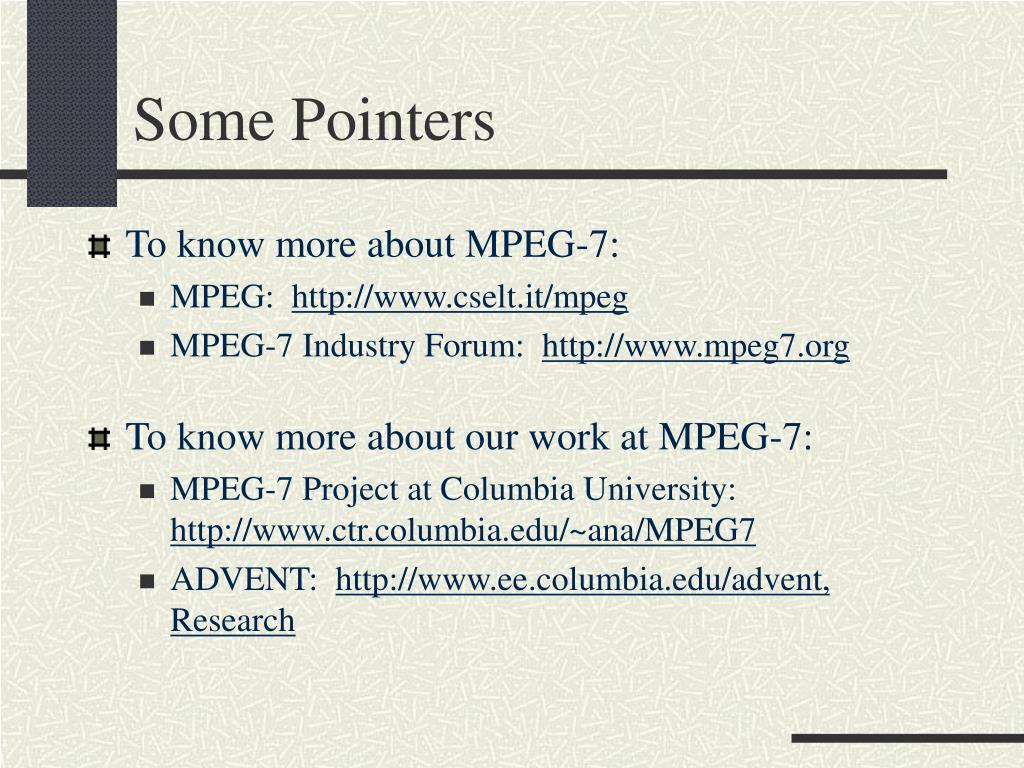

  9. Some Pointers • To know more about MPEG-7: • MPEG: http://www.cselt.it/mpeg • MPEG-7 Industry Forum: http://www.mpeg7.org • To know more about our work at MPEG-7: • MPEG-7 Project at Columbia University: http://www.ctr.columbia.edu/~ana/MPEG7 • ADVENT: http://www.ee.columbia.edu/advent, Research

  10. The End Thanks for you attention!

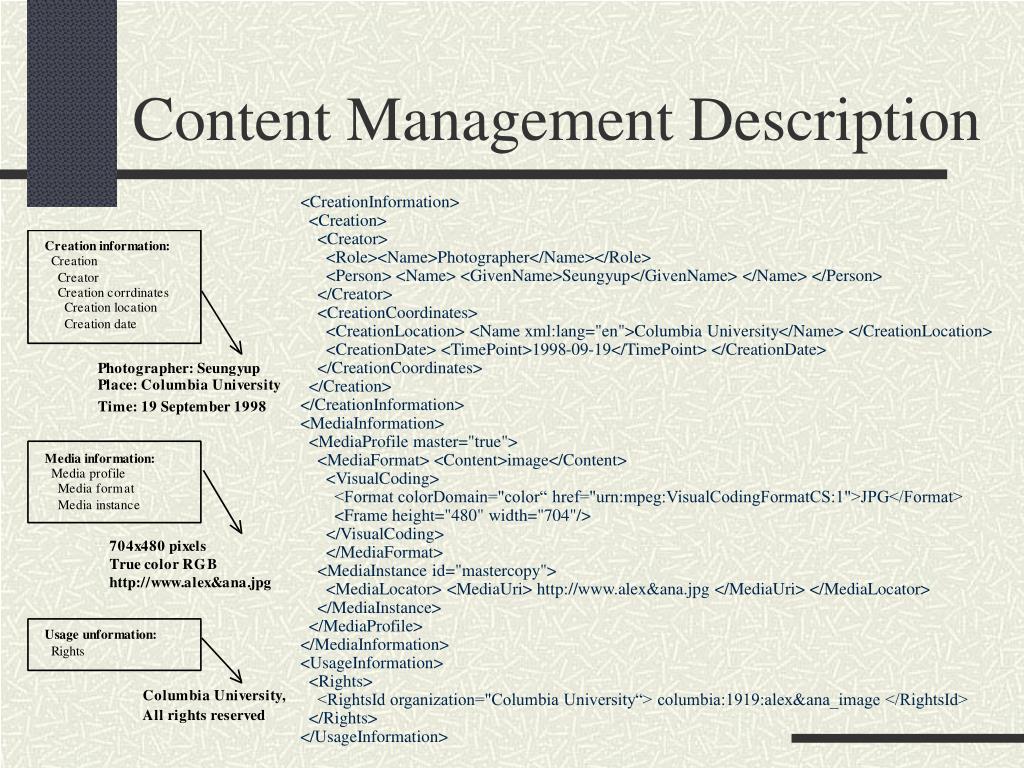

  11. Content Management Description <CreationInformation> <Creation> <Creator> <Role><Name>Photographer</Name></Role> <Person> <Name> <GivenName>Seungyup</GivenName> </Name> </Person> </Creator> <CreationCoordinates> <CreationLocation> <Name xml:lang="en">Columbia University</Name> </CreationLocation> <CreationDate> <TimePoint>1998-09-19</TimePoint> </CreationDate> </CreationCoordinates> </Creation> </CreationInformation> <MediaInformation> <MediaProfile master="true"> <MediaFormat> <Content>image</Content> <VisualCoding> <Format colorDomain="color“ href="urn:mpeg:VisualCodingFormatCS:1">JPG</Format> <Frame height="480" width="704"/> </VisualCoding> </MediaFormat> <MediaInstance id="mastercopy"> <MediaLocator> <MediaUri> http://www.alex&ana.jpg </MediaUri> </MediaLocator> </MediaInstance> </MediaProfile> </MediaInformation> <UsageInformation> <Rights> <RightsId organization="Columbia University“> columbia:1919:alex&ana_image </RightsId> </Rights> </UsageInformation>

  12. Content Structure Description <StillRegion id="SR1"> <TextAnnotation> <FreeTextAnnotation> Alex shakes hands with Ana </FreeTextAnnotation> </TextAnnotation> <SpatialDecomposition overlap="false" gap="true"> <StillRegion id="SR2"> <TextAnnotation> <FreeTextAnnotation> Alex </FreeTextAnnotation> </TextAnnotation> <VisualDescriptor xsi:type="ColorStructureType"> ... </VisualDescriptor> </StillRegion> <StillRegion id="SR3"> <TextAnnotation> <FreeTextAnnotation> Ana </FreeTextAnnotation> </TextAnnotation> <MatchingHint> <Hint value="0.455" xpath=”../../VisualDescriptor"/> </MatchingHint> <Relation xsi:type="DirectionalSpatialSegmentRelationType“ name="left“ target="#SR2"/> <VisualDescriptor xsi:type="ColorStructureType"> ... </VisualDescriptor> </StillRegion> </SpatialDecomposition> </StillRegion>

  13. Locator Description <SpatioTemporalLocator> <!-- Spatio-temporal component 1 --> <FigureTrajectory type="1"> <MediaTime> <MediaTimePoint>T00:00:15</MediaTimePoint> <MediaDuration>PT1M15S</MediaDuration> </MediaTime> </FigureTrajectory> <Vertices> <Coordinates> 4.34 1.43 4.33 </Coordinates> <Coordinates> 10.3 5.03 .33 </Coordinates> <Coordinates> 5.34 .43 2.37 </Coordinates> </Vertices> <Vertices> <Coordinates> 4.34 1.43 4.33 </Coordinates> <Coordinates> 10.3 5.03 .33 </Coordinates> <Coordinates> 5.34 .43 2.37 </Coordinates> </Vertices> <Vertices> <Coordinates> 4.34 1.43 4.33 </Coordinates> <Coordinates> 10.3 5.03 .33 </Coordinates> <Coordinates> 5.34 .43 2.37 </Coordinates> </Vertices> … </SpatioTemporalLocator>

  14. Content Semantics Description <Semantic> <Label><Name>Alex shakes hands with Ana </Name></Label> <SemanticBase xsi:type="EventType" id="EV1"> <Label><Name>Shake hands</Name></Label> <Relation xsi:type="ObjectEventRelationType“ name="hasAgentOf“ target="#AO1"/> <Relation xsi:type="ObjectEventRelationType“ name="hasAccompanierOf“ target="#AO2"/> <Relation xsi:type="ConceptSemanticBaseRelationType“ name="hasPropertyOf" target="#C1"/> <SemanticPlace> <Label><Name>Columbia University</Name></Label> </SemanticPlace> <SemanticTime> <Label><Name>September 9, 1998</Name></Label> </SemanticTime> </SemanticBase> <SemanticBase xsi:type="AgentObjectType" id="AO1"> <Label><Name>Alex</Name></Label> <Agent xsi:type="PersonType"> <Name><GivenName>Alex</GivenName></Name> </Agent> </SemanticBase> <SemanticBase xsi:type="AgentObjectType" id="AO2"> <Label><Name>Ana</Name></Label> <Agent xsi:type="PersonType"> <Name><GivenName>Ana</GivenName></Name> </Agent> </SemanticBase> <SemanticBase xsi:type="ConceptType" id="C1"> <Label><Name>Comradeship</Name></Label> <Property>Associate</Property> <Property>Friend</Property> </SemanticBase> </Semantic>
