safesource designing a better safe water storage system

SafeSource:Designing a Better Safe Water Storage System

Robin Davis

Meryl del Rosario

Joanna Natsios

Paul Saindon

cdc safe water system
CDC – Safe Water System
  • Approx. 20L water vessel
  • Ships efficiently
    • Tough, robust material
    • Nests and stacks on palate for easy shipping
  • Easily carried with hands or on head
  • Lid
    • Difficult to remove
    • With opening large enough for filling but small enough to prevent contamination from hands
  • Tap for dispensing—on/off/hold

Current CDC standard water vessel

All citations: www.cdc.gov/safewater/faq.htm#disinfectant

alternative designs tio 2 as antibacterial agent

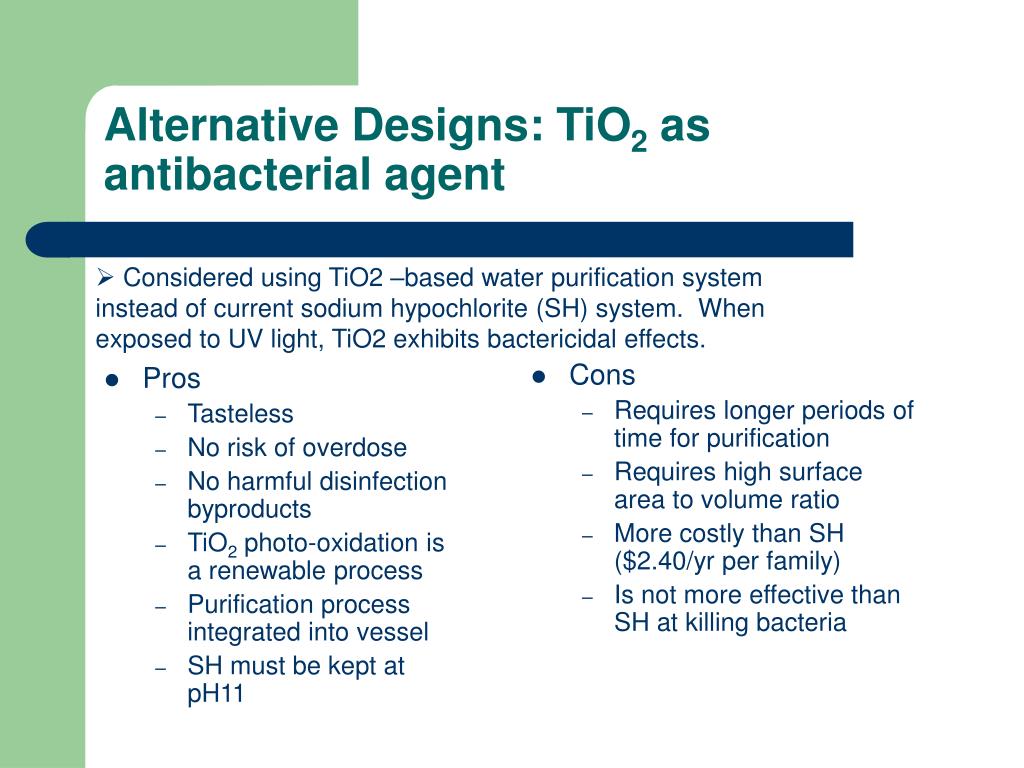

Alternative Designs: TiO2 as antibacterial agent
  • Considered using TiO2 –based water purification system instead of current sodium hypochlorite (SH) system. When exposed to UV light, TiO2 exhibits bactericidal effects.
  • Pros
    • Tasteless
    • No risk of overdose
    • No harmful disinfection byproducts
    • TiO2 photo-oxidation is a renewable process
    • Purification process integrated into vessel
    • SH must be kept at pH11
  • Cons
    • Requires longer periods of time for purification
    • Requires high surface area to volume ratio
    • More costly than SH ($2.40/yr per family)
    • Is not more effective than SH at killing bacteria
last year s 3 082 design
Thermoforming

Selected Jolivert style tap

Recommended HDPE, but used ASB

No work on lid design

Dimple for head is uncomfortable

Cylindrical Bucket

Last Year’s 3.082 Design

Square Bucket

Jolivert Tap

planned improvements
Planned Improvements
  • Selection of ideal polymer material
  • Modifications to square design
  • Elimination of “webbing” in areas of high curvature
  • Easy-to-secure, hard-to-remove lid with ergonomic handles
3d printing a male mold

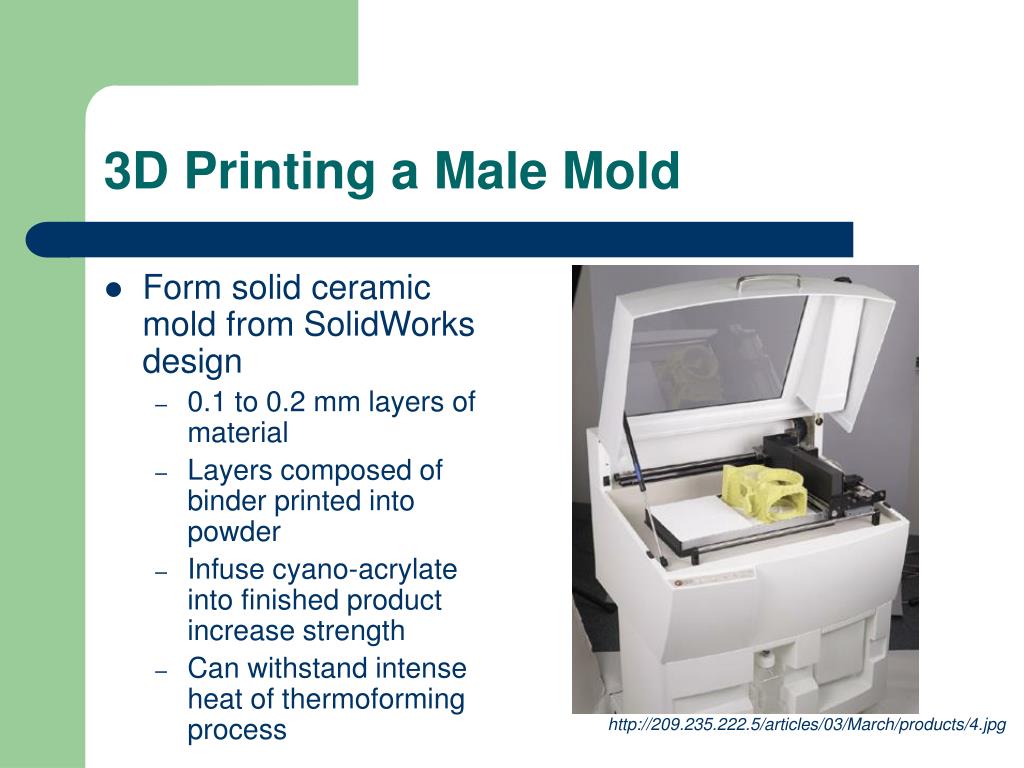

3D Printing a Male Mold
  • Form solid ceramic mold from SolidWorks design
    • 0.1 to 0.2 mm layers of material
    • Layers composed of binder printed into powder
    • Infuse cyano-acrylate into finished product increase strength
    • Can withstand intense heat of thermoforming process

http://209.235.222.5/articles/03/March/products/4.jpg

large 3d mold process
Large 3D Mold Process
  • The full production size is too large to create a 3D mold from the printer.
  • Instead several interlocking parts will be designed to fit together into a single mold that is large enough to create our piece.
thermoforming
Thermoforming
  • Process by which a sheet of plastic is shaped.
  • Has low startup cost versus other methods such as injection molding.
  • Is meant for small or medium scale production.

Animation from: http://www.pmwproducts.com/animation/singlesheet.gif

material requirements
Material Requirements
  • Able to be thermoformed
  • Machinable
  • UV and weather resistant
  • Safe to drink from
  • Resistant to chlorine and preferably other chemicals
  • Inexpensive
material solutions
Material Solutions
  • ABS
  • Polycarbonate
  • VHMW PE
  • UHMW PE
  • PVDF

Image from: http://www.caslsoft.com/

comparisons

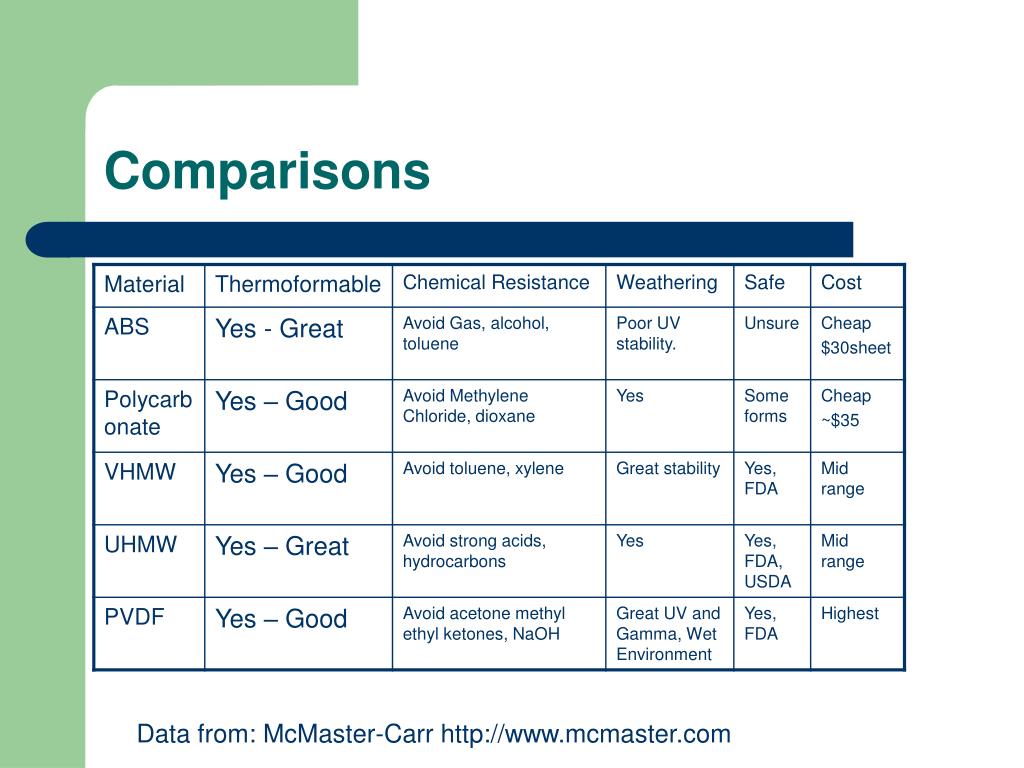

Comparisons

Data from: McMaster-Carr http://www.mcmaster.com

slide12

Project Timeline

  • Learn SolidWorks
  • Create compressive elements on SolidWorks
  • 3D print compressive elements
  • Conduct compressive strength tests
  • Determine physical limits of mold geometry

6. Design mold of interlocking parts

7. Print 3D scale models of bucket and lid

8. Thermoform scale prototypes with

various materials

9. Choose material for final bucket and lid

10. Make full-sized bucket and lid
