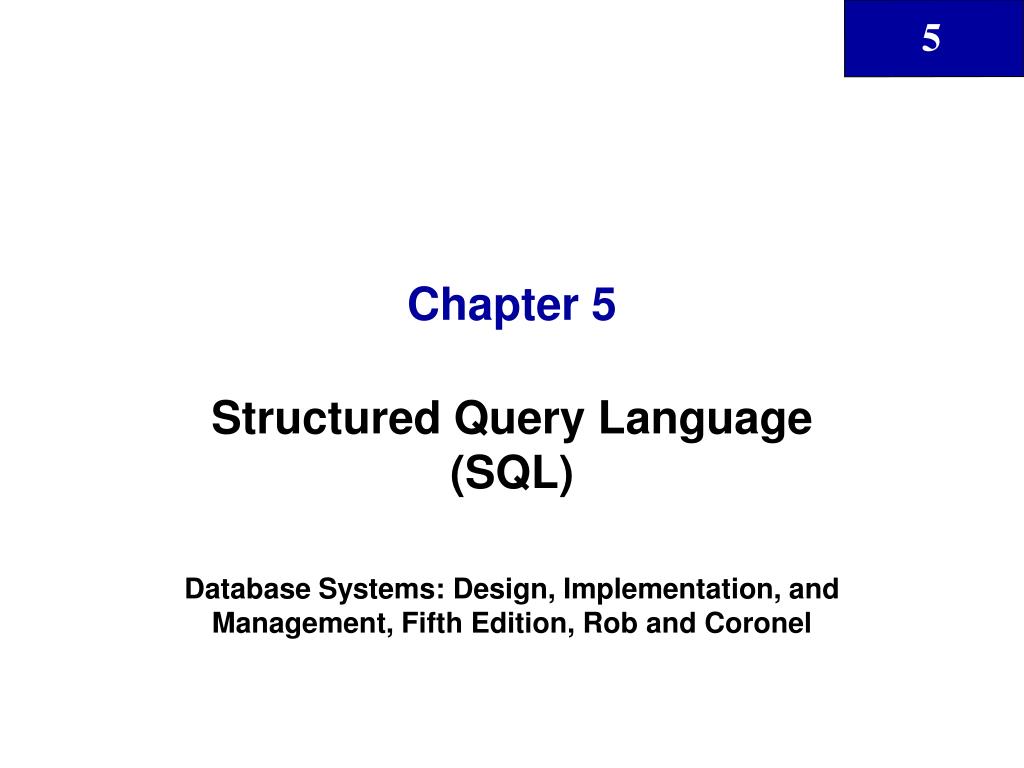

  1. Chapter 5 Structured Query Language (SQL) Database Systems: Design, Implementation, and Management, Fifth Edition, Rob and Coronel

  2. In this chapter, you will learn: • The basic commands and functions of SQL • How SQL is used for data manipulation (to add, modify, delete, and retrieve data) • How to use SQL to query a database to extract useful information • How SQL is used for data administration (to create tables, indexes, and views) • About more advanced SQL features such as updatable views, stored procedures, and triggers Database Systems: Design, Implementation, & Management, 5th Edition, Rob & Coronel

  3. Introduction to SQL • Ideal database language • Create database and table structures • Perform basic data management chores (add, delete, and modify) • Perform complex queries to transform data into useful information • SQL is the ideal DB language • Data definition language • Data manipulation language Database Systems: Design, Implementation, & Management, 5th Edition, Rob & Coronel

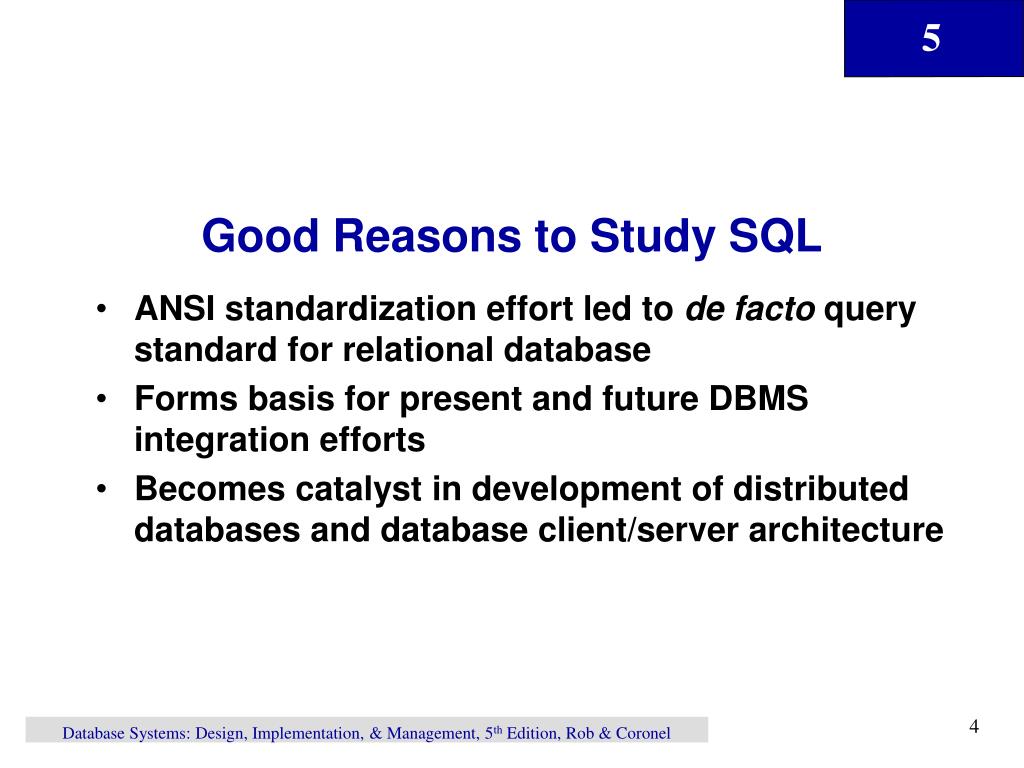

  4. Good Reasons to Study SQL • ANSI standardization effort led to de facto query standard for relational database • Forms basis for present and future DBMS integration efforts • Becomes catalyst in development of distributed databases and database client/server architecture Database Systems: Design, Implementation, & Management, 5th Edition, Rob & Coronel

  5. Data Definition Commands • Create database structure • Holds all tables and is a collection of physical files stored on disk • DBMS automatically creates tables to store metadata • Database administrator creates structure or schema • Logical group of tables or logical database • Groups tables by owner • Enforces security • CREATE SCHEMA AUTHORIZATION <creator> • Example:CREATE SCHEMA AUTHORIZATION JONES Database Systems: Design, Implementation, & Management, 5th Edition, Rob & Coronel

  6. Creating Table Structure • Tables store end-user data • May be based on data dictionary entries CREATE TABLE <table name>(<attribute1 name and attribute1 characteristics,attribute2 name and attribute2 characteristics,attribute3 name and attribute3 characteristics,primary key designation,foreign key designation and foreign key requirement>); Database Systems: Design, Implementation, & Management, 5th Edition, Rob & Coronel

  7. Using Domains • Domain is set of permissible values for a column • Definition requires: • Name • Data type • Default value • Domain constraint or condition CREATE DOMAIN <domain_name> AS DATA_TYPE[DEFAULT <default_value>] [CHECK (<condition>)] Database Systems: Design, Implementation, & Management, 5th Edition, Rob & Coronel

  8. SQL Integrity Constraints • Adherence to entity integrity and referential integrity rules is crucial • Entity integrity enforced automatically if primary key specified in CREATE TABLE command sequence • Referential integrity can be enforced in specification of FOREIGN KEY • Other specifications to ensure conditions met: • ON DELETE RESTRICT • ON UPDATE CASCADE Database Systems: Design, Implementation, & Management, 5th Edition, Rob & Coronel

  9. Data Manipulation Commands Common SQL Commands Table 5.3 Database Systems: Design, Implementation, & Management, 5th Edition, Rob & Coronel

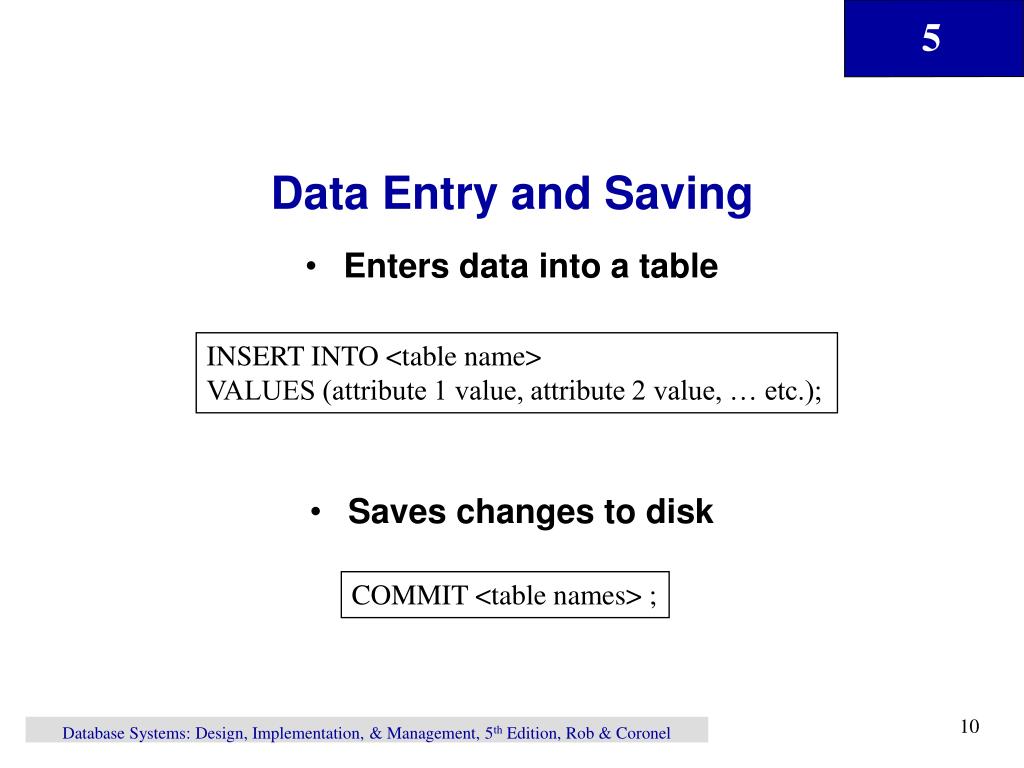

  10. Data Entry and Saving • Enters data into a table • Saves changes to disk INSERT INTO <table name> VALUES (attribute 1 value, attribute 2 value, … etc.); COMMIT <table names> ; Database Systems: Design, Implementation, & Management, 5th Edition, Rob & Coronel

  11. Listing Table Contents and Other Commands • Allows table contents to be listed • UPDATE command makes data entry corrections • ROLLBACK command restores database back to previous condition if COMMIT hasn’t been used • DELETE command removes table row SELECT <attribute names> FROM <table names>; Database Systems: Design, Implementation, & Management, 5th Edition, Rob & Coronel

  12. Queries SELECT <column(s)>FROM <table name>WHERE <conditions>; • Creating partial listings of table contents Table 5.4 Mathematical Operators Database Systems: Design, Implementation, & Management, 5th Edition, Rob & Coronel

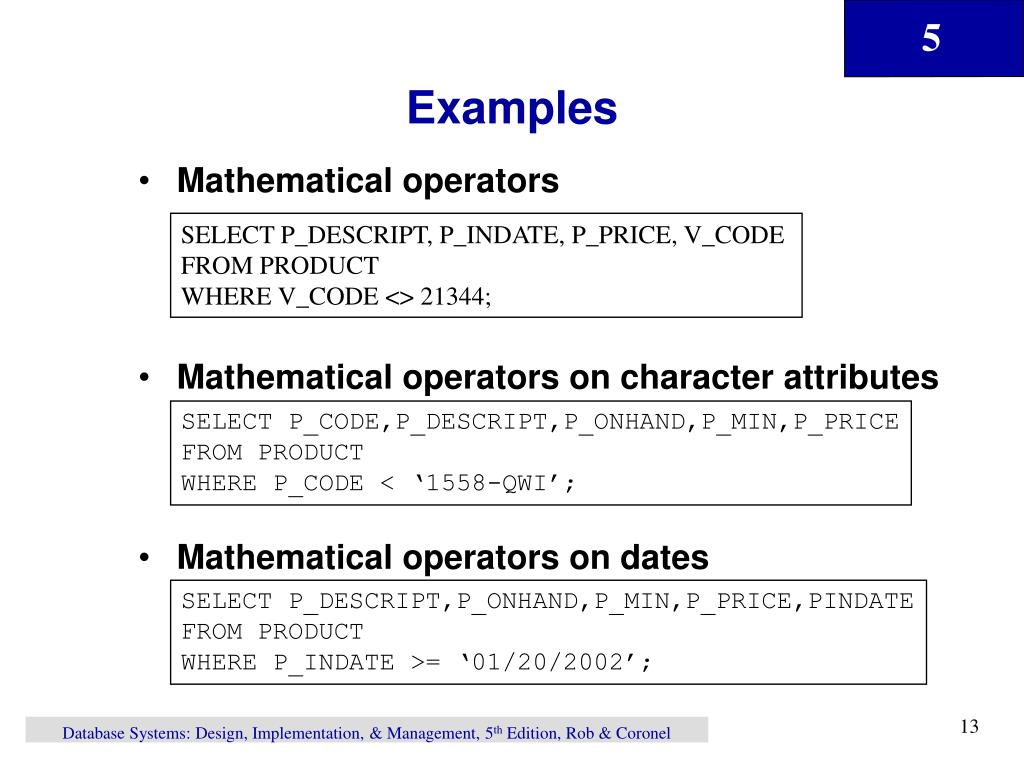

  13. Examples SELECT P_DESCRIPT, P_INDATE, P_PRICE, V_CODE FROM PRODUCT WHERE V_CODE <> 21344; • Mathematical operators • Mathematical operators on character attributes • Mathematical operators on dates SELECT P_CODE,P_DESCRIPT,P_ONHAND,P_MIN,P_PRICEFROM PRODUCTWHERE P_CODE < ‘1558-QWI’; SELECT P_DESCRIPT,P_ONHAND,P_MIN,P_PRICE,PINDATEFROM PRODUCTWHERE P_INDATE >= ‘01/20/2002’; Database Systems: Design, Implementation, & Management, 5th Edition, Rob & Coronel

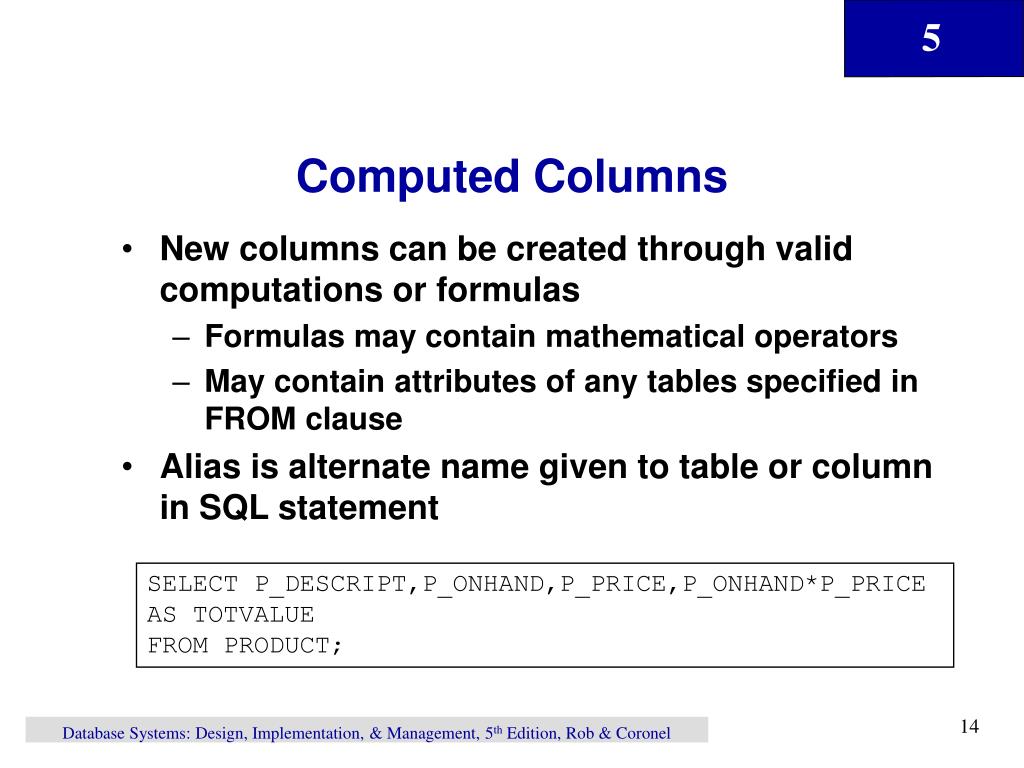

  14. Computed Columns • New columns can be created through valid computations or formulas • Formulas may contain mathematical operators • May contain attributes of any tables specified in FROM clause • Alias is alternate name given to table or column in SQL statement SELECT P_DESCRIPT,P_ONHAND,P_PRICE,P_ONHAND*P_PRICE AS TOTVALUE FROM PRODUCT; Database Systems: Design, Implementation, & Management, 5th Edition, Rob & Coronel

  15. Operators SELECT * FROM PRODUCTWHERE V_CODE = 21344 OR V_CODE = 24288; • Logical: AND, OR, NOT • Rules of precedence • Conditions within parenthesis executed first • Boolean algebra • Special • BETWEEN - defines limits • IS NULL - checks for nulls • LIKE - checks for similar string • IN - checks for value in a set • EXISTS - opposite of IS NULL Database Systems: Design, Implementation, & Management, 5th Edition, Rob & Coronel

  16. Advanced Data ManagementCommands • ALTER - changes table structure • ADD - adds column • MODIFY - changes column characteristics • Entering data into new column ALTER TABLE <table name>ADD (<column name> <new column characteristics>); ALTER TABLE <table name>MODIFY (<column name> <new column characteristics>); UPDATE PRODUCTSET P_SALECODE = ‘2’WHERE P_CODE = ‘1546-QQ2’; Database Systems: Design, Implementation, & Management, 5th Edition, Rob & Coronel

  17. Advanced Data Management Commands (con’t.) • Dropping a column • Arithmetic operators and rules of precedence ALTER TABLE VENDORDROP COLUMN V_ORDER; Table 5.5 Database Systems: Design, Implementation, & Management, 5th Edition, Rob & Coronel

  18. Advanced Data Management Commands (con’t.) • Copying parts of tables • Deleting a table from database • Primary and foreign key designation INSERT INTO <receiving table> <receiving table’s column names>SELECT <column names of the columns to be copied>FROM <contributing table name>; DROP TABLE PART; ALTER TABLE LINE ADD PRIMARY KEY (INV_NUMBER, LINE_NUMBER) ADD FOREIGN KEY (INV_NUMBER) REFERENCES INVOICE ADD FOREIGN KEY (PROD_CODE) REFERENCES PRODUCT; Database Systems: Design, Implementation, & Management, 5th Edition, Rob & Coronel

  19. Example Aggregate Function Operations SELECT COUNT(DISTINCT V_CODE)FROM PRODUCT; SELECT COUNT(DISTINCT V_CODE)FROM PRODUCTWHERE P_PRICE <= 10.00; • COUNT • MAX and MIN SELECT MIN(P_PRICE)FROM PRODUCT; SELECT P_CODE, P_DESCRIPT, P_PRICEFROM PRODUCTWHERE P_PRICE = MAX(P_PRICE); Database Systems: Design, Implementation, & Management, 5th Edition, Rob & Coronel

  20. Example Aggregate Function Operations (con’t.) • SUM • AVG SELECT SUM(P_ONHAND * P_PRICE)FROM PRODUCT; SELECT P_DESCRIPT, P_ONHAND, P_PRICE, V_CODEFROM PRODUCTWHERE P_PRICE > (SELECT AVG(P_PRICE) FROM PRODUCT)ORDER BY P_PRICE DESC; Database Systems: Design, Implementation, & Management, 5th Edition, Rob & Coronel

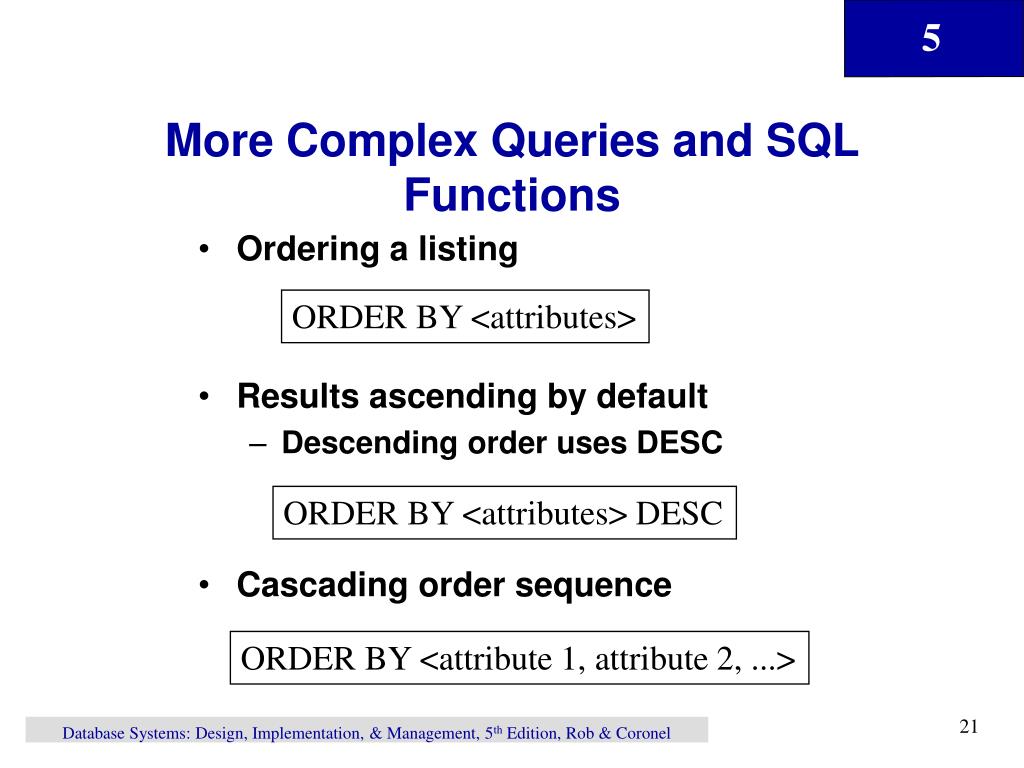

  21. More Complex Queries and SQL Functions • Ordering a listing • Results ascending by default • Descending order uses DESC • Cascading order sequence ORDER BY <attributes> ORDER BY <attributes> DESC ORDER BY <attribute 1, attribute 2, ...> Database Systems: Design, Implementation, & Management, 5th Edition, Rob & Coronel

  22. More Complex Queries and SQL Functions (con’t.) • Listing unique values • DISTINCT clause produces list of different values • Aggregate functions • Mathematical summaries SELECT DISTINCT V_CODE FROM PRODUCT; Table 5.6 Database Systems: Design, Implementation, & Management, 5th Edition, Rob & Coronel

  23. More Complex Queries and SQL Functions (con’t.) • Grouping data • Creates frequency distributions • Only valid when used with SQL arithmetic functions • HAVING clause operates like WHERE for grouping output SELECT P_SALECODE, MIN(P_PRICE)FROM PRODUCT_2GROUP BY P_SALECODE; SELECT V_CODE,COUNT(DISTINCT(P_CODE)),AVG(P_PRICE) FROM PRODUCT_2 GROUP BY V_CODE HAVING AVG(P_PRICE) < 10; Database Systems: Design, Implementation, & Management, 5th Edition, Rob & Coronel

  24. More Complex Queries and SQL Functions (con’t.) • Virtual tables: creating a view • CREATE VIEW command • Creates logical table existing only in virtual memory • SQL indexes CREATE VIEW PRODUCT_3 ASSELECT P_DESCRIPT, P_ONHAND, P_PRICEFROM PRODUCTWHERE P_PRICE > 50.00; CREATE INDEX P_CODEXON PRODUCT(P_CODE); Database Systems: Design, Implementation, & Management, 5th Edition, Rob & Coronel

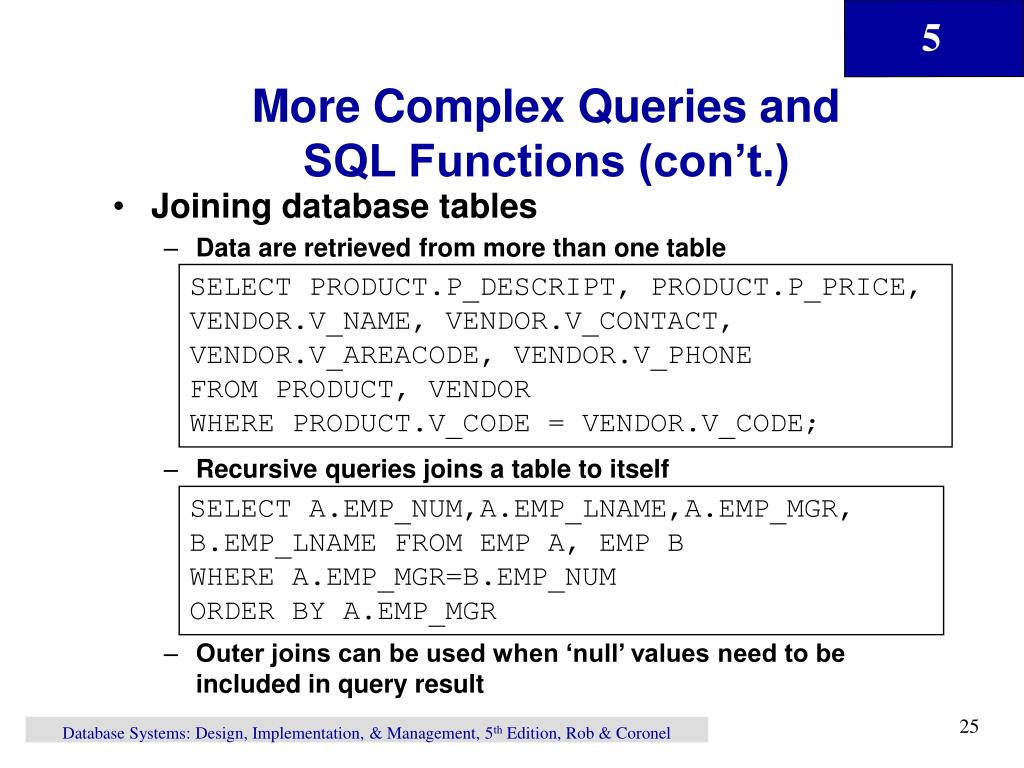

  25. More Complex Queries and SQL Functions (con’t.) • Joining database tables • Data are retrieved from more than one table • Recursive queries joins a table to itself • Outer joins can be used when ‘null’ values need to be included in query result SELECT PRODUCT.P_DESCRIPT, PRODUCT.P_PRICE, VENDOR.V_NAME, VENDOR.V_CONTACT, VENDOR.V_AREACODE, VENDOR.V_PHONEFROM PRODUCT, VENDORWHERE PRODUCT.V_CODE = VENDOR.V_CODE; SELECT A.EMP_NUM,A.EMP_LNAME,A.EMP_MGR, B.EMP_LNAME FROM EMP A, EMP B WHERE A.EMP_MGR=B.EMP_NUM ORDER BY A.EMP_MGR Database Systems: Design, Implementation, & Management, 5th Edition, Rob & Coronel

  26. Updatable Views • Common operation in production environments is use of batch routines to update master table attributes using transaction data • Overnight batch jobs • Not all views are updatable • Restrictions • GROUP BY expressions cannot be used • Cannot use set operators---UNION, INTERSECTION, etc. • Most restrictions based on use of JOINS or group operators in views Database Systems: Design, Implementation, & Management, 5th Edition, Rob & Coronel

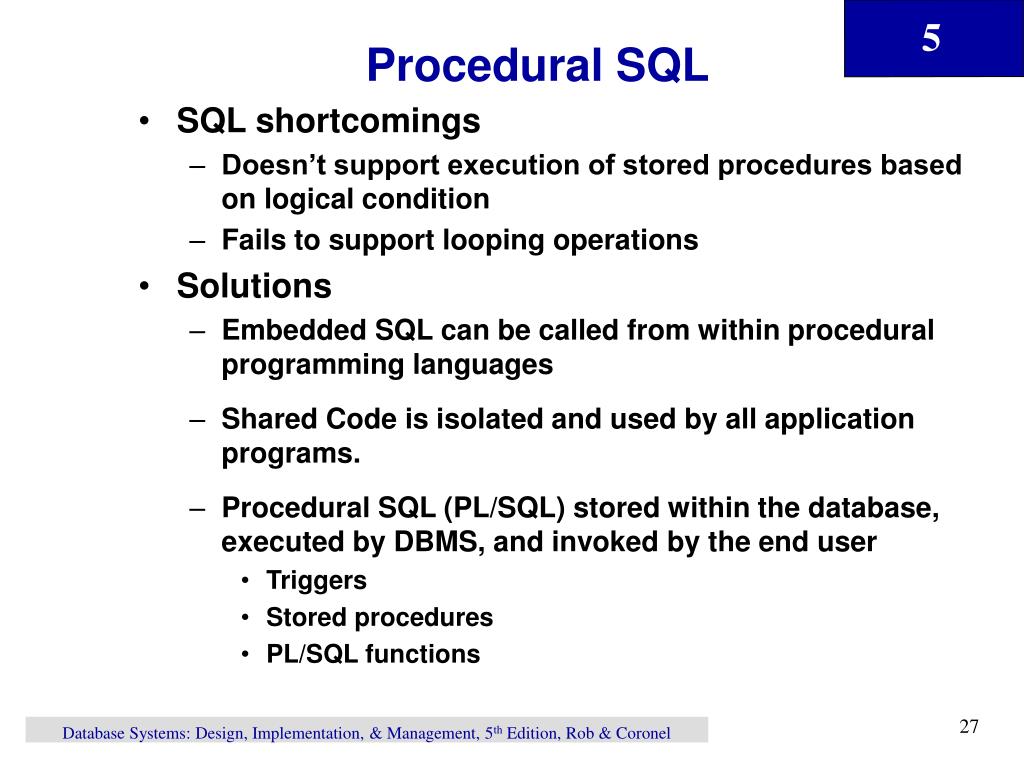

  27. Procedural SQL • SQL shortcomings • Doesn’t support execution of stored procedures based on logical condition • Fails to support looping operations • Solutions • Embedded SQL can be called from within procedural programming languages • Shared Code is isolated and used by all application programs. • Procedural SQL (PL/SQL) stored within the database, executed by DBMS, and invoked by the end user • Triggers • Stored procedures • PL/SQL functions Database Systems: Design, Implementation, & Management, 5th Edition, Rob & Coronel

  28. Procedural SQL (con’t.) • Procedural SQL allows the use of procedural code and SQL statements that are stored within the database. • The procedural code is executed by the DBMS when it is invoked by the end user. • End users can use procedural SQL (PL/SQL) to create: • Triggers • Stored procedures • PL/SQL functions Database Systems: Design, Implementation, & Management, 5th Edition, Rob & Coronel

  29. Triggers • Procedural SQL code invoked before or after data row is selected, inserted, or updated • Associated with a database table • Table may have multiple triggers • Executed as part of transaction • Can enforce particular constraints • Automate critical actions and provide warnings for remedial action • Can update values, insert records, and call procedures • Add processing power Database Systems: Design, Implementation, & Management, 5th Edition, Rob & Coronel

  30. Triggers (con’t.) • Oracle example CREATE OR REPLACE TRIGGER <trigger_name>[BEFORE/AFTER] [DELETE/INSERT/UPDATE OF <column_name] ON <table_name>[FOR EACH ROW]BEGIN PL/SQL instructions;……………END; Database Systems: Design, Implementation, & Management, 5th Edition, Rob & Coronel

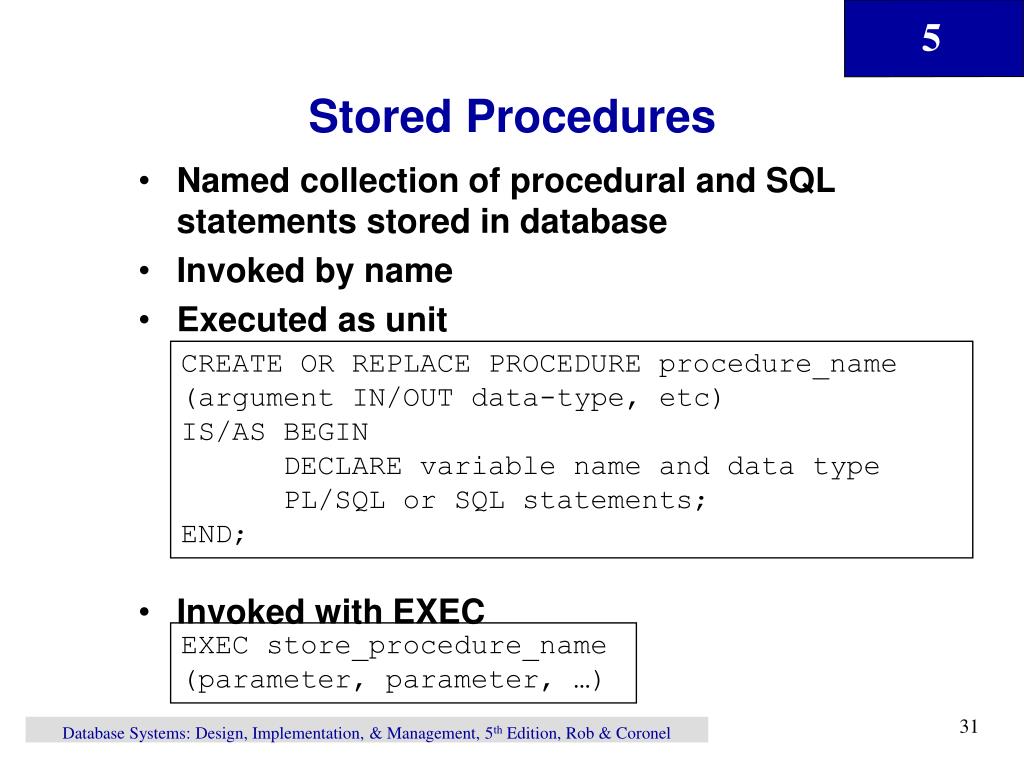

  31. Stored Procedures • Named collection of procedural and SQL statements stored in database • Invoked by name • Executed as unit • Invoked with EXEC CREATE OR REPLACE PROCEDURE procedure_name (argument IN/OUT data-type, etc) IS/AS BEGIN DECLARE variable name and data type PL/SQL or SQL statements;END; EXEC store_procedure_name (parameter, parameter, …) Database Systems: Design, Implementation, & Management, 5th Edition, Rob & Coronel

  32. PL/SQL Stored Functions • Named group of procedural and SQL statements that returns a value • Invoked from within stored procedures or triggers • Cannot be invoked from within SQL statements CREATE FUNCTION function_name (argument IN data-type, etc)RETURN data-typeAS BEGIN PL/SQL statements; RETURN (value); ……END; Database Systems: Design, Implementation, & Management, 5th Edition, Rob & Coronel

  33. Artist Database ERD and Tables Figure 5.55 Database Systems: Design, Implementation, & Management, 5th Edition, Rob & Coronel

  34. General Rules Governing Relationships Among Tables Figure 5.56: M:N, Both Sides Mandatory Figure 5.57: M:N, Both Sides Optional Database Systems: Design, Implementation, & Management, 5th Edition, Rob & Coronel

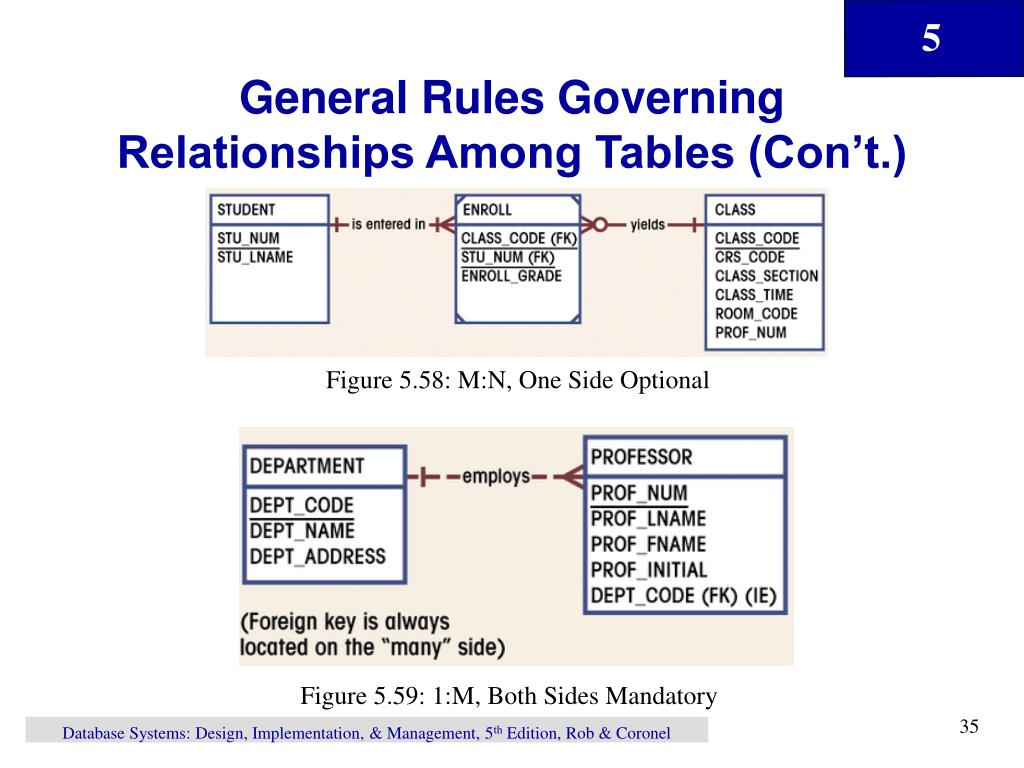

  35. General Rules Governing Relationships Among Tables (Con’t.) Figure 5.58: M:N, One Side Optional Figure 5.59: 1:M, Both Sides Mandatory Database Systems: Design, Implementation, & Management, 5th Edition, Rob & Coronel

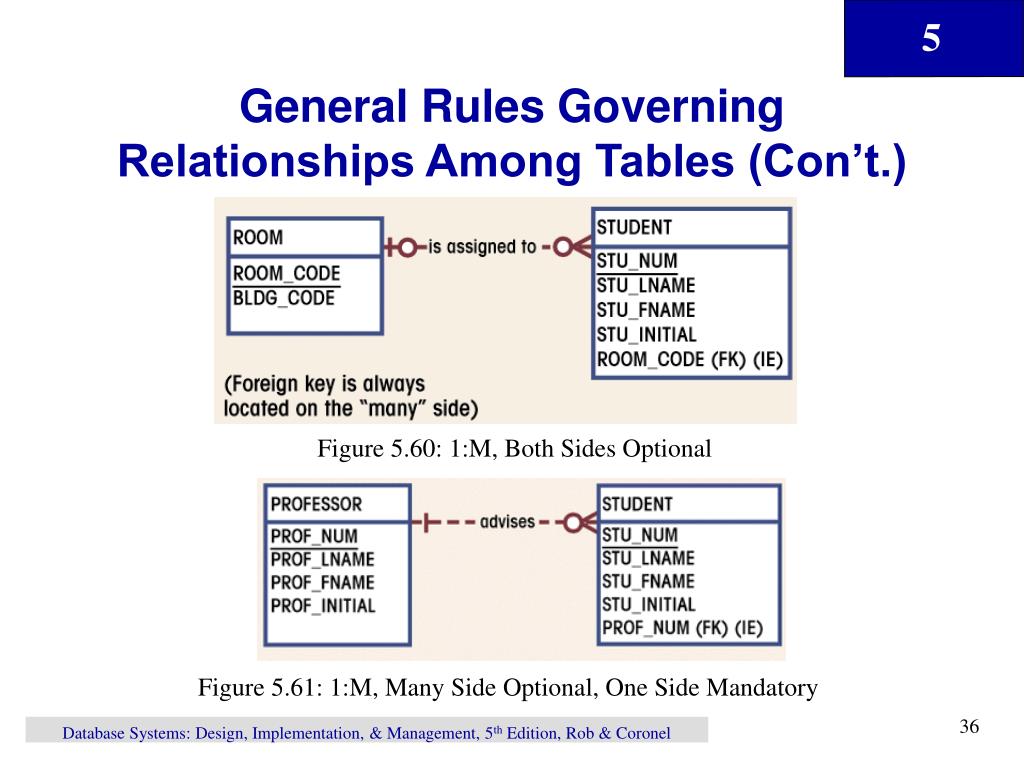

  36. General Rules Governing Relationships Among Tables (Con’t.) Figure 5.60: 1:M, Both Sides Optional Figure 5.61: 1:M, Many Side Optional, One Side Mandatory Database Systems: Design, Implementation, & Management, 5th Edition, Rob & Coronel

  37. General Rules Governing Relationships Among Tables (Con’t.) Figure 5.62: 1:M, One Side Optional, One Side Mandatory Figure 5.63: 1:1, Both Sides Mandatory Database Systems: Design, Implementation, & Management, 5th Edition, Rob & Coronel

  38. General Rules Governing Relationships Among Tables (Con’t.) Figure 5.64: 1:1, Both Sides Optional Figure 5.65: 1:1, One Side Optional, One Side Mandatory Database Systems: Design, Implementation, & Management, 5th Edition, Rob & Coronel

  39. General Rules Governing Relationships Among Tables (Con’t.) Figure 5.66: Weak Entity, Foreign Key Located in Weak Entity Figure 5.67: Multivalued Attributes (New Table in 1:M Relationship, Foreign Key CAR_VIN in the New Table Database Systems: Design, Implementation, & Management, 5th Edition, Rob & Coronel
