  1. Fine Grain Incremental Rescheduling Via Architectural Retiming Soha Hassoun Tufts University Medford, MA Thanks to: Carl Ebeling University of Washington Seattle, WA

  2. Problem -- Clock period is too large Example Write Address RAM Read Address Offset

  3. Pipelining Problems w/ consecutive dependent operations Write Address RAM Read Address Offset

  4. Latency = n Performance Bottleneck • Latency constrained paths

  5. Latency = n Performance Bottleneck • Latency constrained paths • Approach apply architectural retiming at the RT level

  6. Architectural Retiming Problem:too much work, too little time yk

  7. Architectural Retiming Problem:too much work, too little time D yk pipeline register

  8. N Architectural Retiming Problem:too much work, too little time D C yk pipeline register negative register

  9. N Architectural Retiming Problem:too much work, too little time D C yk pipeline register negative register precomputation prediction

  10. Outline • Precomputation • incremental rescheduling without resource constraints • Prediction • incremental rescheduling with resource constraints • Results

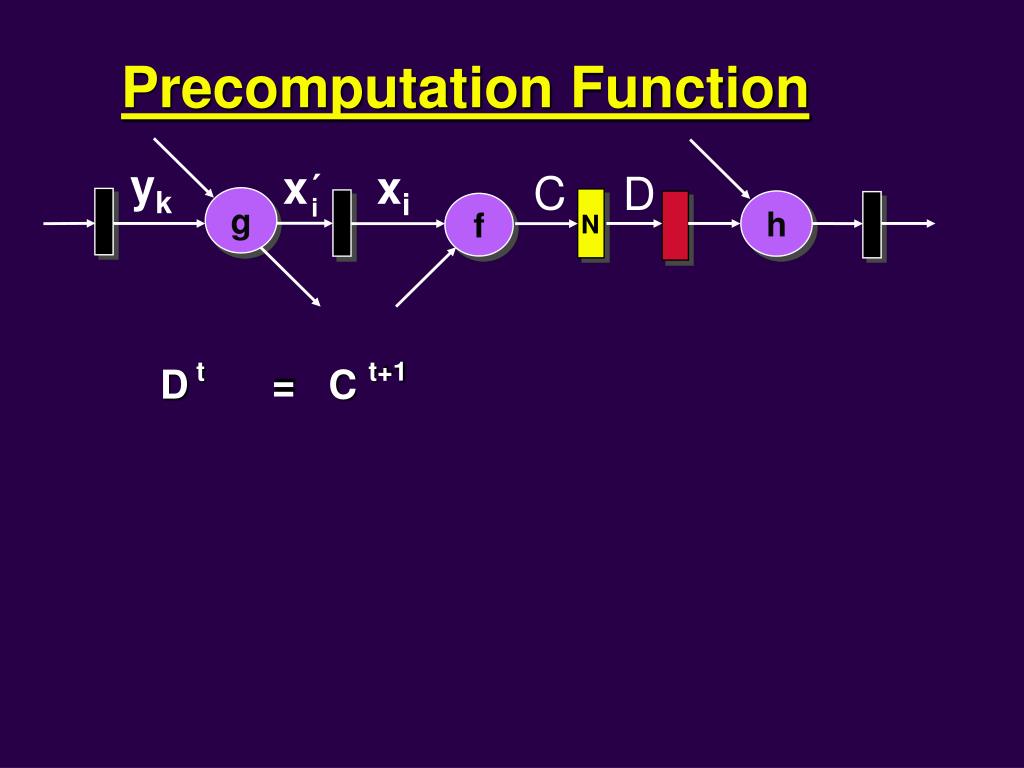

  11. x´ yk xi C D i g h f h N Precomputation Function D t= C t+1

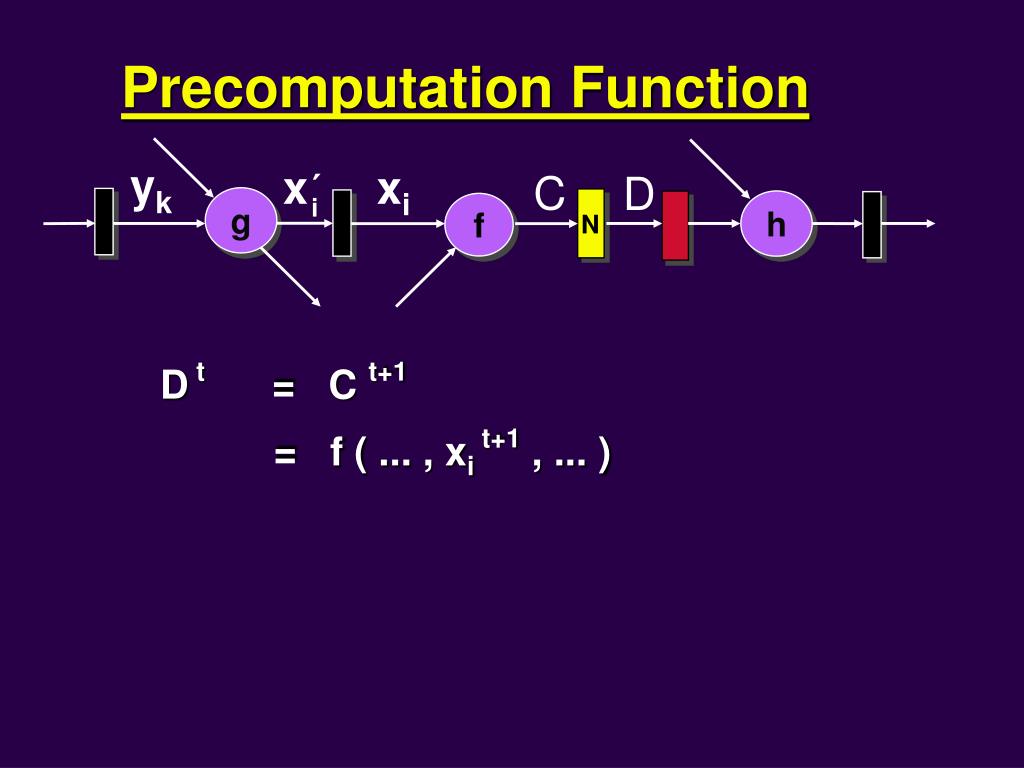

  12. x´ yk xi C D i g h f h N Precomputation Function • D t= C t+1 • = f ( ... , xi t+1 , ... )

  13. x´ yk xi C D i g h f h N Precomputation Function • D t= C t+1 • = f ( ... , xi t+1 , ... ) xi t+1= x´i t =g( ... , ykt , ... )

  14. x´ yk xi C D i g h f h N f´ Precomputation Function • D t= C t+1 • = f ( ... , xi t+1 , ... ) xi t+1= x´i t =g( ... , ykt , ... ) Dt= f ( ... , g( ... , ykt , ... ) , ...) = f´( ... , ykt , ... )

  15. N Time n g Time n+1 f, h Incremental Rescheduling yk g h f h

  16. N f´ Time n g Time n+1 f, h Time n f ’ Time n+1 h Incremental Rescheduling yk g h f h

  17. PrecomputingWith Register Arrays Write Data Write Address Read Address Read Data Read Data

  18. N F PrecomputingWith Register Arrays Write Data Write Address Read Address Out Read Data

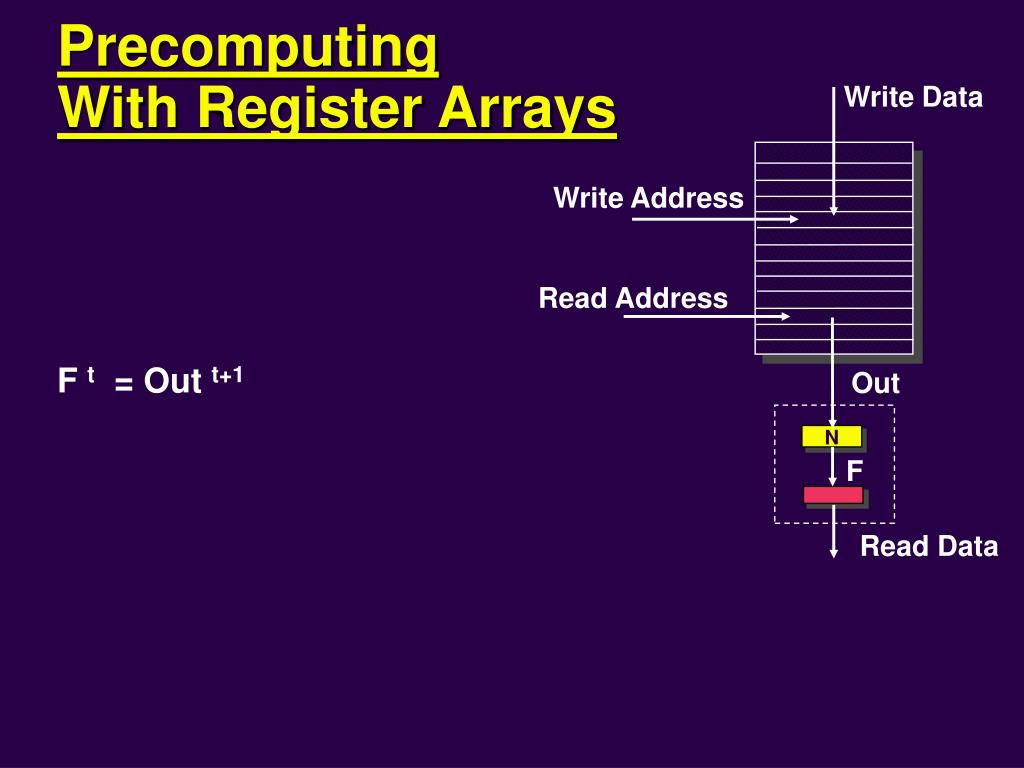

  19. Write Data Write Address Read Address Out N F Read Data PrecomputingWith Register Arrays • F t = Out t+1

  20. Write Data Write Address Read Address Out N F Read Data PrecomputingWith Register Arrays • F t = Out t+1 • = Arrayt+1 [Read Addresst+1 ]

  21. Synthesizing Bypass Paths Write Data Write Data Write Address Write Address Precomputed Read Address Read Address ? = Read Data Read Data

  22. RAM N Precomputing RAM Output RAM

  23. Z Prediction C D • What if ? • can’t precompute, • too many additional resources, or • performance is unsatisfactory gi f N

  24. Z Prediction C D • What if ? • can’t precompute, • too many additional resources, or • performance is unsatisfactory • Predict C one cycle before its arrival gi f N

  25. Schedule with Mispredictions R1 R2 C H t t+1 t-1 C c1 c2 h1 h2 H

  26. Schedule with Mispredictions R1 R2 C H t t+1 t-1 C c1 c2 h1 h2 H Negative Register Verify

  27. Schedule with Mispredictions R1 R2 C H t t+1 t-1 C c1 H Negative Register Verify

  28. h1 h2 Negative Register c2 Verify Schedule with Mispredictions R1 R2 C H t t+1 t-1 C c1 c2 H c2* c1* c1*=? c1 c2*=? c2

  29. Synthesis Issues in Prediction • Negative register as predicting FSM • use signal transition probabilities • incorporate don’t care conditions • Nullifying mispredictions • Two correction strategies • As-Soon-As-Possible restoration • As-Late-As-Possible correction • Add handshaking signals to coordinate with interface

  30. Related Work • Precomputation • Bypass Synthesis • lookahead [Kogge ‘81, …..] • Prediction / Speculative Execution • Most likely path, arbitrarily deep [Holtmann & Ernst ‘93,’95] • Pre-execution [Radivojevic & Brewer ‘94] • Possible multiple paths & arbitrarily deep [Lakshminarayana et al. ‘98] • Percolation scheduling [Potasman et al. ‘90]

  31. Results

  32. Architectural Retiming • Improves throughput while preserving functionality and sometimes latency • Bridge gap between HLS and logic optimizations • Unifies several sequential optimizations • bypass synthesis • lookahead transformation • branch prediction • fine-grain cross register optimizations

  33. Ph.D. Forum at DAC ‘99 • Goal • increase interaction between academia and industry • Format • students present work at poster session at DAC • researchers give feedback • Who’s eligible? • Students within 1 or 2 years of finishing Ph.D. thesis www.cs.washington.edu/homes/soha/forum

  34. The End

  35. Precomputing in Single-Register Cycles A B Original Circuit

  36. N Precomputing in Single-Register Cycles A B Original Circuit

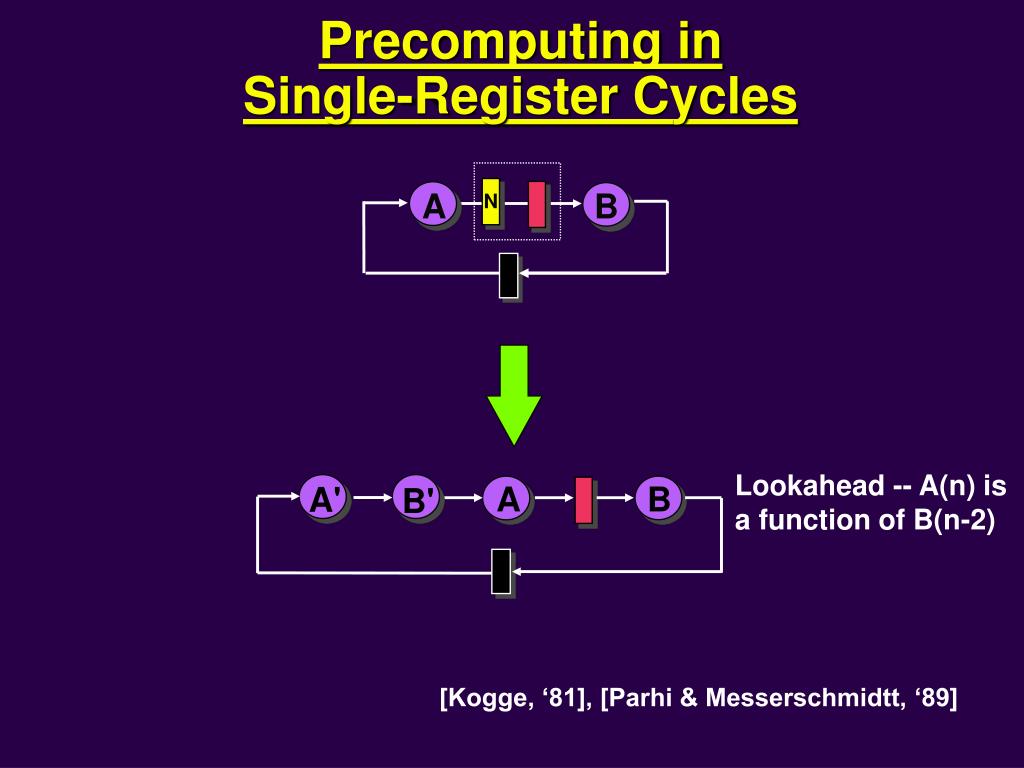

  37. A B A' B' Precomputing in Single-Register Cycles A B N Lookahead -- A(n) is a function of B(n-2) [Kogge, ‘81], [Parhi & Messerschmidtt, ‘89]

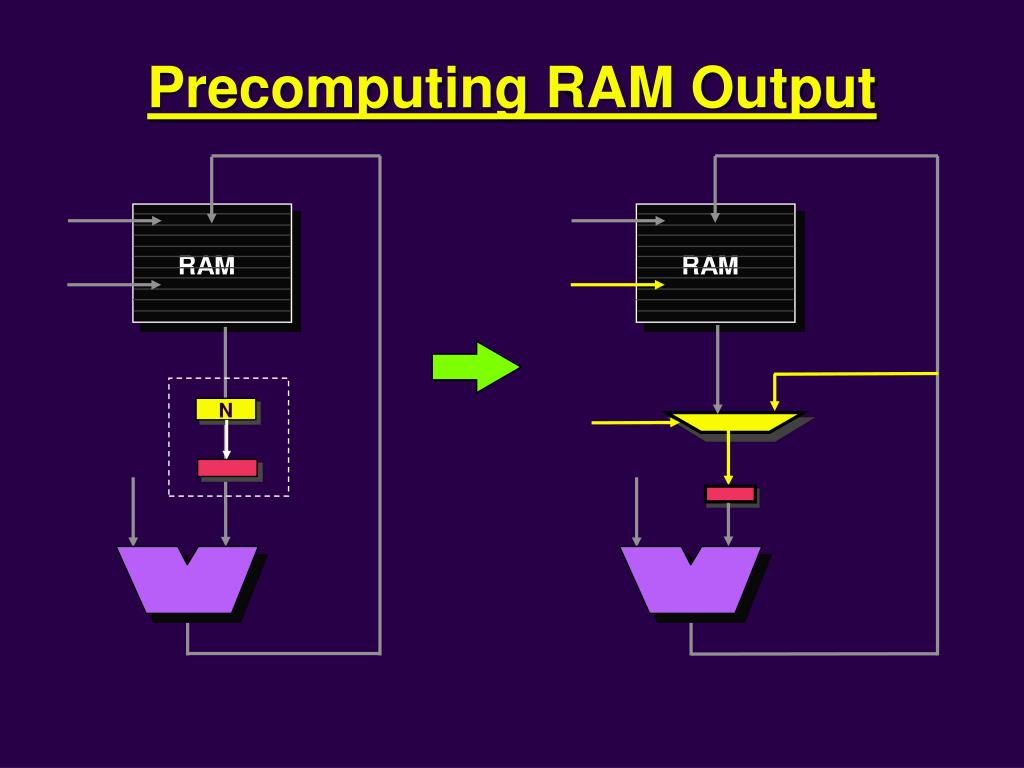

  38. Precomputing RAM Output RAM RAM

  39. Precomputing RAM Output RAM RAM

  40. Speculative Execution Scope and Depth c1 c3 c2 c4 c6 c5

  41. Speculative Execution Scope and Depth
