  1. D-SeriesLED WallLuminaires

  2. Key Benefits Double the Power DOUBLE the lumens of the DSXPG unit from a single mounting point. Up to 12,000 lumens! Enhanced Optics T5E optic is designed for parking garage entrances where IES recommends a minimum of 50 horizontal foot candles during the daytime hours. Lower Total CostReduces overall fixture count at the entrance areas resulting in lower installation and material costs.

  3. Key Benefits Amazing VERSATILITY Ideal for applications requiring a 5fc horizontal minimum within the drive lanes (Example: City of Pittsburgh). Remarkable SavingsSaves over 50% in energy compared to a 250W metal halide system, and lasts 10X as long! Incredibly Long LifeAn expected service life of 100,000 hours (10+ years of 24/7 usage) means huge savings in maintenance costs.

  4. Key Benefits Exceptional Lumen MaintenanceLEDs maintain 87% of initial lumens over the 10 year period, unlike metal halide that loses over 40% of its initial lumens over its short life. Dual SwitchingDual switching and motion sensing options provide additional energy savings during daytime and periods of low occupancy.

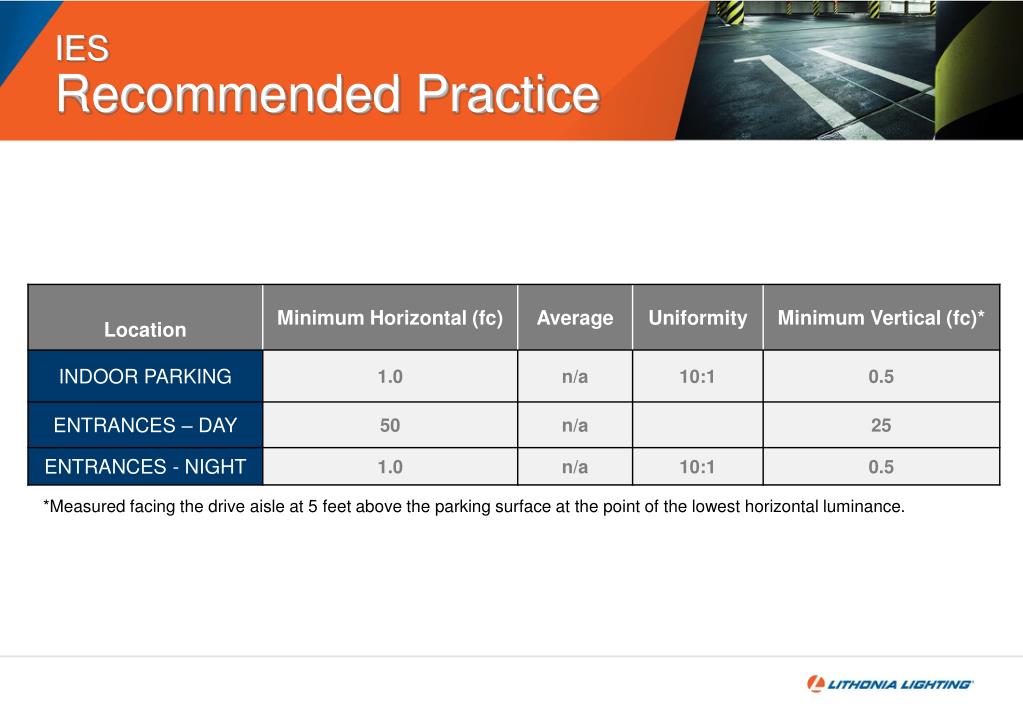

  5. IESRecommended Practice *Measured facing the drive aisle at 5 feet above the parking surface at the point of the lowest horizontal luminance.

  6. 5fcMinimum Requirement DSXPGT 6 LED 10B700/50K T5M 30x30’ Application 8’ Mounting Height T5M Distribution LLF Total .71 Application *Measured facing the drive aisle at 5 feet above the parking surface at the point of the lowest horizontal luminance.

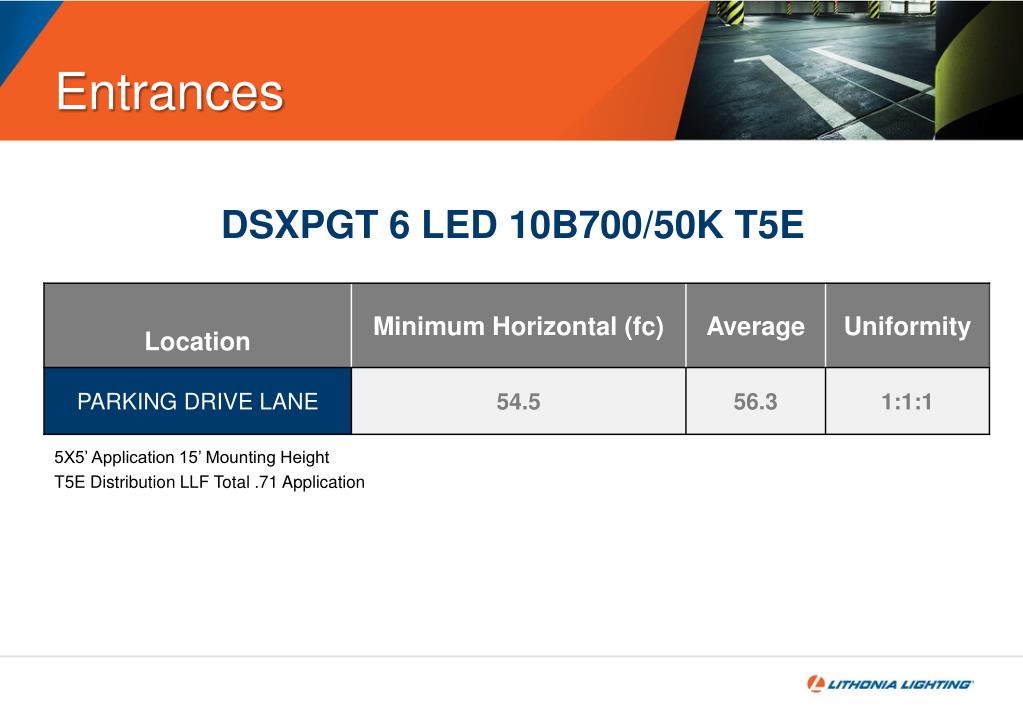

  7. Entrances DSXPGT 6 LED 10B700/50K T5E 5X5’ Application 15’ Mounting Height T5E Distribution LLF Total .71 Application

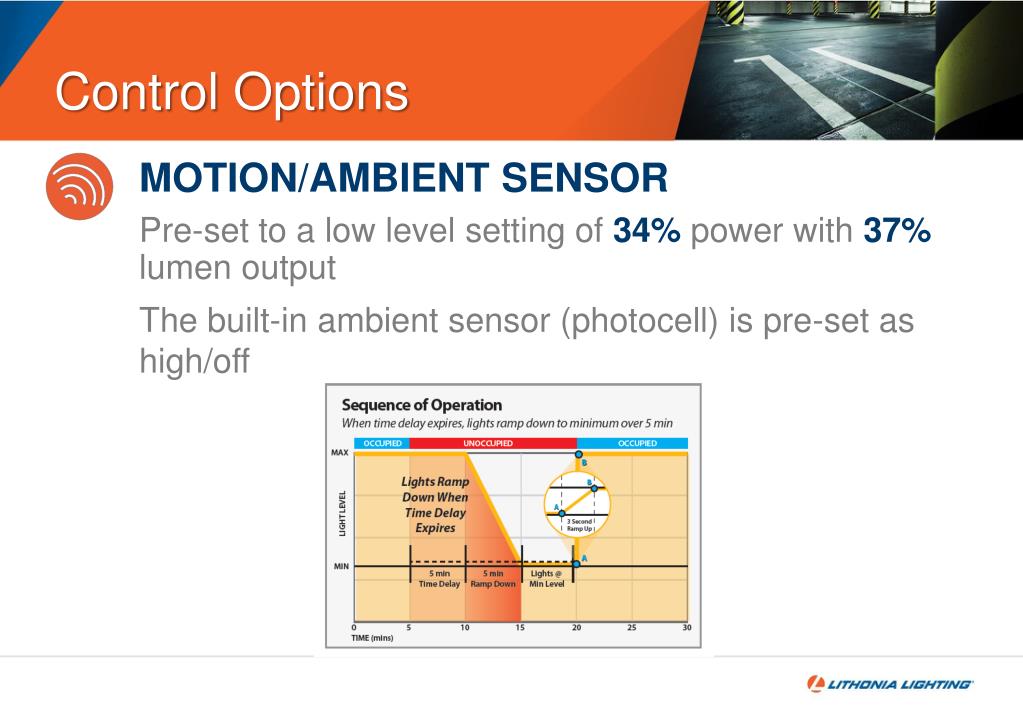

  8. Control Options Motion/ambient sensor Pre-set to a low level setting of 34% power with 37% lumen output The built-in ambient sensor (photocell) is pre-set as high/off

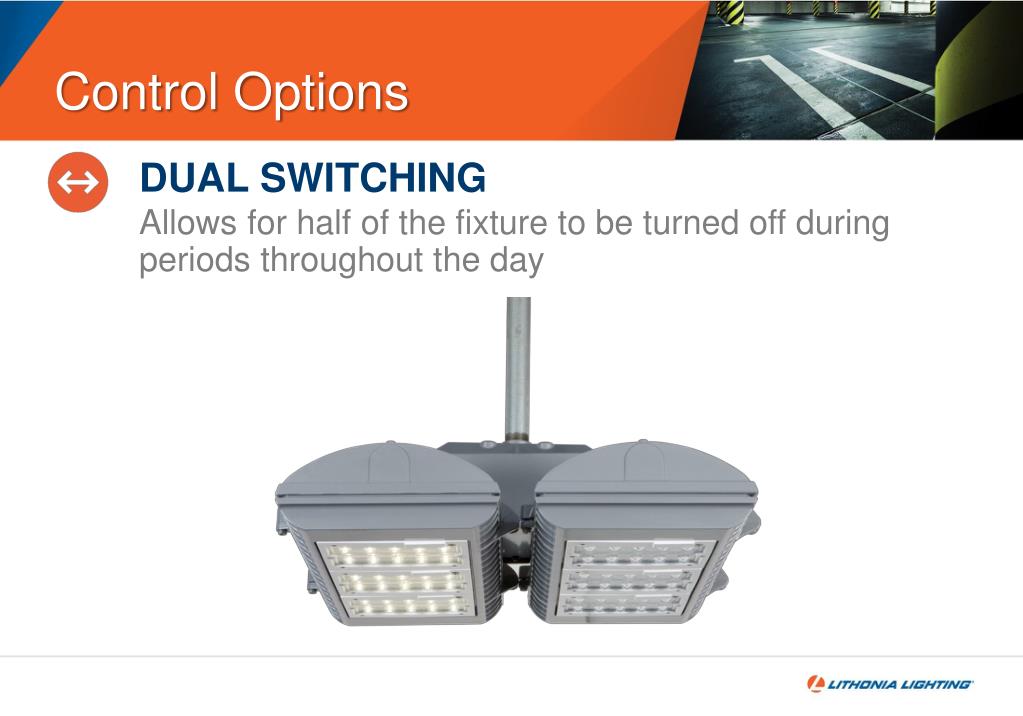

  9. Control Options Dual switching Allows for half of the fixture to be turned off during periods throughout the day

  10. Key Specifications

  11. Alternate Uses Commercial Freezers Low Bay Applications Covered Walkways/Canopies

  12. D-SeriesLED WallLuminaires
