  1. 제목 : SPOOL VALVE 포켓내경부 아노다이징 불량 Nov 26. 2013 ㈜경동POA

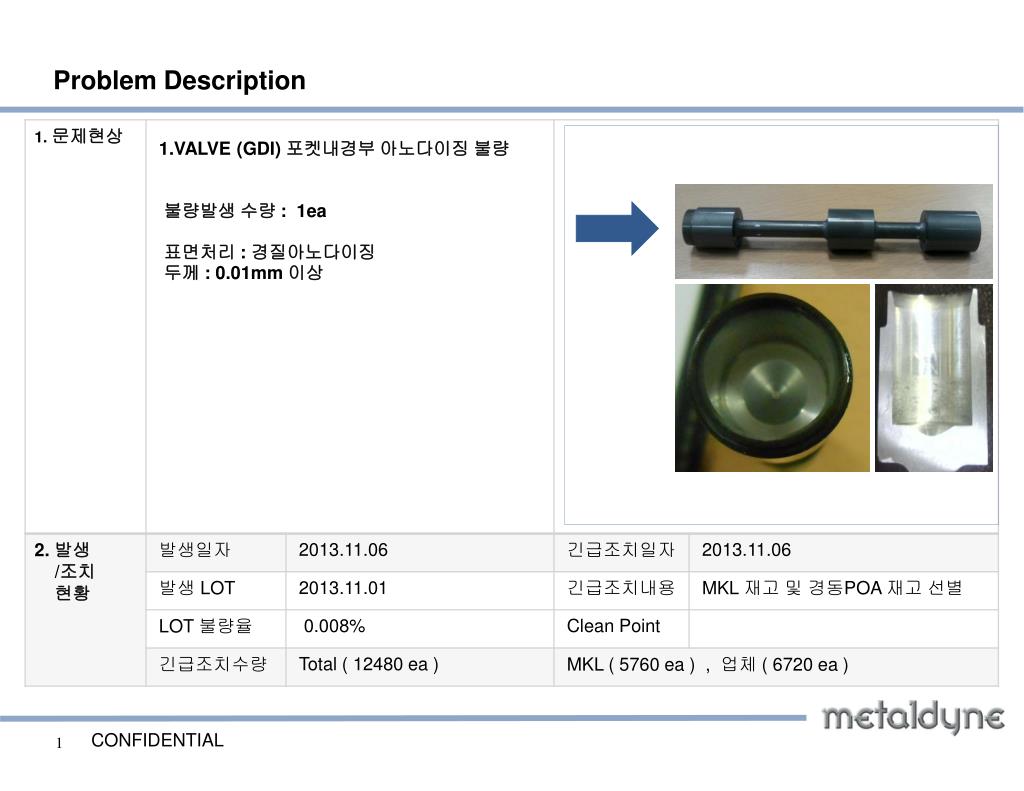

  2. Problem Description

  3. Problem Description < 아노다이징 공정 제품 렉킹 > 렉킹시 좌우 여유공간 있음 렉킹시 좌우 여유공간 있음 서로 만나는 방향으로 치우쳐 맞닿음 < 동일현상 불량품 발견-11/13 경동POA> 렉킹 포인트 좌측으로몰려 있음 렉킹 포인트 좌측으로몰려 있음 렉킹 포인트 좌측으로몰려 있음 렉킹 포인트 우측으로몰려 있음

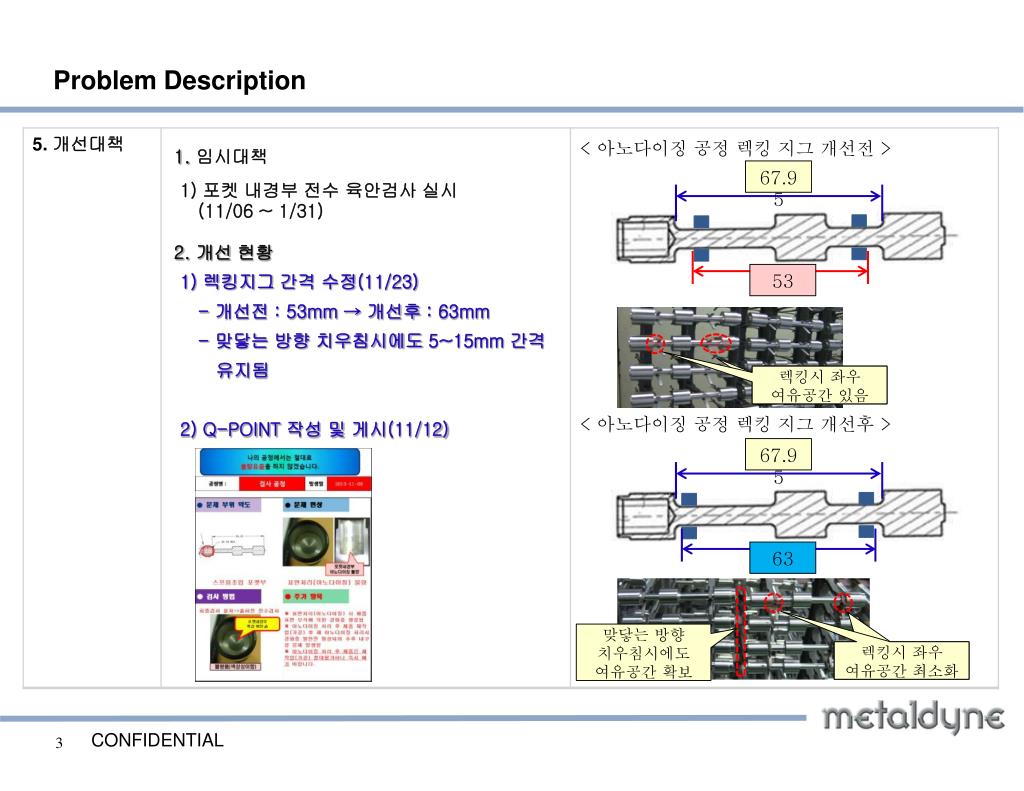

  4. Problem Description < 아노다이징 공정 렉킹 지그 개선전 > 67.95 53 렉킹시 좌우 여유공간 있음 렉킹시 좌우 여유공간 있음 < 아노다이징 공정 렉킹 지그 개선후 > 67.95 63 맞닿는 방향 치우침시에도 여유공간 확보 렉킹시 좌우 여유공간 있음 렉킹시 좌우 여유공간 최소화
