Intro to hellschreiber
Intro to Hellschreiber

What was Old is made New again…


What is hellschreiber
What is Hellschreiber?

  • A method of fax-like teleprinting.

  • A “fuzzy” mode which uses the brain as part of the decoding process.

  • A “live” person-to-person QSO mode

  • On/Off keyed, PSK or Multitone, it’s excellent for QRP and Stealth operating.


What s all this fuzzy business

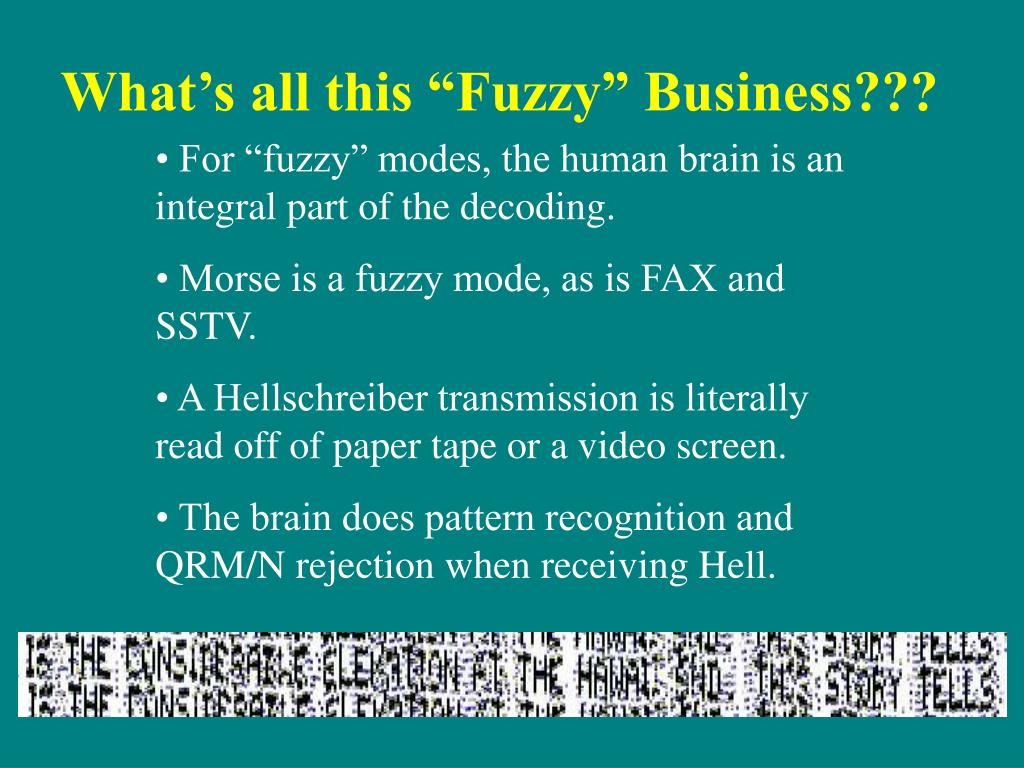

What’s all this “Fuzzy” Business???

• For “fuzzy” modes, the human brain is an integral part of the decoding.

• Morse is a fuzzy mode, as is FAX and SSTV.

• A Hellschreiber transmission is literally read off of paper tape or a video screen.

• The brain does pattern recognition and QRM/N rejection when receiving Hell.


Dr hell s clear writer
Dr. Hell’s “Clear Writer”

  • Invented in 1929.

  • Used by news services worldwide 1930s-1960s, SE Asia through 1980s.

  • Various military uses 1930s-50s.

  • Dutch amateurs began restoring surplus machines in the 1970s.


Feld hell

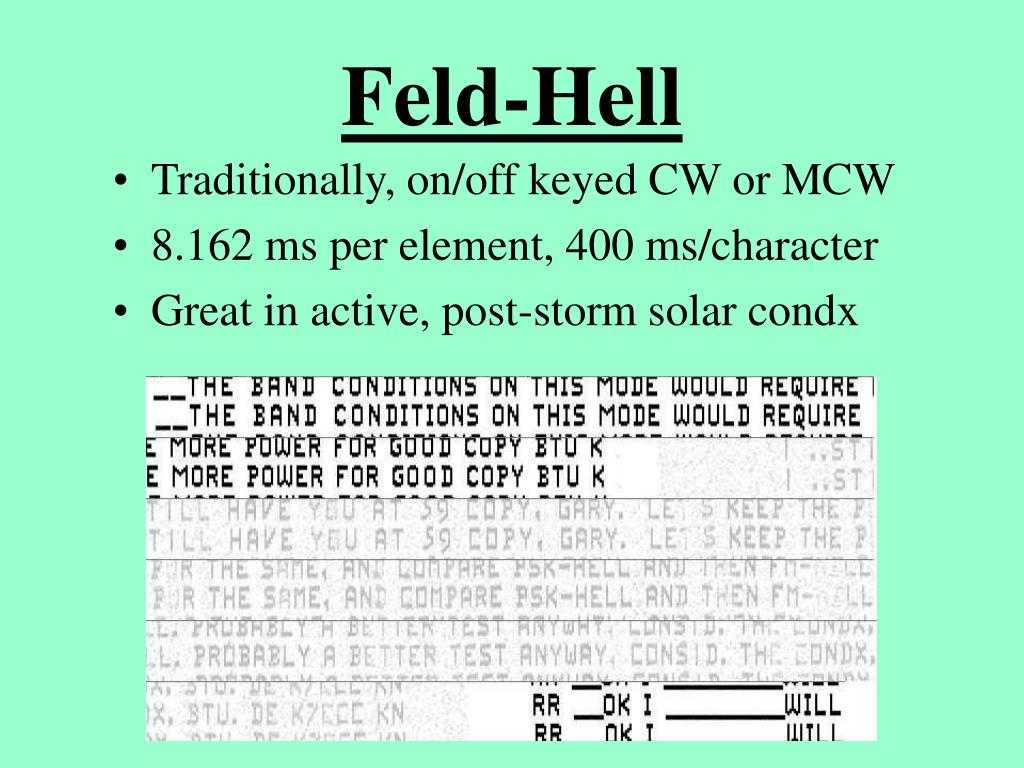

Feld-Hell

  • Traditionally, on/off keyed CW or MCW

  • 8.162 ms per element, 400 ms/character

  • Great in active, post-storm solar condx


Global dx with feld hell

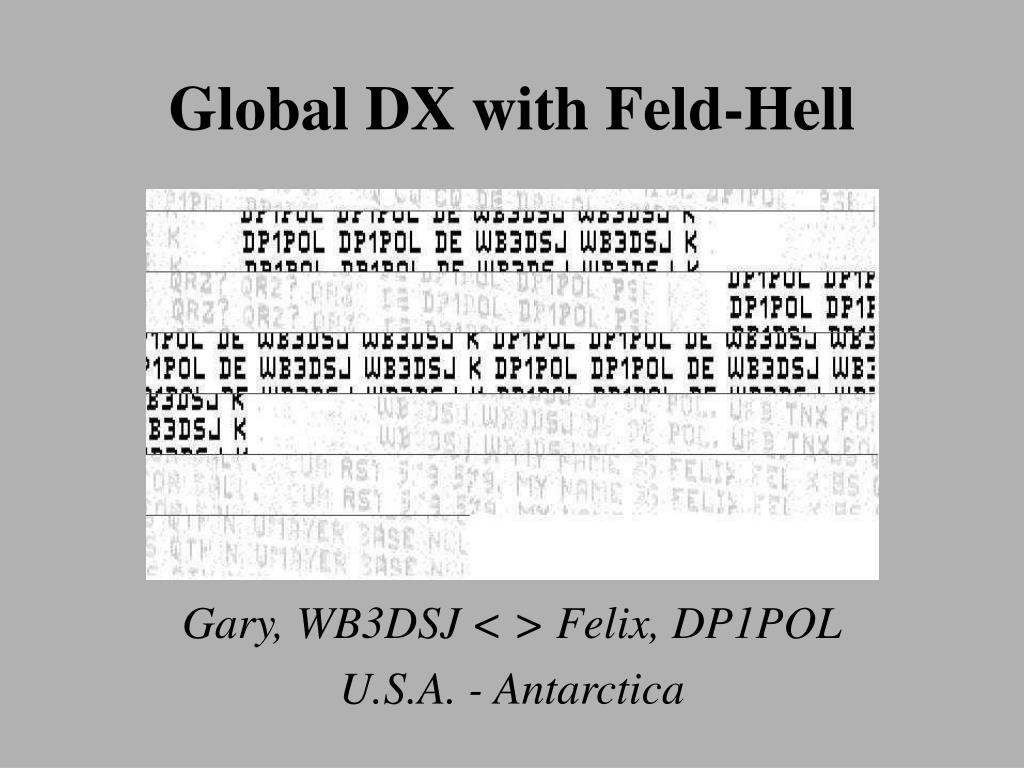

Global DX with Feld-Hell

Gary, WB3DSJ < > Felix, DP1POL

U.S.A. - Antarctica


Psk hell

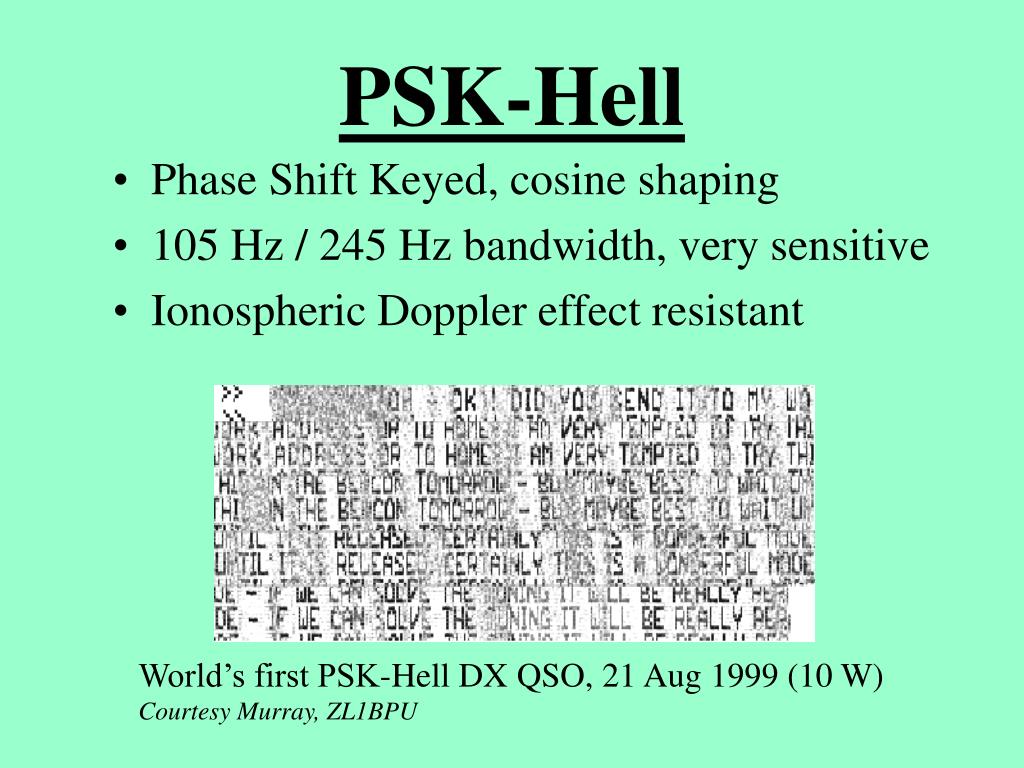

PSK-Hell

  • Phase Shift Keyed, cosine shaping

  • 105 Hz / 245 Hz bandwidth, very sensitive

  • Ionospheric Doppler effect resistant

World’s first PSK-Hell DX QSO, 21 Aug 1999 (10 W)

Courtesy Murray, ZL1BPU


Fm hell
FM-Hell

  • Frequency shift keyed; 50 Hz / 123 Hz wide

  • Extremely clear text reception, sensitive

  • Overcomes pulse, crash noise quite well


Multitone hell

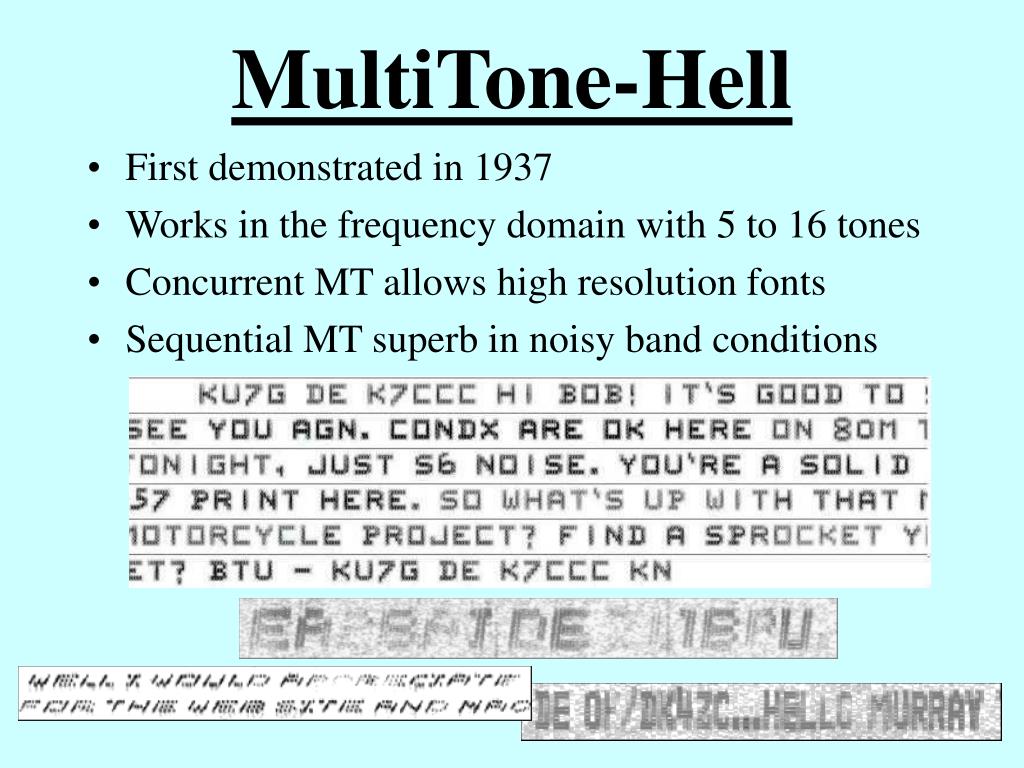

MultiTone-Hell

  • First demonstrated in 1937

  • Works in the frequency domain with 5 to 16 tones

  • Concurrent MT allows high resolution fonts

  • Sequential MT superb in noisy band conditions


Hard and soft

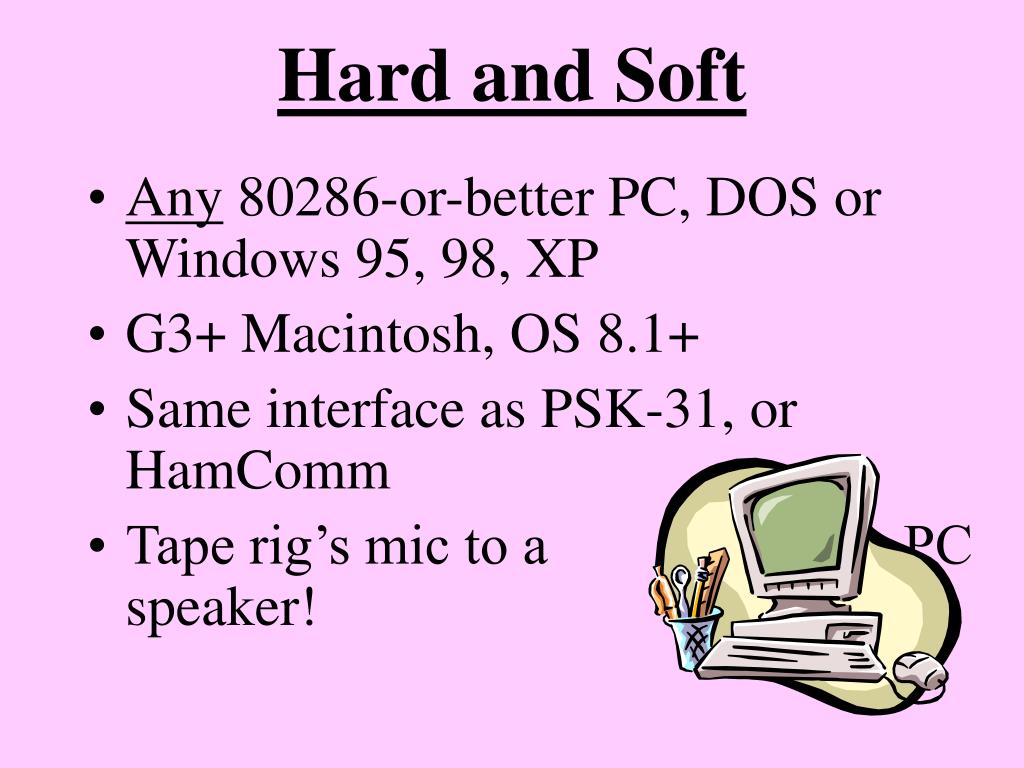

Hard and Soft

  • Any 80286-or-better PC, DOS or Windows 95, 98, XP

  • G3+ Macintosh, OS 8.1+

  • Same interface as PSK-31, or HamComm

  • Tape rig’s mic to a PC speaker!


Operating

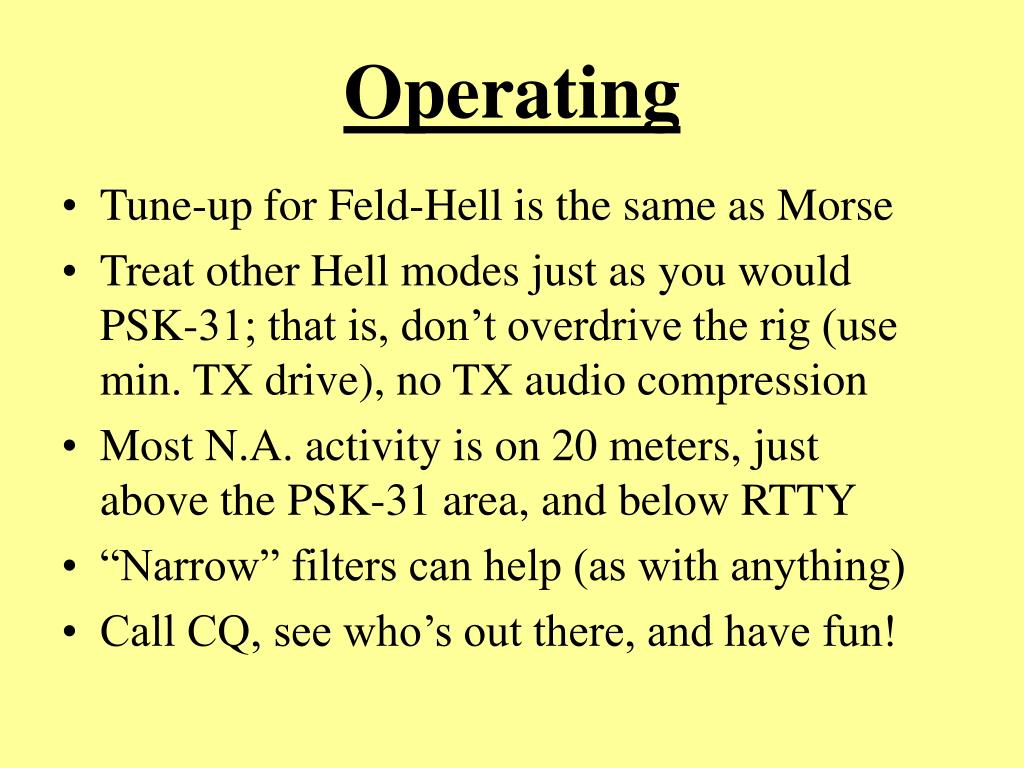

Operating

  • Tune-up for Feld-Hell is the same as Morse

  • Treat other Hell modes just as you would PSK-31; that is, don’t overdrive the rig (use min. TX drive), no TX audio compression

  • Most N.A. activity is on 20 meters, just above the PSK-31 area, and below RTTY

  • “Narrow” filters can help (as with anything)

  • Call CQ, see who’s out there, and have fun!


Acknowledgements

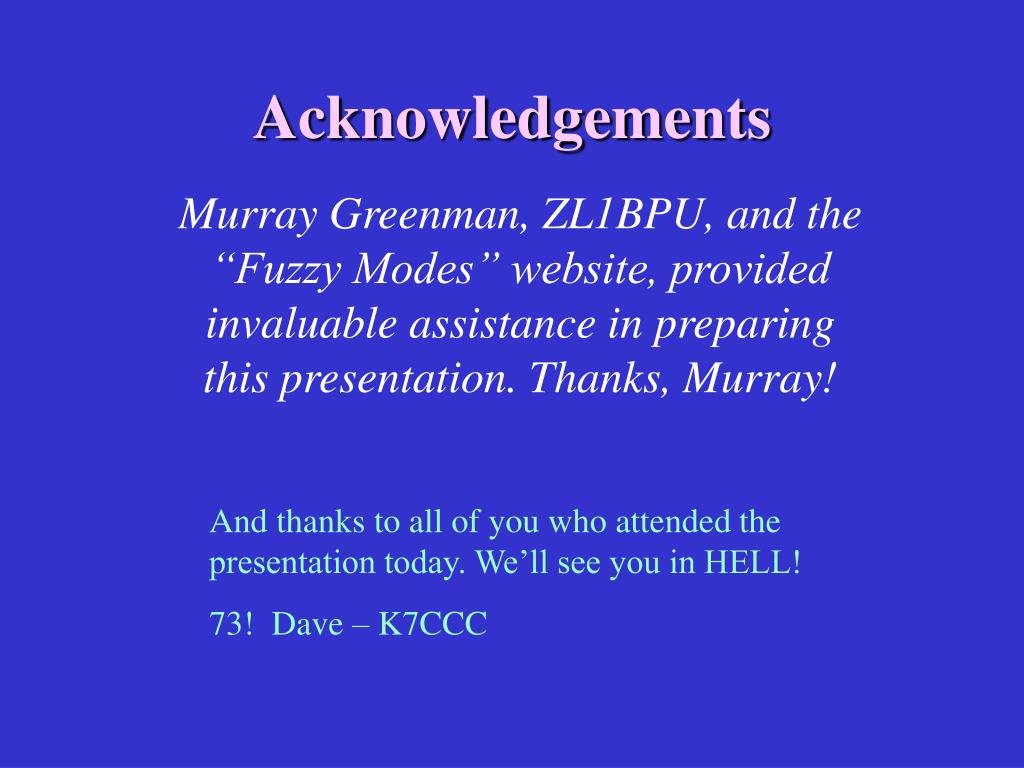

Acknowledgements

Murray Greenman, ZL1BPU, and the “Fuzzy Modes” website, provided invaluable assistance in preparing this presentation. Thanks, Murray!

And thanks to all of you who attended the presentation today. We’ll see you in HELL!

73! Dave – K7CCC
