Engineering: Innovation & Design Evolution. Invention of the Wheel. The oldest wheel to date was discovered in Mesopotamia and dates back to 3,500 B.C. It was made of planks of wood joined together. The picture below briefly describes the stages of development of the wheel.
E N D
Invention of the Wheel • The oldest wheel to date was discovered in Mesopotamia and dates back to 3,500 B.C. • It was made of planks of wood joined together. The picture below briefly describes the stages of development of the wheel. • Source: http://library.thinkquest.org/C004203/science/science02.htm
Uses: Transportation -To move heavy objects -To steer vehicles
Water Wheels use the force of running water to turn and create energy to power something else, in this case a mill. Energy
Machinery • Wheels that rotate in machinery • http://www.google.com/#hl=en&sclient=psy-ab&q=history+of+gears+images&oq=history+of+gears+images&gs_l=serp.3...2272.3419.0.3621.7.7.0.0.0.0.168.856.1j6.7.0.les%3B..0.0...1c.LgxeRi1ZMPc&pbx=1&bav=on.2,or.r_gc.r_pw.r_qf.&fp=bb1985a4b0dff75f&biw=1184&bih=689

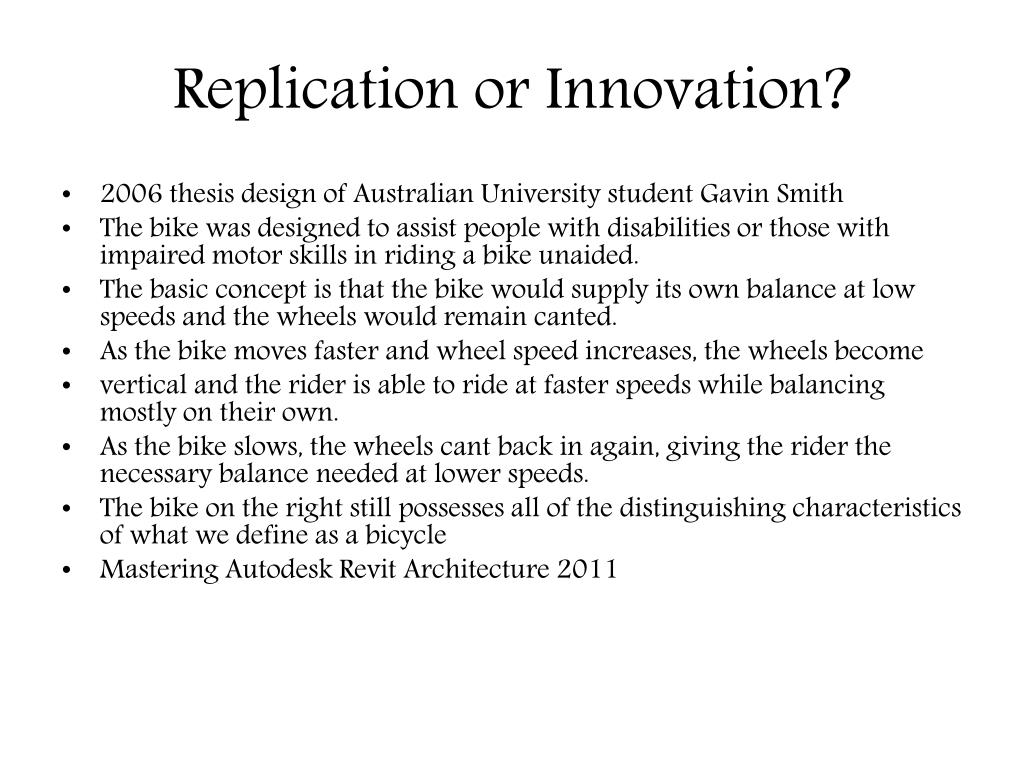

Replication or Innovation? • 2006 thesis design of Australian University student Gavin Smith • The bike was designed to assist people with disabilities or those with impaired motor skills in riding a bike unaided. • The basic concept is that the bike would supply its own balance at low speeds and the wheels would remain canted. • As the bike moves faster and wheel speed increases, the wheels become • vertical and the rider is able to ride at faster speeds while balancing mostly on their own. • As the bike slows, the wheels cant back in again, giving the rider the necessary balance needed at lower speeds. • The bike on the right still possesses all of the distinguishing characteristics of what we define as a bicycle • Mastering Autodesk Revit Architecture 2011
