Presentation Transcript


Calculating the actual internal force in truss bridge members l.jpg

Calculating the “actual” internal force in truss bridge members

EGN1006


Learning goals the student will be able to l.jpg

Learning Goals: The student WILL be able to:

  • Calculate the components of a force vector.

  • Add two force vectors together.

  • Draw a free body diagram.

  • Calculate whether a truss is statically determinate or indeterminate.

  • Write and solve a force vector equilibrium equation.

  • Use the Method of Joints to calculate the internal force in every member in a truss.

  • Evaluate a truss, to determine if it can carry a given load safely by calculating factors of safety for individual members.


Static determinacy and stability l.jpg

Static Determinacy and Stability

A structure that cannot be analyzed using the equations of equilibrium alone is called statically indeterminate. A structure that can be analyzed using the equations of equilibrium alone is called statically determinate. Only statically determinate trusses can be analyzed with the Method of Joints.

A statically determinate truss with two reactions must satisfy the mathematical equation

Where j is the number of joints and m is the number of members.


Static determinacy and stability4 l.jpg

Static Determinacy and Stability

6

How many joints does this bridge have?

10

How many members does this bridge have?

Is this bridge statically determinate? In other words does 2j = m+3?

No , 2(6) = 12 and 10+3 = 13

Thus 2J does NOT equal m+3


Static determinacy and stability5 l.jpg

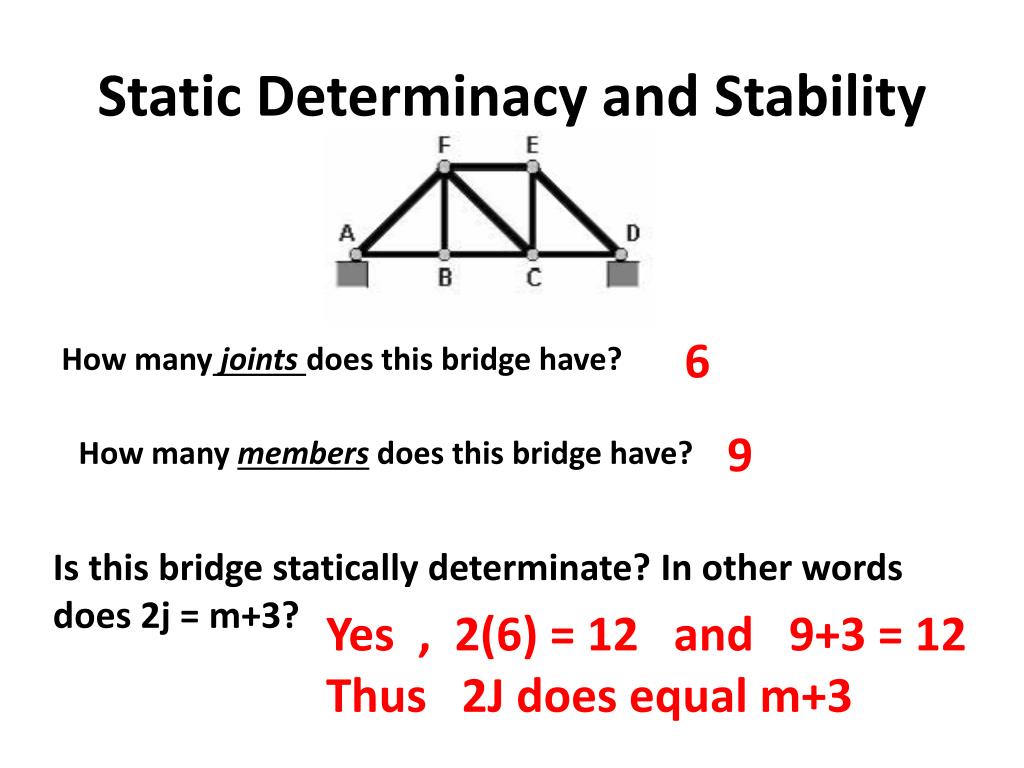

Static Determinacy and Stability

6

How many joints does this bridge have?

9

How many members does this bridge have?

Is this bridge statically determinate? In other words does 2j = m+3?

Yes , 2(6) = 12 and 9+3 = 12

Thus 2J does equal m+3


Free body diagram l.jpg

Free Body Diagram

A free body diagram is a pictorial representation of all of the forces which act on an object. Suppose we have a box being pushed by an applied force to the right. What forces act on the box?

  • Weight, aka, the Force due to gravity , - This force is ALWAYS drawn straight down.

  • Normal Force – The force that a SURFACE applies on an object. Always drawn PERPENDICULAR to the surface

  • Applied Force - Either a PUSH or a PULL

  • Friction force – the force that ALWAYS opposes the motion. Drawn at the surface.


Free body diagrams l.jpg

Free Body Diagrams

Often times the free body diagram is drawn using what is called a POINT MODEL. The object is drawn as a single point with the forces labeled as “F”. A subscript is added according to the type of force it is.


Free body diagrams8 l.jpg

Free Body Diagrams

FT1

FT2

Fg

In the case of bridge members and ropes, we have a special type of force called TENSION. Since you can’t PUSH a rope, the tension is ALWAYS drawn as if your are pulling the object. In other words, it is always drawn AWAY from the object. If there are multiple ropes, subscripts must be used to classify them separately.


Equations of equilibrium l.jpg

Equations of Equilibrium

When an object is at rest, the SUM of all of the FORCE vectors must be equal to zero.

So when you write your equations they MUST equal ZERO.


What is a vector l.jpg

What is a vector?

A vector is any quantity which has both MAGNITUDE (# and a unit) and DIRECTION. The vector is always represented as an ARROW. Suppose the vector below represents a displacement of 10m.

10 m, NORTH-EAST

MAGNITUDE

DIRECTION


A vector s direction l.jpg

A vector’s direction

Direction is best described by using a Cartesian Coordinate system. Forces on the negative x or negative y axis must have a negative sign. Using this idea allows us to write the equation of equilibrium. Assume the object is at rest.

Fa2=? N

Fa1=+10 N


Let s look at joint b on our truss l.jpg

Let’s look at JOINT B on our truss

FBI

FAB

FBC

Assume all forces are TENSION!


Joint b equations of equilibrium l.jpg

Joint B – Equations of Equilibrium

FBI

FAB

FBC

If you knew the FORCE in member AB, you would be able to solve for the FORCE in member BC. Isolating just ONE JOINT to analyze the force is called the METHOD OF JOINTS.


Some basic concepts from trigonometry l.jpg

Some Basic Concepts from Trigonometry

A truss is a structure composed of members arranged in interconnected triangles. For this reason, the geometry of triangles is very important in structural analysis.

This diagram shows a right triangle—a triangle with one of its three angles measuring exactly 90o. Sides a and b form the 90o angle. The other two angles, identified as θ1and θ2, are always less than 90o. Side c, the side opposite the 90o angle, is always the longest of the three sides. It is called the hypotenuse of the right triangle. Thanks to an ancient Greek mathematician named Pythagoras, we can easily calculate the length of the hypotenuse of a right triangle. The Pythagorean Theorem tells us that:


Some basic concepts from trigonometry15 l.jpg

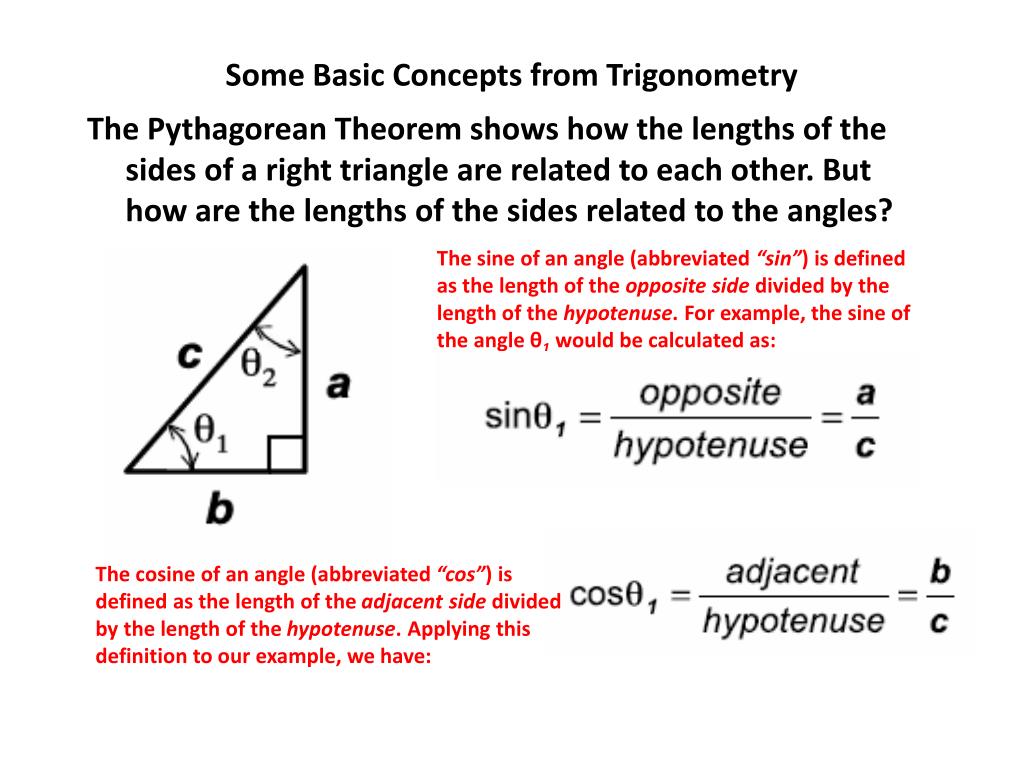

Some Basic Concepts from Trigonometry

The Pythagorean Theorem shows how the lengths of the sides of a right triangle are related to each other. But how are the lengths of the sides related to the angles?

The sine of an angle (abbreviated “sin”) is defined as the length of the opposite side divided by the length of the hypotenuse. For example, the sine of the angle θ1would be calculated as:

The cosine of an angle (abbreviated “cos”) is defined as the length of the adjacent side divided by the length of the hypotenuse. Applying this definition to our example, we have:


Breaking a vector into its components l.jpg

Breaking a Vector into its Components

Once the coordinate axis system is established, we can represent the direction of any vector as an angle measured from either the x-axis or the y-axis. For example, the force vector at right has a magnitude (F) of 20 Newtons and a direction (θ) of 50 degrees, measured counterclockwise from the x-axis.

This force can also be represented as two equivalent forces, one in the x-direction

and one in the y-direction. Each of these forces is called a component of the vector F.


What if a member is at an angle l.jpg

What if a member is at an angle?


Calculating the vector s components l.jpg

Calculating the Vector’s Components


Let s get started l.jpg

Let’s get started

The required load our bridge must withstand is 49N or 5-kg.

Since there are TWO trusses held together by lateral bracings, HOW much load does ONE truss bridge hold?

24.5 N


Let s get started20 l.jpg

Let’s get started

The load acts downward at joints J, K, and L. How much force acts at each one of these locations?

8.17 N


Let s get started21 l.jpg

Let’s get started

The two upward forces are both force normals. The “R” in this case stands for REACTION as they are a reaction to the load. How much force does each REACTION FORCE(force normal) support?

12.25 N


Joint a l.jpg

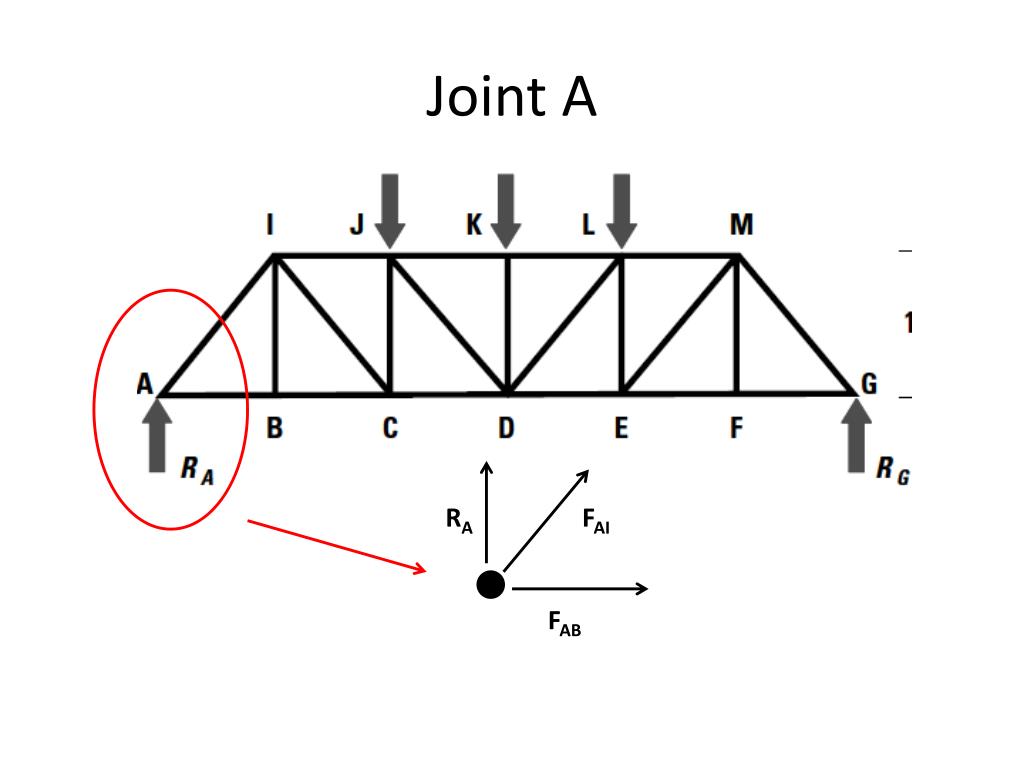

Joint A

RA

FAI

FAB


Force ai must be broken into components l.jpg

Force AI must be broken into components

FAI

RA

FAI

q

q

FAB

What is the VALUE of the angle THETA?

LengthAI

LengthBI

q

What other angle are also equal to theta?

LengthAB


Where is theta l.jpg

Where is theta?

q

q

q

q

q


Force ai s components l.jpg

Force AI’s Components

FAI

RA

FAI

FAIsinq

q

q

FAB

FAIcosq

Let’s now REDRAW the FBD!

FAIsinq

RA

FAIcosq

FAB


Joint a s equations of equilibrium l.jpg

Joint A’s Equations of Equilibrium

FAIsinq

RA

FAIcosq

FAB

This force is COMPRESSION and NOT tension, thus it is a TUBE!


Your task l.jpg

Your task

Use the Method of Joints to solve for the rest of the internal forces. Use the calculation guide for reference and to keep organized.

Wait, there is ONE last thing…..


Factor of safety l.jpg

Factor of Safety

When an engineer designs a structure, he or she must consider many

different forms of uncertainty. There are three major types of uncertainty that affect a structural design:

  • There is always substantial uncertainty in predicting the loads a structure might experience at some time in the future.

  • The strengths of the materials that are used to build actual bridges are also uncertain.

  • The mathematical models we use for structural analysis and design are never 100% accurate.


Factor of safety29 l.jpg

Factor of Safety

The engineer accounts for all forms of uncertainty by making the structure somewhat stronger than it really needs to be—by using a factor of safety in all analysis and design calculations. In general, when it is used in the analysis of an existing structure, the factor of safety is a defined as

In a truss, the actual force in a member is called the internal member force, and the force at which failure occurs is called the strength. Thus we can rewrite the definition of the factor of safety as


Factor of safety30 l.jpg

Factor of Safety

For example, if a structural member has an internal force of 5000 pounds and a strength of 7500 pounds, then its factor of safety, FS, is

If the factor of safety is less than 1, then the member or structure is clearly unsafe and will probably fail. If the factor of safety is 1 or only slightly greater than 1, then the member or structure is nominally safe but has very little margin for error—for variability in loads, unanticipated low member strengths, or inaccurate analysis results.

Most structural design codes specify a factor of safety of 1.6 or larger (sometimes considerably larger) for structural members and connections.


The next step l.jpg

The next step

  • Calculate the internal member force

  • Use the previously found strengths to calculate the factors of safety for each bridge member
