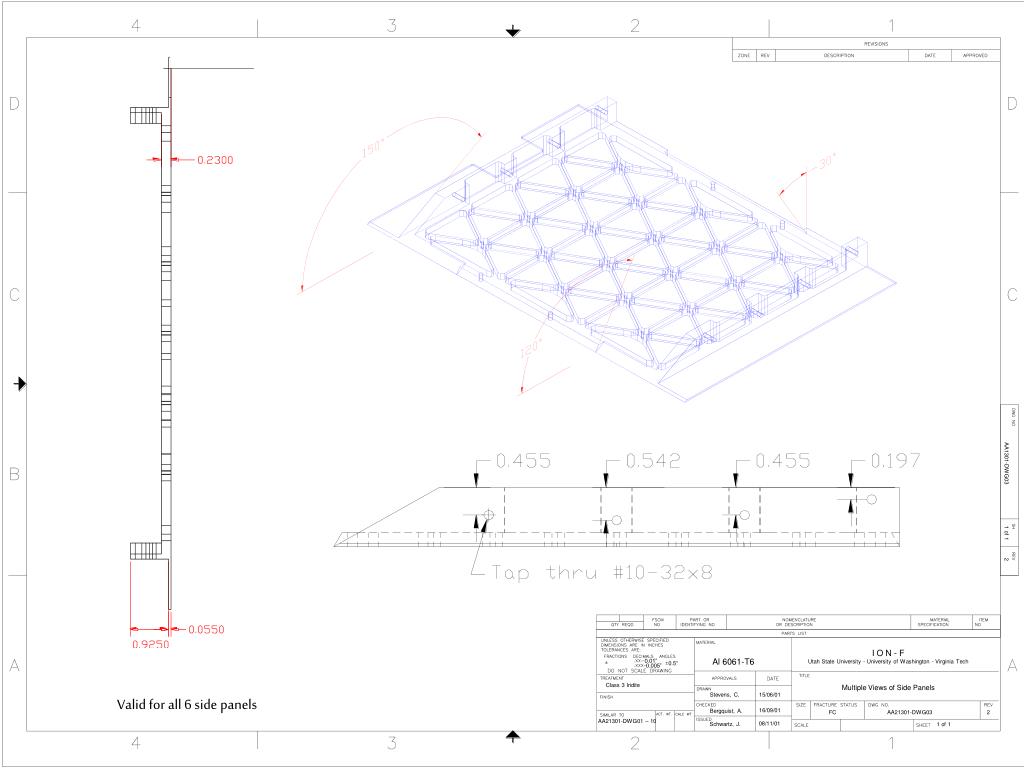

AA1301-DWG03. 1 of 1. 2. I O N - F Utah State University - University of Washington - Virginia Tech. Al 6061-T6. 0.05” 0.005”. 0.01”. 0.5 °. 0.005”. Class 3 Iridite. Multiple Views of Side Panels. Stevens, C. 15/06/01. Valid for all 6 side panels. 16/09/01. Bergquist, A. FC.
