Presentation Transcript


The sloan digital sky survey what happens when you create a spacetime

The Sloan Digital Sky Survey:

What happens when you create a spacetime?

  • The SDSS

  • Evolution of the spacetime

  • Galaxies, halos, and mass

  • Halos labeled by galaxies

  • Halos labeled by groups/clusters

  • Combining with simulations

Tim McKay

Department of Physics

University of Michigan

November, 2002

FNAL Starry Messages


The s loan d igital s ky s urvey sdss

The Sloan Digital Sky Survey: SDSS

  • Deep imaging of 10,000 sq. deg. in 5 colors

    >108 galaxies imaged (in u, g, r, i, z)

  • Spectroscopy of 106 galaxies and 105 quasars

    Brightest million galaxies (zmed=0.1)

  • The goal: comprehensive astronomical observations (like a collider detector…)

  • ~30 Terabytes of total data

  • ~200 total scientists

  • Current data:

  • ~4000 sq. degrees of imaging

  • <3% photometric uncertainty

  • ~3x105 spectra

www.sdss.org

Funding: Sloan Foundation, NASA, NSF, DOE, and member institutions

FNAL Starry Messages


The sdss organization

The SDSS organization

Project director

John Peoples

SDSS is a joint project of

  • The University of Chicago

  • Fermilab

  • The Institute for Advanced Study

  • The Japan Participation Group

  • The Johns Hopkins University

  • The Max-Planck-Institute for Astronomy (MPIA)

  • The Max-Planck-Institute for Astrophysics (MPA)

  • New Mexico State University

  • Princeton University

  • University of Pittsburgh

  • The United States Naval Observatory

  • The University of Washington.

    Apache Point Observatory, site of the SDSS telescopes, is operated by the Astrophysical Research Consortium (ARC). Funding for the project has been provided by the Alfred P. Sloan Foundation, the SDSS member institutions, the National Aeronautics and Space Administration, the National Science Foundation, the U.S. Department of Energy, the Japanese Monbukagakusho, and the Max Planck Society. The SDSS Web site is http://www.sdss.org/.

> 200 scientists

FNAL Starry Messages


The sloan digital sky survey what happens when you create a spacetime

SDSS Science goals

Large, accurate, homogeneous data set for study of the local universe

  • Primary goal: Structure in the Universe

  • Revolutionizing many other studies (much of traditional astronomy):

    • Properties of objects: stars, galaxies, quasars, groups, clusters

    • Processes: the origins of morphology, quasar evolution

  • Early results: distant quasars, L+T dwarfs, halo structure, reionization, luminosity function, galaxy evolution, stellar populations

FNAL Starry Messages


The sloan digital sky survey what happens when you create a spacetime

Collective output from the SDSS

  • Terabytes of high quality 5 color imaging and spectroscopic data

  • Extremely high quality initial reductions by “photo”

    • Astrometric and photometric calibrations

    • Merging of five colors

  • Excellent spectroscopic reductions by “spectro”

    • Very accurate redshifts

    • Spectral type information

  • Pipelines and operation: collaboration of Fermilab, Princeton, and Chicago

  • Precision and accuracy really unprecedented

  • Analogous to calibrated reconstructed event files

  • All of this becoming available publicly:

    • EDR Jan. 2001: 400 sq. deg. + 35000 spectra

    • DR1 Jan. 2003: 2000+ sq. deg. & 200000+ spectra

Analyses are really just beginning!

FNAL Starry Messages


Photometric precision sky is full of calibration targets

Photometric precisionSky is full of calibration targets!

Zeljko Ivezic:

Princeton

733 days apart

2.8 million objects

FNAL Starry Messages


Sdss journal publications

SDSS Journal Publications

Three-Dimensional Genus Statistics of Galaxies in the SDSS Early Data Release C. Hikage 0207377 PASJ, accepted Color Confirmation of Asteroid Families Z. Ivezic 0208098AJ, 124:2943 (2002) A First Look at White - M dwarf Pairs in SDSS S. Raymond AJ submitted The Broad-band Optical Properties of Galaxies with Redshifts 0.0 < z < 0.2 M. Blanton 0209479 ApJ submitted The Application of Photometric Redshifts to the SDSS Early Data Release I. Csabai AJ submitted Galaxy Star-Formation as a Function of Environment in the Early Data Release of the Sloan Digital Sky Survey P. Gomez 0210193 ApJ, accepted Two Rare Magnetic Cataclysmic Variables with Extreme Cyclotron Features Identified in the Sloan Digital Sky Survey P. Szkody 0208241 ApJL, accepted Two-Dimensional Topology of the Sloan Digital Sky Survey F. Hoyle 0206146 ApJ, accepted The Cluster Mass Function from Early SDSS Data: Cosmological Implications N. Bahcall 0205490 ApJ submitted The Redshift of the Lensing Galaxy in PMN J0134-0931 P. Hall 0207317ApJ, 575:L51, (2002) SDSS 0924+0219: an Interesting "Three Component" Gravitationally Lensed Quasar N. Inada AJ submitted SDSS 1226$-$0006: A Gravitationally Lensed Quasar Candidate from the Sloan Digital Sky Survey N. Inada AJ submitted Kinematic Study of the Disrupting Globular Cluster Palomar 5 using VLT Spectra M. Odenkirchen 0206276AJ 124:1497 (2002) The Dependence of Star Formation History and Internal Structure on Stellar Mass for 80,000 Low Redshift Galaxies G. Kauffmann 0205070 MNRAS, submitted A Feature at z ~ 3.2 in the Evolution of the Ly-alpha Forest Optical Depth M. Bernardi 0206293 AJ, accepted Stellar Masses and Star Formation Histories for 80,000 Galaxies from the Sloan Digital Sky Survey G. Kauffmann 0204055 MNRAS, submitted Cosmological Information from Quasar-Galaxy Correlations induced by Weak Lensing B. Menard 0203163A&A 386,784-795 (2002) Faint High Latitude Carbon Stars Discovered by the Sloan Digital Sky Survey: Methods and Initial Results B. Margon 0206413AJ, 124:1651 (2002) Composite Luminosity Functions of the Sloan Digital Sky Survey Cut and Enhance Galaxy Cluster Catalog T. Goto 0205413PASJ 54:515 (2002) Estimating Fixed Frame Galaxy Magnitudes in the SDSS M. Blanton 0205243 AJ, Submitted The Luminosity Density of Red Galaxies D. Hogg 0204436AJ,124,646,2002 Exploratory Chandra Observations of the Three Highest Redshift Quasars W. Brandt 0202235ApJ, 569,5 (2002) Optical and Radio Properties of Extragalactic Sources Observed by the FIRST Survey and the SDSS Z. Ivezic 0202408AJ 124:2364-2400 (2002) Comparison of Positions and Magnitudes of Asteroids Observed in the Sloan Digital Sky Survey with those Predicted for Known Asteroids M. Juric 0202468AJ,124:1776 (2002) Characterization of M, L and T Dwarfs in Sloan Digital Sky Survey S. Hawley 0204065AJ, 123:3409 (2002) LOTIS, Super-LOTIS, SDSS and Tautenburg Observations of GRB010921 H. Park 0112397ApJ, Lett 571, 131 (2002) VLT Optical and Near-IR Observations of the z=6.28 Quasar 1030+0524 L. Pentericci 0112075AJ, 123,2151 (2002) Unusual Broad Absorption Line Quasars from the Sloan Digital Sky Survey P. Hall 0203252ApJS, 141, 267 (2002) Dynamical Confirmation of SDSS Weak Lensing Scaling Laws T. McKay 0204383ApJ Lett, 571, 85 (2002) SDSS J124602.54+011318.8: A Highly Luminous Optical Transient at a Redshift of 0.385 D. Vanden Berk 0111054ApJ 576:673 (2002) Higher Order Moments of the Angular Distribution of Galaxies I. Szapudi 0111058ApJ, 570,75 (2002) Early-type Galaxies in the SDSS M. Bernardi 0110344 AJ, submitted An SDSS Survey for Resolved Milky Way Satellite Galaxies I: Detection Limits B. Willman 0111025AJ, 123,848 (2002) The Sloan Digital Sky Survey Quasar Catalog I. Early Data Release D. Schneider 0110629AJ, 123,567 (2002) The Angular Clustering of Galaxy Pairs L. Infante 0111019ApJ, 567,155 (2002) L Dwarfs Found in Sloan Digital Sky Survey Commissioning Data II. Hobby-Eberly Telescope Observations D. Schneider 0110273AJ, 123:458 (2002) The Ghost of Sagittarius and Lumps in the Halo of the Milky Way H. Newberg 0111095ApJ,569,245 (2002) The Cut & Enhance method: Selecting Clusters of Galaxies from the SDSS Commissioning Data T. Goto 0112482AJ, 123, 1807 (2002) Towards Spectral Classification of L and T Dwarfs: Infrared and Optical Spectroscopy and Analysis T. Geballe 0108443ApJ, 564:466 (2002) Infrared Photometry of Late M, L, and T Dwarfs S. Leggett 0108435ApJ, 564:452 (2002) New insights on the Draco dwarf spheroidal galaxy from SDSS: a larger radius and no tidal tails M. Odenkirchen 0108100AJ, 122:2538 (2001) Evidence for Reionization at z~6: Detection of a Gunn-Peterson Trough in a z=6.28 Quasar R. Becker 0108097AJ, 122:2850 (2001) A Survey of z>5.8 Quasars in the Sloan Digital Sky Survey I: Discovery of Three New Quasars and the Spatial Density of Luminous Quasars at z~6 X. Fan 0108063AJ, 122:2833 (2001) Galaxy Mass and Luminosity Scaling Laws Determined by Weak Gravitational Lensing T. McKay 0108013 ApJ, submitted The 3D Power Spectrum from Early SDSS Angular Clustering S. Dodelson 0107421ApJ, 572:140 (2002) KL Estimation of the Power Spectrum Parameters from the Angular Distribution of Galaxies in Early SDSS Data A. Szalay 0107419 ApJ, submitted The Angular Power Spectrum of Galaxies from Early SDSS Data M. Tegmark 0107418ApJ, 571, 191-205 (2002) The Angular Correlation Function of Galaxies from Early SDSS Data A. Connolly 0107417 ApJ, submitted Analysis of Systematic Effects and Statistical Uncertainties in Angular Clustering of Galaxies from Early SDSS Data R. Scranton 0107416 ApJ, submitted Color Separation of Galaxy Types in the Sloan Digital Sky Survey Imaging Data I. Strateva 0107201AJ,122,1861 (2001) Galaxy Clustering in Early SDSS Redshift Data I. Zehavi 0106476ApJ,571,172 (2002) Cataclysmic Variables from SDSS I. The First Results P. Szkody 0110291AJ, 123:430 (2002) Detecting Clusters of Galaxies in the Sloan Digital Sky Survey I: Monte Carlo Comparison of Cluster Detection Algorithms R. Kim 0110259AJ, 123:20 (2002) Photometric Redshifts of Quasars G. Richards 0106038AJ, 122:1151 (2001) Photometric Redshifts from Reconstructed Quasar Templates T. Budavari 0106036AJ, 122:1163 (2001) Galaxy Number Counts from the Sloan Digital Sky Survey Commissioning Data N. Yasuda 0105545AJ, 122:1104 (2001) Solar System Objects Observed in the SDSS Commissioning Data Z. Ivezic 0105511AJ,122:2749 (2001) Statistical Properties of Bright Galaxies in the SDSS Photometric System K. Shimasaku 0105401AJ, 122:1238 (2001) Composite Quasar Spectra From the Sloan Digital Sky Survey D. Vanden Berk 0105231AJ, 122:549 (2001) Sloan Digital Sky Survey Multicolor Observations of GRB010222 B. Lee 0104201ApJ, 561:183 (2001) High-Redshift Quasars Found in Sloan Digital Sky Survey Commissioning Data VI. Sloan Digital Sky Survey Spectrograph Observations S. Anderson 0103228AJ, 122:503 (2001) Weak-Lensing Measurements of 42 SDSS/RASS Galaxy Clusters E. Sheldon 0103029ApJ, 554:881 (2001) Broad Absorption Line Quasars in the Sloan Digital Sky Survey with VLA-FIRST Radio Detections K. Menou 0102410ApJ, 561:645 (2001) Stellar Population Studies with the SDSS I. The Vertical Distribution of Stars in the Milky Way B. Chen ApJ, 553:184 (2001) A New Very Cool White Dwarf Discovered by the Sloan Digital Sky Survey H. Harris 0101021ApJ Lett, 549:109 (2001) Detection of Massive Tidal Tails around the Globular Cluster Palomar 5 with Sloan Digital Sky Survey Commissioning Data M. Odenkirchen 0012311ApJ Lett, 548:165 (2001) The Luminosity Function of Galaxies in SDSS Commissioning Data M. Blanton 0012085AJ, 121:2358 (2001) Colors of 2625 Quasars at 0 < z < 5 Measured in the Sloan Digital Sky Survey Photometric System G. Richards 0012449AJ, 121:2308 (2001) The First Hour of Extragalactic Data of the Sloan Digital Sky Survey Spectroscopic Commissioning: The Coma Cluster F. Castander 0010470AJ, 121:2331 (2001) High-Redshift Quasars Found in Sloan Digital Sky Survey Commissioning Data V. Hobby-Eberly Telescope Observations D. Schneider 0012083AJ, 121:1232 (2001) High-Redshift Quasars Found in Sloan Digital Sky Survey Commissioning Data IV: Luminosity Function from the Fall Equatorial Stripe Sample X. Fan 0008123AJ, 121:54 (2001) High-Redshift Quasars Found in Sloan Digital Sky Survey Commissioning Data III: A Color Selected-Sample at i* < 20 in the Fall Equatorial Stripe X. Fan 0008122AJ, 121:31 (2001) Optical and Infrared Colors of Stars Observed by 2MASS and SDSS K. Finlator 0010052AJ, 120:2615 (2000) Discovery of a Pair of z=4.25 Quasars from the Sloan Digital Sky Survey D. Schneider 0008401AJ, 120:2183 (2000) Five High-Redshift Quasars Discovered in Commissioning Imaging Data of the Sloan Digital Sky Survey W. Zheng 0005247AJ, 120:1607 (2000) Weak Lensing with SDSS Commissioning Data: The Galaxy-Mass Correlation Function to 1/h Mpc P. Fischer 9912119AJ, 120:1198 (2000) The Discovery of a Luminous z=5.80 Quasar from the Sloan Digital Sky Survey X. Fan 0005414AJ, 120:1167 (2000) The Missing Link: Early Methane ("T") Dwarfs in the Sloan Digital Sky Survey S. Leggett 0004408ApJ Lett, 536:35 (2000) Candidate RR Lyrae Stars Found in Sloan Digital Sky Survey Commissioning Data Z. Ivezic 0004130AJ, 120:963 (2000) Identification of A-colored Stars and Structure in the Halo of the Milky Way from SDSS Commissioning Data B. Yanny 0004128ApJ, 540:825 (2000) The Discovery of a Second Field Methane Brown Dwarf from Sloan Digital Sky Survey Commissioning Data Z. Tsvetanov 0001062ApJ Lett, 531:61 (2000) The Low Resolution Spectrograph of the Hobby-Eberly Telescope II. Observations of Quasar Candidates from the Sloan Digital Sky Survey D. Schneider 9910306PASP, 112:6 (2000) The Discovery of a High-Redshift Quasar without Emission Lines from Sloan Digital Sky Survey Commissioning Data X. Fan 9910001ApJ Lett, 526:57 (1999) L Dwarfs Found in the Sloan Digital Sky Survey Commissioning Imaging Data X. Fan 9909263AJ, 119:928 (2000) High-Redshift Quasars Found in Sloan Digital Sky Survey Commissioning Data II: The Spring Equatorial Stripe X. Fan 9909169AJ, 119:1 (2000) The Discovery of a Field Methane Dwarf from Sloan Digital Sky Survey Commissioning Data M. Strauss 9905391ApJ Lett, 522:61 (1999) High-Redshift Quasars Found in Sloan Digital Sky Survey Commissioning Data X. Fan 9903237AJ, 118:1 (1999)

FNAL Starry Messages


Sdss journal publications1

SDSS Journal Publications

Three-Dimensional Genus Statistics of Galaxies in the SDSS Early Data Release C. Hikage 0207377 PASJ, accepted Color Confirmation of Asteroid Families Z. Ivezic 0208098AJ, 124:2943 (2002) A First Look at White - M dwarf Pairs in SDSS S. Raymond AJ submitted The Broad-band Optical Properties of Galaxies with Redshifts 0.0 < z < 0.2 M. Blanton 0209479 ApJ submitted The Application of Photometric Redshifts to the SDSS Early Data Release I. Csabai AJ submitted Galaxy Star-Formation as a Function of Environment in the Early Data Release of the Sloan Digital Sky Survey P. Gomez 0210193 ApJ, accepted Two Rare Magnetic Cataclysmic Variables with Extreme Cyclotron Features Identified in the Sloan Digital Sky Survey P. Szkody 0208241 ApJL, accepted Two-Dimensional Topology of the Sloan Digital Sky Survey F. Hoyle 0206146 ApJ, accepted The Cluster Mass Function from Early SDSS Data: Cosmological Implications N. Bahcall 0205490 ApJ submitted The Redshift of the Lensing Galaxy in PMN J0134-0931 P. Hall 0207317ApJ, 575:L51, (2002) SDSS 0924+0219: an Interesting "Three Component" Gravitationally Lensed Quasar N. Inada AJ submitted SDSS 1226$-$0006: A Gravitationally Lensed Quasar Candidate from the Sloan Digital Sky Survey N. Inada AJ submitted Kinematic Study of the Disrupting Globular Cluster Palomar 5 using VLT Spectra M. Odenkirchen 0206276AJ 124:1497 (2002) The Dependence of Star Formation History and Internal Structure on Stellar Mass for 80,000 Low Redshift Galaxies G. Kauffmann 0205070 MNRAS, submitted A Feature at z ~ 3.2 in the Evolution of the Ly-alpha Forest Optical Depth M. Bernardi 0206293 AJ, accepted Stellar Masses and Star Formation Histories for 80,000 Galaxies from the Sloan Digital Sky Survey G. Kauffmann 0204055 MNRAS, submitted Cosmological Information from Quasar-Galaxy Correlations induced by Weak Lensing B. Menard 0203163A&A 386,784-795 (2002) Faint High Latitude Carbon Stars Discovered by the Sloan Digital Sky Survey: Methods and Initial Results B. Margon 0206413AJ, 124:1651 (2002) Composite Luminosity Functions of the Sloan Digital Sky Survey Cut and Enhance Galaxy Cluster Catalog T. Goto 0205413PASJ 54:515 (2002) Estimating Fixed Frame Galaxy Magnitudes in the SDSS M. Blanton 0205243 AJ, Submitted The Luminosity Density of Red Galaxies D. Hogg 0204436AJ,124,646,2002 Exploratory Chandra Observations of the Three Highest Redshift Quasars W. Brandt 0202235ApJ, 569,5 (2002) Optical and Radio Properties of Extragalactic Sources Observed by the FIRST Survey and the SDSS Z. Ivezic 0202408AJ 124:2364-2400 (2002) Comparison of Positions and Magnitudes of Asteroids Observed in the Sloan Digital Sky Survey with those Predicted for Known Asteroids M. Juric 0202468AJ,124:1776 (2002) Characterization of M, L and T Dwarfs in Sloan Digital Sky Survey S. Hawley 0204065AJ, 123:3409 (2002) LOTIS, Super-LOTIS, SDSS and Tautenburg Observations of GRB010921 H. Park 0112397ApJ, Lett 571, 131 (2002) VLT Optical and Near-IR Observations of the z=6.28 Quasar 1030+0524 L. Pentericci 0112075AJ, 123,2151 (2002) Unusual Broad Absorption Line Quasars from the Sloan Digital Sky Survey P. Hall 0203252ApJS, 141, 267 (2002) Dynamical Confirmation of SDSS Weak Lensing Scaling Laws T. McKay 0204383ApJ Lett, 571, 85 (2002) SDSS J124602.54+011318.8: A Highly Luminous Optical Transient at a Redshift of 0.385 D. Vanden Berk 0111054ApJ 576:673 (2002) Higher Order Moments of the Angular Distribution of Galaxies I. Szapudi 0111058ApJ, 570,75 (2002) Early-type Galaxies in the SDSS M. Bernardi 0110344 AJ, submitted An SDSS Survey for Resolved Milky Way Satellite Galaxies I: Detection Limits B. Willman 0111025AJ, 123,848 (2002) The Sloan Digital Sky Survey Quasar Catalog I. Early Data Release D. Schneider 0110629AJ, 123,567 (2002) The Angular Clustering of Galaxy Pairs L. Infante 0111019ApJ, 567,155 (2002) L Dwarfs Found in Sloan Digital Sky Survey Commissioning Data II. Hobby-Eberly Telescope Observations D. Schneider 0110273AJ, 123:458 (2002) The Ghost of Sagittarius and Lumps in the Halo of the Milky Way H. Newberg 0111095ApJ,569,245 (2002) The Cut & Enhance method: Selecting Clusters of Galaxies from the SDSS Commissioning Data T. Goto 0112482AJ, 123, 1807 (2002) Towards Spectral Classification of L and T Dwarfs: Infrared and Optical Spectroscopy and Analysis T. Geballe 0108443ApJ, 564:466 (2002) Infrared Photometry of Late M, L, and T Dwarfs S. Leggett 0108435ApJ, 564:452 (2002) New insights on the Draco dwarf spheroidal galaxy from SDSS: a larger radius and no tidal tails M. Odenkirchen 0108100AJ, 122:2538 (2001) Evidence for Reionization at z~6: Detection of a Gunn-Peterson Trough in a z=6.28 Quasar R. Becker 0108097AJ, 122:2850 (2001) A Survey of z>5.8 Quasars in the Sloan Digital Sky Survey I: Discovery of Three New Quasars and the Spatial Density of Luminous Quasars at z~6 X. Fan 0108063AJ, 122:2833 (2001) Galaxy Mass and Luminosity Scaling Laws Determined by Weak Gravitational Lensing T. McKay 0108013 ApJ, submitted The 3D Power Spectrum from Early SDSS Angular Clustering S. Dodelson 0107421ApJ, 572:140 (2002) KL Estimation of the Power Spectrum Parameters from the Angular Distribution of Galaxies in Early SDSS Data A. Szalay 0107419 ApJ, submitted The Angular Power Spectrum of Galaxies from Early SDSS Data M. Tegmark 0107418ApJ, 571, 191-205 (2002) The Angular Correlation Function of Galaxies from Early SDSS Data A. Connolly 0107417 ApJ, submitted Analysis of Systematic Effects and Statistical Uncertainties in Angular Clustering of Galaxies from Early SDSS Data R. Scranton 0107416 ApJ, submitted Color Separation of Galaxy Types in the Sloan Digital Sky Survey Imaging Data I. Strateva 0107201AJ,122,1861 (2001) Galaxy Clustering in Early SDSS Redshift Data I. Zehavi 0106476ApJ,571,172 (2002) Cataclysmic Variables from SDSS I. The First Results P. Szkody 0110291AJ, 123:430 (2002) Detecting Clusters of Galaxies in the Sloan Digital Sky Survey I: Monte Carlo Comparison of Cluster Detection Algorithms R. Kim 0110259AJ, 123:20 (2002) Photometric Redshifts of Quasars G. Richards 0106038AJ, 122:1151 (2001) Photometric Redshifts from Reconstructed Quasar Templates T. Budavari 0106036AJ, 122:1163 (2001) Galaxy Number Counts from the Sloan Digital Sky Survey Commissioning Data N. Yasuda 0105545AJ, 122:1104 (2001) Solar System Objects Observed in the SDSS Commissioning Data Z. Ivezic 0105511AJ,122:2749 (2001) Statistical Properties of Bright Galaxies in the SDSS Photometric System K. Shimasaku 0105401AJ, 122:1238 (2001) Composite Quasar Spectra From the Sloan Digital Sky Survey D. Vanden Berk 0105231AJ, 122:549 (2001) Sloan Digital Sky Survey Multicolor Observations of GRB010222 B. Lee 0104201ApJ, 561:183 (2001) High-Redshift Quasars Found in Sloan Digital Sky Survey Commissioning Data VI. Sloan Digital Sky Survey Spectrograph Observations S. Anderson 0103228AJ, 122:503 (2001) Weak-Lensing Measurements of 42 SDSS/RASS Galaxy Clusters E. Sheldon 0103029ApJ, 554:881 (2001) Broad Absorption Line Quasars in the Sloan Digital Sky Survey with VLA-FIRST Radio Detections K. Menou 0102410ApJ, 561:645 (2001) Stellar Population Studies with the SDSS I. The Vertical Distribution of Stars in the Milky Way B. Chen ApJ, 553:184 (2001) A New Very Cool White Dwarf Discovered by the Sloan Digital Sky Survey H. Harris 0101021ApJ Lett, 549:109 (2001) Detection of Massive Tidal Tails around the Globular Cluster Palomar 5 with Sloan Digital Sky Survey Commissioning Data M. Odenkirchen 0012311ApJ Lett, 548:165 (2001) The Luminosity Function of Galaxies in SDSS Commissioning Data M. Blanton 0012085AJ, 121:2358 (2001) Colors of 2625 Quasars at 0 < z < 5 Measured in the Sloan Digital Sky Survey Photometric System G. Richards 0012449AJ, 121:2308 (2001) The First Hour of Extragalactic Data of the Sloan Digital Sky Survey Spectroscopic Commissioning: The Coma Cluster F. Castander 0010470AJ, 121:2331 (2001) High-Redshift Quasars Found in Sloan Digital Sky Survey Commissioning Data V. Hobby-Eberly Telescope Observations D. Schneider 0012083AJ, 121:1232 (2001) High-Redshift Quasars Found in Sloan Digital Sky Survey Commissioning Data IV: Luminosity Function from the Fall Equatorial Stripe Sample X. Fan 0008123AJ, 121:54 (2001) High-Redshift Quasars Found in Sloan Digital Sky Survey Commissioning Data III: A Color Selected-Sample at i* < 20 in the Fall Equatorial Stripe X. Fan 0008122AJ, 121:31 (2001) Optical and Infrared Colors of Stars Observed by 2MASS and SDSS K. Finlator 0010052AJ, 120:2615 (2000) Discovery of a Pair of z=4.25 Quasars from the Sloan Digital Sky Survey D. Schneider 0008401AJ, 120:2183 (2000) Five High-Redshift Quasars Discovered in Commissioning Imaging Data of the Sloan Digital Sky Survey W. Zheng 0005247AJ, 120:1607 (2000) Weak Lensing with SDSS Commissioning Data: The Galaxy-Mass Correlation Function to 1/h Mpc P. Fischer 9912119AJ, 120:1198 (2000) The Discovery of a Luminous z=5.80 Quasar from the Sloan Digital Sky Survey X. Fan 0005414AJ, 120:1167 (2000) The Missing Link: Early Methane ("T") Dwarfs in the Sloan Digital Sky Survey S. Leggett 0004408ApJ Lett, 536:35 (2000) Candidate RR Lyrae Stars Found in Sloan Digital Sky Survey Commissioning Data Z. Ivezic 0004130AJ, 120:963 (2000) Identification of A-colored Stars and Structure in the Halo of the Milky Way from SDSS Commissioning Data B. Yanny 0004128ApJ, 540:825 (2000) The Discovery of a Second Field Methane Brown Dwarf from Sloan Digital Sky Survey Commissioning Data Z. Tsvetanov 0001062ApJ Lett, 531:61 (2000) The Low Resolution Spectrograph of the Hobby-Eberly Telescope II. Observations of Quasar Candidates from the Sloan Digital Sky Survey D. Schneider 9910306PASP, 112:6 (2000) The Discovery of a High-Redshift Quasar without Emission Lines from Sloan Digital Sky Survey Commissioning Data X. Fan 9910001ApJ Lett, 526:57 (1999) L Dwarfs Found in the Sloan Digital Sky Survey Commissioning Imaging Data X. Fan 9909263AJ, 119:928 (2000) High-Redshift Quasars Found in Sloan Digital Sky Survey Commissioning Data II: The Spring Equatorial Stripe X. Fan 9909169AJ, 119:1 (2000) The Discovery of a Field Methane Dwarf from Sloan Digital Sky Survey Commissioning Data M. Strauss 9905391ApJ Lett, 522:61 (1999) High-Redshift Quasars Found in Sloan Digital Sky Survey Commissioning Data X. Fan 9903237AJ, 118:1 (1999)

87 in this list

FNAL Starry Messages


Sdss publications by outside scientists

SDSS Publications by outside scientists

Narrow-line Seyfert 1 Galaxies from the Sloan Digital Sky Survey Early Data Release R. Williams 0208211 AJ, accepted Magnetic white dwarfs in the Early Data Release of the Sloan Digital Sky Survey B. Gaensicke 0208454A&A 394, 957-963 (2002) Broad Absorption Line Quasars in the Early Data Release from the Sloan Digital Sky Survey A. Tolea 0209081ApJ Lett 578:L31-L35 (2002) Galaxy clustering in the Sloan Digital Sky Survey (SDSS): a first comparison with the APM Galaxy Survey Gaztanaga MNRAS, 333:L21 (2002) SDSS J124602.54+011318.8: A Highly Variable Active Galactic Nucleus, Not an Orphan Gamma-Ray Burst Afterglow A. Gal-Yam PASP 114:587 (2002) Constraining the Redshift z=6 Quasar Luminosity Function Using Gravitational Lensing Z. Haiman 0206441 ApJ, submitted Detection of He II reionization in the SDSS quasar sample T. Theuns 0206319ApJ Lett, 574:111 (2002) A Constraint on the Gravitational Lensing Magnification and Age of the Redshift z=6.28 Quasar SDSS 1030+0524 Z. Haiman 0205143ApJ 578:702 (2002) A Physical Model for the Luminosity Function of High-Redshift Quasars S. Wyithe 0206154 ApJ submitted Morphological Butcher-Oemler effect in the SDSS Cut & Enhance Galaxy Cluster Catalog T. Goto PASJ, submitted SDSS Survey for Resolved Milky Way Satellite Galaxies II: High Velocity Clouds in the EDR B. Willman 0208260 AJ, accepted The Sloan Digital Sky Survey J. Loveday 0207189 Contemporary Physics, accepted Broad Emission Line Shifts in Quasars: An Orientation Measure for Radio-Quiet Quasars? G. Richards 0204162AJ 124:1 (2002) Large Scale Structure in the SDSS Galaxy Survey A. Doroshkevich 0206301 MNRAS submitted Revision of the Selection Function of the Optical Redshift Survey using the Sloan Digital Sky Survey: Early Data Release H. Yoshiguchi PASJ submitted Stellar-Mass Black Holes in the Solar Neighborhood J. Chisholm ApJ submitted The Pairwise Velocity Distribution Function of Galaxies in the Las Campanas Redshift Survey, Two-Degree Field Survey, and Sloan Digital Sky Survey S. Landy ApJL 567, L1 (2002) Approaching Reionization: The Evolution of the Ly Forest from z = 4 to z = 6 A. Songaila AJ, 123:2183-2196, (2002 May) Constraining the Matter Power Spectrum Normalization Using the Sloan Digital Sky Survey/ROSAT All-Sky Survey and REFLEX Cluster Surveys P. Viana ApJ, 569, L75-L78, (2002, April 20) Chandra Detection of Highest Redshift (z 6) Quasars in X-Rays S. Mathur ApJ, 570, L5-L8, (2002 May 1) The Shapes of Galaxies in the Sloan Digital Sky Survey S. Alam ApJ,570,610-617 (2002 May 10) CO (J=6-5) Observations of the Quasar SDSS 1044-0125 at z=5.8 I. Iwata PASJ, 53:871 (2001) An Improved Red Spectrum of the Methane or T Dwarf SDSS 1624+0029: The Role of the Alkali Metals J. Liebert 2000ApJ...533L.155L Near-Infrared Spectroscopy of the Cool Brown Dwarf, SDSS 1624+00 T. Nakajima 2000PASJ...52...87N Mock 2dF and SDSS galaxy redshift surveys S. Cole 1998MNRAS.300..945C Search for Molecular Gas in the quasar SDSS 1044-0125 at z=5.73 D. Wilner 2002AJ....123.1288W Cluster detection from surface-brightness fluctuations in SDSS data M. Bartelmann A&A 388, 732-740 Large scale structures in the Early SDSS: Comparison of the North and South Galactic strips

FNAL Starry Messages


Sdss publications by outside scientists1

SDSS Publications by outside scientists

Narrow-line Seyfert 1 Galaxies from the Sloan Digital Sky Survey Early Data Release R. Williams 0208211 AJ, accepted Magnetic white dwarfs in the Early Data Release of the Sloan Digital Sky Survey B. Gaensicke 0208454A&A 394, 957-963 (2002) Broad Absorption Line Quasars in the Early Data Release from the Sloan Digital Sky Survey A. Tolea 0209081ApJ Lett 578:L31-L35 (2002) Galaxy clustering in the Sloan Digital Sky Survey (SDSS): a first comparison with the APM Galaxy Survey Gaztanaga MNRAS, 333:L21 (2002) SDSS J124602.54+011318.8: A Highly Variable Active Galactic Nucleus, Not an Orphan Gamma-Ray Burst Afterglow A. Gal-Yam PASP 114:587 (2002) Constraining the Redshift z=6 Quasar Luminosity Function Using Gravitational Lensing Z. Haiman 0206441 ApJ, submitted Detection of He II reionization in the SDSS quasar sample T. Theuns 0206319ApJ Lett, 574:111 (2002) A Constraint on the Gravitational Lensing Magnification and Age of the Redshift z=6.28 Quasar SDSS 1030+0524 Z. Haiman 0205143ApJ 578:702 (2002) A Physical Model for the Luminosity Function of High-Redshift Quasars S. Wyithe 0206154 ApJ submitted Morphological Butcher-Oemler effect in the SDSS Cut & Enhance Galaxy Cluster Catalog T. Goto PASJ, submitted SDSS Survey for Resolved Milky Way Satellite Galaxies II: High Velocity Clouds in the EDR B. Willman 0208260 AJ, accepted The Sloan Digital Sky Survey J. Loveday 0207189 Contemporary Physics, accepted Broad Emission Line Shifts in Quasars: An Orientation Measure for Radio-Quiet Quasars? G. Richards 0204162AJ 124:1 (2002) Large Scale Structure in the SDSS Galaxy Survey A. Doroshkevich 0206301 MNRAS submitted Revision of the Selection Function of the Optical Redshift Survey using the Sloan Digital Sky Survey: Early Data Release H. Yoshiguchi PASJ submitted Stellar-Mass Black Holes in the Solar Neighborhood J. Chisholm ApJ submitted The Pairwise Velocity Distribution Function of Galaxies in the Las Campanas Redshift Survey, Two-Degree Field Survey, and Sloan Digital Sky Survey S. Landy ApJL 567, L1 (2002) Approaching Reionization: The Evolution of the Ly Forest from z = 4 to z = 6 A. Songaila AJ, 123:2183-2196, (2002 May) Constraining the Matter Power Spectrum Normalization Using the Sloan Digital Sky Survey/ROSAT All-Sky Survey and REFLEX Cluster Surveys P. Viana ApJ, 569, L75-L78, (2002, April 20) Chandra Detection of Highest Redshift (z 6) Quasars in X-Rays S. Mathur ApJ, 570, L5-L8, (2002 May 1) The Shapes of Galaxies in the Sloan Digital Sky Survey S. Alam ApJ,570,610-617 (2002 May 10) CO (J=6-5) Observations of the Quasar SDSS 1044-0125 at z=5.8 I. Iwata PASJ, 53:871 (2001) An Improved Red Spectrum of the Methane or T Dwarf SDSS 1624+0029: The Role of the Alkali Metals J. Liebert 2000ApJ...533L.155L Near-Infrared Spectroscopy of the Cool Brown Dwarf, SDSS 1624+00 T. Nakajima 2000PASJ...52...87N Mock 2dF and SDSS galaxy redshift surveys S. Cole 1998MNRAS.300..945C Search for Molecular Gas in the quasar SDSS 1044-0125 at z=5.73 D. Wilner 2002AJ....123.1288W Cluster detection from surface-brightness fluctuations in SDSS data M. Bartelmann A&A 388, 732-740 Large scale structures in the Early SDSS: Comparison of the North and South Galactic strips

28 papers so far

FNAL Starry Messages


Evolution of the spacetime

Evolution of the Spacetime

  • How does the spacetime evolve?

    • Initial expansion with initial perturbations (Inflation?)

    • Perturbations in local curvature due to matter

    • Acceleration due to dark energy

    • In the future, structures stop forming…..

FNAL Starry Messages


Evolution of the spacetime1

Evolution of the Spacetime

  • What questions?

    • How does this global spacetime expansion proceed? What is a(t)?

    • How do perturbations in this expansion evolve?

    • What constituents, and of what kind, are required to explain the evolution we observe? Luminous matter, dark matter, dark energy, curvature….

Analogy to collider studies….

FNAL Starry Messages


Structure in the universe

CMBR Fluctuations

Structure in the Universe

Dark matter dominated

gravitational amplification

Current Paradigm:

Gravitational

amplification of

primordial quantum

fluctuations

Halos form

Radiative differentiator

Dark matter clusters

only gravitationally into large

dark halos...

Baryonic gas cools to form small, rotationally supported visible galaxies. Stars form, evolve, feed back material and entropy…

FNAL Starry Messages


How can we check this picture

How can we check this picture?

  • Initial fluctuations: measured by CMBR experiments

  • Galaxy distribution: measured luminous galaxy locations and motions

  • Amplification: simulated with remarkable resolution

    • Depends on cosmology and the nature of dark matter

    • =>Predicts properties of DM halos: masses, profile, angular momentum

Observable: locations and motions of luminous galaxies

Predictions: properties of DM halos

=> this crucial relationship needs illumination

FNAL Starry Messages


Relating galaxies to dark halos

Complex physics when galaxies form in halos

Often more than one per halo; groups, clusters

No one-to-one correspondence between galaxies and halos

What’s a galaxy? What’s a halos? What’s the mass?

Springel et al. simulations, 2001

Relating Galaxies to Dark Halos

FNAL Starry Messages


The program

The program

  • Focus on Halos: discrete dimples in the spacetime: labeled by luminous matter

  • Compare observed and predicted halo properties to constrain the amount and properties of dark matter, nature of perturbation growth and cosmology:

    measurement of (z=0,k)

    • Relationship between labels and halo properties

    • Halo numbers vs. mass

    • Spacetime structure around halos

FNAL Starry Messages


Connecting galaxies to mass halo occupancy distribution approach

Berlind & Weinberg, 2002

Connecting galaxies to mass:“Halo Occupancy Distribution” approach

  • Theory predicts dark matter halo properties analytically or through N-body

    • dn/dM, clustering, structure

  • Galaxy ‘occupancy’ information required for comparison to observation

  • Populate halos with galaxies:

    • P(N|M) (HOD)

    • Spatial bias

    • Velocity bias

  • From this HOD, calculate observables

  • Ultimately P(N|M) for many classes

FNAL Starry Messages


Constraining the hod simulations and observations

  • N-body DM simulations of halos

  • Simulations including gas physics, SF, feedback etc.

  • Semianalytic models for the above

  • Observation of galaxies in real halos

Constraining the HOD: simulations and observations

  • Simulations inform observations

    • Projection

    • Selection

  • Observations inform simulations

    • HOD constraints

    • Scaling relations

    • Dependence on galaxy properties

Analogous to the use of Monte Carlo simulations in HEP…..

FNAL Starry Messages


Observations identifying halos

Observations: identifying halos

  • Identifying halos

    • Individual galaxies, labeled by properties and environment

    • Larger structures; groups and clusters labeled by galaxy content

  • Details of this are crucial

    • Efficiency and purity vs. z, luminosity, number of galaxies, and types….

    • Locating centers

    • Determining sizes

    • Simulations provide important input here

FNAL Starry Messages


Revealing mass dynamically

Newtonian approach: presence of mass revealed by the dynamical response of test masses

Accelerations…

Unless tdyn~tobs, accelerations are unavailable

Measure velocities, make assumptions or compare to n-body simulations

Discovery of dark matter

Zwicky ‘33: Coma M/L ~250

Rubin ‘70’s: dark halos

Problems:

Tdyn > Hubble time…..

Requires luminous tracers, may be biased…

Projection….

Observables are positions and velocities; compare to theory at this level

Revealing mass dynamically

FNAL Starry Messages


Revealing mass with lensing

Einstein’s approach: presence of mass revealed by changes in geometry

The same effects that occur in more familiar optical circumstances: magnification and distortion

Basic observables are shear and lens geometry: distortion and location of background galaxies

Revealing mass with lensing

FNAL Starry Messages


Relating shear to mass

Relating shear to mass:

‘Tangential shear’ is related to density contrast

crit is the surface mass density for multiple lensing

+ is the surface mass density contrast

Measure T and crit and you have the surface

mass density contrast. Use this to constrain HOD modeling.

FNAL Starry Messages


Critical lens geometry dependence

Ds

’

Source

Observer

Lens

Dds

Dd

critical:Lens geometry dependence

FNAL Starry Messages


Recap probes of halo occupancy

Dynamical

Observable: positions and velocities of luminous test particles, probes velocity field

Lensing

Observable: Shear field and crit, combine to find projected mass density contrast +

Recap: probes of halo occupancy

  • In both cases we really measure correlation functions:

    • gal-gal(r,v,PgalPgal’) gal-mass(r,Pgal)

    • cluster-gal(r,v,Pcluster,Pgal) cluster-mass(r,Pcluster)

    • These are the ‘structure functions’ of the relationship between halos and luminous galaxies

SDSS enables observations with high S/N: all the work for the future is in dealing with systematic uncertainties between observation and theory

FNAL Starry Messages


Lensing with galaxy halos

SDSS Commissioning Data ~ 4% of the SDSS survey area

Lens Sample:

34,693 Galaxies with r<17.8

Spectroscopic redshifts and 5 color photometry for all (main galaxies)

Source Sample:

3,615,718 Galaxies with 18.0 < r < 22.0

Must be resolved for shape measurements

Lensing with galaxy halos

FNAL Starry Messages


Galaxy mass correlation function gal mass r p gal

Galaxy Mass Correlation Function: gal-mass(r,Pgal)

GMCF as measured in g’, r’, and i’, then combined

  • Maximum distortion is only 0.5%!

  • S/N is > 13 in each color

    A variety of checks performed to ensure lensing creates this signal

    Best fit power law model:

    += (2.50.7 hMpc2)

    * (R/1 Mpc)-0.8 0.2

All other measurements will use combined g’, r’, and i’ data.

FNAL Starry Messages


Gal mass dependence on luminosity

gal-mass Dependence on Luminosity

Fit gal-massfor galaxies in four luminosity (L* and above) bins in each SDSS color

Correlations in g’, r’, i’, and z’ are clearly detected

FNAL Starry Messages


Gal mass dependence on luminosity1

gal-mass Dependence on Luminosity

Fit gal-massfor galaxies in four luminosity (L* and above) bins in each SDSS color

Correlations in g’, r’, i’, and z’ are clearly detected

FNAL Starry Messages


M 260 luminosity scaling

M260-luminosity scaling

Fit gal-mass to SIS model in each luminosity bin

Integrate this SIS to 260 h-1 kpc

M260 = (L/1010 L)

Little correlation of Lu and M260

Relation between luminosity and mass in g’, r’, i’, and z’ consistent with linear.

M260/Li = 12415 M/L 

Caution: GMCF on these scales dominated by group halos

FNAL Starry Messages


Testing these results with dynamical probes

Testing these results with dynamical probes

  • Measure gal-gal(r,v,Pgal,Pgal’)

  • Select ‘isolated’ galaxies with fainter satellites (cuts on Pgal and Pgal’)

    • Begin with 103,000 main galaxies with redshifts

    • Isolated: more than 2x as bright as anything within 1 Mpc

    • Satellites: at least 4x fainter than hosts, within a projected distance of 0.5 Mpc

    • Each has only a few satellites

  • Examine spatial distribution and velocity difference histograms as a dynamical probe of mass

FNAL Starry Messages


Velocity difference histograms

Examine velocity difference between host and satellite within 0.5 Mpc as a probe of host mass

Dispersion of velocity difference increases with host luminosity

Comparison around random points shows no velocity clustering, reveals interlopers

Velocity difference histograms

FNAL Starry Messages


Velocity difference histograms1

Velocity difference histograms

Mr = -22.2

v = 36042

Mr = -21.7

v = 23130

Mr = -19.9

v = 12020

Mr = -20.9

v = 13920

FNAL Starry Messages


Simple inference of mass

Start with a spherical Jeans model:

Measure

Constrain ~ 0

Assume = 0

Evaluate at 260 h-1 kpc (to compare to lensing…)

Simple inference of mass

FNAL Starry Messages


Intermediate conclusions

For halos labeled by L* galaxies: strong variation of mass on halo scales with luminosity

gal-gal(r,v,Pgal,Pgal’)

gal-mass(r,Pgal)

Neither provides a particularly direct approach to theoretically favored quantities, M200

We can understand them by reference to simulations

Use simulations to calibrate the relationship between observables like gal-mass(r,Pgal) and predictions like M200 vs. Pgal

Intermediate conclusions

FNAL Starry Messages


Observations of simulated universes 1

How to deal with complex relationships between observables and theory?

Simulate universe with physics complex enough to allow ‘observation’ of the same observables

Example 1: VIRGO/GIF simulations

Grey is dark matter

Dots are galaxies, color=SFR, increasing red to blue

Focus on halos identified by galaxies

Kauffmann, Colberg, Diaferio and White

Observations of simulated universes 1

FNAL Starry Messages

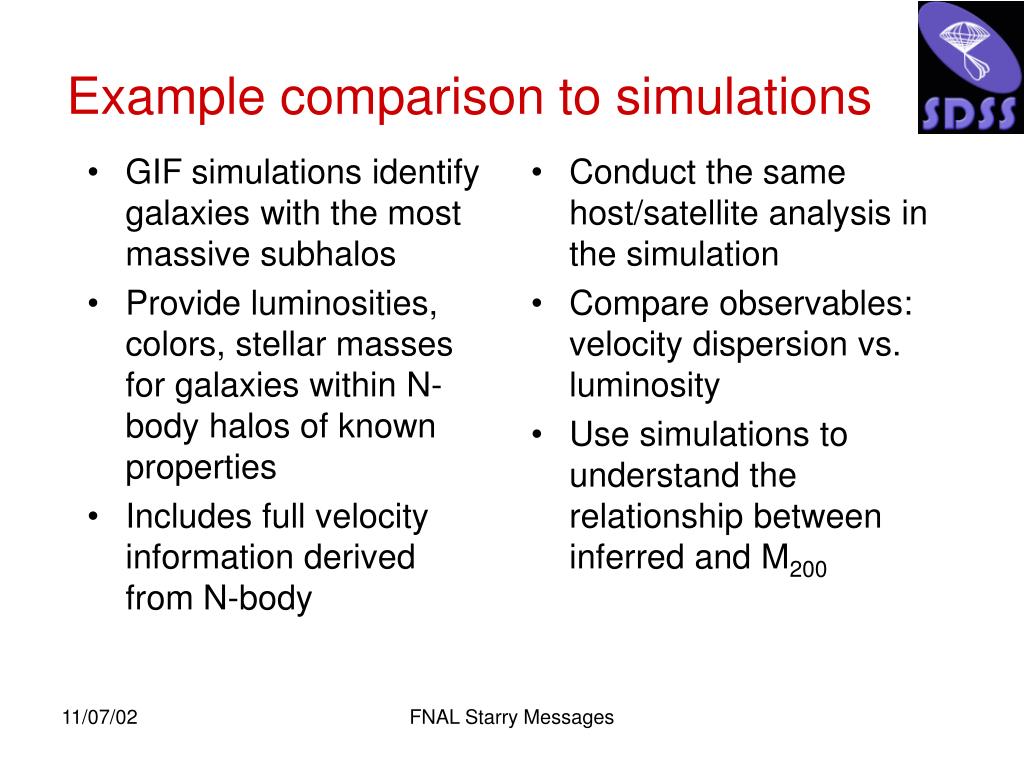

Example comparison to simulations

GIF simulations identify galaxies with the most massive subhalos

Provide luminosities, colors, stellar masses for galaxies within N-body halos of known properties

Includes full velocity information derived from N-body

Conduct the same host/satellite analysis in the simulation

Compare observables: velocity dispersion vs. luminosity

Use simulations to understand the relationship between inferred and M200

Example comparison to simulations

FNAL Starry Messages


Host satellite study in gif

Select halos with two galaxies

Require 1.5 magnitude separation

Plot velocity difference histograms

Host/satellite study in GIF

 = 176 km/s

 = 380 km/s

FNAL Starry Messages


How does this compare to the data

How does this compare to the data?

  • Compare at the observable level

  • Velocity difference dispersions shown for SDSS data and for GIF simulations

  • Solid line is L2

  • Comparison is limited by mass resolution of GIF

  • Encouraging start: may not be too difficult

FNAL Starry Messages


How does this compare to the data1

How does this compare to the data?

  • Compare at the observable level

  • Velocity difference dispersions shown for SDSS data and for GIF simulations

  • Solid line is L2

  • Comparison is limited by mass resolution of GIF

  • Encouraging start: may not be too difficult

FNAL Starry Messages


Host satellite studies in gif

Halo masses for these objects are known

M200 is the mass to an overdensity of 200

Compare this to the model masses determined from the dynamical study

Dynamics of satellites are probing halo masses, up to a scaling

Note narrow ranges!

Host satellite studies in GIF

FNAL Starry Messages


Halos identified by groups and clusters of galaxies

So far we’re identifying halos with ~L* galaxies and probing mass

Ideally we would focus on halos, rather than galaxies

Requires group and cluster catalogs

maxBCG objects (Jim Annis, Fermilab EAG)

BCGs have narrow magnitude and color distribution

Look for BCGs with E/SO ridgeline galaxies around them

Count ridgeline down to 0.4L* to label ‘richness’

Use colors to estimate z with z<0.02

Outputs: Ngal, location, z

Very complete for clusters

Halos identified by groups and clusters of galaxies

FNAL Starry Messages


A quick tour of optical cluster selection

z = 0.041

A quick tour of optical cluster selection

Abell 2593

Accurate photometry in five bands =>

Optical selection in SDSS really works

FNAL Starry Messages


The sloan digital sky survey what happens when you create a spacetime

z = 0.138

FNAL Starry Messages


The sloan digital sky survey what happens when you create a spacetime

z = 0.277

FNAL Starry Messages


The sloan digital sky survey what happens when you create a spacetime

z = 0.377

FNAL Starry Messages


Redshift estimation

Estimation of redshifts from colors greatly reduces projection effects for optical selection

Redshift estimates for objects with many red galaxies are excellent

z<0.02 for all richnesses, and ~0.01 for Ngals>15

Redshift estimation

> 10,000 confirmed redshifts

FNAL Starry Messages


Maxbcg measurements and hod

To measure HOD, identify halos and count N

maxBCG provides clean sample of objects with accessible N

Nearly unaffected by projection

Complete to z~0.4

Use maxBCG objects to observe mass probes

cluster-gal(r,v,Pcluster,Pgal)

cluster-mass(r,Pcluster)

Interpretation requires identifying maxBCG galaxies in simulations

maxBCG measurements and HOD

FNAL Starry Messages


Measurements of cluster mass r p cluster

Sheldon et al. 2001

maxBCG clusters also in RASS x-ray catalog

S/N is roughly constant across the mass spectrum!

New measurements by Dan Grin, summer 2001

Fix r-1 (SIS) dependence

Look for scaling between Ngal and lensing signal

v_eff  56*Ngal0.7

Measurements of cluster-mass(r,Pcluster)

Mean cluster shear

Galaxy-galaxy shear

FNAL Starry Messages


Measurements of cluster gal r v p cluster p gal

Find maxBCG objects with spectra taken for BCG

Search around these BCGs in the spectroscopic data for neighbors

Plot velocity difference histograms for narrow ranges in Ngals

Clear variations of velocity difference width with richness are seen: v~120*Ngal0.5

Measurements of cluster-gal(r,v,Pcluster,Pgal)

FNAL Starry Messages


Comparing cluster mass probes

Velocity difference dispersion increases with Ngals (v~120*Ngal0.5)

Transition from galaxies, to groups, to clusters is apparent

In principle, this can yield very precise cluster richness-mass calibrations

In practice, details of changing size, velocity structure, and biases need to be understood to allow extraction of masses

Dynamical measure

Lensing derived estimate

Comparing cluster mass probes

FNAL Starry Messages


Observations of simulated universes 2 halos identified by group clusters

Mock Catalogs from the Hubble Volume

want a large (~SDSS volume  at least ¼ sky) catalog of bright galaxies to z~0.6

algorithms depend on clustering in color space

want to match luminosity function and color distribution as a function of redshift and local density

Hubble Volume simulations (3 Gpc/h)

flat LCDM Wm=0.3, s8=0.9, Mp=2.25e12Msun/h

clustering of dark matter particles computed on light-cone

full sky to z=0.57

galaxies brighter than 0.4L*

Basic algorithm

choose galaxies from the observed local R-band luminosity function (Blanton et al 2001), integrated to 0.4L*(Mr<-19.83)

for each galaxy, choose a particle from the simulation according to the distribution P(ddm|Mr); tune this distribution to match luminosity dependent clustering

add passive luminosity evolution (Q=1.6)

measure local density of bright galaxies (distance to 10th nearest galaxy with Mr<-20.25)

for a volume-limited sample of real SDSS galaxies, calculate the same density measure and measure SED coefficients (Blanton et al 2002)

for each mock galaxy, choose a real galaxy with similar luminosity and local galaxy density; assign colors by translating the SED of this galaxy to the appropriate redshift

Observations of simulated universes 2:halos identified by group/clusters

Risa Wechsler & Gus Evrard

University of Michigan

FNAL Starry Messages


Simulated universes

Simulated universes

Simulated distribution of

bright SDSS galaxies

  • Wechsler’s methods provide simulated data with the full richness of the real SDSS data.

  • Run identical analysis code used on the data (Annis maxBCG cluster finder)

  • Use simulations to understand completeness, purity, and calibration

FNAL Starry Messages


Clusters found are realistic

Clusters found are realistic

  • Clusters are found with realistic galaxy populations etc.

FNAL Starry Messages


Clusters found are realistic1

color magnitude diagram

for a massive halo

g-r

r

Clusters found are realistic

  • Clusters are found with realistic galaxy populations etc.

FNAL Starry Messages


Compare maxbcg to hubble vol dark matter halo catalog completeness purity mass calibration

Compare maxBCG to Hubble Vol. dark matter halo catalog:completeness, purity, mass calibration

FNAL Starry Messages


Directions

Directions…

In principle, simulations translate Ngal to mass….

Is the Ngals counted in the simulation the same as the Ngals counted in the data? How accurately do simulated clusters match reality?

Tests

  • Halo number distribution and space density

  • Galaxy population, dynamics and projected mass as revealed in:

    cluster-gal(r, v, Pcluster, Pgal)

    cluster-mass(r, Pcluster)

  • Some comparisons complex: BCG dynamics and location, higher order galaxy property correlations, velocity bias etc…

    Ultimate goals: understand cluster evolution and constrain cosmology…

FNAL Starry Messages


Conclusions

Conclusions

  • SDSS enables precise observations: factor of 7 improvements in S/N coming

  • Measure correlations for halos identified by galaxies gal=gal and gal-mass

  • Measure correlations for halos identified by groups and clusters: cluster-gal and cluster-mass

  • Most important: tune interpretation using direct comparison to simulations

  • Use these to constrain the evolution of our spacetime

FNAL Starry Messages


  • Login
