  1. Authentication Protocols Rocky K. C. Chang, 18 March 2011

  2. Outline • Authentication problems • Network-based authentication • Password-based authentication • Cryptographic authentication protocols (challenge and response) • Secret key based • Public key based • Needham-Schroeder public-key authentication protocol

  3. The authentication problem • Authentication: • The process of determining whether someone or something is, in fact, who or what it is declared to be. • Binding of an identity to a subject. • Authentication protocols: • Key establishment protocols, e.g., authenticated Diffie-Hellman. • Entity authentication protocols, e.g., system login, which is the focus of this set of slides.

  4. Information for authentication • What the entity knows (such as passwords or secret information) • What the entity has (such as a badge or card) • What the entity is (such as fingerprints or other biometrics) • Where the entity is (such as in front of a particular terminal)

  5. The authentication process • The entire process consists of • Obtaining the required authentication information (e.g., a hashed password) • Analyzing the data (e.g., compare the received password with the stored password), and • Determining if it is associated with the principal (e.g., confirmed if they are the same).

  6. Classification of authentication problems • Authenticated subjects: humans vs machines • Authentication methods: address-based, password, or cryptographic. • Between two entities or with the help of at least a trusted third party • One-way vs mutual authentication

  7. Address-based authentication • Assume that the identity of the source can be inferred from the (IP or MAC) address of the packet. • IP source address spoofing • Receiving the response is generally tricky. • Randomized source address selection • MAC source address spoofing • Many people teach you how to do it. • Detecting them in wireless networks

  8. Password-basedauthentications

  9. Basic password protocols • Authentication based on what the entity knows. • U sends her password to S. • Vulnerability to eavesdropping, stolen password files, and easy-to-guess passwords • Protection of password files: • In UNIX, one of 4,096 hash functions is used to hash a password into an 11-character string. • A 2-character string identifying the hash function is prepended to the 11-character string.

  10. Attacks on the basic protocol • On-line attack • When the hash values are not available to an attacker. • Defense: maximize the time to guess the password, exponential backoff, disconnection, disabling, and jailing. • Off-line attack (dictionary attack) • Receive a copy of the hash value, and guess the password (at his leisure). • Run through a list of likely possibilities, often a list of words from a dictionary • Defense: append the password with a random string (salt) and hash the result. • E.g., • User ID Salt value password hash • Alice 13579 hash(13579,password-alice) • Bob 24680 hash(24680,password-Bob)

  11. Problems with passwords • One fundamental problem with passwords is that they are reusable. • Attacker can reply a captured password. • Force users to age their passwords? • An alternative is to authenticate in such a way that the transmitted password changes each time. • Let U and S agree on a secret function f. • S sends a nonce N (the challenge) to U. • U replies with f(N) (the response). • S validates f(N) by computing it separately. • A nonce (timestamp, random number, etc) is a “number used once”---non-repeating string freshly chosen by S.

  12. One-time passwords • A one-time password is a password that is invalidated as soon as it is used. • The challenge-response mechanism uses one-time passwords. • The response is essentially the “password.” • Every time the password is different (one-time password). • For example, • U chooses an initial seed k, and the key generator computes h(k) = k1, h(k1) = k2, …, h(kn-1) = kn, where h() is a one-way hash function. • The passwords, in the order they are used, are p1 = kn, p2 = kn-1, …, pn = k1.

  13. Two-factor authentication • Hardware support for challenge-response procedures: • A token that responds to a challenge. • A temporal based token: displays a different number, e.g., every 60 seconds. • Two-factor authentication • Authentication based on at least two authentication factors. • E.g., the token value (what the entity has) and a password (what the entity knows)

  14. Secret key based authentication

  15. Assume that S is authentic. The server and Alice share a secret key k, and N is a nonce. The nonce is to deduce that Alice is live. The inclusion of S’s identity ensures that Alice has the knowledge of S as her entity peer. A simple, one-way authentication

  16. A simple, mutual authentication protocol • Mutual authentication  2 x one-way authentication. • Alice and Bob share a secret key k.

  17. Reduced to a 3-way protocol • Besides the reduction in the number of messages, what else is different?

  18. A reflection attack by Eve • Assume that Eve can open multiple simultaneous sessions with Bob.

  19. The key problems and solutions • The same key is used by the initiator and responder. • Have them use different keys (maintain a pair of secret keys between two parties). • Improve the protocol resistance to attacks involving parallel sessions. • Have the initiator and responder draw from different sets of nonce. • Have the initiator to prove who she is before the responder’s.

  20. Will the original 5-way protocol be subject to the reflection attack?

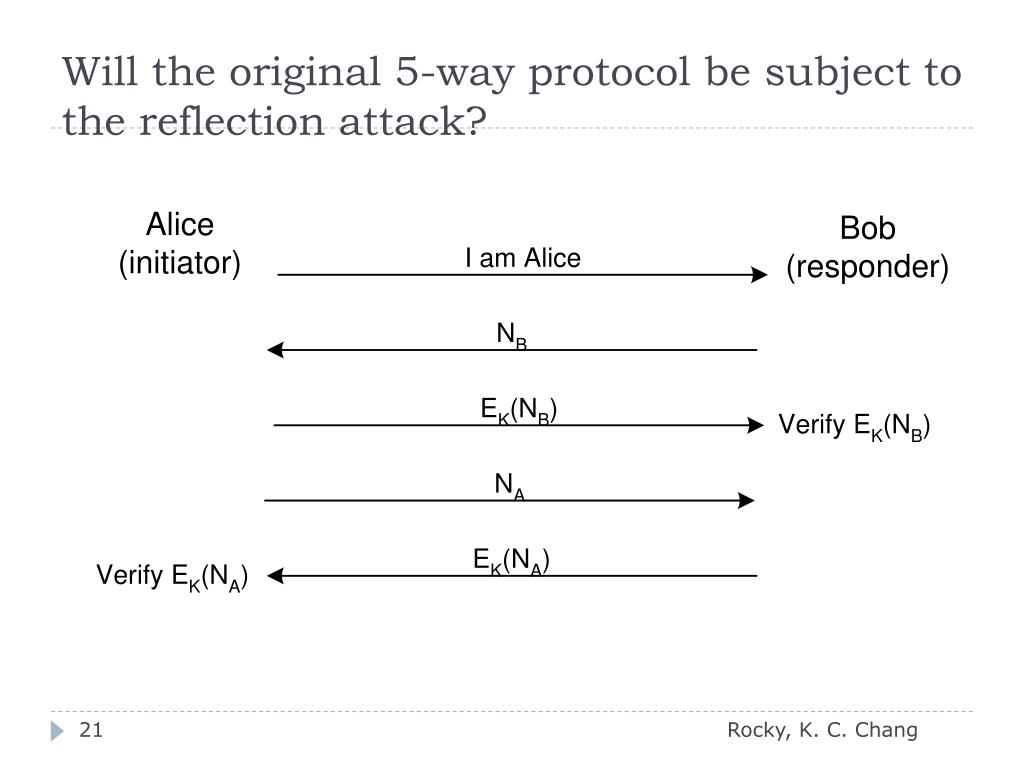

  21. Will the original 5-way protocol be subject to the reflection attack?

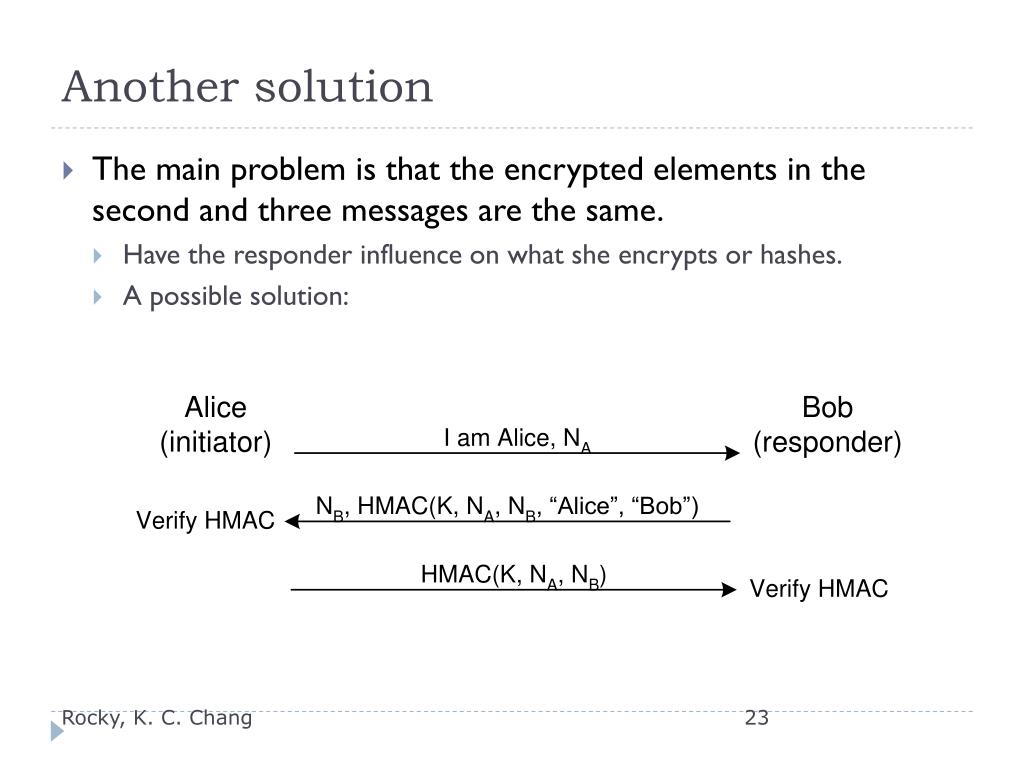

  22. Another solution • The main problem is that the encrypted elements in the second and three messages are the same. • Have the responder influence on what she encrypts or hashes. • A possible solution:

  23. Public key based authentication

  24. Public-key authentication • It is very difficult to build a provably secure authentication protocol based on symmetric cryptographic primitives. • It is not feasible to use secret-key authentication without a trusted third party. • The secret key has to be placed in both parties.

  25. A simple, one-way authentication • Alice signs the challenge from S, and NS, NA are nonces picked by S and Alice, respectively. • It is important that Alice influences what she signs.

  26. A simple, mutual authentication • Each side authenticates the other side by requesting for a correct digital signature. • Another implementation can have the challenger to encrypt a nonce.

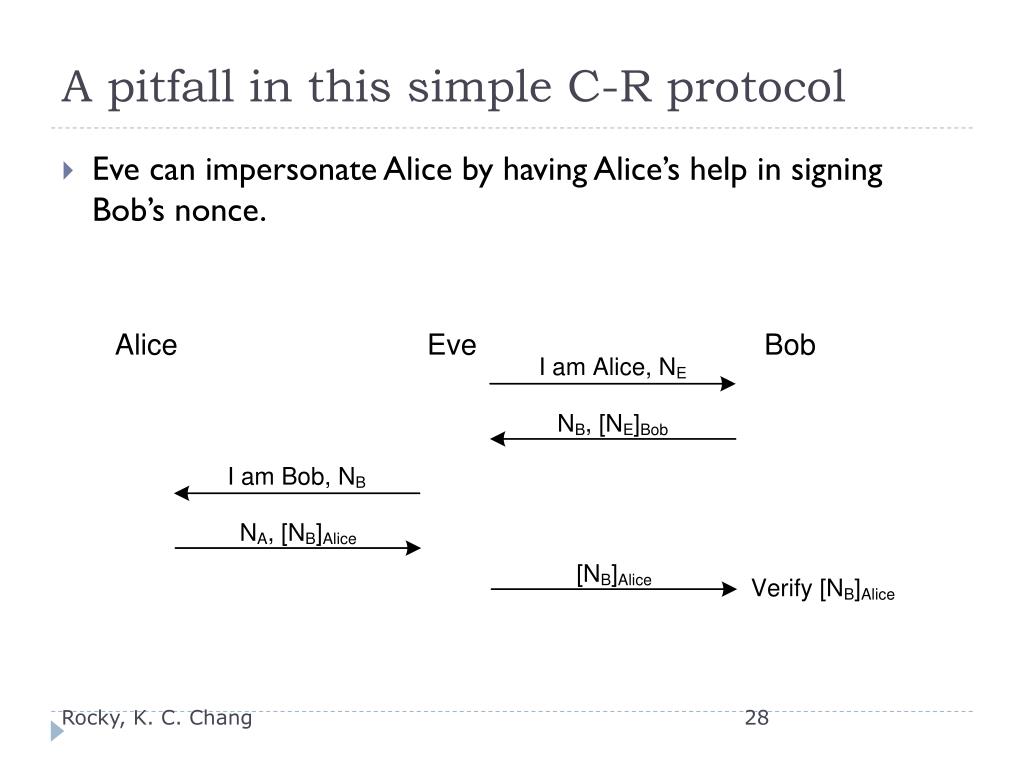

  27. A pitfall in this simple C-R protocol • Eve can impersonate Alice by having Alice’s help in signing Bob’s nonce.

  28. The main problem is • The challenged party (Alice) has no influence on what she will sign. • As a general principle, it is better if both parties have some influence over the quantity signed. • Otherwise, the challenger can abuse this protocol to get a signature on any quantity she chooses.

  29. An improved protocol • The signer includes her nonce into the message that she is going to sign.

  30. Needham-Schroeder public-key authentication protocol • Kerberos is based on the improved Needham-Schroeder public-key authentication protocol. • The original protocol had security flaws. • Assume that both A and B have a pair of public and private keys. • Denote A's public key by Ka and the private key by K-1a, and similarly for B. • We also write {m}K for message m encrypted with key K. Moreover Na and Nb are nonces generated by A and B, respectively. • We have a trusted key server S.

  31. The original protocol was • A  S: A, B • S  A: {Kb, B}K-1s • A  B: {Na, A}Kb • B  S: B, A • S  B: {Ka, A}K-1s • B  A: {Na, Nb}Ka • A  B: {Nb}Kb

  32. Eve can impersonate Alice by • (1) A  E: {Na, A}Ke (A establishes a normal session with E.) • (1’) E  B: {Na, A}Kb (E attempts to impersonate A when establishing a session with B.) • (2’) B  E: {Na, Nb}Ka (B's response to A intercepted by E.) • (2) E  A: {Na, Nb}Ka (E forwards B's response to A.) • (3) A  E: {Nb}Ke (A's response to E) • (3’) E  B: {Nb}Kb (E's response to B, therefore successfully impersonating A)

  33. A simple fix • Include B's identity in the response message. That is, the message (f) becomes • B  A: {B, Na, Nb}Ka. • Therefore, the message (iii) in the attack becomes • B  E: {B, Na, Nb}Ka. • In this case E cannot replay the message and send it to A, because A expects B's identity in the message.

  34. Conclusions • Designing a secure and efficient authentication protocol turned out to be more difficult than people thought. • We have discussed the basic protocols based on password, secret-key, and public-key. • We have not addressed the system with a trusted third party yet. • The result of authentication may also include an agreement of a secret key, i.e., authenticated key exchange (to be addressed later).

  35. Acknowledgments • The notes are prepared mostly based on • C. Kaufman, R. Perlman and M. Speciner, Network Security: Private Communication in a Public World, Second Edition, Prentice Hall PTR, 2002. • Various articles
