1. Scope and Goals of Future Design-Through-Mask IntegrationsAdvanced Reticle SymposiumJune 24, 2003Andrew B. Kahng, UCSD CSE & ECE Departmentsemail: abk@ucsd.eduURL: http://vlsicad.ucsd.edu

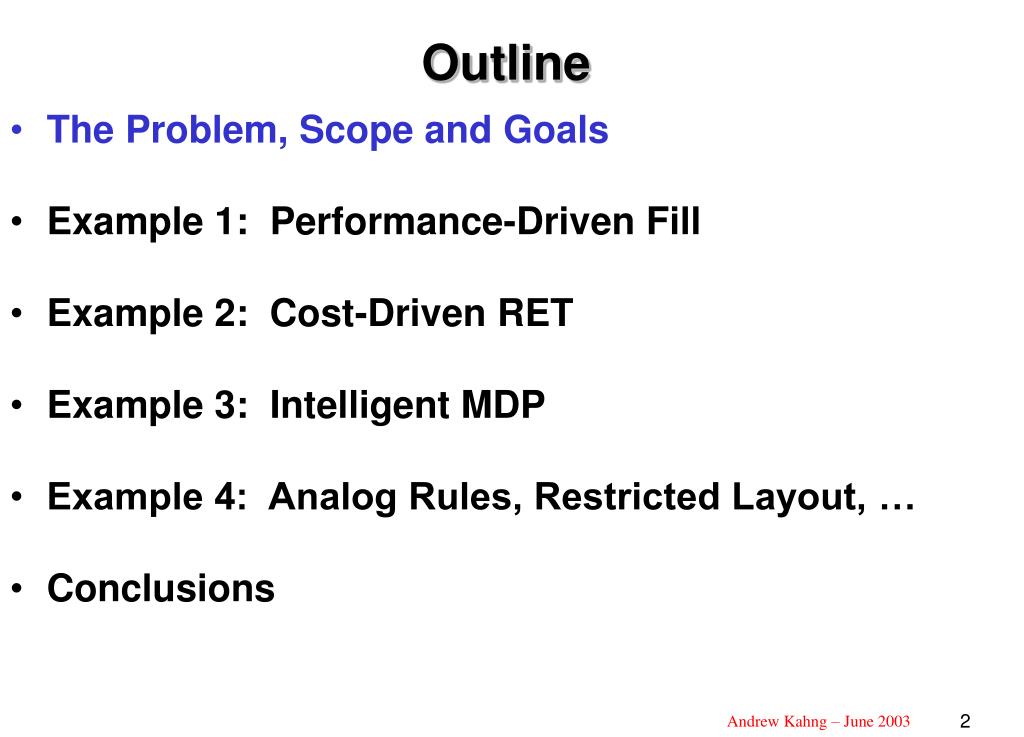

2. Outline • The Problem, Scope and Goals • Example 1: Performance-Driven Fill • Example 2: Cost-Driven RET • Example 3: Intelligent MDP • Example 4: Analog Rules, Restricted Layout, … • Conclusions

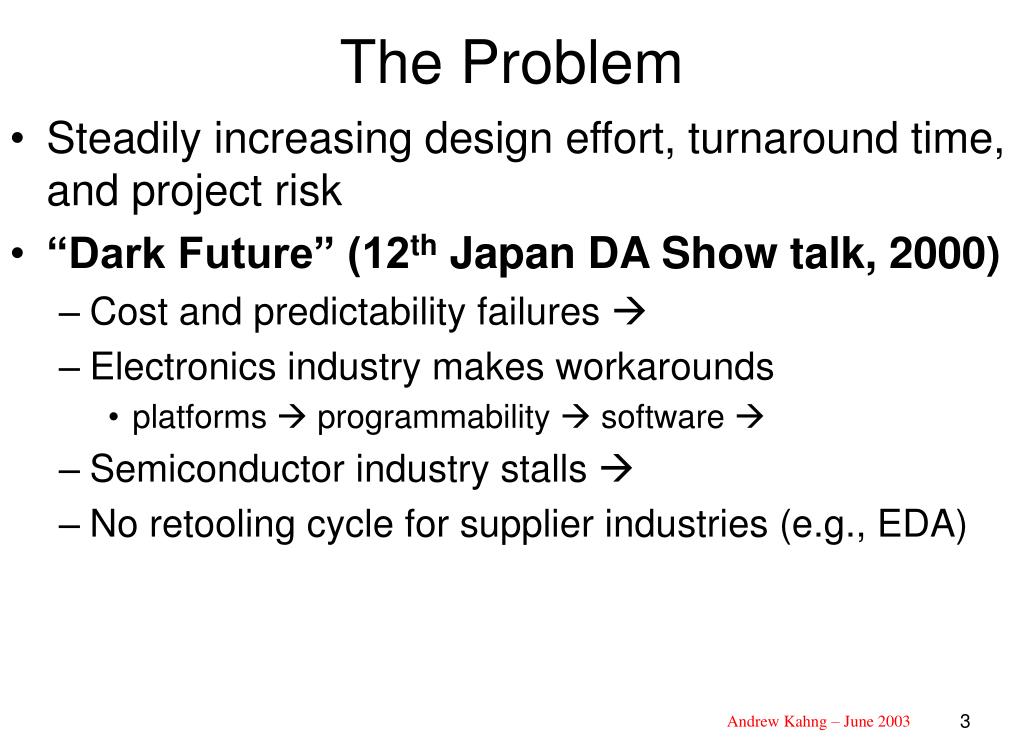

3. The Problem • Steadily increasing design effort, turnaround time, and project risk • “Dark Future” (12th Japan DA Show talk, 2000) • Cost and predictability failures  • Electronics industry makes workarounds • platforms  programmability  software  • Semiconductor industry stalls  • No retooling cycle for supplier industries (e.g., EDA)

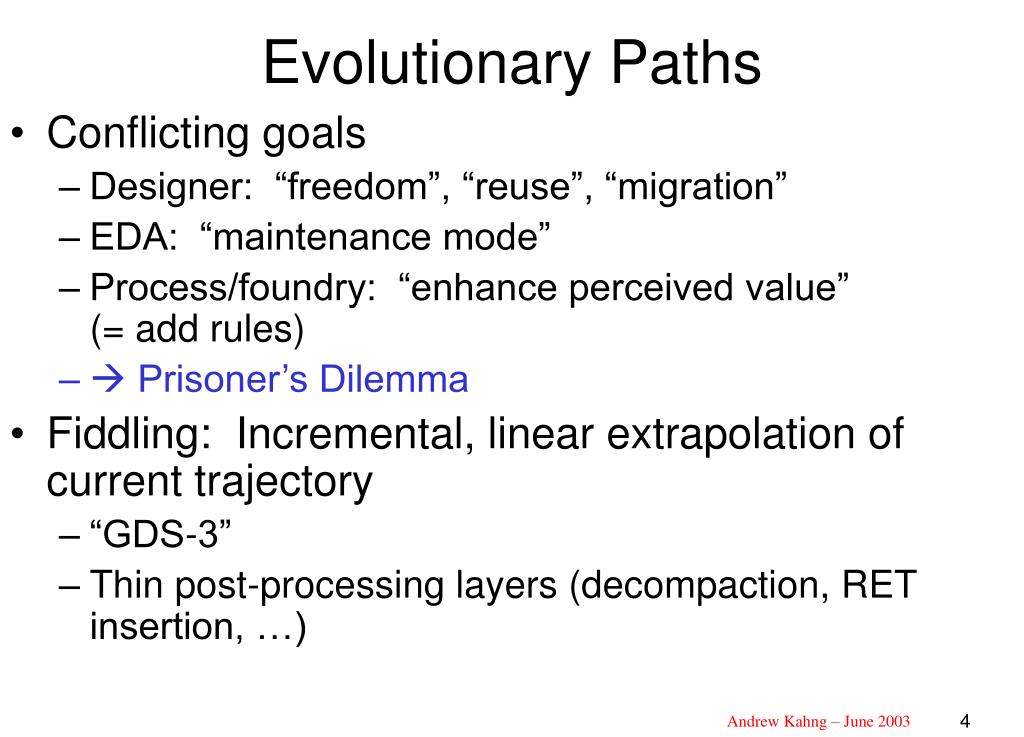

4. Evolutionary Paths • Conflicting goals • Designer: “freedom”, “reuse”, “migration” • EDA: “maintenance mode” • Process/foundry: “enhance perceived value” (= add rules) •  Prisoner’s Dilemma • Fiddling: Incremental, linear extrapolation of current trajectory • “GDS-3” • Thin post-processing layers (decompaction, RET insertion, …)

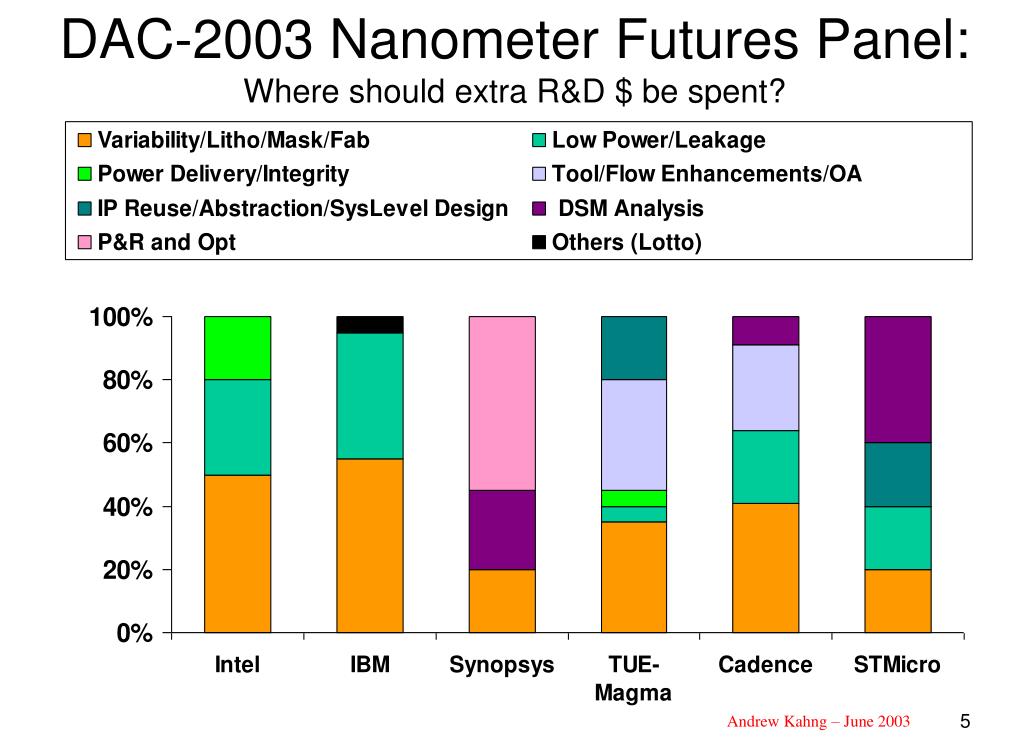

5. DAC-2003 Nanometer Futures Panel:Where should extra R&D $ be spent?

6. Co-Evolutionary Paths • Designer, EDA, and process communities cooperate and co-evolve to maintain the cost (value) trajectory of Moore’s Law • Must escape Prisoner’s Dilemma • Must be financially viable • At 90nm to 65nm transition, this is a matter of survival for the worldwide semiconductor industry • Example Focus Areas: • Manufacturability and cost/value optimization • Restricted layout • Intelligent mask data prep • Analog rules • (Layout and design optimizations) • Disclaimer: Not a complete listing

7. Basic Goals • Bidirectional design-manufacturing data pipe • Fundamental drivers: cost, value • Pass functional intent to mask flow • Example: RET for predictable circuit performance, function • RETs should win $$$, reduce performance variation •  cost-driven, parametric yield constrained RET • Pass limits of mask flow up to design • Example: avoid corrections that cannot be manufactured or verified N.B.: 1998-2003 papers/tutorials: http://vlsicad.ucsd.edu/~abk/TALKS/

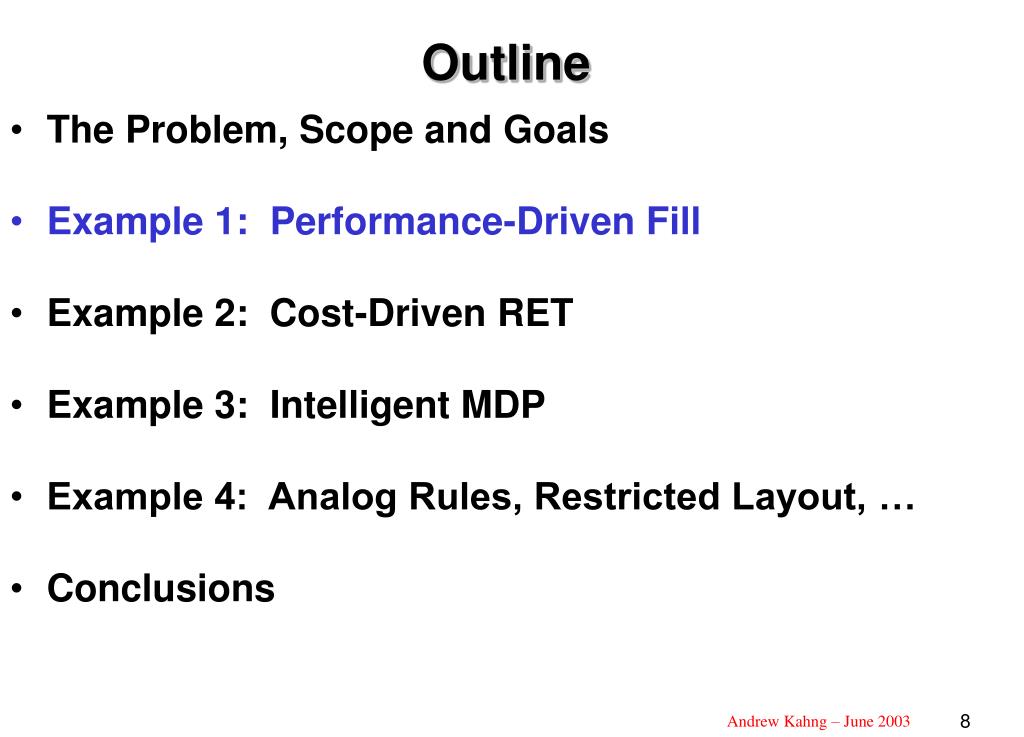

8. Outline • The Problem, Scope and Goals • Example 1: Performance-Driven Fill • Example 2: Cost-Driven RET • Example 3: Intelligent MDP • Example 4: Analog Rules, Restricted Layout, … • Conclusions

9. Layout Density Control • Area fill: “electrically inactive”, floating or grounded • Area fill insertion (and slotting) • Decreases local density variation •  Decreases post-CMP ILD erosion, conductor dishing • Cf. “Filling and Slotting: Analysis and Algorithms”, ISPD-98 Post-CMP ILD thickness Features Area fill features

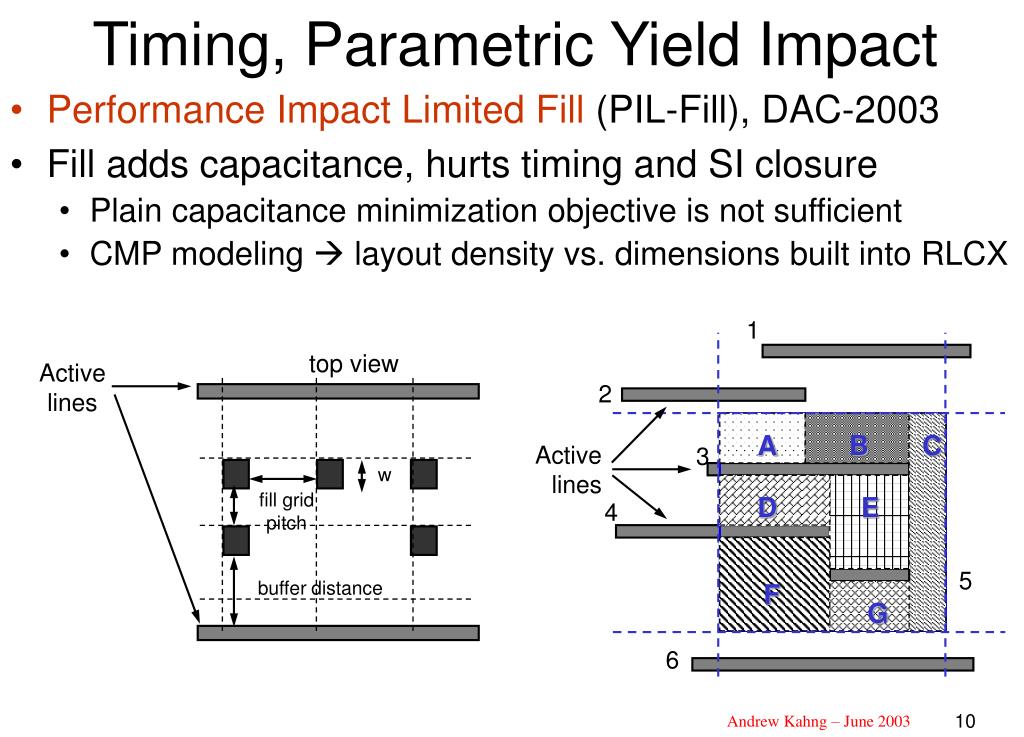

10. Timing, Parametric Yield Impact • Performance Impact Limited Fill (PIL-Fill), DAC-2003 • Fill adds capacitance, hurts timing and SI closure • Plain capacitance minimization objective is not sufficient • CMP modeling  layout density vs. dimensions built into RLCX 1 top view Active lines 2 A B C Active lines 3 w fill grid pitch D E 4 5 buffer distance F G 6

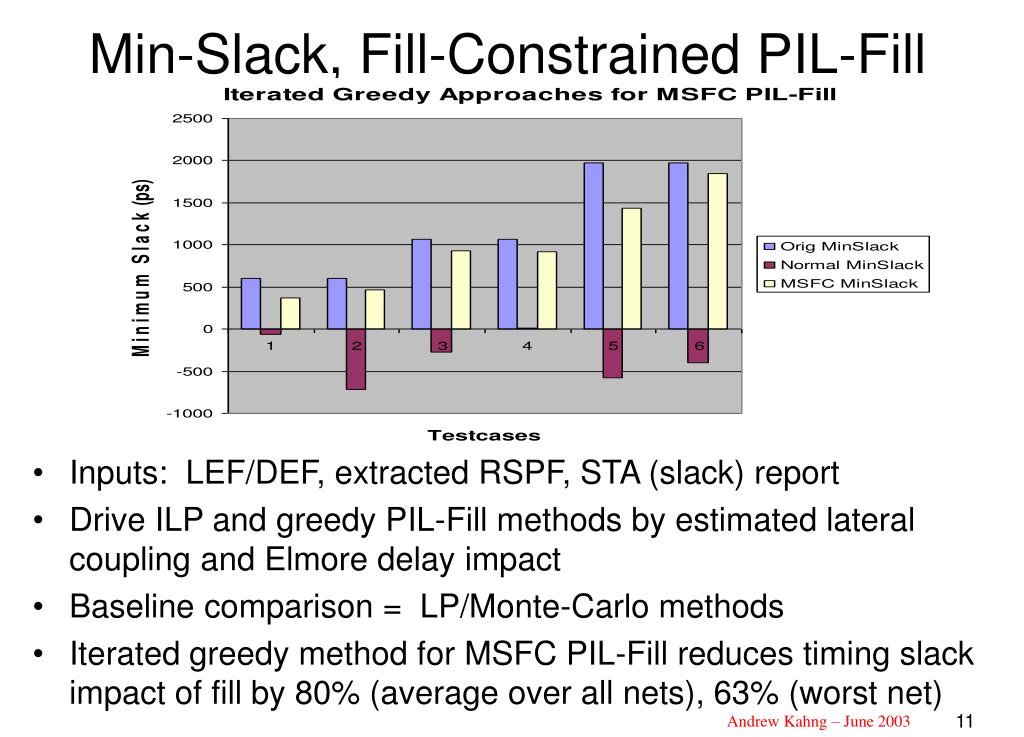

11. Min-Slack, Fill-Constrained PIL-Fill • Inputs: LEF/DEF, extracted RSPF, STA (slack) report • Drive ILP and greedy PIL-Fill methods by estimated lateral coupling and Elmore delay impact • Baseline comparison = LP/Monte-Carlo methods • Iterated greedy method for MSFC PIL-Fill reduces timing slack impact of fill by 80% (average over all nets), 63% (worst net)

12. Other Density Management DOF’s Easy connections through standard via arrays • Splitting for uniformity • Slotting for uniform CMP replaced by splitting • Less data than traditional slotting • Power mesh: more accurate R/C analysis • Combined density control and local pattern control (e.g., fill helps iso-dense, PSM phase-assignability) • Details: hierarchy, reuse, multiple length scales, … GND GND GND GND VS. M1 M1 Difficult to connect - where should vias go? Illustration courtesy Cadence Design Systems, Inc.

13. Outline • The Problem, Scope and Goals • Example 1: Performance-Driven Fill • Example 2: Cost-Driven RET • Example 3: Intelligent MDP • Example 4: Analog Rules, Restricted Layout, … • Conclusions

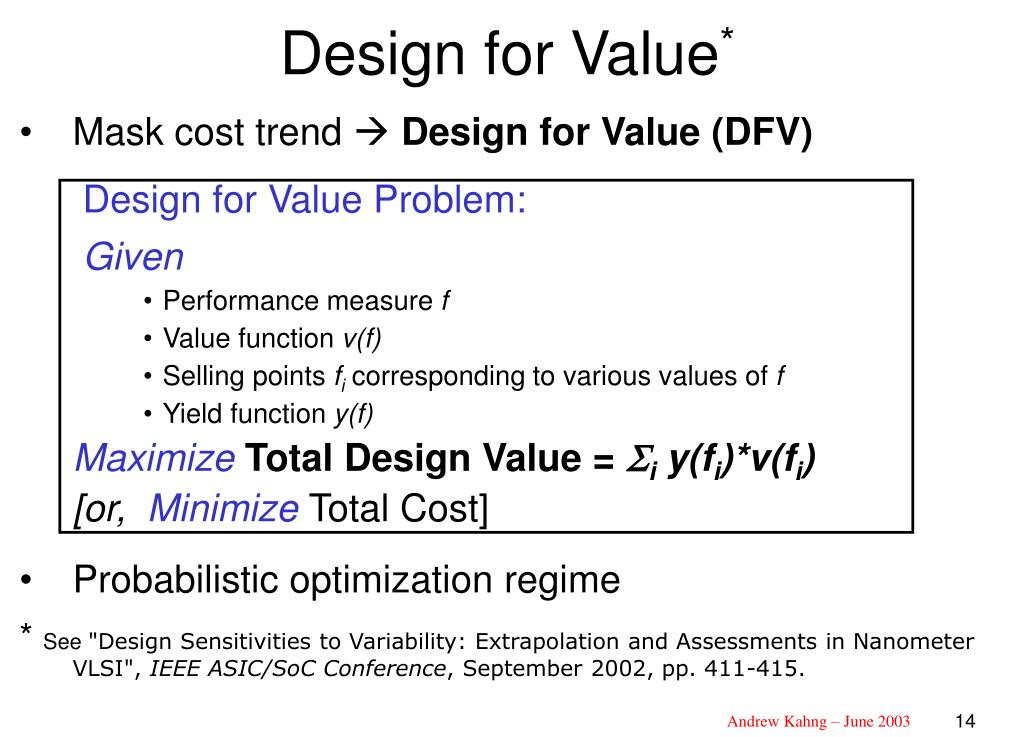

14. Design for Value* • Mask cost trend Design for Value (DFV) Design for Value Problem: Given • Performance measure f • Value function v(f) • Selling points ficorresponding to various values of f • Yield function y(f) MaximizeTotal Design Value = i y(fi)*v(fi) [or,MinimizeTotal Cost] • Probabilistic optimization regime * See "Design Sensitivities to Variability: Extrapolation and Assessments in Nanometer VLSI", IEEE ASIC/SoC Conference, September 2002, pp. 411-415.

15. Obvious Step: Function-Aware OPC • Annotate features with “required amount” of OPC • E.g., why correct dummy fill? • Determined by design properties such as setup and hold timing slacks, parametric yield criticality of devices and features • Reduce total OPC inserted (e.g., SRAF usage) • Decreased physical verification runtime, data volume • Decreased mask cost resulting from fewer features • Supported in data formats (OASIS, IBM GL-I) • Design through mask tools need to make, use annotations

16. Cost-Driven RET • MinCorr (DAC-2003): Different levels of RET = different levels of CD control OPC solutions due to K. Wampler, MaskTools, March 2003 CD studies due to D. Pramanik, Numerical Technologies, December 2002

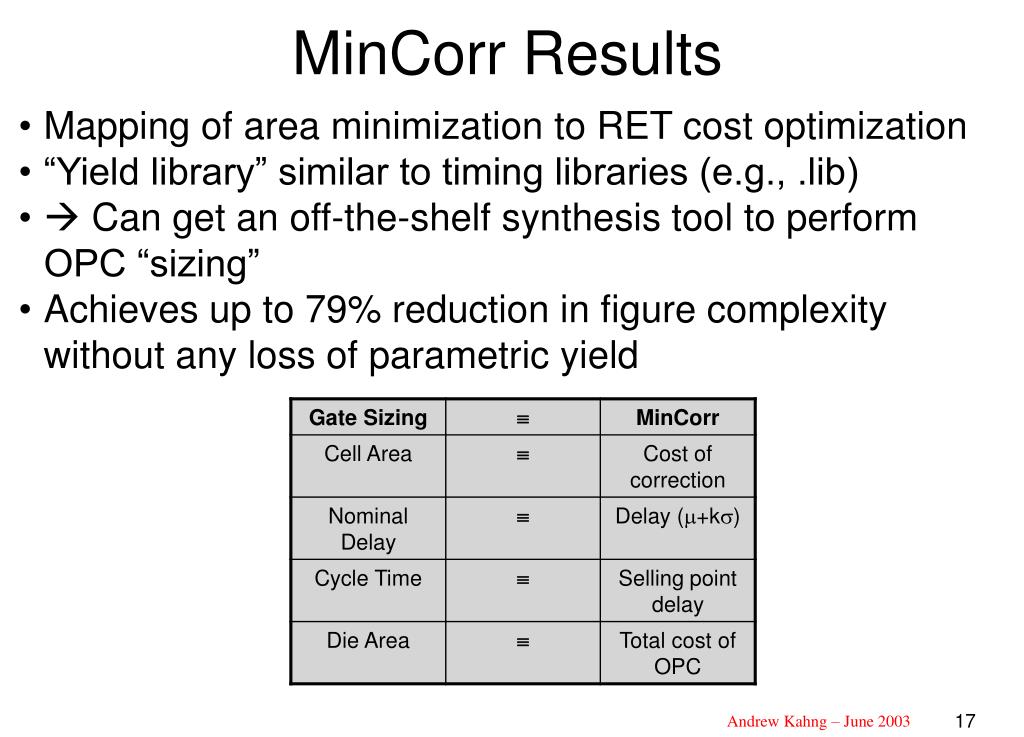

17. MinCorr Results • Mapping of area minimization to RET cost optimization • “Yield library” similar to timing libraries (e.g., .lib) •  Can get an off-the-shelf synthesis tool to perform OPC “sizing” • Achieves up to 79% reduction in figure complexity without any loss of parametric yield

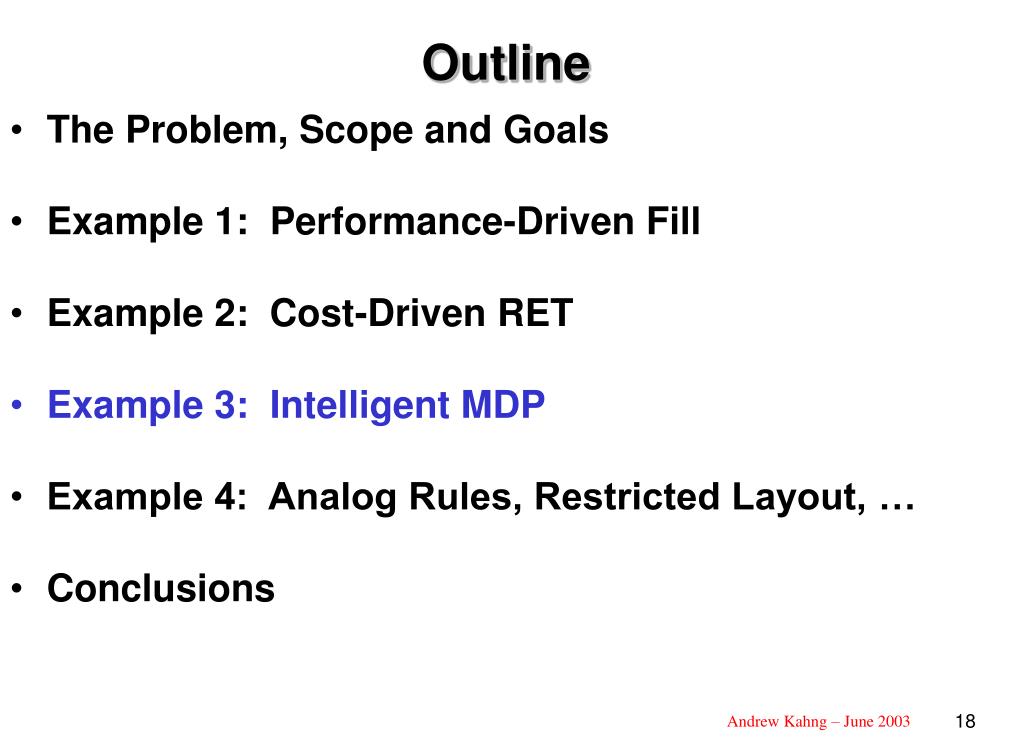

18. Outline • The Problem, Scope and Goals • Example 1: Performance-Driven Fill • Example 2: Cost-Driven RET • Example 3: Intelligent MDP • Example 4: Analog Rules, Restricted Layout, … • Conclusions

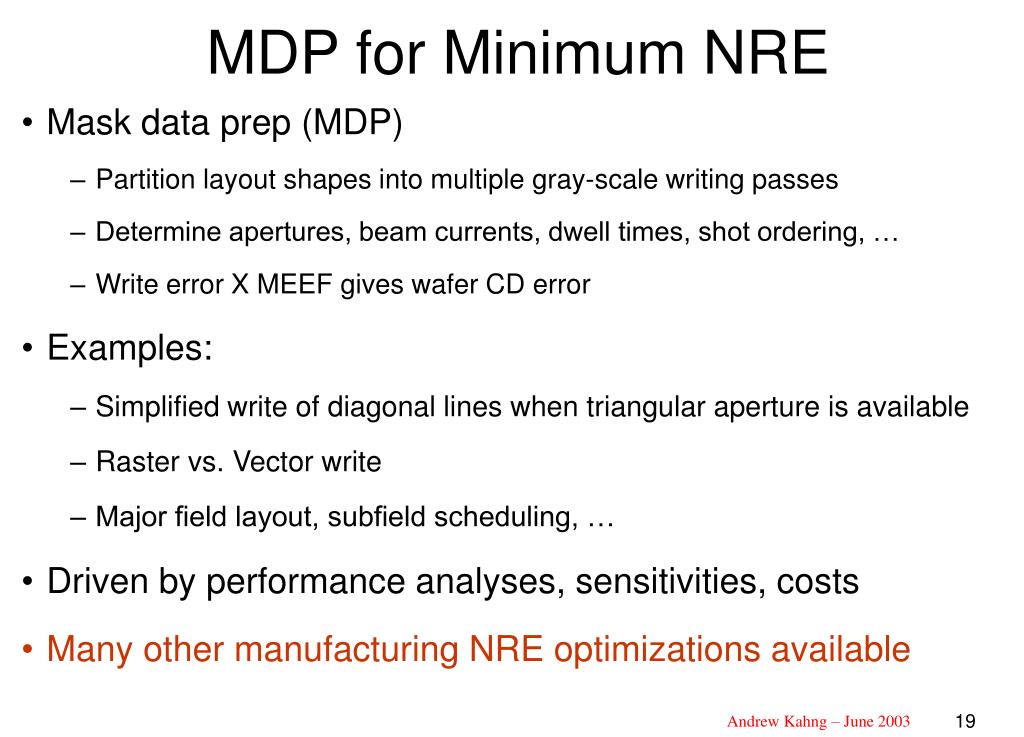

19. MDP for Minimum NRE • Mask data prep (MDP) • Partition layout shapes into multiple gray-scale writing passes • Determine apertures, beam currents, dwell times, shot ordering, … • Write error X MEEF gives wafer CD error • Examples: • Simplified write of diagonal lines when triangular aperture is available • Raster vs. Vector write • Major field layout, subfield scheduling, … • Driven by performance analyses, sensitivities, costs • Many other manufacturing NRE optimizations available

20. Example: Triangular Apertures www.xinitiative.org

21. Subfield Scheduling (SPIE Microlithography’03) • Use of high-energy e-beams in mask writing is limited by resist heating effects (resist distortion, irreversible chemical changes) • Corrective measures (lower beam current density, delays between flashes, “multi-pass” writing, etc.) reduce throughput Mask Writing Schedule Problem Given: Beam voltage, resist parameters, mask write throughput requirement Find: Beam current density and subfield writing schedule to minimize the maximum resist temperatureTmax

22. Max 37.24C Mean 20.37C Max 48.85C Mean 27.59C Lagarias schedule Sequential schedule Max 32.68C Mean 16.07C Max 40.49C Mean 16.97C Greedy schedule Random schedule Throughput-Normalized Subfield Scheduling

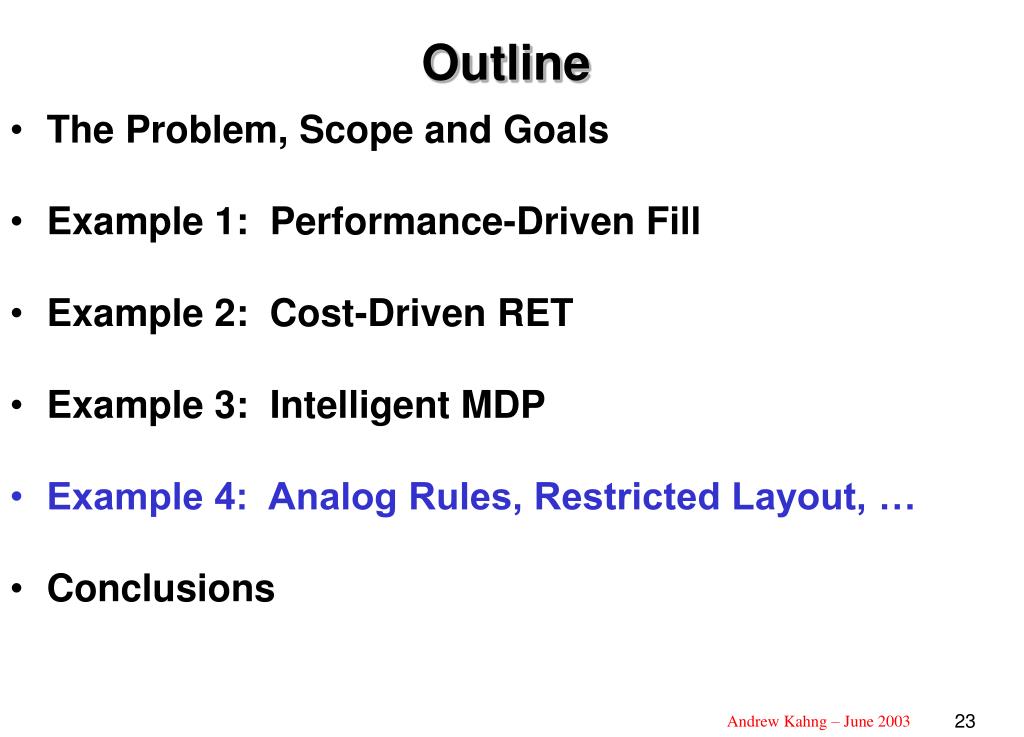

23. Outline • The Problem, Scope and Goals • Example 1: Performance-Driven Fill • Example 2: Cost-Driven RET • Example 3: Intelligent MDP • Example 4: Analog Rules, Restricted Layout, … • Conclusions

24. Analog Rules • We don’t need no $#(*&(! “rules” • Rules just make lithographers feel better (?) • Ultimately, bottom line is cost of ownership, TCOG • Given adequate models of MDP, RET and Litho flows, design tools can and should optimize parametric yield, $/wafer, profits • More examples: critical-area reduction by decompaction, introducing redundancy (vias, wires), … • Automated learning of models and “implicit rules” • Current approach: test wafers, test structures, second-hand understanding • S. Teig, ISPD-2002 keynote: machine learning techniques

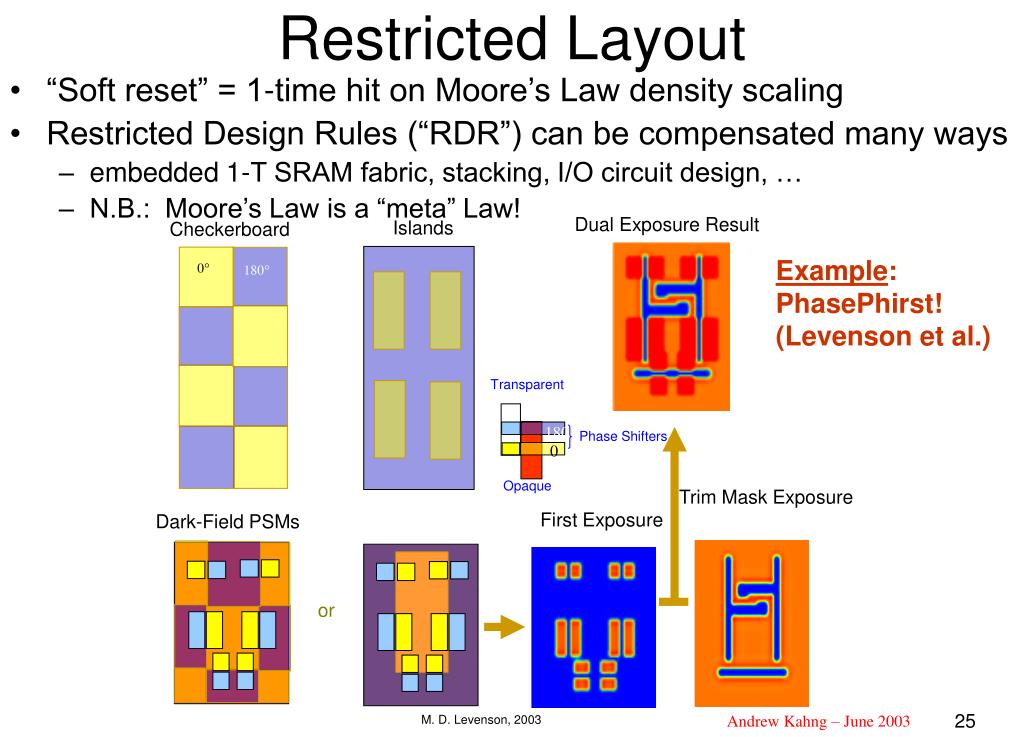

25. Phase Shifters 180 0 Restricted Layout Dual Exposure Result Islands Checkerboard • “Soft reset” = 1-time hit on Moore’s Law density scaling • Restricted Design Rules (“RDR”) can be compensated many ways • embedded 1-T SRAM fabric, stacking, I/O circuit design, … • N.B.: Moore’s Law is a “meta” Law! Example: PhasePhirst! (Levenson et al.) 0 180 Transparent Opaque Trim Mask Exposure First Exposure Dark-Field PSMs or M. D. Levenson, 2003

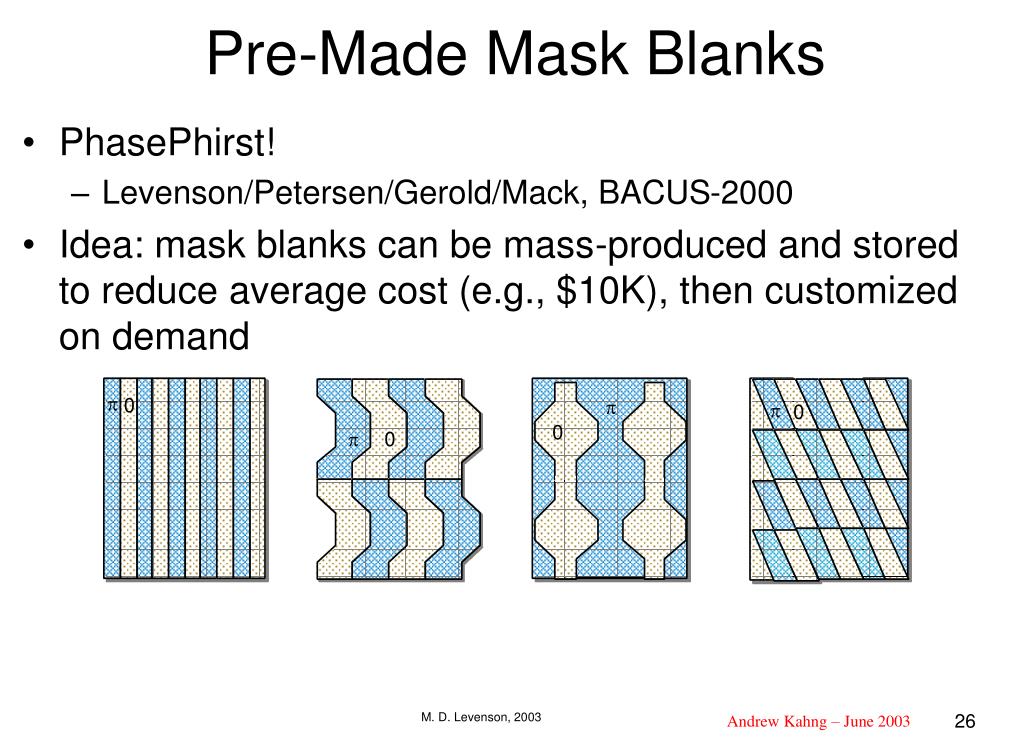

26. Pre-Made Mask Blanks • PhasePhirst! • Levenson/Petersen/Gerold/Mack, BACUS-2000 • Idea: mask blanks can be mass-produced and stored to reduce average cost (e.g., $10K), then customized on demand M. D. Levenson, 2003

27. Notes on Regular Layout • 65 nm has high likelihood for layouts to look like regular gratings • Uniform pitch and width on metal as well as poly layers •  Predictable layouts even in presence of focus and dose variations • More manufacturable cell libraries with regular structures • New layout challenges (e.g., preserving regularity in placement) • Caveats • Non-minimum width poly is less susceptible to variation  larger devices (with same W/L) may lead to more robust designs (so, selective “upsizing” may be an alternative to regular layouts) • 180nm node is a “sweet spot” for cost, analog/mixed-signal integration, etc.  more and more technology nodes will tend to coexist

28. Outline • The Problem, Scope and Goals • Example 1: Performance-Driven Fill • Example 2: Cost-Driven RET • Example 3: Intelligent MDP • Example 4: Analog Rules, Restricted Layout, … • Conclusions

29. Conclusions • Designer, EDA, and mask communities must cooperate and co-evolve to maintain the cost (value) trajectory of Moore’s Law • Wakeup call: Intel 157nm announcement • Basic goal: bidirectional design-mask data pipe • Drivers: cost, value • Pass functional intent to mask flow • Pass limits of mask flow up to design • Example focus areas (not a complete listing!) • Manufacturability and cost/value optimization • Restricted layout • Intelligent mask data prep • Analog rules • (Layout and design optimizations)
