  1. IEEE 802.11

  2. Characteristics of Wireless LANs • Advantages • very flexible alternative to wired LANs • (almost) no wiring difficulties (e.g. historic buildings, firewalls) • ad-hoc networks without previous planning possible • more robust against disasters, e.g. earthquakes, fire, or users pulling a plug ... • Disadvantages • lower bandwidth compared to wired networks • possible interference may reduce bandwidth • no guaranteed service due to license-free spectrum • need to consider security issues • proprietary solutions, especially for higher bit-rates • wireless products have to follow many national restrictions => long time to establish global standards like, e.g. UMTS Advanced Mobile Communication Networks, Master Program

  3. Design goals for Wireless LANs • Global, seamless operation • Low power for battery use • No special permissions or licenses needed to use the LAN • Robust transmission technology • Simplified spontaneous cooperation at meetings • Easy to use for everyone, simple management • Protection of investment in wired networks • Security (no one should be able to read my data), privacy (no one should be able to collect user profiles), safety (low radiation) • Transparency concerning applications and higher layer protocols, but also location awareness if necessary Advanced Mobile Communication Networks, Master Program

  4. Comparison: Infrastructure vs. Ad-hoc Networks infrastructure network AP: Access Point AP AP wired network AP ad-hoc network Advanced Mobile Communication Networks, Master Program

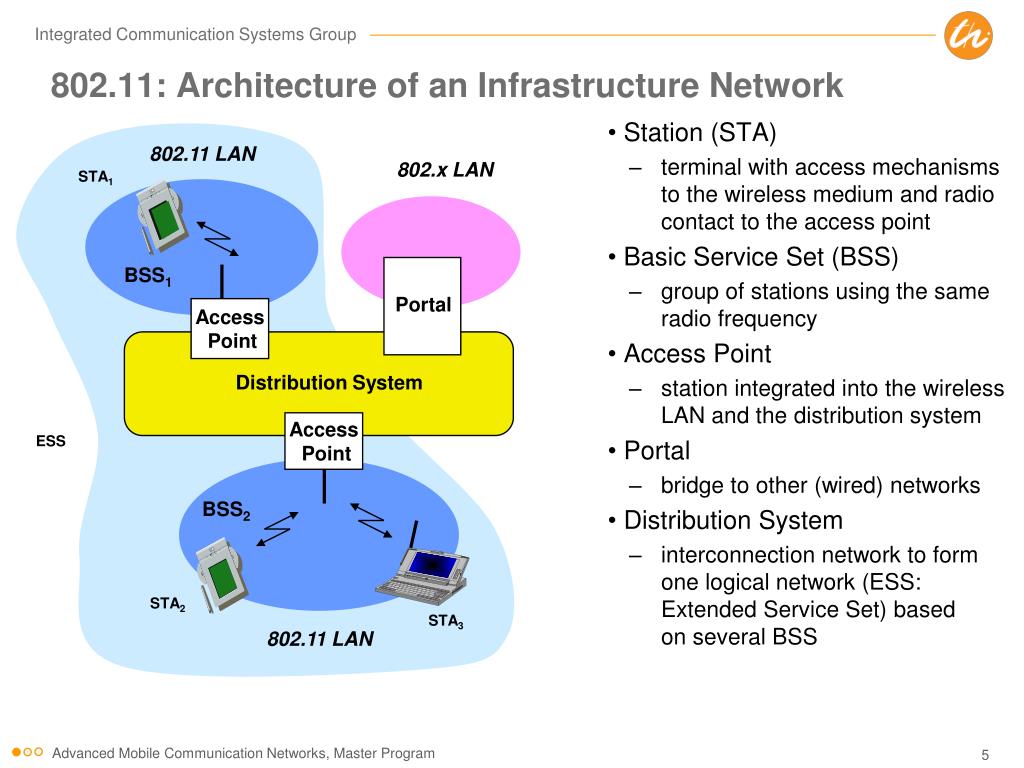

  5. Station (STA) terminal with access mechanisms to the wireless medium and radio contact to the access point Basic Service Set (BSS) group of stations using the same radio frequency Access Point station integrated into the wireless LAN and the distribution system Portal bridge to other (wired) networks Distribution System interconnection network to form one logical network (ESS: Extended Service Set) based on several BSS Portal Distribution System 802.11: Architecture of an Infrastructure Network 802.11 LAN 802.x LAN STA1 BSS1 Access Point Access Point ESS BSS2 STA2 STA3 802.11 LAN Advanced Mobile Communication Networks, Master Program

  6. Direct communication within a limited range Station (STA):terminal with access mechanisms to the wireless medium Independent Basic Service Set (IBSS):group of stations using the same radio frequency 802.11: Architecture of an Ad-hoc Network 802.11 LAN STA1 STA3 IBSS1 STA2 IBSS2 STA5 STA4 802.11 LAN Advanced Mobile Communication Networks, Master Program

  7. IEEE Standard 802.11 fixed terminal mobile terminal server infrastructure network access point application application TCP TCP IP IP LLC LLC LLC 802.11 MAC 802.11 MAC 802.3 MAC 802.3 MAC 802.11 PHY 802.11 PHY 802.3 PHY 802.3 PHY Advanced Mobile Communication Networks, Master Program

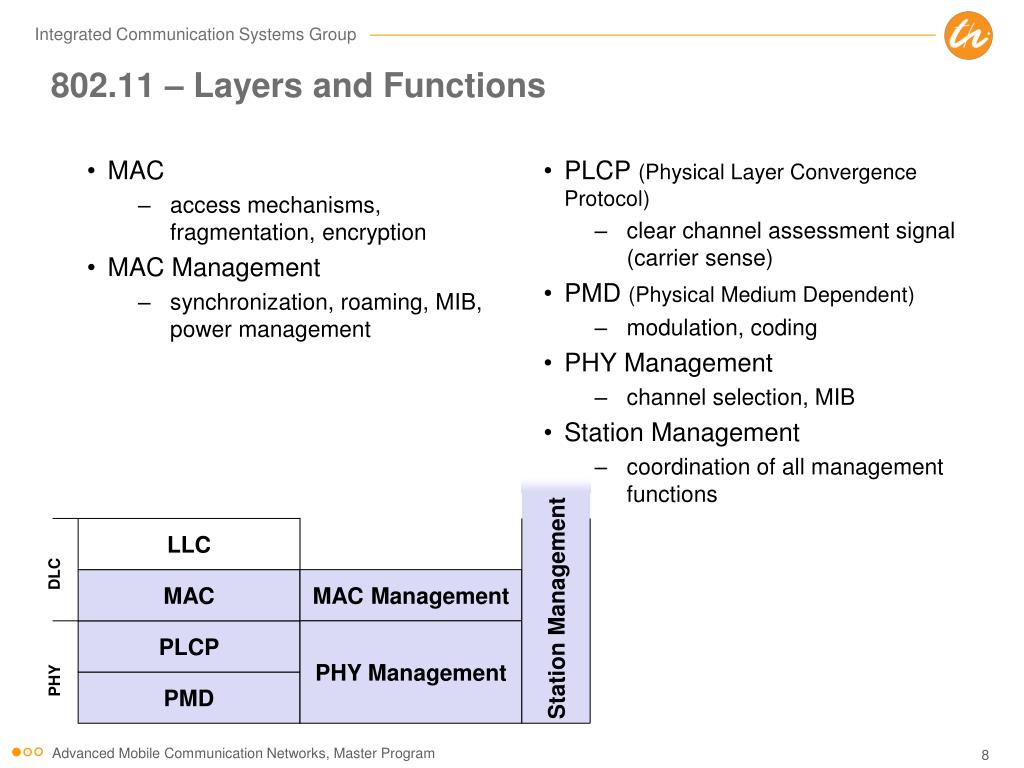

  8. 802.11 – Layers and Functions • MAC • access mechanisms, fragmentation, encryption • MAC Management • synchronization, roaming, MIB, power management • PLCP (Physical Layer Convergence Protocol) • clear channel assessment signal (carrier sense) • PMD (Physical Medium Dependent) • modulation, coding • PHY Management • channel selection, MIB • Station Management • coordination of all management functions Station Management LLC DLC MAC MAC Management PLCP PHY Management PHY PMD Advanced Mobile Communication Networks, Master Program

  9. 802.11 – Physical Layer • 3 versions: 2 radio (typ. 2.4 GHz), 1 IR • data rates 1 or 2 Mbit/s • FHSS (Frequency Hopping Spread Spectrum) • spreading, despreading, signal strength, typ. 1 Mbit/s • min. 2.5 frequency hops/s (USA), two-level GFSK modulation • DSSS (Direct Sequence Spread Spectrum) • DBPSK modulation for 1 Mbit/s (Differential Binary Phase Shift Keying), DQPSK for 2 Mbit/s (Differential Quadrature PSK) • preamble and header of a frame is always transmitted with 1 Mbit/s, rest of transmission 1 or 2 Mbit/s • chipping sequence: +1, -1, +1, +1, -1, +1, +1, +1, -1, -1, -1 (Barker code) • max. radiated power 1 W (USA), 100 mW (EU), min. 1mW • Infrared • 850-950 nm, diffuse light, typ. 10 m range • carrier detection, energy detection, synchronization Advanced Mobile Communication Networks, Master Program

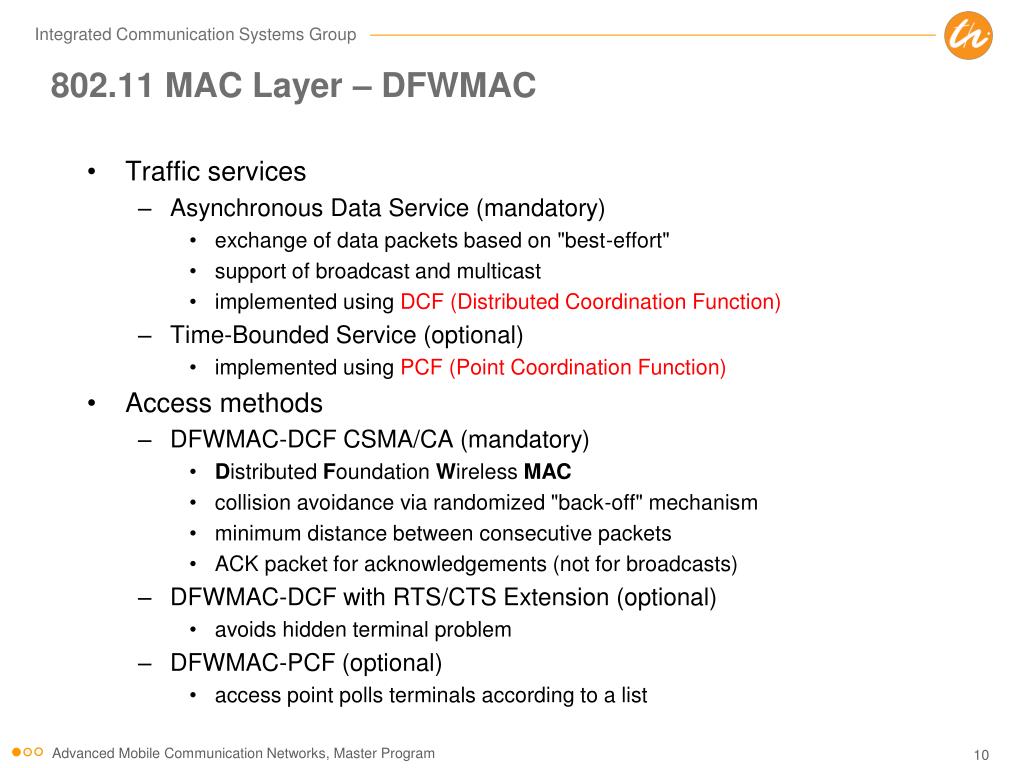

  10. 802.11 MAC Layer – DFWMAC • Traffic services • Asynchronous Data Service (mandatory) • exchange of data packets based on "best-effort" • support of broadcast and multicast • implemented using DCF (Distributed Coordination Function) • Time-Bounded Service (optional) • implemented using PCF (Point Coordination Function) • Access methods • DFWMAC-DCF CSMA/CA (mandatory) • Distributed Foundation Wireless MAC • collision avoidance via randomized "back-off" mechanism • minimum distance between consecutive packets • ACK packet for acknowledgements (not for broadcasts) • DFWMAC-DCF with RTS/CTS Extension (optional) • avoids hidden terminal problem • DFWMAC-PCF (optional) • access point polls terminals according to a list Advanced Mobile Communication Networks, Master Program

  11. 802.11 MAC • Priorities • defined through different Inter-Frame Spaces (IFSs) • no guaranteed or hard priorities • SIFS (Short Inter-Frame Spacing) • highest priority, for ACK, CTS, polling response • PIFS (PCF IFS) • medium priority, for time-bounded service using PCF • DIFS (DCF IFS) • lowest priority, for asynchronous data service DIFS DIFS PIFS SIFS medium busy contention next frame t direct access if medium is free  DIFS Advanced Mobile Communication Networks, Master Program

  12. PIFS SIFS 802.11 – CSMA/CA Access Method contention window (randomized back-offmechanism) DIFS DIFS • Station ready to send starts sensing the medium (Carrier Sense based on CCA, Clear Channel Assessment) • If the medium is free for the duration of an Inter-Frame Space (IFS), the station can start sending (IFS depends on service type) • If the medium is busy, the station has to wait for a free IFS, then the station must additionally wait a random back-off time Random() = Pseudorandom integer drawn from a uniform distribution over the interval [0, CW] CW = an integer between CWmin and CWmax • If another station occupies the medium during the back-off time of the station, the back-off timer stops (fairness) • If another collision happens, the stations double CW medium busy next frame t direct access if medium is free  DIFS slot time Advanced Mobile Communication Networks, Master Program

  13. 802.11 – Competing Stations – Simple Version DIFS DIFS DIFS DIFS boe bor boe bor boe busy station1 boe busy station2 busy station3 boe busy boe bor station4 boe bor boe busy boe bor station5 t medium not idle (frame, ack etc.) busy boe elapsed backoff time packet arrival at MAC bor residual backoff time Advanced Mobile Communication Networks, Master Program

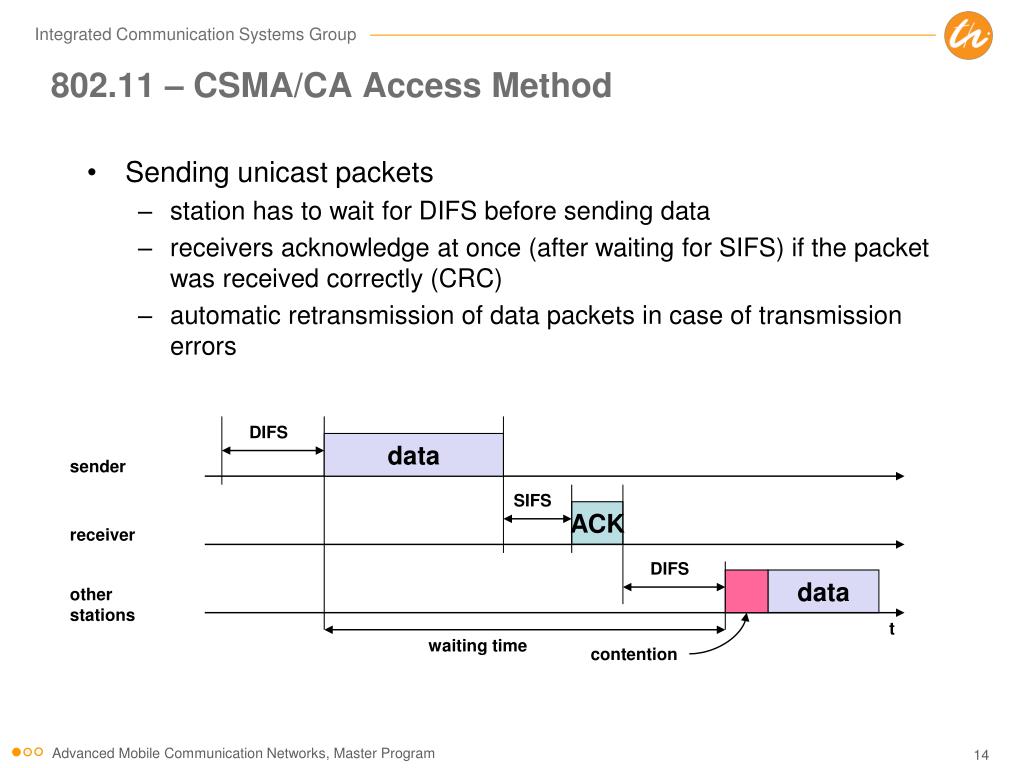

  14. 802.11 – CSMA/CA Access Method • Sending unicast packets • station has to wait for DIFS before sending data • receivers acknowledge at once (after waiting for SIFS) if the packet was received correctly (CRC) • automatic retransmission of data packets in case of transmission errors DIFS data sender SIFS ACK receiver DIFS data other stations t waiting time contention Advanced Mobile Communication Networks, Master Program

  15. 802.11 – DCF with RTS/CTS Extension • Sending unicast packets • station can send RTS with reservation parameter after waiting for DIFS (reservation determines amount of time the data packet needs the medium) • acknowledgement via CTS after SIFS by receiver (if ready to receive) • sender can now send data at once, acknowledgement via ACK • other stations store medium reservations distributed via RTS and CTS DIFS RTS data sender SIFS SIFS SIFS CTS ACK receiver DIFS NAV (RTS) data other stations NAV (CTS) t defer access contention NAV: network allocation vector (implicit in RTS and CTS) Advanced Mobile Communication Networks, Master Program

  16. Fragmentation DIFS RTS frag1 frag2 sender SIFS SIFS SIFS SIFS SIFS CTS ACK1 ACK2 receiver NAV (RTS) NAV (CTS) DIFS NAV (frag1) data other stations NAV (ACK1) t contention Advanced Mobile Communication Networks, Master Program

  17. 802.11 – PCF (Polling) SuperFrame defines time span for polling of (all) wireless stations by AP (including time to reply) t0 t1 SuperFrame medium busy PIFS SIFS SIFS D1 D2 point coordinator SIFS SIFS U1 U2 wireless stations stations‘ NAV NAV D1: polling of wireless station 1 U1: station 1 responds to polling by sending its data D2: polling of wireless station 2 U2: station 2 responds to polling by sending its data Advanced Mobile Communication Networks, Master Program

  18. 802.11 – PCF (Polling) t2 t3 t4 PIFS SIFS D3 D4 CFend point coordinator SIFS U4 wireless stations stations‘ NAV NAV contention free period t contention period D3: polling of wireless station 3 U3: no data -> no response by station 3 within SIFS D4 (after PIFS): polling of wireless station 4 U4: station 4 responds to polling by sending its data • Discussion: • unpredictable beacon delays • unknown transmission duration of polled stations => no QoS guarantees Advanced Mobile Communication Networks, Master Program

  19. 802.11 – MAC Management • Synchronization • try to find a LAN, try to stay within a LAN • synchronization of internal clocks to coordinate access (e.g. SIFS, PIFS, etc.), send beacons, etc. • Power management • sleep-mode without missing a message • periodic sleep, frame buffering, traffic measurements • Association/Reassociation • integration into a LAN • roaming, i.e. change networks by changing access points • scanning, i.e. active search for a network • MIB - Management Information Base • managing, read, write Advanced Mobile Communication Networks, Master Program

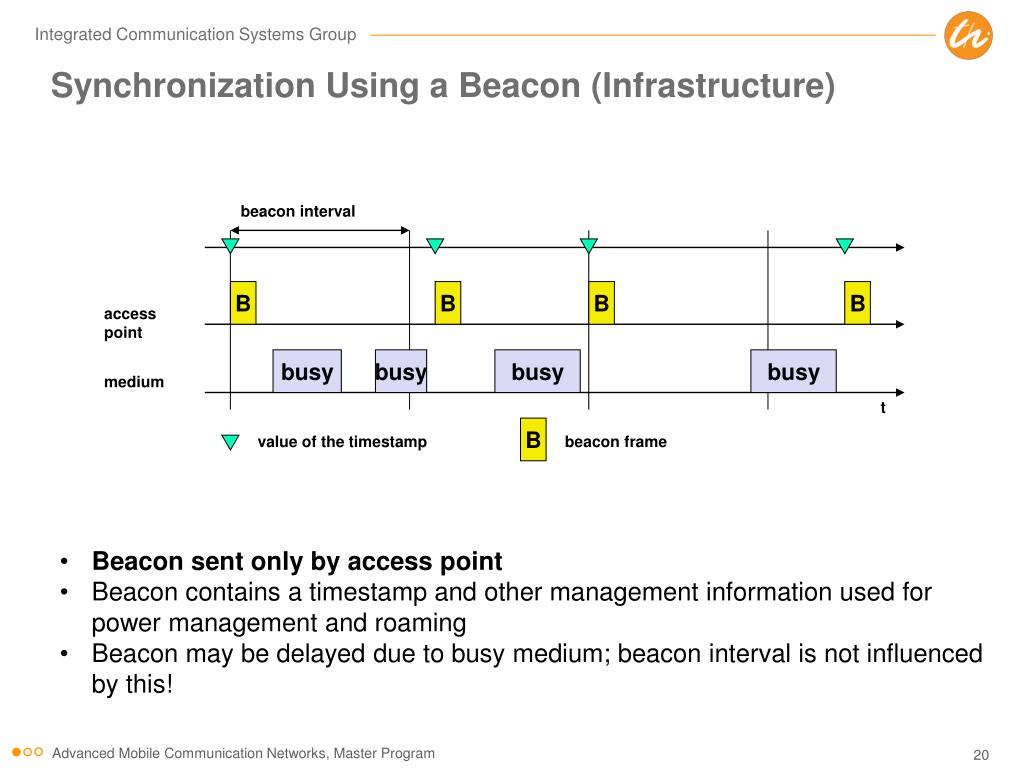

  20. Synchronization Using a Beacon (Infrastructure) beacon interval B B B B access point busy busy busy busy medium t B value of the timestamp beacon frame • Beacon sent only by access point • Beacon contains a timestamp and other management information used for power management and roaming • Beacon may be delayed due to busy medium; beacon interval is not influenced by this! Advanced Mobile Communication Networks, Master Program

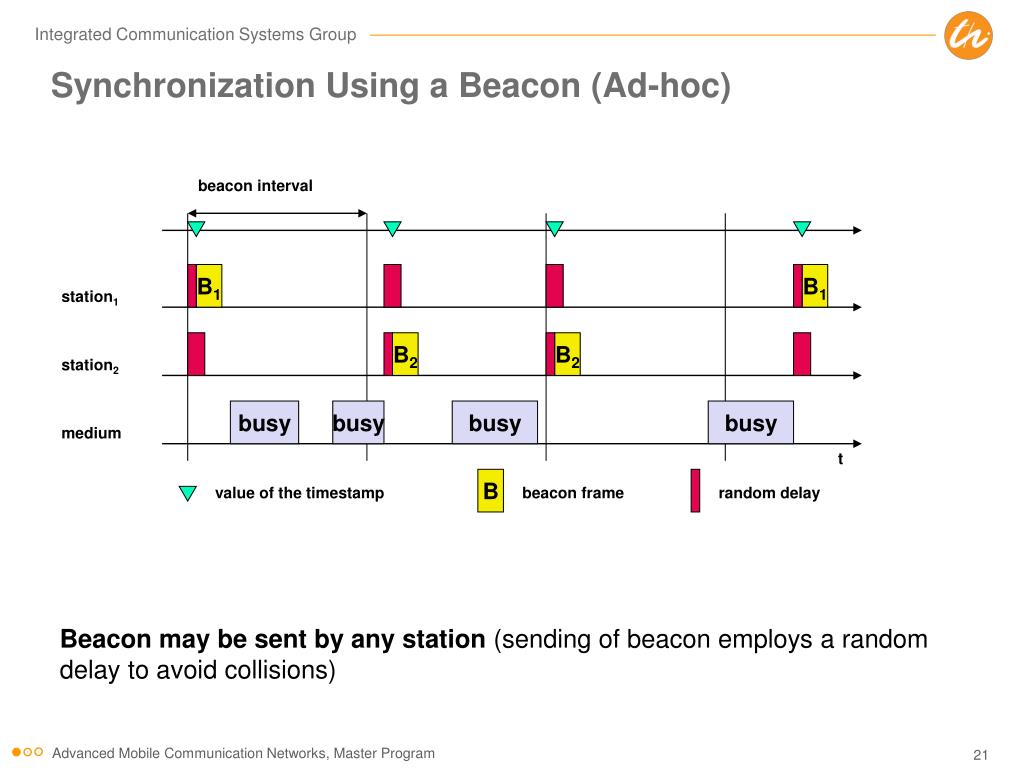

  21. Synchronization Using a Beacon (Ad-hoc) beacon interval B1 B1 station1 B2 B2 station2 busy busy busy busy medium t B value of the timestamp beacon frame random delay Beacon may be sent by any station (sending of beacon employs a random delay to avoid collisions) Advanced Mobile Communication Networks, Master Program

  22. Power Management • Idea: switch the transceiver off if not needed • States of a station: sleep and awake • Timing Synchronization Function (TSF) • stations wake up at the same time • Infrastructure • AP stores frames intended for sleeping stations • AP transmits indication about stored frames in periodic beacons (Indication Maps) sent during awake interval • Traffic Indication Map (TIM): List of unicast receivers • Delivery Traffic Indication Map (DTIM): List of broadcast/multicast receivers • Ad-hoc • Ad-hoc Traffic Indication Map (ATIM) • announcement of receivers by stations buffering frames • more complicated - no central AP • collision of ATIMs possible (scalability?) Advanced Mobile Communication Networks, Master Program

  23. T D awake TIM DTIM data transmission to/from the station B p d broadcast/multicast PS poll Power Saving with Wake-up Patterns (Infrastructure) • beacon indicates station that data are available • station replies with PS (power save) poll and continues listening to the medium • AP transmits data • station acknowledges the data TIM interval DTIM interval D B T T d D B access point busy busy busy busy medium p d station t Advanced Mobile Communication Networks, Master Program

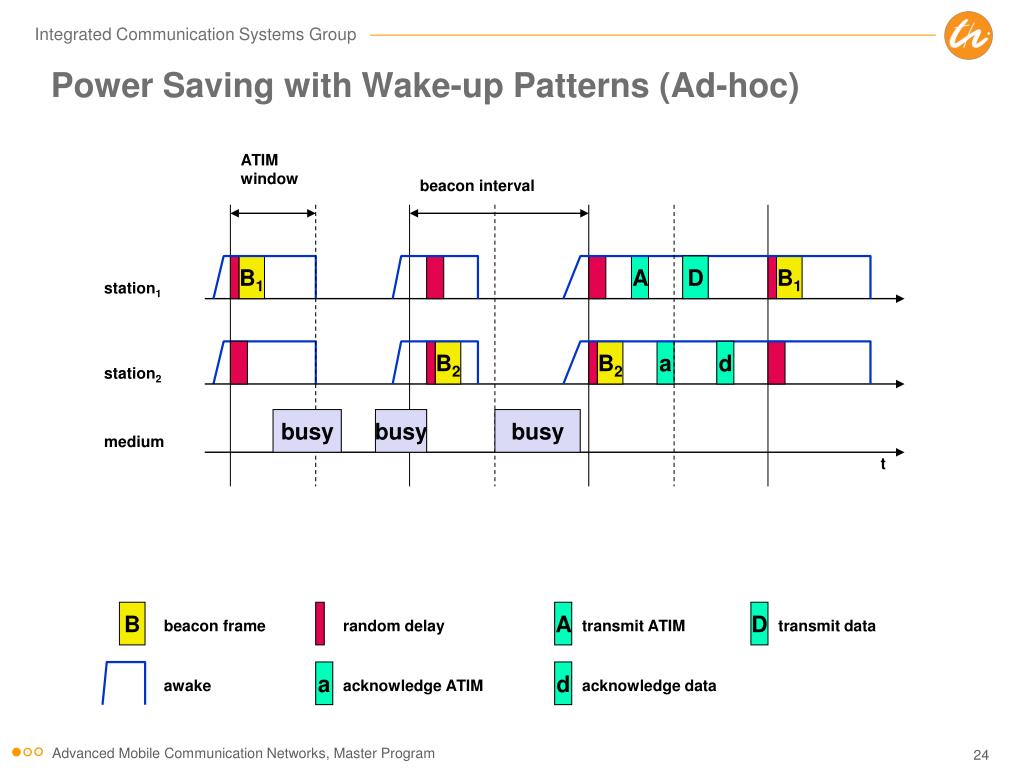

  24. A transmit ATIM Power Saving with Wake-up Patterns (Ad-hoc) ATIM window beacon interval B1 A D B1 station1 B2 B2 a d station2 busy busy busy medium t B D beacon frame random delay transmit data a d awake acknowledge ATIM acknowledge data Advanced Mobile Communication Networks, Master Program

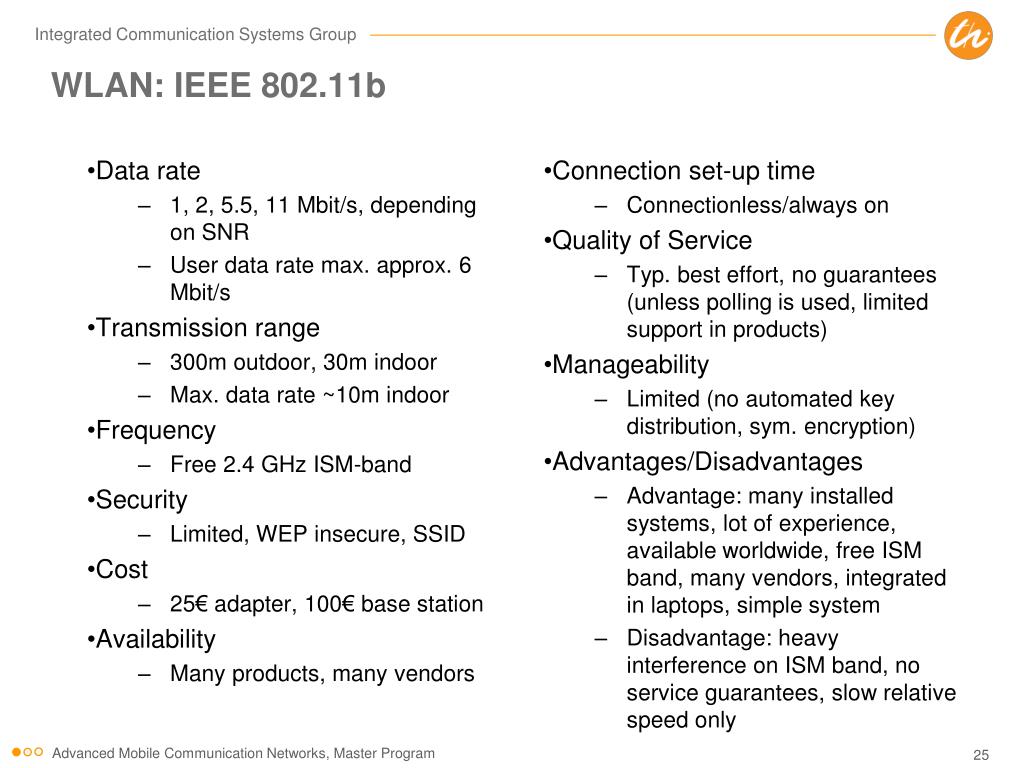

  25. WLAN: IEEE 802.11b • Data rate • 1, 2, 5.5, 11 Mbit/s, depending on SNR • User data rate max. approx. 6 Mbit/s • Transmission range • 300m outdoor, 30m indoor • Max. data rate ~10m indoor • Frequency • Free 2.4 GHz ISM-band • Security • Limited, WEP insecure, SSID • Cost • 25€ adapter, 100€ base station • Availability • Many products, many vendors • Connection set-up time • Connectionless/always on • Quality of Service • Typ. best effort, no guarantees (unless polling is used, limited support in products) • Manageability • Limited (no automated key distribution, sym. encryption) • Advantages/Disadvantages • Advantage: many installed systems, lot of experience, available worldwide, free ISM band, many vendors, integrated in laptops, simple system • Disadvantage: heavy interference on ISM band, no service guarantees, slow relative speed only Advanced Mobile Communication Networks, Master Program

  26. Channel Selection (Non-overlapping) Europe (ETSI) channel 1 channel 7 channel 13 2400 2412 2442 2472 2483.5 [MHz] 22 MHz US (FCC)/Canada (IC) channel 1 channel 6 channel 11 2400 2412 2437 2462 2483.5 [MHz] 22 MHz Advanced Mobile Communication Networks, Master Program

  27. WLAN: IEEE 802.11g • Data rate • 6, 9, 12, 18, 24, 36, 48, 54 Mbit/s, depending on SNR • User throughput (1500 byte packets): 5.3 (6), 18 (24), 24 (36), 32 (54) • 6, 12, 24 Mbit/s mandatory • Transmission range • 150m outdoor, 20m indoor 54 Mbit/s up to 6 m • Frequency • 2.412~2.472GHz (Europe ETSI) • 2.457~2.462GHz (Spain) • 2.457~2.472GHz (France) • Security • Limited, WEP insecure, SSID • Cost • 50€ adapter, 200€ base station • Availability • Some products, some vendors • Connection set-up time • Connectionless/always on • Quality of Service • Typ. best effort, no guarantees (same as all 802.11 products) • Manageability • Limited (no automated key distribution, sym. encryption) • Advantages/Disadvantages • Advantage: free ISM band, compatible with 802.11b standard • Disadvantage: heavy interference on ISM band, no service guarantees Advanced Mobile Communication Networks, Master Program

  28. WLAN: IEEE 802.11a • Data rate • 6, 9, 12, 18, 24, 36, 48, 54 Mbit/s, depending on SNR • User throughput (1500 byte packets): 5.3 (6), 18 (24), 24 (36), 32 (54) • 6, 12, 24 Mbit/s mandatory • Transmission range • 100m outdoor, 10m indoor e.g. 54 Mbit/s up to 5 m, 48 up to 12 m, 36 up to 25 m, 24 up to 30m, 18 up to 40 m, 12 up to 60 m • Frequency • Free 5.15-5.25, 5.25-5.35, 5.725-5.825 GHz ISM-band • Security • Limited, WEP insecure, SSID • Cost • 100€ adapter, 200€ base station • Availability • Some products, some vendors • Connection set-up time • Connectionless/always on • Quality of Service • Typ. best effort, no guarantees (same as all 802.11 products) • Manageability • Limited (no automated key distribution, sym. encryption) • Advantages/Disadvantages • Advantage: fits into 802.x standards, free ISM band, available, simple system, uses less crowded 5 GHz band • Disadvantage: stronger shading due to higher frequency, no service guarantees Advanced Mobile Communication Networks, Master Program

  29. WLAN: IEEE 802.11h – Regulatory Details • Spectrum Managed 802.11a • power control • dyn. channel/frequency selection • 4 frequency bands: • 5.150 - 5.250 GHz • 4 usable channels (100 MHz) • indoor only • max. 30mW EIRP (.11a) • TPC (Transmit Power Control) max. 60mW EIRP • combined TPC and DCS/DFS (Dynamic Channel/Frequency Selection) max. 200mW EIRP • Turbo Mode: combination of two carriers to reach 108 Mbps • 5.250 - 5.350 GHz • 4 usable channels • TPC, DCS/DFS mandatory • 5.470 – 5.725 GHz • indoor and outdoor • max. 1W EIRP • disallowed in US • not supported by all chipsets • 5.725 bis 5.825 GHz • disallowed in Germany EIRP (Equivalent Isotropic Radiated Power) Usage in Germany according to the German Federal Regulation (Vorschrift der Regulierungsbehörde für das Telekommunikations- und Postwesen, RegTP, 35/2002) Advanced Mobile Communication Networks, Master Program

  30. Operating Channels for 802.11a / US U-NII channel 36 40 44 48 52 56 60 64 5150 5180 5200 5220 5240 5260 5280 5300 5320 5350 [MHz] 16.6 MHz center frequency = 5000 + 5*channel number [MHz] 149 153 157 161 channel 5725 5745 5765 5785 5805 5825 [MHz] 16.6 MHz Advanced Mobile Communication Networks, Master Program

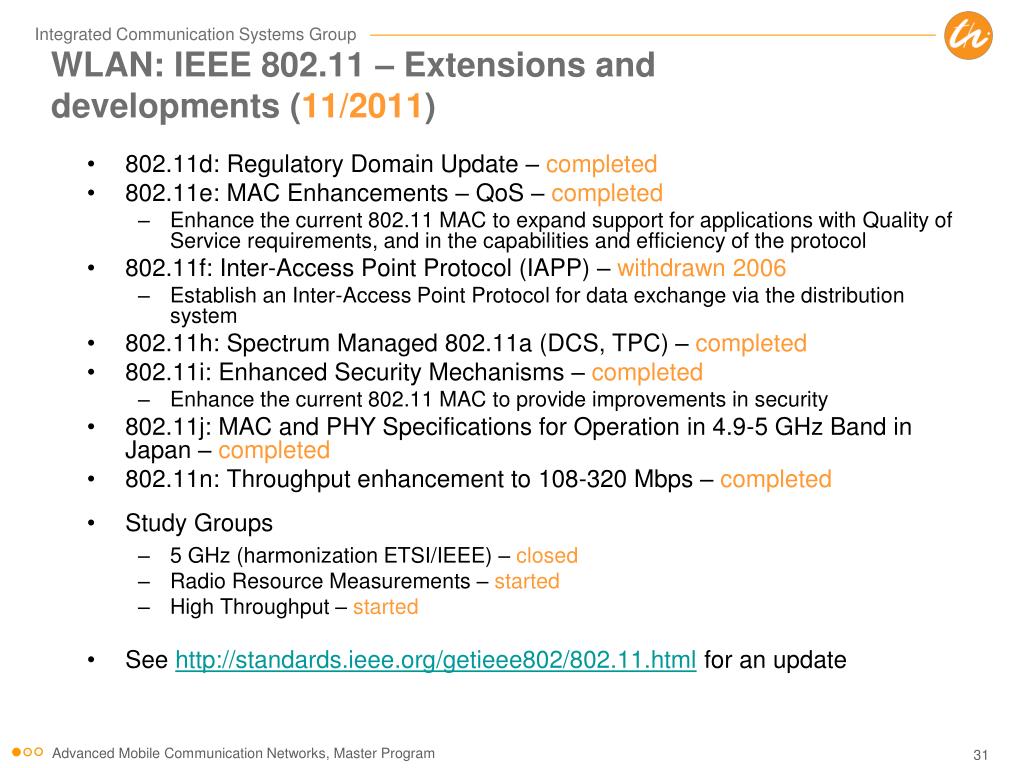

  31. WLAN: IEEE 802.11 – Extensions and developments (11/2011) • 802.11d: Regulatory Domain Update – completed • 802.11e: MAC Enhancements – QoS – completed • Enhance the current 802.11 MAC to expand support for applications with Quality of Service requirements, and in the capabilities and efficiency of the protocol • 802.11f: Inter-Access Point Protocol (IAPP) – withdrawn 2006 • Establish an Inter-Access Point Protocol for data exchange via the distribution system • 802.11h: Spectrum Managed 802.11a (DCS, TPC) – completed • 802.11i: Enhanced Security Mechanisms – completed • Enhance the current 802.11 MAC to provide improvements in security • 802.11j: MAC and PHY Specifications for Operation in 4.9-5 GHz Band in Japan – completed • 802.11n: Throughput enhancement to 108-320 Mbps – completed • Study Groups • 5 GHz (harmonization ETSI/IEEE) – closed • Radio Resource Measurements – started • High Throughput – started • See http://standards.ieee.org/getieee802/802.11.html for an update Advanced Mobile Communication Networks, Master Program

  32. WLAN: IEEE 802.11 – Details • 802.11d aims to produce versions of 802.11b that work at other frequencies, making it suitable for parts of the world where the 2.4GHz band isn't available. Most countries have now released this band, thanks to an ITU recommendation and extensive lobbying by equipment manufacturers. The only holdout is Spain, which may follow soon. • 802.11e add QoS capabilities to 802.11 networks. It replaces the Ethernet-like MAC layer with a coordinated Time Division Multiple Access (TDMA) scheme, and adds extra error-correction to important traffic. The technology is similar to Whitecap, a proprietary protocol developed by Sharewave and used in Cisco's 802.11a prototypes. A standard was supposed to be finalized by the end of 2001, but has run into delays thanks to arguments over how many classes of service should be provided and exactly how they should be implemented. • 802.11f tries to improve the handover mechanism in 802.11 so that users can maintain a connection while roaming between two different switched segments (radio channels), or between access points attached to two different networks. This is vital if wireless LANs are to offer the same mobility that cell phone users take for granted. • 802.11h attempts to add better control over transmission power and radio channel selection to 802.11a. Along with 802.11e, this could make the standard acceptable to European regulators. • 802.11i deals with 802.11's most obvious weakness: security. Rather than WEP, this is an entirely new standard based on the Advanced Encryption Standard (AES), the U.S. government's "official" encryption algorithm. Advanced Mobile Communication Networks, Master Program

  33. WLAN: IEEE 802.11 – More Details Within the IEEE 802.11 Working Group,[6] the following IEEE Standards Association Standard and Amendments exist: • IEEE 802.11-1997: The WLAN standard was originally 1 Mbit/s and 2 Mbit/s, 2.4 GHz RF and infrared (IR) standard (1997), all the others listed below are Amendments to this standard, except for Recommended Practices 802.11F and 802.11T. • IEEE 802.11a: 54 Mbit/s, 5 GHz standard (1999, shipping products in 2001) • IEEE 802.11b: Enhancements to 802.11 to support 5.5 and 11 Mbit/s (1999) • IEEE 802.11c: Bridge operation procedures; included in the IEEE 802.1D standard (2001) • IEEE 802.11d: International (country-to-country) roaming extensions (2001) • IEEE 802.11e: Enhancements: QoS, including packet bursting (2005) • IEEE 802.11F: Inter-Access Point Protocol (2003) Withdrawn February 2006 • IEEE 802.11g: 54 Mbit/s, 2.4 GHz standard (backwards compatible with b) (2003) • IEEE 802.11h: Spectrum Managed 802.11a (5 GHz) for European compatibility (2004) • IEEE 802.11i: Enhanced security (2004) • IEEE 802.11j: Extensions for Japan (2004) • IEEE 802.11-2007: A new release of the standard that includes amendments a, b, d, e, g, h, i and j. (July 2007) • IEEE 802.11k: Radio resource measurement enhancements (2008) • IEEE 802.11n: Higher throughput improvements using MIMO (multiple input, multiple output antennas) (September 2009) • IEEE 802.11p: WAVE—Wireless Access for the Vehicular Environment (such as ambulances and passenger cars) (July 2010) • IEEE 802.11r: Fast BSS transition (FT) (2008) • IEEE 802.11s: Mesh Networking, Extended Service Set (ESS) (July 2011) • IEEE 802.11T: Wireless Performance Prediction (WPP)—test methods and metrics Recommendation cancelled • IEEE 802.11u: Improvements related to HotSpots and 3rd party authorization of clients, e.g. cellular network offload (February 2011) • IEEE 802.11v: Wireless network management (February 2011) • IEEE 802.11w: Protected Management Frames (September 2009) • IEEE 802.11y: 3650–3700 MHz Operation in the U.S. (2008) • IEEE 802.11z: Extensions to Direct Link Setup (DLS) (September 2010) • IEEE 802.11-2012: A new release of the standard that includes amendments k, n, p, r, s, u, v, w, y and z (March 2012) • IEEE 802.11aa: Robust streaming of Audio Video Transport Streams (June 2012) • IEEE 802.11ad: Very High Throughput 60 GHz (December 2012) - see WiGig • IEEE 802.11ae: Prioritization of Management Frames (March 2012) In process • IEEE 802.11ac: Very High Throughput <6 GHz;[28] potential improvements over 802.11n: better modulation scheme (expected ~10% throughput increase), wider channels (estimate in future time 80 to 160 MHz), multi user MIMO;[29] (~ February 2014) • IEEE 802.11af: TV Whitespace (~ June 2014) • IEEE 802.11ah: Sub 1 GHz sensor network, smart metering. (~ January 2016) • IEEE 802.11ai: Fast Initial Link Setup (~ February 2015) Advanced Mobile Communication Networks, Master Program

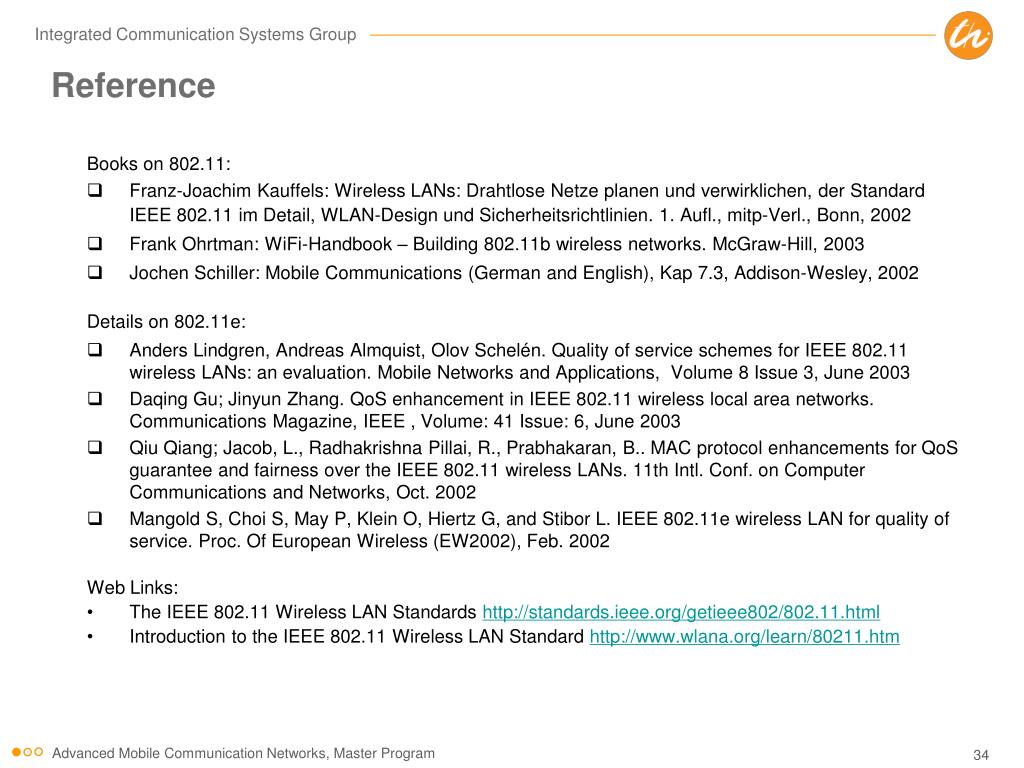

  34. Reference Books on 802.11: • Franz-Joachim Kauffels: Wireless LANs: DrahtloseNetzeplanen und verwirklichen, der Standard IEEE 802.11 im Detail, WLAN-Design und Sicherheitsrichtlinien. 1. Aufl., mitp-Verl., Bonn, 2002 • Frank Ohrtman: WiFi-Handbook – Building 802.11b wireless networks. McGraw-Hill, 2003 • Jochen Schiller: Mobile Communications (German and English), Kap 7.3, Addison-Wesley, 2002 Details on 802.11e: • Anders Lindgren, Andreas Almquist, OlovSchelén. Quality of service schemes for IEEE 802.11 wireless LANs: an evaluation. Mobile Networks and Applications, Volume 8 Issue 3, June 2003 • DaqingGu; Jinyun Zhang. QoS enhancement in IEEE 802.11 wireless local area networks. Communications Magazine, IEEE , Volume: 41 Issue: 6, June 2003 • QiuQiang; Jacob, L., RadhakrishnaPillai, R., Prabhakaran, B.. MAC protocol enhancements for QoS guarantee and fairness over the IEEE 802.11 wireless LANs. 11th Intl. Conf. on Computer Communications and Networks, Oct. 2002 • Mangold S, Choi S, May P, Klein O, Hiertz G, and Stibor L. IEEE 802.11e wireless LAN for quality of service. Proc. Of European Wireless (EW2002), Feb. 2002 Web Links: • The IEEE 802.11 Wireless LAN Standards http://standards.ieee.org/getieee802/802.11.html • Introduction to the IEEE 802.11 Wireless LAN Standard http://www.wlana.org/learn/80211.htm Advanced Mobile Communication Networks, Master Program
