Vsa series

VSA

Series

The Next Generation of Vault Sound Alarms


Vsa series

VSA

Series

Application -

The VSA is a sound detection system conforming to the requirements of Underwriters Laboratories, Inc. (UL) for the primary protection of reverberant and non-reverberant vaults, such as bank and mercantile vaults.

**Must be installed with a UL listed alarm panel and

other UL listed devices**


Vsa series

VSA

Series

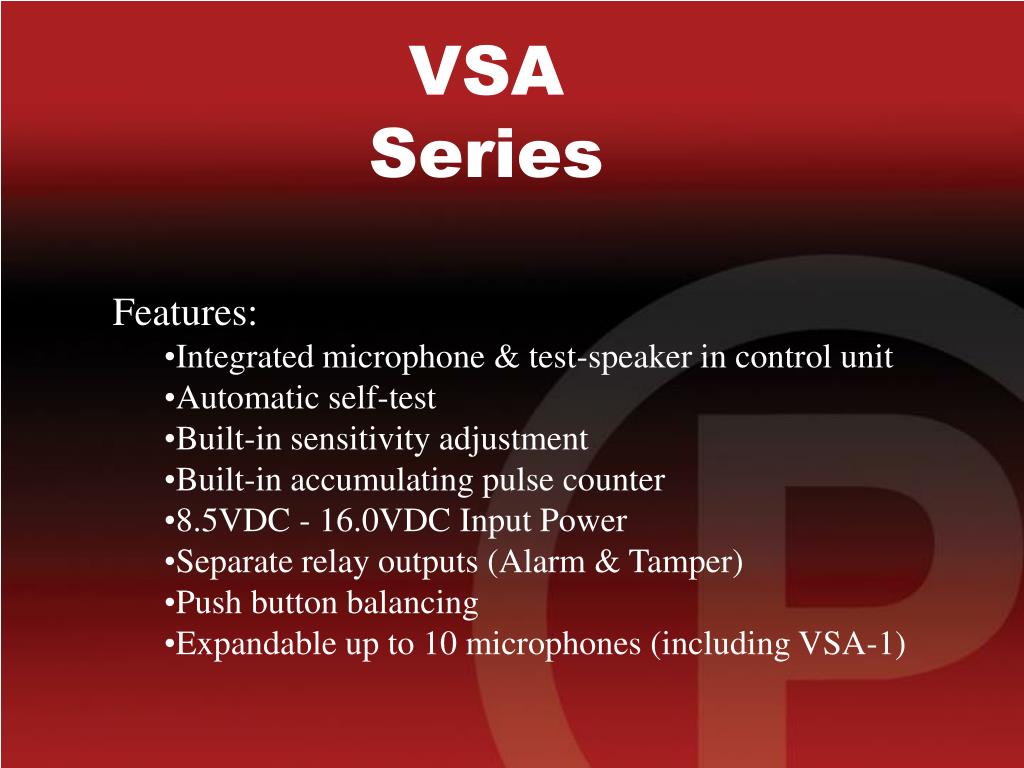

  • Features:

    • Integrated microphone & test-speaker in control unit

    • Automatic self-test

    • Built-in sensitivity adjustment

    • Built-in accumulating pulse counter

    • 8.5VDC - 16.0VDC Input Power

    • Separate relay outputs (Alarm & Tamper)

    • Push button balancing

    • Expandable up to 10 microphones (including VSA-1)


Vsa series

VSA

Series

  • Benefits:

    • Easy installation

      • Fewer devices to install

      • Balance the system with the push of a button

      • Powered by the alarm panel

      • Room to mount addressable modules (not all addressable modules will fit)

    • Cost Savings

      • Labor savings (Less time to install)

      • Material savings (Lower price)


Vsa series

Recommended Spacing

It is recommended to install at least one VSA-1 or VSM in every 12” X 12” area.

The VSA is not recommended for Fur Vaults


Vsa series

Important Part Numbers


What about the original vsa

What about the original VSA??

The original VSA-S is being replaced with the new VSA series.

Potter will support the original VSA-S system with service parts for a period of 2 years.


Available for shipment

Available for Shipment

June 2008
