  1. Transaction Management Overview Chapter 16

  2. Transactions • Concurrent execution of user programs is essential for good DBMS performance. • Because disk accesses are frequent, and relatively slow, it is important to keep the cpu humming by working on several user programs concurrently. • A user’s program may carry out many operations on the data retrieved from the database, but the DBMS is only concerned about what data is read/written from/to the database. • A transactionis the DBMS’s abstract view of a user program: a sequence of reads and writes.

  3. Transaction ACID Properties • Atomic • Either all actions are carried out or none are. • Not worry about incomplete transaction. • Consistency • DBMS assumes that the consistency holds for each transaction. • User is responsibility. • Isolation • Transactions are isolated, or protected, from the effects of concurrently scheduling other transactions. • Durability • The effects of transaction is persist if DBMS informs the user successful execution.

  4. Concurrency in a DBMS • Users submit transactions, and can think of each transaction as executing by itself. • Concurrency is achieved by the DBMS, which interleaves actions (reads/writes of DB objects) of various transactions. • Each transaction must leave the database in a consistent state if the DB is consistent when the transaction begins. • DBMS will enforce some ICs, depending on the ICs declared in CREATE TABLE statements. • Beyond this, the DBMS does not really understand the semantics of the data. (e.g., it does not understand how the interest on a bank account is computed). • Issues:Effect of interleaving transactions, and crashes.

  5. Atomicity of Transactions • A transaction is seen by DBMS as a series or list of actions. • read/write database object. • A transaction mightcommitafter completing all its actions. • or it could abort(or be aborted by the DBMS) after executing some actions. • Transactions are atomic: a user can think of a transaction as always executing all its actions in one step, or not executing any actions at all. • DBMS logs all actions so that it can undothe actions of aborted transactions.

  6. Example • Consider two transactions (Transactions): T1: BEGIN A=A+100, B=B-100 END T2: BEGIN A=1.06*A, B=1.06*B END • Intuitively, the first transaction is transferring $100 from B’s account to A’s account. The second is crediting both accounts with a 6% interest payment. • There is no guarantee that T1 will execute before T2 or vice-versa, if both are submitted together. However, the net effect must be equivalent to these two transactions running serially in some order.

  7. Example (Contd.) • Consider a possible interleaving (schedule): T1: A=A+100, B=B-100 T2: A=1.06*A, B=1.06*B • This is OK. But what about: T1: A=A+100, B=B-100 T2: A=1.06*A, B=1.06*B • The DBMS’s view of the second schedule: T1: R(A), W(A), R(B), W(B) T2: R(A), W(A), R(B), W(B)

  8. Scheduling Transactions • Schedule: an actual or potential execution sequence. • A list of actions from a set of transactions as seen by DBMS. • The order in which two actions of a transaction T appear in a schedule must be the same as the order in which they appear in T. • Classification : • Serial schedule: Schedule that does not interleave the actions of different transactions. • Equivalent schedules:For any database state, the effect (on the set of objects in the database) of executing the first schedule is identical to the effect of executing the second schedule. • Serializable schedule: A schedule that is equivalent to some serial execution of the transactions on any consistent database instance. • (Note: If each transaction preserves consistency, every serializable schedule preserves consistency. )

  9. Concurrent Execution of Transaction T1: R(A), W(A), R(B), W(B), C T2: R(A), W(A), R(B), W(B),C • E.g. Serializable schedule, Equal to the serial schedule T1;T2. • E.g. Serializable schedule, Equal to the serial schedule T2;T1. • Why concurrent execution? • CPU and I/O can work in parallel to increase system throughput. • Interleaved execution of a short transaction with a long transaction allows the short transaction to complete quickly, thus prevent stucked transaction or unpredicatable delay in response time. T1: R(A), W(A),R(B), W(B), C T2: R(A), W(A), R(B), W(B), C

  10. Anomalies with Interleaved Execution • Reading Uncommitted Data (WR Conflicts, “dirty reads”):e.g. T1: A+100, B+100, T2: A*1.06, B*1.06 T1: R(A), W(A), R(B), W(B), Abort T2: R(A), W(A), C • Unrepeatable Reads (RW Conflicts): E.g., T1: R(A), check if A >0, decrement, T2: R(A), decrement T1: R(A), R(A), W(A), C T2: R(A), W(A), C • Overwriting Uncommitted Data (WW Conflicts): T1: W(A), W(B), C T2: W(A), W(B), C

  11. Schedules involving Aborted Transactions • Serializable schedule: • A schedule whose effect on any consistent database instance is guarranted to be identical to that of some complete serial schedule over the set of committed transactions. • Aborted transactions being undone completely. T1: R(A),W(A), Abort T2: R(A),W(A),R(B),W(B), Commit • Unrecoverable schedule. Otherwise, cascading abort. • Recoverable schedule: transactions commit only after all transactions whose changes they read commit.

  12. Lock-based Concurrency Control • Only serializable, recoverable schedules are allowed. • No actions of committed transactions are lost while undoing aborted transactions. • Lock protocol: a set of rules to be followed by each transaction ( and enforced by DBMS) to ensure that, even though actions of several transactions is interleaved, the net effect is identical to executing al transactions in some serial order.

  13. Lock-Based Concurrency Control • Strict Two-phase Locking (Strict 2PL) Protocol: • Rule 1: Each Transaction must obtain a S (shared) lockon object before reading, and an X (exclusive) lockon object before writing. • Rule 2: All locks held by a transaction are released when the transaction completes. • (Non-strict) 2PL Variant: Release locks anytime, but cannot acquire locks after releasing any lock. • A transaction that has an exclusive lock can also read the object. • A transaction that requests a lock is suspended until the DBMS is able to grant it the requested lock.

  14. Lock-Based Concurrency Control • In effect, only 'safe' interleavings of transactions are allowed. • Two transactions acces completely independent parts of database. • If accessing same objects, all actions of one of transactions (has the lock) are completed before the other transaction can proceed. • Strict 2PL allows only serializable schedules. • Additionally, it simplifies transaction aborts • (Non-strict) 2PL also allows only serializable schedules, but involves more complex abort processing

  15. Lock-based Concurrency Control • Strict 2PL T1: X(A),R(A),W(A),X(B),R(B),W(B),Commit T2: X(A),R(A),W(A),X(B),R(B),W(B), Commit T1: S(A),R(A), X(C),R(C),W(C),Commit T2: S(A),R(A),X(B),R(B),W(B), Commit

  16. Deadlocks • Deadlock: Two transactions are waiting for locks from each other. e.g., T1 holds exclusive lock on B, requests an exclusive lock on B and is queued. T2 holds an exclusive lock on B, and request lock on A and queued. • Deadlock detecting • Timeout mechanism…

  17. Aborting a Transaction • If a transaction Ti is aborted, all its actions have to be undone. Not only that, if Tj reads an object last written by Ti, Tj must be aborted as well! • Most systems avoid such cascading abortsby releasing a transaction’s locks only at commit time. • If Ti writes an object, Tj can read this only after Ti commits. • In order to undo the actions of an aborted transaction, the DBMS maintains a log in which every write is recorded. This mechanism is also used to recover from system crashes: all active Xacts at the time of the crash are aborted when the system comes back up.

  18. Performance of locking • Lock-based schemes • Resolve conflicts between transactins. • Two basic mechanisms: blocking and aborting. • Blocked transactions hold lock, and force others to wait. • Aborting wastes the work done thus far. • Deadlock is an extreme instance of blocking. A set of transactions is forever blocked unless one of the deadlocked transactions is aborted. • Overhead of locking is primarily from delays due to blocking.

  19. Crush Recovery • Recovery Manager is responsible for ensuring transaction atomicity and durability. • Ensure atomicity by undoing the actions of transactions that do not commit. • Ensure durability by making sure that all actions of committed transactions survive system crashes and media failure. • Transaction Manager controls execution of transactions. • Acquire lock before reading and writing.

  20. Stealing Frames and Forcing Pages • Steal approach: • Can the changes made to an object O in the buffer pool by a transaction R be written to disk before T commits? Happen in Page replacement. • Force approach: • When a transaction commits, must we ensure that all the changes it has made to objects in the buffer pool are immediately forced to disk?

  21. Stealing Frames and Forcing Pages • Simplest: No-steal, force. • Why? No-steal --- No undo. Force --- No redo. • Most system use steal, no-force approach. • Why? • Assumption in No-steal: all pages modified by ongoing transactions can be accommodated in the buffer pool. Unrealistic. • Force results in excessive page I/O. • Steal: replaced page is written to disk even if its transaction is still alive. No-force: pages in the buffer pool that are modified by a transaction are not forced to disk when the transaction commits.

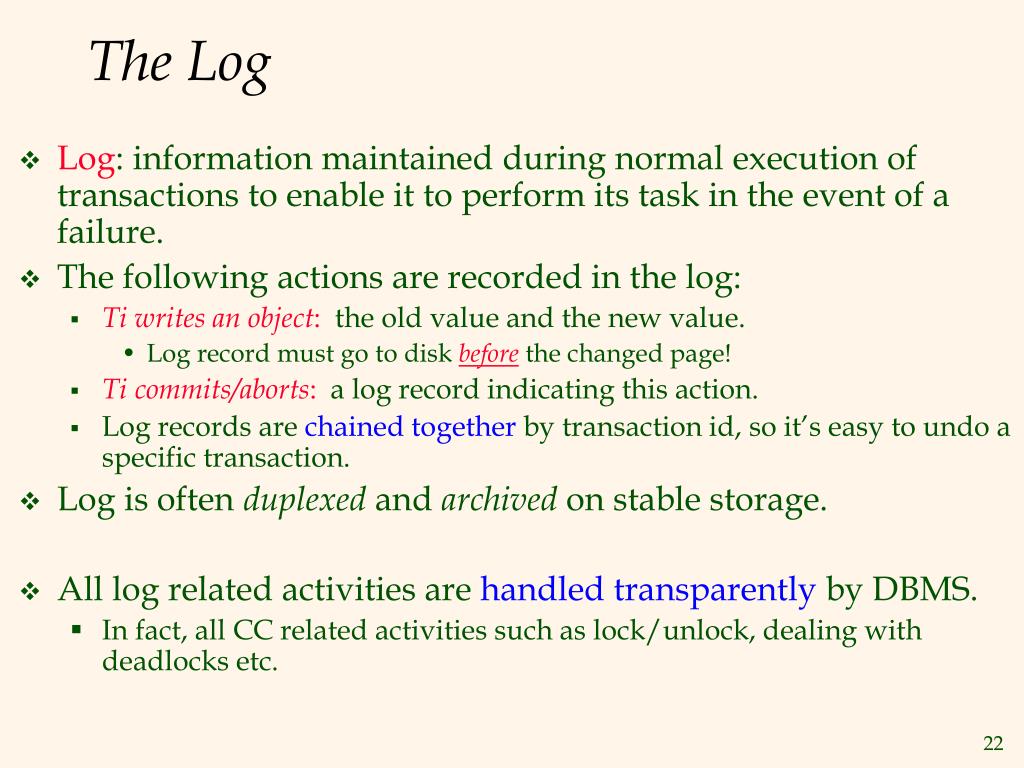

  22. The Log • Log: information maintained during normal execution of transactions to enable it to perform its task in the event of a failure. • The following actions are recorded in the log: • Ti writes an object: the old value and the new value. • Log record must go to diskbeforethe changed page! • Ti commits/aborts: a log record indicating this action. • Log records are chained together by transaction id, so it’s easy to undo a specific transaction. • Log is often duplexed and archived on stable storage. • All log related activities are handled transparently by DBMS. • In fact, all CC related activities such as lock/unlock, dealing with deadlocks etc.

  23. Recovering From a Crash • Checkpointing: saves information about active transactions and dirty buffer pool pages, also helps reduce the time taken to recover from a crash. • There are 3 phases in the Aries recovery algorithm: • Analysis: Scan the log forward (from the most recent checkpoint) to identify all transactions that were active, and all dirty pages in the buffer pool at the time of the crash. • Redo: Redoes all updates to dirty pages in the buffer pool, as needed, to ensure that all logged updates are in fact carried out and written to disk. • Undo: The writes of all transactions that were active at the crash are undone • By restoring the before value of the update, which is in the log record for the update. • working backwards in the log. • Some care must be taken to handle the case of a crash occurring during the recovery process!

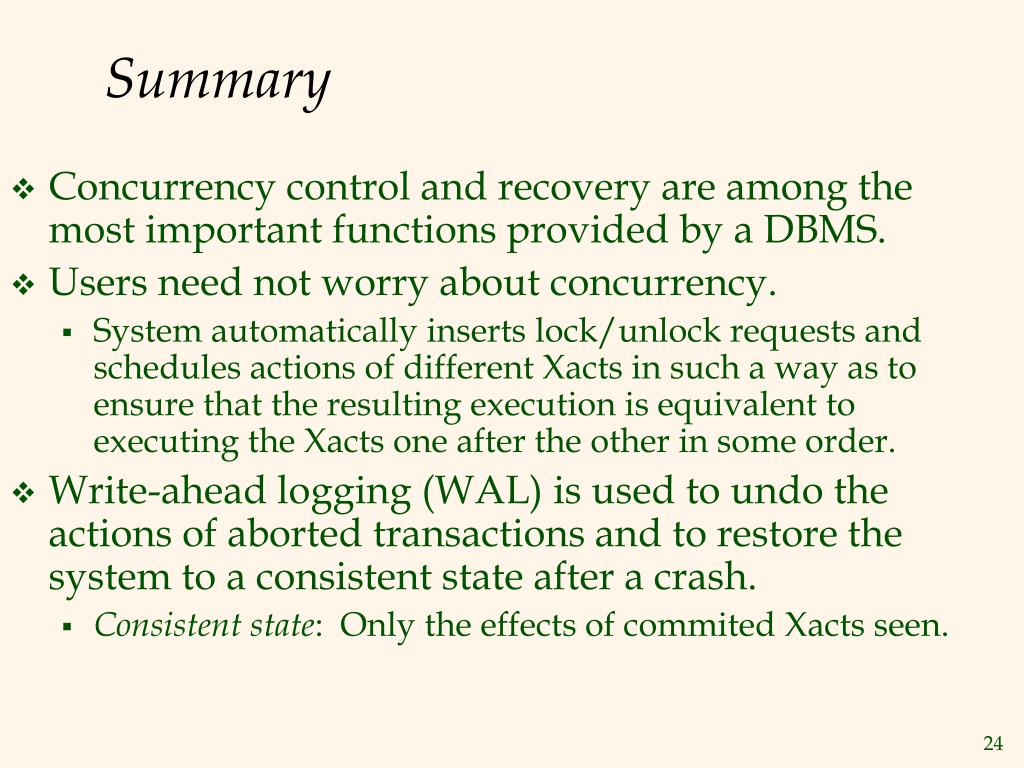

  24. Summary • Concurrency control and recovery are among the most important functions provided by a DBMS. • Users need not worry about concurrency. • System automatically inserts lock/unlock requests and schedules actions of different Xacts in such a way as to ensure that the resulting execution is equivalent to executing the Xacts one after the other in some order. • Write-ahead logging (WAL) is used to undo the actions of aborted transactions and to restore the system to a consistent state after a crash. • Consistent state: Only the effects of commited Xacts seen.
