Presentation Transcript


Lateral lithostratigraphic changes

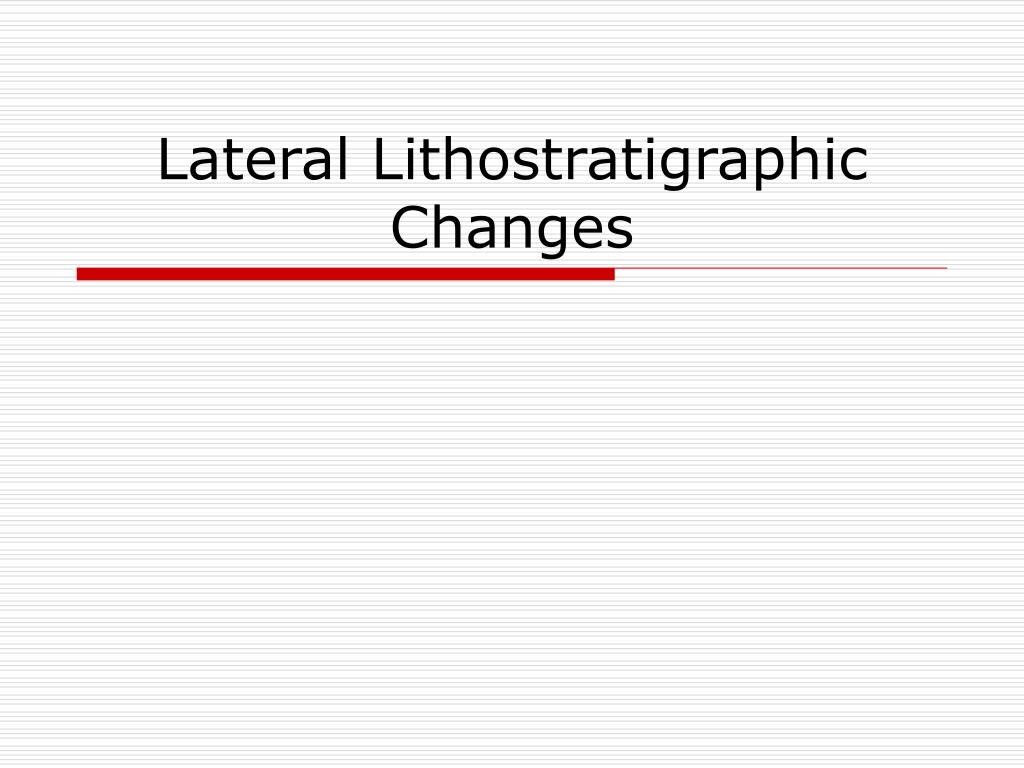

Lateral Lithostratigraphic Changes


I intro

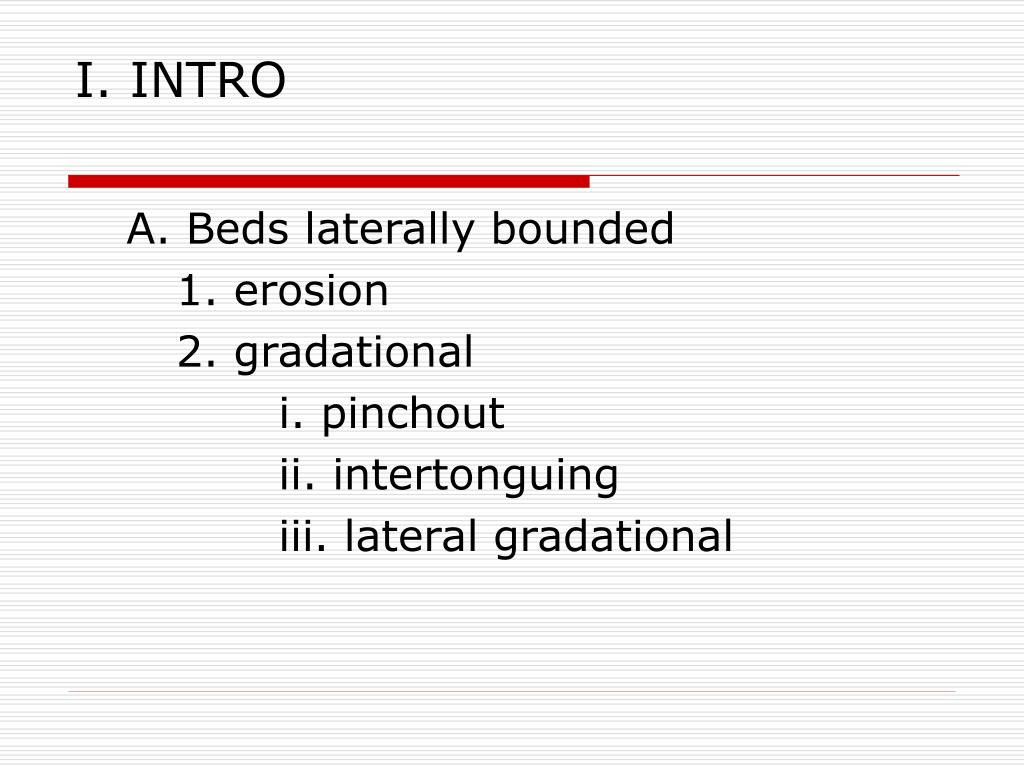

I. INTRO

A. Beds laterally bounded

1. erosion

2. gradational

i. pinchout

ii. intertonguing

iii. lateral gradational


Lateral lithostratigraphic changes

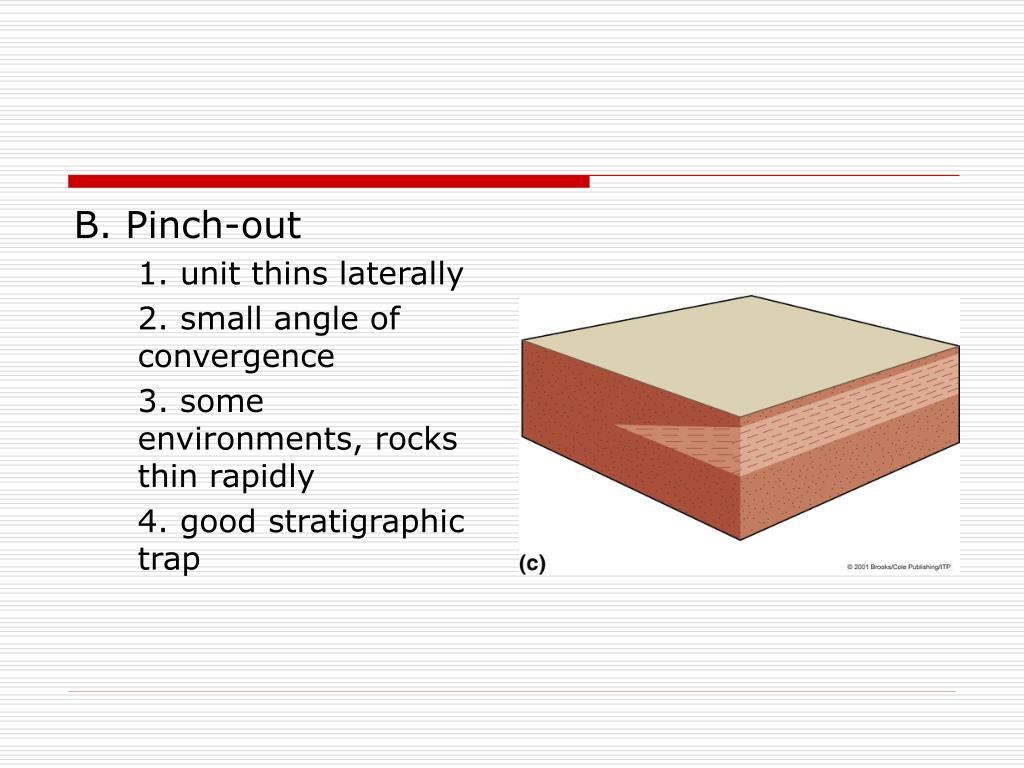

B. Pinch-out

1. unit thins laterally

2. small angle of convergence

3. some environments, rocks thin rapidly

4. good stratigraphic trap


Turbidite pinchout

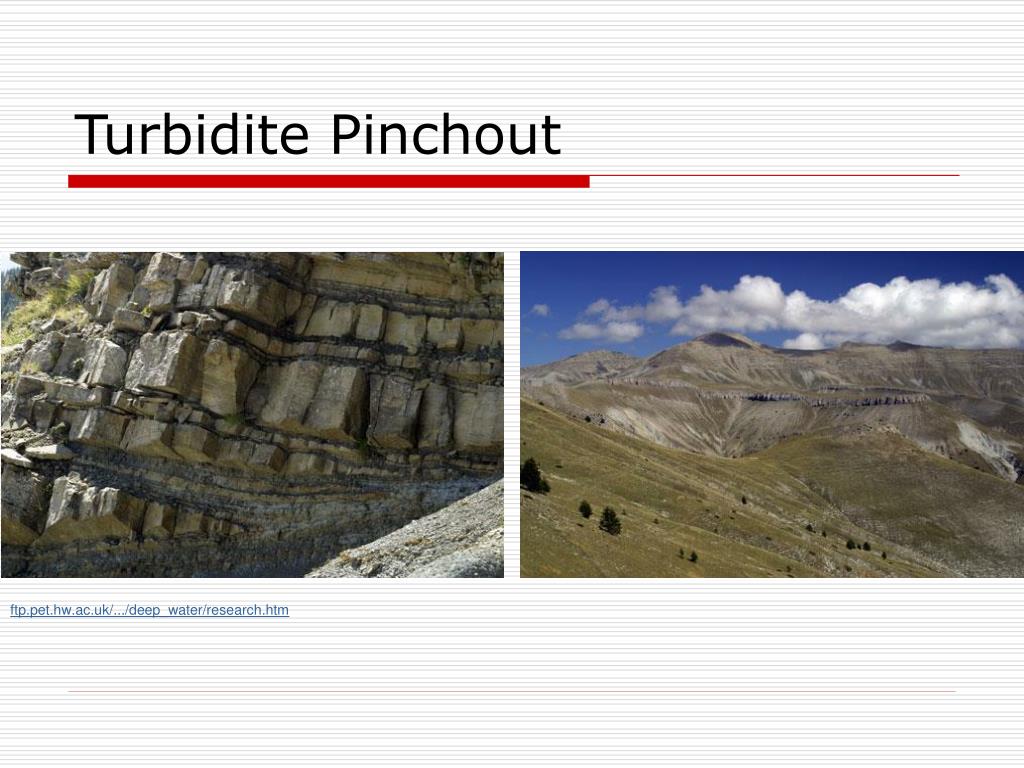

Turbidite Pinchout

ftp.pet.hw.ac.uk/.../deep_water/research.htm

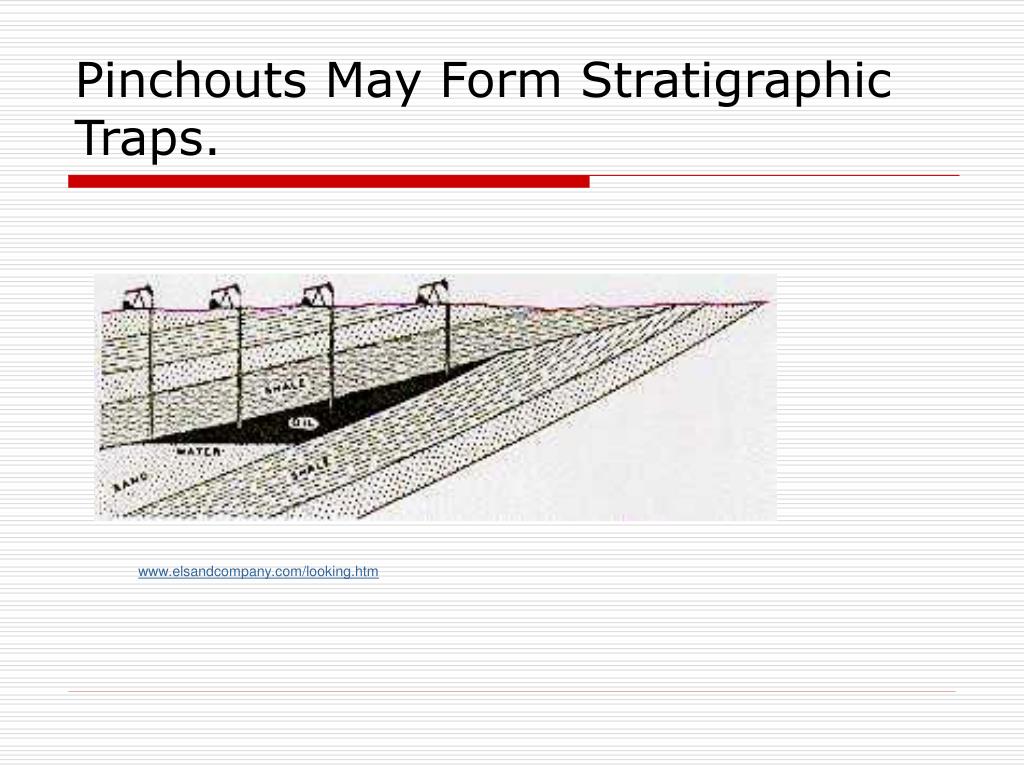

Pinchouts may form stratigraphic traps

Pinchouts May Form Stratigraphic Traps.

www.elsandcompany.com/looking.htm

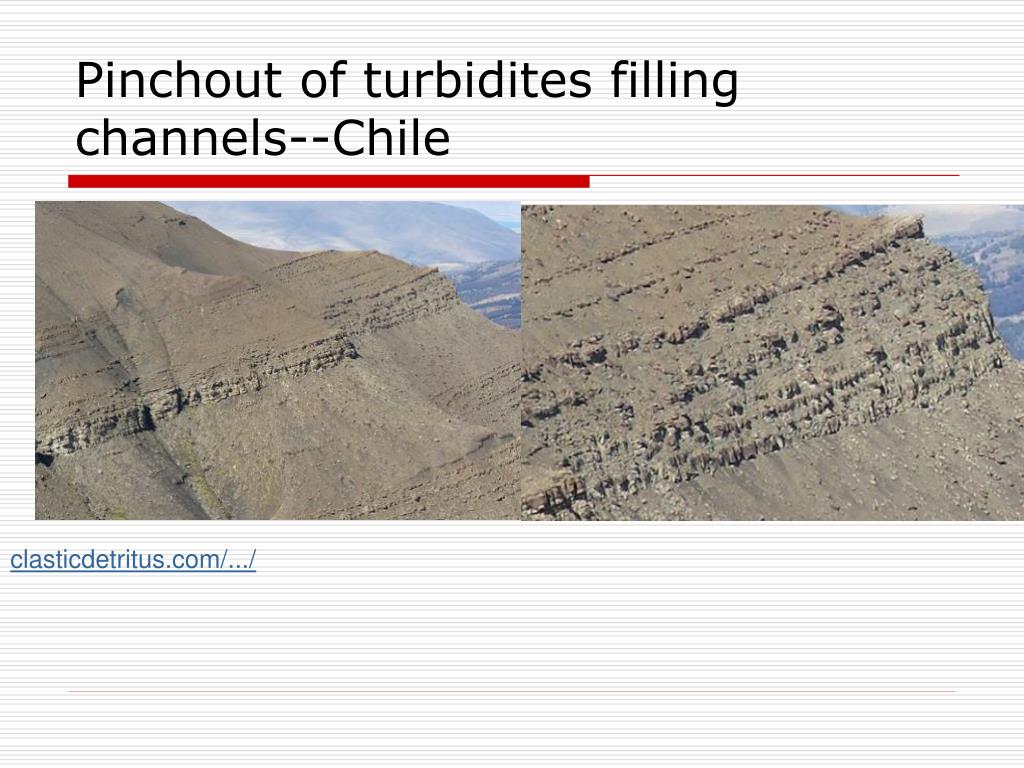

Pinchout of turbidites filling channels chile

Pinchout of turbidites filling channels--Chile

clasticdetritus.com/.../


Lateral lithostratigraphic changes

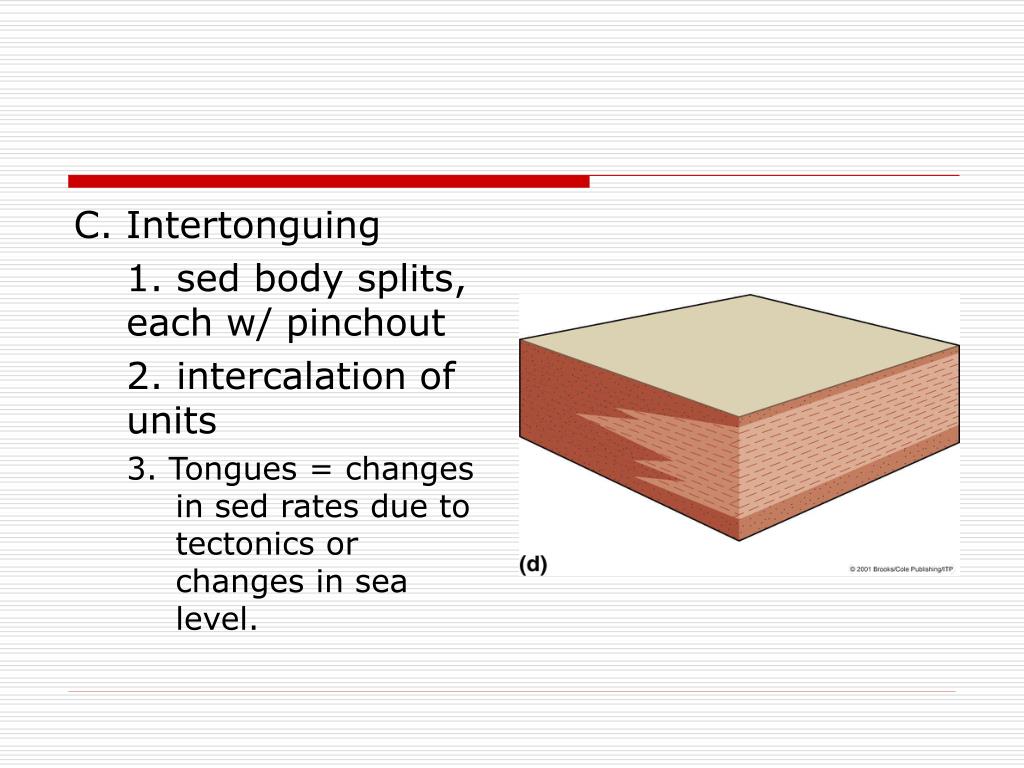

C. Intertonguing

1. sed body splits, each w/ pinchout

2. intercalation of units

3. Tongues = changes in sed rates due to tectonics or changes in sea level.


Lateral lithostratigraphic changes

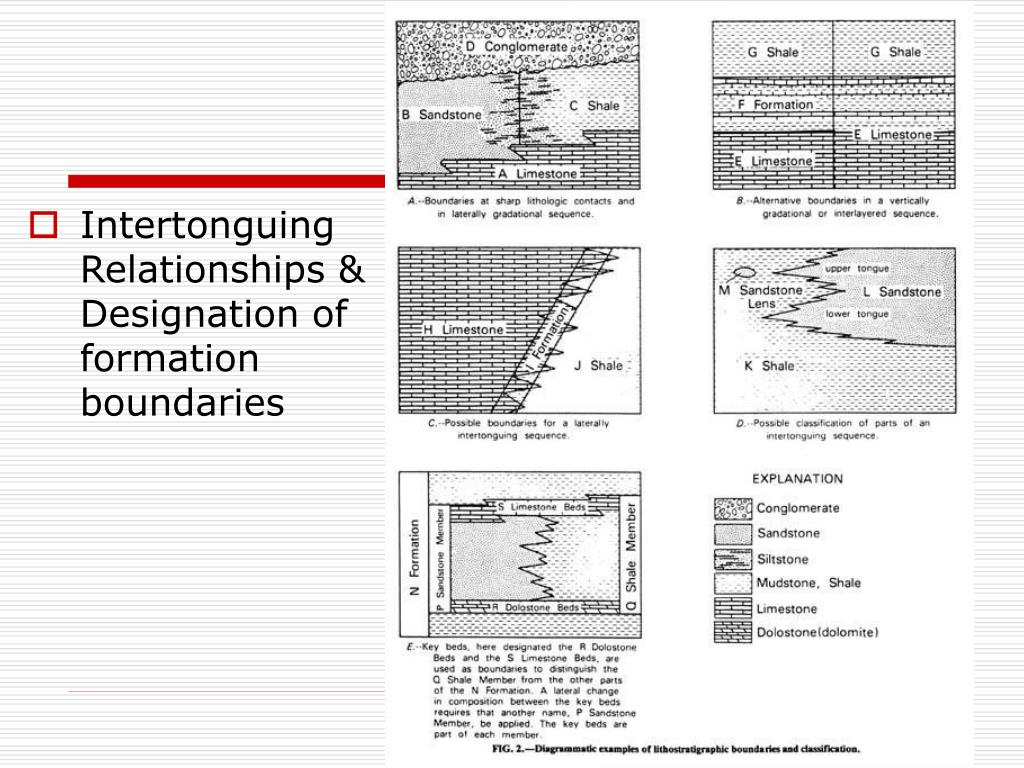

  • Intertonguing Relationships & Designation of formation boundaries


Lateral lithostratigraphic changes

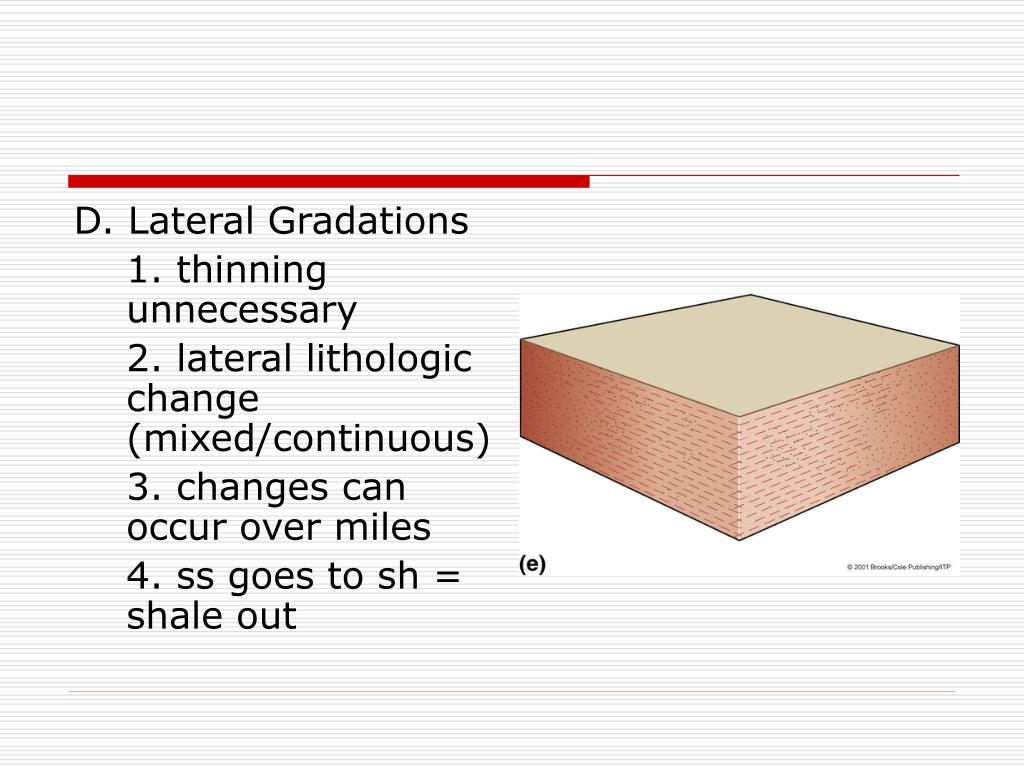

D. Lateral Gradations

1. thinning unnecessary

2. lateral lithologic change (mixed/continuous)

3. changes can occur over miles

4. ss goes to sh = shale out

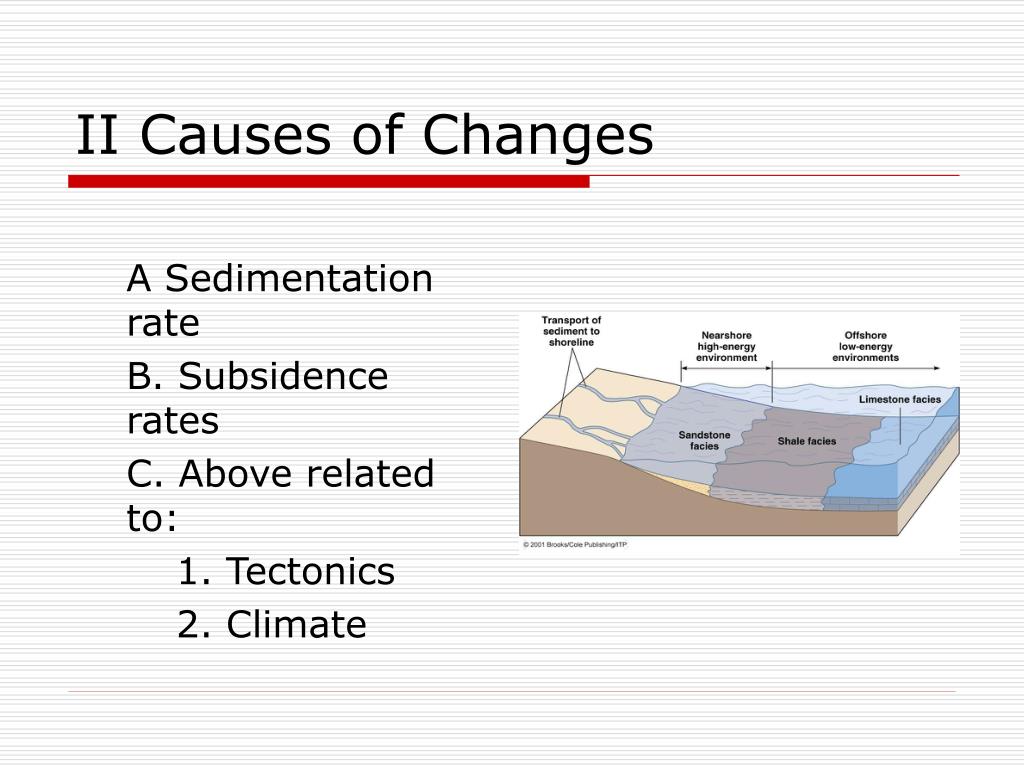

Ii causes of changes

II Causes of Changes

A Sedimentation rate

B. Subsidence rates

C. Above related to:

1. Tectonics

2. Climate


Sedimentary facies

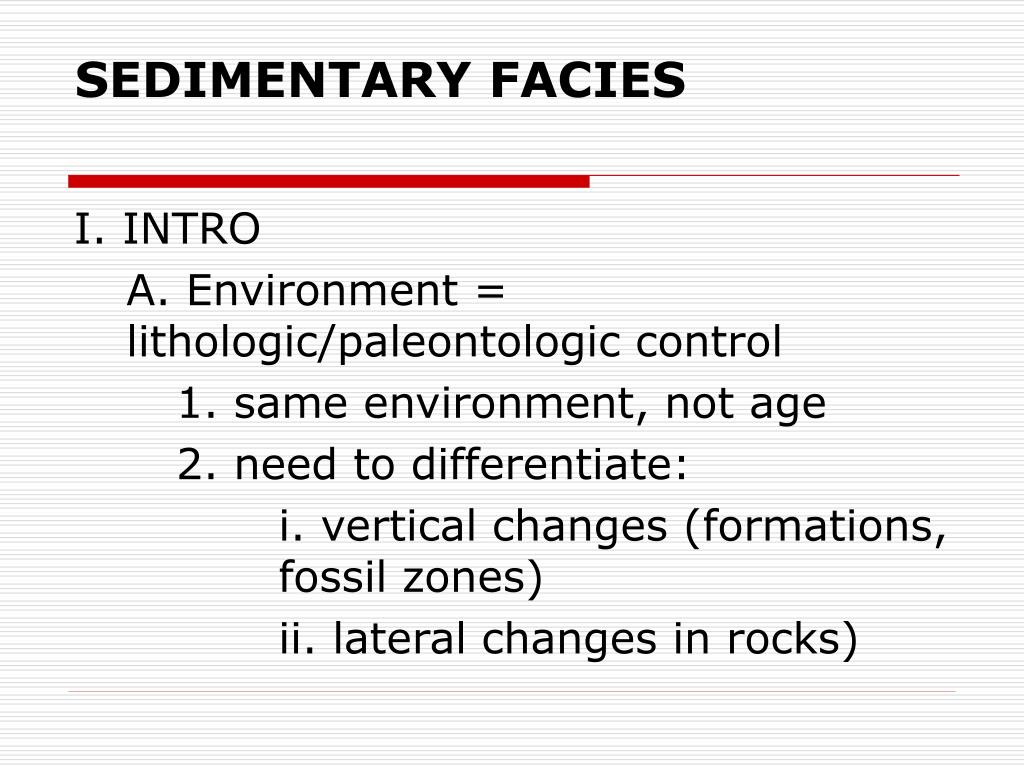

SEDIMENTARY FACIES

I. INTRO

A. Environment = lithologic/paleontologic control

1. same environment, not age

2. need to differentiate:

i. vertical changes (formations, fossil zones)

ii. lateral changes in rocks)


Lateral lithostratigraphic changes

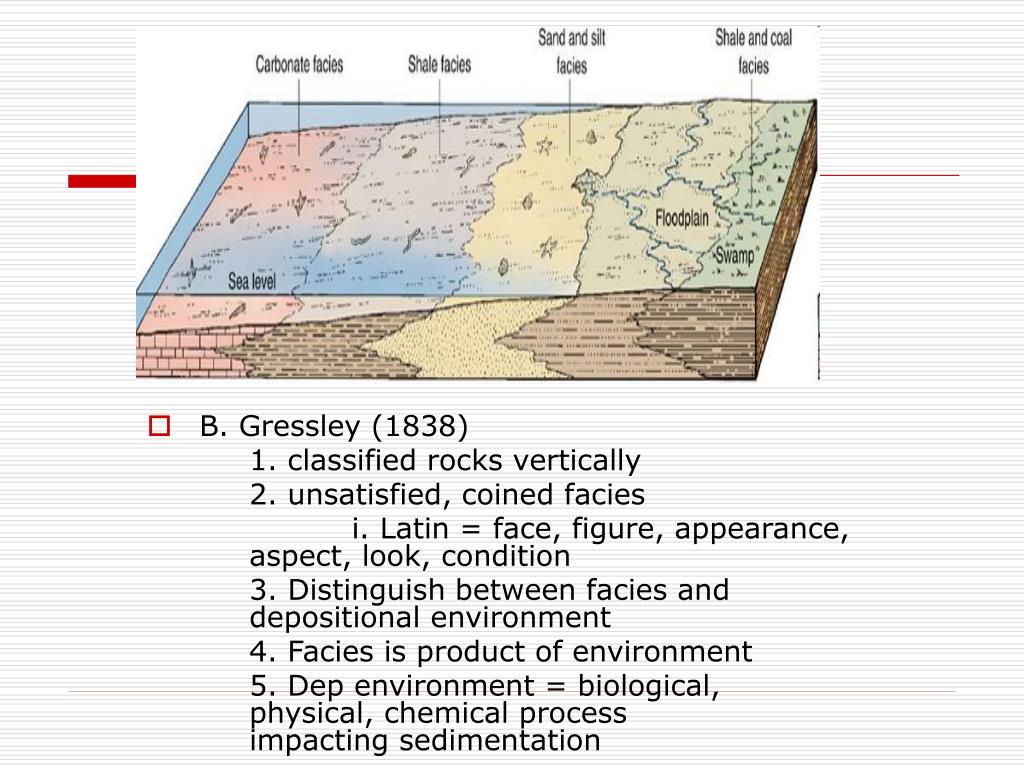

  • B. Gressley (1838)

    1. classified rocks vertically

    2. unsatisfied, coined facies

    i. Latin = face, figure, appearance, aspect, look, condition

    3. Distinguish between facies and depositional environment

    4. Facies is product of environment

    5. Dep environment = biological, physical, chemical process impacting sedimentation


Lateral lithostratigraphic changes

  • Rocks and FaciesFrom Sediment Transport to Rocks - We have been talking about sediment transport and structures. These are processes that influence sedimentary rocks. What we really need is to be able to use our understanding of the processes to interpret ancient rocks when we can no longer see the processes in action. As I mentioned in the first class, we can use the modern processes as a model for interpreting past processes, which is the principle of Uniformitarianism. However, it is often very different to see a process going on than it is to look at the ultimate deposited rock and interpret the process. For example, with bed forms, the entire shape of the structure you see as it migrates is rarely preserved. Instead, you only see a small part of it, if you get any sediment accumulation at all. Thus, we can also start the interpretation from the rock end by describing the general characteristics of the rocks and interpret flow from things like grain size, preserved cross stratification, and biogenic components. Then we can see which environments are consistent with those characteristics.  Sedimentary Facies Analysis - This approach to interpretation is called sedimentary facies analysis. A facies (Latin for aspect or appearance) is a body of rock (i.e. a sequence of beds, etc.) marked by a particular combination of compositional, physical and biological structures that distinguish it from bodies of rock above, below and adjacent to it. A sedimentary facies has a characteristic set of properties that makes it distinctive, which the geologist defines. Facies vs Environments - By grouping characteristics of the rocks into facies, the depositional environments can be more easily compared and interpreted. It is important to remember that the sedimentary environment is the combination of physical, chemical and biological processes that influence sediment deposition, whereas sedimentary facies are the characteristics of the rocks after deposition. It is the difference between a water flow speed of 20 cm/sec and high angle cross stratification; the stratification is the result of high flow speed, but they are not the same.


Lateral lithostratigraphic changes

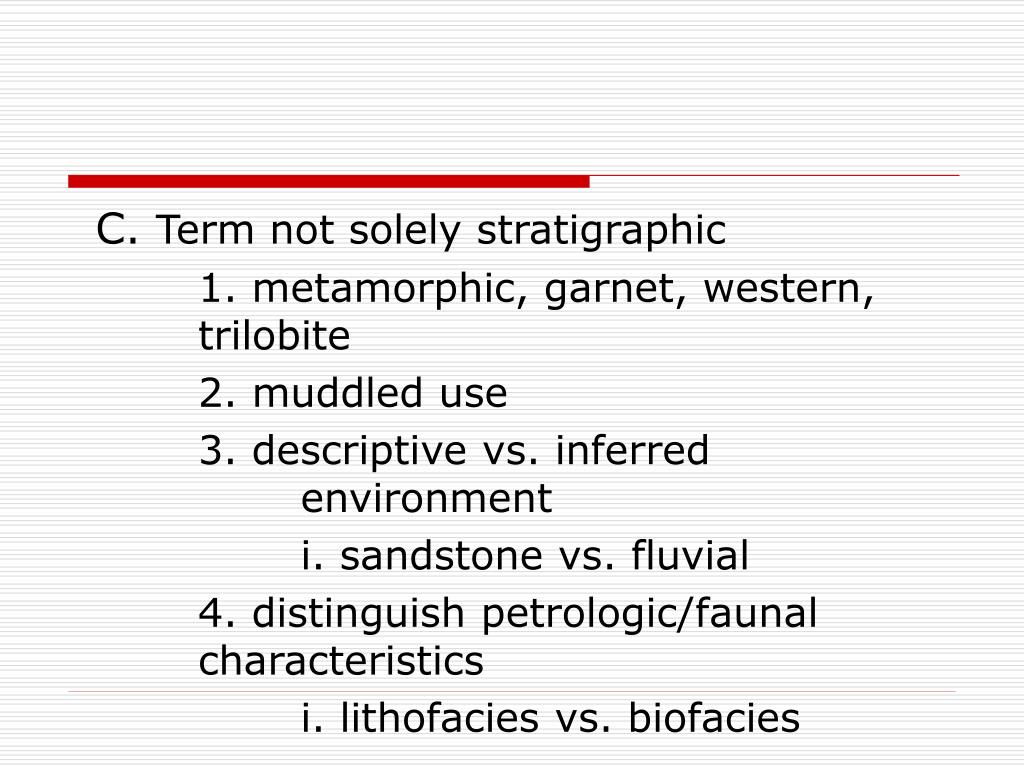

C. Term not solely stratigraphic

1. metamorphic, garnet, western, trilobite

2. muddled use

3. descriptive vs. inferred environment

i. sandstone vs. fluvial

4. distinguish petrologic/faunal characteristics

i. lithofacies vs. biofacies


Lateral lithostratigraphic changes

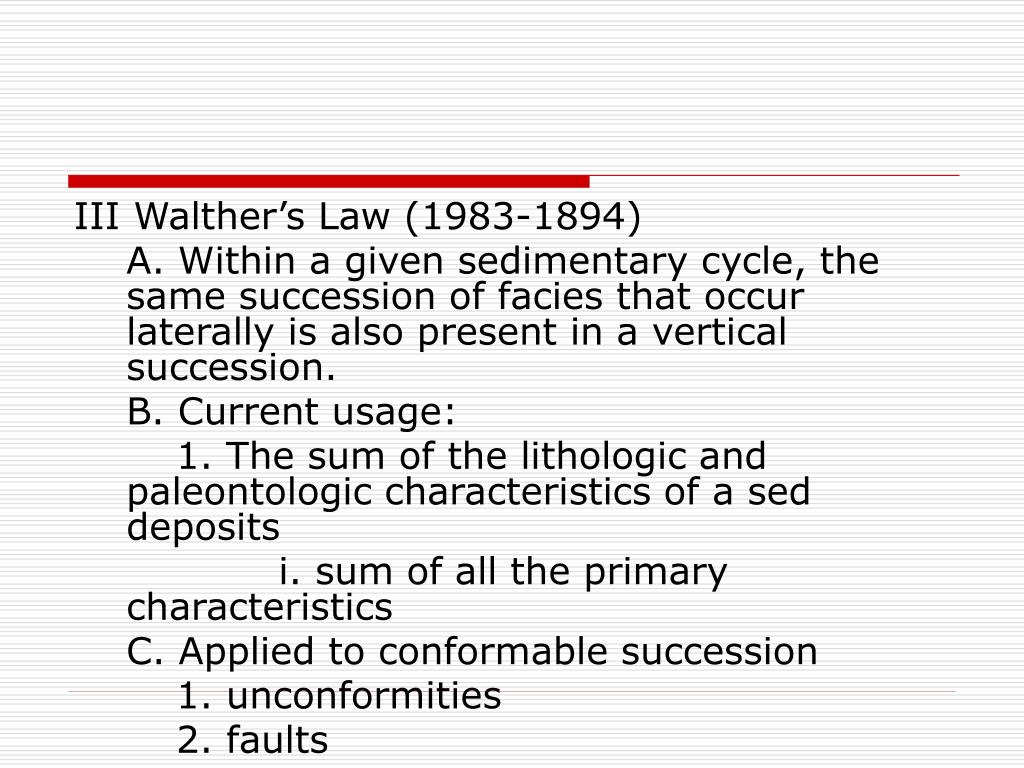

III Walther’s Law (1983-1894)

A. Within a given sedimentary cycle, the same succession of facies that occur laterally is also present in a vertical succession.

B. Current usage:

1. The sum of the lithologic and paleontologic characteristics of a sed deposits

i. sum of all the primary characteristics

C. Applied to conformable succession

1. unconformities

2. faults


Lateral lithostratigraphic changes

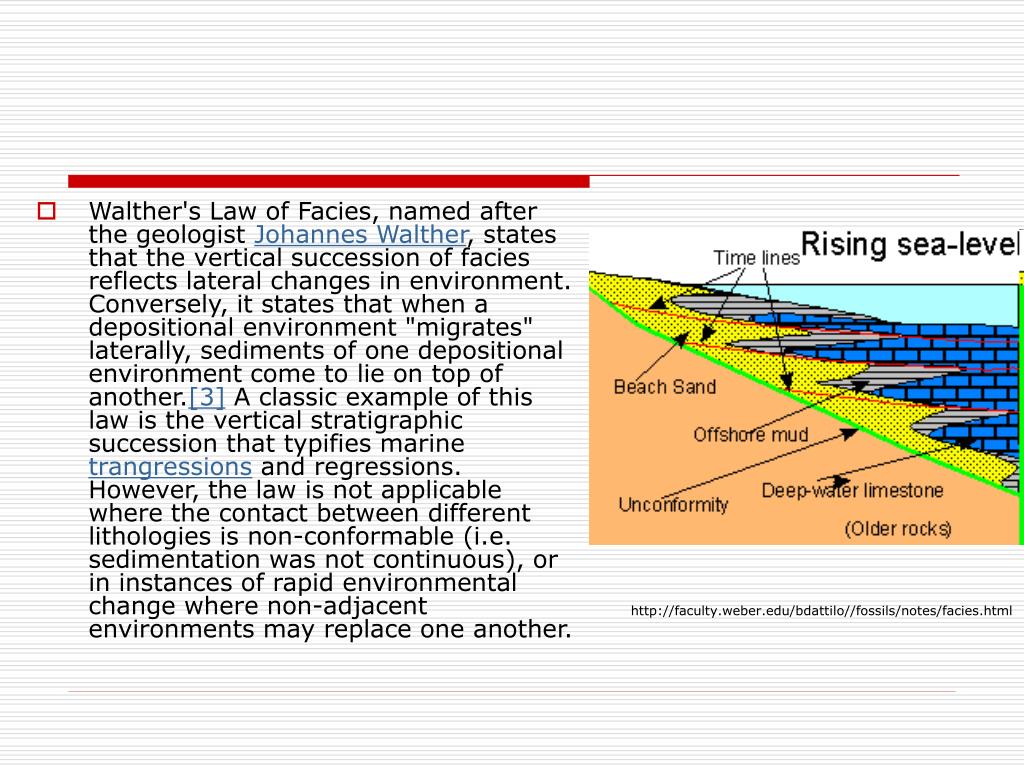

  • Walther's Law of Facies, named after the geologist Johannes Walther, states that the vertical succession of facies reflects lateral changes in environment. Conversely, it states that when a depositional environment "migrates" laterally, sediments of one depositional environment come to lie on top of another.[3] A classic example of this law is the vertical stratigraphic succession that typifies marine trangressions and regressions. However, the law is not applicable where the contact between different lithologies is non-conformable (i.e. sedimentation was not continuous), or in instances of rapid environmental change where non-adjacent environments may replace one another.

http://faculty.weber.edu/bdattilo//fossils/notes/facies.html


Transgression

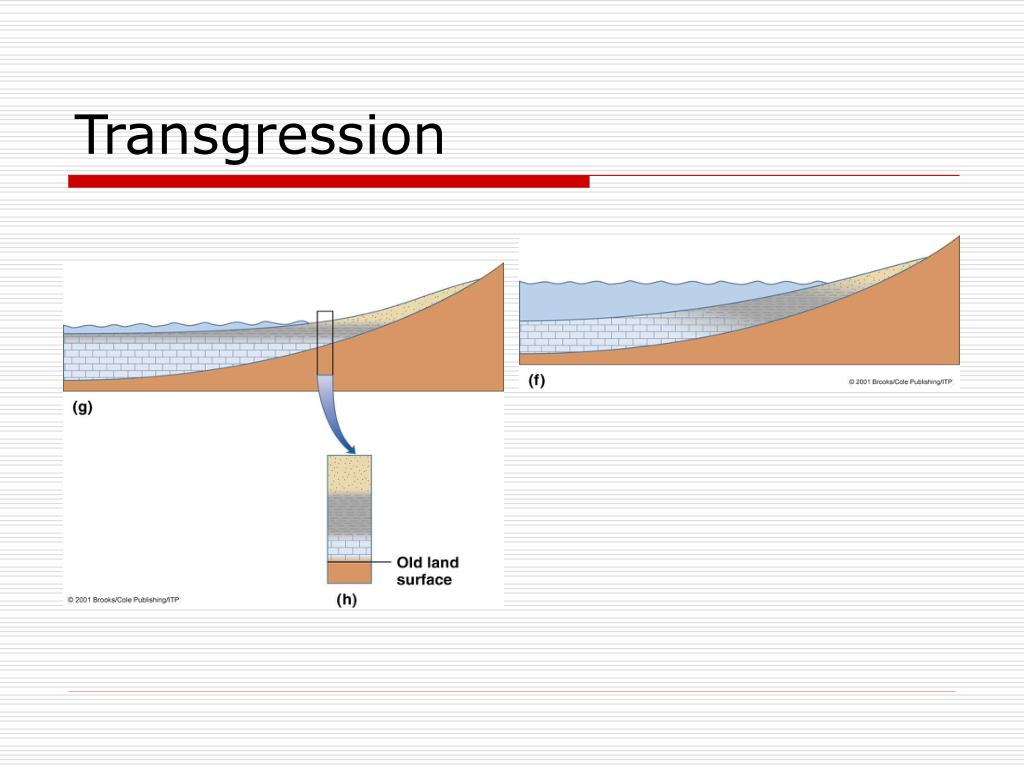

Transgression


Regression

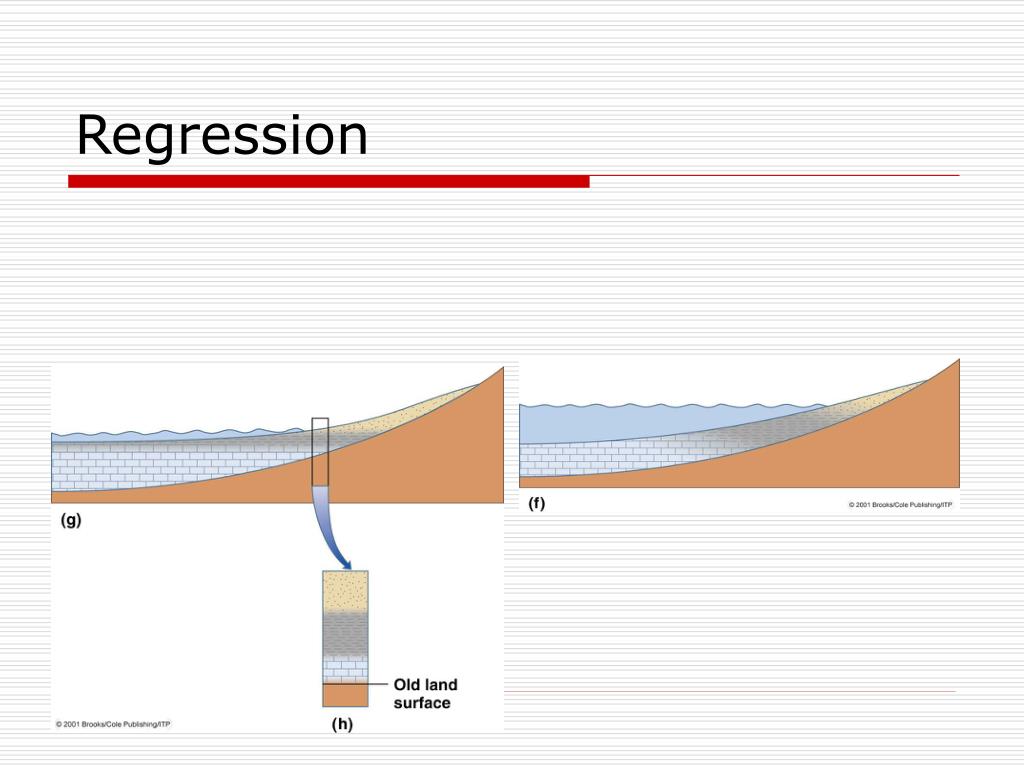

Regression

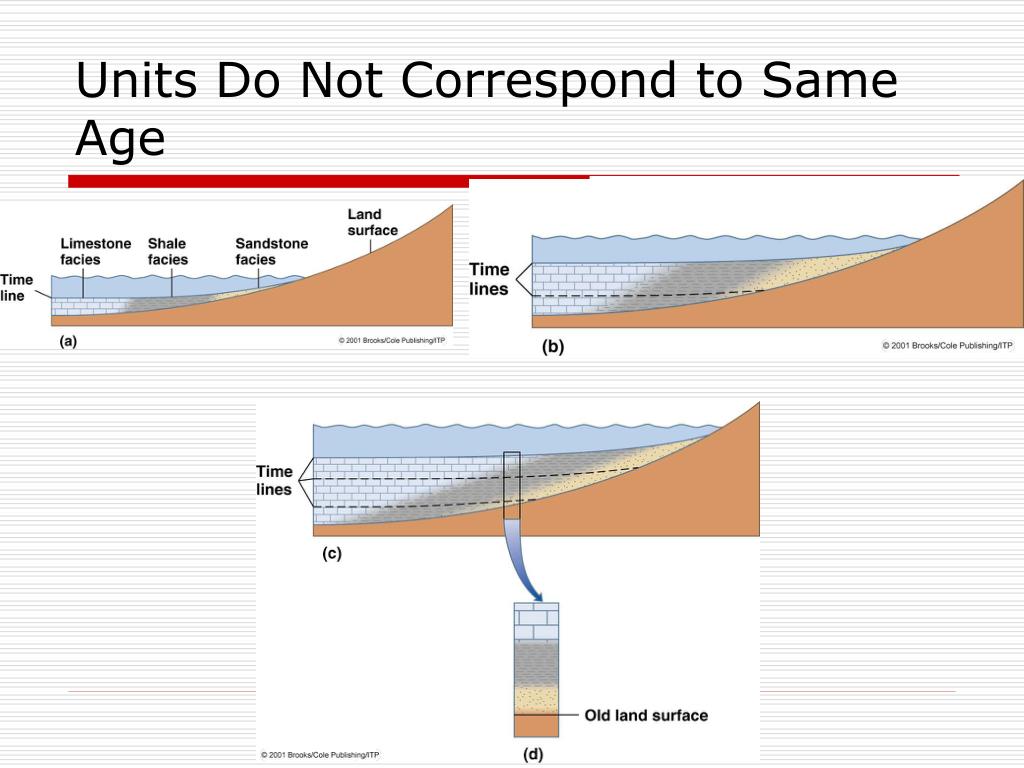

Units do not correspond to same age

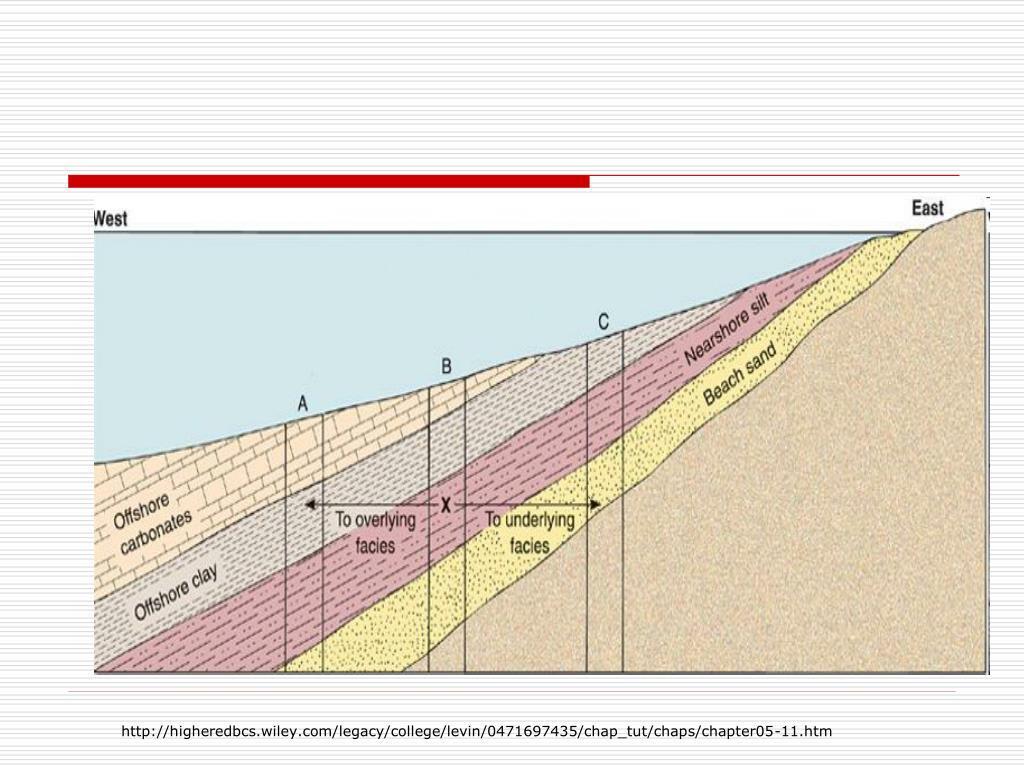

Units Do Not Correspond to Same Age


Lateral lithostratigraphic changes

http://higheredbcs.wiley.com/legacy/college/levin/0471697435/chap_tut/chaps/chapter05-11.htm

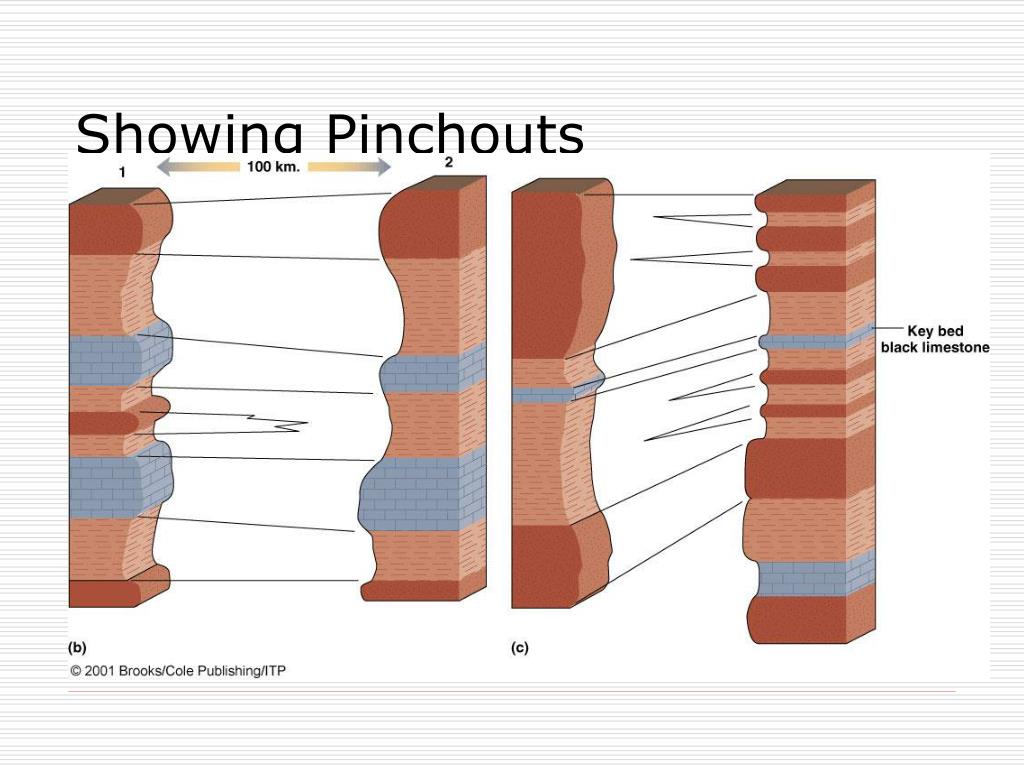

Showing pinchouts

Showing Pinchouts
