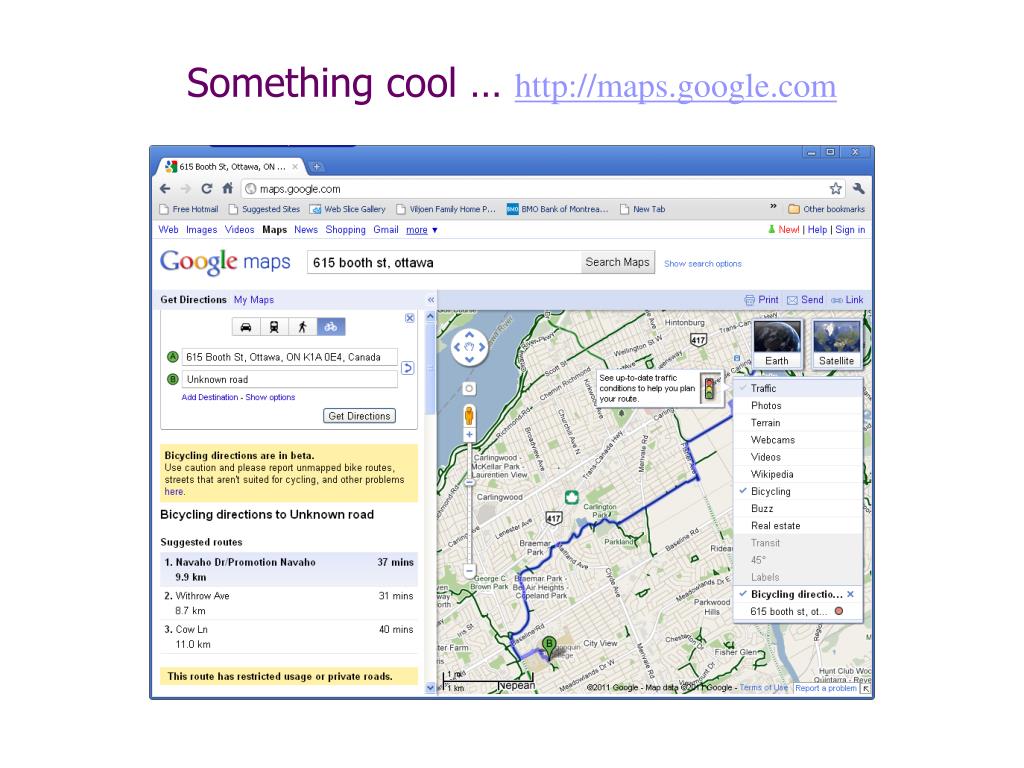

Something cool … maps.google

2. Something cool … http://maps.google.com

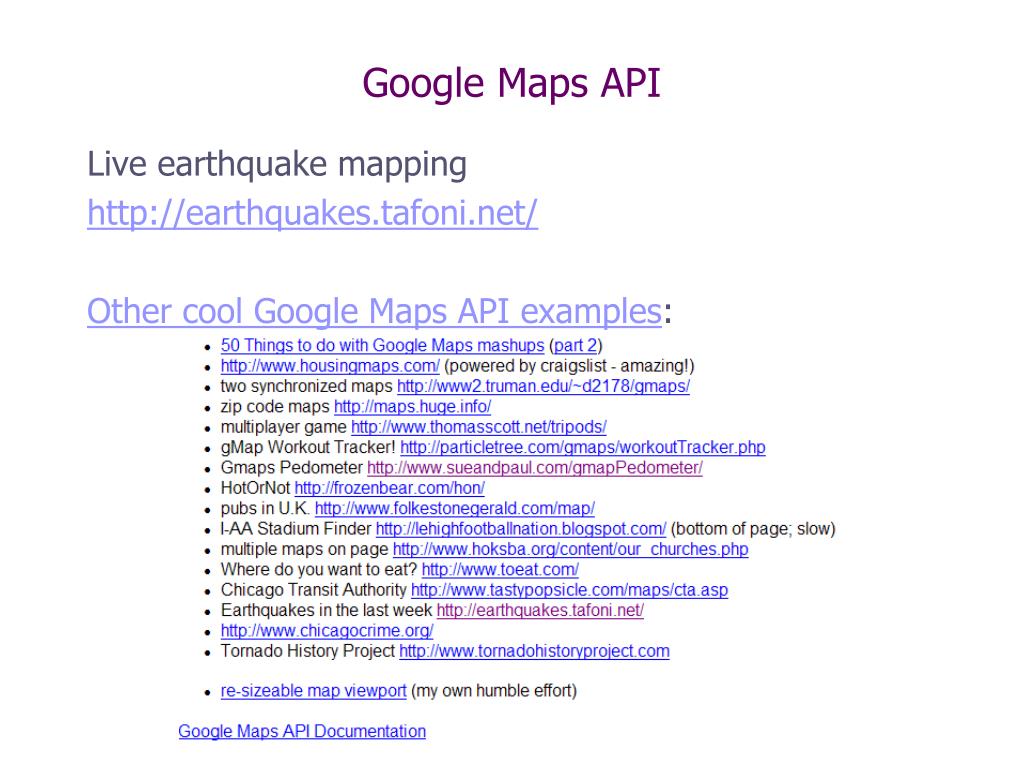

3. Google Maps API Live earthquake mapping http://earthquakes.tafoni.net/ Other cool Google Maps API examples:

4. More Google … • Search full text of bookse.g. http://books.google.com/books?q=uml • Calculator • Search tips & Hidden features • Also look for Google Code, Drive & Translate

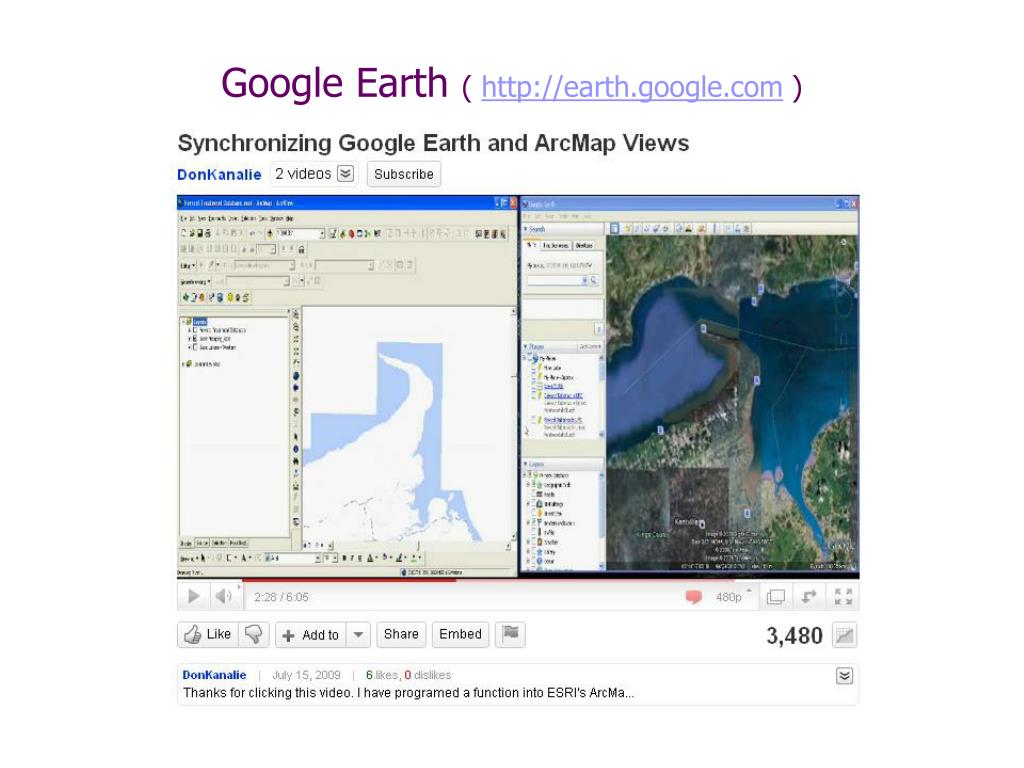

5. Google Earth ( http://earth.google.com )

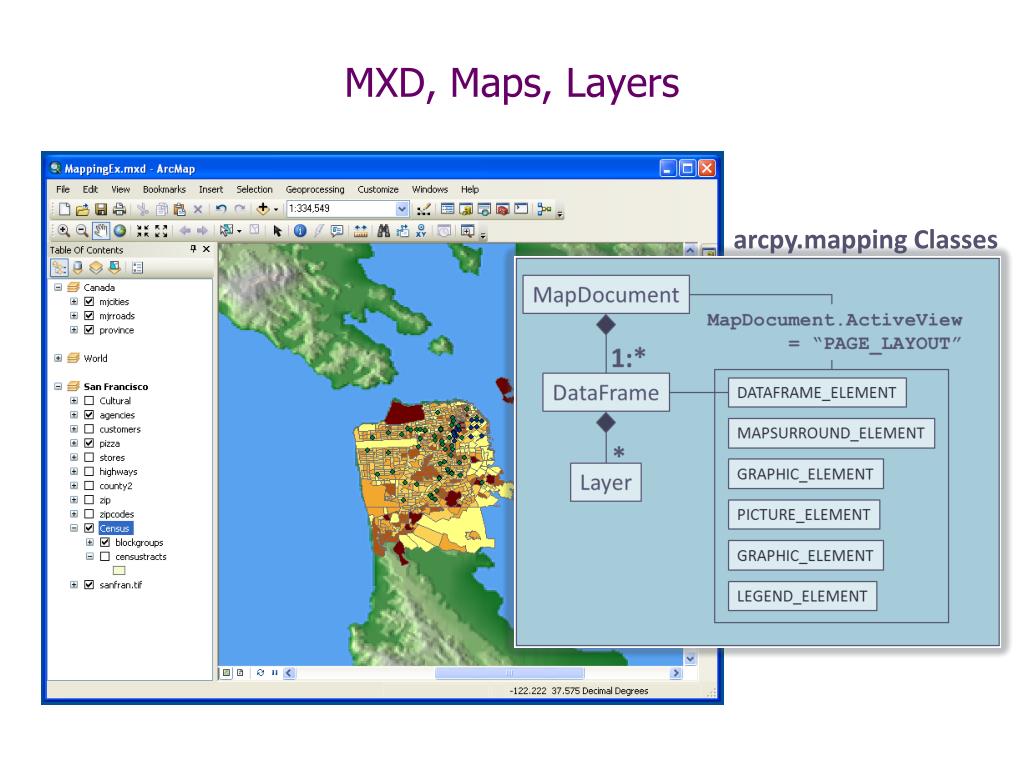

6. MXD, Maps, Layers arcpy.mapping Classes

7. Without opening ArcMap, wouldn’t it be nice to • Get or update • MapDocument (MXD) properties • e.g. title, keywords, relative path, author, etc • DataFrame properties • e.g. name, coordinate system, etc. • Layer properties • e.g. name, visibility, data source, symbology, etc. • Layout element properties • e.g. size, position, • Add, remove, move, and update layers • Save MXD or LYR to earlier version for distribution • Build PDF map books • e.g. Export to PDF or insert into existing PDF

8. arcpy.mapping module

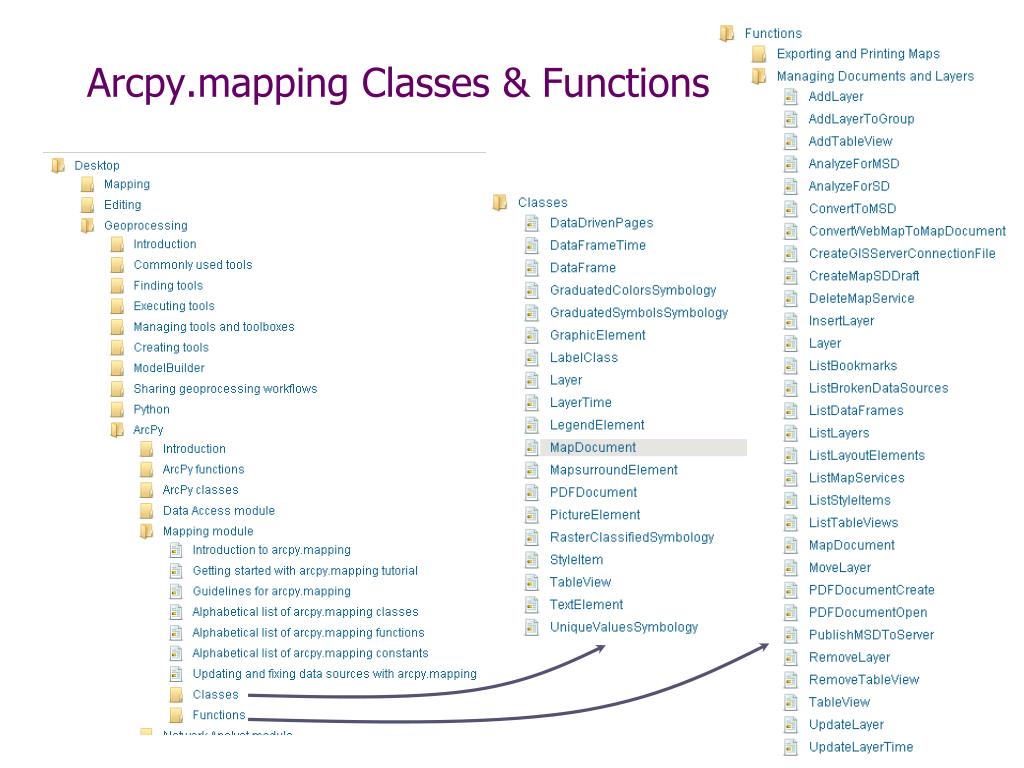

9. Arcpy.mapping Classes & Functions

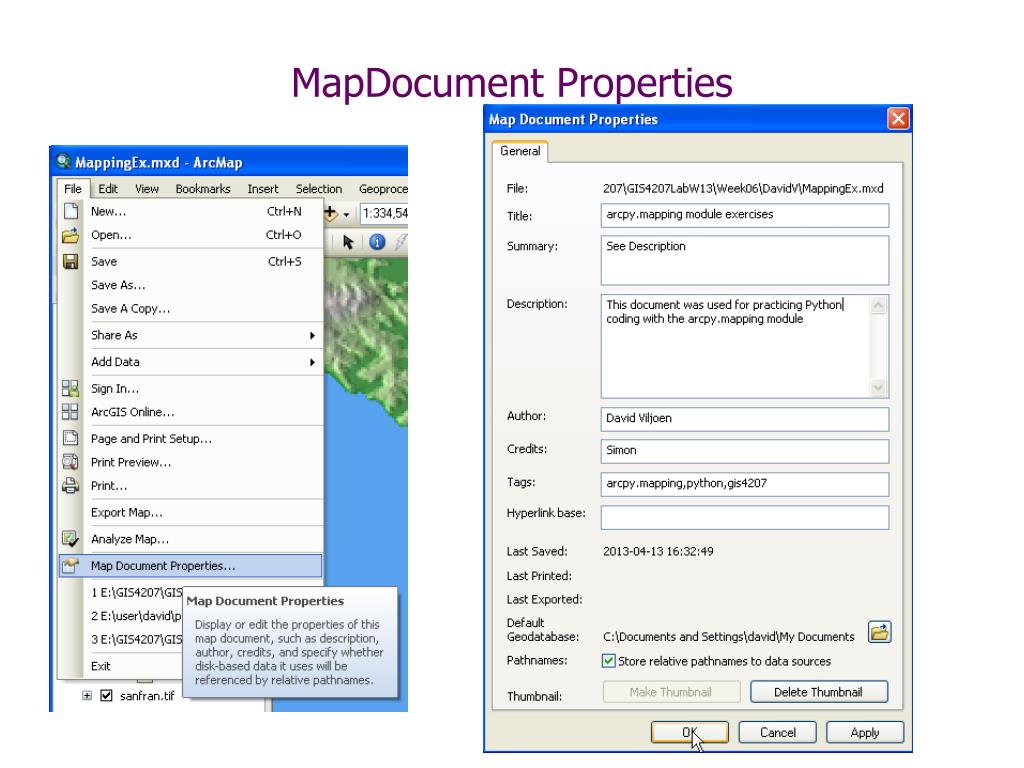

10. MapDocument Properties

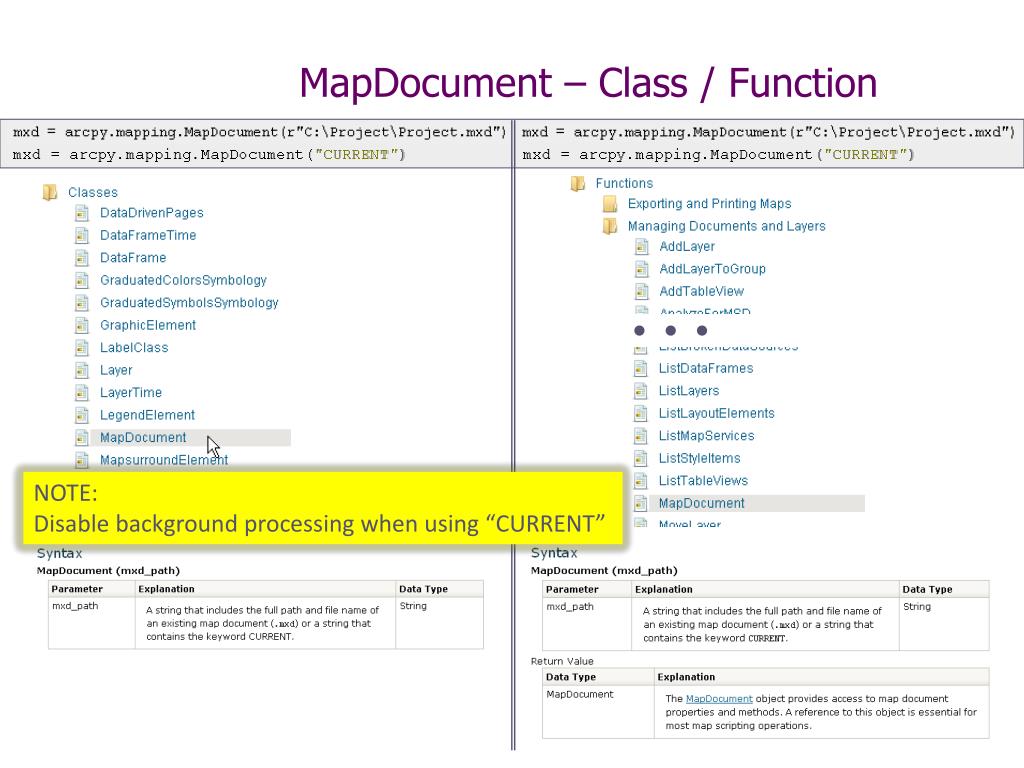

11. MapDocument – Class / Function … NOTE: Disable background processing when using “CURRENT”

12. Properties activeDataFrame (ro) activeView (rw) author (rw) credits (rw) dataDrivenPages (ro) dateExported (ro) datePrinted (ro) dateSaved (ro) description (rw) filePath (ro) hyperlinkBase (rw) relativePaths (rw) summary (rw) tags (rw) title (rw) Methods deleteThumbnail() findAndReplaceWorkspacePaths( find_workspace_path, replace_workspace_path, {validate}) makeThumbnail () replaceWorkspaces( old_workspace_path, old_workspace_type, new_workspace_path, new_workspace_type, {validate}) save () saveACopy( file_name, {version}) MapDocument Properties & Methods (ro) = read-only (rw) = read-write

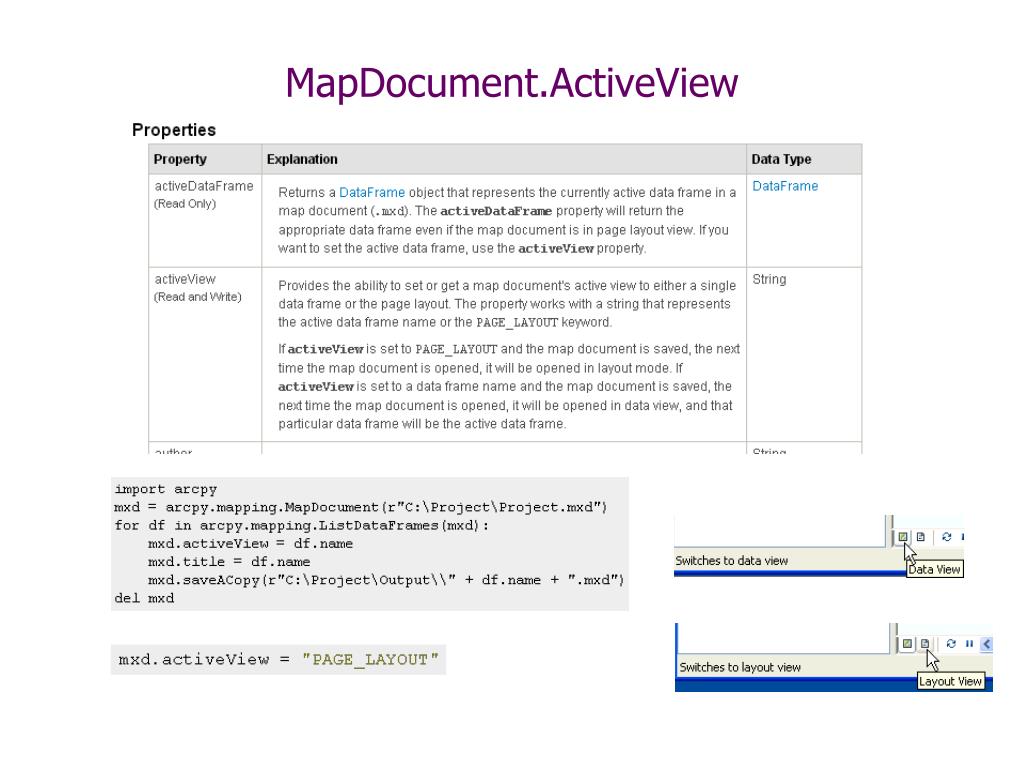

13. MapDocument.ActiveView

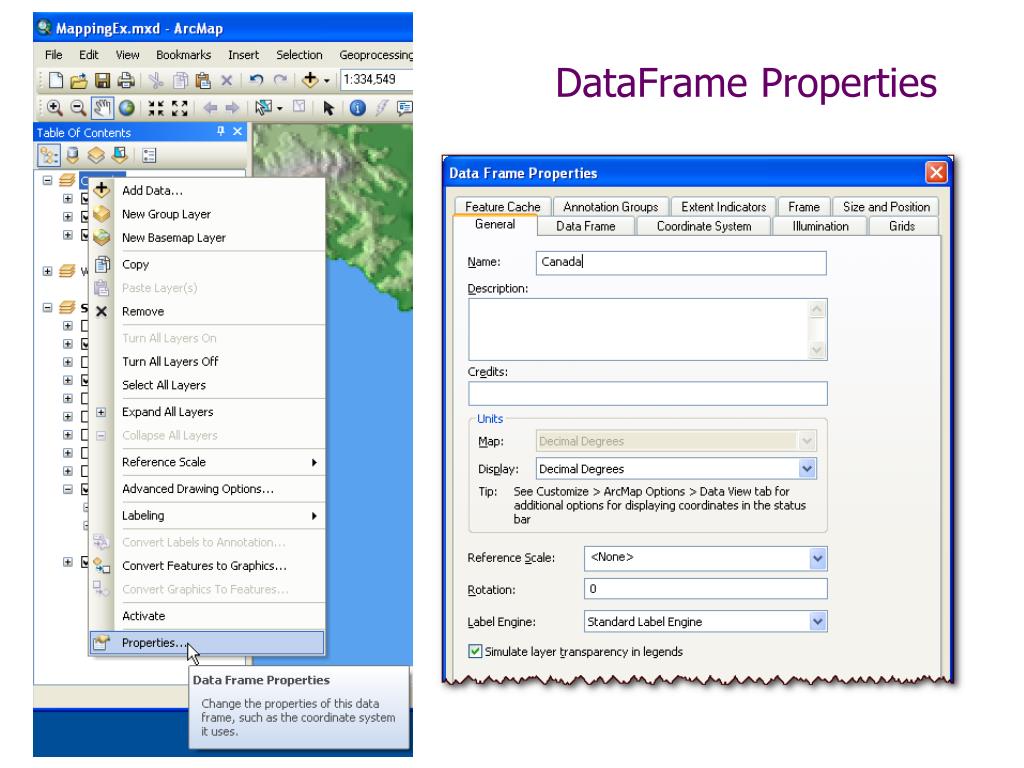

14. DataFrame Properties

15. Properties credits (rw) description (rw) displayUnits (rw) elementHeight (rw) elementPositionX (rw) elementPositionY (rw) elementWidth (rw) extent (rw) geographicTransformations (rw) mapUnits (ro) name (rw) referenceScale (rw) rotation (rw) scale (rw) spatialReference (rw) time (ro) type (ro) Methods panToExtent(extent) zoomToSelectedFeatures() DataFrame Properties & Methods

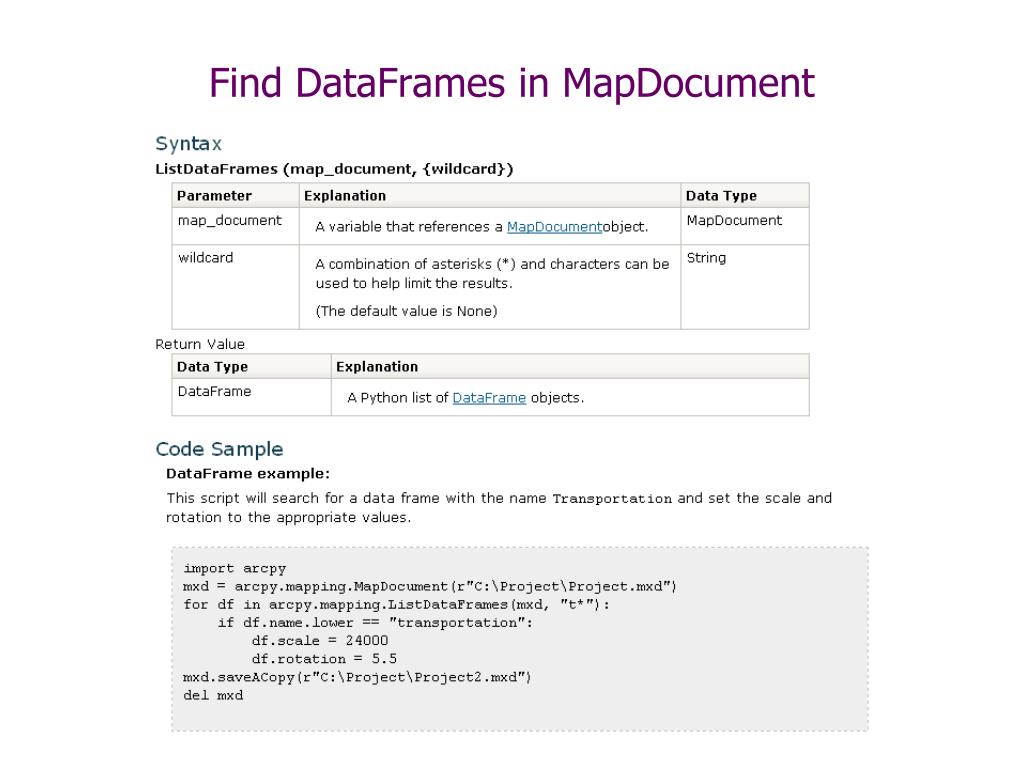

16. Find DataFrames in MapDocument

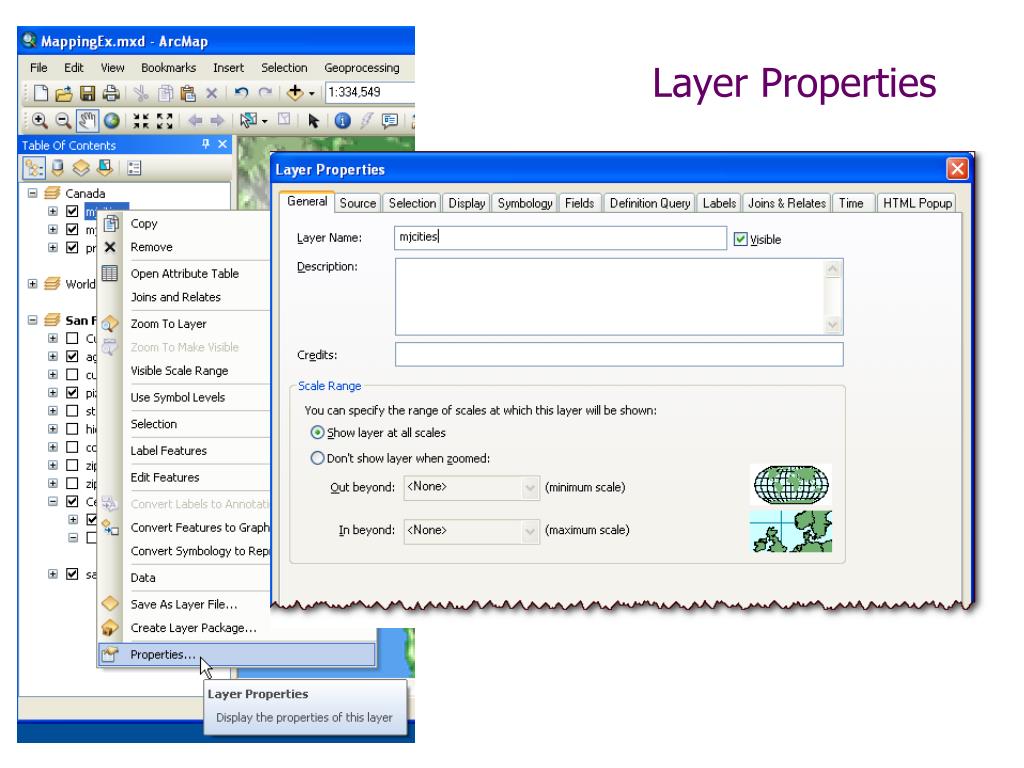

17. Layer Properties

18. Find Layers in a DataFrame i.e. All layers in all DataFrame’s

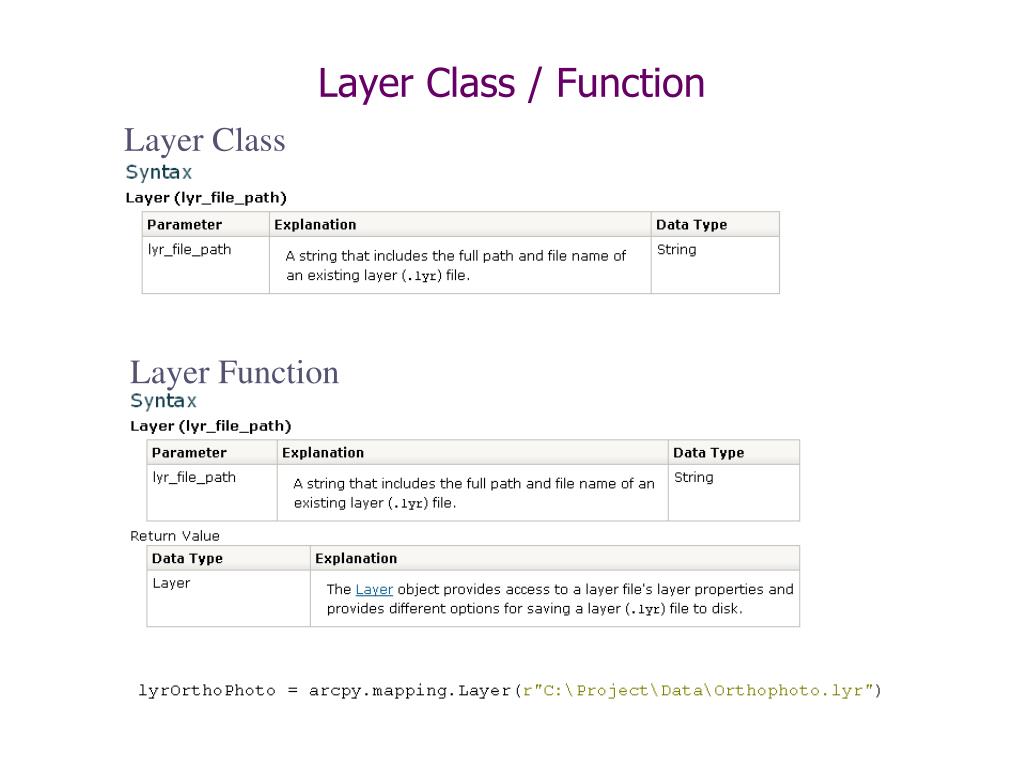

19. Layer Class / Function Layer Class Layer Function

20. Properties brightness (rw) contrast (rw) credits (rw) datasetName (rw) dataSource (rw) definitionQuery (rw) description (rw) isFeatureLayer (ro) isGroupLayer (ro) isRasterizingLayer (ro) isRasterLayer (ro) labelClasses (rw) longName (ro) name (rw) serviceProperties (ro) showLabels (rw) transparency (rw) visible (rw) workspacePath (ro) Methods findAndReplaceWorkspacePath( find_workspace_path, replace_workspace_path, {validate}) getExtent( {symbolized_extent}) getSelectedExtent( {symbolized_extent}) replaceDataSource( workspace_path, workspace_type, dataset_name, {validate}) save () saveACopy( file_name, {version}) supports( layer_property) Layer Properties & Methods Layer = • .lyr file • Layer in DataFrame Selected properties

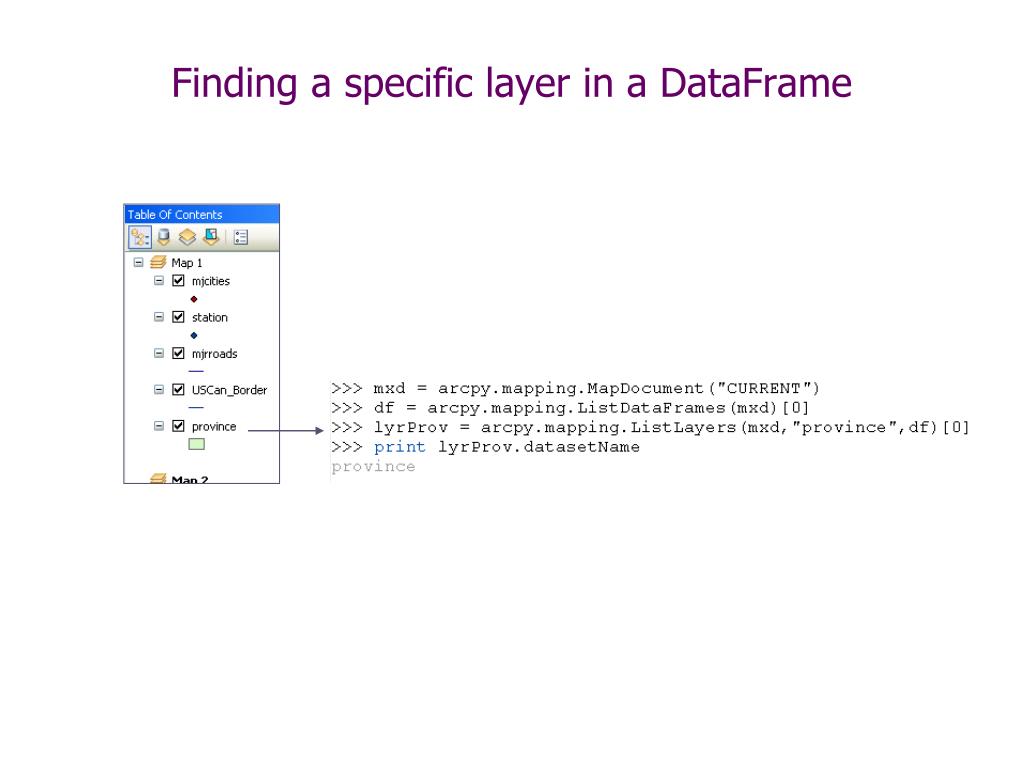

21. Finding a specific layer in a DataFrame

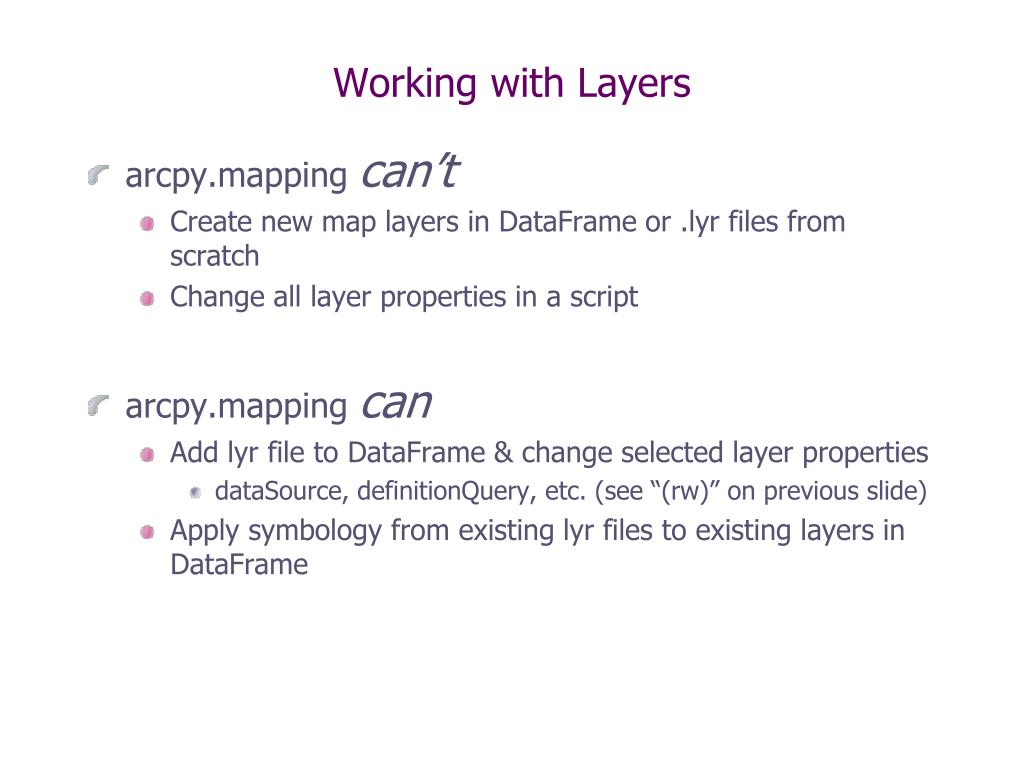

22. Working with Layers • arcpy.mapping can’t • Create new map layers in DataFrame or .lyr files from scratch • Change all layer properties in a script • arcpy.mapping can • Add lyr file to DataFrame & change selected layer properties • dataSource, definitionQuery, etc. (see “(rw)” on previous slide) • Apply symbology from existing lyr files to existing layers in DataFrame

23. Adding a Layer to a DataFrame

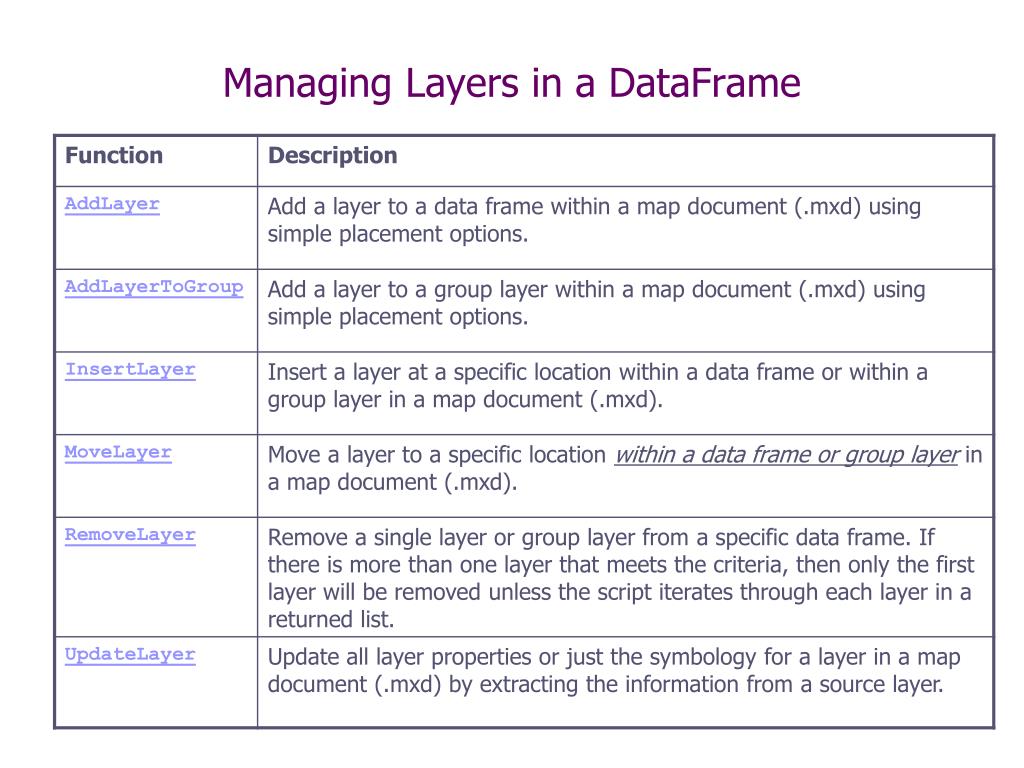

24. Managing Layers in a DataFrame

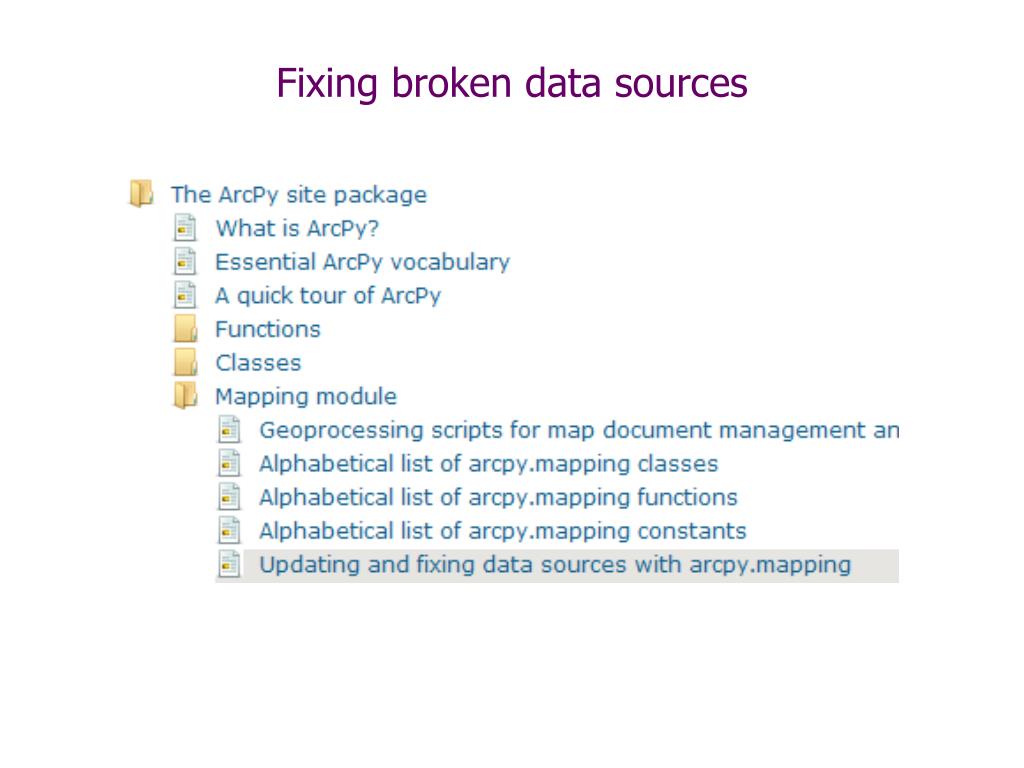

25. Fixing broken data sources

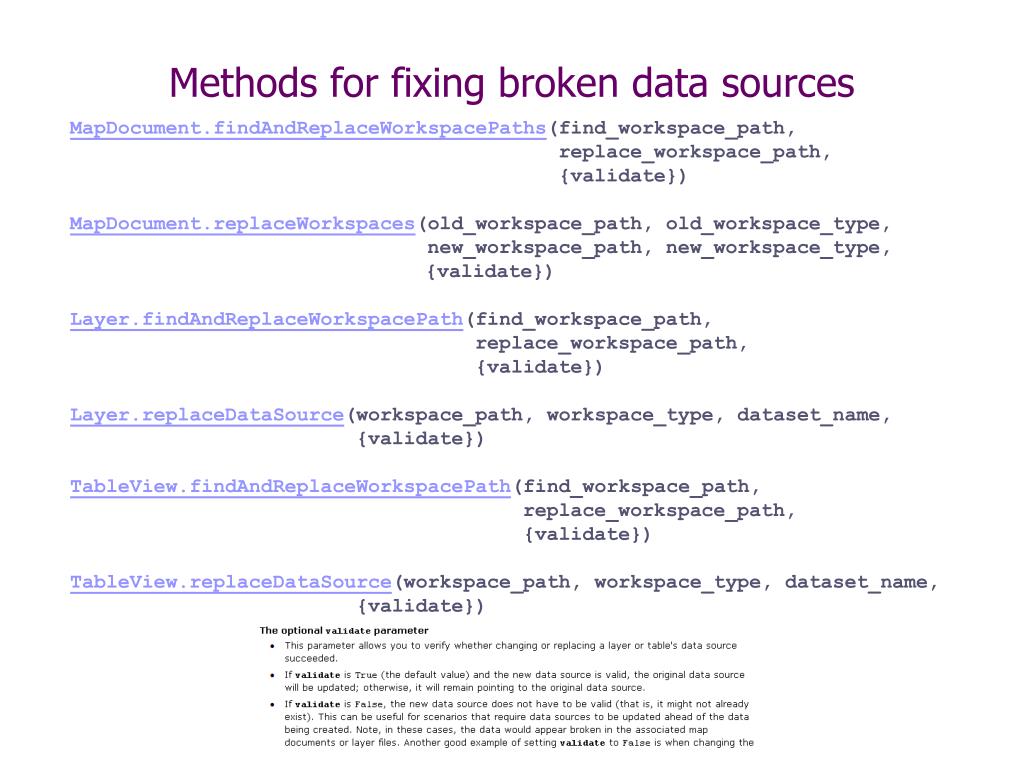

26. Methods for fixing broken data sources MapDocument.findAndReplaceWorkspacePaths(find_workspace_path, replace_workspace_path, {validate}) MapDocument.replaceWorkspaces(old_workspace_path, old_workspace_type, new_workspace_path, new_workspace_type, {validate}) Layer.findAndReplaceWorkspacePath(find_workspace_path, replace_workspace_path, {validate}) Layer.replaceDataSource(workspace_path, workspace_type, dataset_name, {validate}) TableView.findAndReplaceWorkspacePath(find_workspace_path, replace_workspace_path, {validate}) TableView.replaceDataSource(workspace_path, workspace_type, dataset_name, {validate})

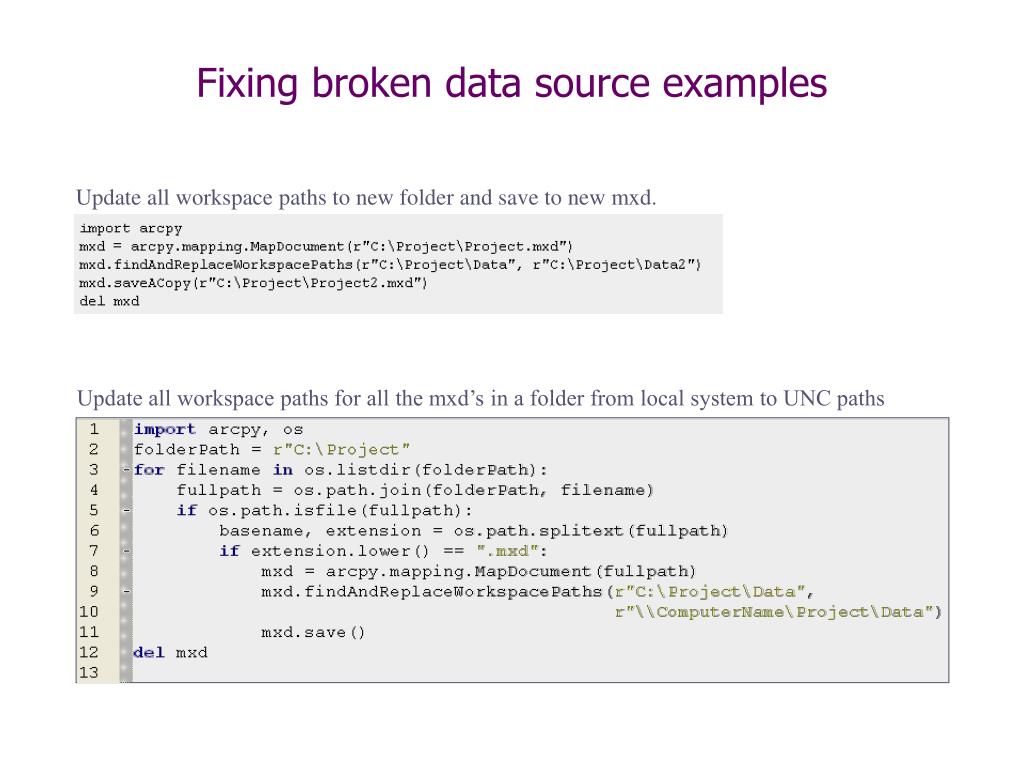

27. Fixing broken data source examples Update all workspace paths to new folder and save to new mxd. Update all workspace paths for all the mxd’s in a folder from local system to UNC paths

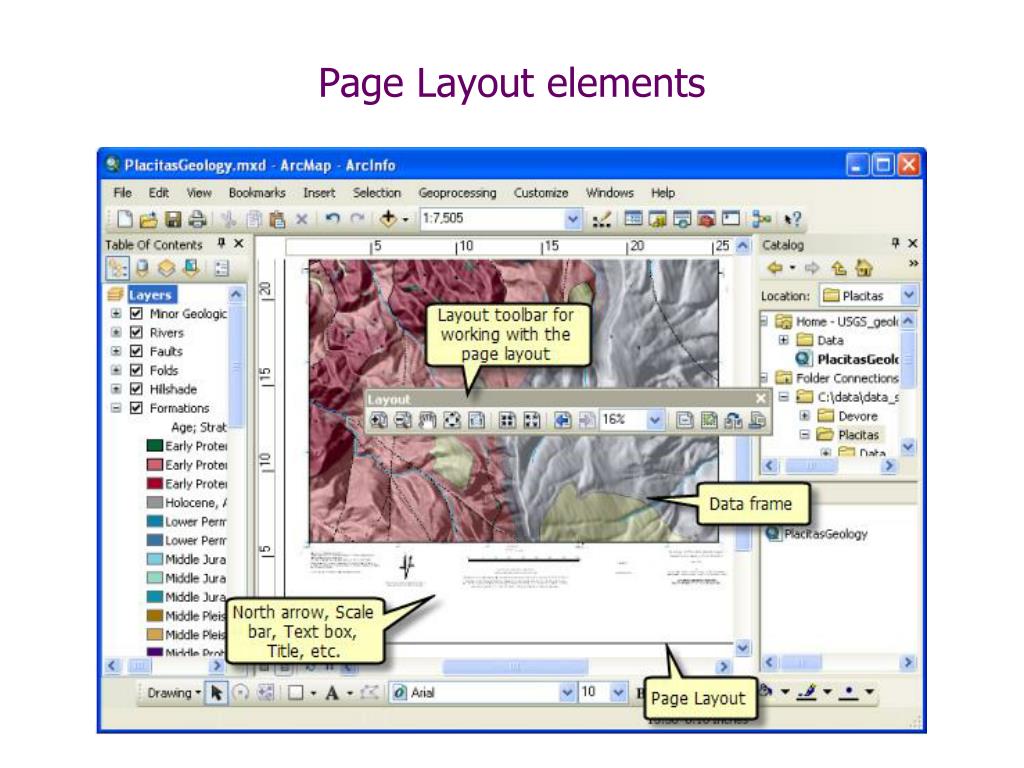

28. Page Layout elements

29. Getting Page Layout Elements

30. MapSurround Element

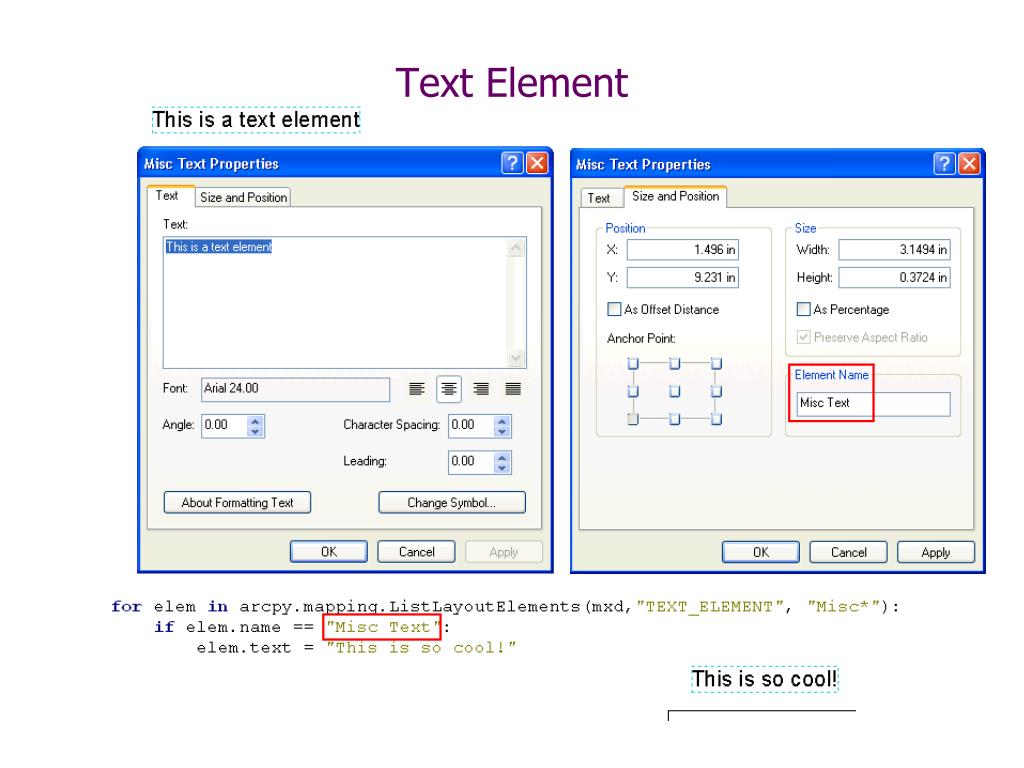

31. Text Element

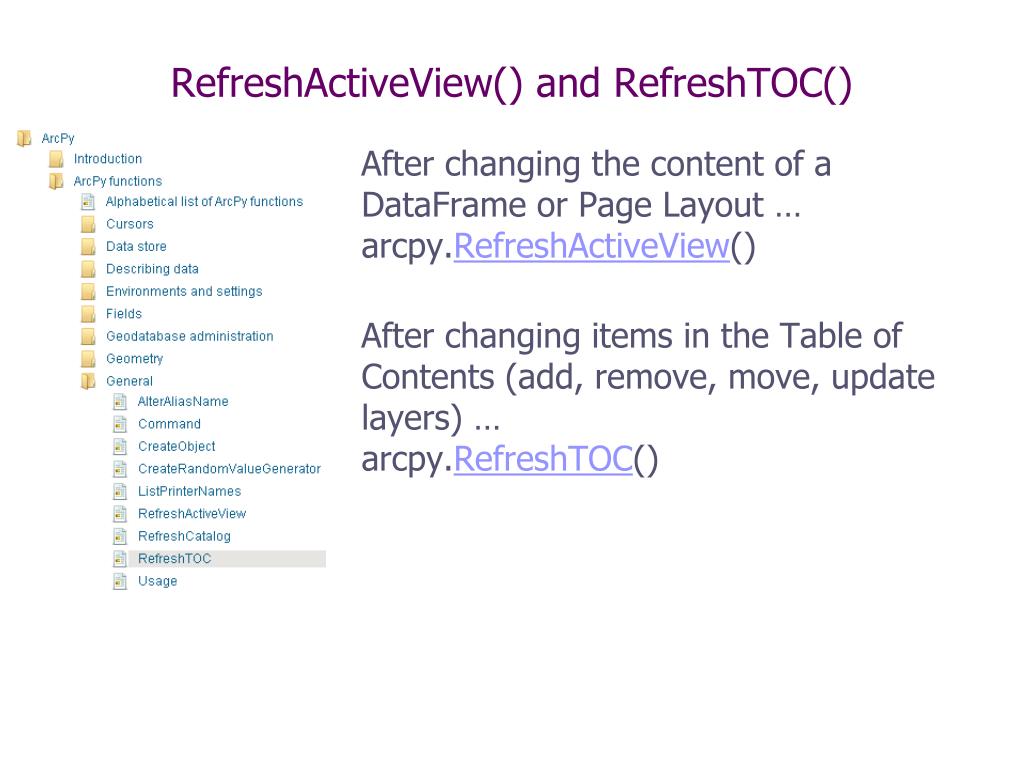

32. RefreshActiveView() and RefreshTOC() After changing the content of a DataFrame or Page Layout … arcpy.RefreshActiveView() After changing items in the Table of Contents (add, remove, move, update layers) …arcpy.RefreshTOC()

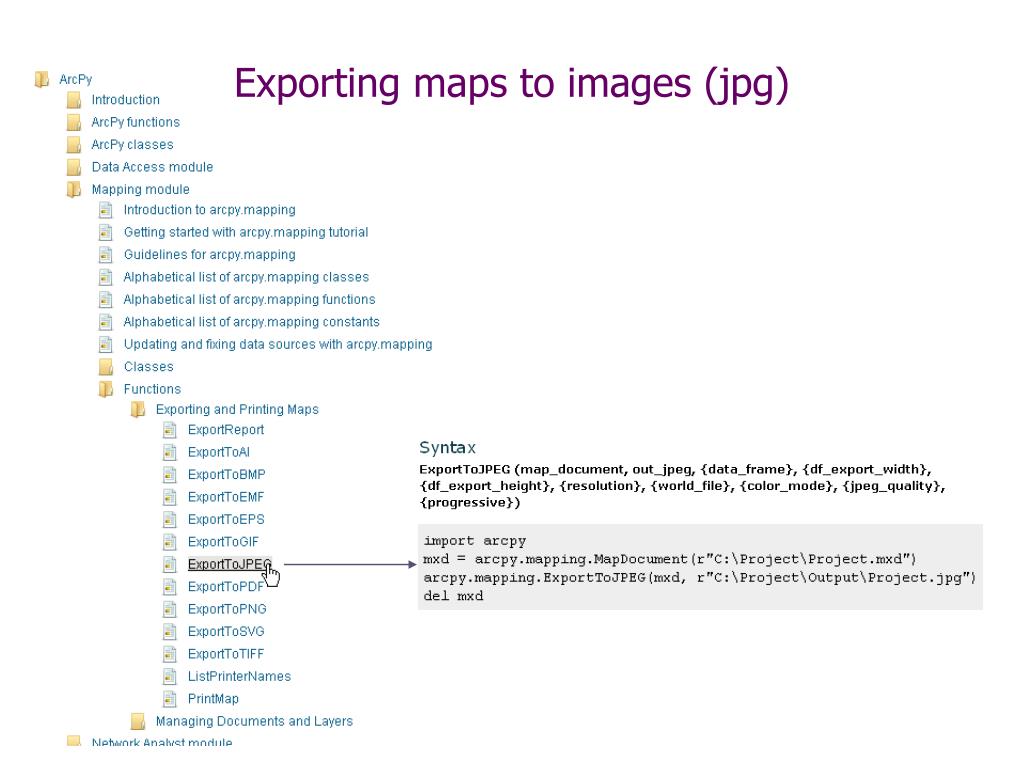

33. Exporting maps to images (jpg)

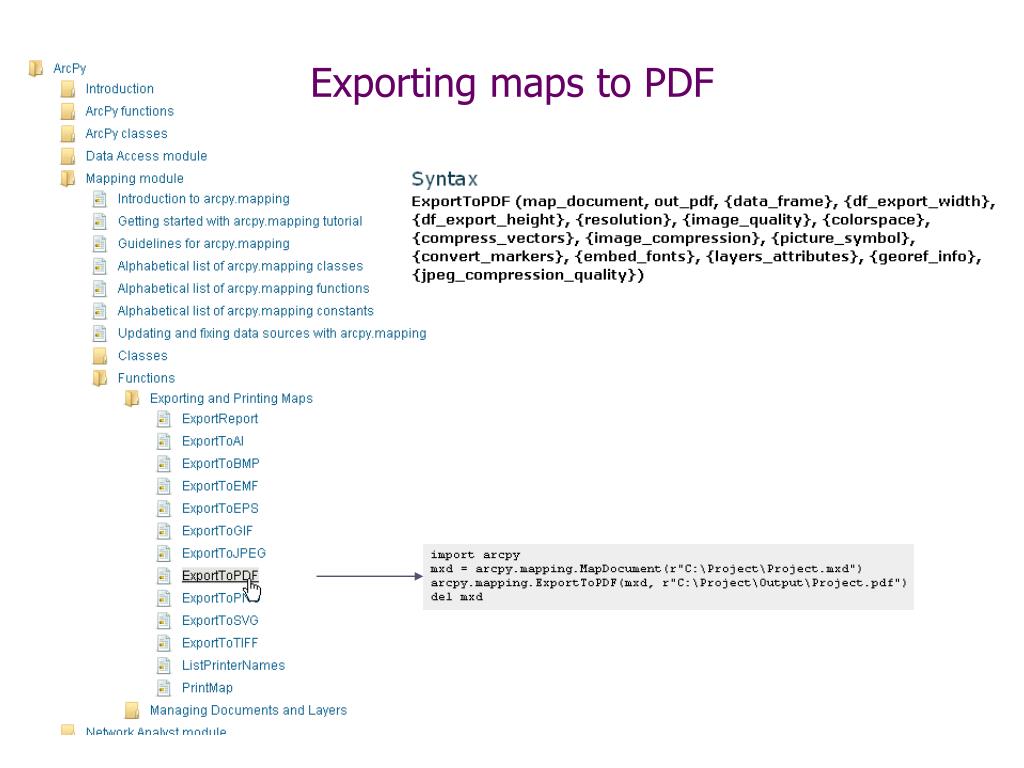

34. Exporting maps to PDF

35. PDFDocument’s

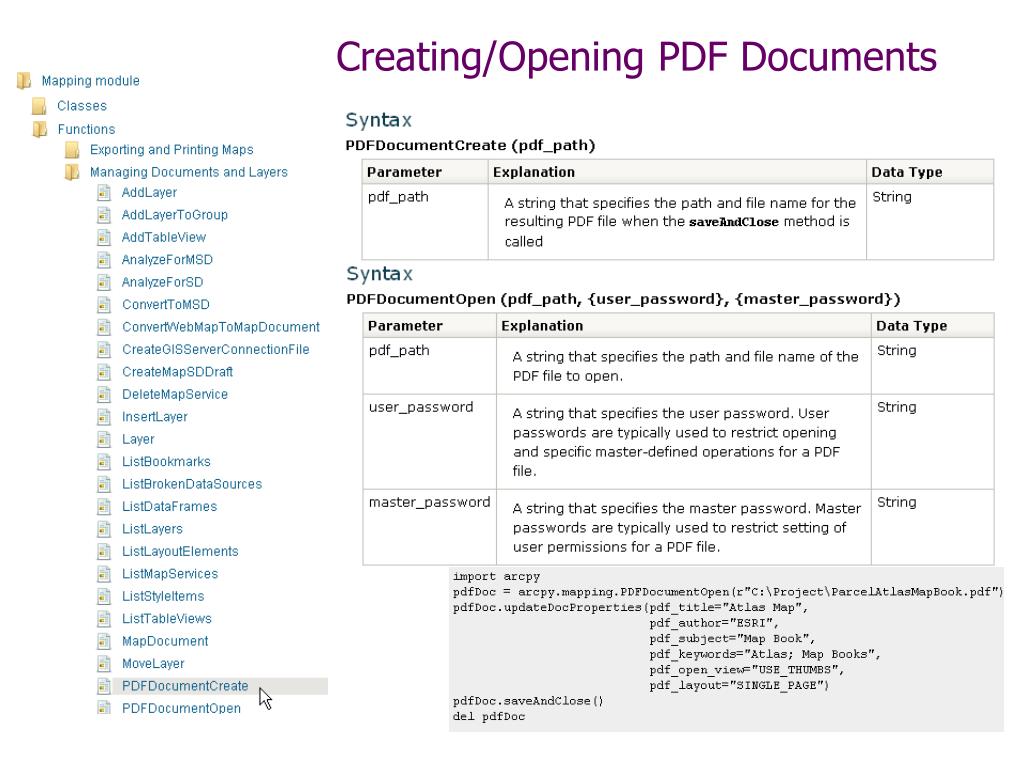

36. Creating/Opening PDF Documents

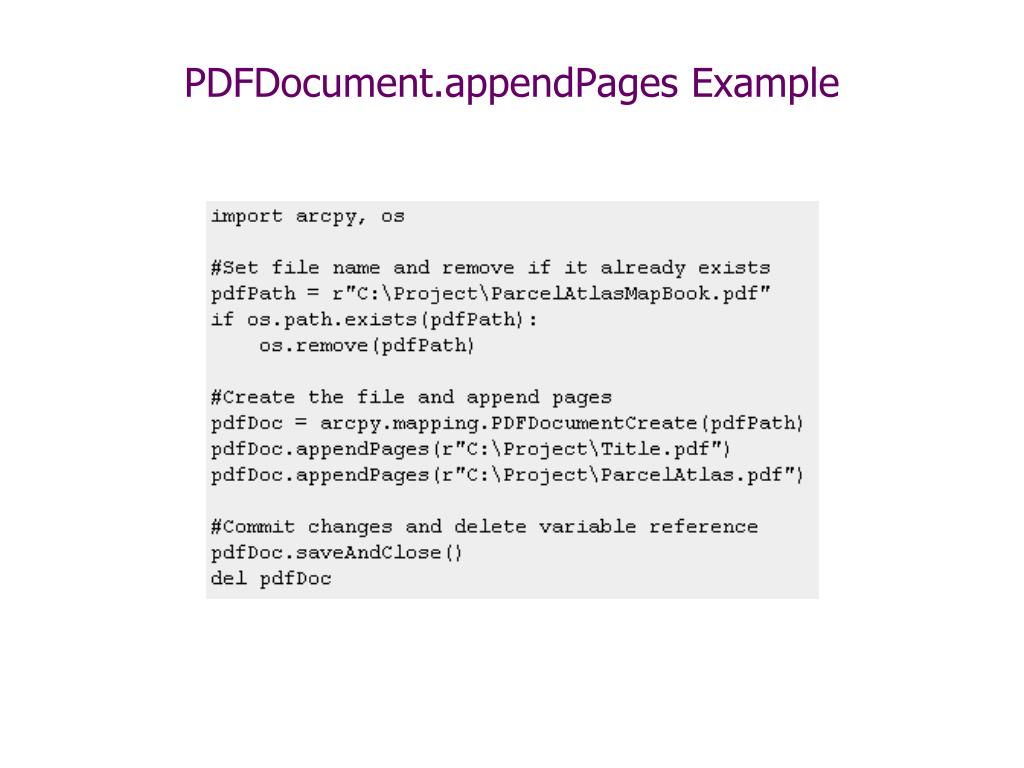

37. PDFDocument.appendPages Example

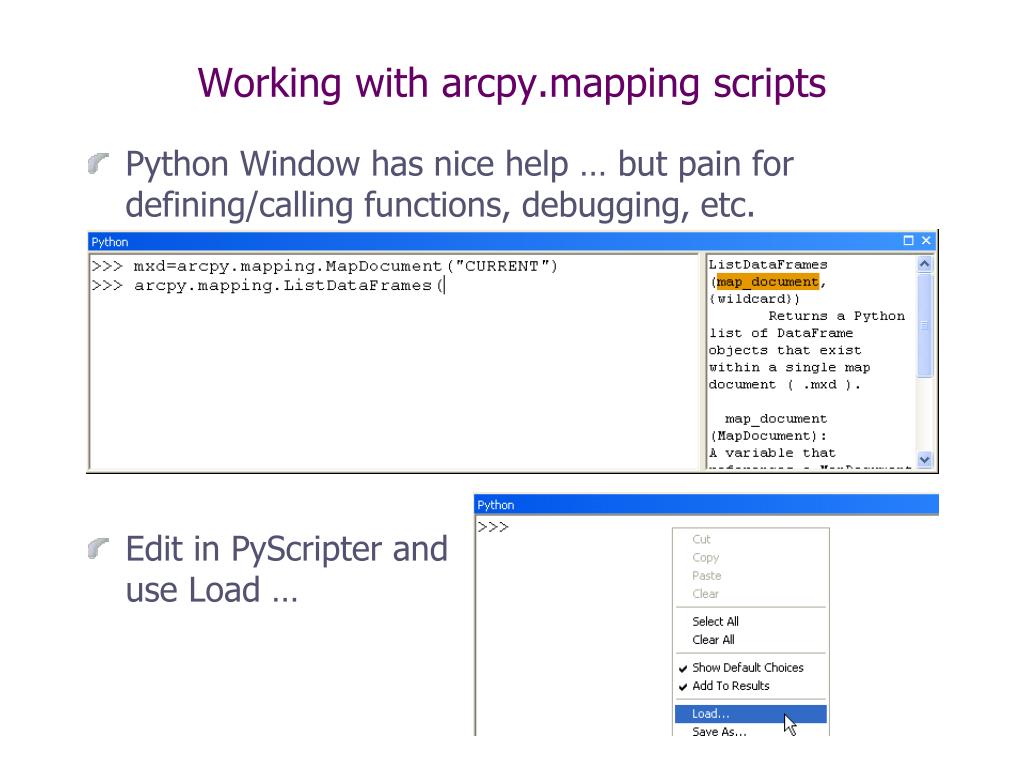

38. Working with arcpy.mapping scripts • Python Window has nice help … but pain for defining/calling functions, debugging, etc. • Edit in PyScripter and use Load …

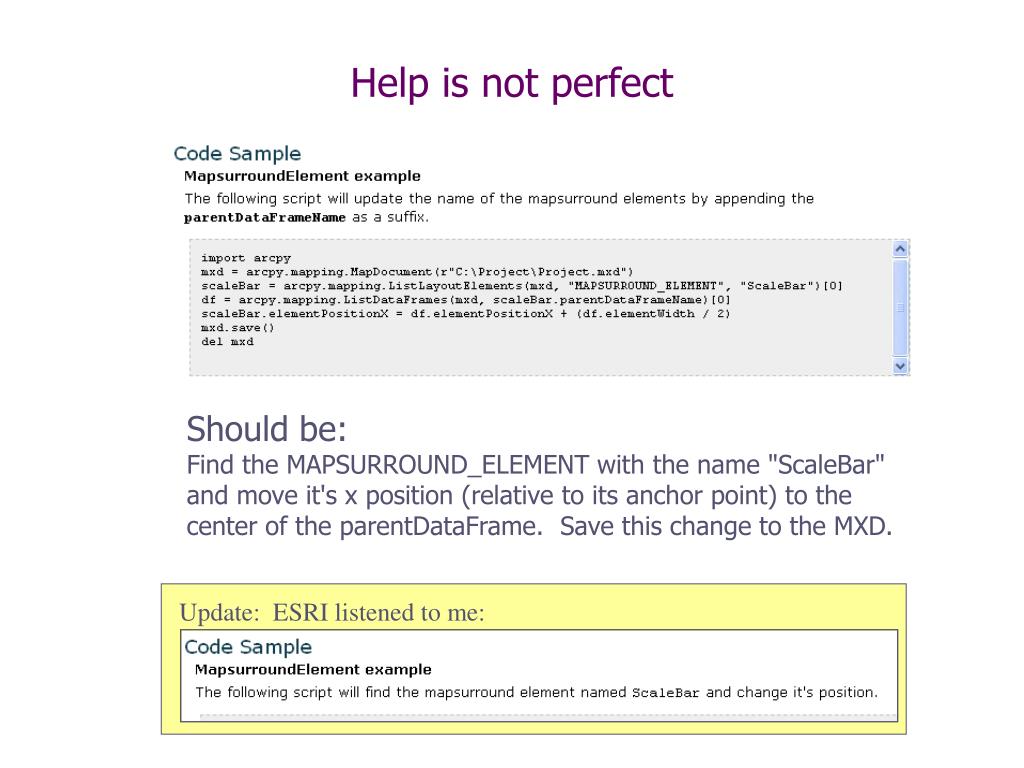

39. Help is not perfect Should be: Find the MAPSURROUND_ELEMENT with the name "ScaleBar" and move it's x position (relative to its anchor point) to the center of the parentDataFrame.  Save this change to the MXD. Update: ESRI listened to me:

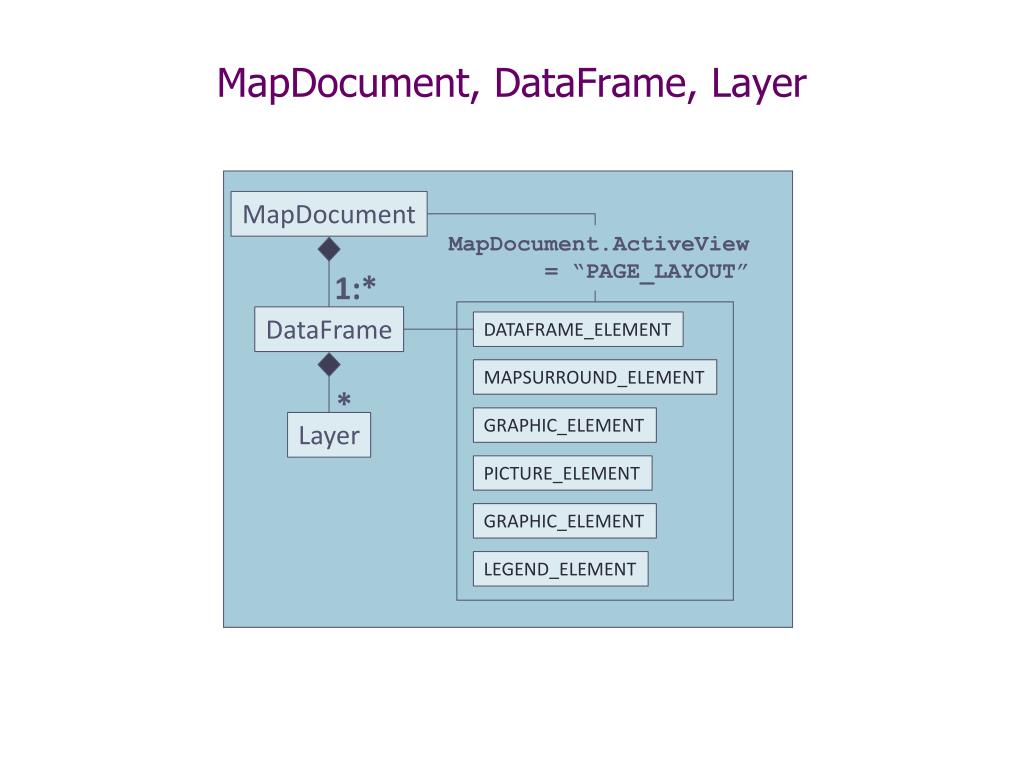

41. MapDocument, DataFrame, Layer MapDocument MapDocument.ActiveView = “PAGE_LAYOUT” 1:* DataFrame DATAFRAME_ELEMENT MAPSURROUND_ELEMENT * GRAPHIC_ELEMENT Layer PICTURE_ELEMENT GRAPHIC_ELEMENT LEGEND_ELEMENT
