Using indiana s local resolution nhd

Using Indiana’s Local Resolution NHD

What is Local Resolution NHD

David Nail, U.S. Geological Survey

Using NHD Data in the New Indiana Map

Lacey Duncan, IN Dept. of Natural Resources

Using NHD Feature Classes in ArcMap

Kelly Myers, IN Dept. of Transportation

Using an NHD Geodatabase in ArcMap

Mike Martin, IN Dept. of Natural Resources

Using HEM Tools, Events, and Routes with the NHD

Dave Knipe, IN Dept. of Natural Resources

Correcting the Data

Mike Martin, IN Dept. of Natural Resources

Q & A


Indiana s national hydrography data update program

Indiana’s National Hydrography Data Update Program

  • What is the National Hydrography Dataset?

    • Surface Water Layer – lakes, ponds, streams, rivers, ditches, dams, streamgages, feature names and more.


Indiana s national hydrography data update program1

Indiana’s National Hydrography Data Update Program

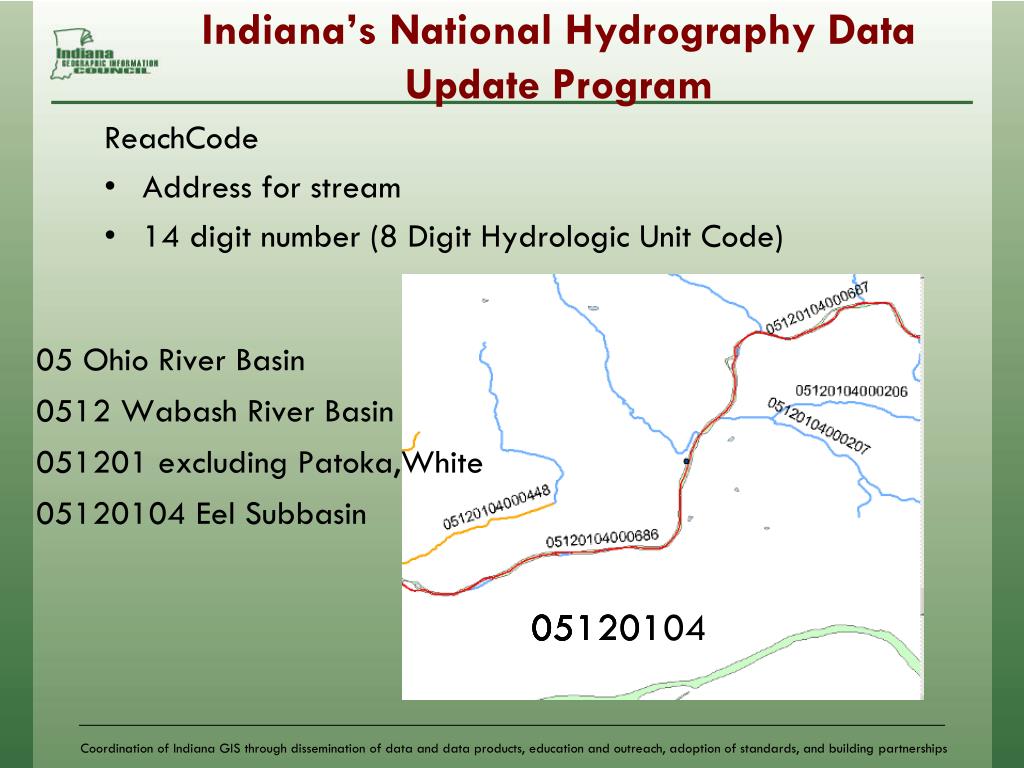

  • ReachCode

  • Address for stream

  • 14 digit number (8 Digit Hydrologic Unit Code)

05 Ohio River Basin

0512 Wabash River Basin

051201 excluding Patoka,White

05120104 Eel Subbasin

05

0512

051201

05120104


Indiana s national hydrography data update program2

Indiana’s National Hydrography Data Update Program

Flow Directions

Stream Classifications

intermittent

ephemeral

perennial


Indiana s national hydrography data update program3

Indiana’s National Hydrography Data Update Program

  • Feature Names

  • Geographic Names Information System


Indiana s national hydrography data update program4

Indiana’s National Hydrography Data Update Program

  • Reasons for Updating Indiana’s NHD

  • Improve geometry

  • Improve feature names


Indiana s national hydrography data update program5

Indiana’s National Hydrography Data Update Program

  • Reasons for Updating Indiana’s NHD

  • Increase Resolution

  • Increase Number of Drains

  • Reasons for Updating Indiana’s NHD

  • Increase Resolution

  • Increase Drainage

Iroquois - 07120002

24K

Local-Res


Indiana s national hydrography data update program6

Indiana’s National Hydrography Data Update Program

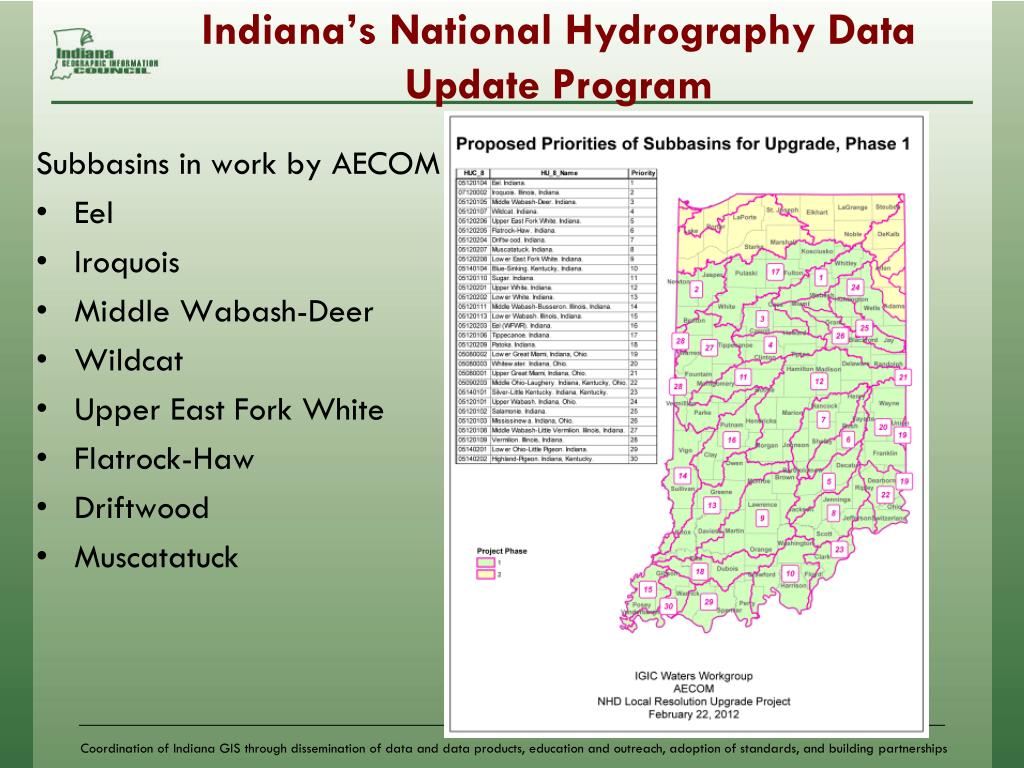

  • Subbasins in work by AECOM

  • Eel

  • Iroquois

  • Middle Wabash-Deer

  • Wildcat

  • Upper East Fork White

  • Flatrock-Haw

  • Driftwood

  • Muscatatuck


Indiana s national hydrography data update program7

Indiana’s National Hydrography Data Update Program

  • How can you help create a better Local-Resolution NHD?

  • By providing information about drainage features:

  • Does it have a name?

  • Is it perennial? Intermittent? Ephemeral?

  • Is it a stream or a ditch?

  • Which direction does it flow?

  • Is the geometry correct?

  • Does it flow underground?

  • Do you have stormwater data?


Maps indiana edu

maps.indiana.edu

Using the Indiana Map to view and download the National Hydrography Dataset


The new indiana map

The New Indiana MAP


Layers

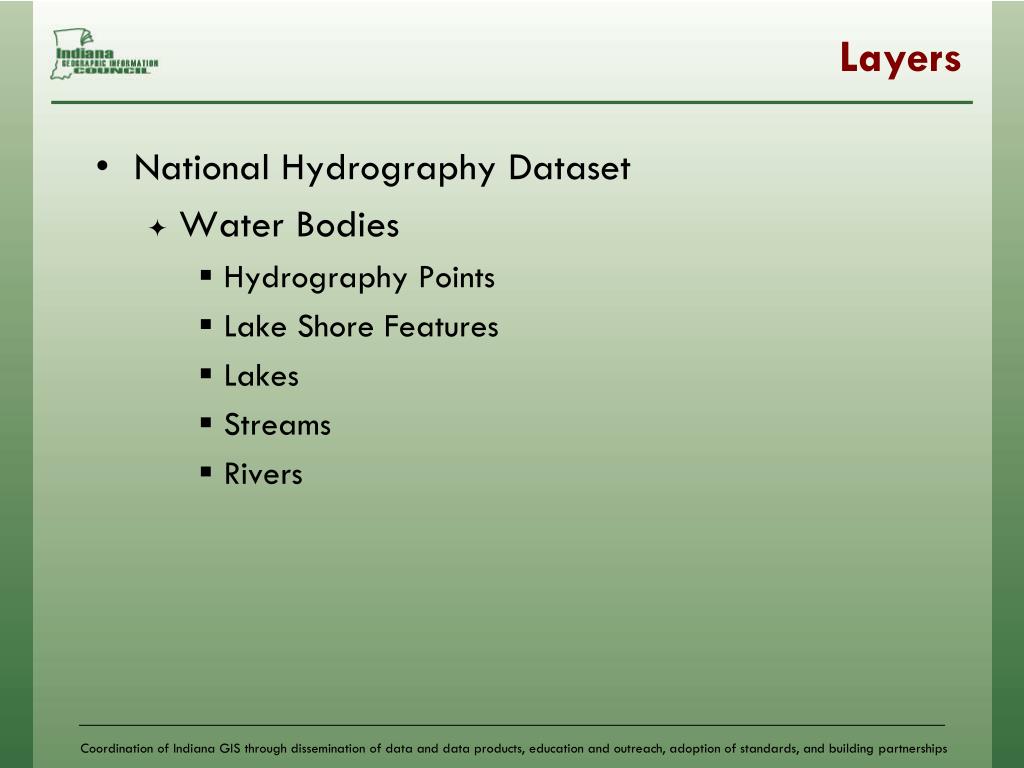

Layers

  • National Hydrography Dataset

  • Water Bodies

    • Hydrography Points

    • Lake Shore Features

    • Lakes

    • Streams

    • Rivers


Water bodies hydrography points

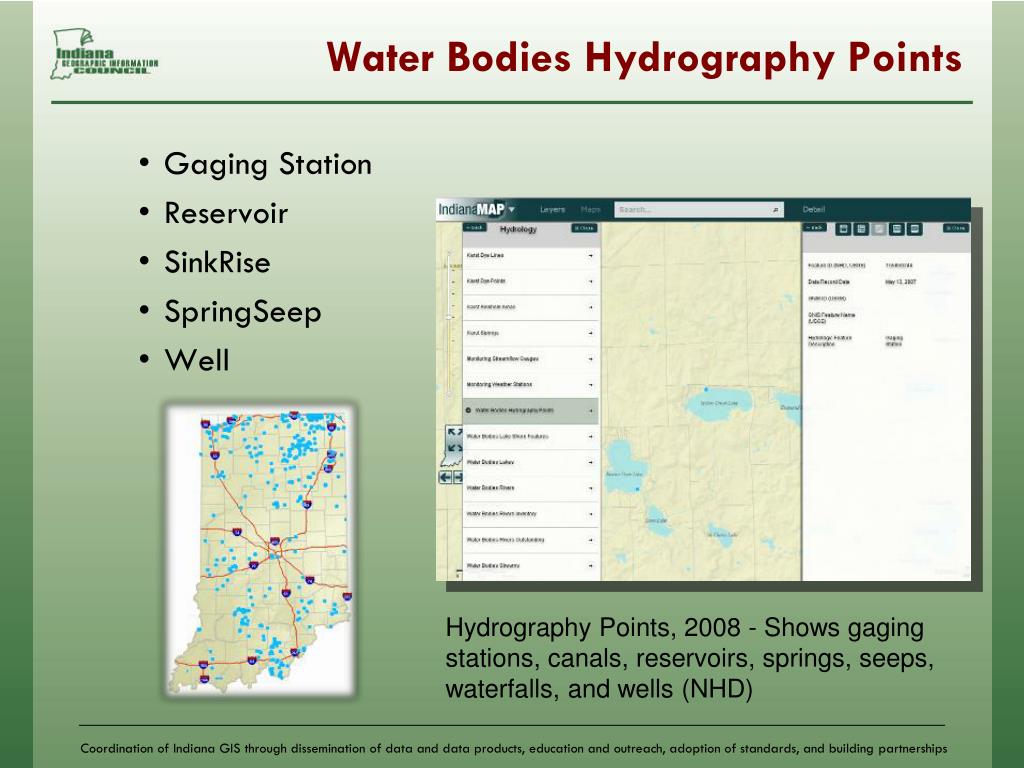

Water Bodies Hydrography Points

  • Gaging Station

  • Reservoir

  • SinkRise

  • SpringSeep

  • Well

Hydrography Points, 2008 - Shows gaging stations, canals, reservoirs, springs, seeps, waterfalls, and wells (NHD)


Lake shore features

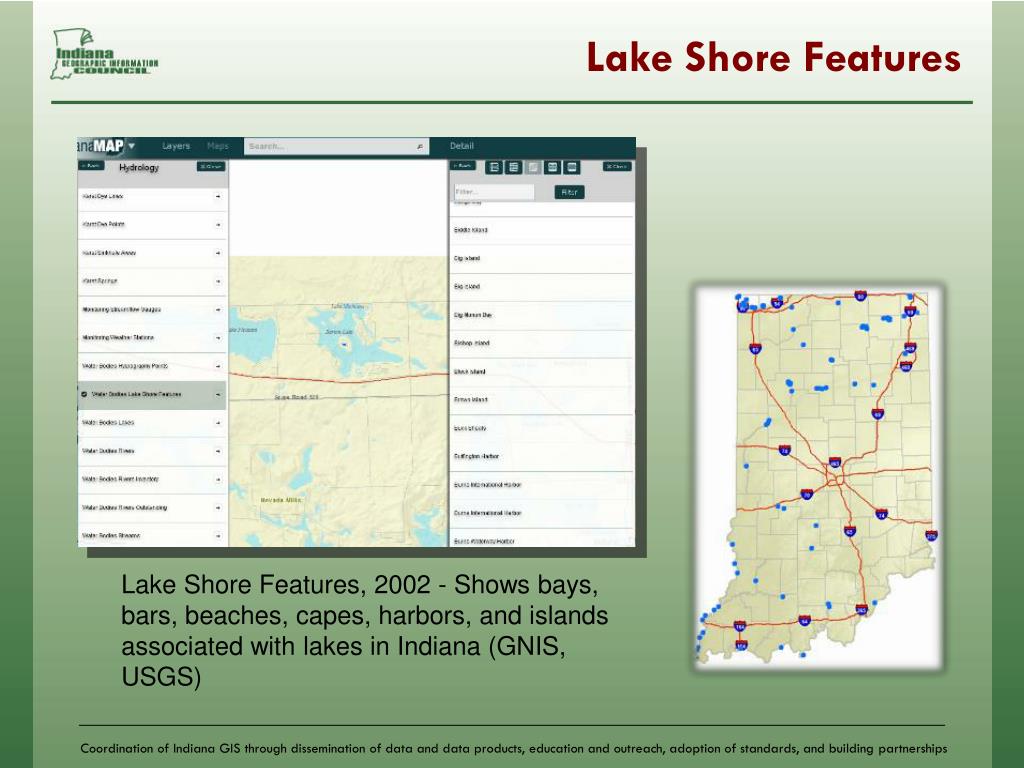

Lake Shore Features

Lake Shore Features, 2002 - Shows bays, bars, beaches, capes, harbors, and islands associated with lakes in Indiana (GNIS, USGS)


Lakes

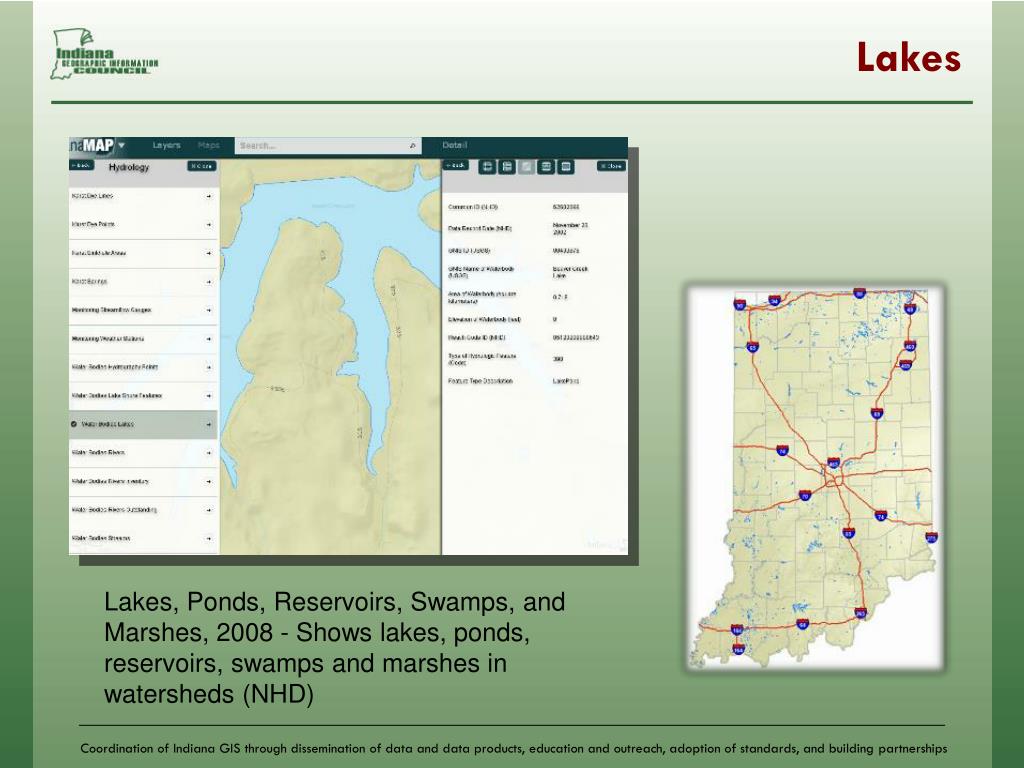

Lakes

Lakes, Ponds, Reservoirs, Swamps, and Marshes, 2008 - Shows lakes, ponds, reservoirs, swamps and marshes in watersheds (NHD)


Rivers streams

Rivers/Streams

Stream Features, 2002 - Shows the locations and attribute values of stream features extracted from the Geographic Names Information System (GNIS)

Streams, 2008 - Shows streams, rivers, canals, ditches, artificial paths, coastlines, connectors and pipelines in Indiana (NHD)


Rivers

Rivers


Legend

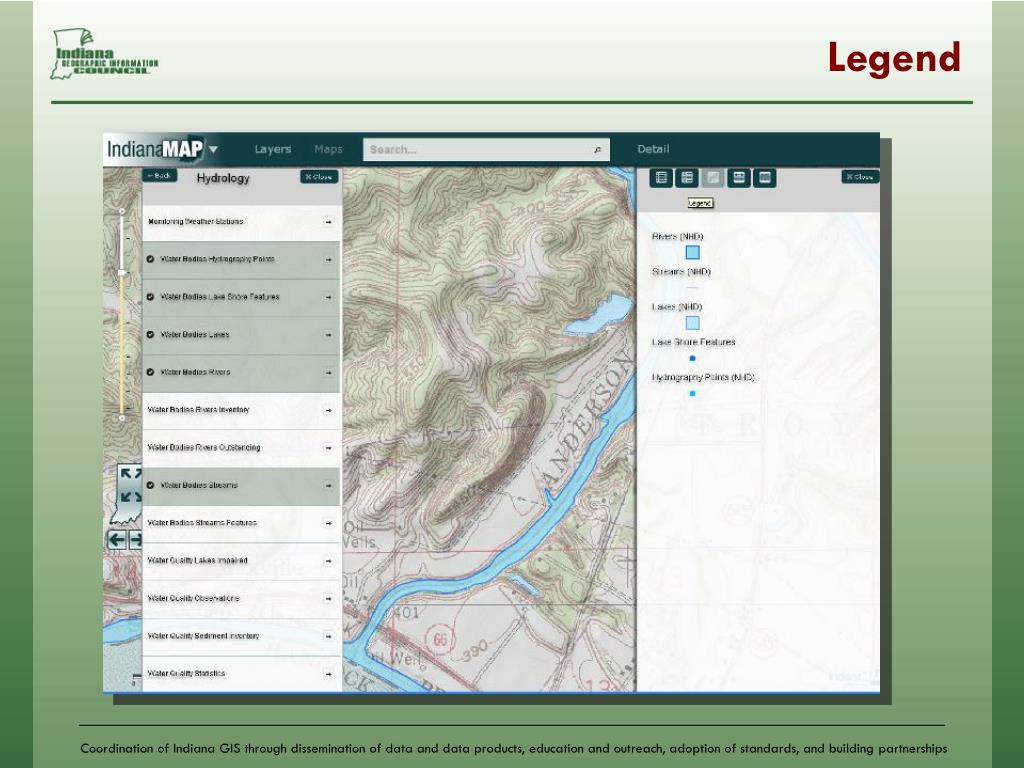

Legend


Layer gallery

Layer Gallery


Viewing options

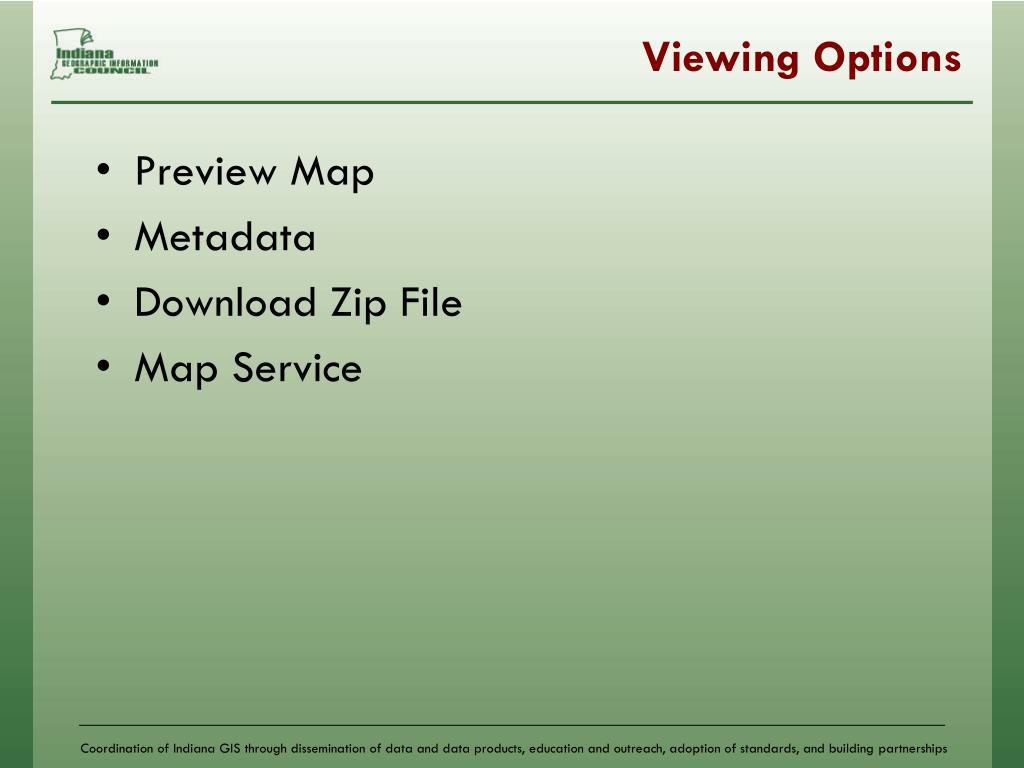

Viewing Options

  • Preview Map

  • Metadata

  • Download Zip File

  • Map Service


Mike martin

Mike Martin

Downloading and Using an NHD Geodatabase from USGS


Using indiana s local resolution nhd

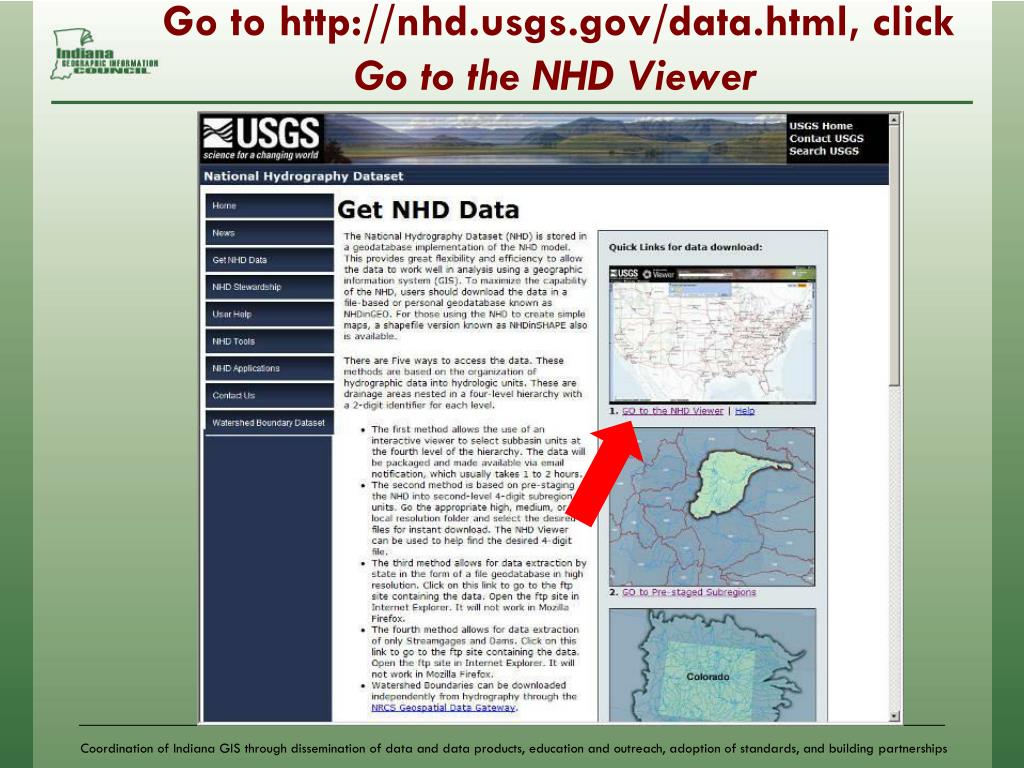

Go to http://nhd.usgs.gov/data.html, click Go to the NHD Viewer


Using indiana s local resolution nhd

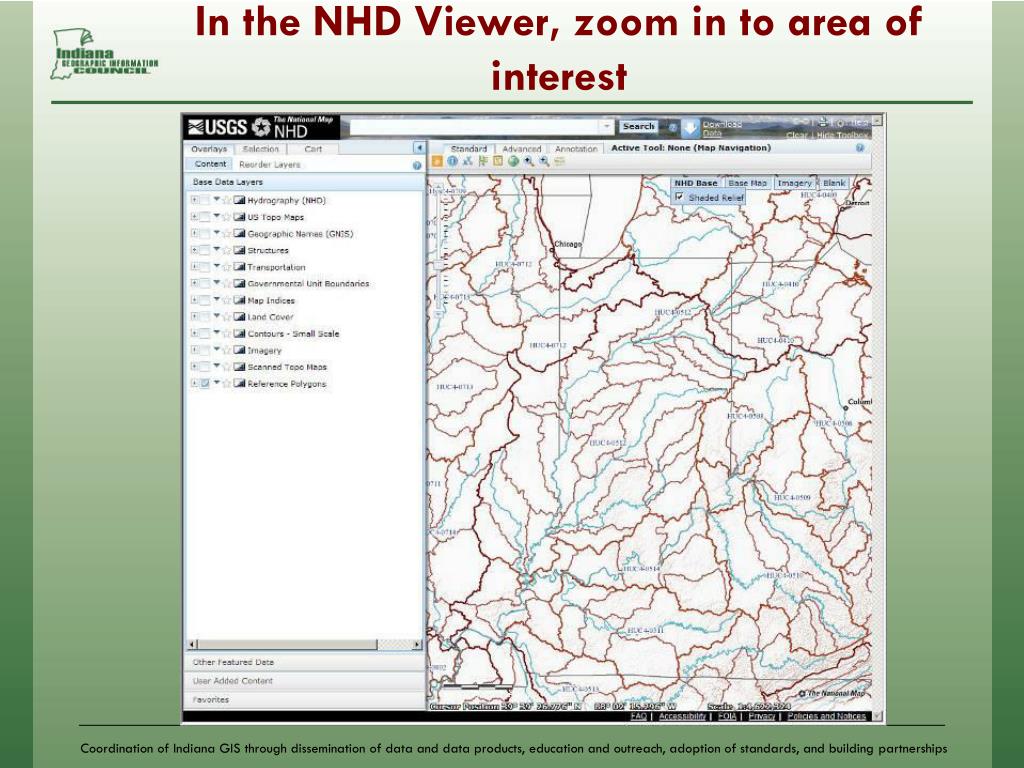

In the NHD Viewer, zoom in to area of interest


Using indiana s local resolution nhd

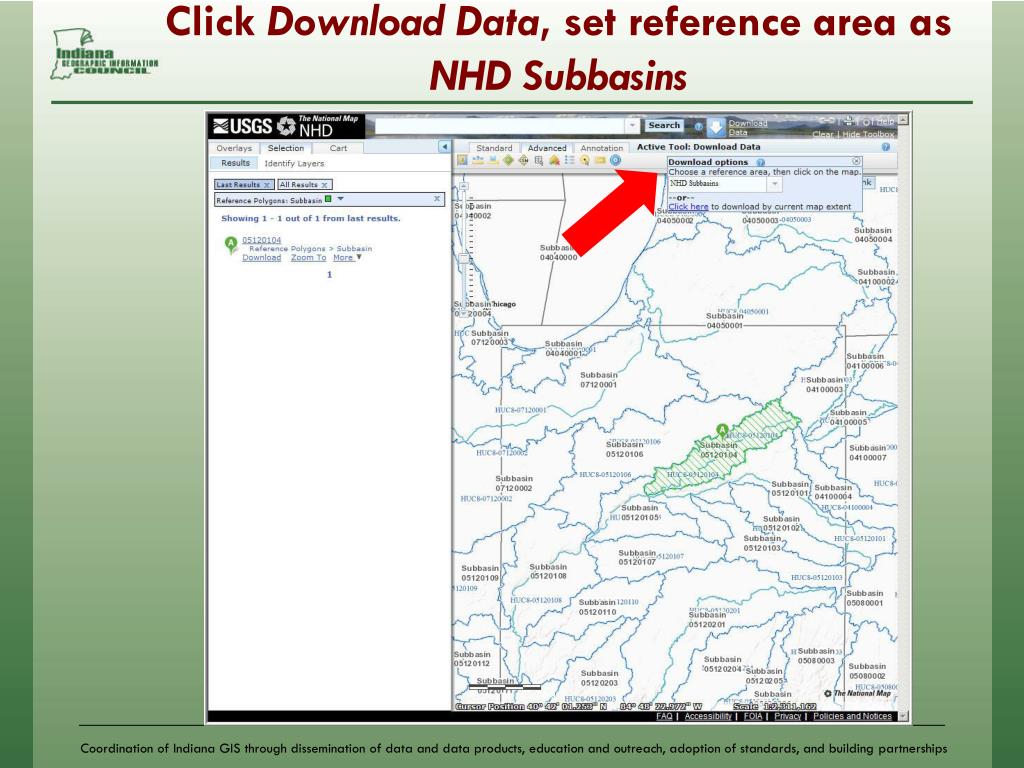

Click Download Data, set reference area as NHD Subbasins


Using indiana s local resolution nhd

Click on the Subbasin to select, then click Download


Using indiana s local resolution nhd

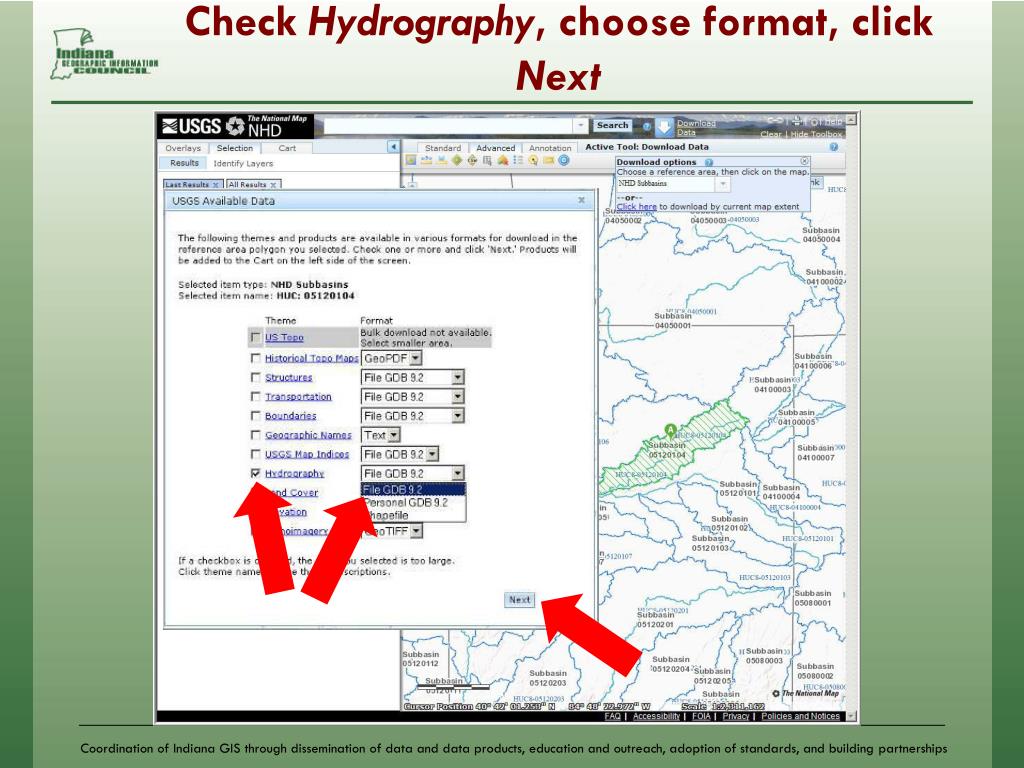

Check Hydrography, choose format, click Next


Using indiana s local resolution nhd

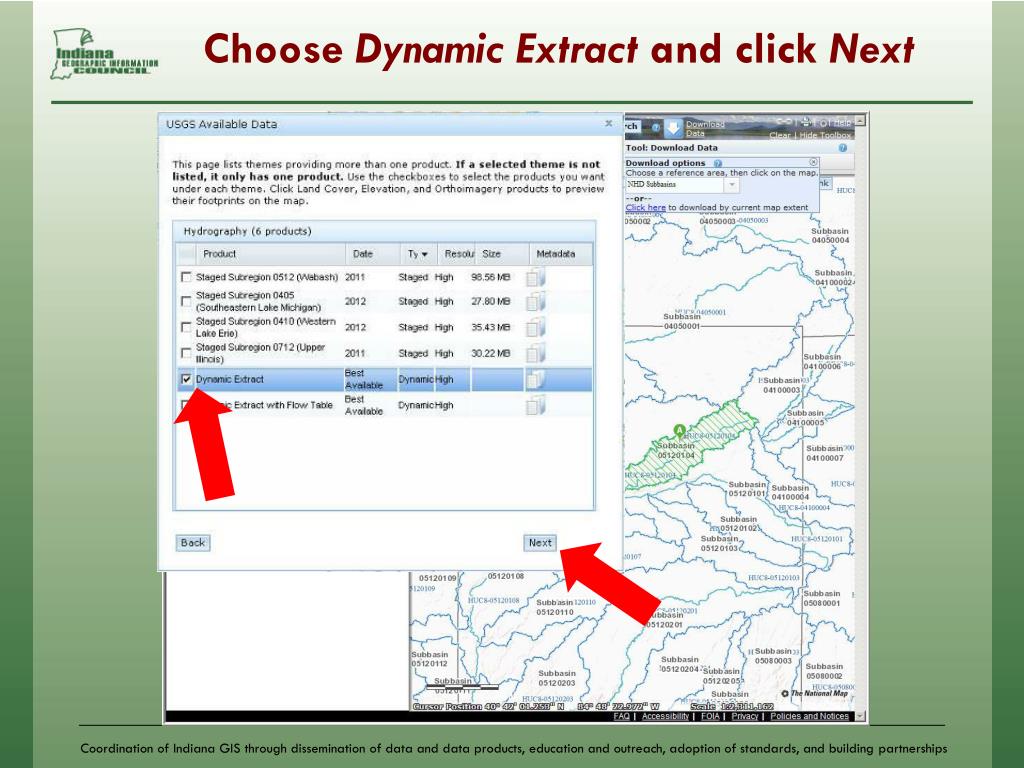

Choose Dynamic Extract and click Next


Using indiana s local resolution nhd

Click Checkout


Using indiana s local resolution nhd

Add email address and click Place Order


Using indiana s local resolution nhd

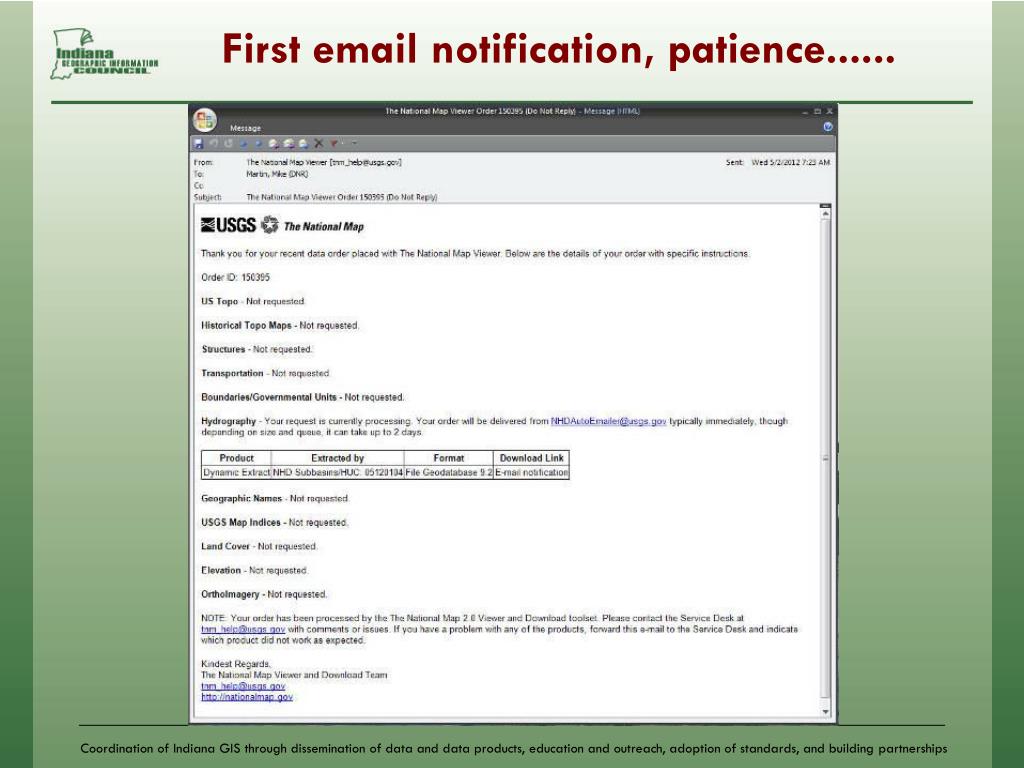

First email notification, patience......


Using indiana s local resolution nhd

Second email notification, click on Download Link, Save file


Using indiana s local resolution nhd

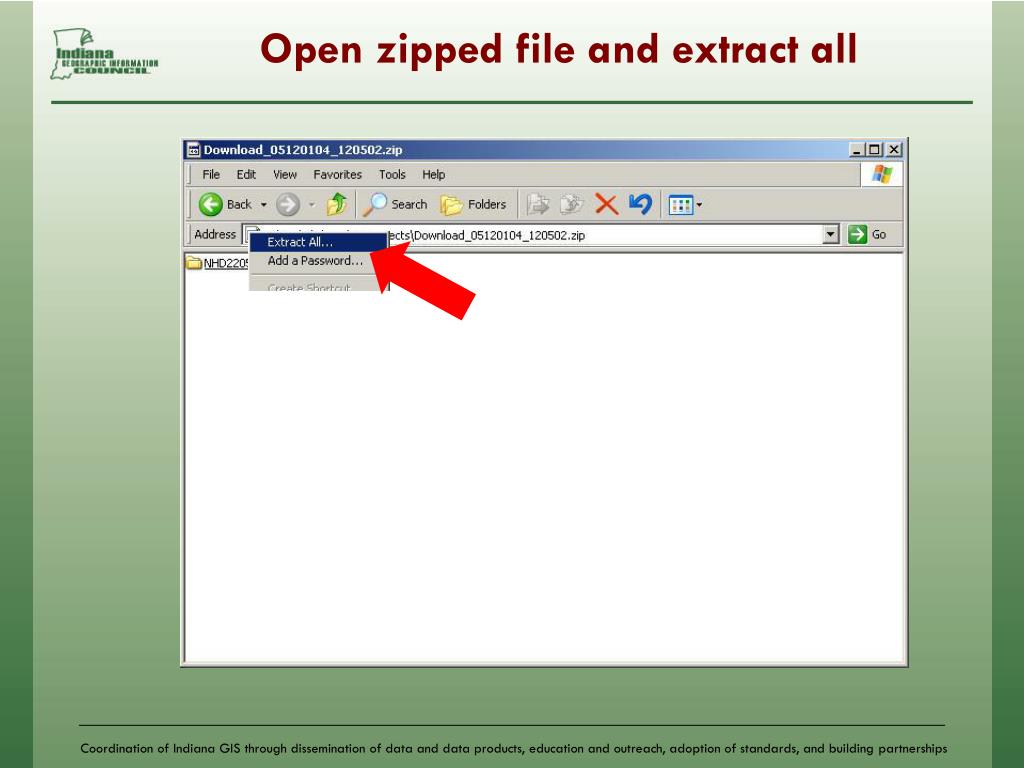

Open zipped file and extract all


Using indiana s local resolution nhd

Open zipped file and extract all


Using indiana s local resolution nhd

In ArcMap, open Catalog and open the extracted geodatabase


Using indiana s local resolution nhd

Drag the entire Hydrography Dataset to the Table of Contents


Drainage area comparison

Drainage Area Comparison

Hoggatt (1965)* NHD (2012)*

  • Blue River at Mouth (Whitley County)80.6 80.1

  • Pony Creek at Mouth (Wabash County)32.733.7

  • Paw Paw Creek at Mouth (Miami County)54.956.0

  • Twelvemile Creek at Mouth (Cass County)53.154.4

  • Eel River at Mouth815820.2

    *Drainage areas in Square Miles
